Mars Hydro Adlite-RED55 54W Deep Red Bar | 660nm Targeted Spectrum

Precision Control in Any Space.

Every operator running a flowering cycle under a fixed full-spectrum fixture is accepting a silent compromise: the primary light was engineered for a balanced output profile, not for the deep red saturation that drives late-stage flowering response. When that saturation is absent or inconsistent — because your primary fixture's red channel is diluted across a broad spectrum, because you're running manual timers that drift, or because your supplemental bars are tied to the same schedule as your main light with no independent control — the canopy responds with uneven development, extended cycle times, and batch-to-batch variance that compounds across every run. The enemy is not equipment failure. It is the structural gap between what your primary fixture delivers and what your canopy actually requires at each stage, and the absence of any mechanism to close that gap without adding heat, complexity, or capital expenditure.

After deployment, the operational picture changes in a specific and measurable way. The 660nm channel runs on its own schedule — synchronized to the primary fixture's 12-hour photoperiod but independently managed — so deep red saturation is present exactly when the canopy requires it and absent when it does not. There are no lamp replacement cycles, no ballast degradation curves to track, and no thermal penalty from the supplemental layer. The bars mount directly into the FC/FCE bracket system or at custom positions across the canopy, so photon distribution is a positioning decision, not a hardware constraint. Two iTime smart timers manage the entire four-channel ADlite set, which means the control architecture scales without adding controller hardware per bar.

The mechanism behind this outcome is a two-bar passive-cooling architecture drawing 27W per bar at 660nm — the deep red wavelength with the highest chlorophyll-a absorption efficiency in the Qy band. Each bar operates independently with its own power connection, enabling positional flexibility across the canopy without daisy-chain dependency. The full ADlite-RED55 set draws 54W total and is rated for pairing with primary fixtures over 500W, positioning it as a precision augmentation layer rather than a standalone source. Scheduling is handled by the included iTime 2-in-1 Smart Timer, with optional iHub integration for remote control across multi-room deployments. In practical terms, the Adlite-RED55 delivers 54W of 660nm targeted photon output across two independently mounted bar fixtures, managed by two iTime smart timers, with zero active cooling components in the thermal path.

Where This Belongs (and Doesn't)

Electrical installation, circuit load calculations, and HVAC integration should be reviewed by a licensed electrician or facility engineer before deployment. The Adlite-RED55 is a supplemental fixture and must be connected to circuits rated for its load in combination with all co-located equipment.

How It Works

The Adlite-RED55 operates on a single-wavelength output architecture centered at 660nm — the deep red band that aligns with the chlorophyll-a Qy absorption peak and drives photosynthetic efficiency during the reproductive phase. Unlike broad-spectrum bars that distribute wattage across multiple wavelength bands, each Adlite-RED55 bar concentrates its full 27W draw into the 660nm channel, maximizing photon delivery per watt at the wavelength with the highest biological relevance for flowering response. Passive cooling eliminates fan noise, moving parts, and the thermal management overhead that active-cooling supplemental bars introduce into a controlled environment.

Each bar carries its own independent power connection, which means positional deployment is not constrained by daisy-chain topology. Bars can be mounted at custom positions across the canopy, embedded directly into Mars Hydro FC or FCE fixtures using the manufacturer's bracket system, or distributed asymmetrically to address specific canopy zones where deep red saturation is deficient. The iTime 2-in-1 Smart Timer included in the full ADlite kit manages scheduling independently from the primary fixture controller — the recommended protocol is to match the primary fixture's photoperiod, typically 12 hours ON / 12 hours OFF, ensuring deep red supplementation runs in full synchronization with the active flowering window. For facilities already operating on iHub infrastructure, the Adlite-RED55 integrates into the existing control network without additional hardware. In practical terms, the Adlite-RED55 delivers 54W of 660nm photon output across two passively cooled, independently powered bar fixtures, with iTime-based scheduling that operates independently of the primary fixture control channel.

Commercial Assurance

System Integration

• Primary Fixture Compatibility: Designed for pairing with Mars Hydro FC and FCE series fixtures rated over 500W; bracket mounting system enables embedded installation within the primary fixture frame.

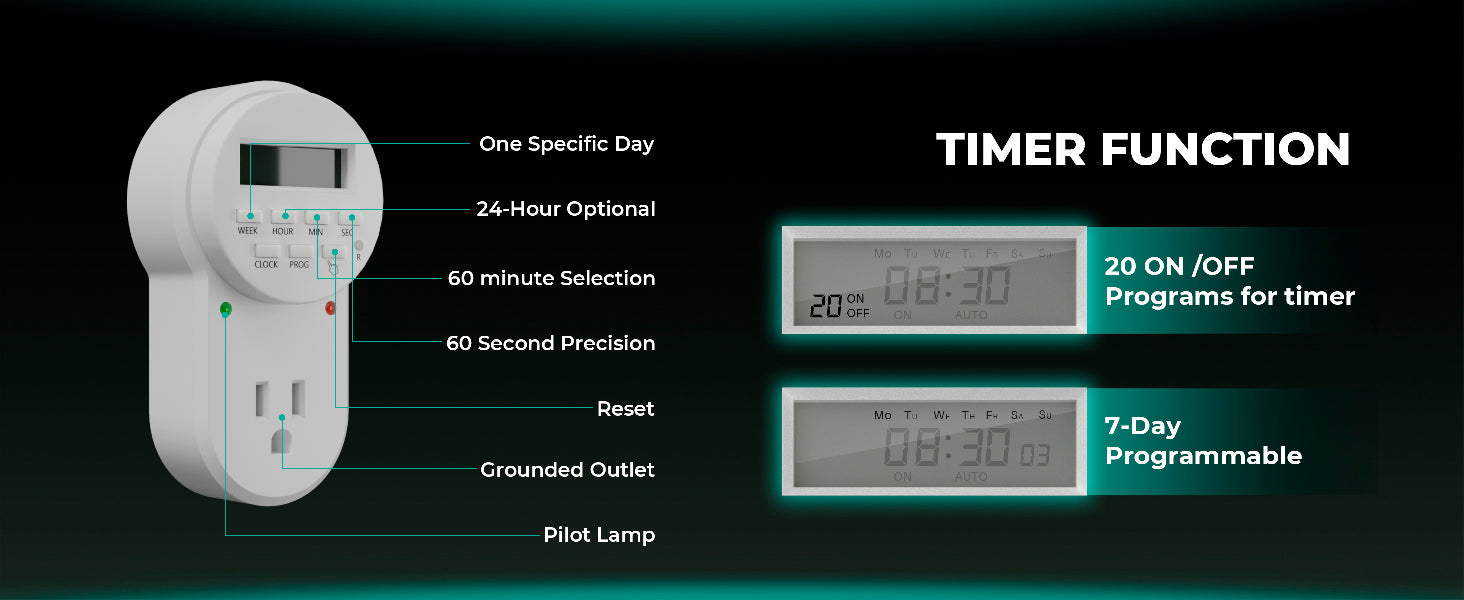

• Control Architecture: Each Adlite-RED55 bar carries an independent power connection; scheduling is managed via the Mars Hydro iTime 2-in-1 Smart Timer or iHub Pro for remote multi-room control.

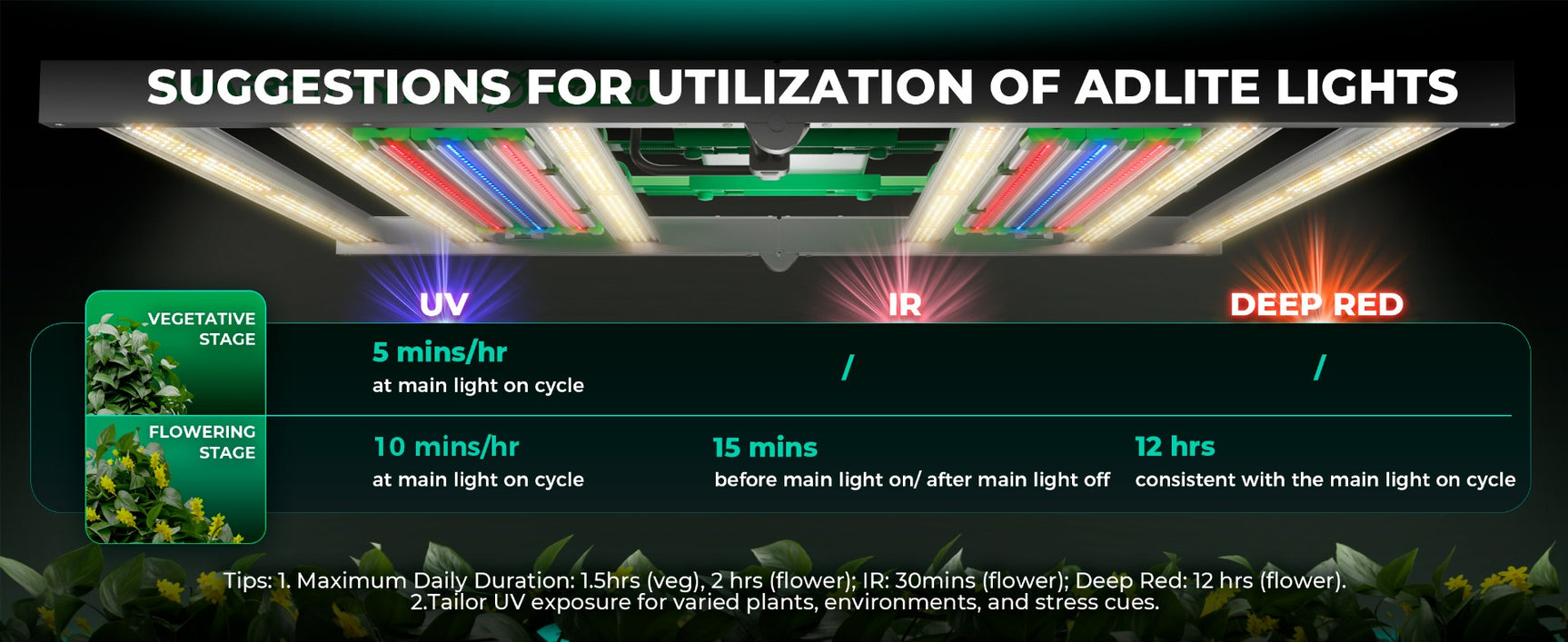

• Recommended Schedule: Match the primary fixture photoperiod — typically 12 hours ON / 12 hours OFF — to ensure deep red supplementation runs across the full active flowering window.
• Scalable Deployment: Two iTime timers manage the complete four-channel ADlite set (UV + IR + Red + Blue), meaning the control overhead does not scale linearly with bar count.

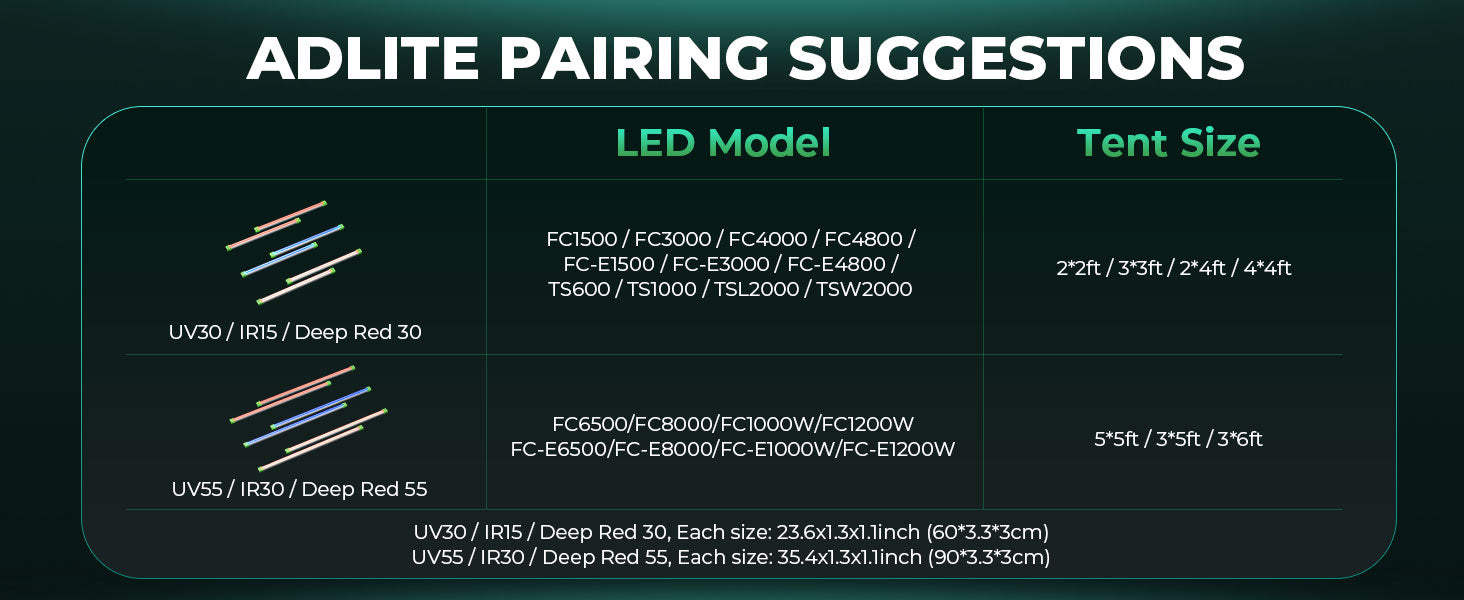

• Full ADlite Ecosystem: The Adlite-RED55 is one of four spectral channels in the ADlite system; UV55 (365-370nm), IR30 (730-745nm), and Blue55 (440nm) bars are available separately or as a bundled Smart Control Kit (SKU: ADLITE-UR5530+ADLITE-RB55+2pcs-MH-iTime) at $254.97.

Facility Integration Data

The following table models electrical load and procurement cost across representative fleet deployments of the Adlite-RED55 (54W per set, $95.99 MAP per set) to support facility-level planning decisions.

Operator Field Notes

• Schedule synchronization is non-negotiable: The Adlite-RED55 is designed to match the primary fixture's 12-hour ON / 12-hour OFF photoperiod. Running it on a mismatched schedule introduces unintended dark-period light exposure that can disrupt flowering response in photoperiod-sensitive cultivars.
• Independent power connections enable asymmetric deployment: Because each bar has its own plug, you are not constrained to symmetric placement. Bars can be positioned to address specific canopy zones with deficient deep red coverage without affecting the other bar's position or output.
• Bracket mounting changes the geometry of your primary fixture: When embedded into FC/FCE fixtures using the manufacturer bracket system, the Adlite-RED55 bars become part of the primary fixture's photon distribution profile. Verify canopy PPFD uniformity after installation, as the combined output will differ from the primary fixture's standalone map.
• Two iTime timers manage the full four-channel ADlite set: If you are running the complete UV + IR + Red + Blue configuration, you do not need one timer per bar. Two iTime units handle the full set, which matters for control panel space and wiring overhead in multi-room deployments.
• Passive cooling means no airflow dependency: The Adlite-RED55 generates no forced-air thermal output. In tightly managed VPD environments, this is operationally significant — the supplemental layer does not introduce localized air movement that would require compensation in your climate control model.
• Pairing threshold is 500W primary: The manufacturer specifies this bar set for use alongside primary fixtures over 500W. Below that threshold, the spectral augmentation ratio shifts unfavorably and the deep red contribution may exceed the balanced spectrum baseline in ways that are difficult to compensate for.

Operator FAQ

Shipping and Logistics

• Shipping Coverage: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders over $49 qualify for free standard shipping.
• Fulfillment: The Adlite-RED55 is in stock and available for immediate fulfillment. Estimated transit times vary by destination; contact Cannafull Spectrum Solutions for lead time confirmation on large-volume orders.
• Returns: Returns are accepted subject to the Cannafull Spectrum Solutions return policy. Defective units are handled under the Mars Hydro manufacturer warranty process. Contact support before initiating any return.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions before ordering? Contact Cannafull Spectrum Solutions directly — pre-sales technical support is available for deployment configuration and compatibility questions.

What's in the Box

• 2x ADlite Deep Red 55 bar fixtures (660nm, 27W per bar)
• Independent power connection per bar (each bar plugs independently)

Note: The iTime 2-in-1 Smart Timer is not included with the standalone Adlite-RED55 (SKU: ADLITE-RD55). It is included in the full ADlite Smart Control Kit (SKU: ADLITE-UR5530+ADLITE-RB55+2pcs-MH-iTime). Mounting hardware and bracket components for FC/FCE integration are not confirmed as included in this SKU — verify with Cannafull Spectrum Solutions before ordering if bracket mounting is required. Contents confirmed from available manufacturer source data only; packaging accessories not specified in source data are not listed.

Regional Compliance and Deployment Notes

• The Adlite-RED55 is sold and shipped within the contiguous 48 United States only through Cannafull Spectrum Solutions. No shipments to Alaska, Hawaii, U.S. territories, or international destinations.
• Operators are responsible for verifying that supplemental lighting equipment complies with applicable state cannabis cultivation facility regulations, electrical codes, and licensing conditions in their jurisdiction prior to installation.
• Electrical installation must comply with the National Electrical Code (NEC) and any applicable state or local amendments. Circuit load calculations should account for the combined draw of the Adlite-RED55 (54W total) and all co-located primary and supplemental fixtures on the same circuit.
• This product is intended for use in licensed commercial cultivation environments. Operators in states with specific equipment certification requirements should confirm applicable standards with their licensing authority before deployment.
• Cannafull Spectrum Solutions does not ship to Canadian provinces and does not provide Health Canada compliance documentation. This product listing contains no CSA certification claims.

Compliance requirements vary by state and jurisdiction. The information provided here is for general reference only and does not constitute legal or regulatory advice. Operators are solely responsible for ensuring their facilities and equipment meet all applicable local, state, and federal requirements. Cannafull Spectrum Solutions assumes no liability for regulatory non-compliance resulting from equipment deployment.
