AC Infinity Duct Carbon Filter XL | Australian Charcoal | Extra Large | 6-Inch

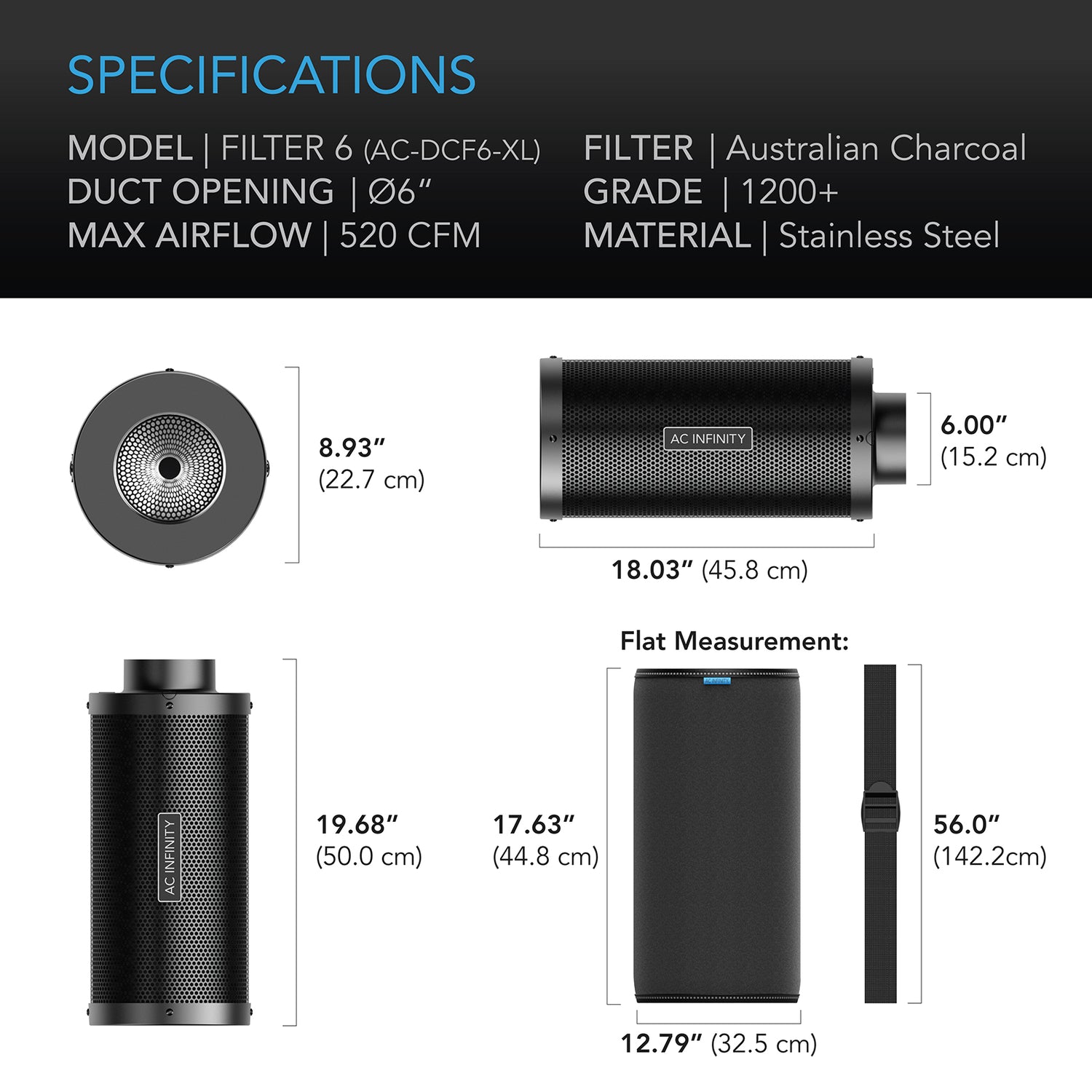

Quick Spec: 6" duct opening | 19.68 x 8.93 in. (50.0 x 22.7 cm) | 520 CFM max airflow | 38 mm carbon bed | RC412 1200+ IAV Australian Charcoal | Corrosion-resistant aluminum frame | Reusable prefilter cloth | SKU: AC-DCF6-XL | UPC: 819137023017

Atmospheric Control Starts With the Carbon Bed

Uncontrolled odor migration is not a nuisance — it is a compliance exposure and a signal that your atmospheric control ecosystem has a gap. When a carbon filter is undersized for the duct velocity it is paired with, or when the carbon grade is insufficient for the chemical load passing through it, the filter becomes a liability rather than an asset. Saturation happens silently. There is no alarm, no indicator light, no automated alert — just a gradual degradation of scrubbing efficiency that compounds over weeks until the problem is no longer containable. Operators running inadequate filtration are not managing odor; they are managing the consequences of not managing odor.

After deploying a properly matched, facility-grade carbon filter, the atmospheric profile of the space stabilizes. Air moving through the exhaust circuit exits clean. Intake air arrives scrubbed. Compliance risk tied to odor migration drops to a manageable baseline. Maintenance intervals lengthen because the carbon bed is not being overwhelmed by a mismatch between airflow demand and filter capacity. The facility runs quieter, cleaner, and with fewer unscheduled interventions — and the operator's attention shifts from reactive odor management back to production variables that actually drive yield quality.

The AC Infinity Duct Carbon Filter 6" XL achieves this outcome through a specific combination of carbon grade, bed geometry, and structural construction. The activated carbon charge is RC412 Australian Virgin charcoal rated at 1200+ IAV — a high-adsorption-rate material that captures odor compounds and airborne chemicals at the molecular level rather than masking them. The carbon bed measures 38 mm in depth, providing the contact time and surface area required for complete scrubbing at the filter's rated throughput. The filter body measures 19.68 x 8.93 in. (50.0 x 22.7 cm) with a 6" duct opening and a 1.46 in. (3.7 cm) aluminum flange, and the dual-layer aluminum mesh construction ensures complete air passthrough with minimal static pressure restriction. A reusable double prefilter cloth wraps the exterior, blocking particulate matter before it reaches the carbon bed and extending carbon service life by up to 33%. In practical terms, the AC Infinity Duct Carbon Filter 6" XL delivers complete odor and chemical scrubbing at up to 520 CFM through a 6" inline duct circuit with a corrosion-resistant aluminum frame rated for sustained high-humidity environments.

Where This Belongs (and Doesn't)

This filter is a passive inline scrubbing component. It does not generate airflow — it must be paired with a compatible inline duct fan sized to the 6" duct opening and the CFM demand of the circuit. Electrical and HVAC integration should be performed by a qualified technician in accordance with applicable facility codes.

How It Works

Air enters the filter body through the exterior reusable prefilter cloth, which captures larger particulate matter — dust, debris, and biological material — before that load reaches the activated carbon bed. This two-stage entry sequence is the mechanism behind the documented 33% lifespan extension: by blocking coarse particles at the cloth layer, the carbon surface area is preserved for the molecular-level adsorption work it is designed to perform. The double prefilter configuration means both sides of the filter body are protected, not just the primary intake face.

Once past the prefilter, air passes through the aluminum mesh layer and into the 38 mm RC412 Australian charcoal bed. RC412 is a virgin-grade activated carbon sourced from Australia and rated at 1200+ IAV (Iodine Adsorption Value) — a standardized measure of adsorption capacity that quantifies how many milligrams of iodine one gram of carbon can adsorb. A rating above 1200 IAV places this carbon in the high-performance classification, capable of capturing terpene compounds, volatile organic chemicals, and odor-generating molecules at the throughput rates demanded by active inline duct systems. The 38 mm bed depth provides sufficient dwell time for complete molecular capture at the filter's rated 520 CFM maximum airflow.

The structural frame is corrosion-resistant aluminum throughout — flanges, mesh, and body — making it dimensionally stable and chemically resistant in the high-humidity environments typical of controlled-environment production. The 6" duct opening accepts standard inline fan connections, and the 1.46 in. (3.7 cm) aluminum flanges are fitted with integrated steel hanging hooks that clip directly into rope hangers for overhead suspension from facility support beams. Nylon straps are included for additional securing options. In practical terms, the AC Infinity Duct Carbon Filter 6" XL processes up to 520 CFM through a 38 mm RC412 1200+ IAV Australian charcoal bed housed in a 19.68 x 8.93 in. corrosion-resistant aluminum body with integrated suspension hardware for facility-grade inline deployment.

System Integration

• Inline Fan Pairing: Connect directly to any 6" inline duct fan; size the fan to the CFM demand of the circuit, not to exceed the filter's 520 CFM maximum airflow rating to maintain scrubbing efficiency

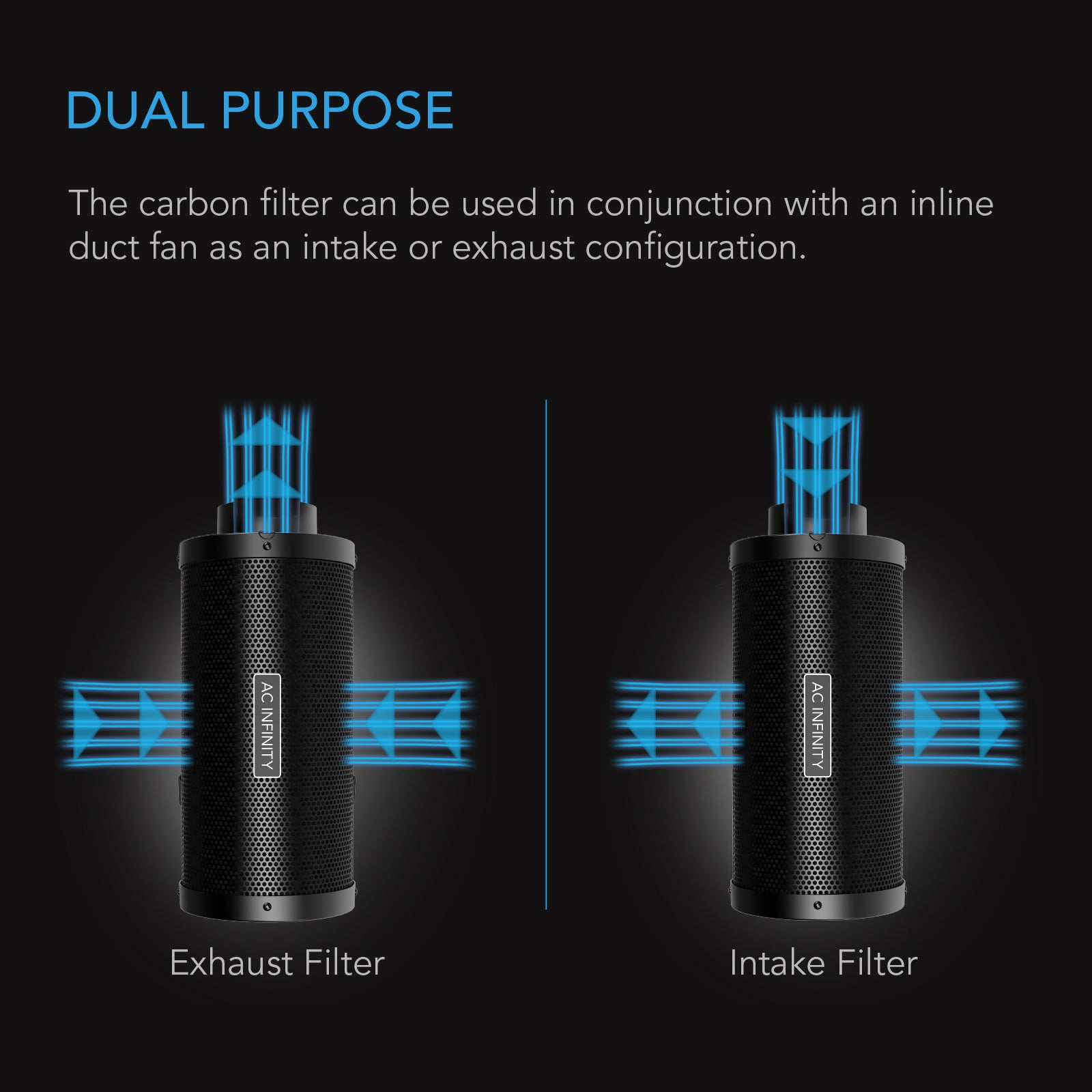

• Exhaust Configuration: Mount at the exhaust terminus of the duct run to scrub outgoing air before it exits the facility envelope — primary odor control and compliance protection
• Intake Configuration: Position on the intake duct run to pre-scrub incoming air, delivering cleaner, odor-neutral air into the production environment
• Suspension Integration: Steel hooks on the aluminum flanges clip directly into standard rope hangers, allowing the filter to be suspended from overhead structural beams without additional mounting hardware
• Prefilter Maintenance: The reusable cloth prefilter can be removed, cleaned, and reinstalled — reducing consumable cost and extending the service interval of the carbon bed itself

Operator Field Notes

• Carbon Saturation Is Silent: RC412 at 1200+ IAV provides high adsorption capacity, but all carbon beds have a finite service life — establish a replacement schedule based on airflow volume and chemical load rather than waiting for odor breakthrough to signal saturation
• Prefilter Cleaning Interval: The reusable cloth prefilter should be inspected and cleaned on a regular schedule; a clogged prefilter increases static pressure drop across the filter body and reduces effective CFM through the carbon bed
• Humidity Positioning: The corrosion-resistant aluminum frame is rated for high-humidity environments, but sustained direct moisture contact with the carbon bed will accelerate saturation — position the filter in the airstream, not in a condensation zone
• Suspension Load: Steel hanging hooks on the flanges are designed for rope hanger integration; verify that the overhead support structure is rated for the combined weight of the filter and the inline fan before suspending the assembly
• Duct Sizing Discipline: The 6" duct opening is fixed — do not attempt to adapt this filter to a mismatched duct diameter with reducers if doing so will create a pressure restriction that forces the paired fan to operate outside its rated curve
• Dual-Configuration Staging: When running both intake and exhaust carbon filtration in the same atmospheric control ecosystem, treat each filter as an independent unit with its own airflow budget and replacement schedule — do not assume symmetrical wear rates between intake and exhaust positions

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be fulfilled.
• Fulfillment: Orders are processed and shipped from authorized distribution. Tracking information is provided upon shipment confirmation. Delivery timelines vary by destination and carrier availability.
• Returns: Returns are accepted subject to the Cannafull Spectrum Solutions Return Policy. Items must be in original, uninstalled condition with original packaging to qualify for return consideration. Contact the Cannafull Spectrum Solutions support team to initiate a return authorization before shipping any unit back.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For order support, volume procurement inquiries, or pre-shipment technical questions, contact Cannafull Spectrum Solutions directly through the store contact page.

What's in the Box

• 1x AC Infinity Duct Carbon Filter 6" XL — SKU: AC-DCF6-XL
• Reusable double prefilter cloth (pre-installed on filter body)
• Nylon filter straps
• Steel hanging hooks (integrated on aluminum flanges — not loose hardware)

Inline duct fan, rope hangers, ducting, and speed controllers are not included and must be sourced separately. Confirm box contents against this list upon receipt. Contact Cannafull Spectrum Solutions immediately if any component is missing or damaged before installation.

Regional Compliance & Deployment Notes

• Jurisdiction: This product is sold and shipped within the contiguous 48 United States only. Cannafull Spectrum Solutions does not fulfill orders to addresses outside this territory.
• Regulatory Applicability: Carbon filtration requirements for licensed production facilities vary by state and local jurisdiction. Operators are responsible for confirming that their atmospheric control ecosystem — including this filter — meets all applicable state licensing, building code, and facility inspection requirements in their operating jurisdiction.
• Electrical Integration: This filter is a passive component and does not require direct electrical connection. However, the inline duct fan it is paired with does. All electrical integration must be performed in accordance with applicable local and state electrical codes by a qualified technician.
• HVAC Code Compliance: Inline duct filtration installations may be subject to HVAC permitting requirements depending on facility classification and jurisdiction. Operators should confirm permitting obligations with their local authority having jurisdiction (AHJ) before installation.
• Commercial Deployment: This unit is deployed in licensed commercial production facilities across the United States. Cannafull Spectrum Solutions does not warrant regulatory compliance for any specific jurisdiction — operators assume full responsibility for confirming that deployment meets local licensing and code requirements.

Compliance information provided here is for general reference only and does not constitute legal or regulatory advice. Requirements vary by state, county, and municipality. Operators should consult qualified legal, compliance, and engineering professionals before finalizing facility atmospheric control system designs. Cannafull Spectrum Solutions assumes no liability for regulatory outcomes resulting from product deployment.
