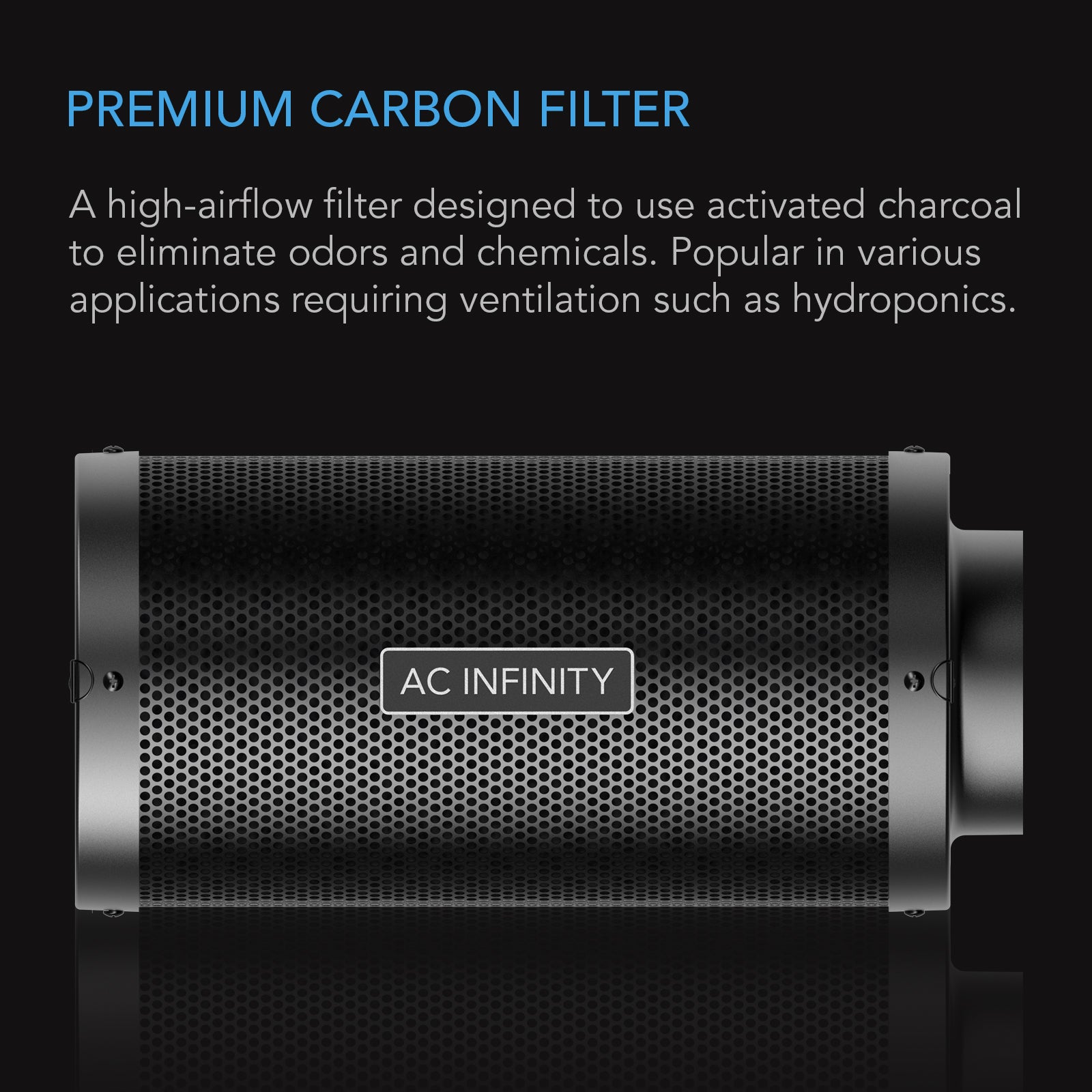

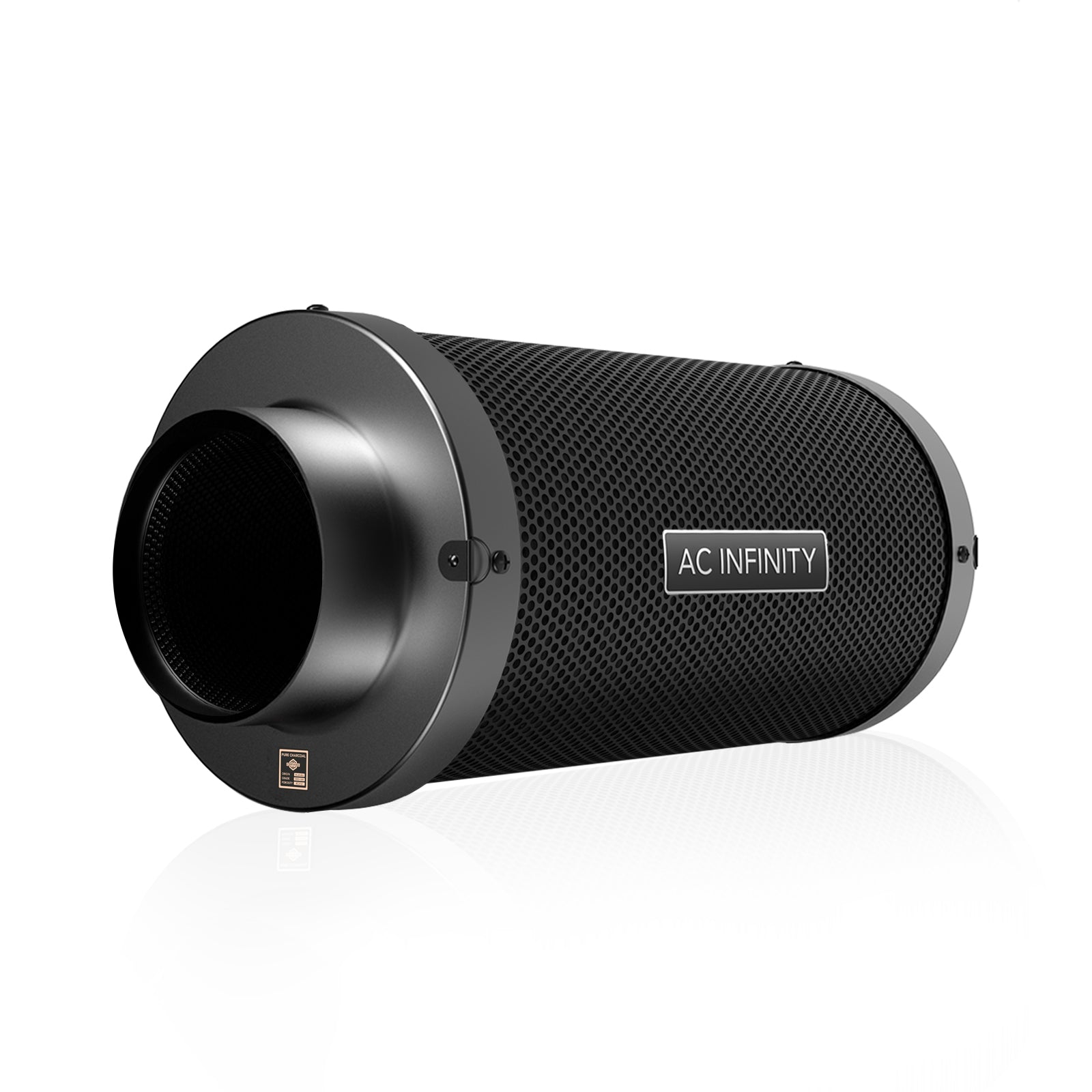

AC Infinity Duct Carbon Filter | Australian Charcoal | 8-Inch

Quick Spec: 8" Duct Opening | 18.11 x 10.90 in. (46.0 x 27.7 cm) Total Dimensions | 3.39 in. (8.6 cm) Aluminum Reversible Flange | 38mm RC412 Carbon Bed | 770 CFM Maximum Airflow | Rust-Resistant Galvanized Steel Mesh | UPC: 819137020689

Precision Control in Any Space

Every sealed cultivation environment operates under a silent atmospheric pressure — the constant risk that volatile organic compounds breach the enclosure boundary and compromise operational discretion, regulatory standing, or facility air quality. When the carbon filter in your duct system is undersized, packed with low-grade activated carbon, or running a pre-filter that cannot be maintained without full replacement, the result is not a gradual decline — it is an uncontrolled release. Flanges that cannot be repositioned force early full-unit replacement. Carbon beds with low internal surface area saturate faster than the production cycle demands. The equipment fights the operator at every maintenance interval, and the cost of that friction accumulates invisibly until a compliance event or a failed inspection makes it visible.

After deploying the AC Infinity Duct Carbon Filter 8" into an inline duct system, the atmospheric control layer of the facility becomes a managed, predictable variable rather than a liability. The carbon bed handles peak airflow without bypass. Pre-filter maintenance is scheduled, not reactive — a machine wash every six months rather than an unplanned replacement. When one side of the carbon bed approaches saturation, the reversible flange design allows the operator to rotate the unit and extend service life rather than pulling the filter from the line. The facility runs cleaner, longer, with fewer unscheduled interventions in the ventilation ecosystem.

The mechanism behind that operational stability is the RC412 carbon grade sourced from Australian Virgin charcoal. RC412 pore geometry produces higher microporosity and greater surface area per unit volume than standard activated carbon, which translates directly to a higher adsorption rate and a longer service rating — quantified at 1200+ IAV (Iodine Adsorption Value). The carbon bed is packed to 38mm depth inside a dual-sided rust-resistant galvanized steel mesh shell with a powder-coated gunmetal finish rated for high-humidity environments. The aluminum flanges are reversible, allowing the operator to rotate the filter to the opposite end when carbon on the primary side becomes exhausted, extending usable lifespan by up to 33% compared to fixed-flange configurations. Maximum airflow capacity is rated at 770 CFM through an 8" duct opening, with total unit dimensions of 18.11 x 10.90 in. (46.0 x 27.7 cm) and a flange length of 3.39 in. (8.6 cm). In practical terms, the AC Infinity Duct Carbon Filter 8" delivers continuous odor and chemical scrubbing at up to 770 CFM through a 38mm RC412 carbon bed within an 8" inline duct configuration, with a reversible aluminum flange system that extends service life by up to 33%.

Where This Belongs (and Doesn't)

Installation into live duct systems should be performed by a qualified HVAC technician or mechanical contractor. Verify duct diameter, static pressure rating, and inline fan compatibility before deployment. This filter is rated for 8" duct connections only.

How It Works

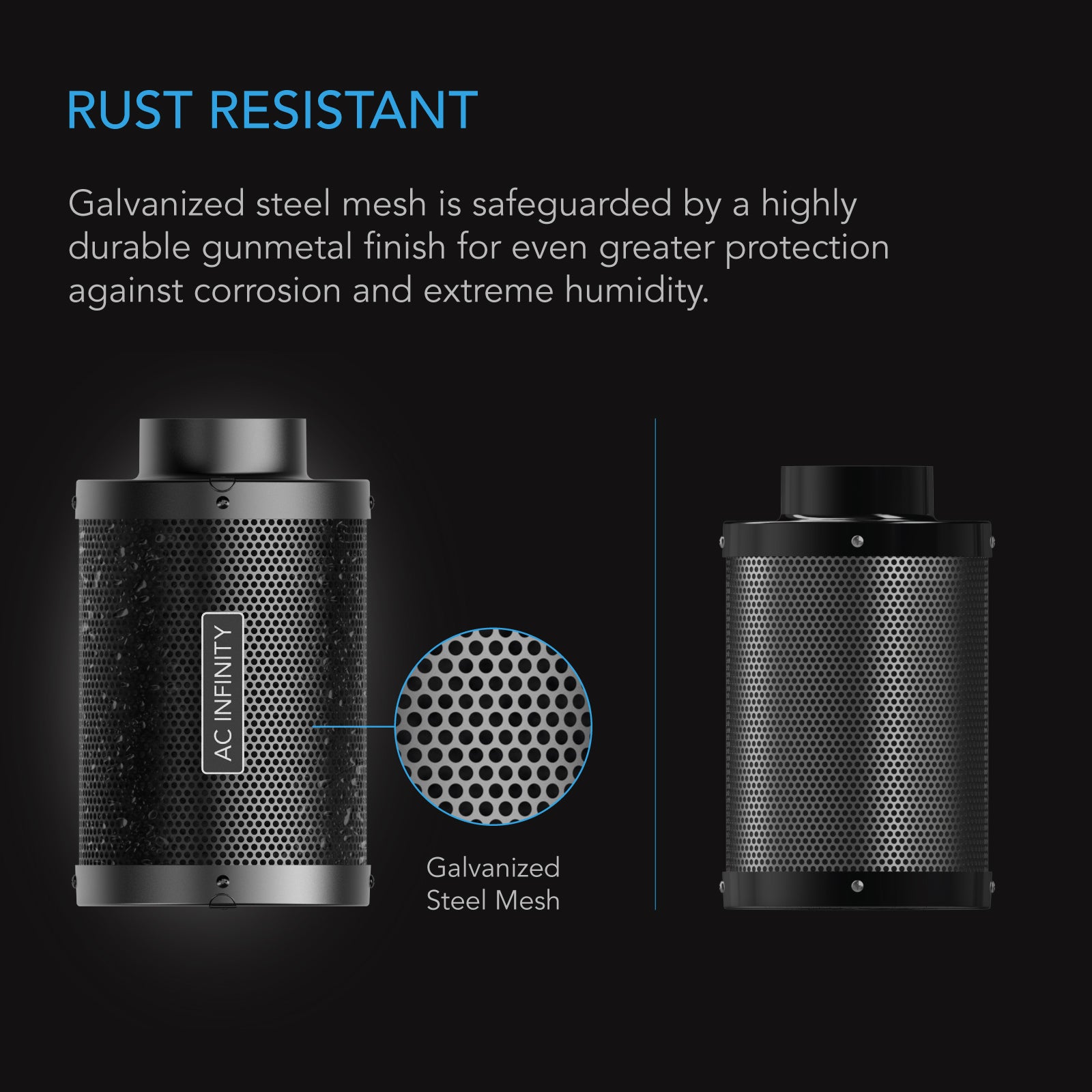

Air enters the filter through the outer galvanized steel mesh layer, which is constructed with a rust-resistant gunmetal powder-coat finish engineered to withstand the sustained high-humidity conditions present in active cultivation environments. The mesh acts as the first mechanical stage, and the two included machine-washable pre-filter cloths layer over the exterior to intercept particulate matter and prevent carbon residue migration into the duct stream. These pre-filter cloths are rewashable on a six-month cycle, eliminating the need for consumable pre-filter replacement under normal operating conditions.

Once past the mesh and pre-filter stage, the airstream passes through the 38mm bed of Australian Virgin RC412 activated carbon. RC412 is classified at 1200+ IAV, a measurement of iodine adsorption value that quantifies the carbon's capacity to capture molecular-weight compounds — the higher the IAV, the greater the adsorption surface available per gram of carbon. The RC412 pore structure is engineered for high microporosity, meaning a larger proportion of the internal surface area is accessible to the volatile organic compounds that constitute cultivation odor signatures. This is the mechanism behind the extended service life: more surface area per unit volume means the carbon bed reaches saturation more slowly under equivalent airflow and compound load.

The aluminum flanges at each end of the unit are reversible by design. When the carbon bed on the primary airflow side approaches exhaustion, the operator removes the flange hardware, reverses the flange orientation to the opposite end of the filter body, and resumes operation — exposing fresh carbon to the primary airflow path. This single mechanical operation extends the usable service life of the unit by up to 33% compared to fixed-flange filter designs that require full replacement at first-side saturation. The unit supports both intake and exhaust inline configurations, and the 8" duct opening accommodates standard 8" inline fan connections at a maximum rated airflow of 770 CFM. In practical terms, the AC Infinity Duct Carbon Filter 8" processes up to 770 CFM through a 38mm RC412 carbon bed measuring 18.11 x 10.90 in. (46.0 x 27.7 cm) overall, with reversible 3.39 in. (8.6 cm) aluminum flanges that extend carbon service life by up to 33% before full-unit replacement is required.

System Integration

• Inline Fan Pairing: Size the paired inline fan to operate within the 770 CFM maximum airflow rating of this filter; exceeding rated CFM reduces carbon contact time and degrades adsorption efficiency.
• Duct Compatibility: Connects directly to standard 8" duct collars; use manufacturer-rated reducers or expanders if the existing duct run is a non-matching diameter.

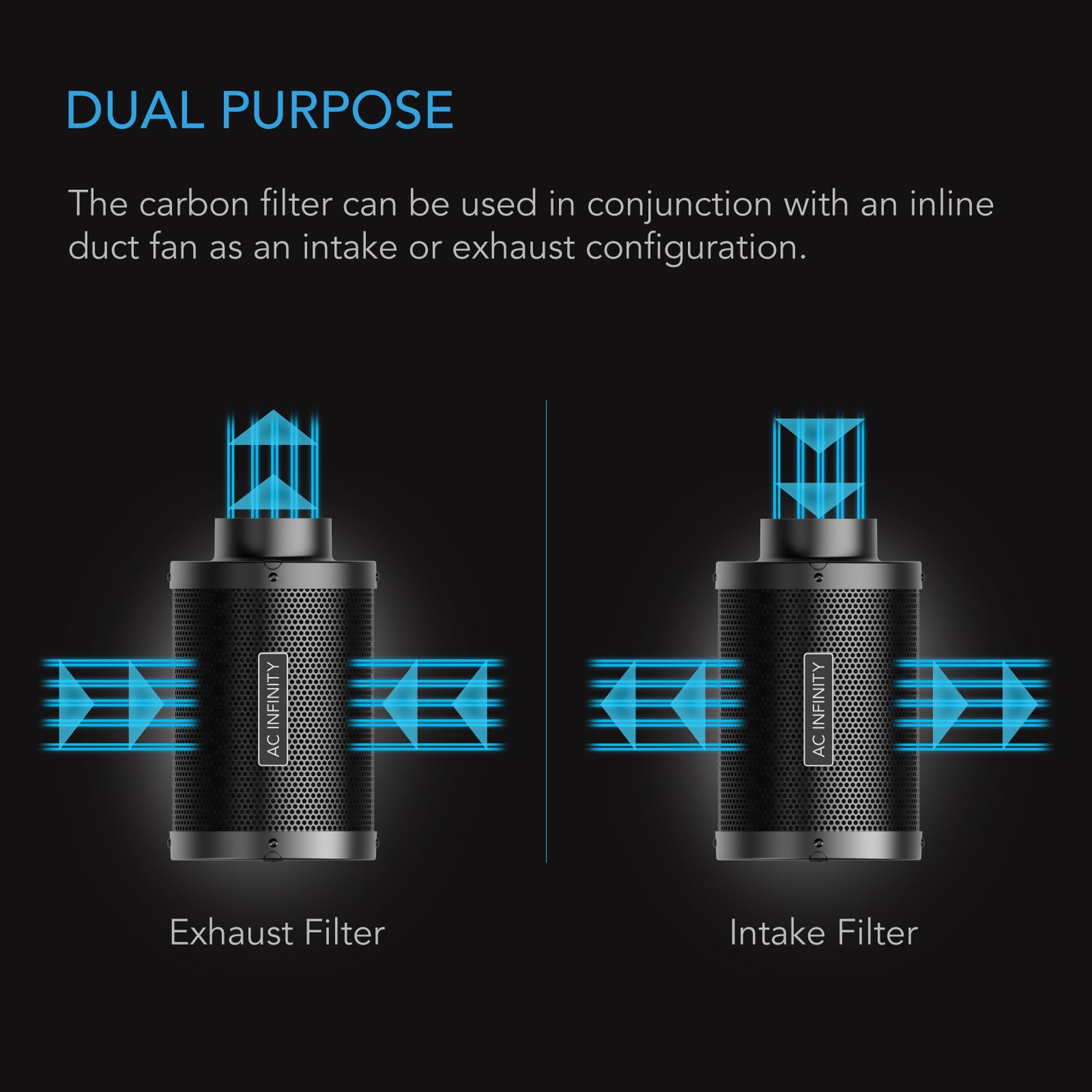

• Configuration Flexibility: Supports both intake and exhaust inline positions — confirm airflow direction relative to carbon bed orientation before final mounting.
• Pre-Filter Scheduling: Integrate pre-filter wash intervals (every six months) into the facility's preventive maintenance calendar to avoid particulate bypass and carbon contamination.
• Flange Rotation Protocol: Log the initial installation date and primary airflow side; schedule flange reversal as a planned maintenance event rather than a reactive response to odor breakthrough.

Operator Field Note

• Pre-Filter First: The machine-washable pre-filter cloths are the first line of defense against carbon bed contamination — install them before commissioning and maintain the six-month wash schedule without exception.
• Flange Reversal Timing: Do not wait for odor breakthrough to reverse the flanges; schedule the rotation as a proactive maintenance event based on logged runtime hours or production cycle count.
• Airflow Ceiling: The 770 CFM maximum rating is a hard ceiling — pairing this filter with an oversized fan that exceeds rated CFM reduces carbon dwell time and accelerates saturation without improving scrubbing efficiency.
• Humidity Tolerance: The powder-coated gunmetal mesh is rated for high-humidity environments, but the carbon bed itself is sensitive to liquid water intrusion — ensure condensation management in the duct run is addressed before installation.
• Dual Configuration Capability: The unit is rated for both intake and exhaust positions; confirm airflow direction is aligned with the intended carbon bed contact path before final duct connection.

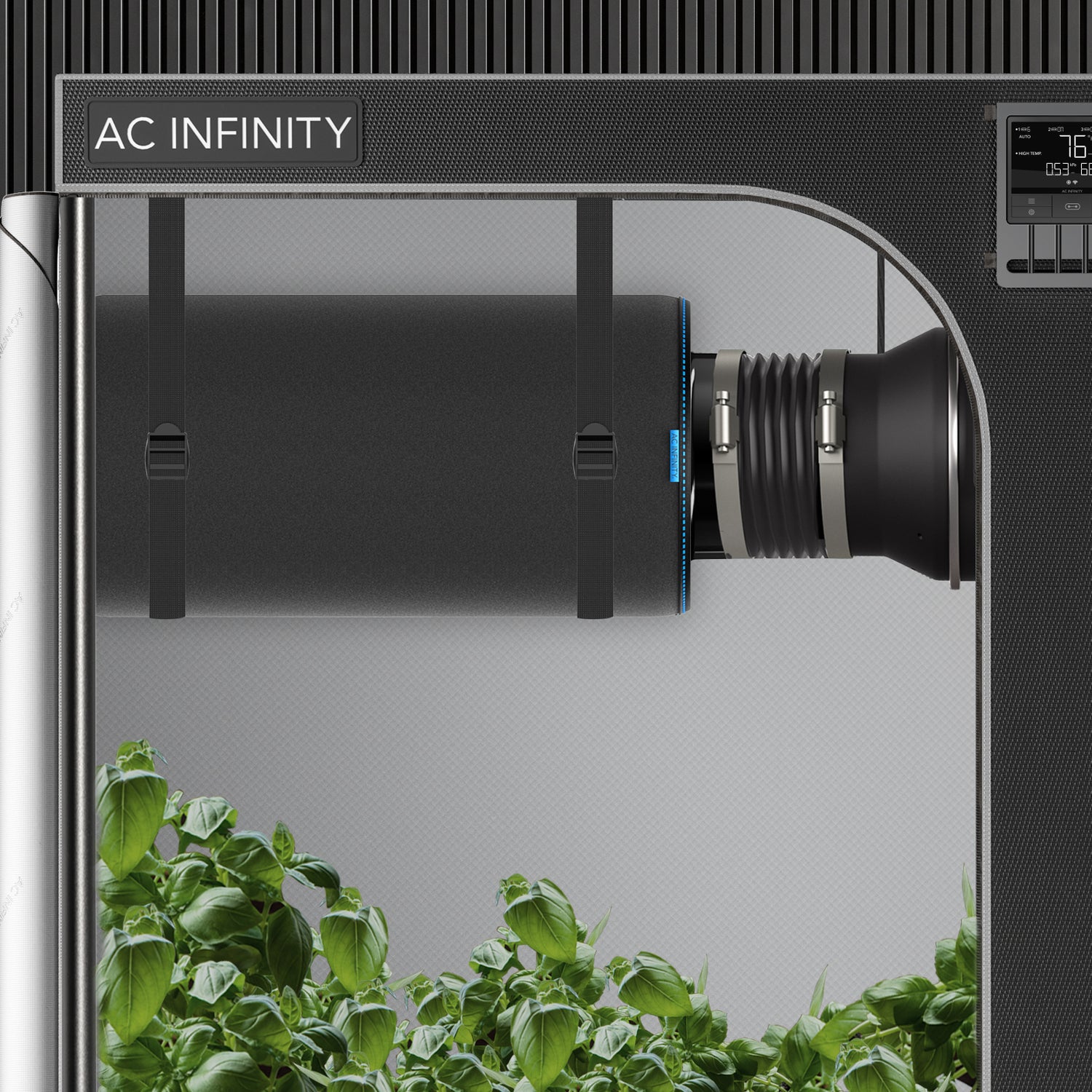

• Included Hardware: Two rope clip hangers and two hanging straps are included — use the rated hardware for mounting rather than improvised supports to maintain proper inline alignment and prevent flange stress.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be fulfilled.
• Carrier & Transit: Standard ground shipping via major carrier. Transit times vary by destination zone. Freight or expedited options may be available at checkout for qualifying orders.
• Returns: New, unopened units in original factory condition are eligible for return within the applicable return window. Contact support before initiating a return to receive an RMA authorization.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions before ordering? Contact Cannafull Spectrum Solutions at cannafullspec.com or reach out via the contact page for pre-sale technical support and order assistance.

What's in the Box

• 1x AC Infinity Duct Carbon Filter 8" (SKU: AC-DCF8) — 18.11 x 10.90 in. (46.0 x 27.7 cm), 38mm RC412 Australian Virgin carbon bed, 8" duct opening
• 2x Machine-washable pre-filter cloths
• 2x Rope clip hangers
• 2x Hanging straps

Box contents confirmed from manufacturer source data (SKU: AC-DCF8). Documentation, installation guides, or additional accessories not listed above are not confirmed as included. Verify actual box contents upon receipt and contact Cannafull Spectrum Solutions immediately if any listed item is missing or damaged.

Regional Compliance & Deployment Notes

• Shipping Jurisdiction: Available for shipment within the contiguous 48 United States only. No international or Canadian fulfillment.
• Facility Compliance: Operators are solely responsible for confirming that the use of this filter meets applicable state, county, and municipal air quality, odor control, and facility licensing requirements in their jurisdiction. Cannafull Spectrum Solutions makes no representation that this product satisfies any specific regulatory standard.
• Electrical: This product contains no electrical components. No electrical code compliance, licensing, or permitting is required for the filter unit itself. Compliance requirements for the paired inline fan or duct system are governed by the specifications of those components.
• HVAC Integration: Duct system modifications required for installation should be performed in accordance with applicable mechanical codes by a qualified contractor. Cannafull Spectrum Solutions does not provide installation services.
• Licensed Facility Use: This product is deployed in licensed commercial cultivation facilities across the United States. Operators in regulated markets should confirm that the filter's odor control performance meets the specific containment standards required by their licensing authority.

Compliance information is provided for general reference only and does not constitute legal or regulatory advice. Requirements vary by state and local jurisdiction. Consult qualified legal, environmental, or mechanical counsel for jurisdiction-specific compliance determinations. Product specifications subject to change by manufacturer without notice; confirm current specifications with Cannafull Spectrum Solutions prior to purchase for compliance-sensitive applications.
