AC Infinity Duct Carbon Filter | Australian Charcoal | 6-Inch

Atmospheric Control Starts at the Filter

Uncontrolled air chemistry is the silent liability in any enclosed production environment. When the carbon bed saturates ahead of schedule — because the media grade was wrong, the pore structure was too shallow, or the flange orientation was never rotated — volatile compounds migrate through the ductwork and into spaces they were never supposed to reach. The result is not just an odor problem. It is a compliance exposure, a facility audit risk, and a signal that the atmospheric control layer of the operation is running on borrowed time. Operators who have dealt with premature filter failure know the pattern: replacement cycles that arrive too early, carbon residue migrating into the duct stream, and a ventilation system that demands attention instead of delivering certainty.

After deployment, the atmospheric profile of the facility changes in a measurable way. The ductwork handles its rated airflow without restriction. The carbon bed intercepts volatile compounds before they exit the system. Replacement intervals extend because the media is doing the work it was specified to do, and the reversible flange architecture means the carbon bed is fully utilized before a swap is ever required. The pre-filter cloths keep residue contained, the aluminum flanges hold their geometry in high-humidity conditions, and the inline configuration integrates cleanly with existing fan and duct infrastructure — intake or exhaust, either direction, without modification.

The mechanism behind that outcome is the RC412 carbon specification. Australian Virgin charcoal at the RC412 pore grade delivers a 1200+ IAV (Iodine Adsorption Value) rating — a direct measure of adsorption surface area and chemical capture capacity. The 38mm carbon bed depth ensures that air passing through the filter at up to 410 CFM has sufficient contact time with the media to achieve complete scrubbing. The dual-sided galvanized steel mesh with rust-resistant gunmetal finish maintains structural integrity and unrestricted airflow geometry across both intake and exhaust configurations. Reversible aluminum flanges allow the operator to rotate the carbon bed orientation and extend service life by up to 33% before replacement is required. In practical terms, the AC Infinity Duct Carbon Filter 6" delivers complete odor and chemical containment at up to 410 CFM through a 38mm RC412 carbon bed within a 15.74 x 8.93 in. (40.0 x 22.7 cm) form factor.

Where This Belongs (and Doesn't)

The AC-DCF6 is rated for inline ducted ventilation applications. It is not a standalone air purifier and does not replace HVAC-grade filtration systems. Integration into pressurized duct systems should be performed by a qualified HVAC technician in accordance with applicable facility codes and airflow engineering requirements.

How It Works

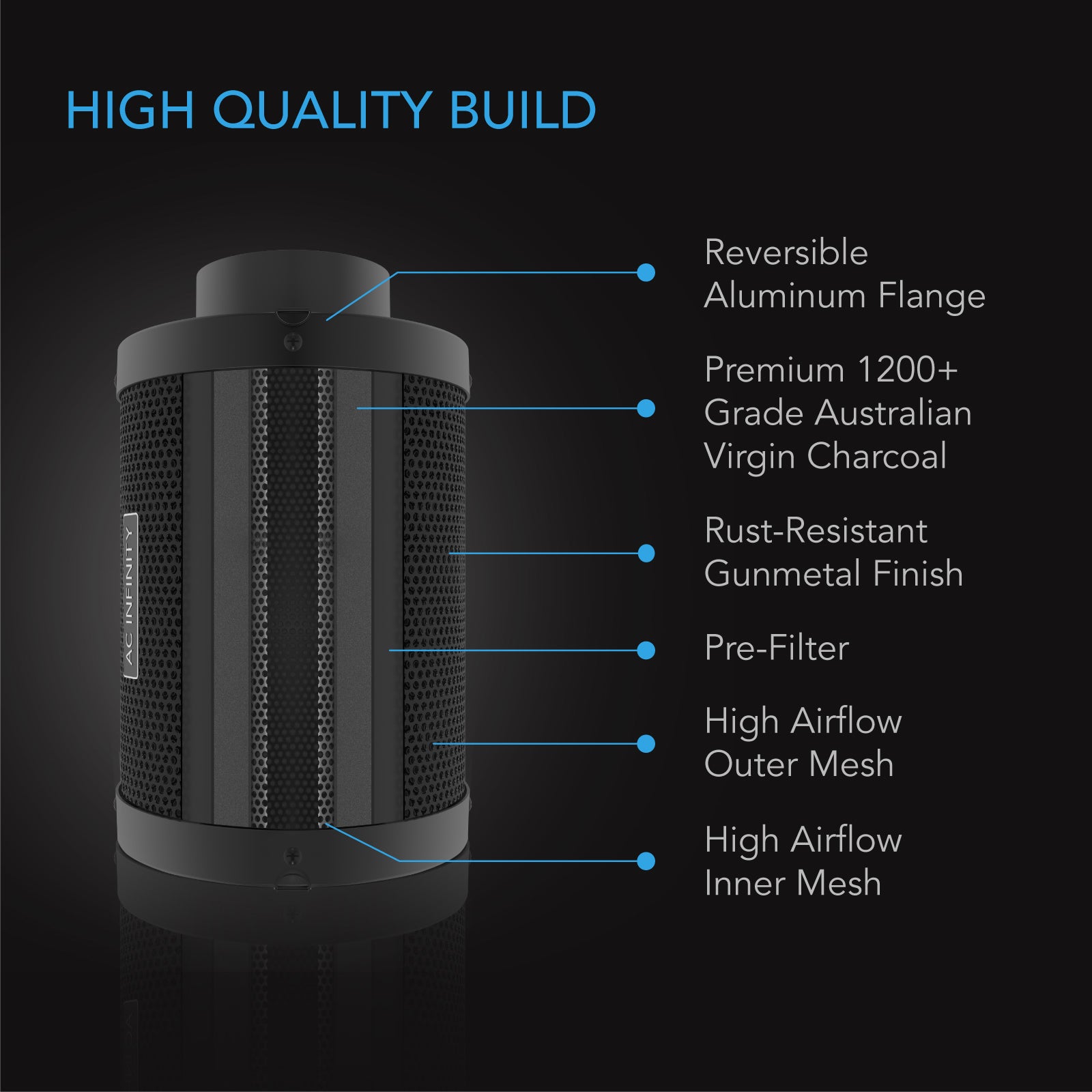

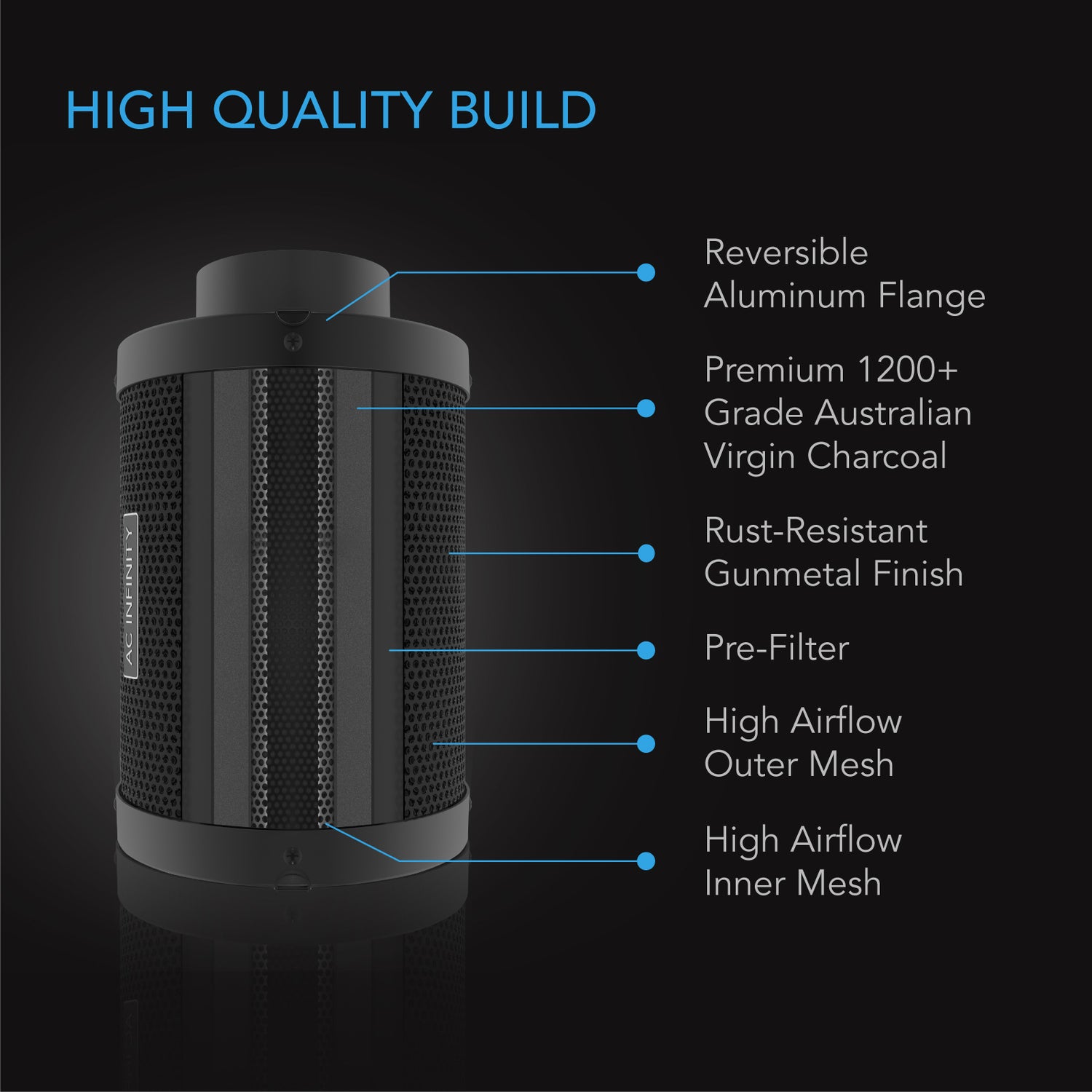

The AC-DCF6 operates on the principle of forced-air adsorption through a fixed carbon bed. Air drawn through the filter by an inline duct fan passes through the outer galvanized steel mesh layer, contacts the 38mm Australian Virgin RC412 carbon bed, and exits through the inner mesh layer into the duct stream. The RC412 designation specifies the pore geometry of the activated charcoal — a structure that maximizes surface contact area per unit volume of media, enabling high adsorption rates for volatile organic compounds and odor-generating chemical species. The 1200+ IAV (Iodine Adsorption Value) rating quantifies the adsorption capacity of the carbon: iodine adsorption value is an industry-standard proxy for the total available adsorption surface area within the carbon bed, and a rating above 1200 IAV indicates a premium-grade media with extended service life relative to lower-rated alternatives.

The reversible aluminum flange architecture addresses a specific failure mode in fixed-bed carbon filters: uneven saturation. Because airflow enters the filter from one direction, the carbon media on the inlet side saturates faster than the media on the outlet side. By reversing the flange orientation, the operator redirects airflow through the previously underutilized portion of the carbon bed, extending effective service life by up to 33% before replacement is required. The aluminum flange material resists corrosion in high-humidity cultivation environments where steel flanges would oxidize and compromise the seal. The dual-sided rust-resistant galvanized steel mesh with gunmetal finish maintains structural rigidity and unrestricted airflow geometry across both intake and exhaust configurations. Two machine-washable pre-filter cloths are included to capture particulate matter before it reaches the carbon bed, preventing premature surface fouling and extending the interval between carbon replacements. In practical terms, the AC Infinity Duct Carbon Filter 6" processes up to 410 CFM through a 38mm RC412 carbon bed within a 15.74 x 8.93 in. (40.0 x 22.7 cm) body, with reversible flanges extending service life by up to 33% over non-reversible alternatives.

Commercial Assurance

• Carbon Grade: Australian Virgin RC412 activated charcoal at 1200+ IAV — a verifiable adsorption capacity standard, not a marketing designation
• Corrosion Resistance: Aluminum flanges specified for high-humidity cultivation environments where ferrous hardware fails prematurely
• Lifespan Architecture: Reversible flange design extends effective carbon bed service life by up to 33% through bidirectional utilization of the media
• Airflow Integrity: Rust-resistant galvanized steel mesh with gunmetal finish maintains unrestricted airflow geometry at rated 410 CFM capacity
• Warranty: Warranty period not specified in manufacturer source data — contact Cannafull Spectrum Solutions or the manufacturer directly for current warranty terms before purchase
• Authorized Supply Chain: Sold exclusively through factory-authorized channels. Cannafull Spectrum Solutions is a factory-authorized dealer for this product line.

System Integration

• Inline Fan Pairing: Designed for use with a 6" inline duct fan in both intake and exhaust configurations — fan selection should match or not exceed the 410 CFM maximum airflow rating of the filter to avoid media bypass or premature saturation
• Duct Compatibility: 6" duct opening with 1.57 in. (4.0 cm) aluminum flange — compatible with standard 6" flexible and rigid duct systems; reducer fittings required for non-matching duct diameters

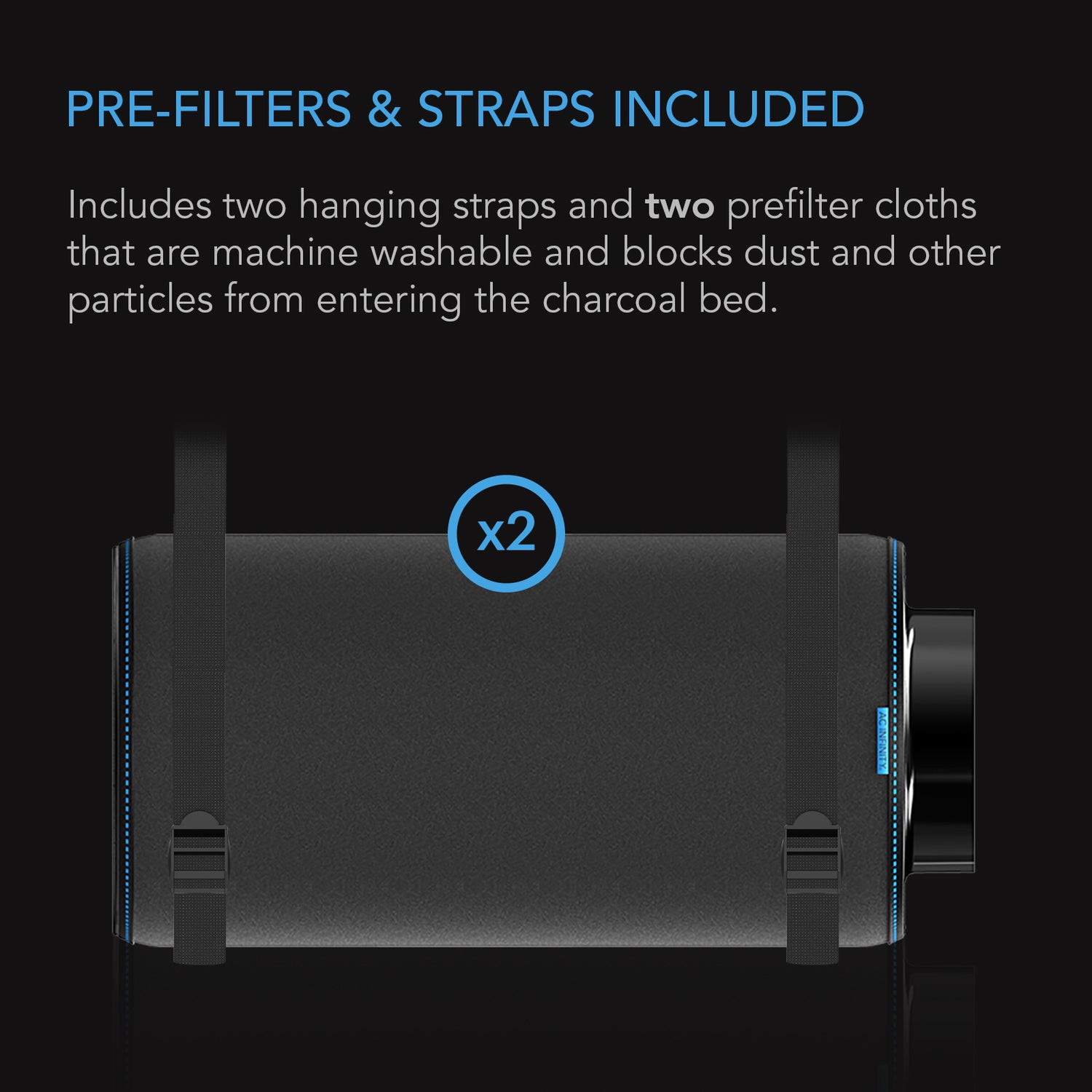

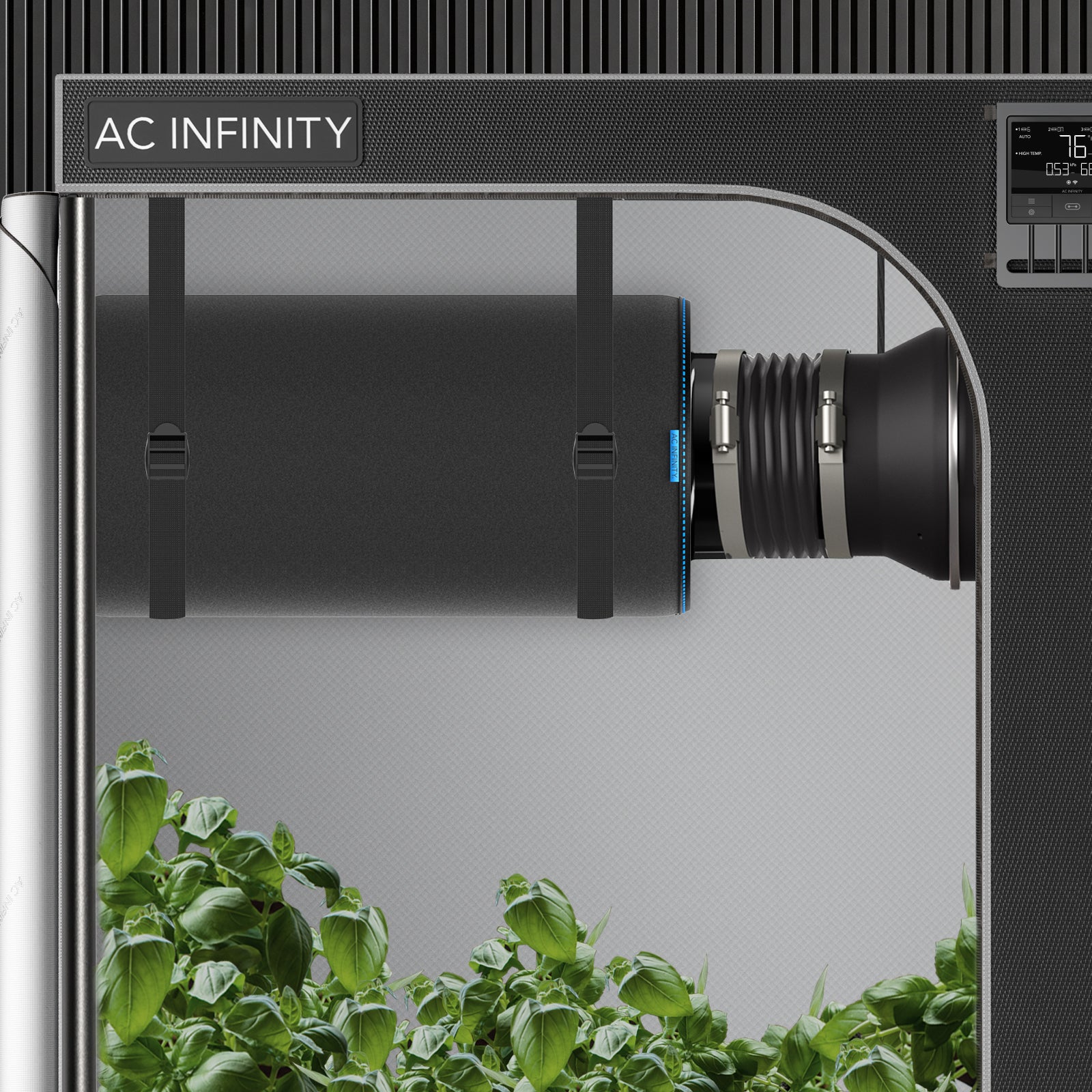

• Mounting System: Two rope clip hangers and two hanging straps included for suspended installation within grow rooms, enclosed production spaces, or duct runs
• Pre-filter Maintenance: Two machine-washable pre-filter cloths included; regular pre-filter cleaning is required to maintain rated airflow and prevent premature carbon bed fouling
• Ecosystem Compatibility: Integrates with AC Infinity's broader atmospheric control ecosystem including CLOUDLINE inline fans and CONTROLLER series automated deployment units for scheduled and sensor-driven ventilation management

Facility Integration Data

The following table provides fleet-scale cost and replacement cycle reference data for operators deploying the AC-DCF6 across multiple production rooms or facilities. Replacement interval estimates are based on the reversible flange lifespan extension claim of up to 33% over non-reversible alternatives; actual intervals will vary based on facility airflow load, ambient humidity, and volatile compound concentration.

Operator Field Notes

• Flange Rotation Protocol: Rotate the reversible aluminum flanges at the midpoint of the expected carbon service life — not at the point of odor breakthrough — to fully utilize the carbon bed and capture the full 33% lifespan extension
• Pre-filter Maintenance: Machine-wash the included pre-filter cloths on a scheduled basis; a fouled pre-filter restricts airflow below the 410 CFM rating and accelerates carbon bed saturation by forcing unfiltered particulate into the media
• Fan Matching: Do not pair the AC-DCF6 with an inline fan rated above 410 CFM without verifying that the system's static pressure and duct resistance will keep actual airflow within the filter's rated range; oversized fans can reduce contact time with the carbon bed and degrade scrubbing efficiency
• Humidity Environment: The aluminum flange specification is confirmed suitable for high-humidity cultivation environments; inspect flange-to-duct seals at each pre-filter service interval to confirm no moisture infiltration has compromised the connection
• Carbon Residue Control: The included pre-filter cloths also function as a barrier against carbon fines migrating into the duct stream; ensure cloths are seated correctly after each wash cycle before returning the unit to service
• Replacement Timing: Carbon saturation is confirmed by odor breakthrough at the exhaust point, not by elapsed time alone; facilities with high volatile compound loads will reach saturation faster than facilities with lower loads at the same 410 CFM airflow rate

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, and international destinations are not fulfilled through this channel.
• Carrier & Transit: Standard ground shipping applies unless expedited service is selected at checkout. Transit times vary by destination within the contiguous 48 states. Tracking information is provided upon shipment confirmation.
• Returns: Returns are accepted in accordance with the Cannafull Spectrum Solutions Return Policy. Products must be in original, uninstalled condition to qualify for return consideration. Review full terms at cannafullspec.com/pages/return-policy before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions before ordering? Contact Cannafull Spectrum Solutions directly through the store contact page for pre-purchase technical and logistics inquiries.

What's in the Box

The following items are confirmed included with the AC Infinity Duct Carbon Filter 6" (AC-DCF6) based on manufacturer source data:

• 1x AC Infinity Duct Carbon Filter 6" (AC-DCF6) — 15.74 x 8.93 in. (40.0 x 22.7 cm), 38mm RC412 Australian Virgin carbon bed, reversible aluminum flanges, rust-resistant galvanized steel mesh with gunmetal finish
• 2x Rope clip hangers
• 2x Hanging straps
• 2x Machine-washable pre-filter cloths

Note: Inline duct fan, ducting, and controller are not included. Packaging contents are confirmed from manufacturer source data. If your shipment is missing any listed item, contact Cannafull Spectrum Solutions immediately upon receipt. Do not install the unit before confirming all components are present.

Regional Compliance & Deployment Notes

• U.S. Deployment Only: This product is sold and shipped exclusively within the contiguous 48 United States through Cannafull Spectrum Solutions. No Canadian distribution, Health Canada compliance language, or CSA certification claims apply to this listing.
• Facility Compliance: Carbon filtration requirements for licensed cultivation facilities vary by state and local jurisdiction. Operators are responsible for confirming that the AC-DCF6 meets the airflow, filtration, and odor control specifications required by their applicable regulatory framework before deployment.
• Electrical & HVAC Integration: The AC-DCF6 is a passive filtration component and does not require direct electrical connection. Integration with powered inline fans and automated controller systems should be performed in accordance with applicable electrical codes and facility HVAC engineering requirements.
• High-Humidity Environments: The aluminum flange construction is specified as suitable for high-humidity settings. Operators in facilities with sustained elevated humidity should inspect flange seals and mesh integrity at each scheduled maintenance interval.
• Authorized Distribution: Cannafull Spectrum Solutions is a factory-authorized dealer. Purchase through unauthorized resellers may void applicable manufacturer warranty coverage. Confirm authorized dealer status before purchasing from any channel.
