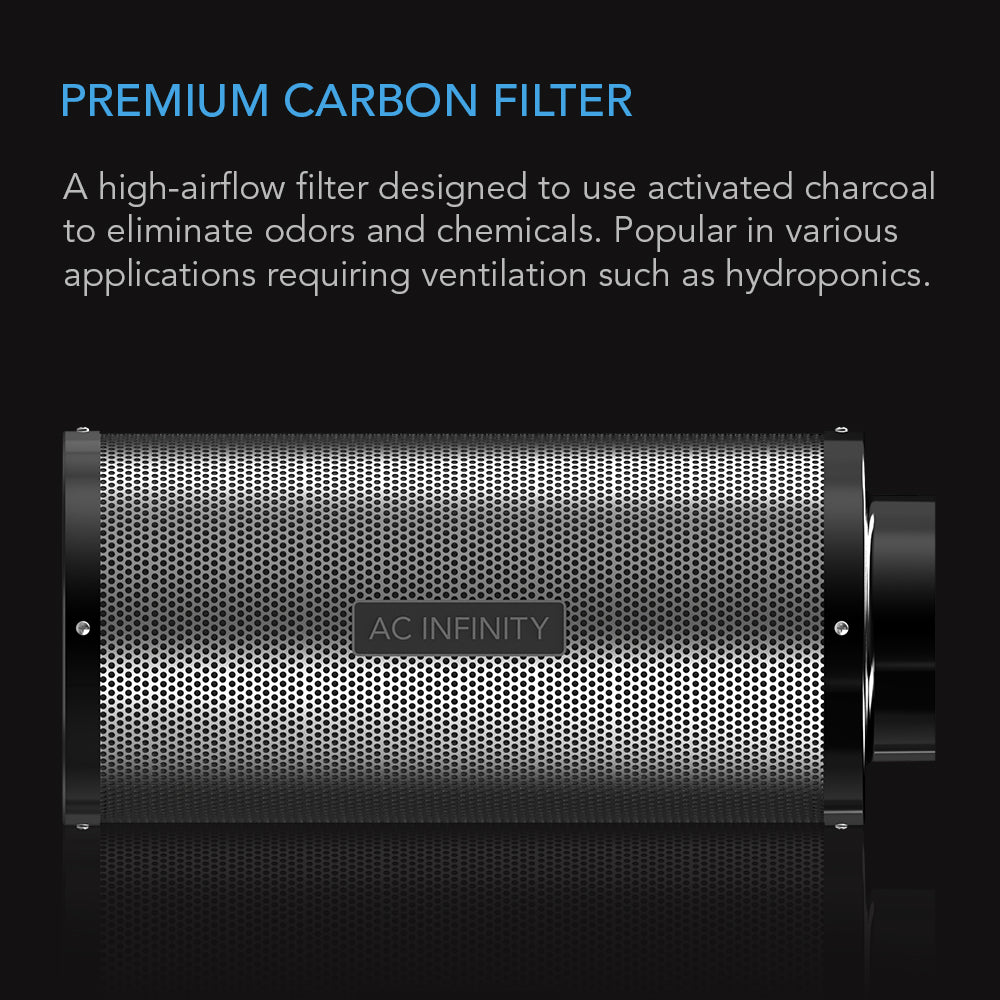

AC Infinity Duct Carbon Filter | Australian Charcoal | 10-Inch

Quick Spec: 10" Duct Opening | 24" Length | 1249 CFM | 38mm Carbon Bed | Australian RC412 | 1200+ IAV | Reversible Aluminum Flanges | 2-Year Warranty | SKU: AC-DCF10

Precision Control in Any Space

Every facility that runs uncontrolled air is running a liability. When carbon filtration underperforms — whether from low-grade media, insufficient bed depth, or a fixed-flange design that forces early replacement — the cost is not just odor escape. It is compliance exposure, shortened equipment cycles, and the compounding operational drag of replacing components on a schedule dictated by the filter's limitations rather than your production calendar. Guesswork and equipment that fights you are not abstract problems; they are measurable losses embedded in every service interval you did not plan for.

After deployment, the atmospheric control profile of a properly filtered facility changes in a way that is immediately operational. Air moves through a verified 1249 CFM pathway, chemical and odor compounds are captured at the carbon bed before they reach the duct boundary, and the maintenance schedule compresses to a predictable rhythm — prefilter rewash every six months, flange reversal to extend service life, no unplanned replacement cycles. The facility stops reacting to filtration failure and starts operating on a defined maintenance cadence.

The mechanism behind that outcome is the RC412 Australian Virgin charcoal bed. RC412 refers to a specific pore-size classification that maximizes adsorption surface area per unit volume, enabling a higher capture rate for volatile organic compounds and chemical off-gassing than standard activated carbon grades. The 38mm bed depth ensures adequate dwell time for air passing through at rated flow. The 1200+ IAV (Iodine Adsorption Value) grade quantifies the carbon's adsorption capacity — a direct measure of how much contaminant mass the media can hold before saturation. The reversible aluminum flanges extend the usable carbon surface by rotating the bed's exposure pattern, documented to extend service life by up to 33%. Galvanized steel mesh contains the carbon bed under sustained humidity, and the powder-coated gunmetal finish provides rust resistance in high-moisture environments. In practical terms, the AC Infinity Duct Carbon Filter 10" delivers 1249 CFM of filtered airflow through a 38mm RC412 carbon bed rated at 1200+ IAV across a 10" inline duct interface measuring 23.62 x 12.83 inches overall.

Where This Belongs (and Doesn't)

Installation note: This filter is designed for inline duct integration with compatible 10" duct fans. Verify duct diameter, static pressure rating of paired fan equipment, and mounting clearance before installation. This unit does not replace mechanical ventilation — it operates as a filtration stage within an existing or planned airflow circuit.

How It Works

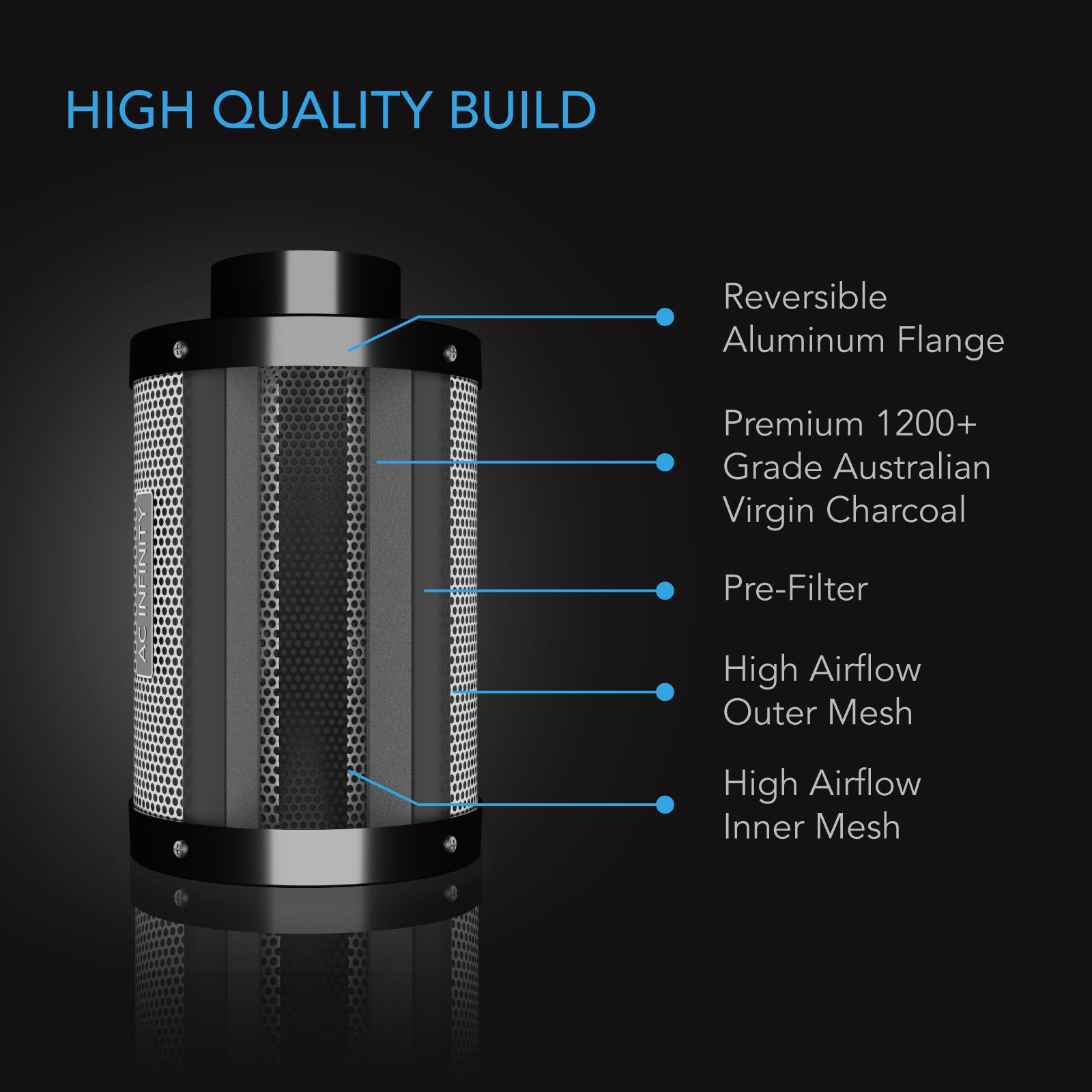

Air enters the filter through the outer galvanized steel mesh layer, which serves as the primary structural containment for the carbon bed and provides mechanical protection against carbon migration into the duct stream. The mesh is rated for sustained exposure to high-humidity environments without corrosion-driven structural failure. Beneath the mesh, the 38mm bed of Australian RC412 activated charcoal is the functional core of the unit. RC412 designates a pore-size classification optimized for volatile organic compound adsorption — the pore geometry creates a high ratio of internal surface area to carbon volume, which is the direct mechanism behind the 1200+ IAV rating. IAV (Iodine Adsorption Value) is the industry-standard metric for carbon adsorption capacity; a value exceeding 1200 places this media in the upper tier of commercially available activated carbon grades.

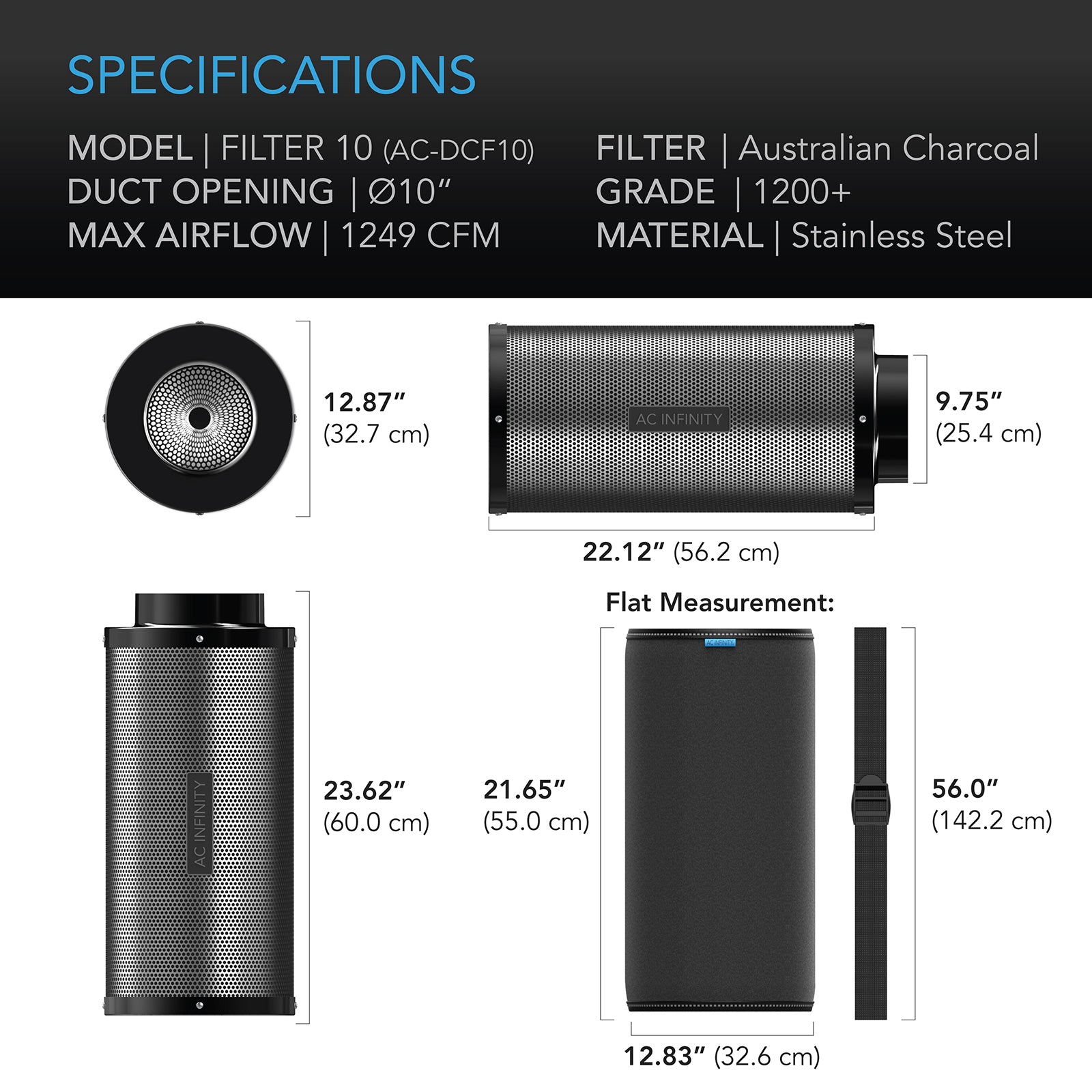

The aluminum flanges are reversible by design. As the carbon bed saturates from one directional flow pattern, reversing the flange orientation redistributes airflow exposure across the unused carbon surface, extending the effective service life of the bed by up to 33% compared to fixed-flange designs. The 1.5-inch flange length provides a secure duct connection interface. The overall unit dimensions of 23.62 x 12.83 inches (60.0 x 32.6 cm) with a 24-inch body length are sized for standard 10" inline duct configurations. Two machine-washable prefilter cloths are included; these capture particulate matter before it reaches the carbon bed, reducing carbon saturation rate and extending service intervals. The ladder-lock nylon strap system provides a tool-free hanging solution with steel hooks located on the filter flanges for secure overhead mounting. In practical terms, the AC Infinity Duct Carbon Filter 10" processes 1249 CFM through a 38mm RC412 carbon bed at 1200+ IAV with a reversible 10" aluminum flange interface and a 23.62 x 12.83-inch overall footprint.

System Integration

• Inline Fan Pairing: Designed for direct integration with 10" inline duct fans; match fan CFM rating to filter's 1249 CFM capacity for optimal static pressure balance across the filtration stage
• Duct Network Compatibility: 10" flange interface connects to standard 10" flexible or rigid duct runs; 1.5-inch flange depth provides a secure mechanical connection point

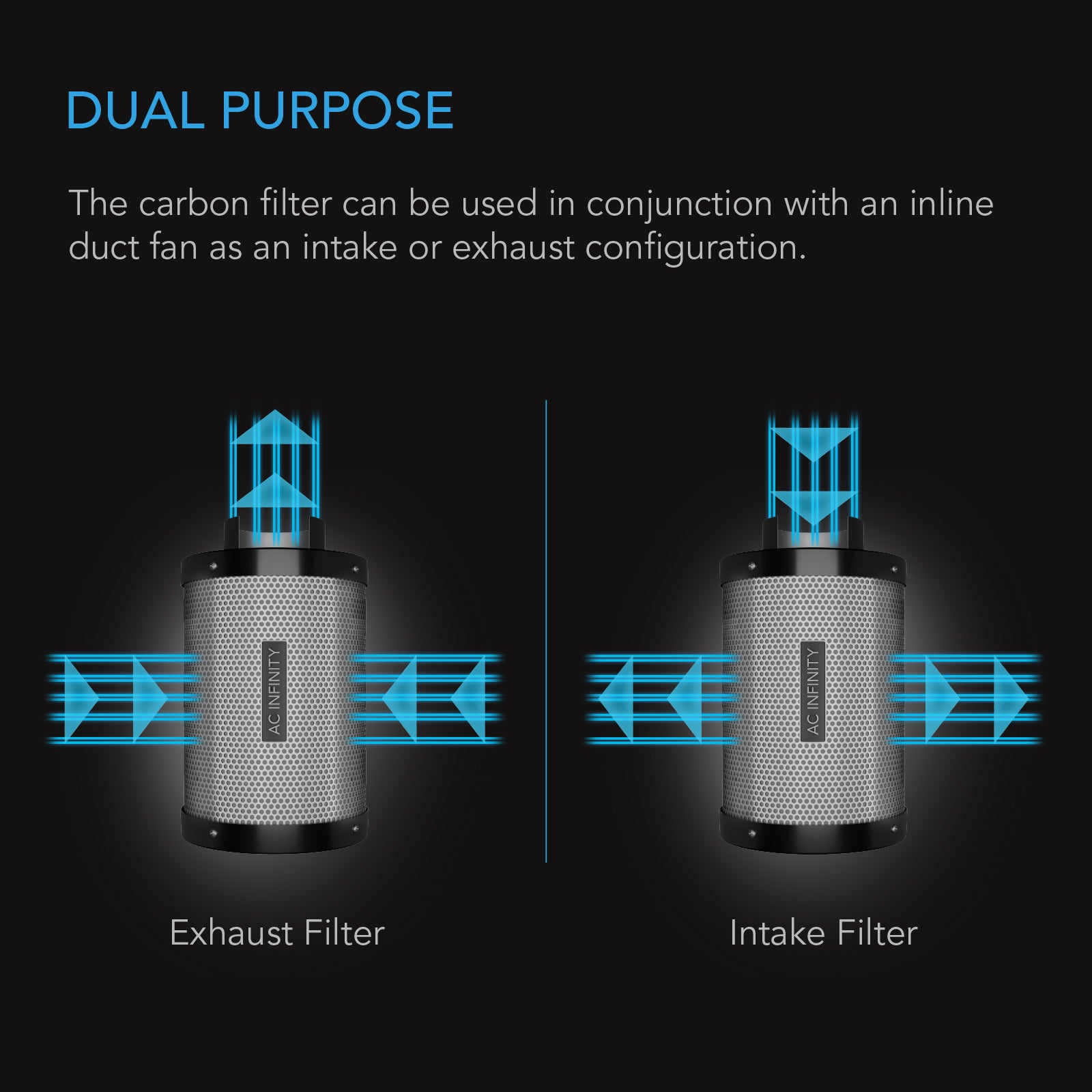

• Intake and Exhaust Modes: Single unit supports both intake pre-filtration and exhaust odor containment configurations — no separate SKU required for directional change
• Controller Ecosystem Integration: When paired with AC Infinity UIS-compatible fan controllers, the filtration stage becomes part of an automated atmospheric control circuit with programmable speed and scheduling parameters

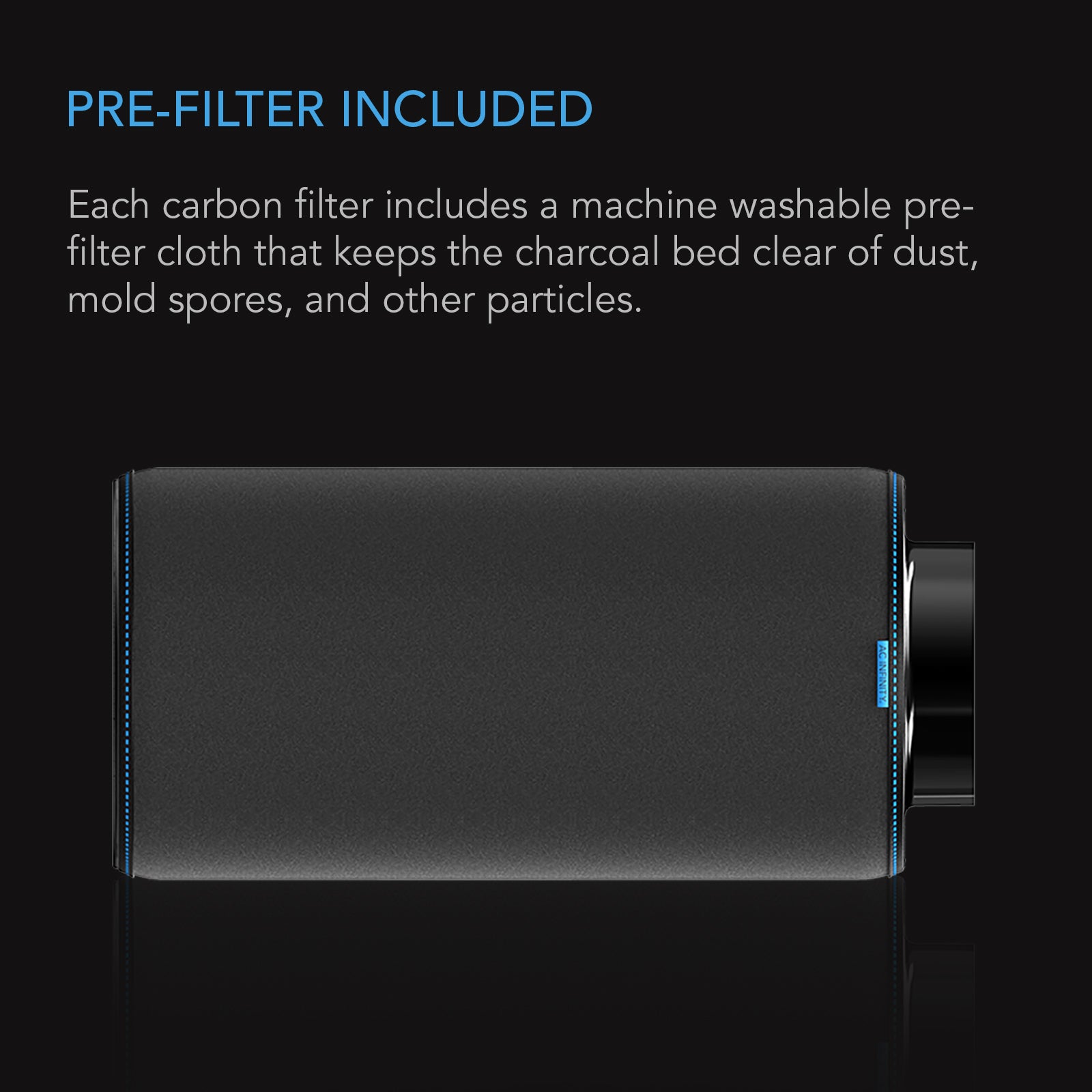

• Prefilter Maintenance Cycle: Machine-washable prefilter cloths (x2 included) integrate into a defined maintenance schedule; rewash every six months to maintain carbon bed efficiency and extend overall system service life

Facility Integration Data

The following ROI model is based on a documented 33% service life extension from reversible flange architecture and the reduced replacement frequency enabled by 1200+ IAV carbon grade versus standard-grade alternatives; operators should adjust replacement cost inputs based on their current filter procurement pricing and service interval data.

Operator Field Notes

• Flange Reversal Timing: Do not wait for odor breakthrough to reverse flanges — schedule the reversal at the midpoint of your expected service interval to maximize the 33% life extension benefit before carbon saturation begins
• Prefilter Priority: The machine-washable prefilter cloth is the first line of defense against carbon bed saturation; a clogged prefilter reduces effective CFM and accelerates carbon loading — maintain the six-month rewash schedule without exception
• Fan Matching: Pairing this filter with an undersized fan creates a static pressure deficit that reduces actual airflow below the 1249 CFM rating; verify fan static pressure curve against filter resistance before finalizing duct design
• Humidity Environment: The galvanized steel mesh and powder-coated finish are rated for high-humidity operation, but carbon bed performance degrades if the filter is exposed to direct liquid water contact — maintain clearance from condensation points in the duct run

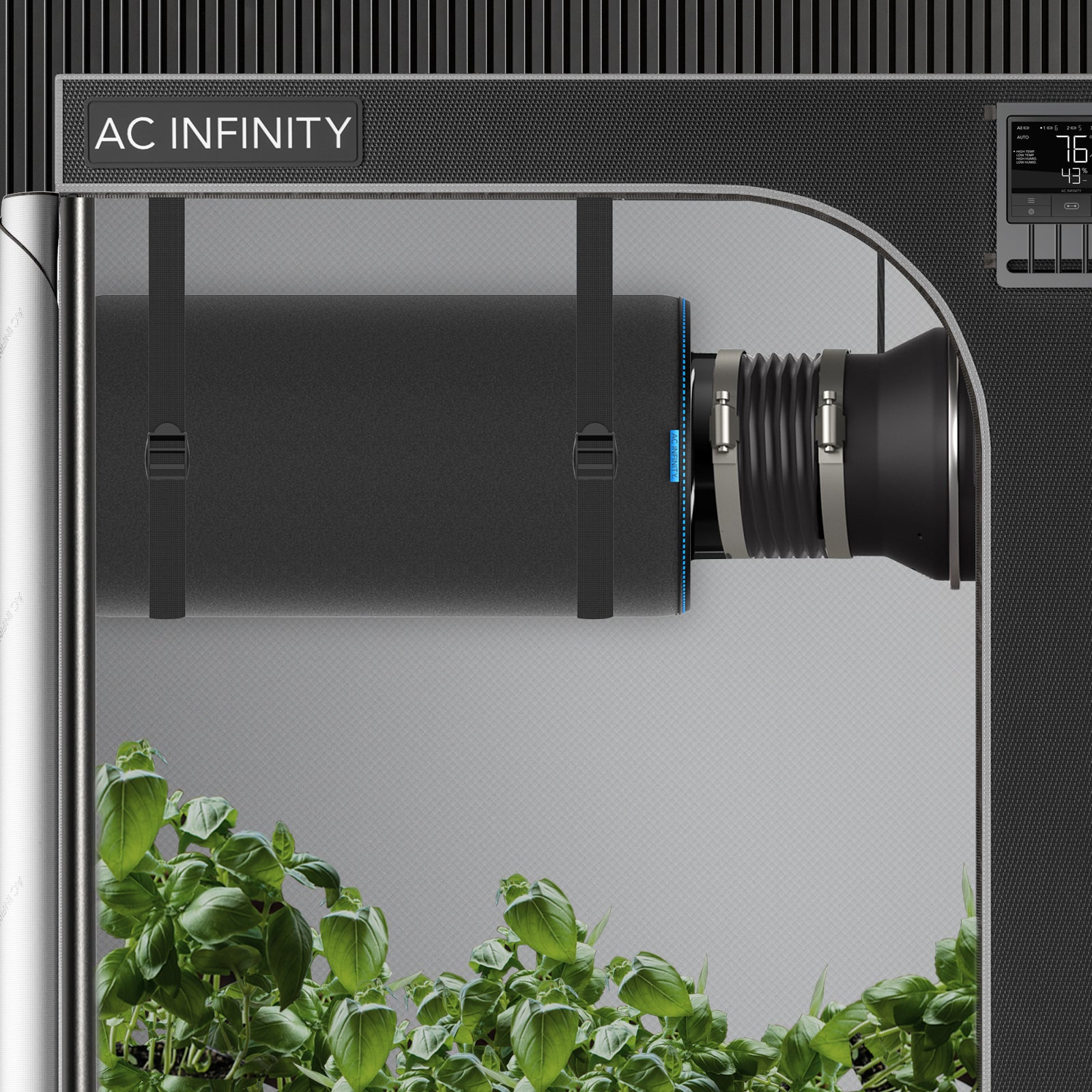

• Mounting Orientation: The included ladder-lock nylon straps and flange-mounted steel hooks support overhead suspension; verify mounting point load capacity before hanging in facilities with high-vibration HVAC environments
• Intake vs. Exhaust Configuration: When used in intake mode, the filter captures incoming airborne contaminants before they enter the canopy environment; in exhaust mode, it captures outgoing volatile compounds before they exit the facility boundary — both configurations use the same unit with no hardware modification required

Operator FAQ

Shipping and Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be processed.
• Handling: Carbon filter units are packaged to prevent carbon bed displacement and mesh damage during transit; inspect packaging integrity upon receipt before signing for delivery.
• Returns: 30-day return window applies to eligible orders. Items must be in original, uninstalled condition with all included accessories present. Contact support before initiating a return to confirm eligibility.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions before ordering? Contact Cannafull Spectrum Solutions at cannafullspec.com or reach our support team directly through the contact page for pre-purchase technical consultation and order assistance.

What's in the Box

• AC Infinity Duct Carbon Filter 10" — 1 unit (SKU: AC-DCF10)
• Prefilter Cloth (machine-washable) — 2 included
• Filter Straps (nylon, ladder-lock design) — 2 included
• Rope Clips — 2 included

Note: Package contents are confirmed from manufacturer source data (Manual Code: CL2208X1). Weight is not specified in source data and is not listed here. Verify physical package contents against this list upon receipt and contact Cannafull Spectrum Solutions immediately if any item is missing or damaged before installation.

Regional Compliance and Deployment Notes

• Jurisdiction: This product is sold and shipped within the contiguous 48 United States only. Cannafull Spectrum Solutions does not ship to territories outside this boundary.
• Odor Compliance: Operators deploying this filter as part of a facility odor management program should verify that the filter's rated CFM and carbon grade meet the specific emission control requirements of their state or local licensing jurisdiction. The 1200+ IAV rating and 1249 CFM capacity are technical specifications, not compliance certifications — confirm applicability with your compliance officer or licensing authority.
• Electrical Jurisdiction: This unit contains no electrical components. No NEC, UL, or local electrical code review is required for the filter itself. Electrical compliance requirements apply to paired inline fan and controller equipment, not to this filtration unit.
• Licensed Facility Use: This product is deployed in licensed commercial cultivation and processing facilities across the United States. Operators are responsible for ensuring that their ventilation and filtration infrastructure meets all applicable state and local regulatory requirements for their license class.
• Manufacturer: AC Infinity Inc. Product documentation reference: Manual Code CL2208X1. UPC: 819137020825.

Compliance requirements for controlled-environment cultivation facilities vary by state and license type. The technical specifications provided on this page are sourced from AC Infinity manufacturer data and are accurate to the best of Cannafull Spectrum Solutions' knowledge at time of publication. Operators should independently verify all specifications against current manufacturer documentation and applicable regulatory standards before making procurement decisions. Cannafull Spectrum Solutions assumes no liability for regulatory non-compliance arising from product selection or installation decisions made without independent verification.
