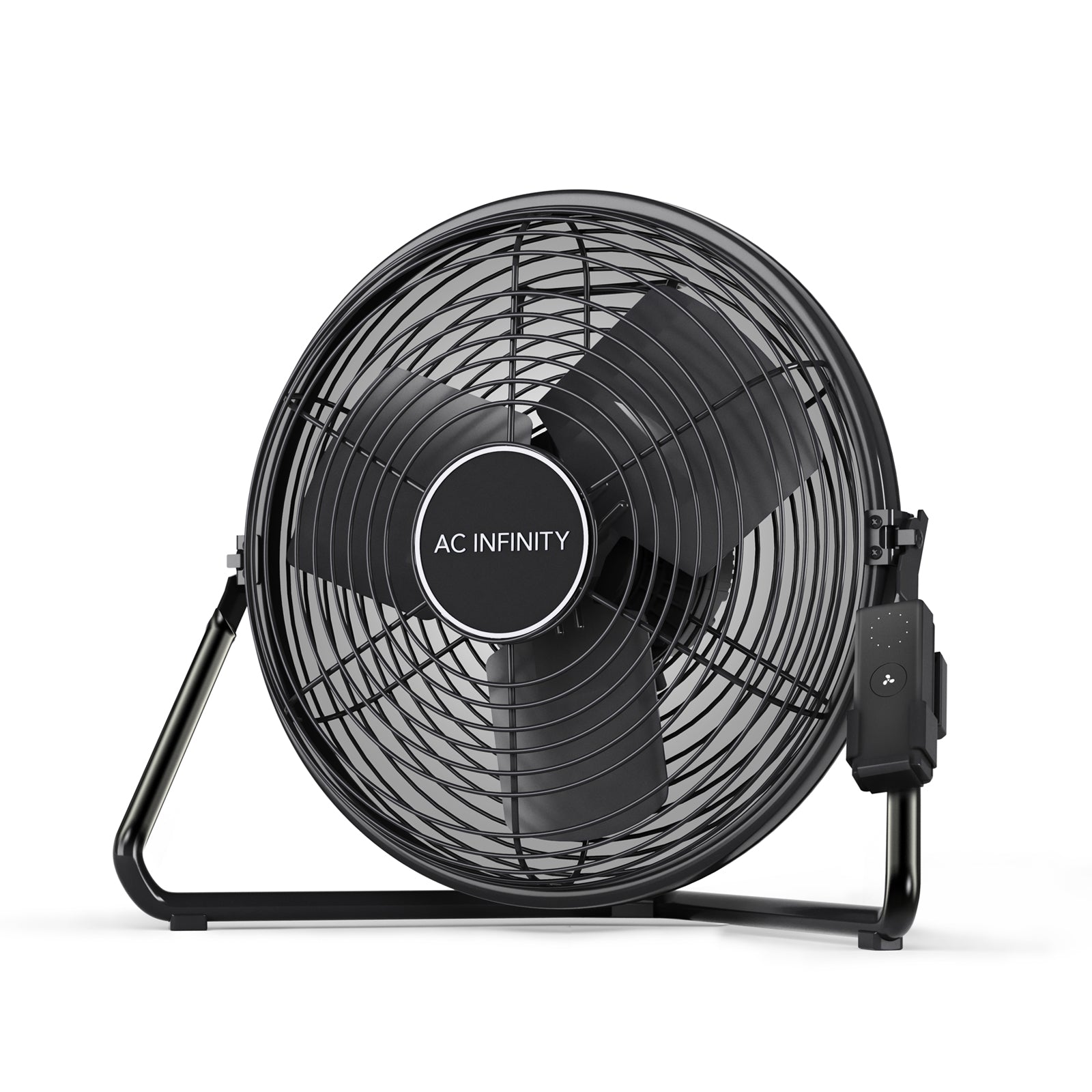

AC Infinity CLOUDLIFT S12 | Floor Wall Fan with Wireless Controller | 12-Inch

Quick Spec: SKU: AC-WFS12  |  Airflow: 1807 CFM  |  Power: 54W / 0.75A  |  Voltage: 100–240V  |  Noise: 62 dBA  |  IP-44  |  Warranty: 2 Years

Precision Control in Any Space

Every cultivation space has dead zones — corners where air stagnates, canopy layers where humidity pools, and microclimates that develop silently between cycles. The enemy is not a single equipment failure; it is the accumulated cost of guesswork: manual adjustments that never quite land, fixed-speed fans that blast at full power or not at all, and the invisible variance that compounds across every run. When you cannot dial airflow to the exact output your environment demands, you are not managing your space — you are reacting to it, and that reaction always costs more than the correction.

After deployment, the picture changes. Airflow becomes a dialed parameter, not a variable left to chance. The canopy receives consistent, programmable circulation at whatever intensity the stage demands — a low, steady breeze during propagation, a higher-velocity sweep during peak transpiration. Scheduling and speed adjustments happen from across the room without touching the unit. The environment stops fighting the operator and starts executing the plan.

The mechanism behind that shift is the Electronically Commutated motor at the core of the CLOUDLIFT S12. EC motors with dual-ball bearings deliver PWM-based speed modulation across 10 discrete steps from 0 to 100% output — a control resolution that brushed AC motors cannot match. At 54W and 0.75A on a universal 100–240V input, the EC motor runs 40% more efficiently than traditional AC motors and carries twice the operational lifespan. The steel enclosure, rigid stand, and weight-balanced aluminum blades maintain structural integrity in environments running up to 85% RH, while the IP-44 rating confirms ingress protection against particulate and moisture exposure. The 10-speed wireless remote with included batteries puts full speed control at the operator's fingertips without requiring a wired connection or proximity to the unit. In practical terms, the CLOUDLIFT S12 delivers 1807 CFM of variable airflow at 54W across floor-standing or wall-mounted positions in any space wired to a standard outlet within 96 inches of cord reach.

Where This Belongs (and Doesn't)

Disclaimer: The CLOUDLIFT S12 connects to a standard electrical outlet (100–240V AC) via its included 96-inch power cord. No hardwired electrical installation is required. For wall-mounting configurations, use the included hardware and verify that the mounting surface can support the unit's load. Consult a licensed contractor for any structural or HVAC integration work beyond the scope of the unit's standard installation.

How It Works

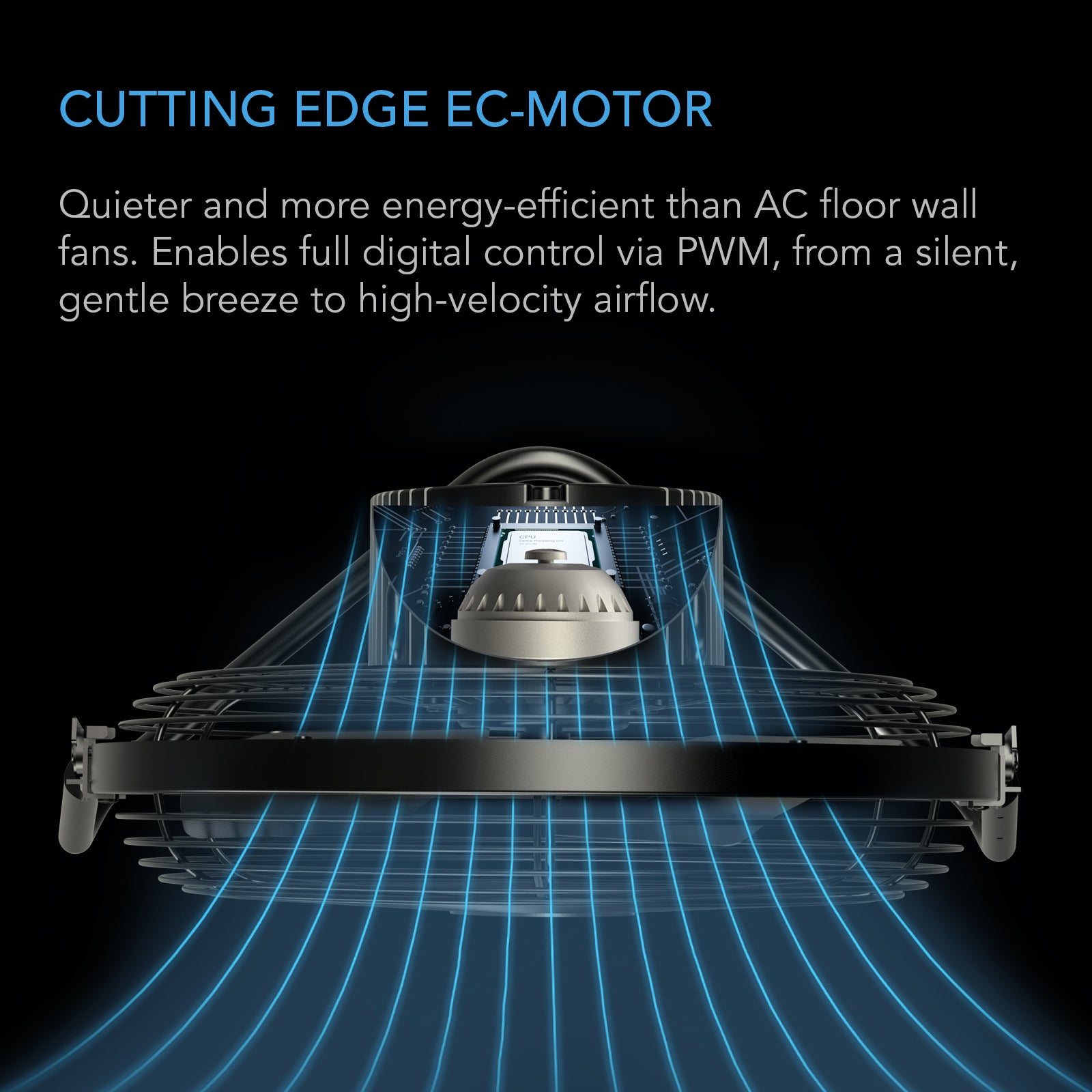

The CLOUDLIFT S12 is built around an Electronically Commutated motor paired with dual-ball bearings. EC motor architecture uses electronic commutation to regulate rotor speed with precision, eliminating the stepped, inefficient speed transitions of brushed AC motors. PWM (Pulse Width Modulation) control translates the 10-speed wireless remote's input into exact motor output percentages across the full 0–100% range, giving the operator granular authority over airflow intensity without mechanical speed switches or manual proximity to the unit. The result is 1807 CFM of maximum airflow and a static pressure rating of 7.426 mm-H₂O, delivered at a noise floor of 62 dBA — a level consistent with occupied workspace operation.

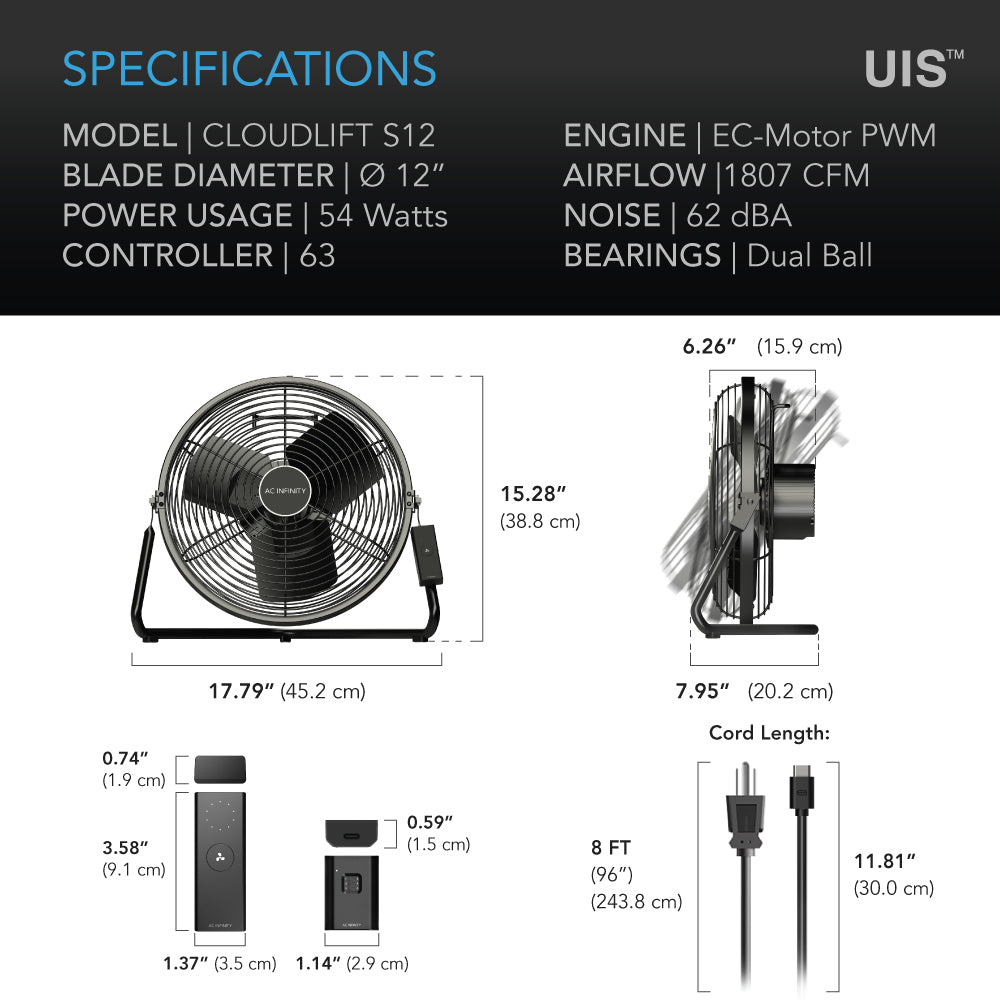

The physical architecture reinforces the motor's performance envelope. The steel enclosure and rigid stand provide structural stability in both floor-standing and wall-mounted configurations, with the included mounting hardware and Ø 0.25 in. (Ø 6.5 mm) mounting hole size enabling direct wall installation without sourcing additional fasteners. Weight-balanced aluminum blades and impellers minimize vibration at high-speed operation, contributing to the unit's noise performance and mechanical longevity. The 360-degree adjustable tilt allows precise directional targeting of airflow without repositioning the entire unit. The 96-inch (243.8 cm) power cord provides placement flexibility relative to outlet location, and the 11.81-inch (30.0 cm) cord from unit to controller keeps the wireless receiver positioned close to the fan body. The controller itself measures 3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm), and the receiver measures 1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm) — both compact enough to avoid interference with mounting geometry. The wall adapter accepts 100–240V AC input, making the unit compatible with any standard outlet in U.S. licensed facilities. In practical terms, the CLOUDLIFT S12 delivers 1807 CFM at 7.426 mm-H₂O static pressure, drawing 54W at 0.75A, with full 10-speed wireless PWM control across a unit footprint of 17.79 x 15.28 x 7.95 in. (45.2 x 38.8 x 20.2 cm).

Commercial Assurance

System Integration

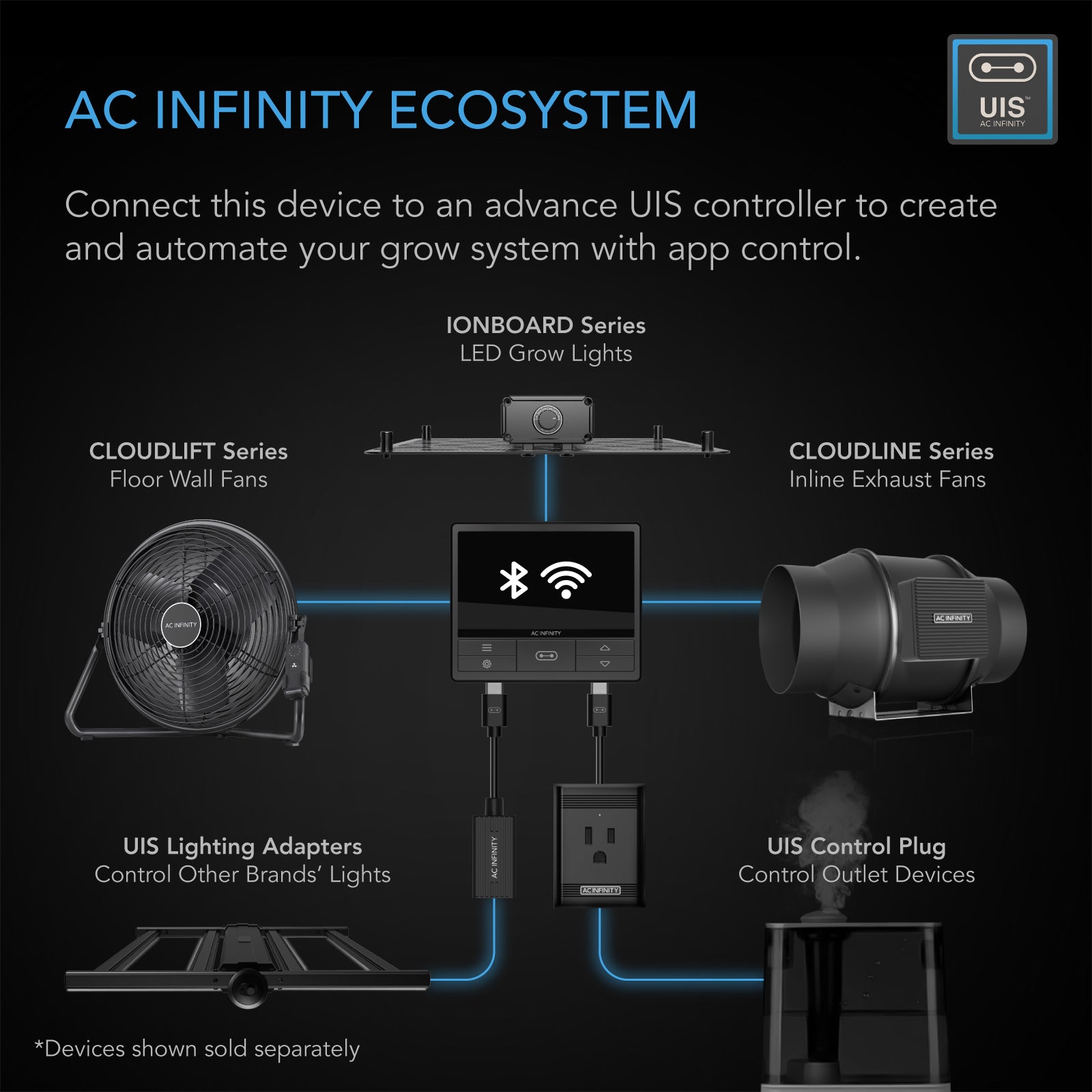

• UIS™ Platform Compatibility: The CLOUDLIFT S12 is a native component of the AC Infinity UIS™ (Universal Intelligence System) platform, enabling integration with UIS-compatible smart controllers for automated scheduling and speed programming beyond the standalone wireless remote.
• Wireless Remote Architecture: The included 10-speed wireless remote with PWM control operates independently of any controller hub, providing immediate speed authority without platform enrollment — useful for standalone deployments or supplemental circulation additions to an existing UIS™ ecosystem.
• Dual Mounting Geometry: Floor-standing and wall-mounted configurations are supported with included hardware, allowing the unit to be repositioned within a facility layout without additional procurement.
• Universal Voltage Input: 100–240V AC wall adapter input ensures compatibility across all standard U.S. outlet configurations, eliminating voltage-matching requirements during multi-unit deployments.
• Atmospheric Control Positioning: As part of the UIS™ ecosystem, the CLOUDLIFT S12 functions as a discrete atmospheric control node — addressable, repositionable, and scalable across multi-unit facility layouts without dedicated circuit infrastructure.

Facility Integration Data

The following ROI reference data is provided to support multi-unit procurement decisions. All figures are based on published specifications: 54W rated power draw, 40% efficiency advantage over traditional AC motors, and a 2-year warranty period. Energy cost baseline assumes $0.12/kWh continuous operation. Lifespan advantage is relative to standard AC floor and wall fan benchmarks per manufacturer claim.

Operator Field Notes

• Mounting hardware is included: Both floor-standing and wall-mounted configurations are supported out of the box. The Ø 0.25 in. (Ø 6.5 mm) mounting hole size is compatible with standard wall anchor hardware. No supplemental mounting kit is required for typical installations.
• Wireless remote batteries are included: The 10-speed wireless remote ships ready to operate. No separate battery procurement is needed for initial deployment.
• 360-degree tilt enables directional precision: The adjustable tilt head allows airflow targeting without repositioning the base — relevant when wall-mounted above canopy level and angled downward for lateral sweep patterns.
• IP-44 rating defines the moisture boundary: IP-44 confirms protection against solid objects greater than 1mm and water splashing from any direction. It does not certify submersion or direct water jet exposure. Maintain clearance from direct irrigation spray zones.
• EC motor noise floor is 62 dBA: At maximum output, the unit operates at 62 dBA — comparable to a normal conversation at close range. At lower speed settings, acoustic output decreases proportionally with PWM reduction.
• UIS™ integration is additive, not required: The CLOUDLIFT S12 operates fully via its standalone wireless remote without any UIS™ controller enrollment. Platform integration expands scheduling and automation capability but is not a prerequisite for basic operation.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, and international destinations including Canada are not fulfilled through this channel.
• Lead Time: Standard lead times apply. Contact Cannafull Spectrum Solutions directly for fleet order lead time confirmation and volume allocation availability.
• Returns: 30-day free returns on qualifying purchases. Items must be in original condition with original packaging. Defective units are handled under the 2-year manufacturer warranty process.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For procurement support, volume pricing, or logistics coordination: contact Cannafull Spectrum Solutions directly via cannafullspec.com.

What's in the Box

• CLOUDLIFT S12 12-inch floor/wall fan unit (AC-WFS12)
• 10-speed wireless remote controller (batteries included)
• Wireless receiver (pre-attached, 11.81 in. cord to unit)
• Wall adapter (100–240V AC input)
• 96-inch (243.8 cm) power cord
• Wall-mounting hardware (for Ø 0.25 in. / Ø 6.5 mm mounting hole)
• Rigid floor stand

Note: Box contents are confirmed based on manufacturer product documentation available at time of publication. Cannafull Spectrum Solutions does not modify factory packaging. If any item is missing upon receipt, contact our support team immediately and retain all original packaging for warranty or return processing.

Regional Compliance & Deployment Notes

• Electrical Compliance: The CLOUDLIFT S12 operates on 100–240V AC via a standard wall outlet connection. No hardwired installation is required. Verify that the outlet circuit is appropriately rated for the 54W / 0.75A draw of the unit, particularly in multi-unit deployments sharing a single circuit.
• IP-44 Deployment Boundary: IP-44 certification applies to the unit as shipped and installed per manufacturer guidelines. Modifications to the enclosure, cord, or mounting configuration that compromise the sealed housing may void ingress protection compliance.
• Humidity Operating Range: The unit is rated for 35–85% RH. Deployment in environments consistently exceeding 85% RH is outside the rated operating envelope and may affect warranty coverage.
• UIS™ Platform Jurisdiction: UIS™ smart controller integration and any associated app-based control features are subject to AC Infinity's platform terms of service. Cannafull Spectrum Solutions does not administer UIS™ platform accounts or software updates.
• Shipping Jurisdiction: This product is available for shipment within the contiguous 48 United States only through Cannafull Spectrum Solutions. Licensed facilities in Alaska, Hawaii, and U.S. territories should contact us directly to discuss fulfillment options.
• State Licensing Compliance: Cannafull Spectrum Solutions does not provide regulatory compliance guidance. Operators are responsible for ensuring that equipment deployment aligns with applicable state and local licensing requirements for their facility type and jurisdiction.

Specifications, compliance ratings, and product contents are based on manufacturer documentation current at time of publication. Cannafull Spectrum Solutions reserves the right to update product listings as manufacturer data is revised. Confirm current specifications with our team prior to large-volume procurement commitments.
