AC Infinity Air Filtration Kit 6” | Inline Fan with Speed Controller | Carbon Filter & Ducting Combo

Precision Control in Any Space

The enemy is guesswork — and in a sealed cultivation environment, guesswork compounds silently. A fan running at the wrong speed creates dead zones where humidity stratifies and temperature gradients form. A carbon filter that is undersized or mismatched to the fan curve allows odor molecules to break through, creating compliance exposure and product integrity risk. Manual speed adjustments introduce operator-dependent variance: one shift runs the fan at full draw, the next throttles it back, and neither decision is tied to actual environmental data. The result is an atmosphere that is never quite right, a carbon bed that exhausts prematurely, and a facility that is perpetually reacting rather than executing.

After deployment, the environment stabilizes. Airflow is dialed to the exact exchange rate the space demands — not approximated, not guessed. The carbon bed intercepts odor at the molecular level before it reaches the exhaust stream, and the prefilter cloth extends the bed's service life by blocking particulate load upstream. The controller sits at the operator's fingertips, cycling through ten discrete speed settings with a single button press, and the entire assembly holds its configuration across shifts without drift. The facility stops reacting to its own atmosphere and starts executing against a defined environmental protocol.

The mechanism behind that stability is a matched system engineered to operate as a single unit. The EC-motor inline fan delivers 352 CFM of total airflow against 394 Pa of static pressure, drawing a maximum of 65 W and averaging 35 W under normal operating conditions — running at 34 dBA across its speed range. PWM control architecture allows the motor to operate at extremely low RPMs without generating motor noise, eliminating the acoustic penalty that typically accompanies low-speed fan operation. The carbon filter pairs directly to the 6" duct opening, presenting a 38mm activated carbon bed composed of RC412 Australian charcoal rated at 1200+ IAV, with a maximum airflow rating of 410 CFM — matched above the fan's output to ensure the filter never becomes the system's bottleneck. Twenty-five feet of four-layer flexible ducting — dual PVC thermoplastic outer, flame-resistant aluminum inner, steel wire retention — completes the circuit. The motor carries a 67,000-hour L10 life expectancy, is rated IP 44 for dust and splash resistance, and accepts 100–240V AC input at 50/60 Hz for deployment across any U.S. facility electrical standard. In practical terms, the AC Infinity Air Filtration Kit 6" delivers 352 CFM of scrubbed, controlled airflow through a 6" duct circuit at a sustained average draw of 35 W, with ten discrete speed positions managed from a 2.70 x 1.37 x 0.55 in. inline controller.

Where This Belongs (and Doesn't)

Electrical and HVAC integration must be performed in accordance with applicable local codes and facility safety standards. This kit is designed for low-voltage inline duct applications and connects via US Plug (NEMA 1-15 Type-A). It is not a replacement for building-level HVAC infrastructure. Consult a licensed mechanical contractor for large-scale duct system design.

How It Works

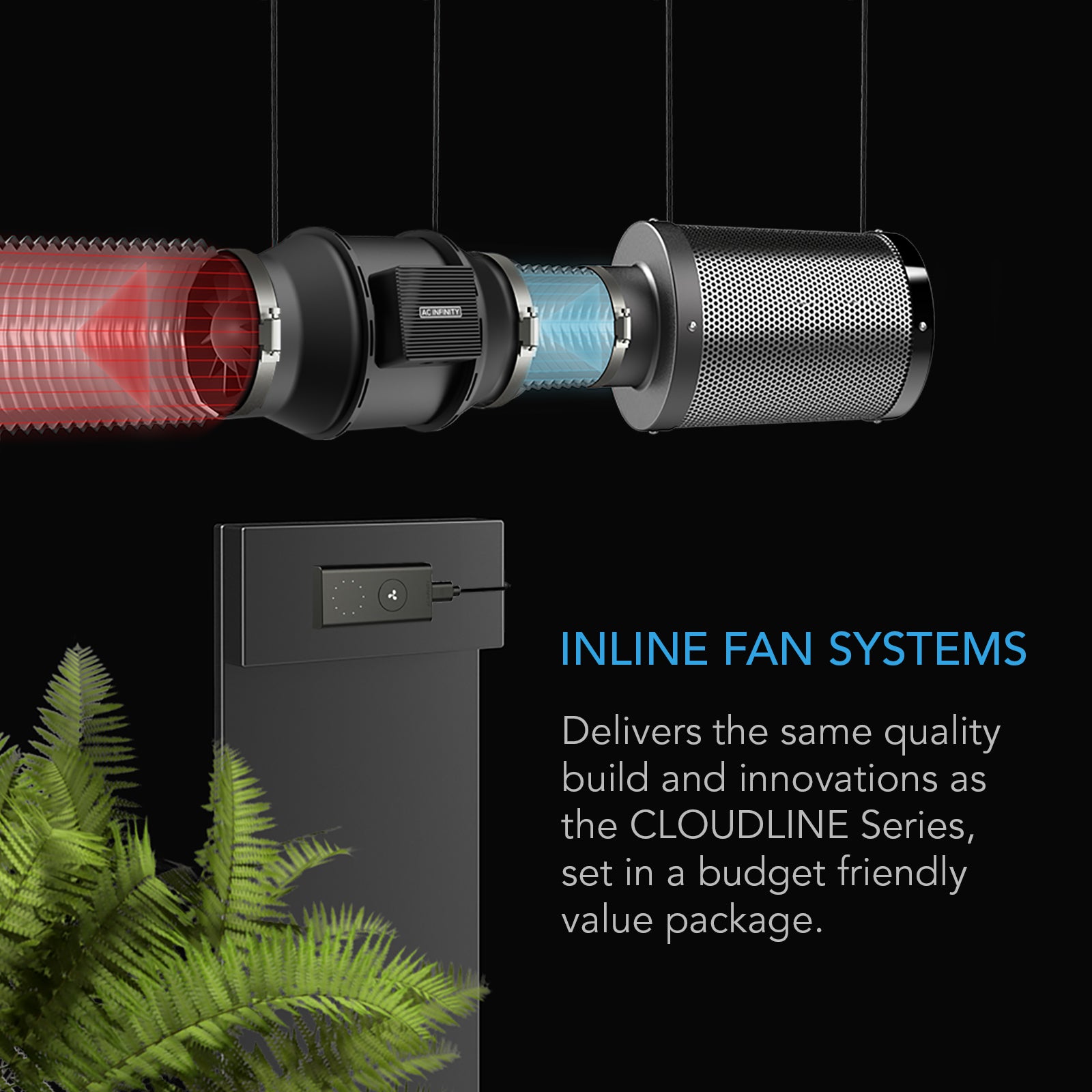

The AC Infinity Air Filtration Kit 6" operates as an integrated atmospheric control circuit. Air is drawn through the carbon filter first — the 38mm RC412 Australian activated charcoal bed, rated 1200+ IAV with RC412 microporosity, intercepts odor molecules before they enter the fan housing. The included prefilter cloth mounts over the carbon filter intake, capturing particulate matter and extending the carbon bed's service life. The galvanized steel mesh construction of the filter body allows 100% air passthrough without restriction, and the reversible aluminum flanges allow the operator to flip the carbon bed when one face is saturated, effectively doubling usable filter life before replacement is required. The carbon filter's maximum airflow rating of 410 CFM exceeds the fan's 352 CFM output, ensuring the filter never introduces system backpressure that would degrade fan performance.

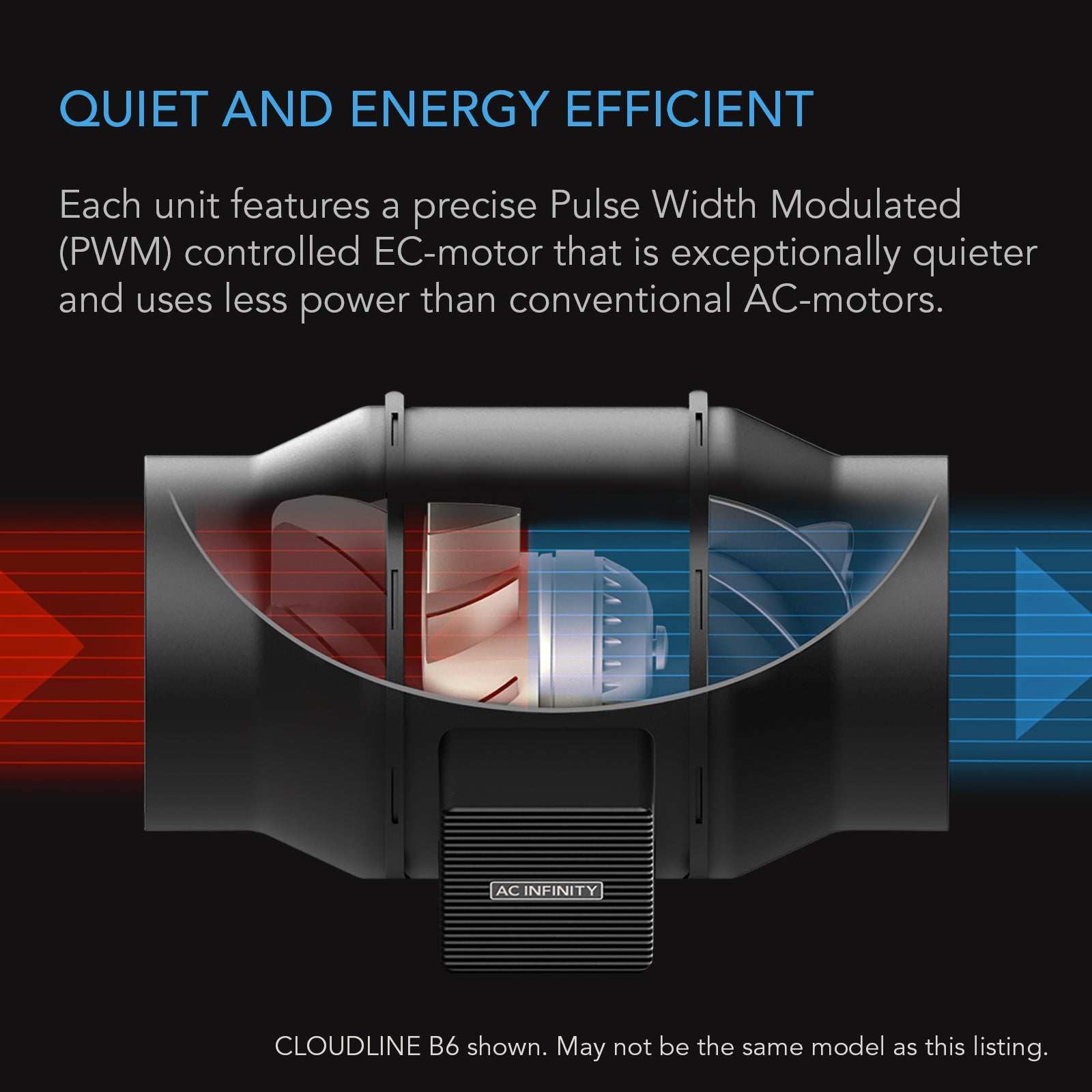

The inline fan is driven by an EC-motor — an electronically commutated motor architecture that eliminates the efficiency losses and acoustic penalties associated with conventional AC induction motors. The motor is rated for 67,000 hours of L10 life and can be mounted horizontally, vertically, or at any angle without bearing wear penalty, enabled by dual ball bearings. Fan unit dimensions are 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm), with mounting hole-to-hole spacing of 3.15 x 2.36 in. (8.0 x 6.0 cm) and a screw hole diameter of 0.236 in. (0.6 cm). The unit draws a maximum of 65 W at 0.95 A and averages 35 W under normal operation, accepting 100–240V AC at 50/60 Hz via US Plug (NEMA 1-15 Type-A). IP 44 certification confirms resistance to dust ingress and water splash from any direction.

Speed control is delivered through a dedicated PWM controller — dimensions 2.70 x 1.37 x 0.55 in. (6.9 x 3.5 x 1.4 cm) — connected via a 72-inch cord from the fan and a 72-inch cord to the plug. A single-button interface cycles through ten discrete speed settings (0–10), and PWM modulation allows the motor to hold extremely low RPMs without generating motor noise or torque instability. The controller is also compatible with the B-Series Temperature Controller, CONTROLLER UNC529, and CONTROLLER 69 for automated environmental response deployment. UIS connectors enable integration with compatible ecosystem devices without adapter hardware. The 25-foot flexible ducting — four-layer construction with dual PVC thermoplastic outer protection and flame-resistant aluminum inner lining, retained by internal steel wires — connects the filter-fan assembly to the exhaust point, with sufficient length to route around obstructions in most enclosed facility configurations. In practical terms, the AC Infinity Air Filtration Kit 6" moves 352 CFM through a matched 1200+ IAV carbon scrubbing circuit at an average draw of 35 W, with ten operator-selectable speed positions and 25 feet of four-layer flexible duct for routing flexibility.

Commercial Assurance

• Authorized Source: Cannafull Spectrum Solutions is a factory-authorized dealer. Every unit ships as a complete, factory-configured kit — fan, carbon filter with dual prefilter cloth, speed controller, 25 ft. ducting, and two duct clamps.
• Warranty: Warranty terms are not specified in available source data. Contact Cannafull Spectrum Solutions at support@cannafullspec.com or the manufacturer directly to confirm current warranty coverage before purchase.
• Certifications: CE, RoHS. IP 44 rated for dust and splash resistance. EC-motor architecture carries no brush-wear failure mode.
• Voltage Compatibility: 100–240V AC, 50/60 Hz — compatible with standard U.S. facility electrical infrastructure without step-down transformer.
• Motor Longevity: 67,000-hour L10 life expectancy on dual ball bearings, orientation-independent mounting — no bearing wear penalty for vertical or angled installation.
• Support: Pre-sale technical configuration support and post-sale deployment assistance available through Cannafull Spectrum Solutions. Contact: support@cannafullspec.com.

System Integration

• Automated Environmental Control: The speed controller is compatible with the B-Series Temperature Controller, CONTROLLER UNC529, and CONTROLLER 69, enabling fan speed to respond automatically to temperature or humidity thresholds without operator intervention.
• UIS Ecosystem Connectivity: Universal Interface System (UIS) connectors allow direct integration with compatible AC Infinity ecosystem devices — no adapter hardware required.
• Duct Infrastructure: 6" duct opening on both fan and carbon filter mates directly to standard 6" duct collars, inline duct splitters, and blast gates without reducer fittings.
• Scalable Deployment: Multiple units can be deployed across independent zones within a facility, each operating on its own speed controller or integrated into a shared environmental controller network for centralized atmospheric management.
• Electrical Integration: NEMA 1-15 Type-A plug connects to standard 15A circuits. At 0.95 A max draw, multiple units can be deployed on a single circuit within NEC load limits — confirm circuit capacity with a licensed electrician before multi-unit deployment.

Facility Integration Data

The following table models electrical load and average power consumption across multi-unit deployments to support facility planning, circuit allocation, and operational cost estimation.

kWh estimates based on average power draw (35 W) at continuous 24/7 operation. Actual consumption will vary by speed setting and duty cycle. Circuit allocation must be verified by a licensed electrician per NEC requirements.

Operator Field Notes

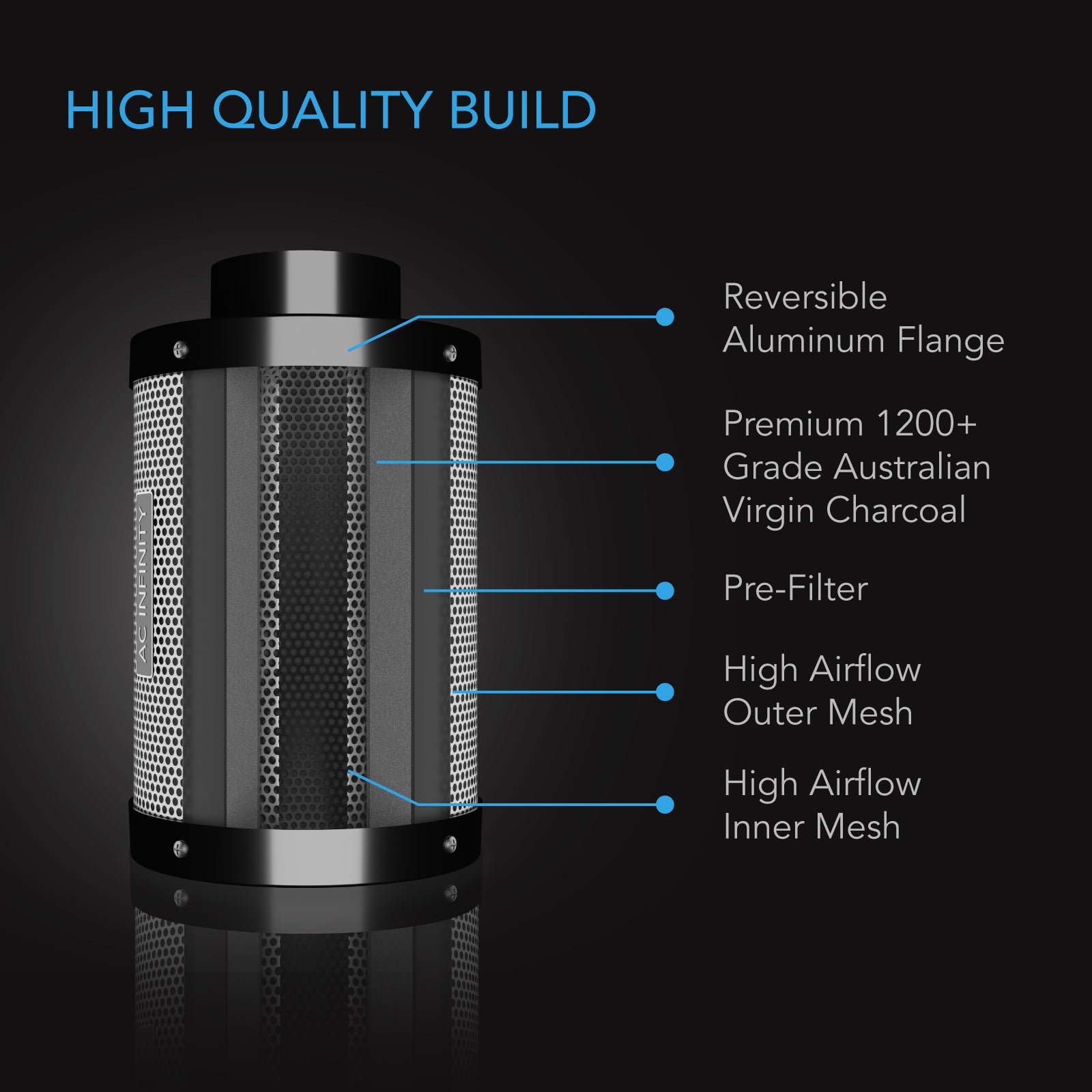

• Carbon Bed Orientation: The reversible aluminum flanges on the carbon filter allow the operator to flip the carbon bed when one face reaches saturation capacity, extending service life before a full filter replacement is required. Deploy the included prefilter cloth on the intake face to reduce particulate load on the carbon bed.
• Speed Setting Protocol: PWM modulation allows stable operation at speed settings 1–2 without motor noise or torque hunting. Low-speed operation is appropriate for maintenance-level air exchange during lights-off periods, reducing acoustic output and electrical draw simultaneously.
• Mounting Orientation: Dual ball bearings support horizontal, vertical, or angled mounting without bearing wear penalty. Select mounting orientation based on duct routing geometry, not bearing constraints.
• Controller Upgrade Path: The included 10-speed manual controller can be replaced with the B-Series Temperature Controller, CONTROLLER UNC529, or CONTROLLER 69 for automated speed response tied to environmental sensor inputs — no rewiring required via UIS connectors.
• Ducting Length Management: The 25-foot flexible duct provides routing flexibility, but excess duct length increases static pressure load on the fan. Cut ducting to the minimum required run length and maintain bend radii above 6" to preserve airflow performance near the 352 CFM rated output.
• IP 44 Scope: IP 44 certification covers dust ingress protection and water splash resistance. It does not qualify the unit for direct water spray, submersion, or continuous condensation exposure. Maintain clearance from direct irrigation systems and condensate drip zones.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Alaska, Hawaii, U.S. territories, and international destinations are outside current shipping scope.
• Fulfillment: Orders are processed and fulfilled from U.S. warehouse stock. Estimated lead times are provided at checkout and are subject to carrier conditions. Freight class and carrier selection are determined by order size and destination.
• Returns: Returns are accepted for defective units per manufacturer warranty terms. Non-defective returns are subject to the Cannafull Spectrum Solutions Return Policy. Contact support@cannafullspec.com before initiating any return to receive a Return Merchandise Authorization (RMA) number.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For pre-sale configuration support or post-sale deployment assistance, contact Cannafull Spectrum Solutions: support@cannafullspec.com

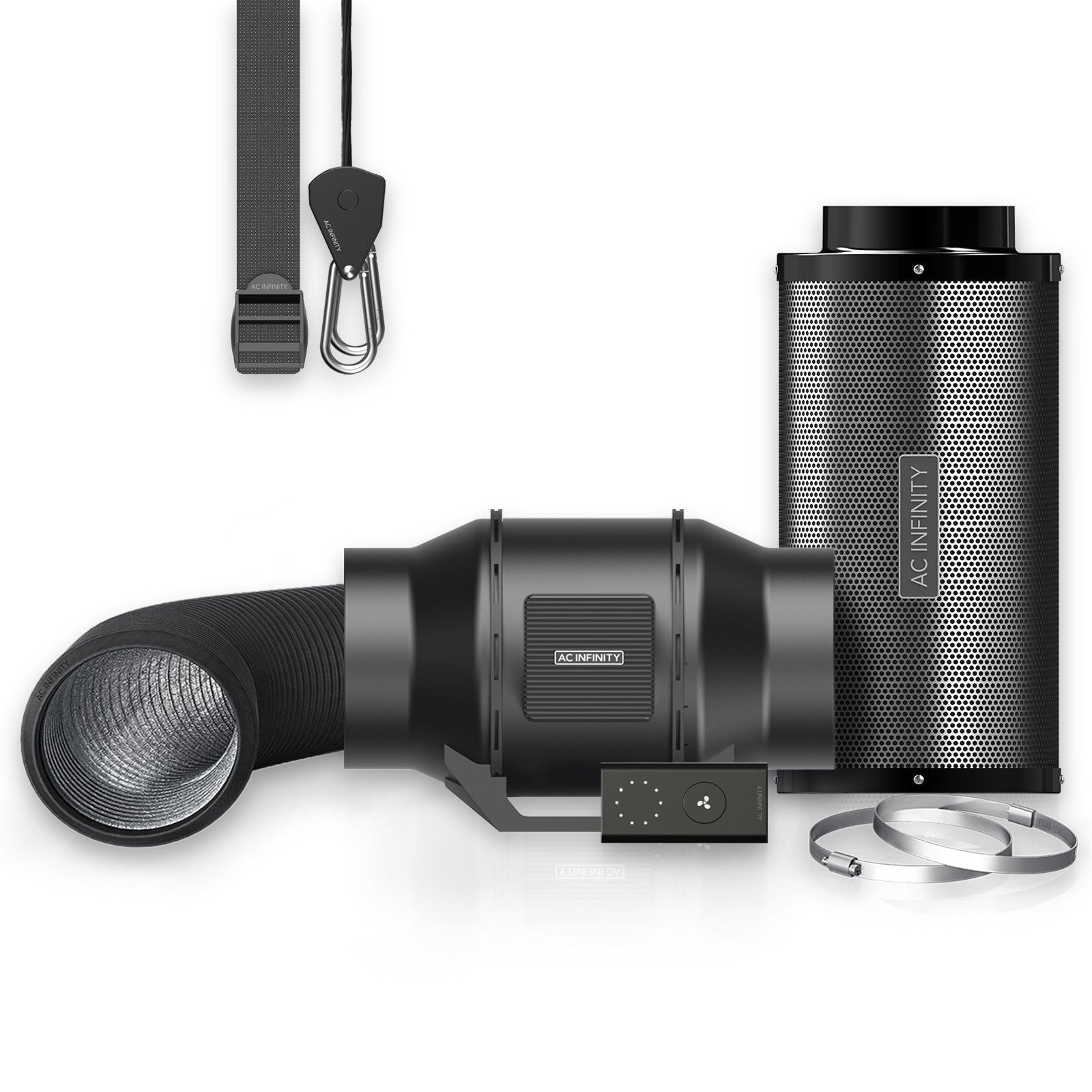

What's in the Box

• Duct Fan System (CLOUDLINE LITE) — 6", 352 CFM inline fan with EC-motor
• 10-Speed PWM Speed Controller with 72 in. cord to fan and 72 in. cord to plug
• Carbon Filter with prefilter cloth — 6" duct opening, 38mm RC412 Australian activated charcoal bed (x2 prefilter cloths included)
• Flexible Ducting — 6 in. diameter, 300 in. (25 ft.) length, four-layer construction
• Duct Clamps (x2)

Package contents confirmed from manufacturer source data. Weight is not specified in available source data. Verify final package contents against physical shipment upon receipt. Contact support@cannafullspec.com to report any discrepancy within 48 hours of delivery.

Regional Compliance & Deployment Notes

• Certifications: CE and RoHS certified. IP 44 rated per IEC 60529 standard for dust and splash ingress protection.
• Electrical Standard: Rated for 100–240V AC, 50/60 Hz. Connects via US Plug (NEMA 1-15 Type-A). Compatible with standard 15A U.S. circuits. At 0.95 A maximum current draw, multiple units may be deployed on a single circuit within NEC load limits — circuit capacity verification by a licensed electrician is required before multi-unit deployment.
• State Licensing: Deployment in licensed cannabis cultivation facilities must comply with applicable state-level operational and environmental control requirements. Cannafull Spectrum Solutions does not provide regulatory compliance consulting. Confirm equipment specifications meet your state's facility licensing requirements with your compliance officer before purchase.
• Shipping Jurisdiction: Available for deployment across licensed U.S. facilities within the contiguous 48 states. Cannafull Spectrum Solutions does not ship to Alaska, Hawaii, U.S. territories, or international destinations.
• RoHS Compliance: RoHS certification confirms restriction of hazardous substances in the unit's construction, relevant to facilities operating under environmental management or waste disposal compliance frameworks.

Compliance information is provided for reference only and reflects certifications documented in manufacturer source data. Cannafull Spectrum Solutions makes no representation regarding the sufficiency of these certifications for any specific state licensing, building code, or facility inspection requirement. Verify all compliance obligations with qualified legal and regulatory counsel before deployment.
