AC Infinity IONBEAM Green | LED Work Light with Dimming Timer Controller | 16-Inch

Key Specs: 12W | 525 nm Osram Green | Up to 10x10 ft Coverage | IP65 | 50,000 Hr Lifespan | 2-Year Warranty

Stop Buying. Start Manufacturing Top-Shelf Inventory.

Consumer-grade equipment and guesswork-driven growing impose a cost that never appears on a single invoice — it accumulates invisibly across every dark-cycle entry, every uncontrolled light exposure, every crop that finishes two weeks late because a maintenance check triggered a stress response in a light-sensitive room. Operators relying on improvised solutions — white overheads, filtered flashlights, or simply avoiding the room entirely — are not managing their environment. They are gambling with it. The silent tax is inconsistency: variable finish windows, unpredictable secondary metabolite expression, and crop cycles that drift because the dark period was never truly protected.

After deploying a purpose-built dark-cycle work light, the cultivation room operates on a different standard. Technicians can enter, inspect, adjust, and service equipment at any point in the photoperiod schedule without hesitation. Irrigation lines get checked on time. Environmental sensors get calibrated on schedule. Canopy observations happen when they need to happen — not when the light schedule permits. The facility runs on operator terms, not on the crop's sensitivity to uncontrolled light intrusion. That is what a protected dark cycle looks like in practice: a room that is always accessible, always manageable, and always producing on schedule.

The mechanism behind that outcome is a precisely engineered 525 nm green wavelength, delivered by 18 Osram diodes across a 16.02 x 1.08 in. (40.7 x 2.75 cm) unibody bar. Green light at this wavelength is processed differently by plant photoreceptors than red or blue wavelengths — at output levels below 10 nanomoles per second, it does not activate the phytochrome responses that govern photoperiod transitions. The AC-NEG16 operates at 12W on 100-240V AC input, draws 2.0A, and includes a Dimming Timer Controller with four intensity levels and auto-off programming in 5, 10, 15, and 20-minute increments. IP65-rated construction handles the humidity and condensation of sealed cultivation environments. UIS platform compatibility connects the fixture to the AC Infinity app via WiFi for integrated scheduling across the full equipment ecosystem. In practical terms, the AC-NEG16 IONBEAM Green delivers 525 nm green illumination across up to 10x10 ft cultivation spaces at 12W draw, with automated timer control and four-level dimming managed through the UIS Cortex platform.

Where This Belongs (and Doesn't)

The AC-NEG16 operates on a standard US Plug (NEMA 1-15 Type-A) at 12W / 2.0A. No dedicated circuit is required for the fixture itself; however, verify that the outlet circuit serving the cultivation room is not shared with high-draw equipment that could cause voltage fluctuation affecting timer controller accuracy.

Infrastructure Note: The AC-NEG16 mounts magnetically to grow tent frames, bar-style lighting fixtures, and other magnetic surfaces. No tools or hardware installation required. For permanent commercial installation, verify that mounting surfaces meet local code requirements for installed lighting equipment.

How It Works

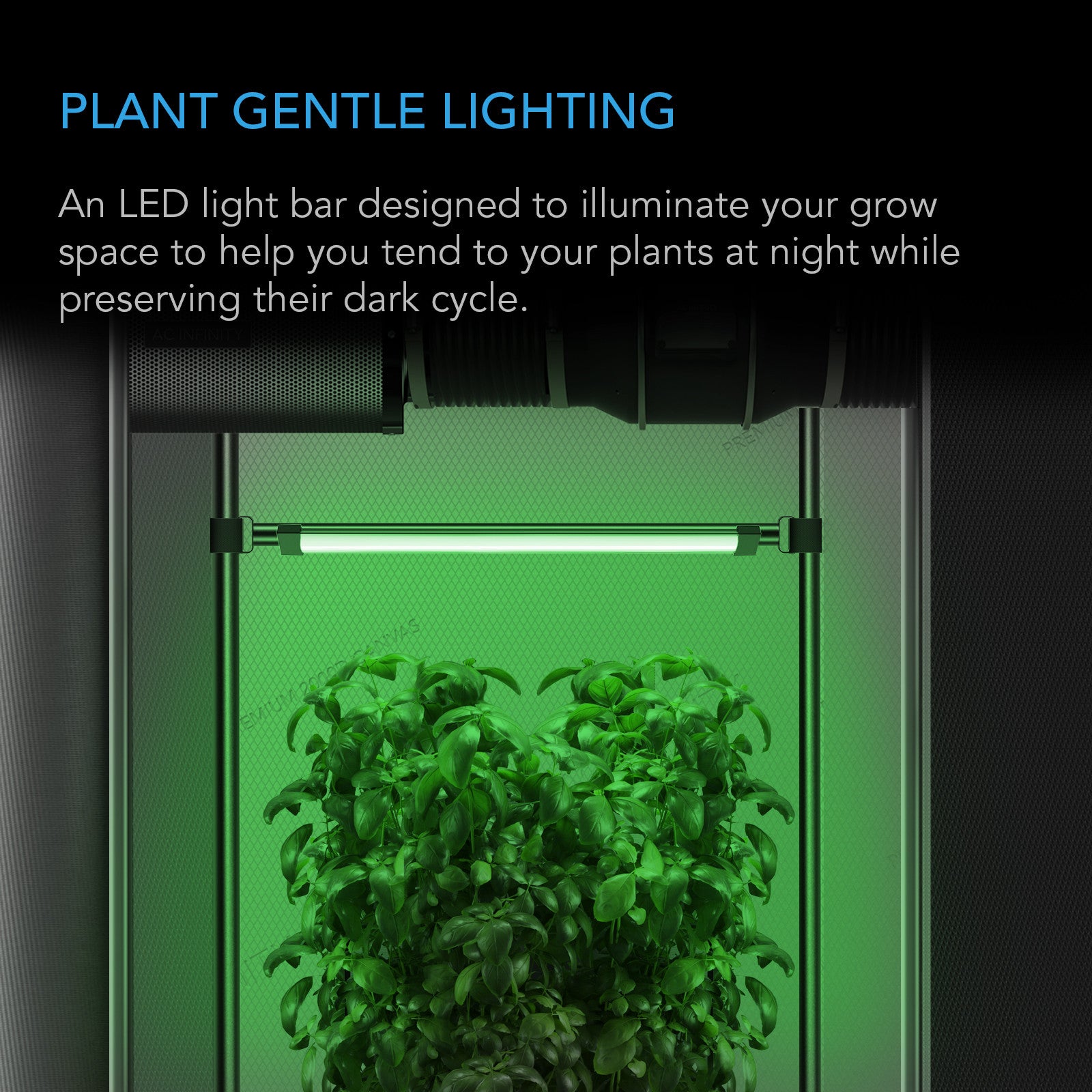

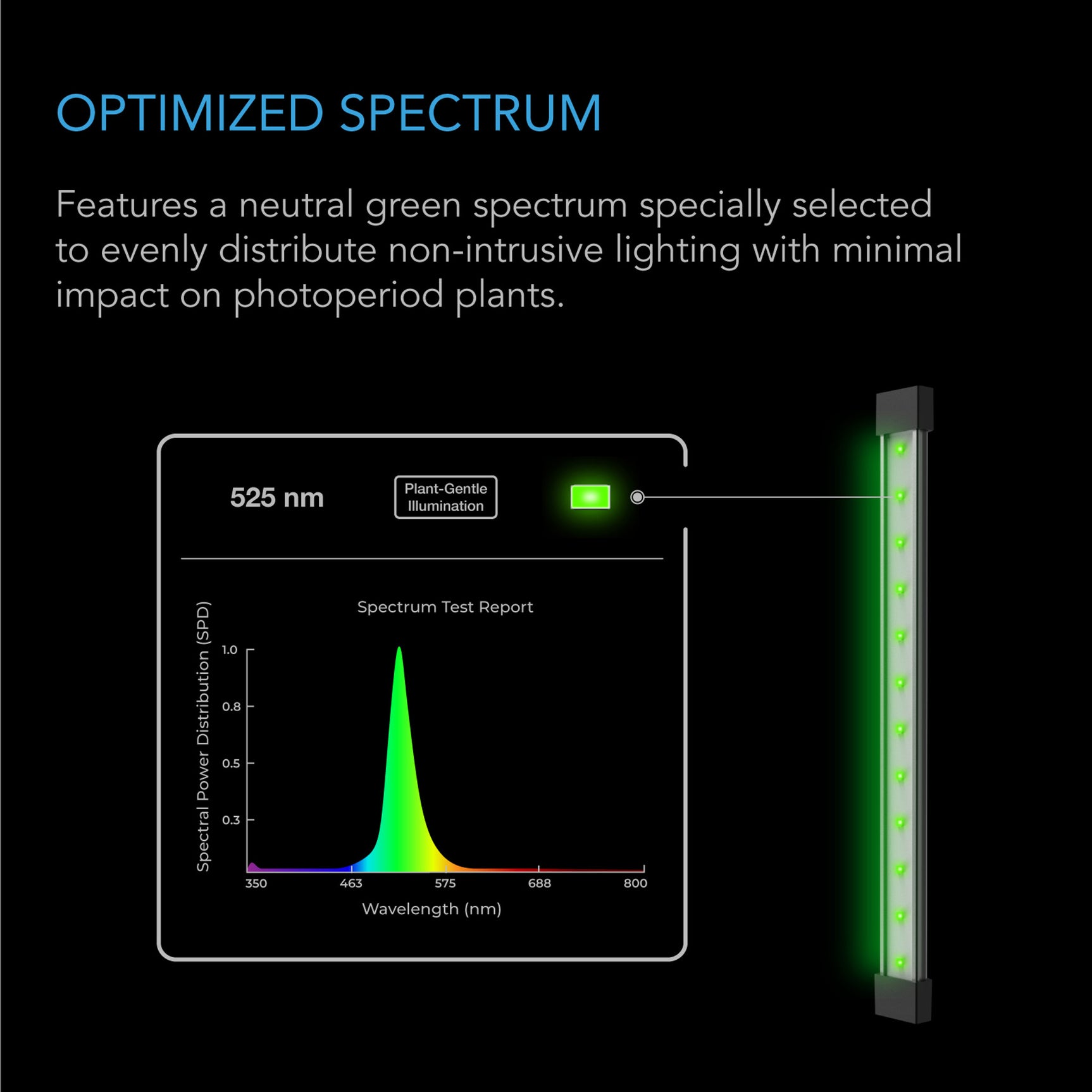

The AC-NEG16 IONBEAM Green operates on a single-wavelength 525 nm green LED platform using 18 Osram diodes per bar. At this wavelength, photons interact with plant tissue in a fundamentally different way than the red (600-700 nm) and blue (400-500 nm) wavelengths that drive photosynthesis and photoperiod signaling. Phytochrome photoreceptors — the molecular switches that govern flowering transitions in photoperiod-sensitive plants — are minimally activated by 525 nm green light at output levels below 10 nanomoles per second. The AC-NEG16 is engineered to operate within that threshold, providing sufficient illumination for operator visibility and task execution without crossing into the activation range that would register as a light interruption to the crop.

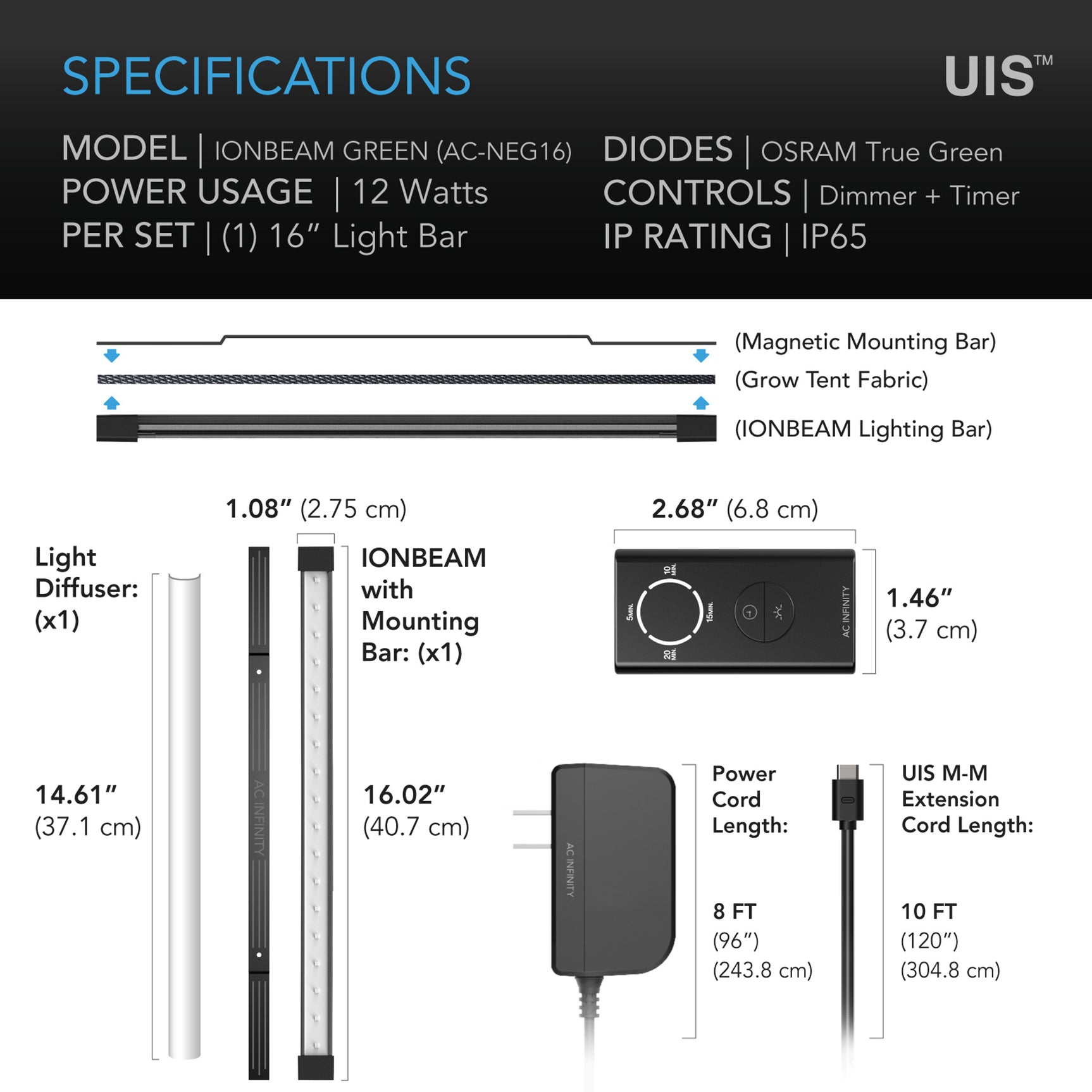

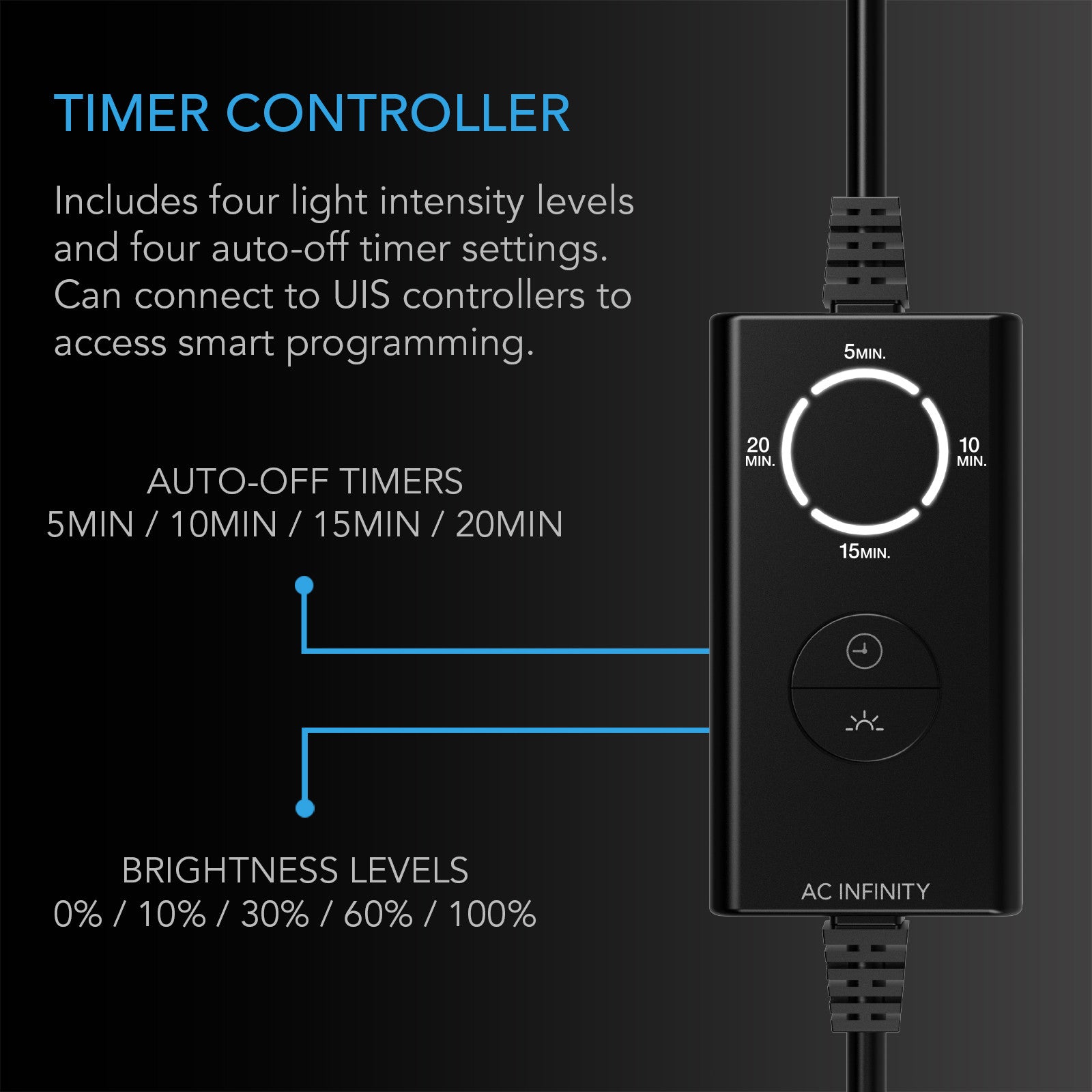

The included Dimming Timer Controller (3.31 x 1.26 in. / 8.4 x 3.2 cm) provides four discrete intensity levels, allowing operators to dial output to the minimum necessary for the task at hand. Auto-off programming in 5, 10, 15, and 20-minute increments eliminates the risk of a fixture being left on past its intended window — a critical safeguard in facilities where a single uncontrolled dark-cycle interruption can delay an entire harvest cycle. The detachable diffuser softens the 525 nm output and distributes it more evenly across the coverage footprint, reducing hot-spot intensity directly beneath the bar. The unibody bar measures 16.02 x 1.08 in. (40.7 x 2.75 cm), mounts magnetically to tent frames and bar-style fixtures, and carries an IP65 rating for operation in high-humidity sealed environments with operating temperatures from 32 to 140°F. UIS platform integration connects the AC-NEG16 to the AC Infinity app over WiFi, enabling scheduled automated deployment alongside fans, controllers, and other ecosystem components. The 8 ft. (96 in.) power cord accommodates standard rack and tent mounting configurations without extension requirements. In practical terms, the AC-NEG16 delivers 525 nm green illumination at 12W / 2.0A across up to 10x10 ft cultivation spaces with automated timer shutoff and four-level dimming, rated for 50,000 hours of continuous operation in IP65-certified humid environments.

System Integration

To operate this platform at peak efficiency, verify your ecosystem matches these requirements:

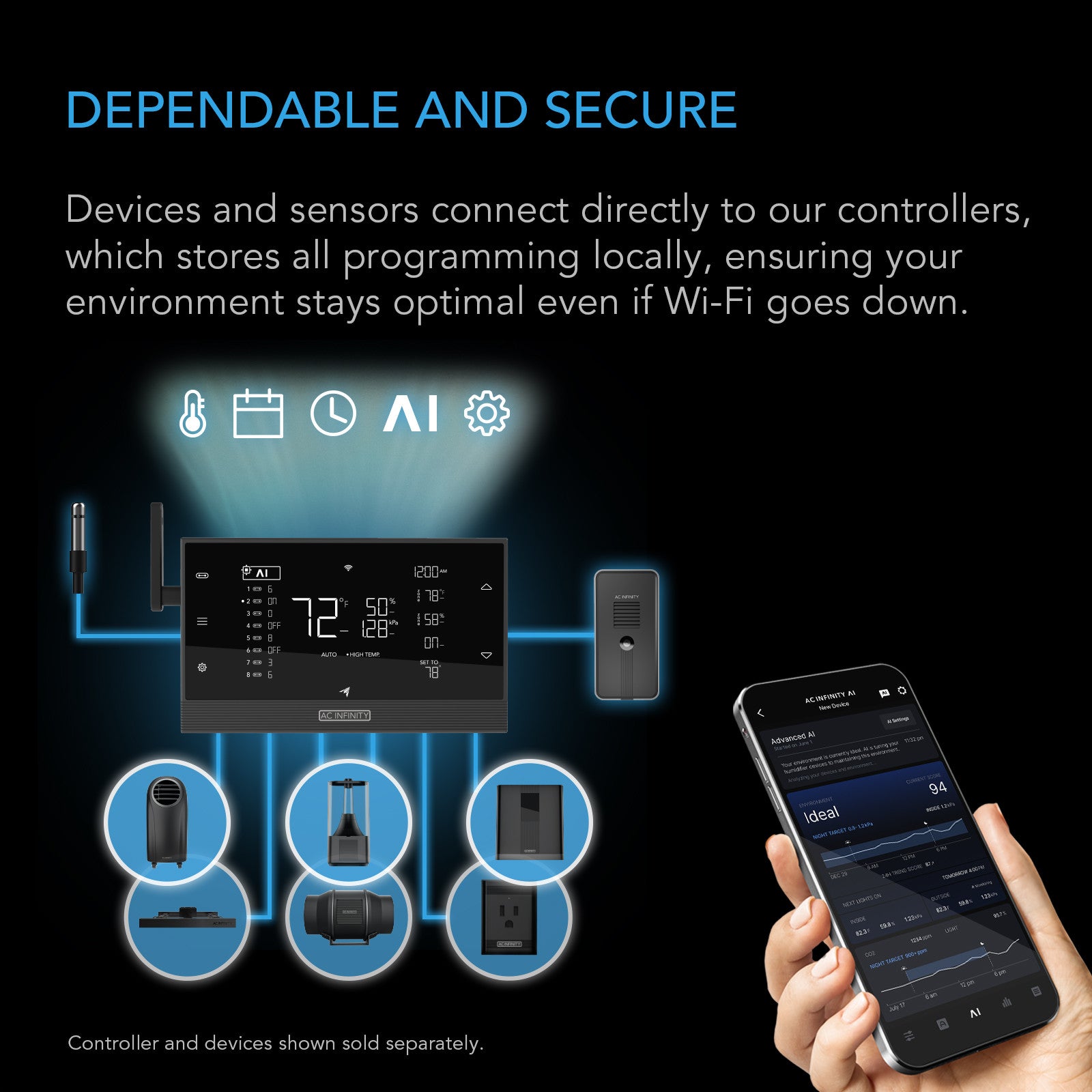

• Controller Compatibility: Integrates with UIS-compatible controllers via the AC Infinity app over WiFi. For automated scheduling alongside fans, environmental controllers, and other UIS devices, a UIS hub or compatible controller is required.
• Mounting Surface: Magnetic mounting requires a ferromagnetic surface — standard steel grow tent frames and most bar-style LED fixtures qualify. Verify surface compatibility before deployment in non-standard rack configurations.
• Power: US Plug (NEMA 1-15 Type-A), 100-240V AC, 50/60 Hz, 2.0A. Standard outlet compatible. Verify outlet availability at mounting location given the 8 ft. (96 in.) cord length.
• Environmental Setpoints: Rated for 32 to 140°F operating temperature range. IP65 construction supports high-humidity sealed cultivation environments. No additional environmental conditioning required for the fixture itself.
• Supplemental Spectrum Pairing: When deployed as a spectrum supplement alongside primary fixtures, pair with blue and red diode arrays to address spectral gaps. The 525 nm green channel fills the mid-spectrum range not covered by most red/blue-dominant primary fixtures.

Facility Integration Data

The following data supports fleet-level procurement decisions and operational cost comparisons for licensed cultivation facilities evaluating the AC-NEG16 IONBEAM Green as a standardized dark-cycle work light deployment.

Operator Field Note

• Output Threshold: The AC-NEG16 is rated for safe photoperiod operation at output levels below 10 nanomoles per second. Do not operate at maximum intensity for extended periods in rooms with highly sensitive photoperiod cultivars without first verifying output at canopy level.
• Electrical Draw: 12W / 2.0A on a standard NEMA 1-15 Type-A outlet. No dedicated circuit required. The 8 ft. (96 in.) power cord is fixed — plan mounting position relative to outlet location before magnetic attachment.
• Magnetic Mounting: Mounting force is dependent on surface ferromagnetism. Verify holding strength on non-standard surfaces before leaving the fixture unattended in overhead positions above active canopy.
• Humidity Environment: IP65 rating covers dust ingress and water jets. The fixture is appropriate for high-humidity sealed cultivation environments operating within the 32 to 140°F temperature range. Do not submerge or expose to direct water flow beyond IP65 parameters.
• Timer Dependency: The auto-off function is a safeguard, not a substitute for operational protocol. Establish facility-level SOPs for dark-cycle entry that include fixture activation and timer confirmation as a checklist step.
• UIS Integration: WiFi-enabled scheduling requires a UIS-compatible controller or hub. Standalone operation via the onboard Dimming Timer Controller is fully functional without network connectivity.

Shipping & Logistics

• Origin: Ships from Cannafull Spectrum Solutions' authorized distribution point within the contiguous 48 United States.
• Processing: Orders are processed within 1-2 business days of payment confirmation. Tracking information is provided upon shipment.
• Damage: Inspect all shipments within 48 hours of delivery. Report any shipping damage to Cannafull Spectrum Solutions at (888) 378-0017 or sales@cannafullspec.com within that window. Claims submitted after 48 hours may not be eligible for carrier resolution.
• Returns: Returns accepted within 30 days of delivery for units in original, uninstalled condition. A Return Authorization (RA) number is required before return shipment. Contact Cannafull Spectrum Solutions to initiate.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions? (888) 378-0017 or sales@cannafullspec.com

What's in the Box

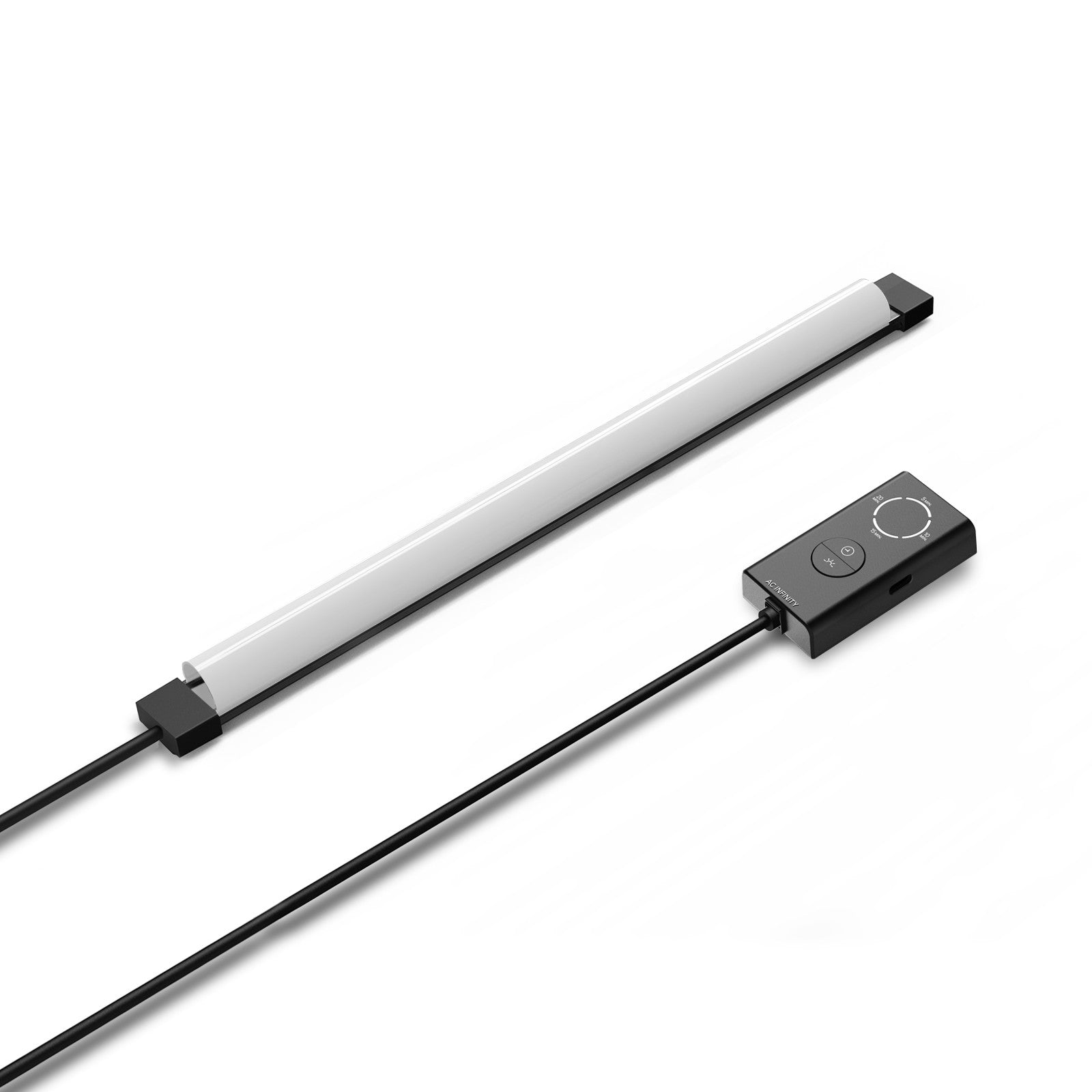

• AC Infinity AC-NEG16 IONBEAM Green LED bar (16.02 x 1.08 in. / 40.7 x 2.75 cm)
• Dimming Timer Controller (3.31 x 1.26 in. / 8.4 x 3.2 cm)
• Detachable diffuser
• Power cord — 8 ft. (96 in.), US Plug (NEMA 1-15 Type-A)

Note: Box contents are based on available manufacturer data. Verify complete contents upon receipt. Contact Cannafull Spectrum Solutions at (888) 378-0017 if any components are missing or damaged.

Regional Compliance & Deployment Notes

Commonly deployed in sealed commercial cultivation facilities across the United States. Installation, HVAC sizing, and electrical requirements vary by jurisdiction; always verify with local code.
