Alien Hydroponics Venturi Inlet Fitting

One Weak Connection Poisons the Whole Circuit

The enemy is not the reservoir, the pump, or the nutrient formula — it is the fitting that sits between your rigid distribution pipe and the Venturi assembly, quietly degrading every variable you are trying to control. When that connection is improvised with a generic adapter or a field-modified coupling, the result is micro-leaks, turbulent entry flow, and pressure drop that no amount of pump adjustment can fully compensate. Operators running V-System circuits with mismatched fittings spend cycles chasing pH drift, uneven canopy response, and root zone variability that traces back to a single compromised junction. The cost is not dramatic — it is cumulative, invisible, and compounding across every run.

After deploying the correct inlet fitting, the distribution circuit behaves as designed. Nutrient solution enters the Venturi assembly at the intended pressure and flow geometry, oxygenation at the injection point performs to specification, and the reservoir recirculates without the dead zones and stratification that mismatched connections introduce. Each site in the irrigation circuit receives consistent feed, root zone dissolved oxygen stabilizes, and the operator stops troubleshooting plumbing and starts managing the crop.

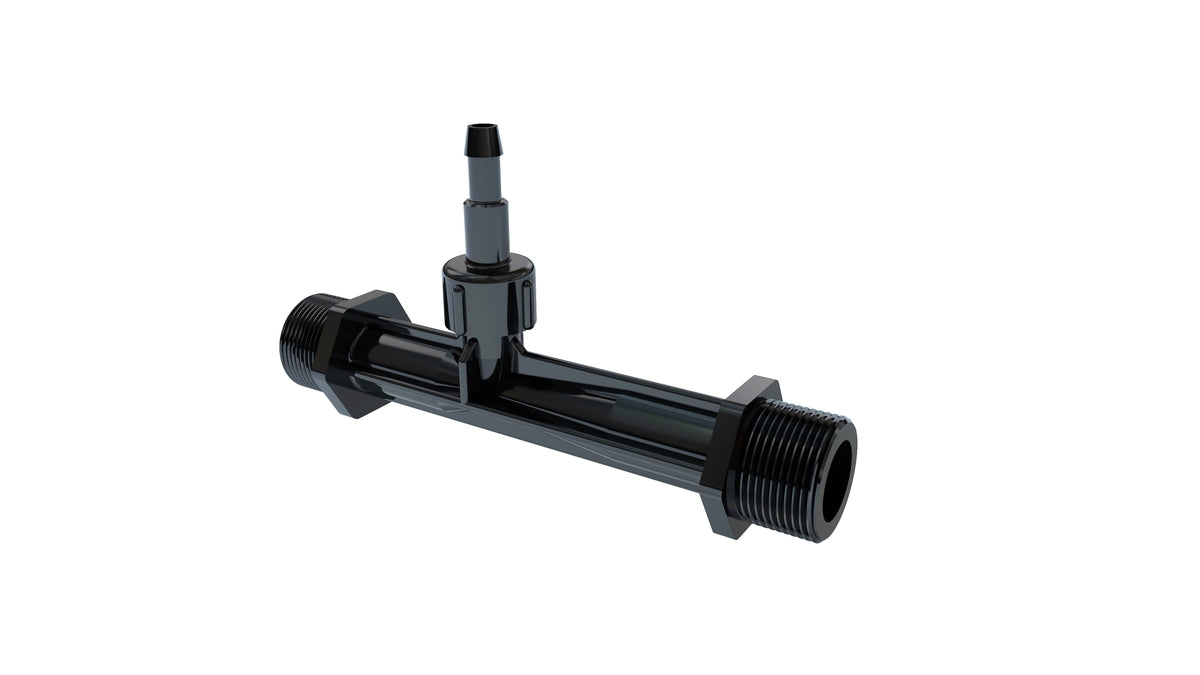

The Venturi Inlet Fitting (BD100-6004) is purpose-engineered for 22mm rigid distribution pipe and is designed specifically for integration with Alien Hydroponics V-Systems. The fitting provides a manufacturer-qualified mechanical interface between the rigid pipe run and the Venturi Fitting, ensuring the connection geometry, seating depth, and flow path match the tolerances the V-System was designed around — not the tolerances of a generic plumbing fitting sourced from a hardware supplier. In practical terms, the BD100-6004 delivers a system-matched 22mm pipe connection to the Venturi Fitting within V-System recirculating circuits, eliminating the flow and pressure variables introduced by non-OEM adapters.

Where This Belongs (and Doesn't)

The BD100-6004 is a hydraulic fitting component. Installation involves pressurized irrigation circuits. Verify system pressure ratings and pipe compatibility before installation. Consult your system documentation or a qualified irrigation technician if circuit configuration is uncertain.

How It Works

The Venturi Inlet Fitting functions as the mechanical transition point between the rigid 22mm distribution pipe and the Venturi Fitting assembly in an Alien Hydroponics V-System. In a recirculating deep water culture circuit, nutrient solution is pumped from the reservoir through the distribution pipe network and introduced into each site via the Venturi assembly. The Venturi effect at that assembly draws air into the solution stream, providing passive oxygenation at the root zone without a dedicated air stone at each site. The inlet fitting is the component that establishes the sealed, correctly-oriented entry point for that flow path — it is not a passive coupler but a geometry-specific interface that determines whether the Venturi assembly receives flow at the correct angle, velocity, and seal integrity to function as designed.

The BD100-6004 is machined or molded to the dimensional specification of the 22mm V-System pipe standard, meaning the bore diameter, wall engagement depth, and seating geometry are matched to the Venturi Fitting's inlet port. A generic 22mm fitting may share the nominal pipe size but will not replicate the seating depth or flow-path alignment that the Venturi assembly requires for consistent oxygenation performance. Using the OEM inlet fitting eliminates the tolerance stack-up that occurs when non-specified components are substituted at this junction. In practical terms, the BD100-6004 provides a factory-dimensioned 22mm inlet connection to the Venturi Fitting, ensuring the V-System's passive oxygenation mechanism operates within its designed flow and pressure parameters at every site in the circuit.

Commercial Assurance

• Factory-Authorized Supply: The BD100-6004 is sourced directly through authorized Alien Hydroponics distribution channels. Cannafull Spectrum Solutions is a factory-authorized dealer.
• OEM Specification Compliance: Dimensioned to Alien Hydroponics V-System tolerances for 22mm rigid distribution pipe. Not a generic plumbing substitute.
• Warranty: Warranty terms are not specified in available source data for this component. Contact Cannafull Spectrum Solutions at support@cannafullspec.com for current warranty information before ordering.
• Replacement Availability: Stocked as a discrete service component, allowing targeted replacement without full system teardown or kit repurchase.
• Operator Support: Pre-sale and post-sale technical support available through Cannafull Spectrum Solutions for V-System configuration questions.

System Integration

• Integrates directly with the Alien Hydroponics Venturi Fitting assembly in V-System recirculating deep water culture circuits — no modification required when used with OEM-spec 22mm rigid distribution pipe.
• Compatible with Alien Hydroponics RDWC 6 Pot 3 Row Kit configurations (BD100-1306C, BD100-1306CA, BD100-1306R, BD100-1306RA, BD100-2306C, BD100-2306CA, BD100-2306R, BD100-2306RA) that utilize V-System distribution architecture.
• Functions within both compact header and remote header V-System layouts — the inlet fitting's role is at the pipe-to-Venturi junction, which is consistent across header configurations.
• Supports drain-to-waste and recirculating top-feed circuit topologies where 22mm rigid pipe is used as the primary distribution medium to the Venturi assembly.
• Recommended as a stocked spare component in multi-site V-System installations to minimize downtime during scheduled maintenance or unplanned fitting replacement.

Facility Integration Data

The BD100-6004 is a low-cost, high-criticality service component. Facilities operating multiple V-System circuits should factor inlet fitting replacement into their preventive maintenance schedule and spare parts inventory. The table below provides a reference for stocking quantities across common fleet sizes.

Operator Field Notes

• Verify pipe OD before ordering — the BD100-6004 is dimensioned for 22mm rigid distribution pipe. Nominal 22mm pipe from different manufacturers can vary in actual OD; confirm your pipe stock matches Alien Hydroponics V-System specification before installation.
• Inspect inlet fittings at each reservoir drain-and-refill cycle. Micro-fractures and seat deformation are not always visible under flow but will manifest as pressure drop and inconsistent Venturi draw at affected sites.
• Do not use thread sealant compounds on the fitting seat unless explicitly specified in the V-System installation documentation — sealant migration into the Venturi bore can partially occlude the orifice and degrade oxygenation performance.
• When replacing a single fitting in an established circuit, flush the pipe run at that site before reinstalling to clear any debris dislodged during fitting removal.
• Stock a minimum of one BD100-6004 per active V-System circuit as a facility spare. At MAP pricing of $11.18 per unit, the cost of a stocked spare is negligible relative to the downtime cost of waiting on a replacement shipment during an active crop cycle.
• This fitting is a component, not a complete system. It does not include the Venturi Fitting, distribution pipe, reservoir, or any other V-System element. Confirm your existing V-System configuration before ordering.

Operator FAQ

Shipping & Logistics

• Shipping Coverage: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this region cannot be fulfilled through this storefront.
• Shipping Cost: Free standard shipping is available on qualifying orders. Confirm shipping eligibility at checkout. Note: Free shipping promotions referenced in source data apply to complete kit orders; confirm applicability to single-component orders at checkout or by contacting support.
• Lead Time: Component lead times for the BD100-6004 are not specified in available source data. Contact Cannafull Spectrum Solutions at support@cannafullspec.com for current stock status and estimated ship date before ordering for time-sensitive applications.
• Returns: Returns are subject to the Cannafull Spectrum Solutions Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Technical Pre-Sale Support: support@cannafullspec.com | cannafullspec.com

What's in the Box

• 1x Alien Hydroponics Venturi Inlet Fitting for 22mm Pipe (BD100-6004)

Note: The BD100-6004 is a single fitting component. It does not include the Venturi Fitting assembly, 22mm rigid distribution pipe, reservoir, pump, or any other V-System component. Box contents are confirmed based on available source data. If your order arrives with missing or incorrect components, contact Cannafull Spectrum Solutions at support@cannafullspec.com within 48 hours of delivery.

Regional Compliance & Deployment Notes

• The BD100-6004 is a mechanical irrigation fitting component. It is not subject to electrical, photobiological, or RF emissions compliance requirements. No UL, ETL, FCC, or similar certification is applicable to this product category.
• Operators in licensed cultivation facilities should verify that irrigation system components, including replacement fittings, are installed in accordance with applicable state and local plumbing and facility codes. Requirements vary by jurisdiction.
• Cannafull Spectrum Solutions ships within the contiguous 48 United States only. This product is not available for shipment to Alaska, Hawaii, U.S. territories, or international addresses through this storefront.
• No Canadian compliance language, Health Canada references, or CSA certification claims apply to this product as sold through Cannafull Spectrum Solutions.
• This fitting is intended for use in controlled environment agriculture irrigation circuits. Confirm suitability for your specific facility's water chemistry, operating pressure, and temperature range with your facility engineer or the manufacturer before installation in critical production circuits.
