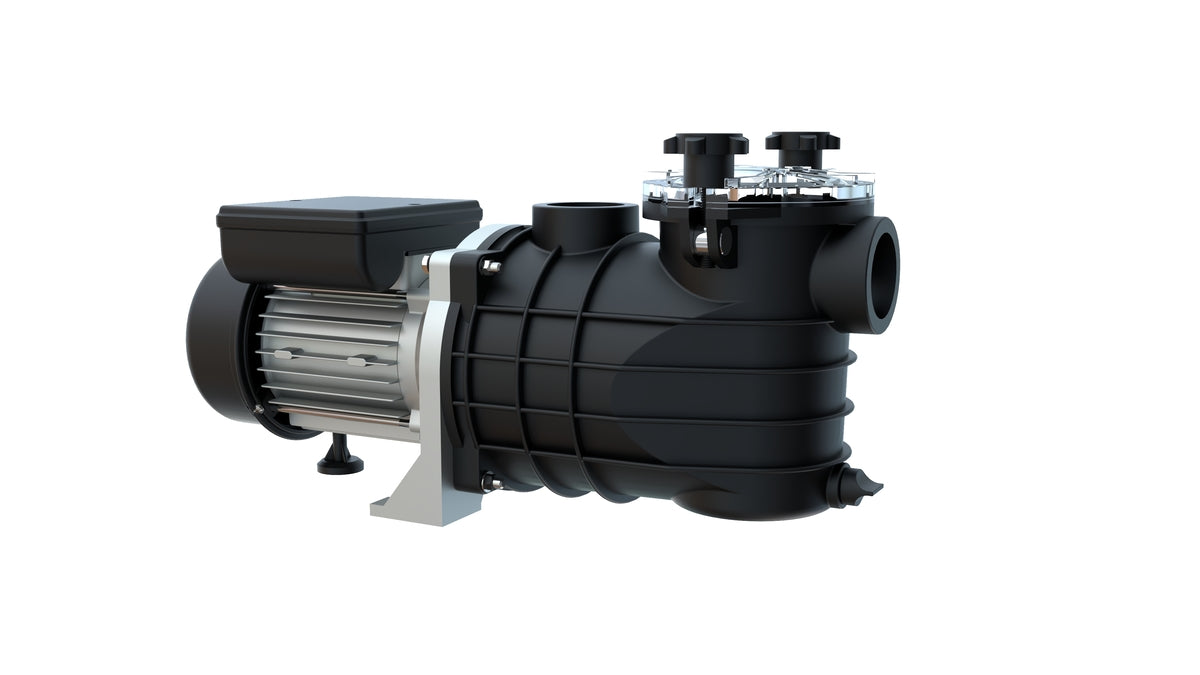

Alien Hydroponics V-SYSTEM Vortex Water Pump 250W 120V 11700 l/h

Quick Spec: 250W | 120V | 11,700 l/h flow rate | SKU: BD101-5004 | $340.00 USD

Precision Control in Any Space

When your irrigation system cannot keep pace with your feed schedule, every cycle becomes a liability. Undersized or erratic pumps introduce pressure variance across your reservoir lines — some sites flood, others starve, and the root zone never stabilizes. That inconsistency compounds silently: nutrient lockout, uneven canopy development, and yield data that cannot be replicated run to run. The equipment fighting you is not a minor inconvenience; it is the single variable that makes every other input — your feed formula, your EC targets, your drain-to-waste ratios — impossible to trust.

After deployment, the picture changes. Reservoir drawdown becomes predictable. Top-feed lines deliver at consistent pressure across every site in the array. Drain-to-waste volumes match your targets without manual correction. Your feed schedule runs on time, every time, and the data you collect from one cycle is actually comparable to the next — because the pump is no longer the variable.

The mechanism behind that stability is a 250W vortex motor operating on standard 120V infrastructure, producing a verified flow rate of 11,700 liters per hour. That output is sufficient to drive multi-site top-feed arrays, maintain reservoir circulation in high-volume systems, and sustain drain-to-waste cycles without pressure drop across extended run times. The vortex pump architecture minimizes turbulence at the inlet, reducing cavitation risk that degrades flow consistency in conventional centrifugal designs. In practical terms, the V-SYSTEM Vortex Water Pump 250W delivers 11,700 l/h of sustained flow on a 250W draw at 120V, making it a direct-fit solution for craft operators who need commercial-grade irrigation throughput without commercial-scale electrical infrastructure.

---

Where This Belongs (and Doesn't)

Electrical installation must comply with local codes. Confirm circuit capacity before deployment. This pump draws 250W at 120V — verify your feed circuit is rated for continuous pump load before connecting. Consult a licensed electrician for any new circuit work.

---

How It Works

The V-SYSTEM Vortex Water Pump operates on a vortex impeller design, which distinguishes it mechanically from standard centrifugal pump configurations. In a conventional centrifugal pump, the impeller makes direct contact with the fluid column, creating turbulence at the inlet that can introduce air entrainment and cavitation — both of which degrade flow consistency over time. The vortex impeller sits recessed from the main flow path, generating a rotating fluid vortex that draws water through the pump body without the impeller directly intersecting the primary flow stream. The result is a smoother, more stable output pressure across the full 11,700 l/h rated flow envelope.

At 250W on a 120V circuit, the pump operates within the capacity of a standard 15A or 20A dedicated circuit, making it compatible with existing electrical infrastructure in most licensed grow facilities without panel upgrades. The 120V specification also means the pump can be integrated directly into timer-controlled irrigation controllers and automated feed systems without additional relay hardware in most configurations. Flow output at 11,700 l/h is sufficient to supply multiple top-feed drip sites simultaneously or maintain active reservoir circulation in tanks exceeding several hundred gallons, depending on head pressure and line diameter. In practical terms, the V-SYSTEM Vortex Water Pump 250W delivers 11,700 l/h of vortex-stabilized flow at 250W on 120V, engineered for continuous-duty irrigation and reservoir management in space-constrained commercial environments.

---

Commercial Assurance

---

System Integration

• Irrigation Controllers: Compatible with timer-based and automated irrigation controllers operating on 120V switched circuits; verify controller relay rating against 250W continuous draw before integration.
• Reservoir Systems: Designed for fully submerged operation in nutrient reservoirs; confirm reservoir depth and inlet clearance against pump body dimensions prior to installation — contact us for dimensional data.
• Top-Feed Arrays: Flow rate of 11,700 l/h supports multi-site top-feed drip configurations; size distribution manifolds and line diameters to match flow output and minimize pressure drop at terminal sites.
• Drain-to-Waste Systems: Timed pump cycles in drain-to-waste configurations should account for full flow-rate delivery per cycle; calibrate timer intervals against site volume targets to prevent over-saturation.
• Electrical Infrastructure: Requires a dedicated 120V continuous-duty circuit; do not share circuit with high-draw lighting or HVAC loads without confirming total circuit capacity with a licensed electrician.

---

Facility Integration Data

The following ROI reference table is provided to support procurement planning for multi-unit deployments. All figures are based on the MAP price of $340.00 USD per unit (SKU: BD101-5004). Operational savings projections are facility-specific and should be validated against your actual labor, maintenance, and replacement cost data.

---

Operator Field Notes

• Head Pressure Matters: Rated flow of 11,700 l/h is measured at zero head. Flow rate decreases as vertical lift and line length increase — map your system's head pressure against the pump curve before finalizing manifold design.
• Continuous-Duty Circuit Required: This pump is rated for continuous operation. Do not install on a circuit shared with intermittent high-draw equipment. A dedicated 120V circuit is the correct configuration.
• Inlet Clearance: Vortex pump performance depends on unobstructed inlet flow. Position the pump away from reservoir walls and substrate debris. Minimum clearance recommendations should be confirmed with the manufacturer or our technical team.
• Nutrient Compatibility: Verify pump seal and impeller material compatibility with your nutrient solution chemistry, particularly if running high-EC or pH-adjusted solutions with aggressive chelating agents.
• Dimensional Verification: Physical dimensions are not specified in available source data. Before ordering for a space-constrained installation, contact Cannafull Spectrum Solutions to obtain dimensional data directly from the manufacturer.
• Pickup Availability: If lead time is a constraint, this unit is available for in-person pickup at our Longmont location — confirm stock before visiting.

---

Operator FAQ

---

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be fulfilled through our platform.
• Local Pickup: Available for in-person pickup at our Longmont, Colorado location. Contact us to confirm current stock and schedule your pickup window before traveling.
• Returns: Returns are subject to our Return Policy. Items must be in original, uninstalled condition. Contact Cannafull Spectrum Solutions within the applicable return window to initiate a return authorization.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about shipping timelines, freight options, or volume orders? Contact Cannafull Spectrum Solutions at cannafullspec.com.

---

What's in the Box

• 1x V-SYSTEM Vortex Water Pump 250W 120V (SKU: BD101-5004)

Note: Box contents beyond the primary pump unit are not specified in available manufacturer source data. Accessories, fittings, and mounting hardware inclusion cannot be confirmed from current product documentation. Contact Cannafull Spectrum Solutions or the manufacturer to verify complete box contents before purchase if accessory inclusion is a requirement for your installation.

---

Regional Compliance & Deployment Notes

• Electrical Code Compliance: Installation must comply with the National Electrical Code (NEC) and all applicable local electrical codes. A licensed electrician should perform or inspect any new circuit work required for pump installation.
• Continuous-Load Rule: Under NEC guidelines, continuous loads must not exceed 80% of the circuit breaker's rated capacity. Verify your circuit configuration meets this requirement for the 250W continuous draw of this pump.
• Water and Electrical Safety: All electrical connections in wet or damp environments must use GFCI-protected outlets per NEC Article 680 and applicable local codes. Do not operate the pump with damaged power cords or in environments where the electrical connection may be exposed to standing water.
• Licensed Facility Use: This product is sold for use in licensed commercial cultivation and production facilities operating in compliance with applicable state and local regulations. Cannafull Spectrum Solutions does not verify end-use licensing status — compliance with all applicable regulations is the sole responsibility of the purchaser.
• Shipping Jurisdiction: Available for sale and shipment within the contiguous 48 United States only. No international or Canadian orders can be fulfilled.

Compliance requirements vary by jurisdiction. The information provided here is a general reference only and does not constitute legal or electrical engineering advice. Cannafull Spectrum Solutions recommends consulting a licensed electrician and your facility's compliance officer before installation. All regulatory compliance is the responsibility of the purchasing facility.
