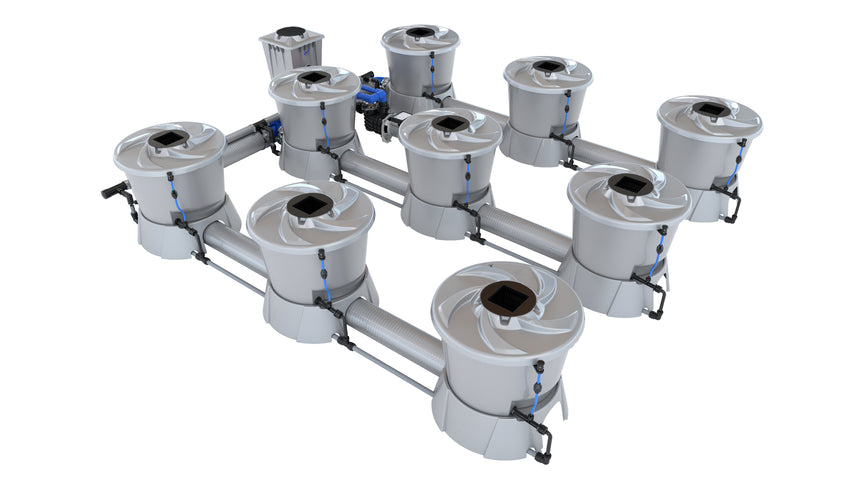

Alien Hydroponics V-SYSTEM 9 Pot Kit

Quick Spec: 9-plant RDWC | 146.3 gal / 553.8 L total fluid volume | 15 gal (58L) V-POT capacity | 4 configurable layouts | 65¾" consistent width | Pot size options: 5 gal / 20L or 9.5 gal / 36L

Precision Control in Any Space

Every facility that has run mismatched irrigation components knows the cost — not just in lost yield, but in the hours spent chasing pH drift, diagnosing uneven root development, and manually compensating for a system that was never designed to work as a unit. Guesswork and equipment that fights you are not minor inconveniences; they are compounding operational liabilities. When nutrient concentration varies pot to pot, when dissolved oxygen levels drop because the circulation architecture was an afterthought, and when a single clogged line means pulling plants to diagnose the failure, the system itself becomes the bottleneck. That silent cost accumulates across every cycle, in every room where the infrastructure was assembled rather than engineered.

After deployment, the operational picture changes fundamentally. Nine root zones receive identical nutrient solution simultaneously, circulated through a closed recirculating loop that maintains dissolved oxygen saturation without a separate air pump. The reservoir maintains its level automatically via an integrated float valve, removing manual top-off from the daily task list entirely. Operators move through the room with full aisle access between rows, inspect root zones through dedicated inspection covers without disturbing the canopy, and drain the entire system completely when the cycle ends — no residual solution pooling, no contamination carryover. The facility runs on a repeatable process, not on operator vigilance compensating for equipment limitations.

The mechanism behind that outcome is a purpose-built RDWC architecture. The JET-STREAM® Vortex™ pump drives solution through 5" spiral tubing and 5" Dual-Flow™ fittings, delivering direct nutrient distribution to each of the 9 V-POTs — each rated at 15 gallons (58L) — while Venturi injectors maintain maximum oxygen saturation throughout the loop without requiring a secondary air pump. Integrated filtration protects the pump and fittings from particulate accumulation. T304 stainless clamps and push-fit feed connections ensure leak-free assembly and disassembly without specialized tooling. The kit supports four distinct layout configurations across a consistent 65¾" width, with variant-specific lengths ranging from 76⅜" (MIH) to 95½" (MOL), and accommodates both compact and remote header placement to match existing room geometry. In practical terms, the V-SYSTEM 9 Pot Kit circulates 146.3 gallons / 553.8 liters of total fluid volume across a 9-plant recirculating deep water culture system in four configurable footprint options, with pot size selection of 5 gal / 20L or 9.5 gal / 36L per site.

Where This Belongs (and Doesn't)

Note: Plumbing, drainage, and water supply connections must comply with applicable local codes and facility infrastructure requirements. Consult a licensed plumber or facility engineer before installation where required by jurisdiction.

How It Works

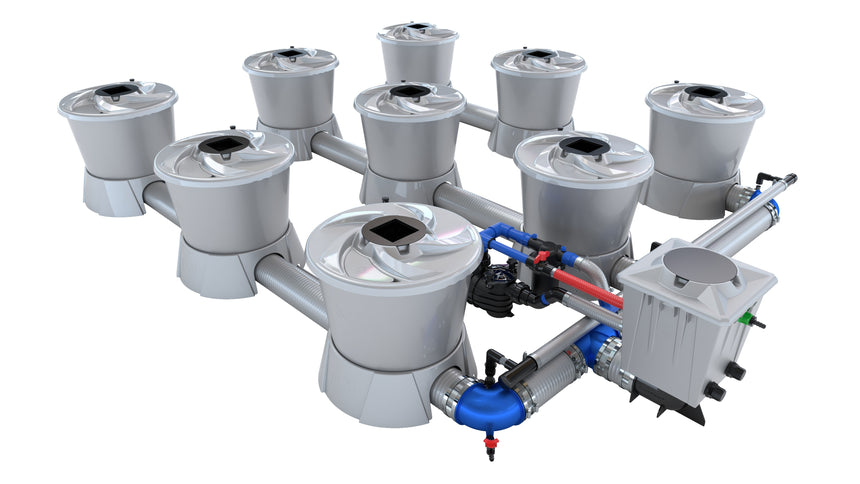

The V-SYSTEM 9 Pot Kit operates as a closed recirculating deep water culture loop. Solution is drawn from the central reservoir — total system fluid volume of 146.3 gallons / 553.8 liters — and driven by the JET-STREAM® Vortex™ pump through 5" spiral tubing to each of the nine V-POT sites. The 5" Dual-Flow™ fittings manage bidirectional flow within the loop, ensuring that solution velocity and nutrient concentration remain consistent from the first pot to the last. Venturi injectors integrated into the flow path introduce dissolved oxygen directly into the circulating solution, eliminating the need for a separate air pump while maintaining maximum oxygen saturation at the root zone. Integrated filtration upstream of the pump protects the system from particulate accumulation that would otherwise degrade flow rate and oxygen delivery over time.

Each V-POT carries a 15-gallon (58L) capacity and accepts either a 5 gal / 20L or 9.5 gal / 36L pot insert, giving operators the ability to match container volume to crop requirements without changing the system architecture. Total-drainage bases allow complete evacuation of solution at cycle end — no residual pooling, no manual bailing. Inspection covers provide direct visual and physical access to the root zone and fittings without disturbing adjacent plants or disconnecting plumbing. T304 stainless clamps and push-fit feed connections allow the system to be assembled, disassembled, and reassembled without specialized tooling, supporting rapid teardown between cycles. The float valve maintains reservoir level automatically, removing manual top-off from the daily operational checklist. In practical terms, the V-SYSTEM 9 Pot Kit delivers recirculating dissolved oxygen saturation and direct nutrient distribution across 9 plant sites within a total fluid volume of 146.3 gallons / 553.8 liters, supported by integrated filtration, total-drainage bases, and push-fit assembly across four configurable layout footprints.

System Integration

• Water Supply: The integrated float valve requires connection to a stable facility water supply line. Confirm supply pressure and line diameter compatibility with the float valve specification before installation.
• Drainage Infrastructure: Total-drainage bases require a floor drain or collection point capable of handling full system evacuation — up to 146.3 gallons / 553.8 liters — during cycle-end drain-down. Confirm drain capacity before deployment.
• Electrical: The JET-STREAM® Vortex™ pump requires a dedicated electrical circuit. Confirm pump electrical specifications with the manufacturer and ensure the circuit is sized and protected per applicable electrical codes. No air pump circuit is required.

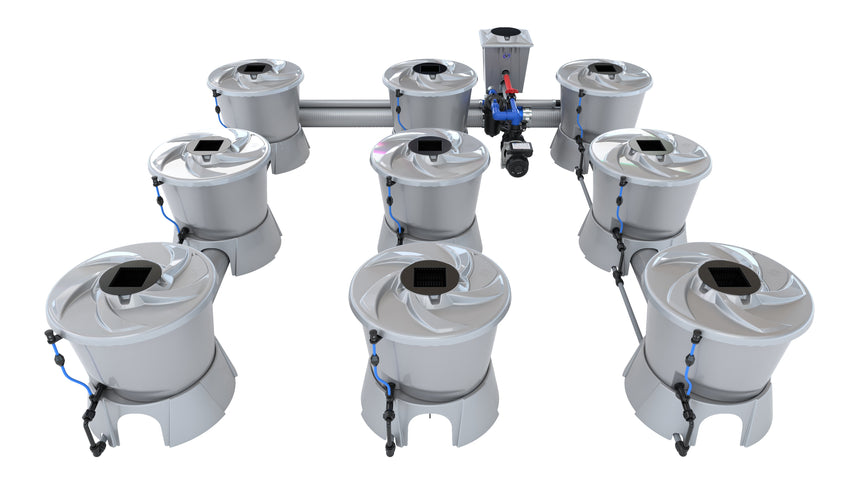

• Room Geometry: Select variant code (MIH, MOL, MOR, or MSP) based on confirmed available floor run. All variants require a minimum 65¾" width clearance. The 3-row layout supports a center aisle for complete plant access — account for aisle clearance in room planning.
• Nutrient and pH Management: As a recirculating system, solution chemistry changes are reflected across all 9 plant sites simultaneously. Operators should integrate a compatible nutrient dosing and pH monitoring protocol appropriate for closed-loop RDWC operation.

Facility Integration Data

The table below models per-unit and fleet-level investment for facilities evaluating the V-SYSTEM 9 Pot Kit as a scalable RDWC infrastructure component across multiple rooms or production tiers.

Operator Field Notes

• Variant selection is a room measurement decision, not a preference: Measure your available floor run before ordering. The four variants (MIH at 76⅜", MSP at 92⅜", MOR at 93⅞", MOL at 95½") are not interchangeable after delivery. All share the same 65¾" width.
• The float valve eliminates top-off labor, but requires a reliable supply line: Confirm your facility water supply is stable and appropriately pressured before relying on automated top-off as part of your daily operations protocol.
• Total-drainage bases are a sanitation asset: Full cycle-end evacuation removes the residual solution that drives pathogen carryover between runs. Build complete drain-down into your standard operating procedure at every harvest.
• No air pump does not mean no oxygen management: Venturi injectors handle dissolved oxygen saturation through the recirculating flow. Maintain pump function and flow rate — if the JET-STREAM® Vortex™ pump underperforms, oxygen delivery degrades across all 9 sites simultaneously.
• Inspection covers are a diagnostic tool: Use them on a scheduled basis, not just when problems are visible. Early detection of root zone issues at individual sites prevents system-wide solution contamination in a recirculating loop.
• Push-fit connections support rapid teardown: The assembly architecture is designed for disassembly between cycles. Operators who build teardown and reassembly into their cycle schedule maintain fitting integrity longer than those who leave the system assembled continuously across multiple runs.

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this region cannot be fulfilled.
• Freight & Handling: Due to the system's dimensions and component count, the V-SYSTEM 9 Pot Kit may ship via freight carrier. Confirm delivery requirements — including liftgate, dock access, or inside delivery — at time of order. Specific shipping weight is not listed in source data; contact us for freight estimates on multi-unit orders.
• Returns: Defective units are handled per manufacturer warranty terms. Contact cannafullspec.com to initiate any return or warranty claim. Inspect all components upon delivery and document any damage before signing the freight receipt.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about shipping, freight routing, or multi-unit orders: cannafullspec.com | Contact us directly for fleet pricing and logistics coordination.

What's in the Box

The following components are confirmed included with the V-SYSTEM 9 Pot Kit (SKU BD100-0004) based on manufacturer source data:

• JET-STREAM® Vortex™ pump
• Venturi injectors
• 5" spiral tubing
• 5" Dual-Flow™ fittings
• T304 stainless clamps
• Push-fit feed connections
• Total-drainage bases
• Inspection covers
• Integrated filtration
• Water fill line
• Float valve for automatic top-off
• Heavy-duty components (as specified by manufacturer)
• Direct nutrient distribution hardware

Note: Component list is based on manufacturer-provided source data for SKU BD100-0004. Exact quantities of individual fittings, tubing lengths, and ancillary hardware are not itemized in available source data. Verify complete packing list against the included documentation upon delivery. Cannafull Spectrum Solutions is not responsible for discrepancies between manufacturer-published component lists and actual kit contents. Contact the manufacturer or cannafullspec.com if any components are missing or damaged upon receipt.

Regional Compliance & Deployment Notes

• Jurisdiction: The V-SYSTEM 9 Pot Kit is sold and shipped by Cannafull Spectrum Solutions within the contiguous 48 United States only. Buyers are solely responsible for ensuring that the purchase, possession, and use of this equipment complies with all applicable federal, state, and local laws and regulations in their jurisdiction.
• Plumbing & Water Connection Compliance: Connection to facility water supply lines and drainage infrastructure must comply with applicable local plumbing codes. Some jurisdictions require licensed plumber installation for backflow prevention, supply line connections, or drainage tie-ins. Verify local requirements before installation.
• Electrical Compliance: The JET-STREAM® Vortex™ pump must be connected to an appropriately rated and protected electrical circuit in compliance with the National Electrical Code (NEC) and any applicable state or local amendments. Confirm pump electrical specifications with the manufacturer prior to circuit installation.
• Facility Licensing: This equipment is sold for use in lawfully operating cultivation facilities. Cannafull Spectrum Solutions does not verify the licensing status of purchasers. Operators are responsible for maintaining all required state and local cultivation licenses and for ensuring that equipment use is consistent with license conditions.
• No Canadian Distribution: Cannafull Spectrum Solutions does not ship to Canadian provinces or territories. This product listing does not reference or imply compliance with Health Canada regulations, CSA certification standards, or any Canadian provincial regulatory framework.

Compliance information provided here is general in nature and does not constitute legal advice. Regulations governing cultivation equipment, water use, and facility operations vary by state and municipality. Consult qualified legal, engineering, and compliance professionals for guidance specific to your facility and jurisdiction before deploying this system.
