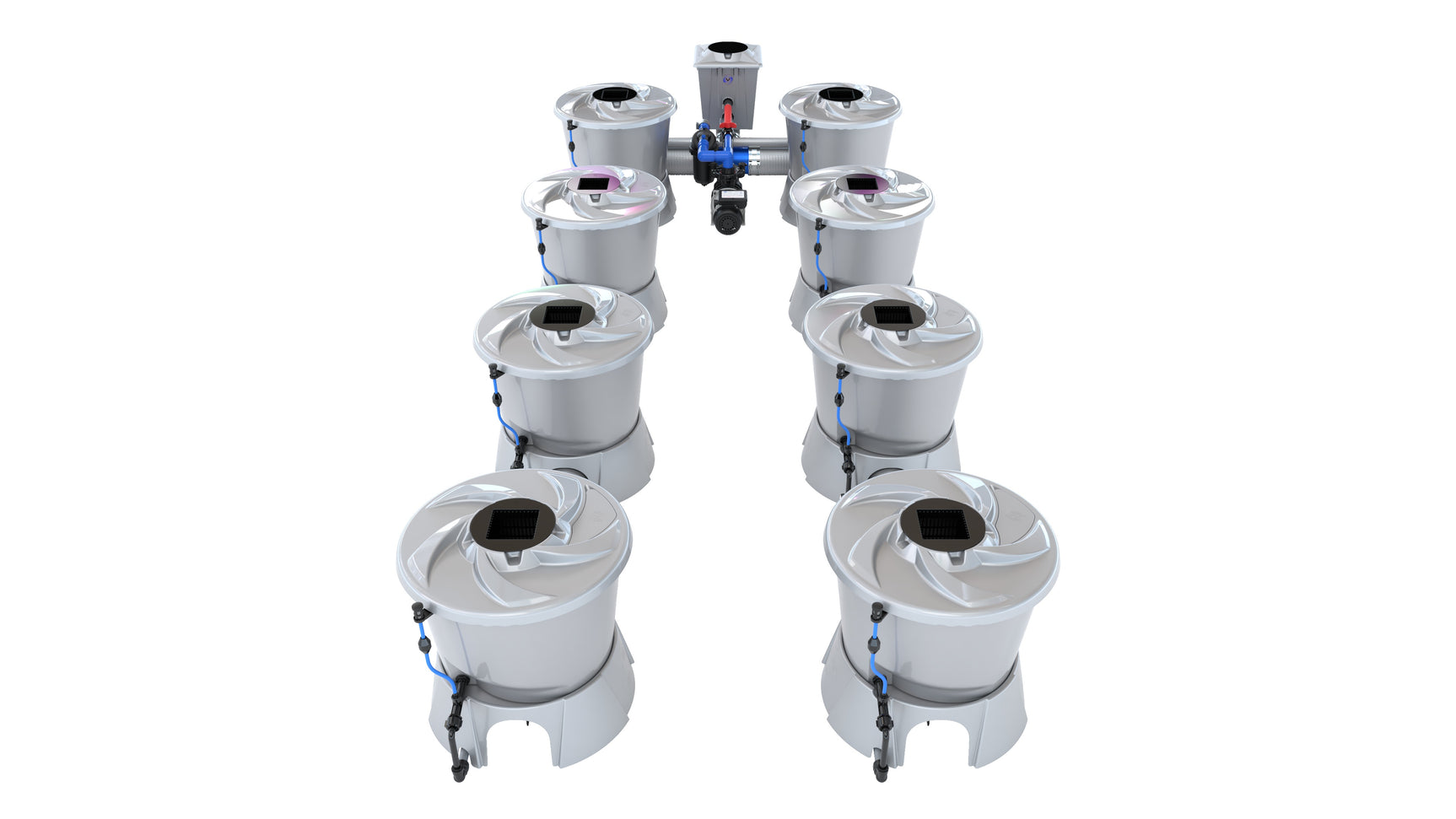

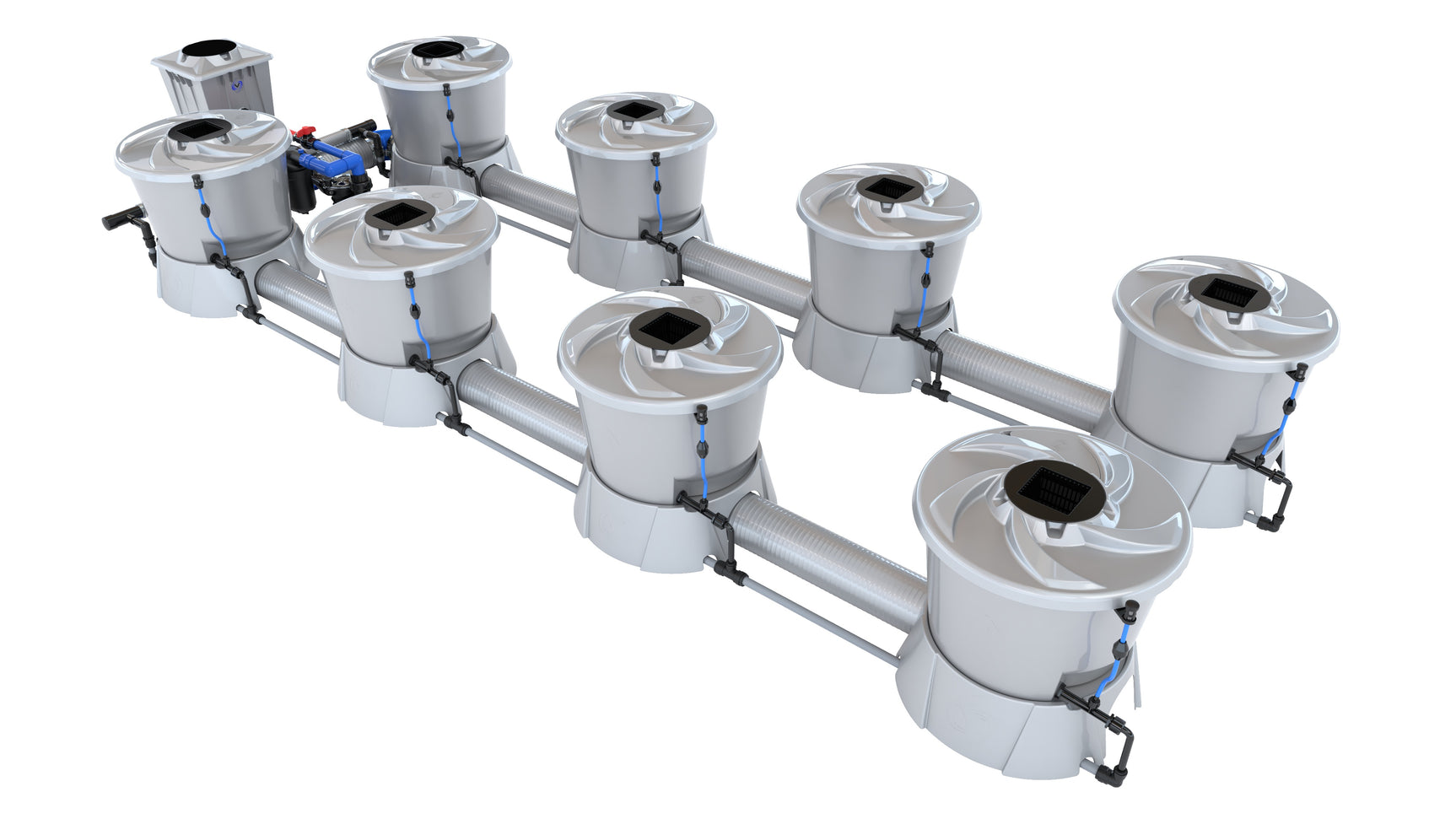

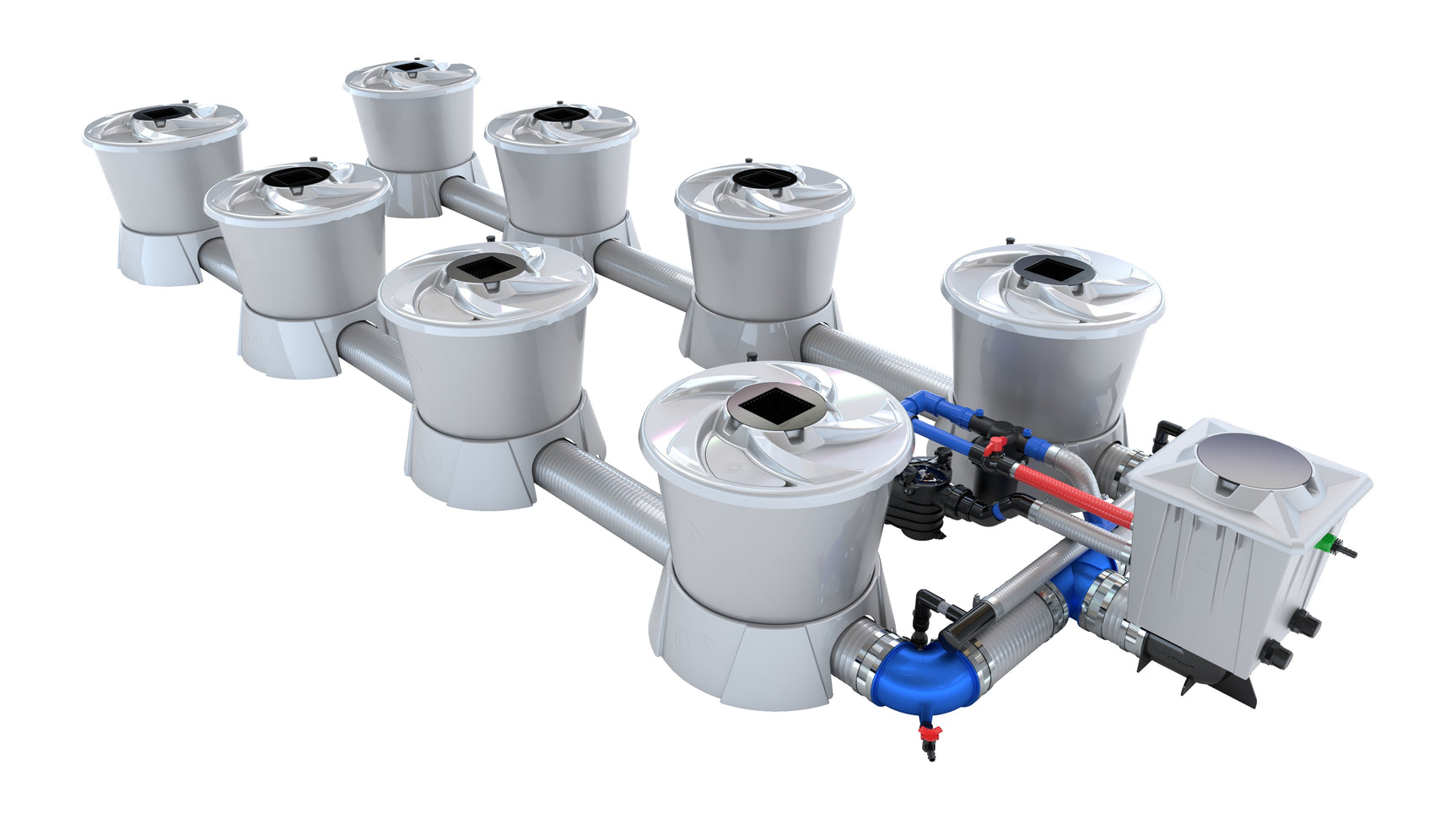

Alien Hydroponics V-SYSTEM 8 Pot Kit

Quick Spec: 8 Pots | 2 Rows | 15 gal (58L) V-POT Capacity | 130.5 gal (494L) Total System Volume | 4 Layout Configurations | JET-STREAM® Vortex™ Pump | Venturi Injectors | T304 Stainless Clamps | $3,381.30 USD

Precision Control in Any Space

Every inconsistent harvest traces back to the same root failure: a system that cannot deliver identical conditions to every plant, every cycle. When reservoir management is manual, feed timing drifts. When plumbing is undersized or mismatched, dissolved oxygen drops unevenly across the canopy. When the pump is fighting the geometry of the room, operators compensate with workarounds that introduce new variables. The silent cost is not one bad run — it is the compounding variance that makes every cycle slightly unpredictable, every yield slightly short of what the genetics are capable of producing.

After deployment, the operational picture changes fundamentally. Each of the 8 V-POTs receives nutrient solution through a direct, pressure-balanced top-feed circuit driven by the JET-STREAM® Vortex™ pump — no manual intervention between feed events, no guesswork about which plant received more or less solution than its neighbor. The float valve maintains reservoir level automatically, eliminating the manual top-off labor that accumulates across a production cycle. Oxygen saturation is driven by Venturi injectors integrated directly into the feed circuit, meaning dissolved oxygen is delivered at the point of nutrient contact rather than passively diffused from a separate air stone array. The result is a cultivation environment where the system does the work of maintaining consistency, and the operator's attention shifts from corrective action to strategic management.

The mechanism behind that outcome is a purpose-engineered component stack: 15 gallon (58L) V-POTs with total-drainage bases, 5" spiral tubing, 5" Dual-Flow™ fittings, push-fit feed connections, integrated filtration, T304 Stainless clamps, and inspection covers that allow visual verification of system status without disassembly. The system supports two pot size configurations — 5 gal / 20L and 9.5 gal / 36L — and four distinct header and pump placement layouts (MIH, MOL, MOR, MSP) with both Compact and Remote header configuration options, allowing the system to conform to the geometry of the space rather than requiring the space to conform to the system. In practical terms, the ALIEN V-SYSTEM 8 Pot 2 Row Kit delivers 130.5 gallons (494 liters) of total recirculating fluid volume across 8 plants in a 2-row configuration, with all four layout variants sharing an identical component specification at $3,381.30 USD.

Where This Belongs (and Doesn't)

The ALIEN V-SYSTEM 8 Pot 2 Row Kit is a plumbing and irrigation system. Electrical circuit capacity, water supply line sizing, drainage infrastructure, and structural floor load must be evaluated by a qualified facility engineer or licensed contractor prior to installation. Cannafull Spectrum Solutions does not provide installation services.

How It Works

The ALIEN V-SYSTEM 8 Pot 2 Row Kit operates as a recirculating deep water culture (RDWC) platform in which nutrient solution is actively circulated from a central reservoir through the feed circuit to each of the 8 V-POTs and returned continuously. The JET-STREAM® Vortex™ pump drives the circulation, eliminating the need for a separate air pump by integrating oxygen delivery directly into the flow path via Venturi injectors. As nutrient solution passes through the Venturi injectors, atmospheric oxygen is drawn into the stream and dissolved at the point of delivery — maximizing dissolved oxygen concentration at the root zone without secondary aeration equipment.

Feed distribution is managed through 5" spiral tubing and 5" Dual-Flow™ fittings, which maintain consistent flow characteristics across all 8 pot positions in the 2-row layout. Push-fit feed connections allow for straightforward assembly and reconfiguration without specialized tooling. T304 Stainless clamps secure all critical junctions, providing corrosion resistance appropriate for continuous nutrient solution contact. Integrated filtration protects the pump and feed circuit from particulate contamination that would otherwise degrade flow consistency over time. Inspection covers on each V-POT allow operators to verify root zone conditions and system status without interrupting the feed cycle.

The 15 gallon (58L) V-POTs feature total-drainage bases, enabling complete system flush and drain operations without residual pooling — a critical requirement for sanitation protocols between production cycles. The float valve provides automatic top-off from the water supply, maintaining reservoir level within the operating range without manual intervention. Total system fluid volume is 130.5 gallons (494 liters), distributed across the reservoir and active pot circuit. In practical terms, the ALIEN V-SYSTEM 8 Pot 2 Row Kit delivers direct nutrient distribution and maximum oxygen saturation across all 8 plant sites in a 2-row configuration, with a total recirculating volume of 130.5 gallons (494 liters) and four distinct layout footprints ranging from 99¼" x 52¾" to 118¼" x 65½".

Configuration Decoder

System Integration

• Water Supply: The float valve requires connection to a pressurized water supply line for automatic top-off operation. Verify supply line pressure compatibility with the float valve specification before installation.
• Drainage Infrastructure: Total system fluid volume is 130.5 gallons (494 liters). Facility drainage must be rated to handle full system flush volume for sanitation cycles. Total-drainage bases on V-POTs require unobstructed drain access beneath the pot positions.
• Electrical Requirements: The JET-STREAM® Vortex™ pump requires a dedicated electrical circuit. Specific amperage and voltage requirements should be confirmed with the pump specification sheet prior to facility wiring. No air pump circuit is required.
• Nutrient Dosing: The system is compatible with standard liquid nutrient concentrates delivered through the recirculating reservoir. Integrated filtration protects the feed circuit from particulate matter introduced through nutrient mixing.
• Spatial Planning: Select the layout variant (MIH, MOL, MOR, or MSP) based on available floor dimensions and access point locations before ordering. Footprints range from 99¼" x 52¾" (MIH) to 118¼" x 65½" (MOL) — confirm clearances for header, pump, and service access before finalizing configuration.

Facility Integration Data

The following ROI reference data is provided to assist procurement and operations teams in evaluating multi-unit deployment economics for the ALIEN V-SYSTEM 8 Pot 2 Row Kit at $3,381.30 USD per unit.

Operator Field Notes

• Select your layout variant before ordering. All four configurations (MIH, MOL, MOR, MSP) are priced identically, but footprint dimensions differ by up to 19" in length and 12¾" in width. Confirm your floor plan and access point locations against the variant dimensions before placing the order — reconfiguring after delivery is avoidable with pre-purchase planning.
• The Venturi injectors eliminate the air pump, not the need for dissolved oxygen monitoring. Oxygen saturation is driven passively through the Venturi circuit, but operators should verify DO levels at commissioning and after any system modification to confirm the injectors are performing within target range for the root zone.
• Integrated filtration requires scheduled inspection. The filtration components protect the JET-STREAM® Vortex™ pump and feed circuit from particulate contamination. Establish a cleaning interval based on nutrient solution turbidity and cycle length — do not wait for flow restriction symptoms before servicing the filter.
• Total-drainage bases enable full sanitation between cycles. The V-POT total-drainage design allows complete evacuation of residual solution — use this capability as a standard protocol between production cycles rather than a contingency measure.
• Inspection covers are a diagnostic tool, not a convenience feature. Use them at each feed event check to verify root zone conditions, solution color, and any early indicators of pathogen pressure before they propagate across the recirculating circuit.
• Float valve calibration affects reservoir consistency. After installation, verify the float valve setpoint maintains the target operating level under active pump circulation — static fill level and dynamic operating level may differ depending on pump flow rate and system geometry.

Operator FAQ

Shipping & Logistics

• Free Shipping: Free shipping is available to the contiguous 48 United States. Shipments outside the contiguous U.S. are not supported through Cannafull Spectrum Solutions. Do not order if your facility is located outside the contiguous 48 states.
• Freight Handling: The ALIEN V-SYSTEM 8 Pot 2 Row Kit ships as a complete kit assembly. Given the system's component count and fluid volume capacity, freight delivery is expected. Confirm receiving dock access and unloading capability at your facility before the order ships. Inspect all packaging for freight damage before signing the delivery receipt — note any damage on the carrier's delivery document before the driver departs.
• Returns: Contact Cannafull Spectrum Solutions at cannafullspec.com before initiating any return. Returns of defective items are handled per manufacturer warranty terms (see Warranty note above). Non-defective returns are subject to the return policy terms below.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For freight status, order support, or pre-purchase configuration questions, contact Cannafull Spectrum Solutions at cannafullspec.com.

What's in the Box

The following components are confirmed as included in the ALIEN V-SYSTEM 8 Pot 2 Row Kit (BD100-0208) based on manufacturer source data. All items are present across all four layout variants (MIH, MOL, MOR, MSP).

• 8x V-POT units (15 gal / 58L capacity each) with total-drainage bases
• JET-STREAM® Vortex™ pump
• Venturi injectors
• 5" spiral tubing
• 5" Dual-Flow™ fittings
• Push-fit feed connections
• T304 Stainless clamps
• Integrated filtration components
• Inspection covers
• Float valve for automatic top-off
• Water fill line
• Heavy-duty structural components per manufacturer specification

Note: Inner pot inserts (5 gal / 20L or 9.5 gal / 36L) are configurable options — confirm which pot size is included with your specific order at the time of purchase. Weight and height/depth dimensions are not specified in available manufacturer source data. Contact Cannafull Spectrum Solutions for freight weight confirmation prior to scheduling delivery.

Regional Compliance & Deployment Notes

• Jurisdiction: Cannafull Spectrum Solutions ships and supports the ALIEN V-SYSTEM 8 Pot 2 Row Kit within the contiguous 48 United States only. Operators must verify that the use of recirculating hydroponic irrigation systems is permitted under applicable state and local regulations governing their licensed cultivation facility.
• Water Use Compliance: Facilities operating in states with water use reporting requirements should account for the system's 130.5-gallon (494-liter) total fluid volume and recirculating drain-to-waste capabilities when completing water use disclosures required by state environmental or agricultural agencies.
• Electrical Code: Pump circuit installation must comply with the National Electrical Code (NEC) and applicable state and local electrical codes. Engage a licensed electrician for all circuit work associated with the JET-STREAM® Vortex™ pump installation.
• Drainage & Wastewater: Nutrient solution discharged during system flush or drain operations may be subject to local wastewater discharge regulations. Confirm disposal requirements with your local authority having jurisdiction (AHJ) before commissioning the system.
• Facility Licensing: This system is sold for use in lawfully licensed cultivation operations only. Cannafull Spectrum Solutions does not verify end-use licensing status. Operators are solely responsible for ensuring their facility holds all required state and local licenses prior to system deployment.

Compliance requirements vary by state and municipality. The information provided in this section is for general reference only and does not constitute legal, regulatory, or engineering advice. Cannafull Spectrum Solutions recommends consulting with a licensed attorney, engineer, or compliance specialist familiar with your jurisdiction before deploying this system in a licensed cultivation facility.
