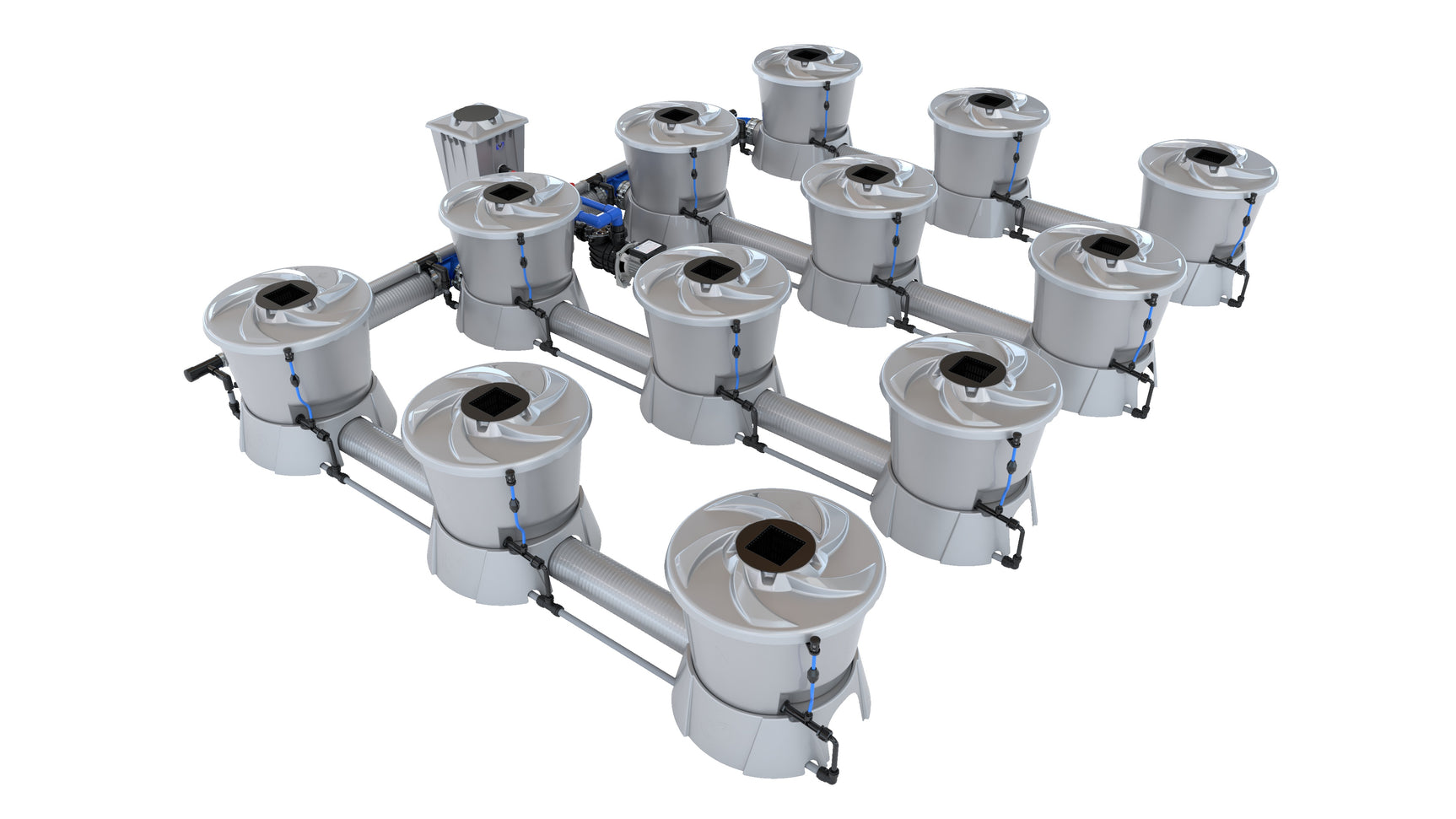

Alien Hydroponics V-SYSTEM 12 Pot 4 Row Kit

Precision Control in Any Space

Every production run that ends in uneven canopy development, inconsistent root-zone saturation, or unexplained site-to-site variance traces back to the same source: equipment that was never designed to operate as a system. Manual reservoir management introduces timing drift. Passive feed lines create pressure differentials that starve outer sites while flooding inner ones. Reservoirs without integrated filtration accumulate particulate that clogs emitters mid-cycle. Each of these failure modes is silent — they do not announce themselves until the harvest data does, and by then the cycle cost is already locked in.

After deployment, the production floor operates differently. All 12 sites receive nutrient solution from a single, pressure-balanced recirculating circuit. The float valve manages reservoir level automatically, eliminating manual top-off labor. Venturi injectors saturate the solution with dissolved oxygen at the point of delivery — no secondary air pump required, no additional electrical load, no additional failure point. The operator accesses every plant through a configurable aisle geometry rather than reaching across rows. Feed events are consistent, documented, and repeatable across every cycle.

That outcome is achievable because the V-System 12 Pot 4 Row Kit is built around a closed-loop recirculating deep water culture architecture with four selectable layout variants — MIH, MOL, MOR, and MSP — each sharing a common 87¾" width and a maximum assembled footprint of 109½" L × 87¾" W. Each of the 12 pot sites holds 15 gallons / 58 liters, contributing to a total system fluid volume of 193.6 gallons / 733 liters. The JET-STREAM Vortex pump drives circulation through 5" spiral tubing and 5" Dual-Flow fittings, while T304 stainless clamps, integrated filtration, and push-fit feed connections ensure structural integrity and serviceability at every junction. Pot size options of 5 gal / 20L or 9.5 gal / 36L allow root-zone volume to be matched to cultivar and cycle length. In practical terms, the V-System 12 Pot 4 Row Kit delivers automated, oxygen-saturated nutrient delivery across 12 production sites within a maximum assembled footprint of 109½" L × 87¾" W, supported by a 193.6-gallon / 733-liter recirculating reservoir with no air pump dependency.

Where This Belongs (and Doesn't)

Installation of this system requires adequate floor drainage, a dedicated water supply line, and sufficient electrical capacity for the JET-STREAM Vortex pump. Consult a licensed plumber and electrician before installation. Cannafull Spectrum Solutions does not provide installation services.

How It Works

The V-System 12 Pot 4 Row Kit operates as a closed-loop recirculating deep water culture system. The JET-STREAM Vortex pump drives nutrient solution from the central reservoir through 5" spiral tubing and 5" Dual-Flow fittings to all 12 pot sites simultaneously. Venturi injectors integrated into the feed circuit introduce dissolved oxygen directly into the solution stream at the point of delivery — eliminating the need for a separate air pump while maintaining maximum oxygen saturation at the root zone. Each pot site connects to the circuit via push-fit feed connections, allowing rapid disconnection for individual site inspection or maintenance without interrupting the rest of the system.

Each of the 12 pots holds 15 gallons / 58 liters of solution, with the full system maintaining a total fluid volume of 193.6 gallons / 733 liters. Total-drainage bases allow complete reservoir evacuation for cleaning or nutrient changeover without disassembly. Inspection covers provide visual access to root-zone conditions at each site. Integrated filtration protects the pump and feed lines from particulate accumulation. T304 stainless clamps secure all primary junctions, providing corrosion resistance in high-humidity cultivation environments. The float valve monitors reservoir level continuously and triggers automatic top-off, maintaining solution volume without operator intervention during active feed cycles.

The system ships in four selectable layout variants — MIH (76⅜" L), MOL (95½" L), MOR (93⅞" L), and MSP (92⅜" L) — all sharing a common width of 87¾" and a maximum assembled length of 109½". Header placement is configurable as Compact (header and pump within the grow footprint) or Remote (header and pump positioned outside the grow tent or room), and pot size is selectable between 5 gal / 20L and 9.5 gal / 36L to match root-zone volume requirements to cultivar and cycle length. In practical terms, the V-System 12 Pot 4 Row Kit delivers automated oxygen-saturated recirculating DWC across 12 sites within a maximum assembled footprint of 109½" L × 87¾" W, with a 193.6-gallon / 733-liter total fluid volume and no air pump required.

Configuration Decoder

The V-System 12 Pot 4 Row Kit ships in four layout variants. All variants share the same 87¾" width, 109½" maximum assembled length, 15 gal / 58L per-pot capacity, 193.6 gal / 733L total fluid volume, and full component set. The variant code determines the operational length of the assembled system at its primary configuration dimension, allowing the operator to select the layout that best fits the available floor geometry.

Header options (Compact or Remote) and pot size (5 gal / 20L or 9.5 gal / 36L) are selected independently of variant code. Contact Cannafull Spectrum Solutions to confirm the correct variant and configuration for your specific floor plan before ordering.

Commercial Assurance

• Factory-Authorized Dealer: Cannafull Spectrum Solutions is an authorized dealer for Alien Hydroponics. All units are sourced through the manufacturer's authorized distribution channel.
• Warranty: Warranty terms are determined by the manufacturer. Warranty period is not specified in available source data — contact Cannafull Spectrum Solutions or the manufacturer directly to confirm current warranty coverage before purchase.
• Component Integrity: T304 stainless clamps, integrated filtration, and push-fit feed connections are production-grade components designed for continuous-cycle operation in high-humidity cultivation environments.
• U.S. Operator Support: Local stocking, customer service, and technical support available to licensed facilities across the contiguous United States.
• Pricing: $4,788.55 per kit (SKU: BD100-0412). Financing available — contact Cannafull Spectrum Solutions for current terms.

System Integration

• Water Supply: System requires a dedicated water supply line capable of supporting the float valve's automatic top-off function. Confirm supply pressure and flow rate compatibility with your facility plumber prior to installation.
• Drainage: Total-drainage bases require adequate floor drainage or a collection system capable of handling full reservoir evacuation (193.6 gal / 733L). Plan drainage infrastructure before positioning the system.
• Electrical: The JET-STREAM Vortex pump requires a dedicated electrical circuit. Confirm amperage requirements with your electrician. No air pump circuit is required — venturi injectors handle oxygen delivery within the existing pump circuit.
• Nutrient Dosing: The recirculating DWC architecture is compatible with standard liquid nutrient programs. EC and pH monitoring equipment should be integrated at the reservoir for continuous solution quality management.
• Environmental Controls: System is designed for indoor cultivation environments with stable ambient temperature. Reservoir solution temperature should be monitored and managed to maintain optimal dissolved oxygen levels in the recirculating circuit.

Facility Integration Data

The following ROI reference table is provided for fleet-scale procurement planning. All figures use the current list price of $4,788.55 per kit (SKU: BD100-0412) and are provided for budgeting reference only — contact Cannafull Spectrum Solutions for volume pricing availability.

Operator Field Notes

• Layout Selection Is Permanent at Assembly: Select your variant code (MIH, MOL, MOR, or MSP) based on your confirmed floor plan before assembly. Reconfiguring layout post-assembly requires disassembly of primary feed connections.
• Remote Header Placement Reduces In-Room Humidity Load: Positioning the header and pump outside the grow tent or room via the Remote header option removes a heat and humidity source from the canopy environment — a meaningful operational advantage in tightly controlled rooms.
• Float Valve Requires Periodic Calibration: The automatic top-off float valve should be inspected and calibrated at the start of each production cycle to confirm trigger level accuracy. Drift in float position can result in under- or over-fill conditions that affect EC consistency.
• Venturi Injectors Are Maintenance Points: Inspect venturi injectors at each reservoir changeover for particulate accumulation. Integrated filtration reduces load on injectors, but periodic inspection prevents oxygen delivery degradation over multi-cycle operation.
• Push-Fit Connections Enable Single-Site Isolation: Individual pot sites can be disconnected from the feed circuit via push-fit connections without shutting down the full system — allowing site-level maintenance, transplanting, or inspection during active feed cycles.
• Total-Drainage Bases Simplify Changeover: Full reservoir evacuation via total-drainage bases eliminates manual siphoning at nutrient changeover. Schedule changeovers to coincide with the drainage cycle to minimize labor time between runs.

Operator FAQ

Shipping and Logistics

• Shipping Coverage: Free shipping to the contiguous 48 United States. This product does not ship to Alaska, Hawaii, or international destinations through Cannafull Spectrum Solutions.
• Lead Time: Lead time varies by inventory availability. Contact Cannafull Spectrum Solutions prior to ordering to confirm current stock status and estimated ship date for your selected variant and configuration.
• Returns: Returns are accepted in accordance with the Cannafull Spectrum Solutions Return Policy. Products must be unassembled and in original packaging to qualify for return consideration. Contact support before initiating any return.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about shipping, lead times, or returns? Contact Cannafull Spectrum Solutions directly before placing your order.

What's in the Box

The following components are confirmed in source data for SKU BD100-0412. All items apply across all four layout variants (MIH, MOL, MOR, MSP).

• 12 pot sites (pot size per order selection: 5 gal / 20L or 9.5 gal / 36L)
• Total-drainage bases (one per pot site)
• JET-STREAM Vortex pump
• 5" spiral tubing (feed circuit)
• 5" Dual-Flow fittings
• Venturi injectors (integrated oxygen delivery)
• Float valve (automatic reservoir top-off)
• Integrated filtration assembly
• T304 stainless clamps (all primary junctions)
• Push-fit feed connections (per pot site)
• Inspection covers (per pot site)
• Water fill line
• Heavy-duty structural components (frame and support per selected layout variant)

Note: This component list is derived from manufacturer source data. Cannafull Spectrum Solutions cannot guarantee that box contents will not change between production runs. Verify final kit contents with the manufacturer or contact Cannafull Spectrum Solutions if you require confirmation of specific components before purchase. Nutrient solutions, pH/EC meters, growing media, and environmental control equipment are not included.

Regional Compliance and Deployment Notes

• Jurisdiction: Cannafull Spectrum Solutions ships and supports the V-System 12 Pot 4 Row Kit within the contiguous 48 United States only. Buyers are responsible for confirming that the purchase, possession, and use of this equipment complies with all applicable state and local regulations in their jurisdiction.
• Licensed Facility Responsibility: This system is sold as cultivation infrastructure equipment. The operator is solely responsible for ensuring that its use is consistent with the terms of any applicable state cultivation license, facility permit, or regulatory compliance program.
• Plumbing and Electrical Compliance: Installation must comply with all applicable local plumbing and electrical codes. Cannafull Spectrum Solutions does not provide installation services and assumes no liability for non-compliant installation practices.
• Water Use Regulations: Some jurisdictions impose water use reporting or restriction requirements on commercial cultivation facilities. Operators should confirm that the system's total fluid volume (193.6 gal / 733L) and automatic top-off water consumption are consistent with applicable water use permits or reporting obligations.
• No Canadian Distribution: This product is not available for shipment to Canadian provinces through Cannafull Spectrum Solutions. No CSA certification or Health Canada compliance representation is made for this product.
