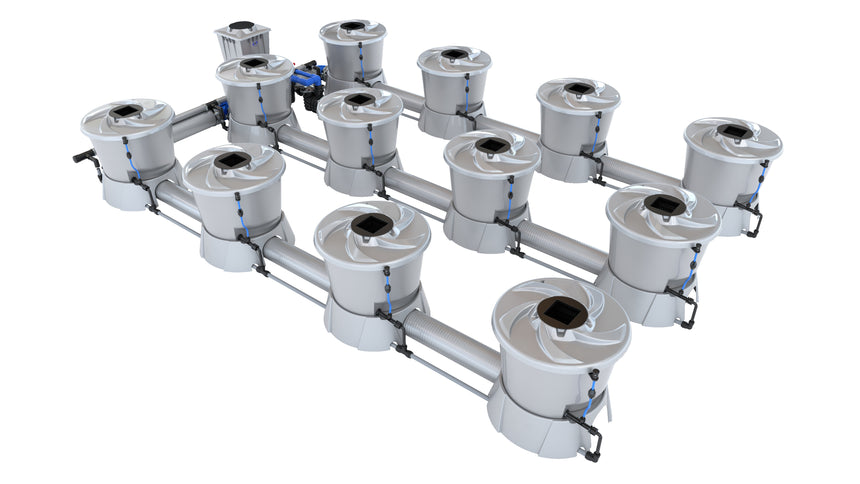

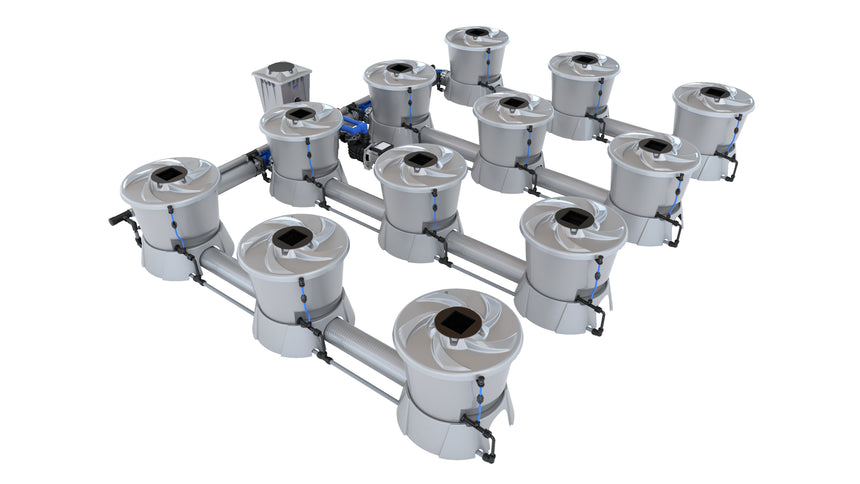

Alien Hydroponics V-SYSTEM 12 Pot 3 Row Kit

Quick Spec: 12-plant capacity | 3 rows | 193.6 gal / 733L total fluid volume | 15-gal (58L) V-POT | Available in four layout variants (MIH, MOL, MOR, MSP) | Width: 65¾" across all configurations

Precision Control in Any Space

Every facility that runs inconsistent feed delivery pays for it — not in a single catastrophic event, but in the slow accumulation of variance between rows. One pot runs hot on EC. Another sits oxygen-starved while the pump cycles. A third drains incomplete because the plumbing layout was never designed for the space it ended up in. The enemy is not a single point of failure; it is the compounding cost of equipment that was never engineered to work together, forcing operators into daily manual corrections that eat labor hours and introduce the exact variability they are trying to eliminate.

After deployment, the operational picture changes. All 12 plants receive direct nutrient distribution from a unified recirculating reservoir. The JET-STREAM® Vortex™ pump drives continuous circulation without requiring a separate air pump, which eliminates one more variable from the dissolved oxygen equation. The header and pump can be positioned outside the grow tent or room entirely, or configured as compact as the space demands — meaning the system adapts to the facility, not the other way around. Operators gain aisle access down the center of the row configuration for complete plant inspection without disturbing the feed circuit. The result is a grow room where every position in the canopy is fed from the same reservoir, at the same saturation level, on the same schedule.

The mechanism behind that outcome is a purpose-built recirculating DWC architecture. The system holds 193.6 gallons (733 liters) of total fluid volume distributed across 12 V-POTs at 15 gallons (58L) each, with pot size options of 5 gal (20L) or 9.5 gal (36L) depending on crop requirements. Fluid movement is managed through 5-inch spiral tubing and 5-inch Dual-Flow™ fittings, with Venturi injectors driving oxygen saturation directly into the recirculating stream — no supplemental air pump required. Integrated filtration, T304 stainless clamps, total-drainage bases, push-fit feed connections, and a float valve for automatic top-off complete the hydraulic circuit. A water fill line and inspection covers give operators direct visibility into system status without interrupting the feed cycle. In practical terms, the V-SYSTEM 12 Pot 3 Row Kit delivers recirculating DWC irrigation for 12 plants across a 193.6-gallon fluid volume in a 3-row footprint with a system width of 65¾" across all four layout variants.

Where This Belongs (and Doesn't)

The V-SYSTEM 12 Pot 3 Row Kit is a hydraulic irrigation system. Electrical supply, environmental controls, and nutrient dosing equipment are operator-supplied and must be sized and installed in accordance with applicable facility codes and manufacturer guidelines. Cannafull Spectrum Solutions does not provide electrical or HVAC design services.

How It Works

The V-SYSTEM 12 Pot 3 Row Kit operates as a closed-loop recirculating deep water culture system. The JET-STREAM® Vortex™ pump drives nutrient solution from the central reservoir through the feed circuit, delivering direct nutrient distribution to each of the 12 V-POTs simultaneously. Venturi injectors integrated into the flow path introduce oxygen into the recirculating stream at the point of delivery, achieving maximum oxygen saturation without a secondary air pump — a component that represents both an additional failure point and an ongoing maintenance obligation in conventional DWC setups.

Fluid moves through 5-inch spiral tubing connected via 5-inch Dual-Flow™ fittings, which maintain consistent flow geometry across all three rows. Total-drainage bases allow complete reservoir evacuation for cleaning and nutrient changeovers without disassembly. Push-fit feed connections simplify reconfiguration when the operator needs to adjust layout between cycles. T304 stainless clamps at all critical junctions resist corrosion in the high-humidity, nutrient-rich environment that recirculating DWC systems operate in. Integrated filtration protects the pump and feed lines from particulate accumulation. A float valve manages automatic top-off, maintaining reservoir volume between manual fill intervals. Inspection covers provide direct visual access to the reservoir and feed circuit without interrupting system operation. The water fill line gives operators a consistent reference point for reservoir management. In practical terms, the V-SYSTEM 12 Pot 3 Row Kit delivers a fully integrated recirculating DWC feed circuit for 12 plants across a 193.6-gallon (733-liter) total fluid volume, with Venturi-driven oxygen saturation and automatic top-off built into the base system architecture.

Configuration Decoder

System Integration

• Reservoir Management: The 193.6-gallon (733-liter) recirculating reservoir requires a dedicated nutrient mixing and dosing protocol. EC and pH monitoring equipment should be integrated at the reservoir level for continuous solution quality management.
• Pump Power Supply: The JET-STREAM® Vortex™ pump requires a dedicated electrical circuit. Wattage and amperage specifications are not published in available source data — confirm power requirements with the manufacturer or Cannafull Spectrum Solutions before finalizing electrical planning.
• Environmental Controls: Recirculating DWC systems are sensitive to reservoir temperature. HVAC and chiller capacity should be sized to maintain target root-zone temperatures independent of ambient room conditions.
• Drain Infrastructure: Total-drainage bases allow complete reservoir evacuation. Facility floor drains or collection infrastructure must be capable of handling up to 193.6 gallons of nutrient solution during changeover events.
• Pot Size Selection: The system accommodates 5 gal (20L) or 9.5 gal (36L) pot inserts within the 15-gallon (58L) V-POT. Pot size selection should be confirmed before system assembly as it affects media volume and root-zone management protocol.

Operator Field Notes

• Variant Selection Is Irreversible at Assembly: Each of the four variants (MIH, MOL, MOR, MSP) has a distinct length footprint. Measure your available floor run against the specific variant dimension before ordering — not after. Swapping variants post-delivery requires a return and reorder cycle.
• Float Valve Calibration: The automatic top-off float valve maintains reservoir volume between manual fills. Calibrate the float valve trigger point to your target operating volume during initial commissioning. Drift in float valve setpoint is a common source of reservoir volume inconsistency in recirculating systems.
• Venturi Injector Maintenance: Venturi injectors are the primary oxygen delivery mechanism in this system. Inspect and clean injectors on a scheduled basis — mineral scale and biofilm accumulation on injector orifices will degrade oxygen saturation performance before any other system symptom becomes visible.
• Total-Drainage Protocol: Use the total-drainage bases for complete reservoir evacuation at every nutrient changeover. Partial drain-and-refill cycles in recirculating DWC systems allow salt accumulation and pathogen load to compound over time. Full evacuation resets the baseline.
• Aisle Access Planning: The system supports a center-aisle configuration between rows. Plan canopy training and support infrastructure to preserve aisle clearance — operators who close off the aisle with trellising or support structures during late-stage growth lose the plant access advantage the layout was designed to provide.
• Pump Placement Decision: Decide on compact vs. remote header/pump placement before final installation. Repositioning the pump after the feed circuit is assembled and filled requires draining the system. Document the chosen configuration for future maintenance reference.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be processed.
• Freight & Handling: The V-SYSTEM 12 Pot 3 Row Kit ships as a multi-component kit. Due to the size and weight of the assembled system components, freight method and delivery timeline will be confirmed at order. Contact us before ordering if you have specific delivery requirements or loading dock constraints.
• Returns: Returns are subject to the Cannafull Spectrum Solutions Return Policy. Defective units are handled under manufacturer warranty terms. Non-defective returns must be initiated within the return window specified in our policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about shipping, freight routing, or order logistics? Contact Cannafull Spectrum Solutions at cannafullspec.com or reach our team directly through the contact page.

What's in the Box

The following components are confirmed as included in the V-SYSTEM 12 Pot 3 Row Kit (SKU BD100-0007) based on manufacturer source data:

• 12 x V-POT vessels (15 gallon / 58L each)
• Pot inserts — 5 gal (20L) or 9.5 gal (36L) options (confirm selection at order)
• JET-STREAM® Vortex™ pump
• 5-inch spiral tubing (feed circuit)
• 5-inch Dual-Flow™ fittings
• Venturi injectors
• Total-drainage bases
• Integrated filtration assembly
• T304 stainless clamps
• Push-fit feed connections
• Float valve (automatic top-off)
• Inspection covers
• Water fill line

Component list is based on manufacturer-published source data for SKU BD100-0007. Nutrient dosing equipment, environmental controls, electrical supply, and grow media are not included and must be sourced separately. Cannafull Spectrum Solutions is not responsible for omissions in manufacturer-published component lists. Verify final kit contents against the packing list included with shipment upon delivery.

Regional Compliance & Deployment Notes

• Licensing Jurisdiction: The V-SYSTEM 12 Pot 3 Row Kit is a hydroponic irrigation system. Its purchase and use are not regulated at the federal level in the United States. However, the crops grown within the system may be subject to state and local licensing requirements. Operators are solely responsible for maintaining all applicable cultivation licenses and permits in their jurisdiction.
• Water Discharge Compliance: Recirculating DWC systems that discharge nutrient solution to drain during changeover events may be subject to local wastewater discharge regulations. Operators in jurisdictions with nutrient runoff or water quality ordinances should confirm discharge compliance requirements before commissioning.
• Electrical Code Compliance: Pump and control wiring must be installed in accordance with the National Electrical Code (NEC) and applicable state and local amendments. Cannafull Spectrum Solutions does not provide electrical installation services.
• U.S. Deployment Only: This product is sold and supported within the contiguous 48 United States. Cannafull Spectrum Solutions does not ship to or support deployments in U.S. territories, Alaska, Hawaii, or international destinations.
• Commercial Facility Documentation: Operators deploying this system in licensed commercial cultivation facilities should retain purchase documentation, including SKU, variant code, and order confirmation, for facility audit and compliance records.

Compliance information provided here is general in nature and does not constitute legal advice. Regulatory requirements vary by state, county, and municipality. Cannafull Spectrum Solutions makes no representation regarding the suitability of this product for any specific licensed use. Operators are responsible for confirming all applicable regulatory requirements with qualified legal counsel before deployment.
