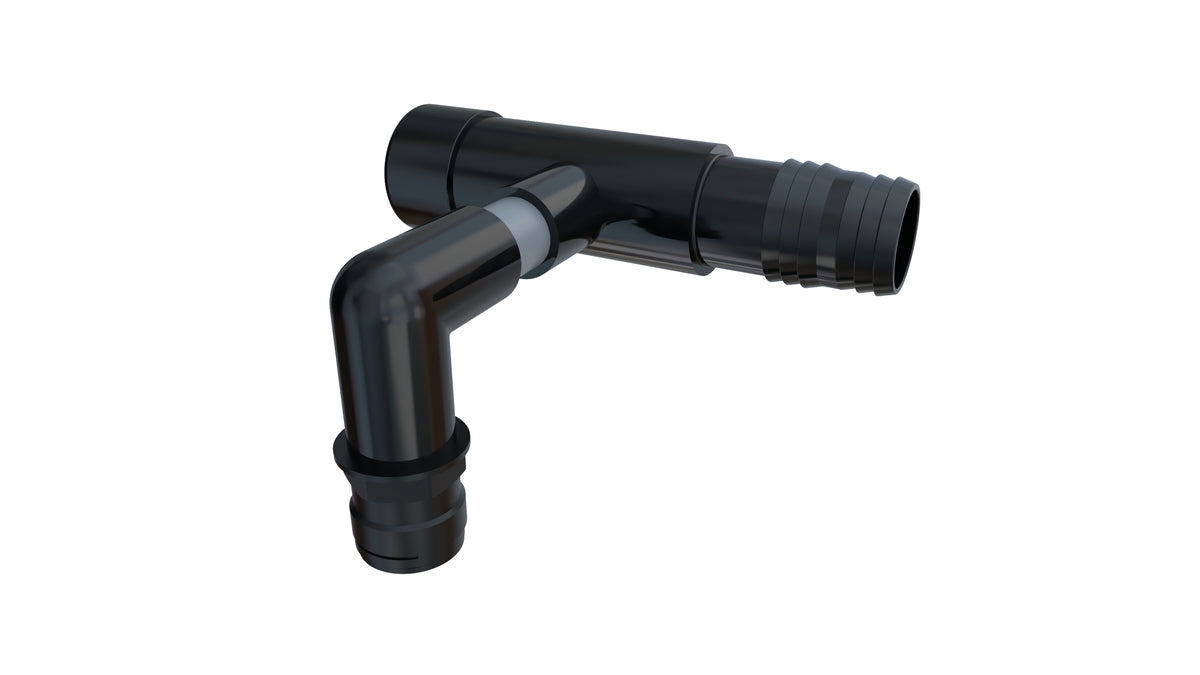

Alien Hydroponics Terminal Manifold Right 50mm

SKU: BD101-0046  |  Size: 50mm  |  Orientation: Right  |  Product Line: V-SYSTEM  |  Price: $106.20

Precision Control in Any Space.

Every irrigation network has a weak point, and in most V-SYSTEM installations it lives at the terminal end of the manifold. When the wrong component closes that loop — an off-spec cap, a field-fabricated plug, a generic fitting that was never rated for the system's operating pressure — the entire feed circuit pays the price. Flow rates drift. Nutrient concentration at the far sites diverges from the near sites. The operator adjusts manually, chases the variance, and never quite catches it. The silent cost is not a single catastrophic failure; it is the cumulative drag of a system that never performs to its designed specification because one boundary component was never designed for it.

After the Terminal Manifold Right 50mm is seated in the V-SYSTEM network, the terminal boundary becomes a controlled, engineered point rather than an improvised one. Feed pressure distributes evenly from inlet to terminus. Each connected site receives the same nutrient solution at the same rate the system was designed to deliver. The operator stops chasing flow variance and starts managing the crop — which is the only job that produces yield.

The mechanism is straightforward: the BD101-0046 is purpose-built for the V-SYSTEM architecture at the 50mm manifold diameter, right-orientation configuration. Because it is an OEM-matched component rather than an adapted substitute, it seats to the system's internal geometry without introducing restriction, bypass, or pressure differential at the terminal junction. Compatibility with V-SYSTEM is a confirmed specification, not an approximation. In practical terms, the Terminal Manifold Right 50mm closes the 50mm V-SYSTEM irrigation loop at the right-hand terminus with OEM-matched geometry, preserving designed flow characteristics across every connected feed site.

Where This Belongs (and Doesn't)

This component is a passive irrigation terminus fitting. It contains no electrical, pressurized-gas, or HVAC elements. Installation should follow the V-SYSTEM manufacturer's assembly guidelines. Consult a qualified irrigation technician if system pressure ratings or manifold configurations are uncertain.

How It Works

The Terminal Manifold Right 50mm functions as the engineered boundary closure for the right-hand end of a 50mm V-SYSTEM manifold assembly. In a top-feed or drain-to-waste irrigation circuit, the manifold distributes nutrient solution laterally to each connected feed site along its length. Without a properly matched terminal component at the closed end, pressure cannot be maintained uniformly across the distribution run — the system either bleeds flow at the terminus or creates a standing pressure differential that skews delivery rates at sites nearest the end of the run.

By installing the BD101-0046 at the right-hand terminus, the operator establishes a sealed, geometry-matched boundary that reflects system pressure back through the manifold rather than dissipating it. The right-orientation designation is not cosmetic — it specifies the physical configuration of the fitting relative to the manifold's inlet direction and internal channel geometry. Using a left-orientation component in a right-hand position, or an off-spec cap of any kind, introduces a mismatch at the seating surface that can manifest as micro-leakage, pressure loss, or accelerated fitting wear over the irrigation cycle. In practical terms, the Terminal Manifold Right 50mm delivers OEM-matched terminus sealing for the 50mm V-SYSTEM manifold in right-hand orientation, maintaining designed system pressure across the full distribution run.

System Integration

• V-SYSTEM Manifold Compatibility: Designed to integrate directly with the V-SYSTEM 50mm manifold architecture — no secondary adapters or transition fittings required at the terminus.
• Top-Feed and Drain-to-Waste Circuits: Functions correctly in both recirculating reservoir and drain-to-waste top-feed configurations where a sealed terminal boundary is required.
• Orientation Lock-In: Right-orientation configuration must be matched to the physical layout of the manifold run; verify terminus direction before ordering to avoid installation delays.
• Replacement Protocol: Direct OEM replacement for worn or damaged right-hand terminal components on existing V-SYSTEM installations — no system modification required.
• Complementary Components: Pair with V-SYSTEM manifold sections, inlet fittings, and site-specific drip or top-feed emitters for a complete, pressure-consistent irrigation circuit.

Facility Integration Data

The Terminal Manifold Right 50mm is a per-manifold-run component; facilities operating multiple independent V-SYSTEM irrigation circuits will require one right-hand terminus per run. The table below reflects procurement planning across common multi-run facility configurations at the current MAP price of $106.20 per unit.

Operator Field Note

• Verify Orientation Before Installation: Right-orientation is not interchangeable with left-orientation. Confirm the physical terminus direction of your manifold run before installing BD101-0046 to avoid a second procurement cycle.
• OEM Fit Matters at the Terminus: The terminal end of a manifold run is where pressure inconsistency originates most often. An off-spec or improvised closure introduces a seating gap that compounds over irrigation cycles — use the OEM component.
• Inspect Seating Surface on Installation: Before seating the terminal manifold, inspect the manifold channel end for debris, scoring, or deformation that could prevent a full seal. Clean and clear the seating surface before assembly.
• Replacement Interval: Inspect terminal manifold components during each scheduled system teardown. Cracking, discoloration, or loss of seating resistance are indicators for replacement regardless of elapsed time.
• Spare Unit Protocol: Facilities running continuous irrigation schedules should maintain at least one spare BD101-0046 on-site. A failed terminus during an active feed cycle cannot wait for standard shipping lead times.
• System Pressure Check Post-Installation: After seating the terminal manifold, run a full-pressure system check before resuming the irrigation schedule to confirm no pressure loss at the terminus junction.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be fulfilled through this channel.
• Lead Time: Standard processing and shipping lead times apply. Contact Cannafull Spectrum Solutions for current lead time estimates before placing time-sensitive orders.
• Returns: Returns are subject to the Cannafull Spectrum Solutions Return Policy. Component must be in original, uninstalled condition to qualify for return consideration. Verify compatibility with your V-SYSTEM manifold configuration before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about this order? Contact Cannafull Spectrum Solutions directly through cannafullspec.com for pre-purchase compatibility verification, volume procurement inquiries, and warranty confirmation.

What's in the Box

• 1x Terminal Manifold Right 50mm (SKU: BD101-0046) — right-orientation terminus component for V-SYSTEM 50mm manifold assemblies

Box contents are based on available source data for SKU BD101-0046. No additional hardware, fittings, or installation materials are confirmed as included. If your application requires supplementary V-SYSTEM components, verify the complete bill of materials with Cannafull Spectrum Solutions before installation. Packaging dimensions and unit weight are not specified in available source data.

Regional Compliance & Deployment Notes

• Jurisdiction: This product is sold and shipped within the contiguous 48 United States only. Cannafull Spectrum Solutions does not fulfill orders to addresses outside this territory.
• Regulatory Classification: The Terminal Manifold Right 50mm is a passive irrigation fitting with no electrical, pressurized-gas, or chemical-dosing function. It is not subject to electrical safety certification requirements. Confirm any facility-specific plumbing or irrigation component compliance requirements with your local authority having jurisdiction (AHJ) before installation.
• Licensed Facility Use: This component is deployed in licensed commercial production facilities across the United States operating V-SYSTEM hydroponic irrigation infrastructure. Operators in regulated markets should confirm that all irrigation system components meet applicable state or local facility licensing requirements.
• Installation Responsibility: Proper installation in accordance with V-SYSTEM manufacturer guidelines is the responsibility of the operator. Cannafull Spectrum Solutions provides this component as an authorized dealer and does not provide on-site installation services through this channel.

Compliance requirements for hydroponic irrigation components vary by state, county, and facility license type. The information provided here is for general reference only and does not constitute legal or regulatory advice. Operators are responsible for confirming applicable compliance obligations with the relevant authority having jurisdiction prior to installation and operation.
