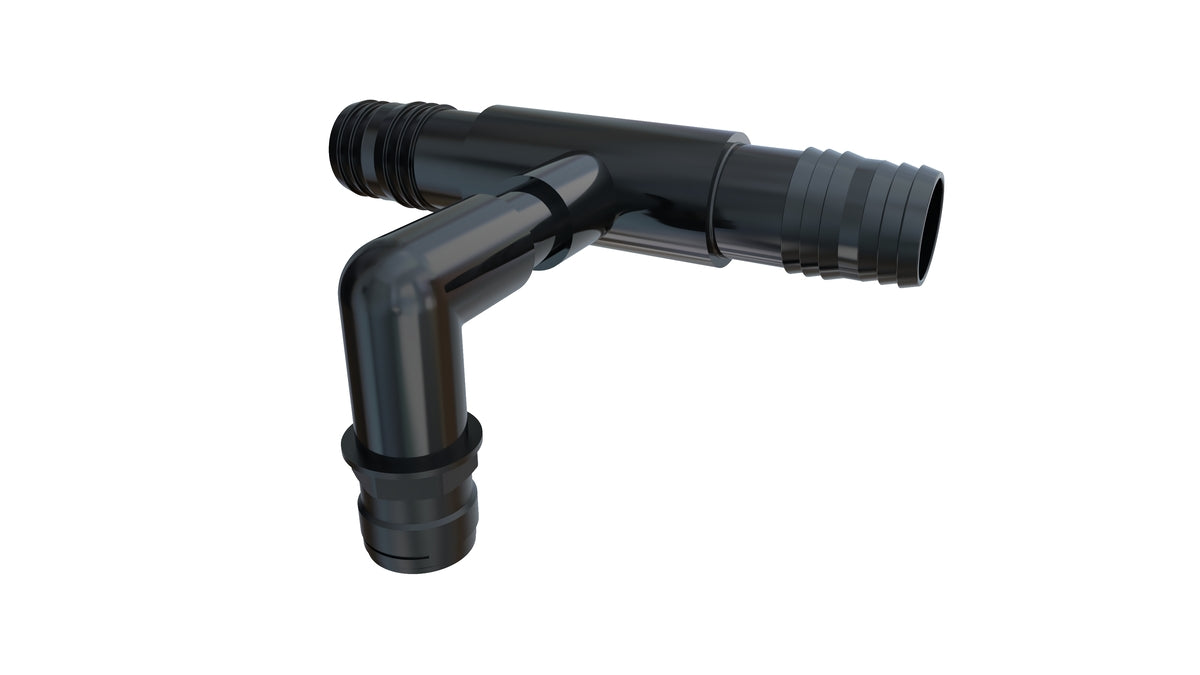

Alien Hydroponics Terminal Manifold Center

SKU: BD101-0041  |  Price: $46.88 USD  |  Compatibility: V-SYSTEM RDWC

Precision Control in Any Space

Every RDWC system has a weak point, and it is almost always the manifold. When recirculation flow is distributed through improvised fittings or undersized junctions, the result is not a single dramatic failure — it is a slow, invisible erosion of consistency. One pot runs oxygen-depleted. Another receives a nutrient concentration that drifts two points off target by the end of a feed cycle. The operator adjusts, compensates, and adjusts again, spending time on triage instead of production. The equipment is technically running, but it is working against the outcome rather than toward it.

After integrating a purpose-built manifold center into the recirculation circuit, the system behaves as a single hydraulic unit. Every pot position receives the same flow rate, the same dissolved oxygen exposure, and the same nutrient concentration at the same moment in the feed cycle. Adjustments made at the reservoir propagate uniformly across the entire layout. The operator stops reacting to variance and starts managing a predictable, repeatable production environment.

The Terminal Manifold Center 40mm achieves this through direct compatibility with the V-SYSTEM architecture, accepting the 40mm connection standard used throughout the Alien Hydroponics RDWC line. No adhesive bonding is required during assembly — the manifold seats and seals mechanically, which means reconfiguration or maintenance does not require cutting and re-gluing circuit segments. The 40mm bore diameter is sized to maintain adequate flow velocity at the pump outputs typical of V-SYSTEM installations, preventing the stagnation pockets that develop when oversized fittings reduce velocity below the threshold needed to keep nutrients in suspension. In practical terms, the Terminal Manifold Center 40mm delivers mechanically secured, V-SYSTEM compatible recirculation distribution with no-glue assembly and a $46.88 acquisition cost that makes it a low-friction upgrade to any existing or new RDWC build.

Where This Belongs (and Doesn't)

This accessory is a hydraulic distribution component. It does not replace a water pump, air pump, reservoir, or control system. Electrical connections, pump wiring, and any facility plumbing tie-ins must be performed by a qualified technician in accordance with applicable local codes.

How It Works

The Terminal Manifold Center 40mm functions as the distribution and return junction within a V-SYSTEM RDWC circuit. In a recirculating deep water culture layout, nutrient solution is pumped from a central reservoir or header pot through the circulation pipe network, passes through each pot position, and returns to the source. The manifold center is the terminal point of that circuit — the component that receives return flow from the pot run and directs it back into the recirculation loop. When this junction is undersized, mismatched, or assembled with adhesive that degrades over time, the entire circuit's hydraulic balance is compromised.

The 40mm bore designation matches the return circulation pipe standard used across V-SYSTEM compatible RDWC kits, including configurations that use a 2-inch / 50mm return circulation pipe at the system level. The no-glue mechanical assembly means the manifold can be installed, inspected, and removed without destroying the fitting — a meaningful operational advantage in any production environment where the system needs to be broken down between cycles or reconfigured for a different pot count. Compatibility with the V-SYSTEM also means this component integrates directly with Alien Hydroponics RDWC kits that include A.I.R. Air Injection Ring technology, silver heat-reflective polymer pots, and the RDWC Circulation Water Pump 10 running at 250 GPH on 24 watts. In practical terms, the Terminal Manifold Center 40mm is the hydraulic anchor point that allows a V-SYSTEM RDWC circuit to maintain consistent recirculation velocity and nutrient distribution across every connected pot position without adhesive bonding or custom fabrication.

Commercial Assurance

System Integration

• V-SYSTEM Compatibility: Designed for direct integration with Alien Hydroponics V-SYSTEM RDWC configurations — no adapter fittings or modification required
• No-Glue Assembly: Mechanical seat-and-seal connection eliminates adhesive bonding, allowing the manifold to be removed and reinstalled between production cycles
• A.I.R. System Ready: Compatible with V-SYSTEM kits equipped with A.I.R. Air Injection Ring technology for dissolved oxygen delivery at each pot position
• Pump Compatibility: Functions within circuits powered by the RDWC Circulation Water Pump 10 (250 GPH / 24 watts) and equivalent V-SYSTEM pump configurations
• Silver Polymer Ecosystem: Pairs with silver heat-reflective polymer pots and circulation pipe used throughout the V-SYSTEM line, maintaining thermal consistency across the recirculation circuit

Facility Integration Data

The Terminal Manifold Center 40mm is a single-unit accessory priced at $46.88. The table below models acquisition cost at fleet scale for operators sourcing multiple units across parallel RDWC circuits or replacement inventory.

Operator Field Notes

• Verify connection standard before ordering: This manifold center is rated for the 40mm V-SYSTEM connection. Confirm your existing circuit uses 40mm fittings — do not assume compatibility based on visual similarity to other manifold styles.
• No adhesive required — do not apply it anyway: The mechanical assembly is designed to function without glue. Applying adhesive will prevent future disassembly and may void manufacturer warranty coverage.
• Inspect the manifold seat at every teardown: Check the seating surface for debris, mineral scale, or deformation before reinstalling. A compromised seat is the most common source of slow leaks in recirculation circuits.
• Source a spare unit before you need it: Lead time for pickup is 5 or more days. A failed manifold center mid-cycle with no replacement on hand is an avoidable production loss — carry at least one spare per active circuit.
• Pair with the correct pump output: The 40mm bore is sized for V-SYSTEM flow rates. Running a significantly higher-output pump than the RDWC Circulation Water Pump 10 (250 GPH) without verifying manifold pressure ratings may introduce turbulence at the junction.
• Document your circuit layout: When adding manifold centers to an existing V-SYSTEM build, photograph the completed plumbing before covering or securing lines. Recirculation circuit troubleshooting is significantly faster with a reference diagram on file.

Operator FAQ

Shipping & Logistics

• Shipping Region: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this region cannot be fulfilled.
• Lead Time: Accessory orders typically ship within standard processing windows. Contact us to confirm current lead time for SKU BD101-0041 before placing a time-sensitive order.
• Local Pickup: Available in Longmont, Colorado. Pickup is typically ready in 5 or more days after order confirmation. Confirm availability before traveling.
• Returns: Returns are accepted subject to Cannafull Spectrum Solutions return policy. Product must be uninstalled, unmodified, and in original condition to qualify. Contact us within the applicable return window to initiate a return authorization.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Contact Cannafull Spectrum Solutions: For order status, compatibility questions, or return authorization — reach us through the contact page at cannafullspec.com or visit our Longmont location during business hours.

What's in the Box

The Terminal Manifold Center 40mm (SKU BD101-0041) ships as a single accessory component. No additional components, pumps, pots, lids, or fittings are included with this SKU.

• 1x Terminal Manifold Center 40mm — V-SYSTEM compatible

Note: No hard specifications for dimensions, weight, or included hardware were provided in the manufacturer source data for this accessory. If you require dimensional confirmation for installation planning, contact Cannafull Spectrum Solutions before ordering. Kit contents listed above reflect confirmed source data only — do not assume additional components are included.

Regional Compliance & Deployment Notes

• Jurisdiction: This product is sold and shipped within the contiguous 48 United States only. No shipments to Alaska, Hawaii, U.S. territories, or international destinations.
• Regulatory Applicability: The Terminal Manifold Center 40mm is a passive hydraulic distribution component. It does not contain electrical elements and does not require electrical certification for the component itself. Any pump, air pump, or electrical equipment used in conjunction with this manifold must comply with applicable local and state electrical codes.
• Water System Compliance: Operators integrating this manifold into a licensed production facility should verify that the recirculation system design complies with any applicable state or local water use, drainage, or nutrient runoff regulations governing their license type.
• No Health Canada or CSA References: This product listing applies exclusively to U.S. licensed facilities. Canadian compliance standards, Health Canada regulations, and CSA certification requirements are outside the scope of this listing.
• Facility Responsibility: Installation, plumbing integration, and operational compliance remain the responsibility of the licensed facility operator. Cannafull Spectrum Solutions provides the component — facility-level compliance documentation is the operator's obligation.

Product specifications, pricing, and availability are subject to change without notice. All claims reflect manufacturer source data available at time of publication. Cannafull Spectrum Solutions is a factory-authorized dealer operating within the contiguous United States. This listing is intended for licensed commercial production facilities. Verify all technical specifications with manufacturer documentation before making purchasing decisions based on installation-critical dimensions or performance parameters not confirmed in source data.
