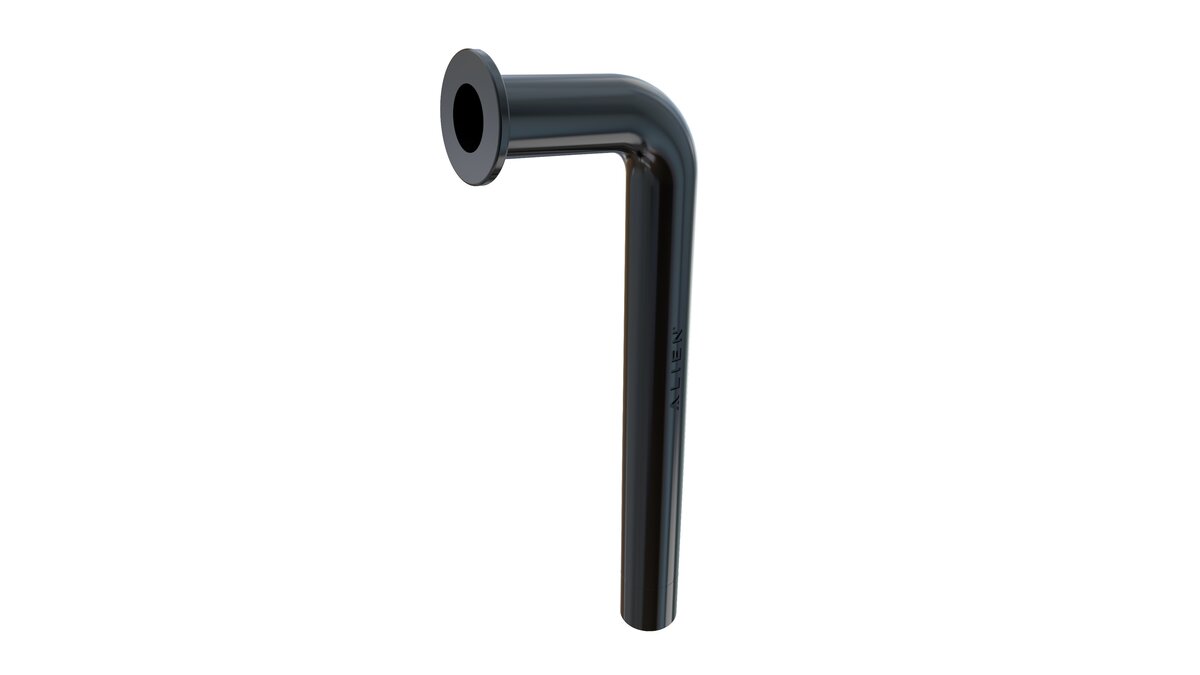

Alien Hydroponics Inlet Tube - Commercial

Precision Control in Any Space

Every RDWC operator eventually confronts the same silent liability: the air pump. It hums, it ages, it fails at the worst possible moment — and when it does, dissolved oxygen levels in the reservoir drop before any sensor catches it. The result is root zone stress that compounds quietly across the entire drain-to-waste or recirculating loop, introducing the kind of variance that cannot be corrected mid-cycle. Equipment that requires constant monitoring, periodic replacement, and dedicated power circuits is not a solution — it is a recurring cost center embedded directly into your irrigation infrastructure. Guesswork and equipment that fights you are not operational risks you can schedule around; they are structural problems that erode consistency at the root level, cycle after cycle.

After deployment, the reservoir circuit operates without a dedicated aeration device in the loop. Dissolved oxygen is introduced passively at the inlet point every time nutrient solution moves through the fitting — no pump schedule to manage, no diaphragm to replace, no power draw to account for in the facility load calculation. Nutrient distribution remains consistent across the recirculating system because the Venturi action at the 22mm inlet continuously entrains oxygen into the flow path, eliminating the dead zones that form when air stone placement is uneven or pump output degrades. The result is a cleaner, lower-maintenance irrigation circuit that removes a mechanical failure point without sacrificing oxygenation performance.

The mechanism is the Venturi effect: as nutrient solution accelerates through the constricted 22mm inlet geometry, a pressure differential draws ambient air into the flow stream, dissolving oxygen directly into the recirculating solution without any moving parts. This is not supplemental aeration — it is oxygenation integrated into the hydraulic architecture of the top-feed or recirculating circuit itself. The fitting is constructed from durable, high-quality materials rated for long-term submersed and inline use in nutrient-bearing irrigation systems, and it installs into standard 22mm pipe headers without adhesives or specialized tooling. In practical terms, the Inlet Tube Commercial delivers passive Venturi-driven dissolved oxygen enrichment at every inlet point in a 22mm RDWC circuit, with zero moving parts and no dedicated power requirement.

Where This Belongs (and Doesn't)

This fitting is a hydraulic component designed for integration into 22mm pipe-based RDWC irrigation circuits. Installation should be performed by personnel familiar with recirculating hydroponic system plumbing. Verify pipe diameter compatibility before installation. This product does not replace reservoir-level aeration in systems where dissolved oxygen targets exceed what passive Venturi entrainment can deliver at the operating flow rate of your specific pump configuration.

How It Works

The Inlet Tube Commercial operates on a straightforward hydraulic principle: the Venturi effect. When nutrient solution flows through the constricted bore of the 22mm fitting, fluid velocity increases and static pressure drops at the constriction point. That pressure differential creates a draw on the ambient air port integrated into the fitting geometry, pulling air into the nutrient stream and dissolving oxygen directly into the recirculating solution as it enters the reservoir or pot. No external power source, no diaphragm pump, no air stone network — the oxygenation event is a direct consequence of the hydraulic conditions already present in any functioning recirculating system.

The fitting is sized for 22mm pipe, which is the standard header diameter used in Alien Hydroponics RDWC systems and compatible third-party recirculating configurations. Installation requires no adhesives — the fitting seats mechanically into the pipe header, reducing installation time and eliminating the cure-time delays associated with solvent-welded plumbing assemblies. The durable construction is specified for long-term use in nutrient-bearing, continuously recirculating irrigation environments where chemical exposure and constant moisture are baseline operating conditions. Because the oxygenation mechanism has no moving parts, there is no wear cycle to manage and no scheduled replacement interval for the fitting itself. In practical terms, the Inlet Tube Commercial (BD101-2504) delivers passive Venturi oxygenation and consistent nutrient distribution at every 22mm inlet point in the recirculating circuit, with no power draw and no mechanical maintenance requirement.

Commercial Assurance

• Manufacturer: Alien Hydroponics — purpose-built RDWC system components
• SKU: BD101-2504 (single variant, no configuration selection required)
• Pipe Compatibility: 22mm pipe headers (standard Alien Hydroponics RDWC specification)
• Installation Method: No adhesives required — mechanical fit
• Warranty: Warranty period not specified in source data — contact Cannafull Spectrum Solutions for current manufacturer warranty terms
• Authorized Dealer: Cannafull Spectrum Solutions — factory-authorized distributor serving licensed U.S. facilities

System Integration

• Installs directly into 22mm pipe headers used in Alien Hydroponics RDWC kits (including RDWC-6P3R series in 20L and 36L configurations)
• Compatible with both Compact Header and Remote Header RDWC configurations — fitting function is independent of header placement
• Can be deployed in systems with or without supplemental air pump circuits — the Venturi fitting operates passively regardless of air pump presence
• Integrates into existing top-feed and drain-to-waste recirculating circuits without modification to pump, reservoir, or return pipe sizing
• Multiple fittings can be deployed across a single system to increase inlet oxygenation points without adding to the facility electrical load

Facility Integration Data

The Inlet Tube Commercial is a low-cost, high-leverage component — its operational value scales with the number of inlet points in the recirculating circuit, making fleet-level deployment straightforward to justify on a per-unit basis.

Air pump circuit elimination estimates are indicative only and depend on system design, flow rate, and dissolved oxygen targets. Verify performance against your specific RDWC configuration before removing supplemental aeration.

Operator Field Note

• Confirm pipe diameter is 22mm before ordering — this fitting is not adjustable and will not seal correctly in larger or smaller bore headers
• The Venturi effect is flow-dependent: oxygenation performance is proportional to the velocity of nutrient solution passing through the fitting — verify your recirculating pump delivers adequate flow rate for the number of fittings in the circuit
• No adhesive is required for installation; do not apply solvent cement to this fitting — mechanical seating is the specified installation method
• In systems where the fitting is used to replace an existing air pump, monitor dissolved oxygen levels during the first 48 hours post-installation to confirm the Venturi action is meeting your target DO threshold at your operating flow rate
• The fitting is constructed for long-term use in nutrient-bearing recirculating environments — inspect periodically for mineral scale buildup at the Venturi constriction, which can reduce oxygenation efficiency over time
• Multiple fittings can be installed across a single recirculating loop to increase total oxygen entrainment without adding electrical load or mechanical components

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this jurisdiction cannot be processed.
• Fulfillment: Standard processing and carrier transit times apply. Contact us for current lead time estimates on quantity orders.
• Returns: Returns are accepted for defective or incorrectly shipped items in accordance with our Return Policy. Non-defective returns are subject to review.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions directly before purchasing if you have compatibility or logistics questions.

What's in the Box

• 1x Alien Hydroponics Venturi Inlet Fitting for 22mm Pipe (BD101-2504)

Box contents are based on available manufacturer source data. Accessory items, installation hardware, or documentation not specified in source data are not confirmed as included. Contact Cannafull Spectrum Solutions to verify current kit contents before ordering.

Regional Compliance & Deployment Notes

• The Alien Hydroponics Inlet Tube Commercial is a plumbing fitting component for use in recirculating hydroponic irrigation systems. It is not a regulated electrical or pressure-rated device under standard U.S. commercial building codes, but installation within a licensed production facility should be reviewed against applicable state and local plumbing and facility codes.
• Cannafull Spectrum Solutions serves licensed commercial production facilities across the contiguous United States. This product is not available for shipment to addresses outside the contiguous 48 states.
• Operators in licensed cannabis production facilities should confirm that all irrigation system components, including fittings and inlet hardware, comply with applicable state cannabis facility licensing requirements and any facility-specific standard operating procedures governing irrigation infrastructure.
• No Health Canada, CSA, or Canadian provincial compliance data is applicable to this product listing. This listing is valid for U.S. deployment only.

Product specifications, pricing, and availability are subject to change without notice. All technical data is sourced from manufacturer documentation current at time of publication. Cannafull Spectrum Solutions makes no independent performance warranties beyond those provided by the manufacturer. Verify all compatibility parameters against your specific system configuration before installation. SKU: BD101-2504 | MAP: $6.90 USD.
