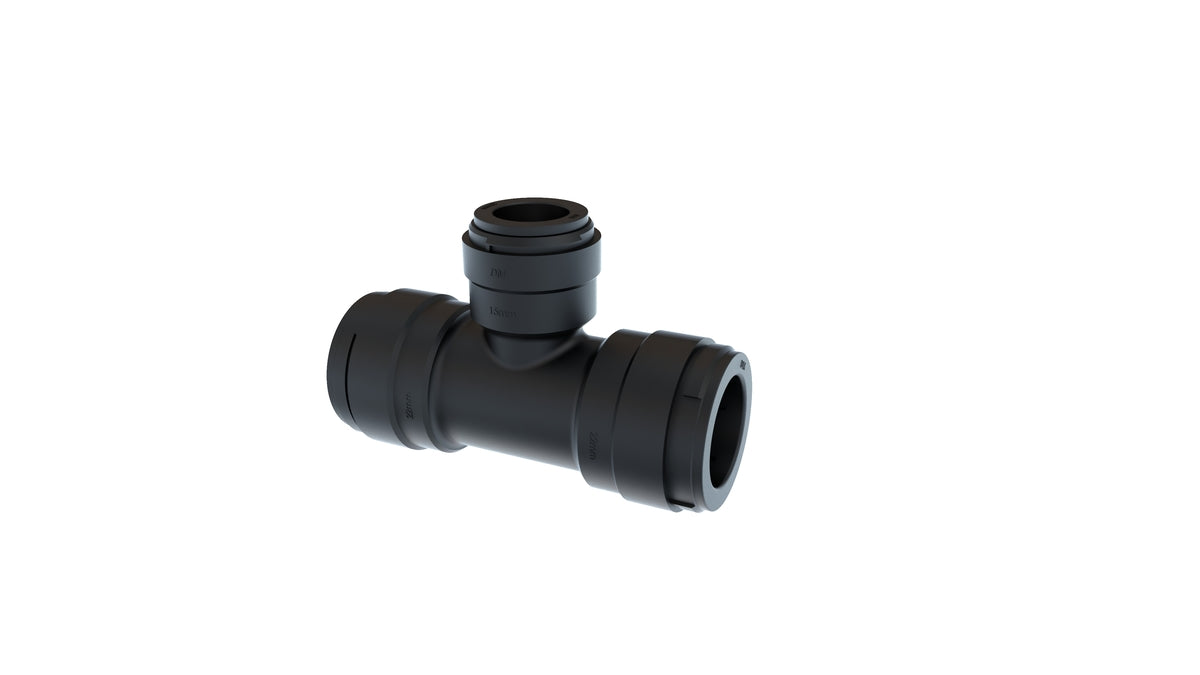

Alien Hydroponics DM Push-Fit Tee 22-15mm V-SYSTEM

SKU: BD101-0054  |  Tubing Size: 22-15mm  |  Connection Type: Push-Fit  |  Fitting Configuration: Tee  |  System Compatibility: V-SYSTEM  |  Price: $8.80 USD

Precision Control in Any Space.

Every irrigation circuit has a failure point, and in most operations it lives at the junction. Barbed fittings that slip under pressure, threaded adapters that weep at the threads, improvised connections that hold until they don't — these are the silent variables that turn a dialed-in feed schedule into a guessing game. When a tee joint fails mid-cycle, the downstream plants don't announce it. The damage accumulates quietly: dry zones, salt buildup, root stress, and yield inconsistency that gets blamed on genetics or nutrients before anyone checks the plumbing. Guesswork and equipment that fights you are not just inconveniences — they are compounding operational liabilities that erode margin with every run.

After deployment, the irrigation circuit behaves as designed. Every branch point delivers consistent flow because the connection itself is no longer a variable. Feed schedules execute without manual intervention to check fittings, tighten collars, or re-seat barbs. The reservoir output reaches every zone with the distribution uniformity the system was engineered to provide, and the operator's attention shifts from troubleshooting plumbing to managing the crop. That is what a properly integrated irrigation fitting makes possible — not a dramatic transformation, but the quiet elimination of a recurring failure mode that was costing time and consistency on every cycle.

The DM Push-Fit Tee 22-15mm V-SYSTEM achieves this through a push-fit connection architecture purpose-built for V-SYSTEM tubing at the 22-15mm specification. The tee configuration allows a single main line to branch into a secondary feed run without cutting into the circuit with threaded hardware or barbed adapters that require clamps. The push-fit mechanism seats the tubing with a positive lock that holds under operating pressure, releases cleanly for reconfiguration, and reinstalls without degradation of the connection interface. Compatibility is native to the V-SYSTEM platform, meaning the fitting engages the tubing geometry the system was designed around — not an approximation or an adapter stack. In practical terms, the DM Push-Fit Tee 22-15mm V-SYSTEM delivers a tool-free, pressure-rated tee junction in a V-SYSTEM irrigation circuit at a per-fitting cost of $8.80 USD.

Where This Belongs (and Doesn't)

This fitting is an irrigation plumbing component rated for V-SYSTEM hydroponic circuits. It is not an electrical component, HVAC fitting, or potable water fixture. Do not install in applications outside the V-SYSTEM platform or outside the 22-15mm tubing specification for which it is designed.

How It Works

The push-fit connection mechanism operates on a collet-and-seal principle. When the 22mm tubing is inserted into the primary port of the tee body, an internal collet — a ring of inward-facing gripping teeth — engages the outer wall of the tubing and locks it against withdrawal under pressure. A captive O-ring or equivalent sealing element behind the collet creates the pressure boundary that prevents leakage at the joint face. The 15mm secondary port operates on the same principle, accepting the branch tubing with the same positive-lock engagement. To release the fitting for reconfiguration, the operator depresses the collet release collar, which retracts the gripping teeth and allows the tubing to withdraw cleanly. The tubing and fitting body are both undamaged by this process, allowing the fitting to be repositioned and reinstalled without replacing components. Native V-SYSTEM compatibility means the internal geometry of the fitting — port diameter, collet sizing, and sealing surface — is matched to the tubing specification the V-SYSTEM platform uses, eliminating the dimensional mismatch that causes push-fit failures when non-native fittings are used. In practical terms, the DM Push-Fit Tee 22-15mm V-SYSTEM provides a tool-free, reconfigurable tee junction with positive-lock collet engagement across both the 22mm main port and the 15mm branch port, natively compatible with V-SYSTEM irrigation infrastructure.

Commercial Assurance

System Integration

• V-SYSTEM Compatibility: Designed and dimensioned for native integration with V-SYSTEM hydroponic infrastructure — no adapters, reducers, or transition fittings required.
• Tubing Specification: Accepts 22mm main line tubing and 15mm branch tubing per the 22-15mm variant designation. Verify tubing outer diameter before installation.
• Circuit Position: Install at any point in the irrigation circuit where a top-feed or drain-to-waste line requires a branch run — reservoir manifolds, zone distribution headers, or individual plant feed splits.
• Reconfiguration: Push-fit collet release allows non-destructive removal and reinstallation, supporting circuit modifications between runs without replacing the fitting.
• Scaling: At $8.80 USD per fitting, the DM Push-Fit Tee is a low-cost integration point for expanding or reconfiguring V-SYSTEM circuits without committing to new manifold assemblies.

Facility Integration Data

The following ROI reference reflects per-fitting cost at scale for operators building out or expanding V-SYSTEM irrigation circuits across multiple zones or facilities.

Operator Field Notes

• Verify tubing OD before installation. The 22-15mm designation refers to the outer diameter of the tubing the fitting accepts. Inserting tubing of a different OD will not achieve a positive collet lock and will result in a leak point under operating pressure.
• Do not force the tubing past resistance. A correctly sized push-fit connection seats with firm, even pressure. If the tubing does not seat smoothly, stop and verify tubing diameter and cut quality — a ragged or angled cut prevents the sealing surface from engaging correctly.
• Cut tubing square. Use a dedicated tubing cutter rather than scissors or a utility knife. A square, clean cut is the single most important preparation step for a leak-free push-fit connection.
• Test before sealing the circuit. After installation, run the irrigation system at operating pressure and inspect each new tee junction before enclosing the circuit or covering the grow area. Early detection of a mis-seated fitting costs seconds; discovering it mid-cycle costs a feed event.
• Stock spares for mid-run access. At $8.80 USD per fitting, maintaining a small inventory of replacement tees eliminates the risk of a circuit failure causing a feed interruption while waiting for a single fitting to ship.
• Local pickup available. Operators in the Longmont area can access replacement fittings same-day through the Cannafull Spectrum Solutions pickup location — relevant when a circuit failure requires immediate resolution.

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this region cannot be fulfilled through this channel.
• Local Pickup: Pickup is available at the Longmont location. Select the pickup option at checkout or contact us to confirm availability before visiting.
• Returns: Returns are accepted subject to the conditions outlined in the Cannafull Spectrum Solutions Return Policy. Items must be in original, uninstalled condition. Contact cannafullspec.com to initiate a return.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about shipping, pickup, or returns? Contact Cannafull Spectrum Solutions at cannafullspec.com.

What's in the Box

• 1x DM Push-Fit Tee 22-15mm V-SYSTEM fitting (SKU: BD101-0054)

Note: Packaging contents are confirmed based on available manufacturer source data. No additional accessories, tubing, or installation hardware are specified as included. If your order arrives incomplete or damaged, contact Cannafull Spectrum Solutions at cannafullspec.com before installation.

Regional Compliance & Deployment Notes

• Jurisdiction: This product is sold and shipped within the contiguous 48 United States through Cannafull Spectrum Solutions. No Canadian distribution, Health Canada compliance language, or CSA certification applies to this listing.
• Intended Use: The DM Push-Fit Tee 22-15mm V-SYSTEM is an irrigation plumbing component intended for use within V-SYSTEM hydroponic infrastructure in controlled cultivation environments. It is not rated or approved for potable water, food-contact plumbing, gas lines, or any application outside its specified irrigation use case.
• Facility Compliance: Operators are responsible for ensuring that their irrigation system installation complies with applicable local, state, and facility-level regulations governing water system construction and modification in licensed cultivation facilities.
• Platform Integrity: Use of non-native fittings in a V-SYSTEM installation may void system warranties and introduce leak risk. This fitting is specified for V-SYSTEM compatibility and should be used only within that platform.

Cannafull Spectrum Solutions supplies this product as a factory-authorized dealer for use in licensed cultivation facilities across the United States. Compliance with all applicable local and state regulations governing hydroponic system installation remains the sole responsibility of the purchasing operator. Product specifications are sourced from manufacturer data; where specifications are not provided by the manufacturer, no values have been inferred or estimated. Contact cannafullspec.com for current product and warranty information.
