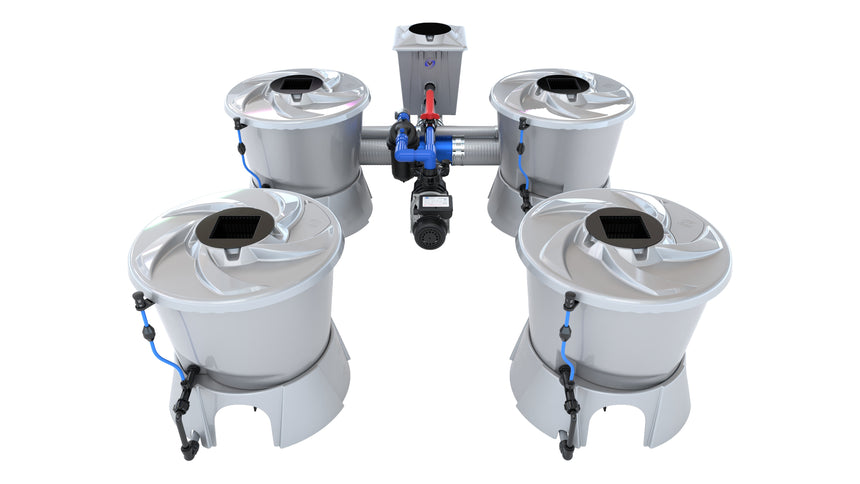

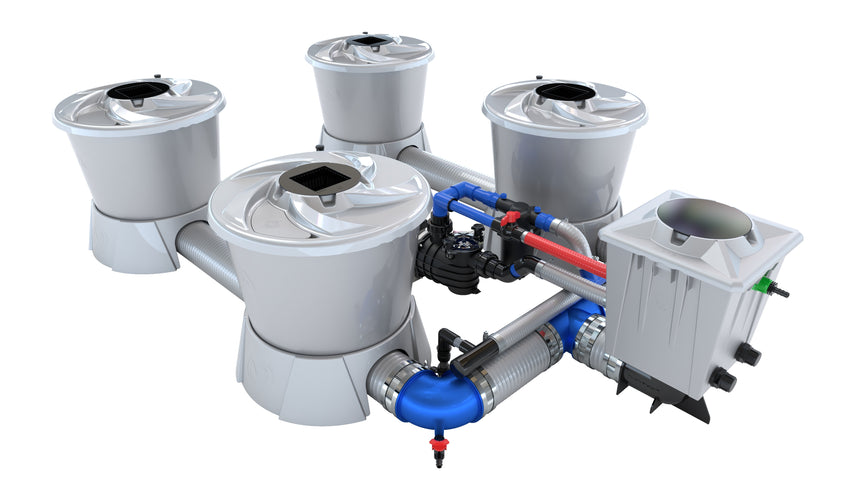

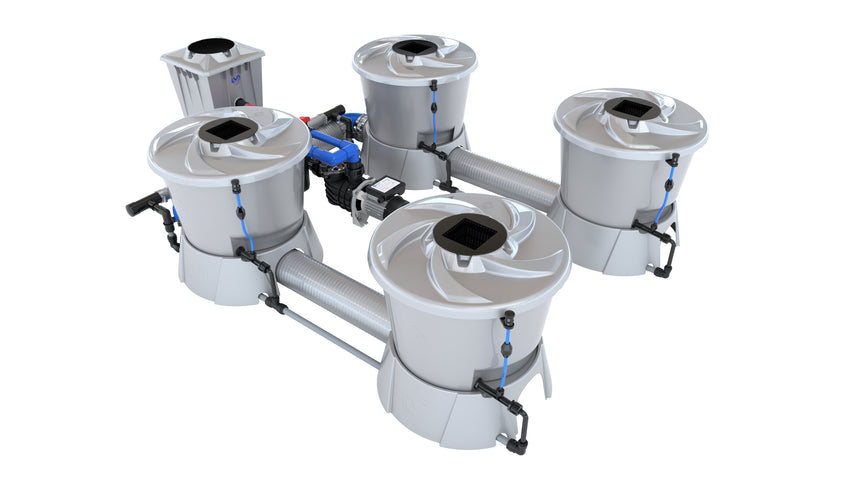

Alien Hydroponics V-SYSTEM 4 Pot Kit

Quick Spec: SKU BD100-0001 | 4-Pot DWC | 2-Row Configuration | 15 gal / 58L per vessel | JET-STREAM® Vortex™ pump | T304 Stainless clamps | 5″ spiral tubing | Push-fit feed connections

Precision Control in Any Space

Every cultivation operation that runs on disconnected equipment eventually pays for it — not in a single catastrophic event, but in the slow, compounding cost of variance. When reservoir levels drift between vessels, when oxygen delivery depends on how recently someone checked the pump, when your top-feed schedule is a manual approximation rather than an engineered constant, the plants in position one and the plants in position four are not receiving the same inputs. That gap — invisible on any single day, undeniable across a full cycle — is the real cost of equipment that was never designed to work as a unified system.

After deployment, the operational picture changes. Four vessels receive coordinated nutrient delivery from a single integrated reservoir circuit. Oxygen saturation at the root zone is not a variable — it is a designed output of the system's pump and injector architecture. Inspection covers allow visual confirmation of root health without disturbing the feed cycle. Drainage bases manage runoff without operator intervention. The system runs, the feed is consistent, and the variance that previously lived between pots is eliminated by design rather than managed by attention.

The mechanism behind that outcome is the integration of the JET-STREAM® Vortex™ pump with venturi injectors across a 2-row, 4-pot configuration — each vessel holding 15 gallons (58 liters) and connected via 5-inch spiral tubing with push-fit feed connections. T304 stainless steel clamps secure every junction point, eliminating the corrosion and joint failure that degrade lesser systems over time. Integrated filtration protects the pump and injectors from particulate contamination, and the water fill line removes the guesswork from reservoir management. In practical terms, the V-SYSTEM 4 Pot Kit delivers direct nutrient distribution and maximum oxygen saturation across four 58-liter vessels through a closed, pump-driven DWC circuit with push-fit irrigation connections and stainless-steel-secured tubing throughout.

Where This Belongs (and Doesn't)

The V-SYSTEM 4 Pot Kit is a self-contained Deep Water Culture irrigation system. Electrical infrastructure, environmental controls, and facility plumbing are operator-supplied and must comply with all applicable local, state, and federal codes. Cannafull Spectrum Solutions does not provide installation services. Consult a licensed contractor for facility integration work.

How It Works

The V-SYSTEM 4 Pot Kit operates on Deep Water Culture principles, meaning plant root systems are suspended directly in oxygenated, nutrient-rich solution rather than in any growing medium. The JET-STREAM® Vortex™ pump drives circulation through the system, maintaining active water movement that prevents nutrient stratification and supports consistent uptake across all four vessels. Venturi injectors are integrated into the circuit to introduce dissolved oxygen directly into the reservoir solution — a passive, mechanically reliable method that does not depend on air stones or separate aeration hardware that can fail independently.

The 2-row configuration positions two pots per row, with each vessel holding 15 gallons (58 liters) of nutrient solution. Feed connections use a push-fit architecture, which eliminates threaded fittings as a leak point and allows rapid disconnection for cleaning or component inspection without tools. The 5-inch spiral tubing maintains flow geometry through bends and routing changes without kinking or collapsing under pump pressure. T304 stainless steel clamps secure all tubing junctions — a material specification that resists the corrosive chemistry of nutrient solutions over extended operational periods where standard hardware would degrade and fail.

Integrated filtration upstream of the pump and injectors intercepts particulate matter before it can restrict flow or damage precision components. Inspection covers on each vessel allow visual root-zone assessment without breaking the feed circuit or disturbing the reservoir environment. Drainage bases manage solution runoff at the vessel level, containing overflow and directing it away from the root zone without operator intervention. The water fill line provides a reference point for consistent reservoir management, removing volume estimation from the maintenance routine. In practical terms, the V-SYSTEM 4 Pot Kit delivers a fully integrated DWC irrigation circuit — pump-driven oxygenation, push-fit feed connections, stainless-secured tubing, and passive filtration — across four 15-gallon (58L) vessels in a 2-row layout.

System Integration

• Nutrient Solution Compatibility: The DWC reservoir circuit is compatible with standard hydroponic nutrient formulations; confirm pH and EC targets with your nutrient supplier for DWC-specific protocols.
• Electrical Requirements: The JET-STREAM® Vortex™ pump requires a continuous electrical supply — confirm pump draw against your facility's circuit capacity before installation. Electrical specifications are available from the manufacturer.
• Environmental Controls: Reservoir solution temperature directly affects dissolved oxygen levels in DWC systems; facility HVAC must maintain ambient conditions that keep solution temperature within the manufacturer's recommended operating range.
• Expansion Compatibility: The 2-row, 4-pot configuration is a self-contained unit; operators planning to scale beyond four vessels should consult Cannafull Spectrum Solutions regarding compatible Alien V-SYSTEM expansion options.
• Drainage Infrastructure: Integrated drainage bases manage vessel-level runoff; facility floor drainage must be capable of handling total system volume in the event of a full reservoir change or emergency drain.

Operator Field Notes

• Reservoir Temperature Management: DWC systems are sensitive to solution temperature — dissolved oxygen levels drop as water temperature rises. Monitor reservoir temperature continuously and address ambient heat sources before they become a root-zone problem.
• Push-Fit Connection Inspection: At each reservoir change, visually inspect all push-fit connections for seating integrity. A partially seated fitting will not leak immediately but will introduce air into the feed line under pump pressure over time.
• Venturi Injector Maintenance: Venturi injectors can accumulate mineral deposits from nutrient solution over extended run cycles. Include injector inspection and flush in your scheduled maintenance protocol — do not wait for visible flow restriction before servicing.
• Integrated Filtration Service Interval: The filtration component protects the JET-STREAM® Vortex™ pump from particulate damage. Establish a cleaning interval based on your nutrient solution's particulate load — higher-concentration or organic-supplement programs will require more frequent service.
• Stainless Clamp Torque: T304 stainless clamps maintain joint integrity across the tubing circuit. Check clamp tension after the first 72 hours of operation as tubing settles under pump pressure, and re-torque to manufacturer specification if any movement is detected.
• Inspection Cover Protocol: Use inspection covers for scheduled root-zone assessment rather than ad hoc checks. Frequent cover removal introduces light and ambient air to the reservoir environment — establish a fixed inspection cadence and document findings each cycle.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, or international destinations cannot be processed through this channel.
• Dispatch Timeline: Orders are dispatched within 3 business days following order confirmation and payment clearance. Delivery windows are carrier-dependent and will be communicated at time of shipment.
• Returns: Returns are accepted subject to the conditions outlined in the Cannafull Spectrum Solutions Return Policy. Items must be in original, uninstalled condition with all factory components present. Contact our team before initiating any return shipment.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For order status, shipping inquiries, or pre-purchase technical questions, contact Cannafull Spectrum Solutions directly at cannafullspec.com or via the contact methods listed on our website.

What's in the Box

The following components are confirmed as factory-included with the V-SYSTEM 4 Pot Kit (SKU BD100-0001) based on manufacturer source data:

• 4 x DWC vessels — 15 gallons (58 liters) each, configured in 2 rows of 2
• JET-STREAM® Vortex™ pump
• 5-inch spiral tubing
• T304 stainless steel clamps
• Push-fit feed connections
• Venturi injectors
• Drainage bases
• Inspection covers
• Integrated filtration component
• Water fill line

Note: Quantitative specifications (dimensions, individual component weights, tubing lengths) are not provided in available manufacturer source data. Nutrient solution, growing media, environmental controls, and electrical infrastructure are not included and are operator-supplied. Verify complete box contents against the packing list included with your shipment and report any discrepancies to Cannafull Spectrum Solutions within 48 hours of receipt.

Regional Compliance & Deployment Notes

• Licensing Jurisdiction: The V-SYSTEM 4 Pot Kit is a hydroponic irrigation system. Its purchase, possession, and use are subject to the cultivation licensing requirements of the state and municipality in which it is deployed. Operators are solely responsible for confirming that their facility holds all required licenses prior to system deployment.
• Electrical Compliance: Pump and system electrical connections must be installed in compliance with the National Electrical Code (NEC) and any applicable state or local electrical codes. Cannafull Spectrum Solutions does not provide electrical installation services.
• Water and Drainage Regulations: Nutrient solution discharge is subject to local wastewater and environmental regulations. Operators must confirm that their drainage and disposal practices comply with applicable state and municipal requirements before commissioning the system.
• Facility Inspection Readiness: All system components, reservoir configurations, and drainage infrastructure should be documented as part of the facility's standard operating procedures to support regulatory inspections where required by state licensing authorities.
• Interstate Commerce: This product is sold and shipped within the contiguous 48 United States only. State-specific restrictions on hydroponic equipment or cultivation infrastructure, if any, are the operator's responsibility to identify and comply with prior to purchase.

Cannafull Spectrum Solutions provides this compliance information as a general reference only. It does not constitute legal advice. Operators should consult qualified legal counsel and their state licensing authority to confirm all applicable requirements for their specific facility and jurisdiction. Regulatory frameworks governing licensed cultivation vary by state and are subject to change.
