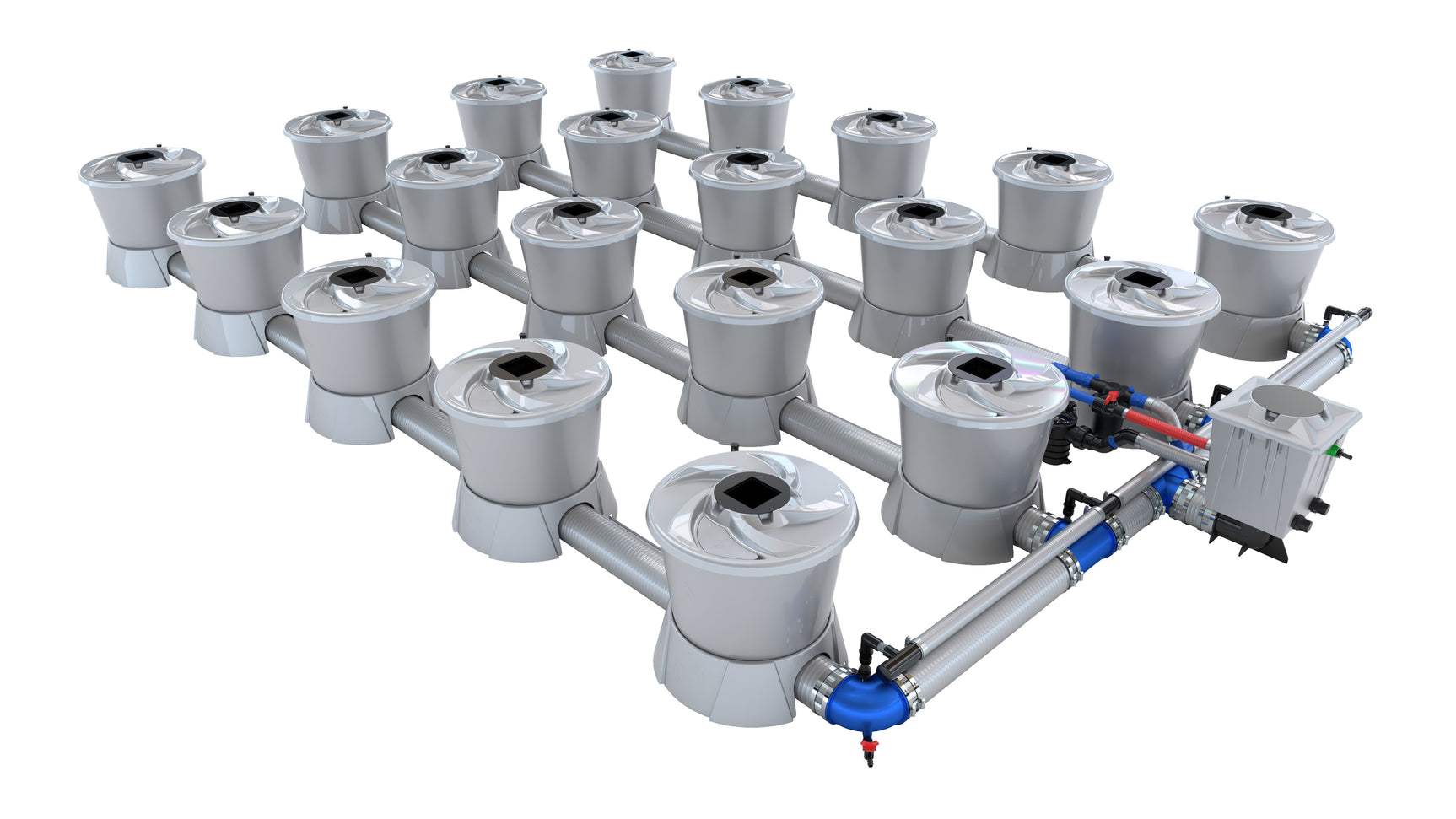

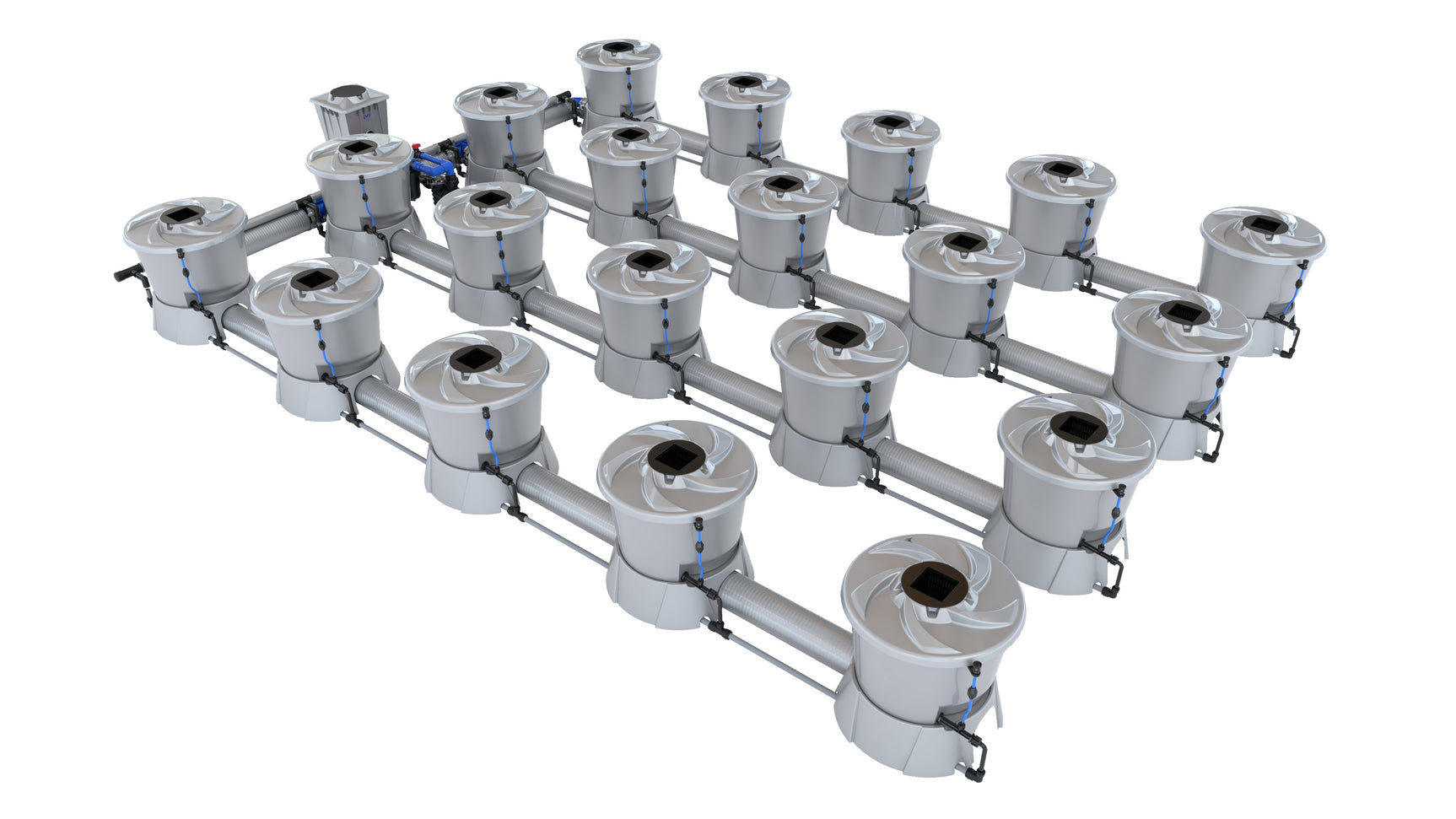

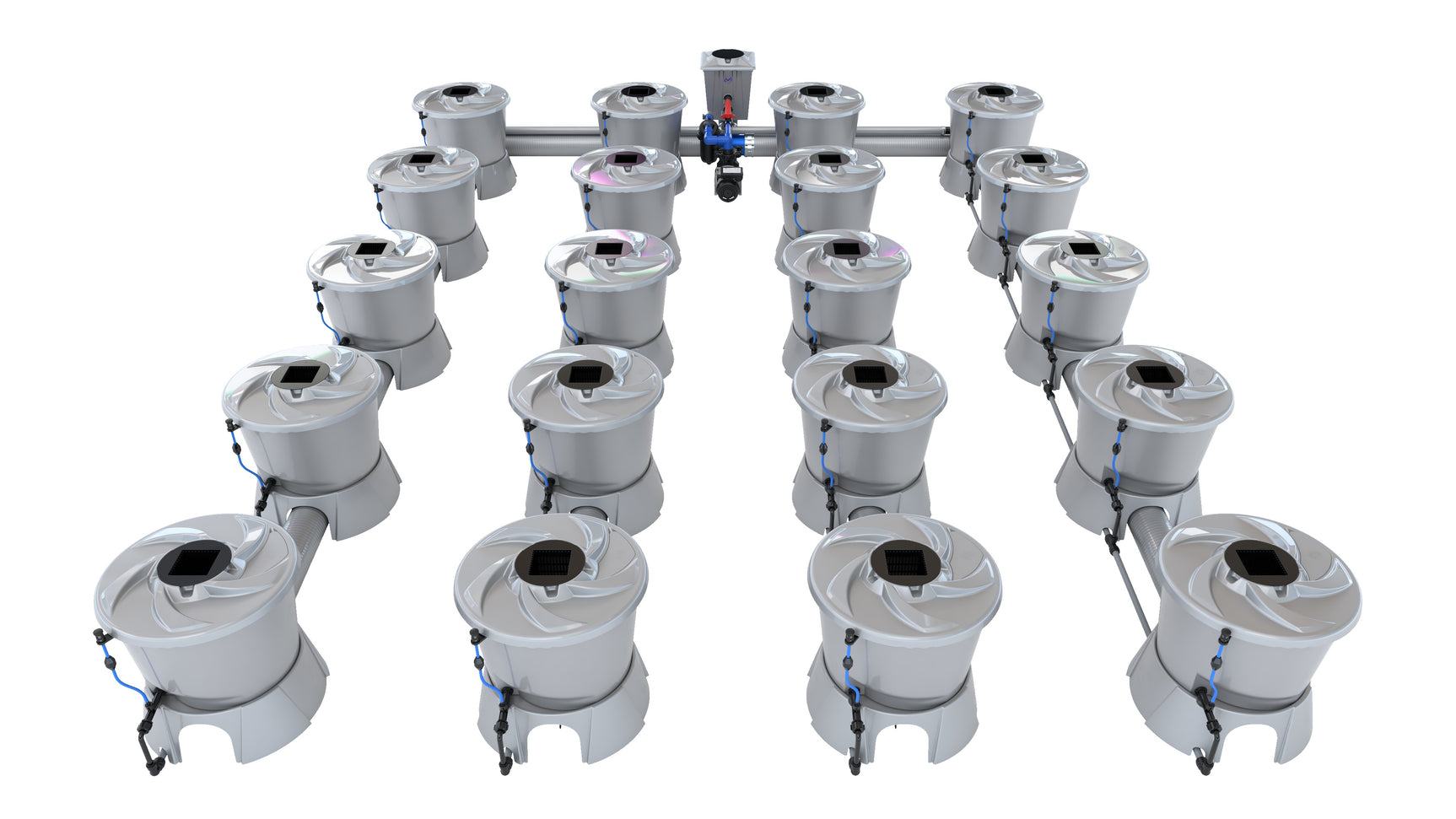

Alien Hydroponics V-SYSTEM 20 Pot Kit

Quick Spec: SKU BD100-0420  |  20 Pots / 4 Rows  |  15 gal (58L) per pot  |  319.9 gal (1,211L) total fluid volume  |  JET-STREAM® Vortex™ pump  |  4 layout configurations  |  $7,110.70

Precision Control in Any Space

Every production run that ends short of its potential has a root cause — and it is rarely the genetics. It is the system underneath the canopy: reservoirs that drift out of balance between checks, top-feed lines that deliver inconsistently from one site to the next, manual intervention windows that open and close on a technician's schedule rather than the crop's demand. That gap between what the plant needs and what the equipment actually delivers is where yield variance is born. It compounds silently across a run, and by harvest it has already been paid for in weight and uniformity that never materialized.

After deployment, the production room operates on a different logic. Every one of the 20 plant sites draws from the same recirculating nutrient solution, maintained at consistent concentration and dissolved oxygen levels without manual intervention between scheduled reservoir changes. The float valve holds the reservoir at target volume automatically, eliminating the drift that accumulates when top-off is a manual task. Operators move through the room making decisions — not corrections. The system runs the irrigation; the team runs the operation.

That outcome is achievable because of how the V-System is engineered at the component level. The RDWC architecture circulates solution continuously through 5" spiral tubing connected by 5" Dual-Flow™ fittings, ensuring that nutrient concentration and temperature remain uniform across all 20 sites rather than stratifying in isolated containers. Each V-POT is equipped with Venturi injectors that drive dissolved oxygen into the root zone without requiring a separate air pump — oxygen saturation is a function of flow mechanics, not an add-on component. The JET-STREAM® Vortex™ pump drives the entire circuit, and push-fit feed connections with integrated filtration keep maintenance intervals predictable. T304 stainless steel clamps and total-drainage bases are specified throughout, supporting sanitation protocols between production cycles. In practical terms, the Alien V-System 20 Pot Kit delivers continuous recirculating nutrient and oxygen delivery across 20 plant sites within a 4-row footprint spanning up to 141⅛" × 87¾" depending on configuration, from a single 319.9-gallon (1,211L) fluid circuit.

Where This Belongs (and Doesn't)

Facility integration requires adequate floor drainage, a dedicated water supply line compatible with the float valve top-off assembly, and sufficient room clearance for the selected layout configuration. Electrical and plumbing connections must be performed by qualified personnel in accordance with applicable local codes. Cannafull Spectrum Solutions does not provide installation services.

How It Works

The V-System 20 Pot Kit operates as a true Recirculating Deep Water Culture (RDWC) circuit. Solution is held in a central reservoir and pumped continuously through the network by the JET-STREAM® Vortex™ pump, traveling through 5" spiral tubing and 5" Dual-Flow™ fittings to each of the 20 individual V-POTs arranged across 4 rows. Because the solution recirculates rather than draining to waste, nutrient concentration, pH, and temperature are governed at a single point — the reservoir — rather than managed independently at each site. This is the architectural difference between a recirculating system and a drain-to-waste setup: variance is structurally reduced, not manually corrected.

At the plant site level, each V-POT integrates Venturi injectors that use the kinetic energy of the flowing solution to draw and dissolve oxygen directly into the root zone. This eliminates the need for a separate air pump while maintaining maximum oxygen saturation — a critical parameter for root health and nutrient uptake rates in a deep water culture environment. Inspection covers on each V-POT allow root zone assessment without disrupting the circuit. Total-drainage bases support complete system flush and sanitation between production cycles, a non-negotiable requirement in any multi-run production environment.

Reservoir volume is maintained automatically by a float valve top-off assembly connected to the facility water supply. As solution is consumed by transpiration and plant uptake, the float valve opens to restore target volume without operator intervention. Push-fit feed connections throughout the system allow components to be assembled, inspected, and serviced without specialized tooling. Integrated filtration protects the pump and fittings from particulate accumulation. T304 stainless steel clamps are specified at all connection points, providing corrosion resistance appropriate for continuous wet-environment operation. In practical terms, the Alien V-System 20 Pot Kit circulates nutrient solution through a 319.9-gallon (1,211L) closed-loop network across 20 sites in a 4-row configuration, with automated top-off and oxygen delivery requiring no air pump or manual reservoir correction between scheduled maintenance intervals.

System Integration

• Water Supply: A continuous facility water supply line is required for float valve top-off operation. The system is not designed for manual-fill-only reservoir management at production scale.
• Drainage: Total-drainage bases on each V-POT require adequate floor drainage or collection infrastructure to support full system flush between production cycles.
• Electrical: The JET-STREAM® Vortex™ pump requires a dedicated electrical circuit. Confirm pump electrical specifications with Cannafull Spectrum Solutions prior to facility wiring. All electrical work must be performed by a licensed electrician.
• Nutrient Dosing: The recirculating architecture centralizes nutrient management at the reservoir. Operators should integrate EC and pH monitoring at the reservoir level; inline or per-site monitoring is not a substitute for reservoir-level control in an RDWC system.
• Room Clearance: Confirm available floor run length against the selected configuration's length dimension (122" to 141⅛" depending on variant) plus service access clearance on all sides before finalizing layout selection.

Operator Field Notes

• Configuration Selection Is a Pre-Order Decision: The four layout variants (MIH, MOL, MOR, MSP) differ only in assembled length (122" to 141⅛"). Measure your room and confirm your header and pump placement preference before placing the order — reconfiguring after delivery is not a simple field adjustment.
• Reservoir Management Centralizes at One Point: In an RDWC system, the entire 319.9-gallon (1,211L) circuit shares a single nutrient solution. A dosing error at the reservoir affects all 20 sites simultaneously. Calibrated EC and pH instruments at the reservoir are not optional equipment.
• Float Valve Top-Off Requires a Reliable Supply Line: The automatic top-off system maintains reservoir volume passively, but it depends on consistent water pressure and supply. Verify your facility's water supply pressure is within the float valve's operating range before commissioning.
• Sanitation Protocol Is Built Into the Hardware: Total-drainage bases allow complete system drain-down between cycles. Build a documented flush and sanitation procedure around this capability — it is the primary defense against pathogen carryover between production runs.
• No Air Pump Does Not Mean No Oxygen Management: Venturi injectors deliver dissolved oxygen through flow mechanics. Oxygen saturation is therefore a function of pump performance and flow rate. Monitor dissolved oxygen at the reservoir and at representative plant sites to confirm the circuit is performing as specified.
• Push-Fit Connections Simplify Maintenance — Not Elimination: Push-fit feed connections reduce tooling requirements for disassembly, but integrated filtration elements still require scheduled inspection and cleaning. Build filter service intervals into your standard operating procedures from day one.

Operator FAQ

Shipping & Logistics

• Shipping Coverage: Cannafull Spectrum Solutions ships within the contiguous 48 United States. Shipments to Alaska, Hawaii, U.S. territories, and international destinations are not available through this listing.
• Free Shipping: Source data indicates free shipping applies to this product. Confirm eligibility and any freight carrier requirements at checkout or by contacting Cannafull Spectrum Solutions prior to ordering. Freight delivery for large systems may require a loading dock or lift gate at the destination facility.
• Returns: Contact Cannafull Spectrum Solutions before initiating any return. Systems must be uninstalled and returned in original packaging. Defective units are handled under manufacturer warranty procedures.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about shipping timelines, freight requirements, or return eligibility? Contact Cannafull Spectrum Solutions directly before placing your order.

What's in the Box

The following components are confirmed in source data for SKU BD100-0420 — Alien V-System 20 Pot 4 Row Kit:

• 20 x V-POT units (15 gallon / 58L capacity each) with water fill lines, total-drainage bases, Venturi injectors, and inspection covers
• 5" spiral tubing — quantity as required for selected configuration layout
• 5" Dual-Flow™ fittings — quantity as required for selected configuration layout
• JET-STREAM® Vortex™ pump (1 unit)
• Float valve assembly for automatic reservoir top-off
• T304 stainless steel clamps — quantity as required for all connection points
• Integrated filtration assembly
• Push-fit feed connections — quantity as required for all feed points

Note: Exact component quantities per configuration are not itemized in available source data. Height, weight, and detailed packing list are not specified. Nutrient solutions, growing media, net pots, pH/EC instruments, and electrical supply components are not included. Verify complete box contents with Cannafull Spectrum Solutions or the manufacturer prior to installation planning.

Regional Compliance & Deployment Notes

• The Alien V-System 20 Pot Kit is available for sale and shipment within the contiguous 48 United States through Cannafull Spectrum Solutions.
• Plumbing connections to facility water supply lines must comply with applicable local and state plumbing codes. Consult a licensed plumber for supply line integration and float valve installation.
• Electrical connections for the JET-STREAM® Vortex™ pump must comply with applicable local and state electrical codes. All electrical work must be performed by a licensed electrician.
• Operators in licensed cannabis production facilities should verify that RDWC irrigation system installations comply with their state's facility licensing requirements and any applicable cultivation facility standards before deployment.
• Floor drainage infrastructure must comply with applicable local codes for commercial wet-environment installations. Total-drainage bases generate full system fluid volume during flush cycles — confirm drainage capacity before commissioning.
• No Canadian compliance certifications (CSA, Health Canada) are represented or implied. This product is sold for deployment in licensed U.S. facilities only through this listing.

Cannafull Spectrum Solutions provides product information based on manufacturer-supplied data. Compliance with federal, state, and local regulations governing facility construction, plumbing, electrical installation, and cannabis cultivation is the sole responsibility of the purchasing operator. Cannafull Spectrum Solutions does not provide legal, engineering, or compliance consulting services. Specifications are subject to change by the manufacturer without notice; confirm current specifications prior to purchase.
