AC Infinity UIS 分离器集线器 4 端口 | 用于共享编程的适配器加密狗

Quick Spec: SKU: AC-ADS7  |  UPC: 819137024137  |  Male End: UIS  |  Female Ends: UIS x4  |  Total Length: 10.0 in. (25.4 cm)  |  Total Width: 2.28 in. (5.8 cm)  |  MAP: $24.99

Precision Control in Any Space

Every port on a controller represents a decision point — and when the number of devices in your environment outpaces the number of available ports, the entire control architecture begins to fracture. One fan runs on a schedule. Another runs manually. A third gets skipped entirely because there simply is no port left to assign it. The result is not a minor inconvenience; it is a silent operational failure. Environmental consistency collapses zone by zone, and the guesswork that fills the gap between what the controller can reach and what the room actually demands becomes the single largest source of variance in the facility. Equipment that should be working in concert ends up working against you — each device operating on its own logic, none of them synchronized, all of them undermining the atmospheric precision the controller was purchased to deliver.

After deployment, the picture changes fundamentally. Every EC motor fan, every environmental humidifier, every LED fixture assigned to a shared program responds to the same scheduling logic at the same moment. The controller's programming propagates outward through the hub to all connected devices simultaneously — no lag, no manual override, no device left outside the automation envelope. Atmospheric control becomes a facility-wide condition rather than a per-device negotiation. Operators stop managing individual pieces of equipment and start managing outcomes, because the infrastructure beneath them is finally synchronized to deliver them.

The mechanism is straightforward and deliberately engineered for reliability at scale. The AC-ADS7 accepts a single UIS male input from a compatible controller — CONTROLLER 69, CONTROLLER 69 PRO, CONTROLLER 69 PRO+, or CONTROLLER AI+ — and distributes that programming signal across four UIS female output ports simultaneously. The hub's premium cable construction ensures a firm, low-resistance connection at every port, eliminating signal degradation across the array. For facilities requiring broader coverage, the AC-ADS7 supports multi-tier chaining: UIS devices and additional hubs can be linked together in up to three tiers within a multi-level array, extending a single controller port's reach across an entire room's worth of equipment. Compatible device types include EC motor fans, environmental humidifiers, and LED lighting fixtures — the three primary environmental control categories in a managed cultivation environment. In practical terms, the AC-ADS7 distributes one set of smart controller programming from a single UIS port to up to four same-type devices simultaneously, within a 10.0 in. (25.4 cm) by 2.28 in. (5.8 cm) form factor that integrates directly into any existing UIS ecosystem deployment.

Where This Belongs (and Doesn't)

The AC-ADS7 is a signal-distribution accessory operating within the AC Infinity UIS communication protocol. It does not carry mains electrical current and does not require licensed electrical installation. All device power connections remain independent of the hub. Consult your facility's equipment layout and controller documentation before configuring multi-tier arrays.

How It Works

The AC-ADS7 operates as a passive signal distribution node within the UIS (Universal Intelligence System) ecosystem. A single UIS male connector on one end interfaces directly with any open UIS port on a compatible controller — CONTROLLER 69, CONTROLLER 69 PRO, CONTROLLER 69 PRO+, or CONTROLLER AI+. From that single input, the hub's internal architecture routes the controller's programming signal to four independent UIS female output ports, each capable of driving a connected same-type device. The hub body measures 10.0 in. (25.4 cm) in total length and 2.28 in. (5.8 cm) in total width, providing a compact, rack-friendly profile that does not impose cable management complexity on the installation.

Premium cable construction throughout the AC-ADS7 ensures that the UIS signal maintains integrity across all four output ports without degradation or connection instability. Compatible device categories span the three primary environmental control domains: EC motor fans, environmental humidifiers, and LED lighting fixtures. For facilities requiring expanded coverage beyond four devices, the hub supports multi-tier chaining — UIS devices and additional AC-ADS7 hubs can be linked together in up to three tiers within a multi-level array, multiplying the reach of a single controller port across an entire environmental zone. The UPC for procurement and inventory tracking is 819137024137. In practical terms, the AC-ADS7 takes one UIS controller port and extends its programming authority to up to four same-type devices simultaneously, with the structural capacity to scale that authority across a three-tier array when additional hubs are introduced.

Commercial Assurance

System Integration

• UIS Ecosystem Native: Designed exclusively for the AC Infinity UIS protocol — integrates without adapters or firmware configuration into any UIS-compatible controller and device combination.
• Controller Compatibility: Verified for use with CONTROLLER 69, CONTROLLER 69 PRO, CONTROLLER 69 PRO+, and CONTROLLER AI+ — covers the full current AC Infinity Cortex controller lineup.
• Device Type Coverage: Supports EC motor fans, environmental humidifiers, and LED lighting fixtures — the three primary automated deployment categories in a managed atmospheric control environment.

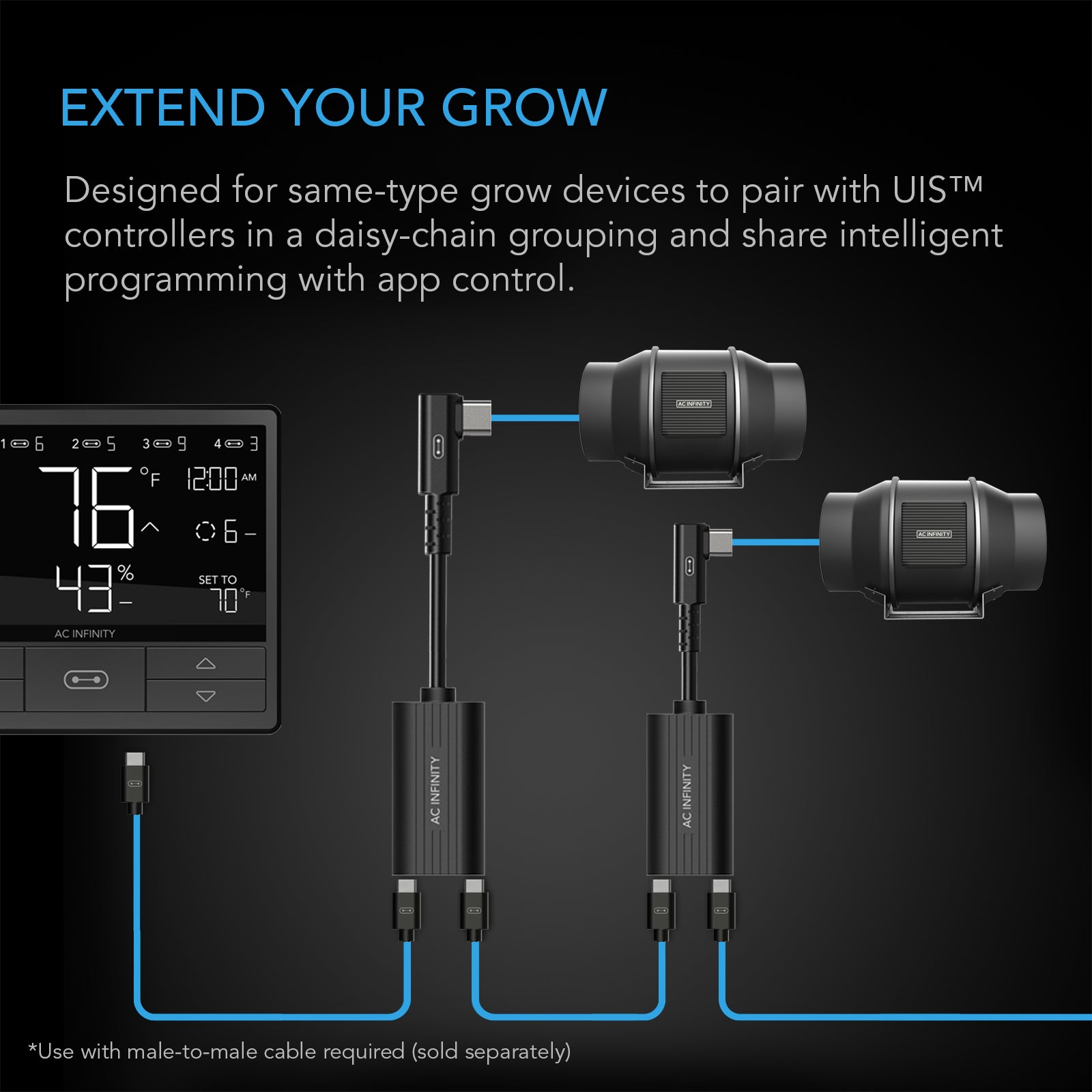

• Array Scalability: Supports up to three tiers of hub chaining, enabling a single controller port to govern a multi-level device array without additional controller hardware investment.
• CONTROLLER AI+ Note: When operating under CONTROLLER AI+, device-exclusive functions such as clip fan oscillation and unique device identification are not available through the hub — plan array architecture accordingly.

Facility Integration Data

The AC-ADS7 is a low-cost force multiplier for controller port capacity — the table below illustrates the operational leverage it delivers across fleet deployments of 10, 20, and 50 units, measured against the controller port savings and device coverage expansion each deployment tier unlocks.

Operator Field Notes

• Same-Type Device Rule: All four devices connected to a single hub must be the same device type — do not mix EC fans, humidifiers, and LED fixtures on a single hub output. Mixed-type arrays will not execute shared programming correctly.
• CONTROLLER AI+ Array Planning: When integrating the AC-ADS7 into a CONTROLLER AI+ setup, plan for the loss of device-exclusive functions — clip fan oscillation and unique device identification are not available through the hub. Assign devices requiring those functions to direct controller ports.
• Three-Tier Ceiling: Multi-level arrays are supported up to three tiers. Do not attempt to chain beyond three tiers — signal integrity and programming reliability are not guaranteed past the manufacturer-specified depth.
• RJ11/12 Incompatibility: The AC-ADS7 is not compatible with RJ11/12 Type-A or Type-B adapters. Verify that all devices in the intended array use UIS connectors before ordering.
• Port Conservation Strategy: In facilities where controller port availability is the primary constraint, deploy the AC-ADS7 at tier one to maximize device coverage per port before introducing additional controllers — this is the most cost-efficient path to full atmospheric control coverage.
• Procurement Note: UPC 819137024137 is the correct identifier for purchase orders and inventory management systems. SKU AC-ADS7 is the Cannafull Spectrum Solutions catalog reference.

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this jurisdiction cannot be fulfilled through this listing.
• Fulfillment: Orders are processed and shipped from authorized distribution inventory. Estimated lead times are provided at checkout and are subject to carrier conditions. Expedited shipping options may be available — contact us prior to ordering for time-sensitive deployments.
• Returns: Returns are accepted for defective units per AC Infinity's warranty terms and Cannafull Spectrum Solutions' return policy. Non-defective returns are subject to the conditions outlined in our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For bulk order inquiries, fleet procurement pricing, or pre-shipment configuration questions, contact Cannafull Spectrum Solutions directly at cannafullspec.com before placing your order.

What's in the Box

• 1x AC Infinity UIS Splitter Hub 4-Port (AC-ADS7) — UIS male to UIS x4 female, 10.0 in. (25.4 cm) total length, 2.28 in. (5.8 cm) total width

Box contents confirmed from manufacturer source data. Additional accessories, mounting hardware, or documentation are not specified in available source data and may or may not be included. Contact Cannafull Spectrum Solutions or AC Infinity to confirm complete box contents prior to ordering if your deployment requires specific included items.

Regional Compliance & Deployment Notes

• Jurisdiction: The AC Infinity UIS Splitter Hub (AC-ADS7) is sold and shipped by Cannafull Spectrum Solutions exclusively within the contiguous 48 United States. No shipments to U.S. territories, Alaska, Hawaii, or international destinations are available through this listing.
• Electrical Classification: The AC-ADS7 is a signal-distribution accessory operating within the UIS communication protocol. It does not carry mains electrical current. No licensed electrical installation is required for the hub itself. All connected device power circuits remain independent and subject to applicable local and state electrical codes.
• Facility Compliance: Operators in licensed cultivation facilities are responsible for ensuring that all connected devices and controller configurations comply with applicable state cannabis regulations, facility operating permits, and any inspection requirements governing automated environmental control systems.
• Procurement Documentation: UPC 819137024137 and SKU AC-ADS7 are the correct identifiers for purchase orders, facility asset logs, and compliance documentation. Manufacturer: AC Infinity Inc.
• Compatibility Verification: Confirm UIS connector compatibility across all devices in the intended array before deployment. The AC-ADS7 is not compatible with RJ11/12 Type-A or Type-B adapters. Incompatible connections are a user-configuration issue and are not covered under warranty.

Product specifications, compatibility data, and warranty terms are sourced from AC Infinity manufacturer documentation current at time of listing. Cannafull Spectrum Solutions makes no independent warranty claims beyond those established by AC Infinity Inc. Specifications are subject to change without notice. Verify current specifications with AC Infinity or Cannafull Spectrum Solutions prior to large-scale procurement. This listing is valid for licensed commercial facilities operating within the contiguous United States only.
