AC Infinity SUNCORE A3X2 | 双苗加热垫，带加热控制器 | IP-67 防水 | 10 英寸 x 20.75 英寸

Quick Spec: SKU: AC-SMA3X2  |  20W per mat  |  10 x 20.75 in. (25.4 x 52.7 cm) per zone  |  IP-67 Waterproof  |  100–125V AC  |  UL (E518635) / MET (E115128) Certified

Precision Control in Any Space.

Guesswork is the silent yield killer in propagation. When substrate temperature swings without correction — too cold during a cool night cycle, too hot under a dense tray stack — germination rates become unpredictable, rooting timelines extend, and the entire downstream production schedule absorbs the variance. Wire-coil mats that cycle on and off create thermal oscillation rather than stable warmth. Mats without sealed construction absorb irrigation runoff and become electrical liabilities. The result is a propagation stage that demands constant operator attention and still delivers inconsistent outputs, batch after batch.

After deploying the SUNCORE A3X2, the propagation station operates on a different logic entirely. Two independent 10" x 20.75" heat zones maintain steady substrate warmth without operator intervention between checks. The dial controller holds the selected threshold — low, medium, or high — without cycling the mat on and off, which means the thermal environment under each tray remains stable across the full germination window. Operators stop chasing temperature and start managing throughput. The propagation bench becomes a predictable input to the production schedule, not a variable that requires daily correction.

The mechanism behind that stability is far-infrared film heating technology, which distributes warmth evenly across the mat surface rather than concentrating heat along wire coil paths. Each mat operates at 20W on 100–125V AC, delivering substrate temperatures in the 80–87°F (27–31°C) range — up to 20°F above ambient — through a quad-layer PVC construction sealed to IP-67 standards along all seams and at the power cord connection point. The adjustable dial controller provides four discrete output states (off, low, medium, high), enabling operators to set the thermal threshold once and maintain it without manual cycling. UL certification (E518635) and MET certification (E115128) confirm the electrical safety architecture meets recognized standards for continuous-duty propagation environments. In practical terms, the SUNCORE A3X2 delivers stable far-infrared substrate heat across two 10" x 20.75" zones at 20W per mat with IP-67 waterproof protection and dual-agency electrical certification.

Where This Belongs (and Doesn't)

The SUNCORE A3X2 is a low-voltage propagation heating system rated for 100–125V AC wall outlet connection. It does not require dedicated circuit installation. Do not use in applications requiring substrate temperatures outside the 80–87°F operating range or in environments where the mat surface will be submerged beyond IP-67 rated conditions.

How It Works

The SUNCORE A3X2 uses far-infrared film as its heating element — a fundamentally different architecture from wire-coil mats. Far-infrared film distributes thermal output across the entire mat surface simultaneously, eliminating the hot-spot and cold-spot pattern that wire-coil designs produce along their heating paths. The result is even warmth across the full 10" x 20.75" (25.4 x 52.7 cm) zone, which means every cell in a propagation tray receives equivalent substrate temperature rather than a gradient determined by proximity to a coil.

Each mat draws 20W at 100–125V AC and raises substrate temperature up to 20°F above ambient, targeting the 80–87°F (27–31°C) operating range that supports germination and early root development. The 60-inch power cord connects to a standard wall outlet with no additional wiring required. The dial controller attached to each mat provides four discrete output states — off, low, medium, and high — and maintains the selected threshold continuously without cycling the heating element on and off. This continuous-output control architecture is what separates the A3X2 from basic on/off mats: substrate temperature remains stable across the full propagation window rather than oscillating with each cycle.

The physical construction is built for wet propagation environments. Quad-layer PVC forms the outer shell — flexible enough to roll for storage, durable enough to resist the mechanical wear of daily tray placement and removal. All seams are sealed to IP-67 standards, and the power cord connection point receives a dedicated seal to prevent electrical damage from irrigation runoff or condensation. The mat surface wipes clean without absorbing moisture. UL certification (E518635) and MET certification (E115128) validate the electrical safety design for continuous-duty use. In practical terms, the SUNCORE A3X2 delivers continuous far-infrared substrate heat across two independent 10" x 20.75" zones at 20W per mat, with IP-67 sealed construction and dual-agency certification confirming safe operation in wet propagation environments.

System Integration

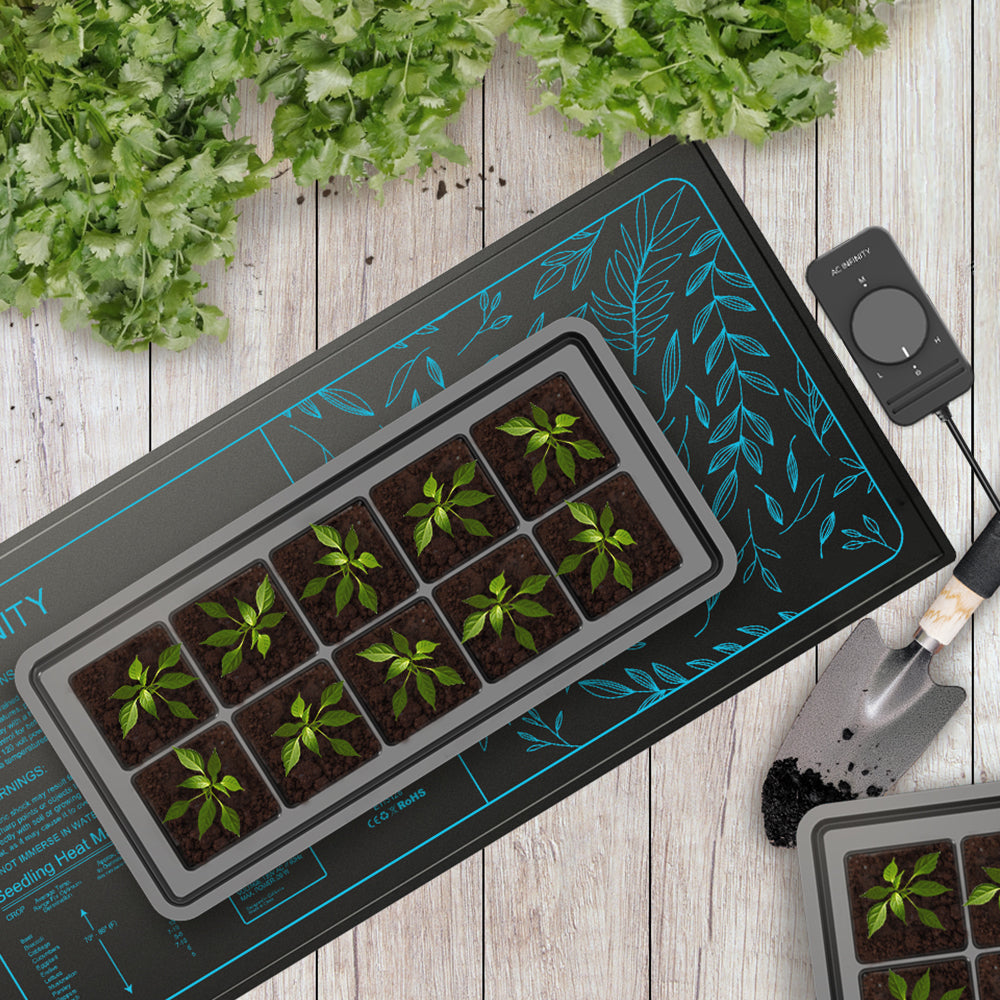

• Propagation Tray Compatibility: Designed for standard 10" x 20" propagation flat trays; each mat covers one tray zone independently, allowing two simultaneous propagation runs at different thermal settings.
• Controller Independence: Each mat ships with its own dial controller, enabling operators to run two zones at different output levels (e.g., one at medium for germination, one at low for established cuttings) from a single dual-mat deployment.
• Power Infrastructure: Operates on standard 100–125V AC wall outlet; no dedicated circuit, no hardwiring, no electrician required for installation.
• Environmental Compatibility: IP-67 sealed construction integrates cleanly into wet-bench propagation environments where irrigation runoff and condensation are routine operational conditions.
• Storage and Redeployment: Quad-layer PVC construction rolls without cracking; water-resistant nylon storage covers with drawstring closure allow compact storage between propagation cycles or facility relocation.

Facility Integration Data

The table below models electrical load and coverage scaling for multi-unit SUNCORE A3X2 deployments across propagation bench configurations at 20W per mat (two mats per unit).

Operator Field Notes

• Unroll without overlap: Mat surface must lie flat and unobstructed beneath the propagation tray. Overlapping sections create uneven thermal distribution and may exceed safe operating temperatures at the overlap point.
• Dial calibration by ambient: In cooler basement environments (below 65°F ambient), the medium or high setting may be required to reach the 80–87°F substrate target. In warmer rooms, the low setting may be sufficient — verify with a substrate thermometer before committing to a full germination run.
• IP-67 does not mean submersible in operation: The IP-67 rating protects against incidental water exposure and irrigation runoff. Do not submerge the mat while energized or use it in standing water applications.
• Controller screw sets included: Four controller screw sets are included in the kit. These allow operators to mount the dial controller to a bench rail or rack upright for clean cable management in multi-mat propagation station builds.
• Storage protocol: Roll each mat loosely and store in the included water-resistant nylon cover with drawstring closure. Avoid tight rolling or folding, which can stress the far-infrared film layer over repeated cycles.
• Dual-zone independence: The two mats in the A3X2 kit operate independently. Each has its own controller, allowing different thermal settings on adjacent trays — useful when running germination and early rooting stages simultaneously on the same bench.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be fulfilled.
• Freight Class: The SUNCORE A3X2 ships as a standard parcel. No liftgate, pallet, or freight carrier coordination is required for single or small-quantity orders. Large fleet orders may ship on pallet at carrier discretion.
• Returns: Returns are accepted in accordance with the Cannafull Spectrum Solutions Return Policy. Items must be in original, uninstalled condition with all included accessories. Defective units are handled separately under manufacturer warranty procedures.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions before ordering? Contact Cannafull Spectrum Solutions directly at cannafullspec.com for pre-purchase technical support and fleet pricing inquiries.

What's in the Box

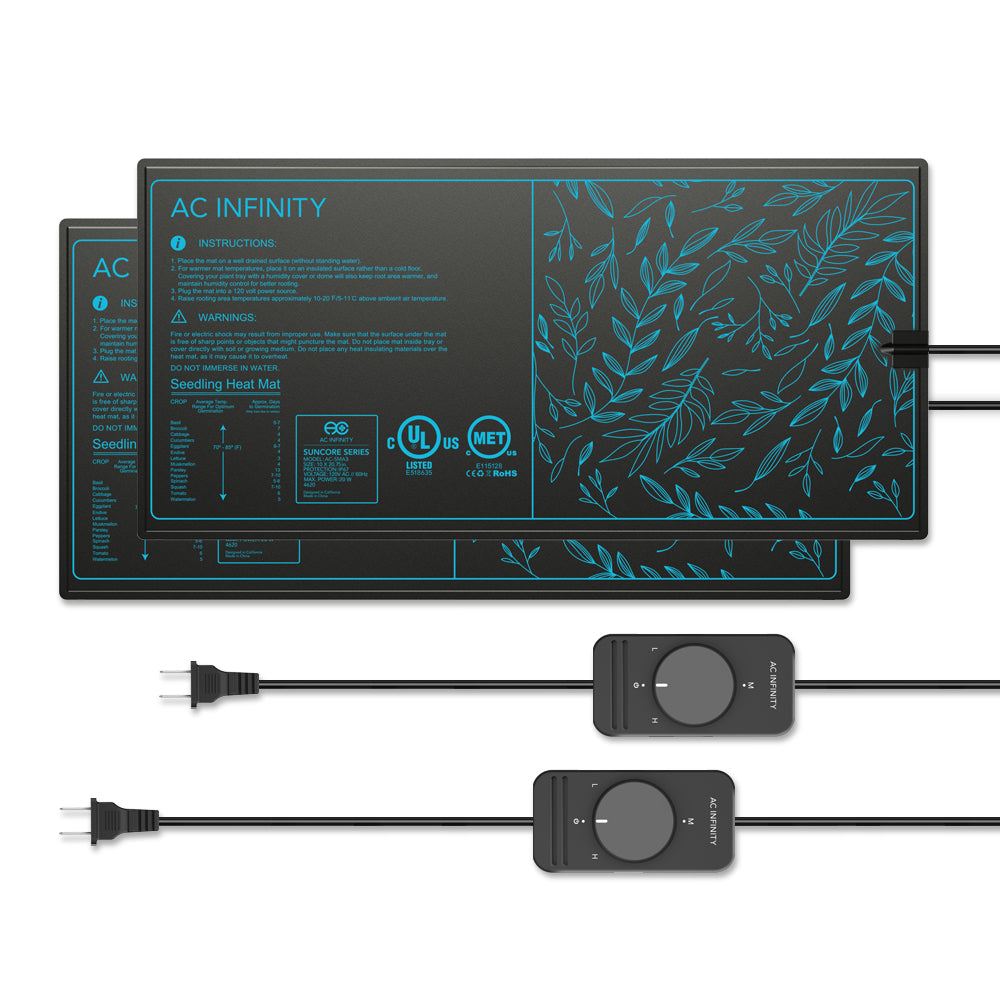

• 2x SUNCORE A3X2 Seedling Heat Mats — 10" x 20.75" (25.4 x 52.7 cm) each, far-infrared film heating element, quad-layer PVC construction, IP-67 sealed, with attached dial controller and 60-inch power cord
• 2x Water-resistant nylon storage mat covers with drawstring opening
• 4x Controller screw sets (for bench or rack mounting of dial controllers)

Contents confirmed from manufacturer source data. Packaging materials, printed documentation, and any promotional inserts are not listed above and may vary by production run. If your shipment is missing any listed item, contact Cannafull Spectrum Solutions before use.

Regional Compliance & Deployment Notes

• Electrical Standard: The SUNCORE A3X2 is rated for 100–125V AC, consistent with standard U.S. residential and commercial electrical infrastructure. It is not rated for 220–240V systems without a step-down transformer.
• Certification Jurisdiction: UL (E518635) and MET (E115128) certifications are recognized by U.S. regulatory authorities and are applicable to licensed commercial facilities operating under state-level cannabis or agricultural compliance frameworks across the United States.
• State Licensing Compatibility: Operators in licensed U.S. facilities should verify that propagation equipment meets any equipment documentation requirements specified by their state licensing authority. The dual-agency certification (UL + MET) supports compliance documentation in most U.S. state frameworks.
• Fire Code Compliance: The mat is rated for fire resistance and safe temperature regulation per its certification standards. Operators should confirm local fire code requirements for continuously energized low-voltage heating equipment in their facility classification.
• Shipping Jurisdiction: Available for deployment in licensed commercial facilities across the contiguous 48 United States. Cannafull Spectrum Solutions does not ship to addresses outside the contiguous 48 states.

Compliance requirements vary by state, municipality, and facility license type. The information above is provided as general operational guidance and does not constitute legal or regulatory advice. Operators are responsible for confirming equipment compliance with their specific licensing authority before deployment.
