AC Infinity SUNCORE A1 | 幼苗加热垫 | IP-67 防水 | 3 英寸 x 20 英寸

Where This Belongs (and Doesn't)

Note: The SUNCORE A1 is a low-voltage resistive heating device rated for 100–125V AC wall outlet connection only. It is not a circuit-level or HVAC-integrated component. Do not connect to extension cords rated below the device's operating specifications, and do not use in submerged applications despite the IP-67 rating — IP-67 certifies resistance to temporary immersion, not continuous submersion.

How It Works

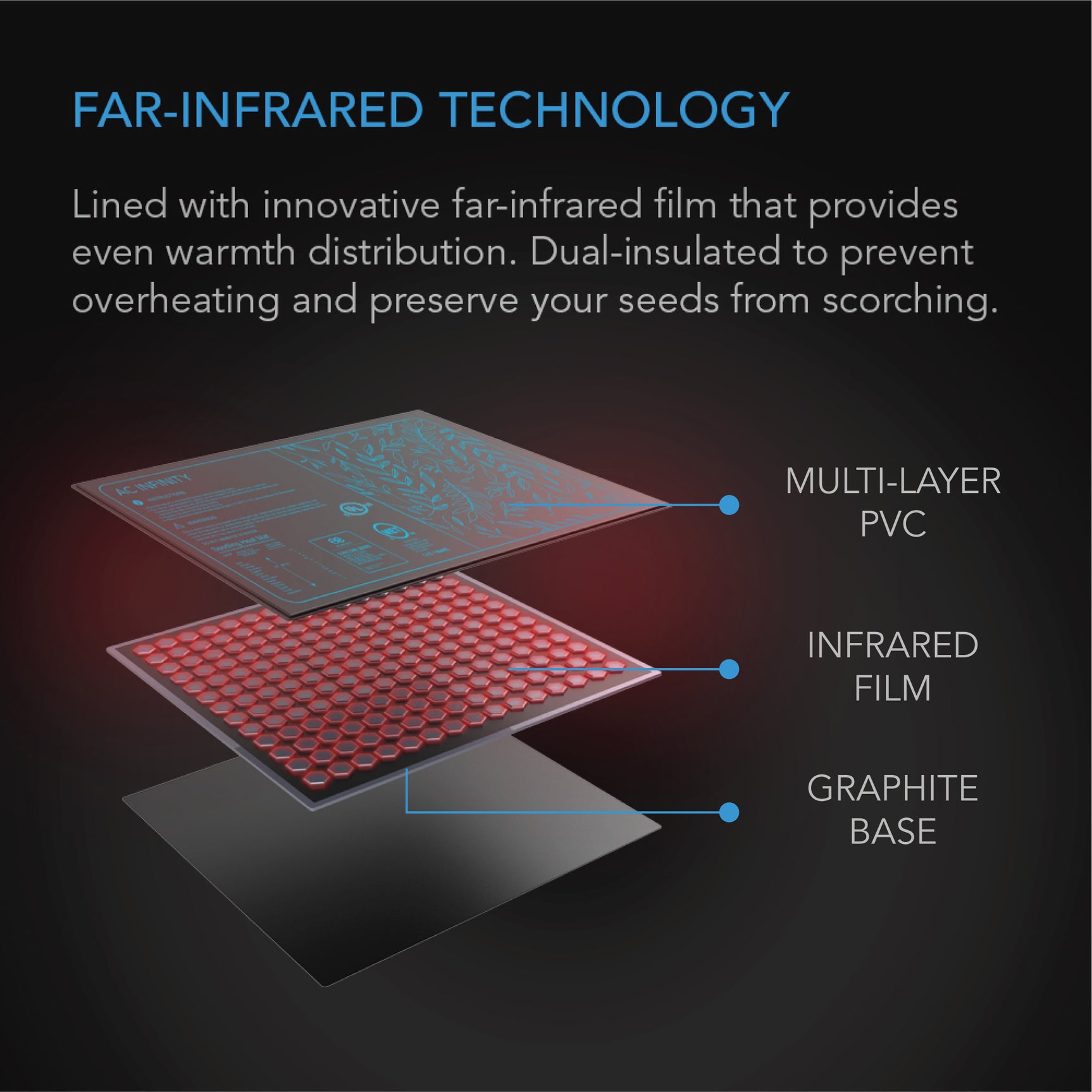

The SUNCORE A1 generates heat through a far infrared film element laminated within a multilayer PVC shell. Far infrared energy operates by radiating thermal energy directly into the material it contacts — in this case, the propagation tray and substrate medium sitting on the mat surface — rather than convectively heating the air column above it. The result is a more direct and uniform thermal transfer profile across the 3 x 20 in. (7.6 x 50.8 cm) surface area, with less energy lost to ambient air warming. At a maximum draw of 6.5W on 100–125V AC, the mat sustains a surface output range of 80–87°F under continuous operation.

The IP-67 waterproof rating is applied at the construction level, not as a surface coating. All seams in the multilayer PVC shell are sealed, and the 60-inch power cord connection point — the most common ingress failure location on unsealed mats — is independently sealed to the same IP-67 standard. This means the mat can operate in environments where irrigation runoff, condensation, and misting are routine without risk of water ingress at the cord junction. The fire resistance rating provides an additional layer of operational safety under continuous low-wattage use, confirming that the mat's thermal regulation stays within safe bounds without requiring active monitoring by the operator. In practical terms, the SUNCORE A1 delivers continuous 80–87°F substrate heat across a 3 x 20 in. footprint at 6.5W, with IP-67 sealing at all ingress points and dual certification under UL E518635 and MET E115128.

Commercial Assurance

The SUNCORE A1 carries dual third-party safety certifications — UL E518635 and MET E115128 — confirming independent verification of electrical safety and fire resistance performance. IP-67 waterproof certification is applied at the construction level, covering all seams and the cord connection point. These are not self-reported ratings; they are independently issued certifications from recognized testing laboratories.

• UL Certification: UL E518635 — independent electrical safety verification
• MET Certification: MET E115128 — independent safety laboratory certification
• IP-67 Rating: Sealed at all seams and 60-inch cord connection point against water and dust ingress
• Fire Resistance: Rated for fire resistance and safe temperature regulation under continuous operation
• Warranty: Warranty period not specified in source data — contact Cannafull Spectrum Solutions or AC Infinity directly for current warranty terms before purchase
• Authorized Channel: Cannafull Spectrum Solutions is a factory-authorized dealer. Units are sourced through authorized distribution and carry full manufacturer support eligibility.

System Integration

• Propagation Ecosystem Compatibility: The A1 mat operates as a standalone thermal layer within a broader propagation ecosystem — pair with humidity domes, environmental controllers, and atmospheric monitoring equipment to build a complete propagation station without requiring mat replacement as the system scales.
• T-Series Upgrade Path: Operators requiring sensor-triggered temperature control, humidity-based automation, timer scheduling, or Bluetooth app connectivity should evaluate the T-Series (AC-SMT1 through AC-SMT7), which integrate a smart controller, sensor probe, and wall-hang mounting hardware with the same IP-67 mat construction.
• Multi-Mat Scaling: For propagation stations requiring coverage beyond the 3 x 20 in. footprint, the A5, A7, and A3X2 configurations provide expanded surface area within the same A-Series construction standard. The A3X2 is noted as a dual-component configuration — confirm coverage requirements before selecting.
• Power Infrastructure: The A1 draws 6.5W at 100–125V AC from a standard wall outlet. No dedicated circuit, relay, or controller wiring is required for standalone operation, making it compatible with existing outlet infrastructure at any propagation station.
• UIS Ecosystem Note: For facilities operating within an AC Infinity UIS (Universal Integration System) environment, the T-Series mats provide the controller interface required for centralized scheduling and automated deployment across multiple propagation zones.

Facility Integration Data

The following ROI reference data is provided to assist procurement and operations teams in evaluating fleet-scale deployment of the SUNCORE A1 across multi-station propagation infrastructure. All figures are based on the MAP price of $17.99 per unit (SKU: AC-SMA1) and a continuous draw of 6.5W per unit. Electricity cost estimates use a reference rate of $0.12/kWh — adjust for your facility's actual utility rate.

Operator Field Note

• Cord Connection Integrity: The IP-67 seal at the 60-inch power cord connection point is the primary structural differentiator from non-rated mats. Inspect the cord-to-mat junction before first use and after any significant physical stress to confirm seal integrity is maintained.
• Thermal Stabilization Period: Allow the mat to reach operating temperature before placing propagation trays. Far infrared film elements require a brief stabilization period to reach uniform surface output across the full 3 x 20 in. footprint.

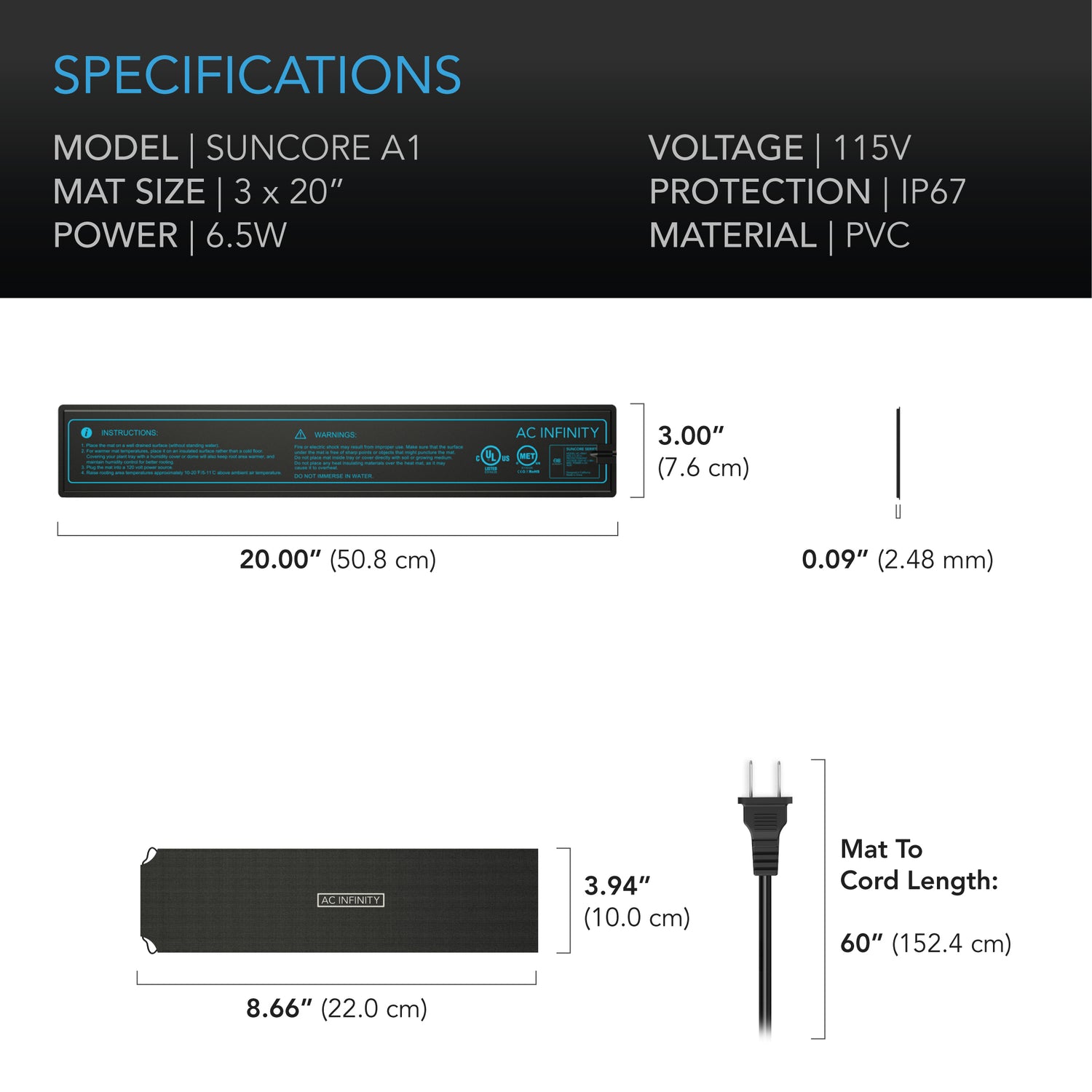

• Tray Fit Confirmation: The 3 x 20 in. (7.6 x 50.8 cm) footprint is sized for single-column seedling flat configurations. Confirm tray dimensions before deployment — trays wider than the mat surface will have unsupported edges that do not receive direct thermal contact.
• Continuous Operation Rating: The fire resistance certification and safe temperature regulation rating confirm the A1 is designed for continuous low-wattage operation. Operators do not need to cycle the mat on and off to manage thermal safety — the mat's output range of 80–87°F is the designed steady-state condition.
• Upgrade Trigger: If propagation scheduling requires time-based or sensor-triggered thermal control — for example, coordinating heat delivery with lighting cycles or humidity thresholds — the T-Series controller integration is the correct upgrade path rather than attempting to manage the A1 through external timers not rated for resistive heating loads.
• Storage: The included Storage Mat Cover (confirmed in A-Series included components) is the manufacturer-specified storage method. Use it between propagation cycles to protect the mat surface and cord connection from physical damage and contamination.

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this jurisdiction cannot be fulfilled.
• Fulfillment: Orders are processed and shipped from authorized distribution. Tracking information is provided upon shipment confirmation. Contact support for lead time estimates on volume orders.
• Returns: Returns are accepted for defective units in accordance with our Return Policy. Non-defective returns are subject to review. Review full terms at cannafullspec.com/pages/return-policy before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions at cannafullspec.com or reach our support team directly before placing volume orders.

What's in the Box

The following items are confirmed in source data for the SUNCORE A1 (SKU: AC-SMA1), which is an A-Series (Manual) configuration:

• 1x SUNCORE A1 Seedling Mat (3 x 20 in. / 7.6 x 50.8 cm)
• 1x Storage Mat Cover
• 2x Controller Screw Set

Note: Included components are confirmed from manufacturer source data for A-Series models. Weight is not specified in source data. If your shipment is missing any listed component, contact Cannafull Spectrum Solutions before use. Do not assume T-Series accessories (sensor probe, wall-hang controller, mounting hardware) are included with A-Series units — those components are exclusive to the T-Series configuration.

Regional Compliance & Deployment Notes

• Electrical Certification Jurisdiction: The SUNCORE A1 carries UL E518635 and MET E115128 certifications, both issued by nationally recognized testing laboratories (NRTLs) recognized by OSHA for compliance with U.S. electrical safety standards. These certifications are applicable to licensed facilities operating under U.S. jurisdiction.
• Operating Voltage Compatibility: The A1 is rated for 100–125V AC, which is the standard residential and light commercial voltage range in the contiguous United States. Confirm outlet voltage at the deployment location before installation. Do not use with voltage converters or outside the rated voltage range.
• Propagation Environment Regulatory Note: Operators in licensed cultivation facilities should confirm that propagation equipment certifications (UL, MET) satisfy any facility-level electrical equipment requirements imposed by state licensing authorities or insurance underwriters. Cannafull Spectrum Solutions does not provide regulatory compliance consulting — confirm requirements with your compliance officer or licensing authority.
• Shipping Jurisdiction: Cannafull Spectrum Solutions fulfills orders within the contiguous 48 United States only. No international fulfillment is available through this channel.

Compliance requirements vary by state and facility license type. The information provided here is for reference only and does not constitute legal or regulatory advice. Verify all applicable equipment standards with your facility's compliance team before procurement. Cannafull Spectrum Solutions ships within the contiguous 48 United States only.
