AC Infinity 潜水泵 | 5 英尺提升高度 | 211 GPH（800 L/H）

Precision Control in Any Space

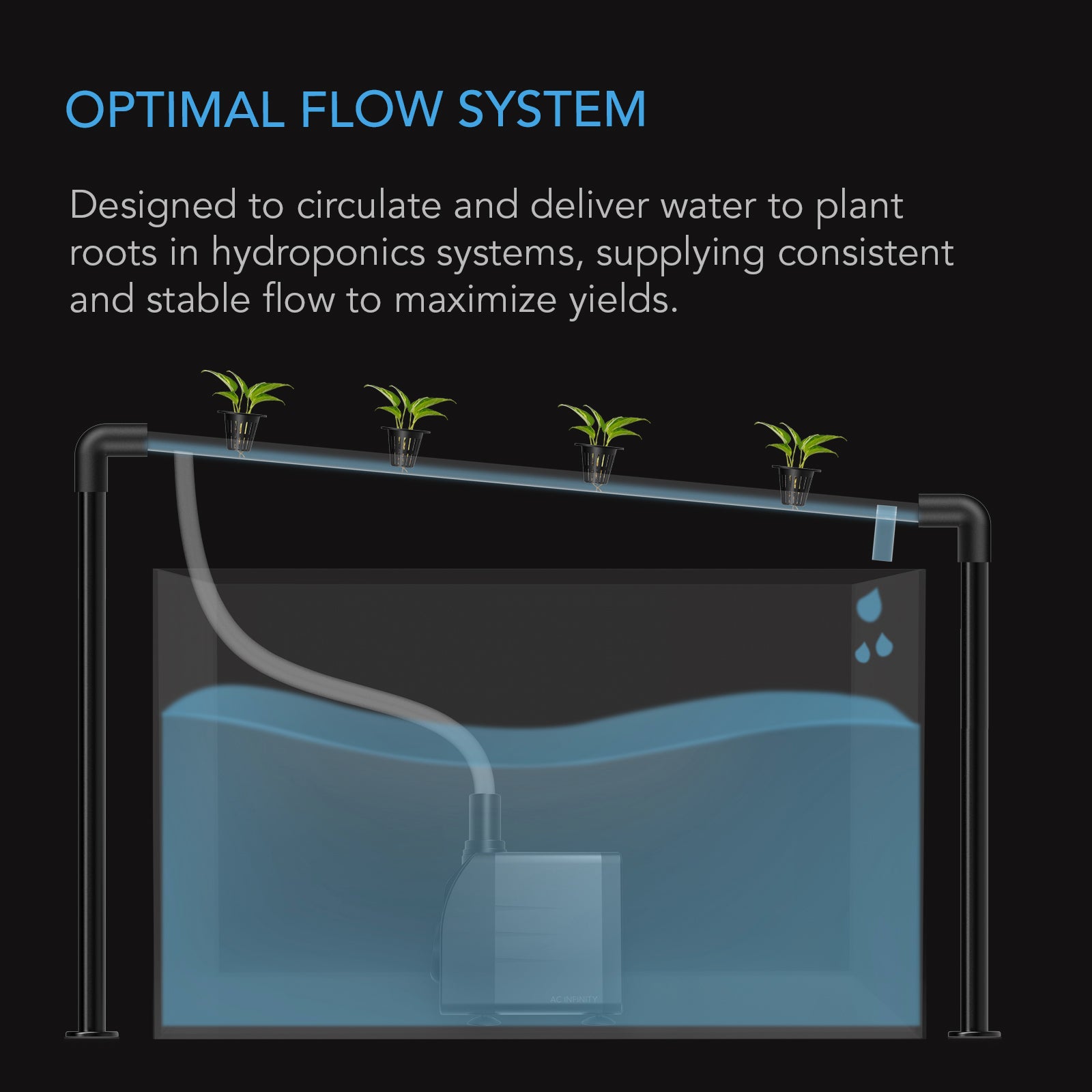

Every recirculating system has a failure point that operators learn to live with — and that tolerance is where yield variance begins. When a pump cannot hold a calibrated flow rate, root zones receive inconsistent saturation cycles. When the motor housing is not sealed against continuous submersion, moisture infiltration degrades performance incrementally until the unit fails mid-cycle, often at the worst possible moment. When there is no adjustable intake valve or interchangeable nozzle architecture, operators are forced to compensate manually — repositioning tubing, throttling external valves, or running the system at a fixed output that does not match the actual demand of the reservoir. These are not minor inconveniences. They are compounding operational liabilities that accumulate across every cycle, every week, and every harvest.

After deployment, the system changes character. Flow rate is dialed in at the pump body itself — not managed downstream with workarounds. The reservoir circulates at a consistent, operator-defined rate. Root zone delivery is predictable from the first cycle to the last. The motor runs submerged without degradation because the housing is engineered for that environment, not merely tolerant of it. Nozzle changes take seconds, not minutes, and the impeller is accessible for maintenance without tools or disassembly of the surrounding system. The operator stops reacting to the pump and starts relying on it.

That outcome is made possible by a specific set of engineering decisions. The AC-WPA3 runs on 18W at 110-120V AC (50/60Hz), producing a verified flow rate of 211 GPH (800 L/H) with a maximum lift height of 4.93 feet. The motor is sealed to IP-X8 standards — the highest submersion protection rating in the IP classification system — ensuring that continuous underwater operation does not introduce moisture to the motor assembly. An adjustable dial mechanism controls the intake valve opening, allowing the operator to widen or close the aperture to tune flow rate and pressure for the specific application. Interchangeable outlet nozzles connect directly to standard hydroponics and irrigation tubing, and the quick-detach impeller with removable access panels makes debris clearing a routine task rather than a service event. Removable suction cup feet lock the unit to flat reservoir surfaces in any orientation, eliminating positional drift under flow. In practical terms, the AC-WPA3 delivers 211 GPH (800 L/H) at up to 4.93 feet of lift height, drawing 18W from a standard 110-120V AC circuit in a 2.12 x 2.48 x 2.75 inch footprint.

Where This Belongs (and Doesn't)

The AC-WPA3 is a fluid circulation device. It does not perform electrical switching, atmospheric sensing, or nutrient dosing. Integration with timers, controllers, or dosing systems is the operator's responsibility. Consult a licensed electrician for any hardwired installation. This unit is rated for water and aqueous solutions only — do not use with flammable or corrosive fluids.

How It Works

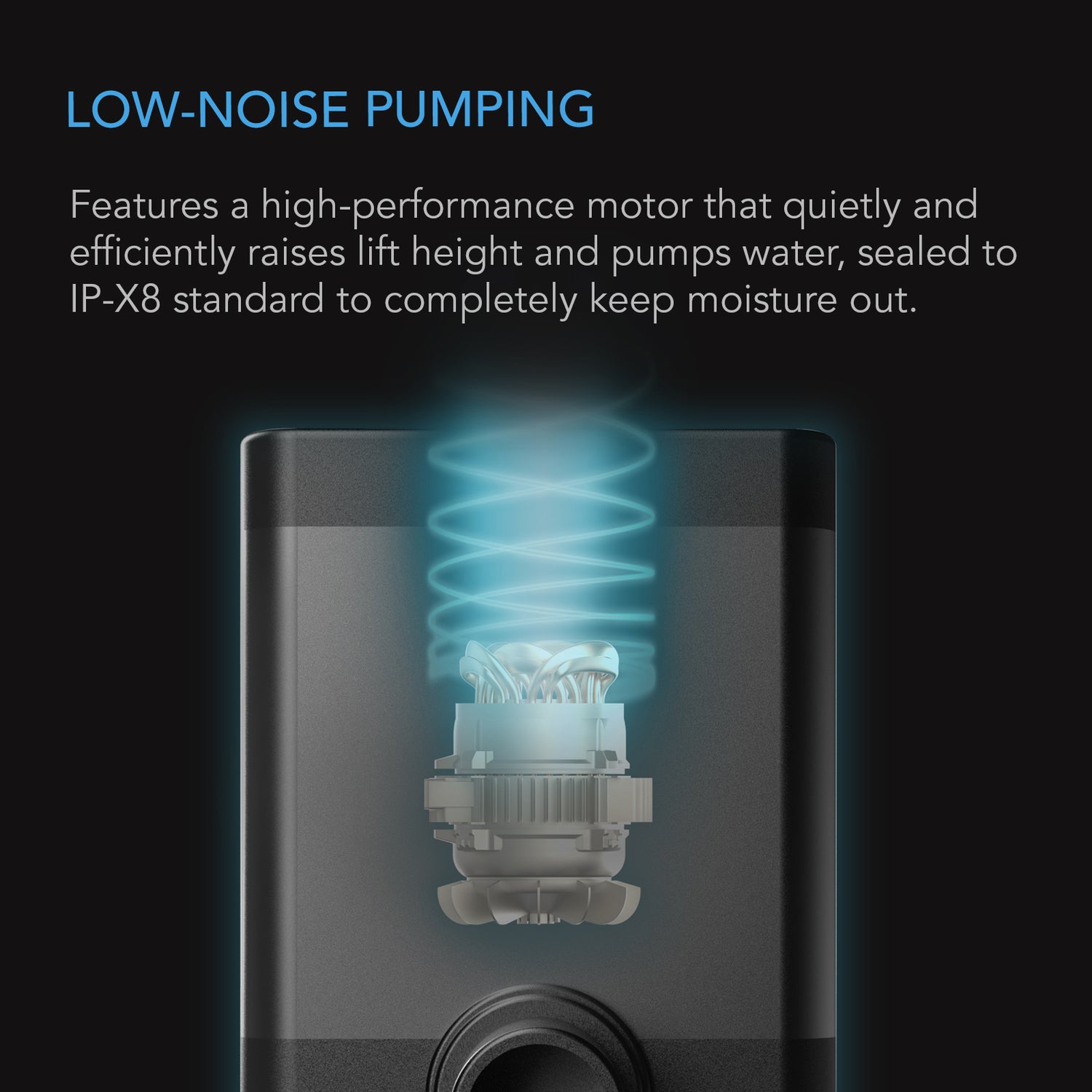

The AC-WPA3 operates as a fully submersible centrifugal pump. The motor draws 18W from a 110-120V AC supply at 50/60Hz and drives an internal impeller that moves water through the pump body and out through the selected outlet nozzle. The IP-X8 motor seal classification means the motor housing is rated for continuous submersion beyond one meter — not splash resistance, not temporary immersion, but sustained underwater operation. This is the engineering basis for the unit's reliability in recirculating systems where the pump never leaves the reservoir.

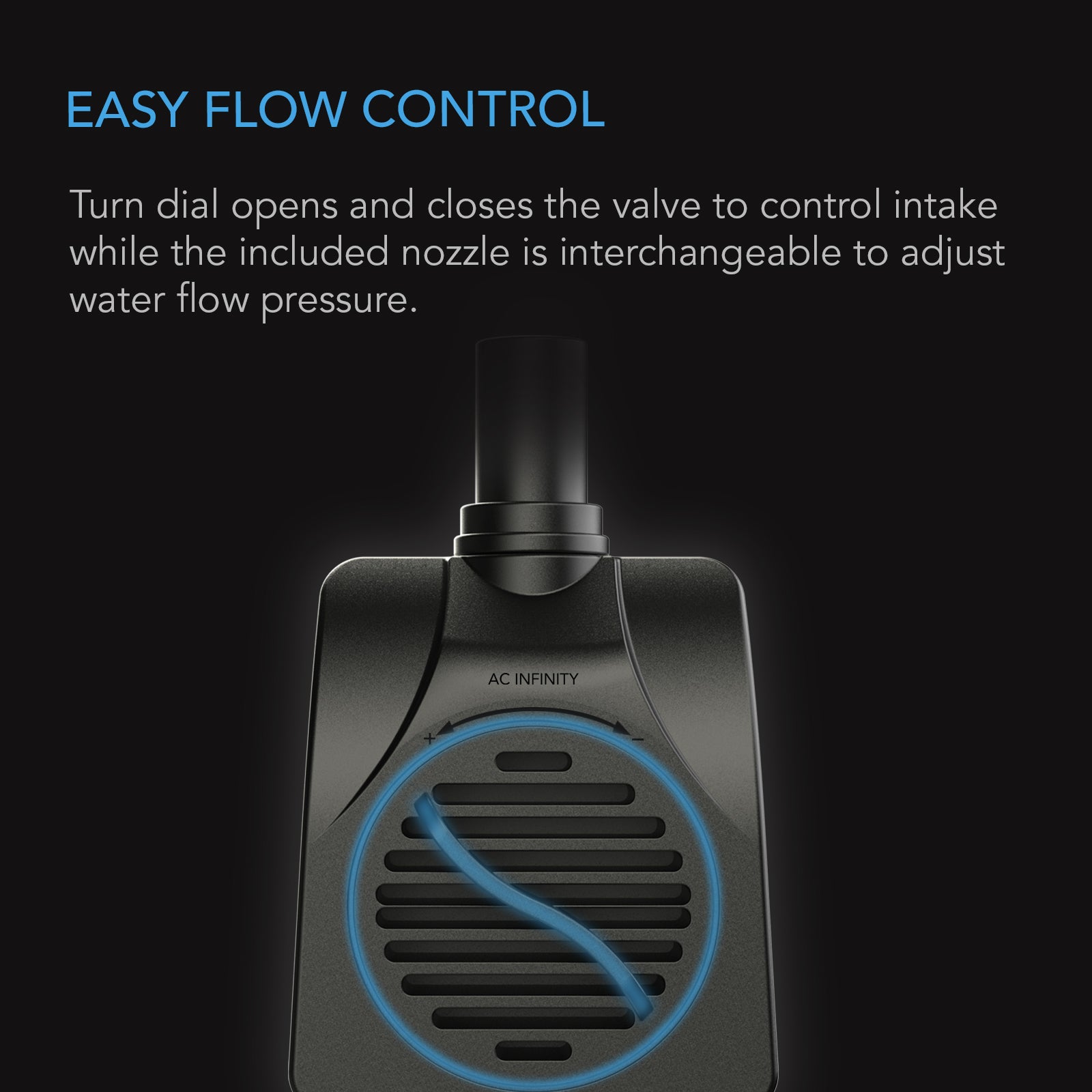

Flow control is managed at two points. The adjustable dial mechanism on the intake side opens or closes the valve aperture, directly modulating how much water enters the pump body per rotation cycle. This translates to operator-adjustable flow rate and output pressure without any external throttling hardware. The interchangeable outlet nozzle system allows the operator to match the pump's discharge port to the tubing diameter of the target system — hydroponics headers, irrigation lines, or fountain risers — without adapters or reducers. Quick nozzle swapping is a tool-free operation.

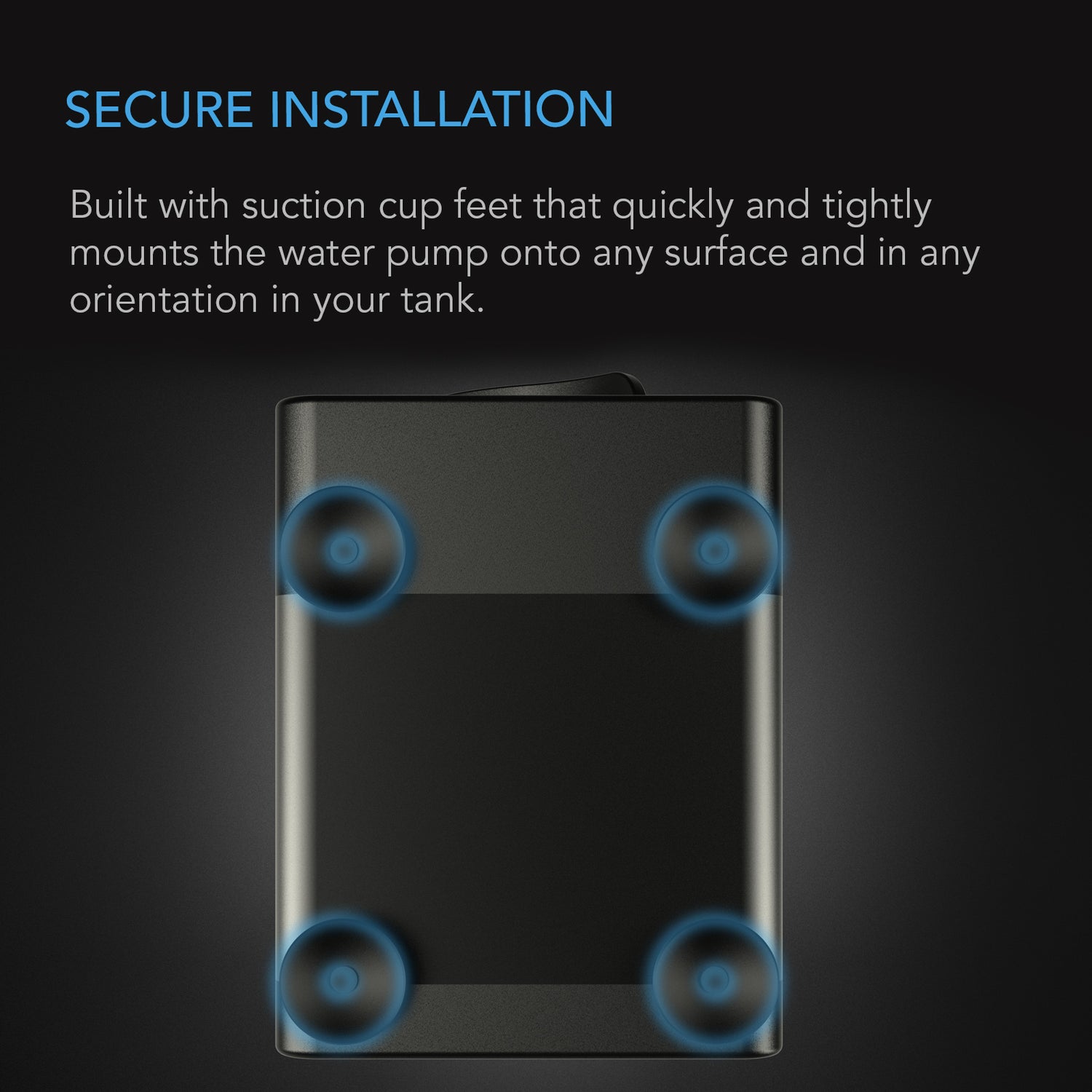

Positional stability is provided by removable suction cup feet that lock the unit to flat reservoir surfaces. The pump can be oriented in any direction — vertical, horizontal, or angled — without affecting motor performance or seal integrity, because the IP-X8 rating is omnidirectional. When maintenance is required, the impeller is quickly detachable and the access panels are removable, allowing debris and mineral buildup to be cleared without removing the pump from the system or disassembling the outlet plumbing. In practical terms, the AC-WPA3 delivers 211 GPH (800 L/H) at a maximum lift height of 4.93 feet, drawing 18W at 110-120V AC in a 2.12 x 2.48 x 2.75 inch (5.4 x 6.3 x 7.0 cm) sealed motor housing rated IP-X8.

Commercial Assurance

Cannafull Spectrum Solutions sources the AC-WPA3 directly through factory-authorized distribution channels. Every unit shipped carries the manufacturer's original warranty terms as published by AC Infinity. Warranty period for this SKU is not specified in available source data — contact Cannafull Spectrum Solutions or AC Infinity directly to confirm current warranty coverage before purchase.

• IP-X8 motor seal rating verified against manufacturer specification — not a marketing claim.
• Flow rate of 211 GPH (800 L/H) and 4.93 ft lift height are manufacturer-published performance figures for the AC-WPA3 at rated voltage.
• All units ship with original manufacturer packaging and included components as listed in Section 12.
• Technical support available through Cannafull Spectrum Solutions for integration questions prior to and after purchase.

System Integration

• Controller Pairing: The AC-WPA3 operates on standard 110-120V AC at 50/60Hz and can be scheduled through any compatible outlet timer or smart controller — including AC Infinity's UIS-compatible controller ecosystem — for automated on/off cycling without manual intervention.
• Tubing Compatibility: Interchangeable outlet nozzles connect to standard hydroponics and irrigation tubing diameters; confirm nozzle-to-tubing fit before finalizing plumbing layout.
• Reservoir Sizing: At 211 GPH (800 L/H), the AC-WPA3 is sized for small-to-mid-scale reservoirs; operators running larger recirculating volumes should evaluate the AC-WPA5 (1500 L/H) or AC-WPA7 (3000 L/H) within the same product series.
• Maintenance Access: The quick-detach impeller and removable access panels allow in-situ cleaning without disconnecting outlet plumbing — schedule debris inspection intervals based on water quality and mineral load of the source water.
• Orientation Flexibility: Suction cup feet and omnidirectional IP-X8 rating allow mounting on any flat reservoir surface in any orientation — vertical, horizontal, or angled — without performance penalty.

Facility Integration Data

The following table models per-unit and fleet-level electrical load for operators deploying multiple AC-WPA3 units across a facility — useful for circuit planning, energy budgeting, and procurement scaling at $17.99 per unit MAP pricing.

Operator Field Notes

• Prime Before First Run: Submerge the unit fully before energizing. The IP-X8 motor is designed for submersion — running it dry, even briefly, can damage the impeller bearing. Confirm full submersion before connecting power.
• Dial Calibration: The adjustable intake dial provides analog flow control. Start at a mid-range setting and adjust incrementally toward target flow — closing the valve too far under load increases motor temperature over extended cycles.
• Nozzle Fit Verification: Confirm the included small nozzle matches your tubing ID before finalizing the plumbing connection. The interchangeable nozzle system accommodates multiple tubing sizes, but a loose fit under pressure will introduce air into the line.
• Suction Cup Surface Requirement: The removable suction cup feet require a smooth, flat, non-porous surface for rated holding force. Textured reservoir liners or rough concrete sumps will reduce adhesion — use a mounting bracket or secondary retention in those environments.
• Impeller Inspection Interval: In hard water or high-mineral nutrient solution environments, inspect and clear the impeller chamber every two to four weeks. The quick-detach impeller and removable access panels make this a sub-five-minute task when performed on schedule.
• Voltage Confirmation: The AC-WPA3 is rated for 110-120V AC at 50/60Hz. Do not connect to 220-240V circuits without a verified step-down transformer — overvoltage will damage the motor and void any applicable warranty coverage.

Operator FAQ

Shipping & Logistics

• Service Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, or international addresses cannot be processed through this listing.
• Fulfillment: Orders are processed and shipped from U.S. distribution. Estimated transit times are provided at checkout based on destination ZIP code. Cannafull Spectrum Solutions is not responsible for carrier delays after handoff.
• Returns: Returns are accepted for defective units within the return window specified in our Return Policy. Non-defective returns must be in original, unopened manufacturer packaging. Review full terms at cannafullspec.com/pages/return-policy before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For pre-purchase technical questions or order support, contact Cannafull Spectrum Solutions directly through the store contact page at cannafullspec.com.

What's in the Box

• Submersible Water Pump, AC-WPA3 (x1)
• Small Nozzle (x1)

Included components confirmed from manufacturer source data for SKU AC-WPA3. No additional accessories, mounting hardware, tubing, or power controllers are included unless explicitly listed above. Verify compatibility of the included nozzle with your existing tubing before installation.

Regional Compliance & Deployment Notes

• Electrical Standard: The AC-WPA3 is rated for 110-120V AC at 50/60Hz, consistent with standard U.S. residential and commercial electrical infrastructure. This unit is not rated for 220-240V circuits without a verified step-down transformer.
• Ingress Protection: IP-X8 certification applies to the motor housing under manufacturer-specified submersion conditions. This rating does not constitute approval for use in classified hazardous locations (NEC Class I, II, or III environments).
• Licensed Facility Compliance: Operators deploying this unit within licensed cultivation or processing facilities should confirm that pump installation and plumbing integration comply with applicable state and local codes governing water systems in licensed agricultural or manufacturing environments.
• No Canadian Distribution: Cannafull Spectrum Solutions does not ship to Canadian provinces or territories. This product listing does not reference CSA certification or Health Canada compliance. All deployment references apply to licensed U.S. facilities only.
• UPC Reference: UPC 819137021983 (AC-WPA3). Use this code for procurement documentation, facility asset records, and warranty registration with the manufacturer.

Compliance determinations for specific facility types, jurisdictions, or use cases are the responsibility of the operator. Cannafull Spectrum Solutions provides product information as published by the manufacturer and does not provide regulatory or legal compliance guidance. Consult your facility's compliance officer or a licensed engineer for jurisdiction-specific installation requirements.
