AC Infinity 自动浇水织物花盆底座 | 4 件装

Precision Control in Any Space

Every manual watering cycle introduces a decision point — and every decision point is an opportunity for error. In a production environment where canopy uniformity is the metric that matters, inconsistent moisture delivery is not a minor inconvenience; it is a compounding liability. Pots that dry unevenly force compensatory watering that overshoots some containers while leaving others deficient. Runoff accumulates in static saucers with no mechanism to return it to the root zone, wasting inputs and creating stagnant conditions that invite pathogen pressure. The operator's attention — a finite resource — gets consumed by a task that should not require it at all.

After deployment, the production floor operates differently. Each container in the array maintains consistent moisture at the root zone without intervention between reservoir fills. Runoff is captured, held, and redirected back to the plant rather than discarded. The visual water level indicator on each unit provides at-a-glance reservoir status, so replenishment is scheduled rather than reactive. Labor that was previously allocated to daily watering rounds is reallocated to higher-value tasks. The canopy responds to uniform inputs with uniform output — the variability that was previously attributed to genetics or environment resolves into a moisture management problem that has already been solved.

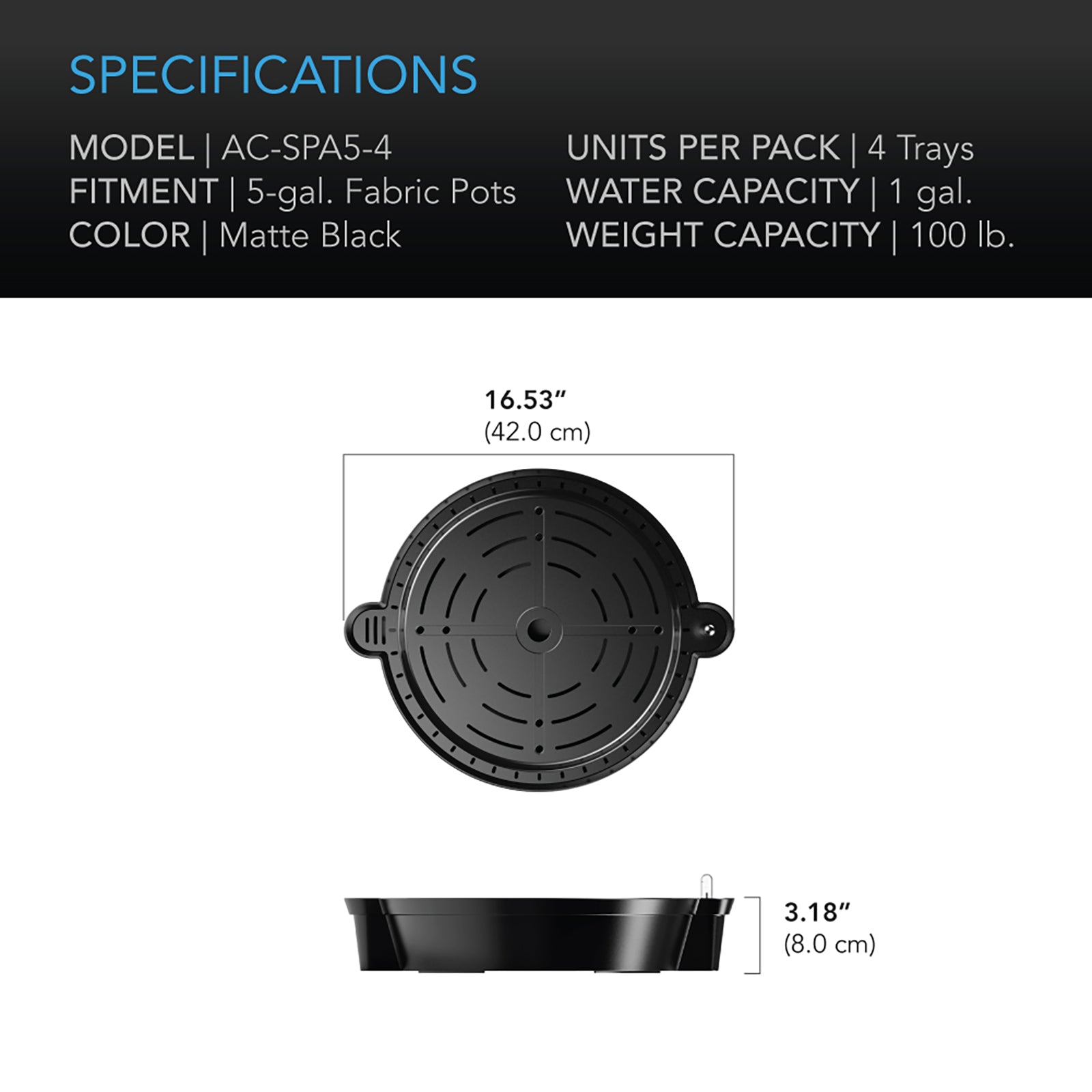

The mechanism behind this outcome is a patented passive sub-irrigation architecture (US Patent #11877546) built into a load-bearing base measuring 16.57 in. (42.1 cm) in length and 3.18 in. (8.1 cm) in height. Each unit in the 4-pack includes a 1-gallon water basin, a drain plate that elevates the fabric pot off the basin floor to prevent algae and mineral buildup, a load-bearing center support column rated to 100 lb., a reservoir water meter for continuous hydration monitoring, and one high-absorption wick line with fully adjustable length and customizable flow rate. The wick line draws water and dissolved nutrients upward from the basin through the permeable nonwoven fabric pot wall directly to the root zone — no pump, no timer, no active plumbing required. A strainer spout on the basin enables rapid reservoir replenishment without disassembly. In practical terms, the AC Infinity Self-Watering Fabric Pot Base delivers passive automated irrigation to 5-gallon fabric pots across a 4-unit array from a 1-gallon-per-unit reservoir, with each base supporting up to 100 lb. of loaded pot weight.

Where This Belongs (and Doesn't)

This product requires no electrical connection and involves no HVAC or circuit integration. Placement decisions should account for floor-level moisture management and access to reservoir fill points within the production space.

How It Works

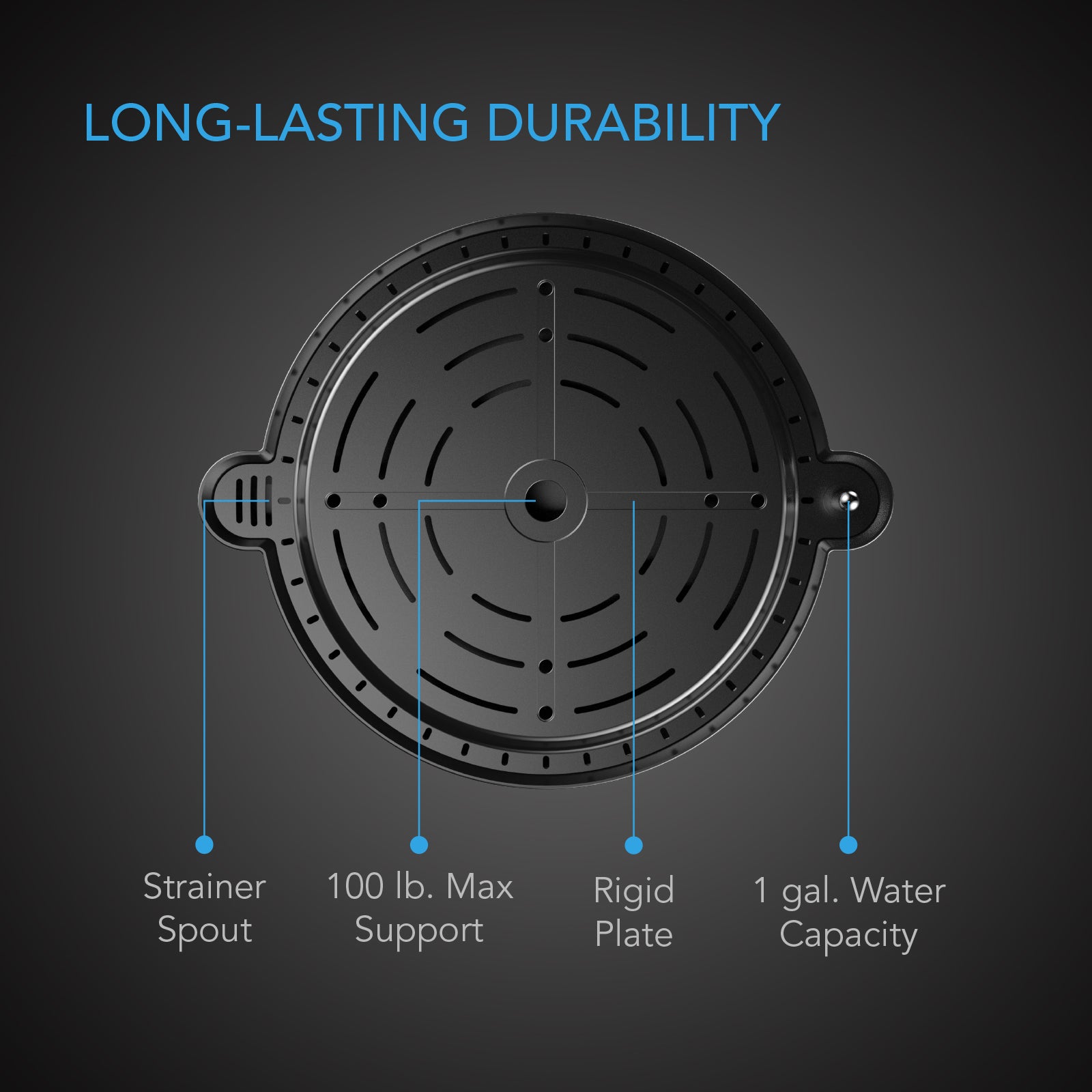

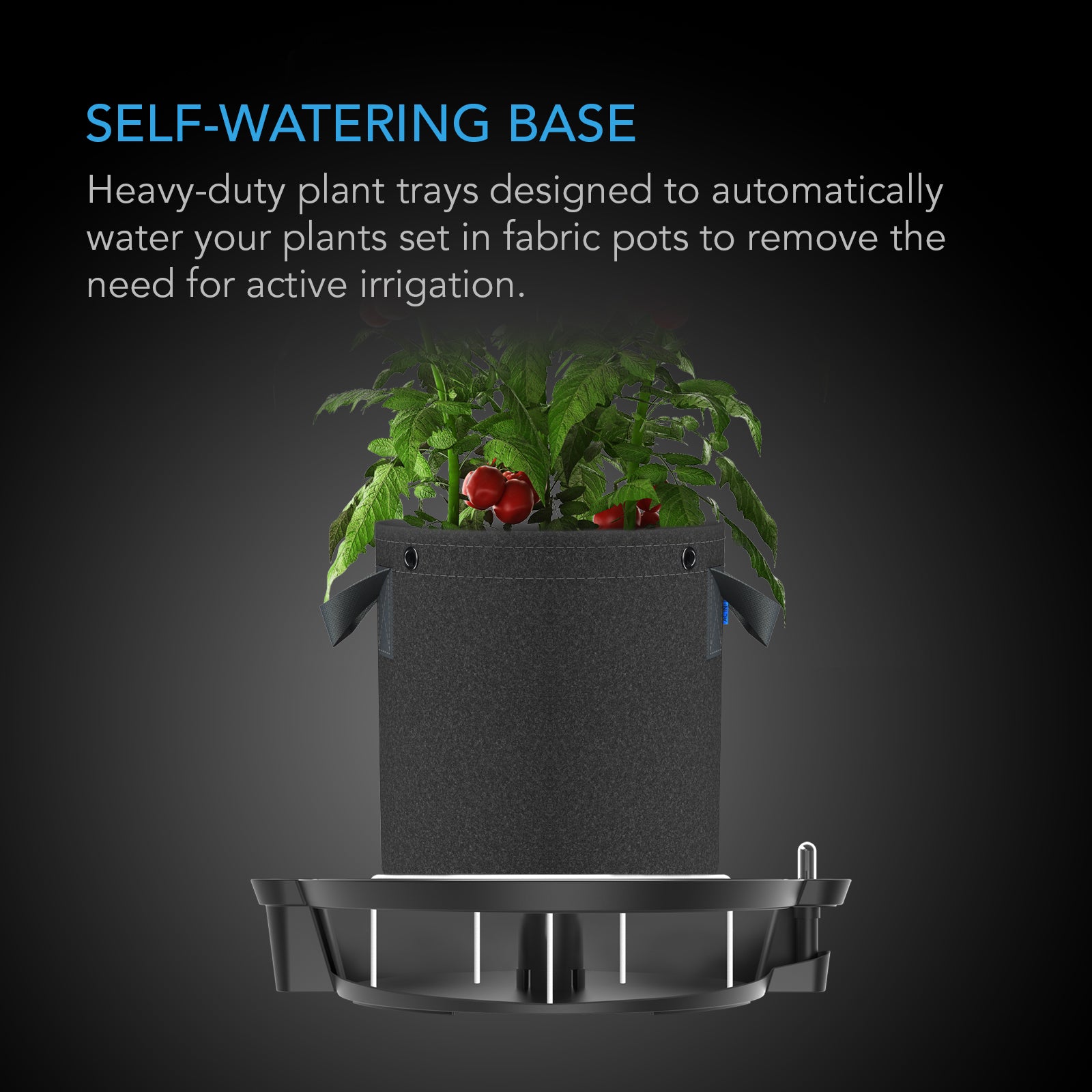

Each Self-Watering Fabric Pot Base is a self-contained passive irrigation station. The load-bearing base and center column assembly — rated to 100 lb. — supports the fabric pot above the water basin while maintaining structural integrity under a fully loaded 5-gallon container. The drain plate elevates the pot off the basin floor, creating an air gap that prevents direct soil contact with standing water and inhibits algae and mineral deposit migration into the growing medium.

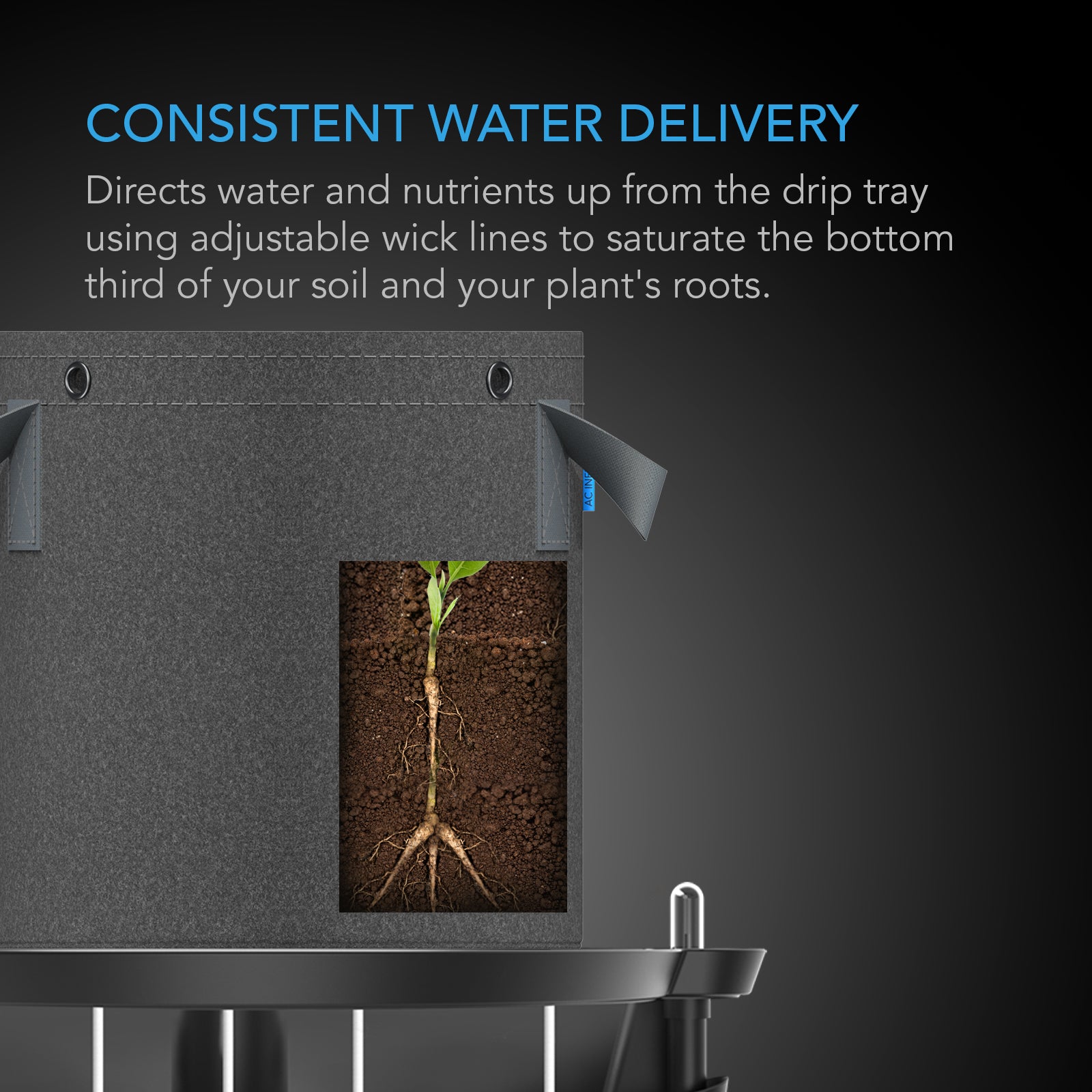

The wick line — one included per unit, high-absorption construction — threads from the water basin up through the drain plate and into the base of the fabric pot. Because nonwoven fabric pots are permeable, the wick makes direct contact with the growing medium. Capillary action draws water and dissolved nutrients upward from the 1-gallon reservoir into the root zone continuously, at a rate governed by the plant's own uptake demand. The wick line length is fully adjustable, and the flow rate is customizable, allowing the operator to calibrate delivery to the specific substrate and crop stage in use.

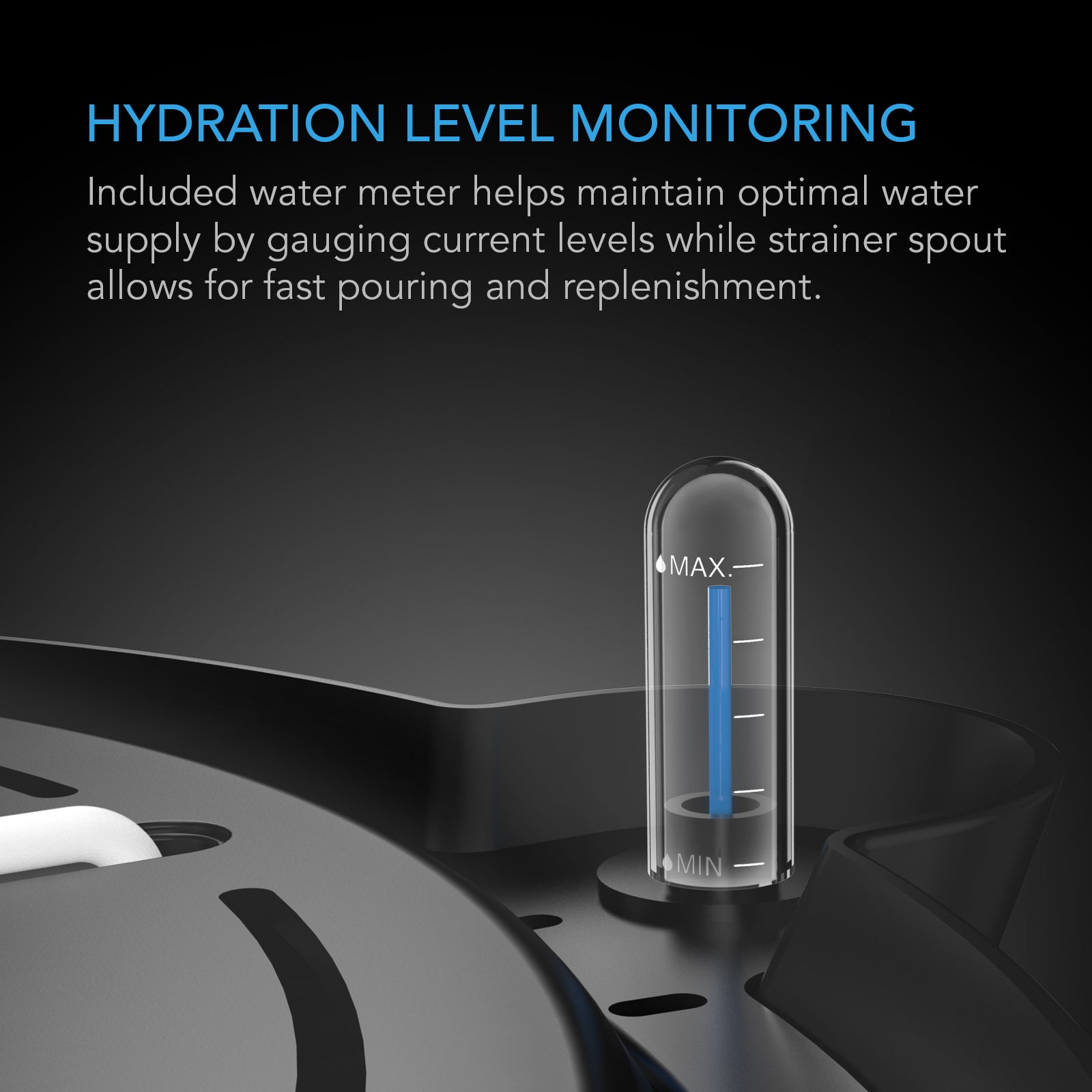

Excess water drains back into the basin below rather than pooling beneath the pot, preventing waterlogging of the growing medium. The included reservoir water meter provides a continuous visual readout of basin hydration level, eliminating the need to lift or disturb the pot to assess irrigation status. When the reservoir requires replenishment, the strainer spout allows rapid refill without disassembly of the base components. The 4-pack configuration deploys four independent irrigation stations simultaneously, each operating autonomously from a dedicated 1-gallon reservoir. In practical terms, the AC Infinity Self-Watering Fabric Pot Base delivers continuous passive root-zone irrigation across a 4-unit array, with each station holding 1 gallon of water and supporting up to 100 lb. of loaded container weight within a 16.57 in. x 3.18 in. footprint.

Commercial Assurance

• Patent Protection: The passive sub-irrigation delivery architecture is protected under US Patent #11877546, confirming independent engineering validation of the wick-based delivery mechanism.
• Structural Rating: Each base is rated to support fabric pots weighing up to 100 lb., accommodating fully loaded 5-gallon containers at peak production weight without structural compromise.
• Reservoir Monitoring: The included water meter provides continuous visual hydration status, enabling scheduled replenishment rather than reactive intervention — a direct labor efficiency input.
• Warranty: Warranty terms are not specified in available source data. Contact Cannafull Spectrum Solutions or AC Infinity directly for current warranty coverage applicable to this SKU.
• Authorized Distribution: Cannafull Spectrum Solutions is a factory-authorized dealer for AC Infinity products, supplying licensed facilities across the United States.

System Integration

• Fabric Pot Compatibility: Designed exclusively for nonwoven fabric pots up to 5-gallon capacity; the permeable pot wall is a functional requirement for wick-to-medium contact and passive moisture transfer.
• Nutrient Solution Compatibility: The wick delivery system transports dissolved nutrients from the reservoir to the root zone alongside water, making the base compatible with liquid nutrient programs without modification.
• Grow Tent Deployment: The 16.57 in. x 3.18 in. footprint is sized for standard grow tent floor configurations; the low-profile 3.18 in. height preserves vertical canopy clearance.
• No Active Infrastructure Required: The passive wick mechanism requires no pump, timer, controller, or electrical connection — the base integrates into any production space without infrastructure modification.
• Scalable Array Deployment: The 4-pack unit structure supports standardized fleet scaling; operators can deploy in 4-unit increments to match canopy expansion without per-unit procurement complexity.

Facility Integration Data

The table below models per-unit and fleet-level deployment economics for the AC Infinity Self-Watering Fabric Pot Base 4-Pack at the $99.00 unit price, providing procurement reference data for 10-, 20-, and 50-unit fleet configurations.

Operator Field Notes

• Wick Line Calibration: The adjustable wick line length and customizable flow rate should be set at initial deployment based on substrate type and crop stage — a coarser medium may require a longer wick insertion depth to maintain consistent capillary contact.
• Reservoir Fill Interval: At 1 gallon per station, fill frequency will vary with canopy size, ambient VPD, and substrate water-holding capacity; establish a baseline fill interval during the first week of deployment and adjust to a scheduled cadence rather than reactive monitoring.
• Drain Plate Maintenance: The elevated drain plate prevents algae and mineral buildup migration, but periodic inspection of the plate surface and basin interior is recommended during reservoir refill to maintain clean delivery conditions.
• Nutrient Solution Use: When running liquid nutrient programs, flush the reservoir and wick line at the same interval used for the broader irrigation system to prevent salt accumulation in the wick medium.
• Weight Loading: The 100 lb. per-unit weight rating accommodates fully loaded 5-gallon fabric pots at peak production; do not exceed this rating or use containers larger than 5-gallon capacity, as fitment and structural performance are not confirmed outside this specification.
• Array Spacing: The 16.57 in. footprint should be factored into canopy spacing calculations at setup; bases placed in close proximity should retain sufficient clearance around the strainer spout for unobstructed reservoir access during replenishment.

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this jurisdiction cannot be fulfilled.
• Fulfillment: Orders are processed and shipped from authorized distribution points. Delivery timelines vary by destination within the contiguous United States; tracking information is provided upon shipment confirmation.
• Returns: Returns are accepted for defective or damaged units in accordance with Cannafull Spectrum Solutions return policy. Contact support prior to initiating any return to receive authorization and instructions.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions at cannafullspec.com or reach out via the store contact page for pre-purchase and post-purchase support.

What's in the Box

Contents confirmed from manufacturer source data for SKU AC-SPA5-4 (4-Pack). Each of the four units includes the following components:

• 1x Water Basin (1-gallon capacity, load-bearing base and center column construction)
• 1x Drain Plate (elevates fabric pot above basin floor)
• 1x Support Column (center column, structural load-bearing)
• 1x Water Meter (reservoir hydration level indicator)
• 1x Wick Line (high-absorption, adjustable length)

Pack Total: 4 water basins, 4 drain plates, 4 support columns, 4 water meters, 4 wick lines.

Note: Fabric pots are not included. This base is designed for use with separately purchased nonwoven fabric pots up to 5-gallon capacity. Manual Code: SPA2304X1. Contents confirmed against PRODUCT_PAGE and MANUAL_PDF sources; do not assume inclusion of items not listed above.

Regional Compliance & Deployment Notes

• Jurisdiction: This product is sold and shipped within the contiguous 48 United States only through Cannafull Spectrum Solutions.
• Electrical Classification: The Self-Watering Fabric Pot Base is a passive, non-electrical product. No electrical certification (UL, ETL, or equivalent) is applicable or required for this product category.
• Patent Status: The passive sub-irrigation delivery architecture incorporated in this product is protected under US Patent #11877546. Unauthorized reproduction of the patented design is prohibited.
• Facility Compliance: Operators are responsible for ensuring that irrigation and water management practices within their licensed production facilities comply with applicable state and local regulations. This product does not introduce active plumbing or pressurized water systems and does not require facility-level permits for installation.
• UPC: 819137022706 (SKU: AC-SPA5-4, Standard Model, 4-Pack).

Product specifications, pricing, and availability are subject to change without notice. All data presented on this page reflects manufacturer source information available at time of publication. Cannafull Spectrum Solutions makes no representations beyond those supported by confirmed manufacturer data. Verify current specifications with AC Infinity or Cannafull Spectrum Solutions prior to procurement decisions for large-scale deployments.
