AC Infinity 可再填充碳过滤器套件 | 带木炭补充装 | 8 英寸

Quick Spec: 8" Duct Opening | 19.80 x 10.94 in. (50.3 x 27.8 cm) | 770 CFM Max Airflow | 38mm Carbon Bed | Australian Virgin RC412 | 1200+ IAV | Dual-Layer Galvanized Steel Mesh

Precision Atmospheric Control in Any Space

Every cycle that ends with a compromised atmospheric environment is a cycle that cost more than it should have. Standard carbon filters operate on a single-use model — when the carbon saturates, the entire unit goes in the trash and a new one gets ordered. That replacement cycle is not a maintenance event; it is a recurring capital drain disguised as a consumable cost. In high-humidity enclosed environments, that drain accelerates: moisture degrades carbon performance ahead of schedule, mesh corrodes, and operators are left guessing whether the filter is still performing or simply occupying duct space. The result is inconsistent odor control, unplanned procurement cycles, and a waste stream that compounds with every grow.

After deploying the AC Infinity Refillable Carbon Filter 8", the procurement model changes. The filter body stays in the system. When carbon reaches saturation, the flanges twist off without tools, spent charcoal is removed — and can be composted — and fresh Australian Virgin RC412 carbon is loaded using the included funnel and scoop set. The atmospheric control layer of the facility remains intact and operational. No downtime waiting on a replacement unit to ship. No disposal logistics for a full filter housing. The environment stays dialed, and the cost per cycle drops with every refill instead of resetting at full-unit price.

The mechanism behind that operational continuity is a patented, iF Award-winning filter architecture built around a 38mm carbon bed of Australian Virgin RC412 activated charcoal rated at 1200+ IAV (Iodine Adsorption Value). The expanded chamber design enables factory-level carbon compression without requiring any active compression by the operator — the carbon bed performs at rated capacity from the moment the flange is secured. Dual-layered rust-resistant galvanized steel mesh with a sandblasted gunmetal finish provides structural integrity and corrosion resistance across extended high-humidity operation. Aluminum flanges with a reversible design and secure rubber seal lock the activated charcoal in place while also offering a second service orientation that further extends carbon bed lifespan. The kit includes one full charcoal refill, giving the operator the equivalent filtration capacity of two standard 8" carbon filters at lower total cost. In practical terms, the AC-RCF8 delivers up to 770 CFM of odor-scrubbed airflow through a 19.80 x 10.94 in. (50.3 x 27.8 cm) filter body with a 38mm RC412 carbon bed rated at 1200+ IAV.

Where This Belongs (and Doesn't)

Installation note: This filter is a passive carbon scrubber designed for integration with 8" inline duct fans and rigid or flexible ducting. It does not contain any electrical components and requires no wiring. Consult your facility's HVAC and ventilation design specifications before finalizing duct routing and fan pairing.

How It Works

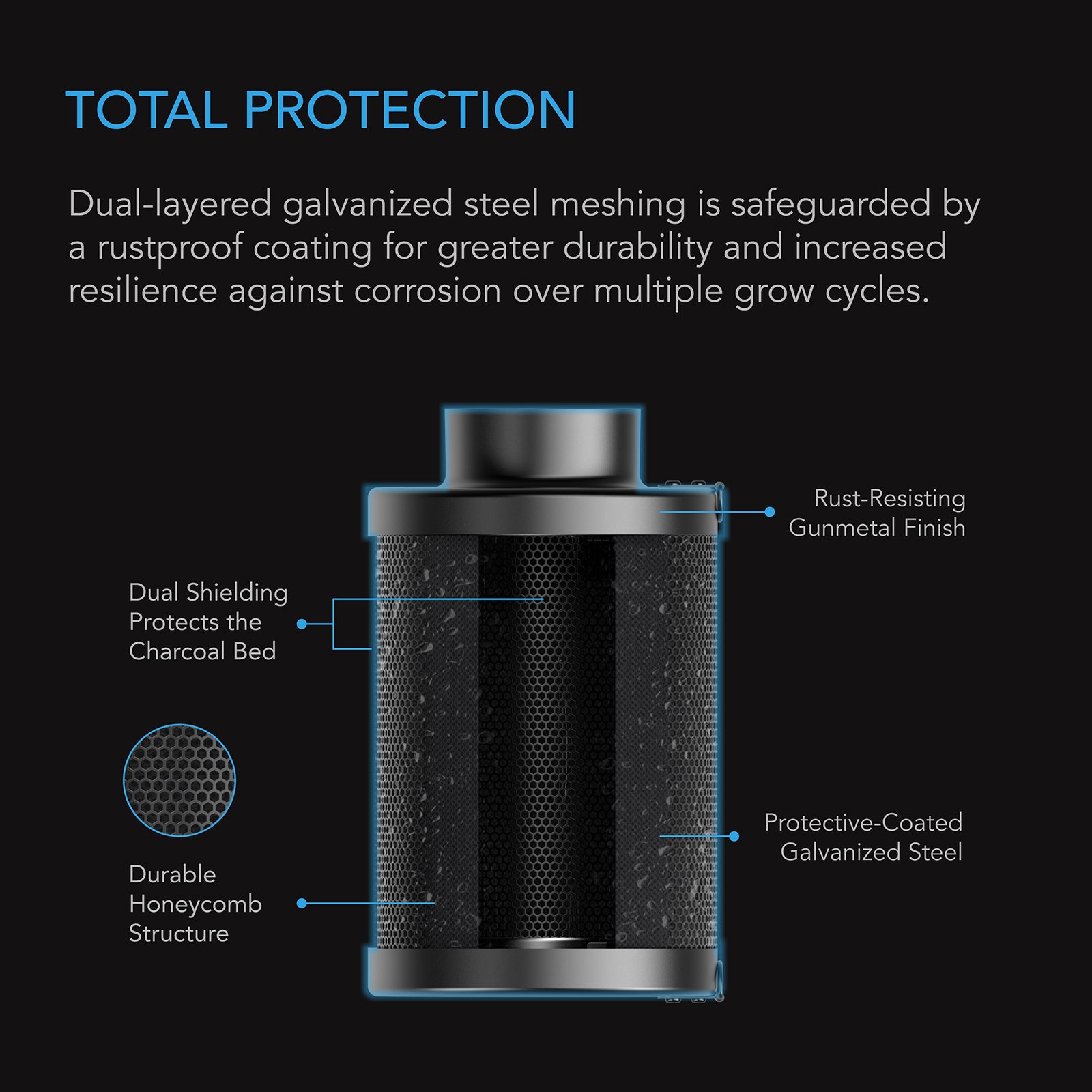

Air enters the filter through the outer dual-layer galvanized steel mesh — constructed with a rust-resistant galvanized steel body and a sandblasted gunmetal finish — and passes through the 38mm bed of Australian Virgin RC412 activated charcoal. The RC412 carbon is rated at 1200+ IAV, a measure of adsorption capacity that directly correlates to how aggressively the carbon captures volatile organic compounds and odor-causing molecules before the cleaned air exits through the inner mesh and into the connected duct run. The expanded chamber geometry allows the carbon to be loaded at factory compression density, which means the bed performs at full rated capacity without the operator needing to apply any compression force during refilling. The activated charcoal's enhanced surface area and higher adsorption rate extend the interval between required refills compared to standard-density carbon beds.

Refilling is executed tool-free. The aluminum flanges — designed with a reversible orientation — twist off to expose the carbon chamber. Spent charcoal is removed, and the included funnel and scoop set guides fresh RC412 carbon into the chamber without spillage. Once loaded, the flange is secured with the rubber seal, locking the carbon bed in place. Reversing the flange orientation before reinstallation redistributes airflow contact across the carbon bed, extending usable lifespan before the next refill is required. The multiple-layer construction — aluminum flanges, dual steel mesh, rubber seal — also functions as a corrosion-resistance system, with each layer contributing to the filter's ability to maintain structural and performance integrity across many cycles in high-humidity environments. In practical terms, the AC-RCF8 processes up to 770 CFM through a 38mm Australian Virgin RC412 carbon bed within a 19.80 x 10.94 in. (50.3 x 27.8 cm) housing, with tool-free refill access via reversible aluminum flanges and a secure rubber seal.

System Integration

• Fan Pairing: Designed to pair with 8" inline duct fans — match fan CFM rating to filter's 770 CFM maximum to avoid overdriving the carbon bed and reducing adsorption contact time.
• Ducting Compatibility: Connects to standard 8" rigid or flexible ducting; 1.57 in. (4.0 cm) aluminum flanges provide the duct interface and seal point.
• Orientation Flexibility: Reversible flange design allows the filter to be mounted in multiple orientations within the duct run, and flange reversal extends carbon bed service life between refills.
• Refill Supply Chain: Additional RC412 charcoal refills are available for separate purchase, enabling operators to maintain a refill inventory and eliminate unplanned procurement gaps between cycles.
• Waste Stream Reduction: Spent charcoal from refill cycles is compostable, reducing solid waste output compared to full-unit filter disposal.

Facility Integration Data

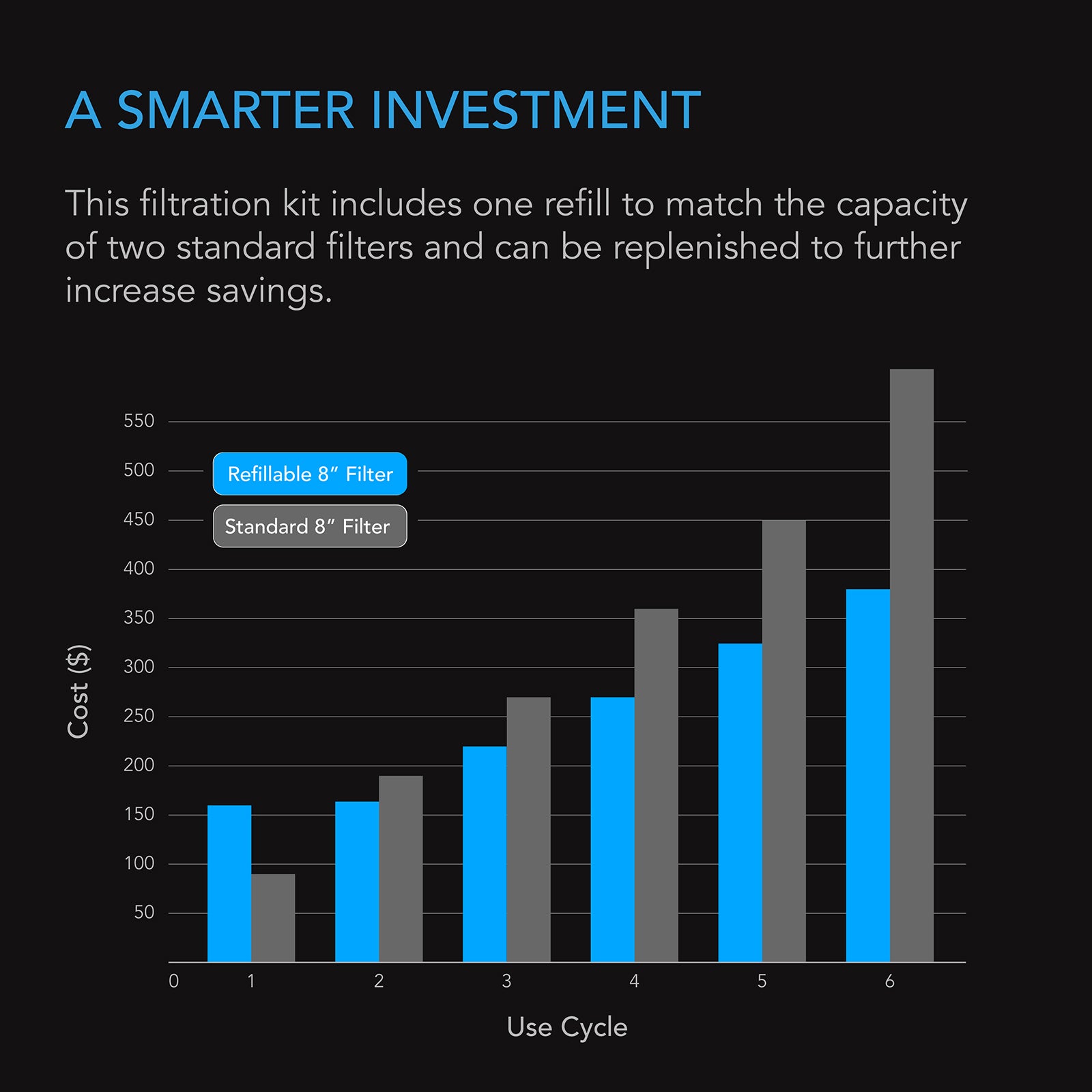

The following ROI model illustrates the procurement cost differential between operating the AC-RCF8 refillable system versus purchasing replacement standard 8" carbon filters at equivalent service intervals, scaled across common fleet sizes.

Operator Field Notes

• Do not overdrive airflow: The 770 CFM maximum is a ceiling, not a target. Running the paired inline fan at or near maximum CFM continuously reduces carbon contact time and shortens effective refill intervals. Size fan speed to actual room volume requirements.
• Flange reversal is a service interval tool: Reversing the aluminum flanges before reinstalling after a refill redistributes airflow across the carbon bed and measurably extends the time before the next refill is needed. Do not skip this step.
• Humidity management extends carbon life: The dual-layer mesh and corrosion-resistant construction are designed to handle high-humidity environments, but excessive moisture in the airstream will accelerate carbon saturation. Maintain relative humidity within your facility's target range to maximize refill intervals.
• Maintain a refill inventory: Additional RC412 charcoal refills are available separately. Operators running multiple units should stock refills on-site to avoid procurement gaps that leave filter housings idle between cycles.
• Compost spent carbon: Used RC412 charcoal from refill cycles can be composted. Establish a disposal protocol that routes spent carbon to a compost stream rather than solid waste to reduce facility waste output.
• Verify duct sizing before installation: The AC-RCF8 is engineered specifically for 8" duct connections. Confirm all duct runs, fan collars, and adapters in the circuit are 8" before ordering to avoid fitment issues.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, or international destinations cannot be processed through this listing.
• Lead Time: In-stock orders typically ship within 1-3 business days. Freight timelines vary by destination. Contact us for current lead time estimates on multi-unit orders.
• Returns: Returns are accepted on non-defective items subject to our Return Policy. Items must be in original, uninstalled condition. Contact Cannafull Spectrum Solutions before initiating any return to receive a Return Merchandise Authorization (RMA) number.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about this order? Contact Cannafull Spectrum Solutions directly before purchasing — we are here to confirm compatibility, lead times, and fleet pricing for your facility.

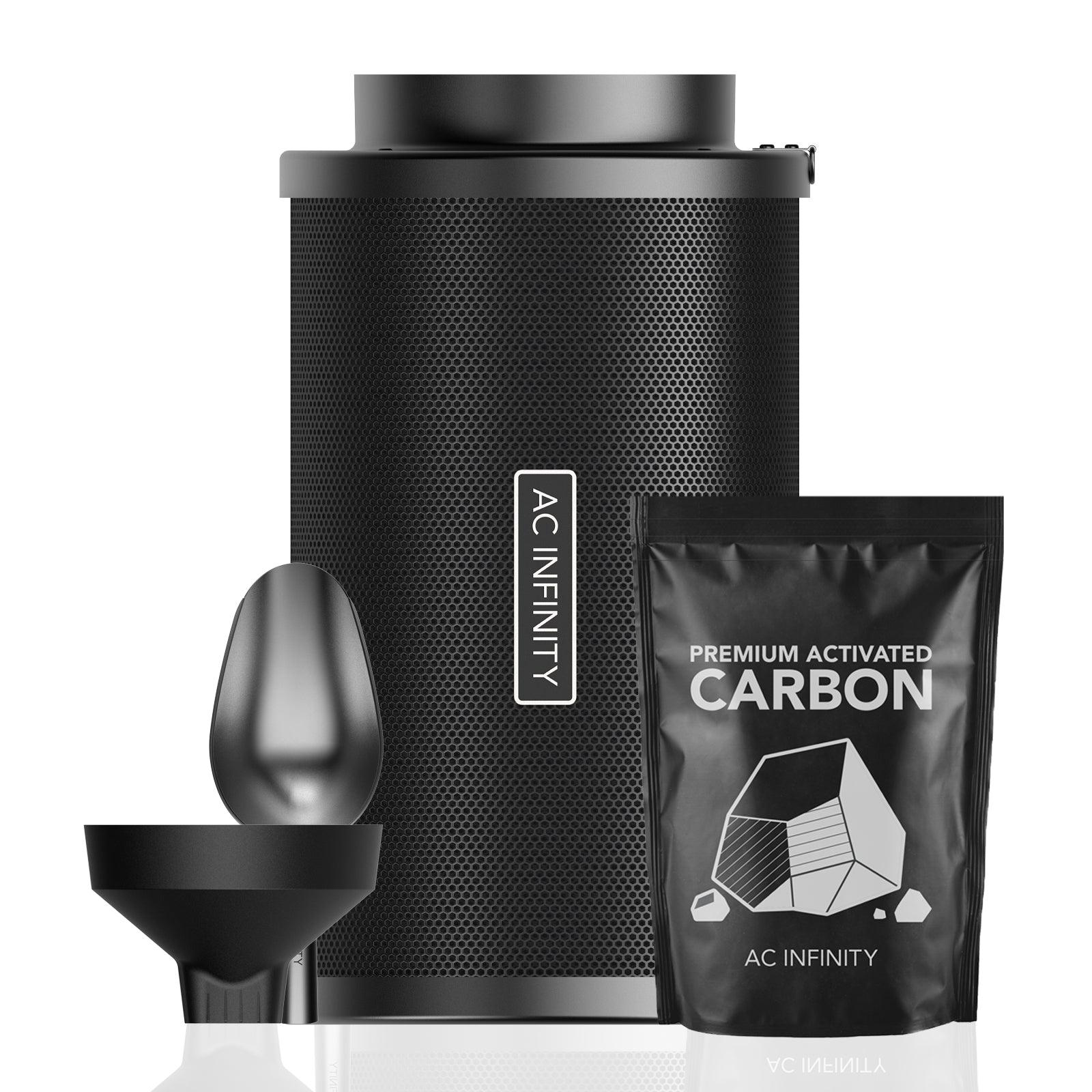

What's in the Box

• 1x AC Infinity Refillable Carbon Filter 8" housing (SKU: AC-RCF8) — with dual-layer galvanized steel mesh, reversible aluminum flanges, and rubber seal installed
• 1x Australian Virgin RC412 charcoal refill (included with kit)
• 1x Filling funnel
• 1x Scoop set

Kit contents confirmed from manufacturer source data. Packaging configuration and accessory quantities are subject to change by the manufacturer without notice. Verify kit contents upon receipt. Additional RC412 charcoal refills are available for separate purchase and are not included beyond the one refill supplied with the kit.

Regional Compliance & Deployment Notes

• Jurisdiction: This product is sold and shipped by Cannafull Spectrum Solutions within the contiguous 48 United States only.
• Electrical Classification: The AC-RCF8 contains no electrical components. It is a passive carbon filtration device. No electrical permits, licensed electrician installation, or NEC compliance review is required for the filter unit itself. Compliance requirements for the paired inline fan and any associated electrical connections remain the responsibility of the installing facility.
• No HVAC Licensing Requirement for Filter: Installation of the filter body into an existing 8" duct run does not constitute a licensed HVAC modification in most U.S. jurisdictions. Consult your facility's compliance officer or local authority having jurisdiction (AHJ) if your operation is subject to specific mechanical permit requirements.
• Waste Disposal: Spent RC412 charcoal is compostable. Verify local composting regulations and any applicable solid waste disposal requirements in your jurisdiction before establishing a spent carbon disposal protocol.
• No Canadian Distribution: This listing does not cover distribution to Canadian provinces or territories. No CSA certification claims are made for this product through this listing.

Compliance determinations are the responsibility of the purchasing facility. Cannafull Spectrum Solutions provides product specifications and manufacturer documentation to support facility compliance review but does not provide legal, regulatory, or engineering compliance certification. Confirm all applicable local, state, and federal requirements with your facility's compliance team before deployment.
