AC Infinity 降噪夹 | 带不锈钢夹的管道耦合器 | 4 英寸

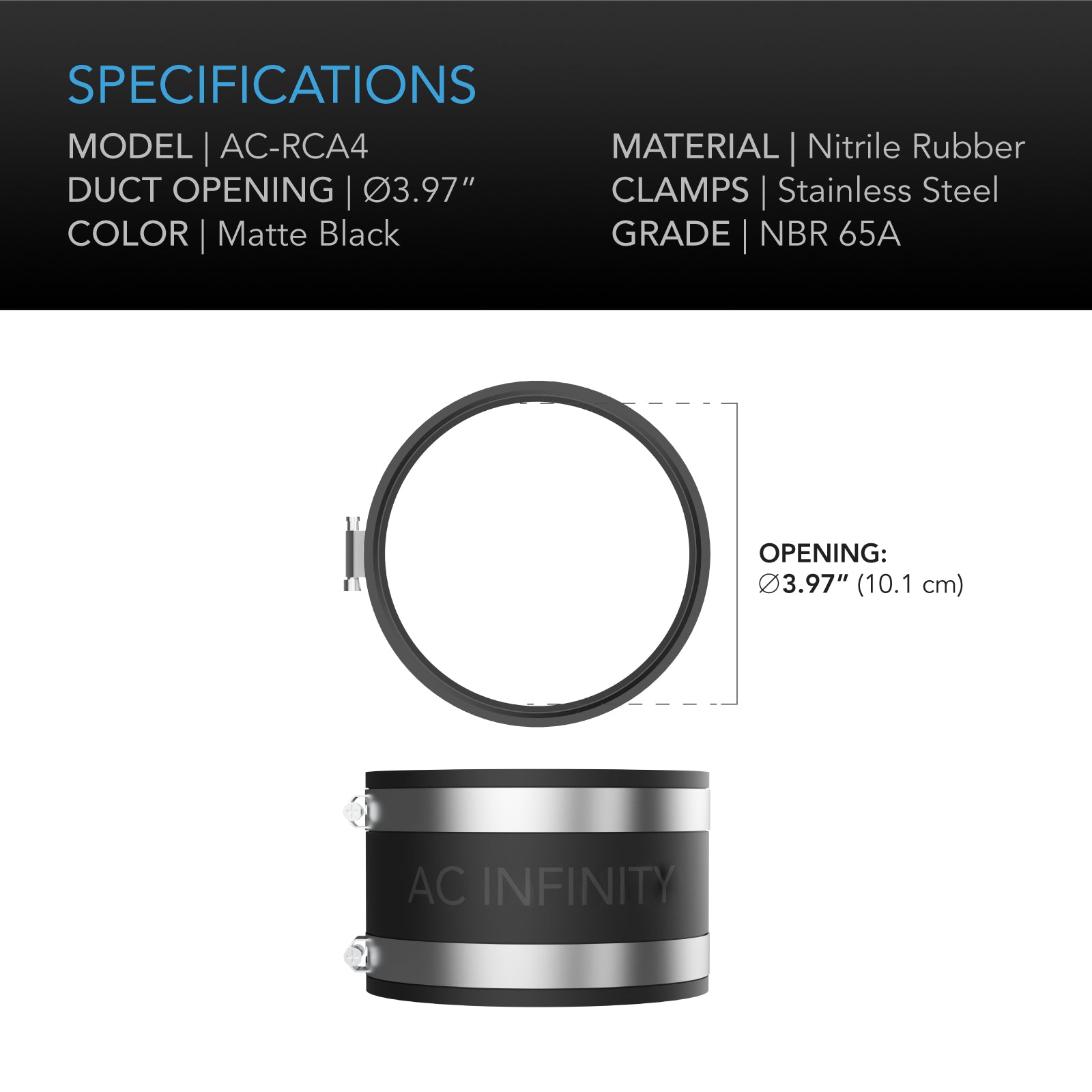

Quick Spec: Ducting Size: 4 in. (10.2 cm)  |  Material: Nitrile Rubber (NBR Grade 65A)  |  Clamp Material: Stainless Steel  |  Worm Drive: Phillips and Flat Head  |  SKU: AC-RCA4  |  UPC: 819137023529

Precision Control in Any Space

Every uncontrolled junction in a ducted atmospheric system is a liability. Loose couplings bleed pressure, force fans to work harder than their rated load, and transmit mechanical vibration through every connected component — degrading air exchange rates silently over time. In a sealed cultivation environment where atmospheric consistency is the single largest variable between a repeatable harvest and an inconsistent one, a leaking duct joint is not a minor inconvenience. It is a compounding loss: pressure drop compounds into temperature stratification, temperature stratification compounds into vapor pressure deficit deviation, and VPD deviation compounds into yield variance that no nutrient program or lighting schedule can fully correct. The enemy is not a single failed component — it is the accumulated cost of connections that were never engineered to hold.

After deploying a properly sealed duct network, the atmospheric system operates as a closed, predictable circuit. Inline fans run at their rated efficiency because they are not compensating for pressure loss at every coupling. Carbon filtration operates at its designed airflow rate because the path from intake to exhaust is sealed end to end. Vibration from fan motors does not propagate through rigid metal-to-metal contact points into the surrounding structure — it is absorbed at the coupling and dissipated before it reaches adjacent components. The result is a quieter, more stable environment where atmospheric variables stay within the tolerances the operator set, not the tolerances the equipment settled into on its own.

The mechanism behind that stability is the material specification of the coupler itself. NBR Grade 65A nitrile butadiene rubber provides the durometer hardness required to maintain a compression seal under continuous airflow pressure while remaining flexible enough to conform to port geometry without forcing alignment. The 4 in. (10.2 cm) bore fits inline fans and carbon filters with solid duct ports, and the two adjustable stainless steel hose clamps with worm drive locks — accepting both Phillips and flat head drivers — apply even radial compression around the full circumference of the joint, eliminating the pressure differentials that cause partial-seal leaks in single-clamp or tape-based installations. The matte black NBR construction absorbs sound waves generated by fan motor vibration and turbulent airflow, attenuating noise at the source rather than allowing it to propagate through the duct run. In practical terms, the AC Infinity Noise Reduction Clamp, Duct Coupler 4" delivers an airtight, vibration-damped duct junction at any 4 in. (10.2 cm) inline fan or carbon filter port using dual stainless steel worm-drive clamps on a Grade 65A NBR rubber body.

Where This Belongs (and Doesn't)

This coupler is designed for ducted atmospheric applications involving inline fans, carbon filters, mounting grilles, dampers, and compatible HVAC duct ports. It is not rated for pressurized fluid lines, high-temperature exhaust systems exceeding the thermal tolerance of NBR Grade 65A rubber, or duct ports that are not solid-walled. Verify port diameter before installation. This product does not replace electrical or refrigerant line connections.

How It Works

The AC Infinity Noise Reduction Clamp, Duct Coupler 4" operates on three simultaneous mechanical principles: compression sealing, vibration isolation, and radial load distribution. The NBR Grade 65A nitrile rubber body slides over two opposing duct ports, creating a flexible bridge between components. Grade 65A durometer places the material in the medium-firm range — firm enough to resist deformation under sustained negative or positive pressure differentials typical of inline fan operation, yet compliant enough to absorb the micro-movement and vibration generated by fan motor rotation without transmitting that energy into the rigid duct run on either side of the joint.

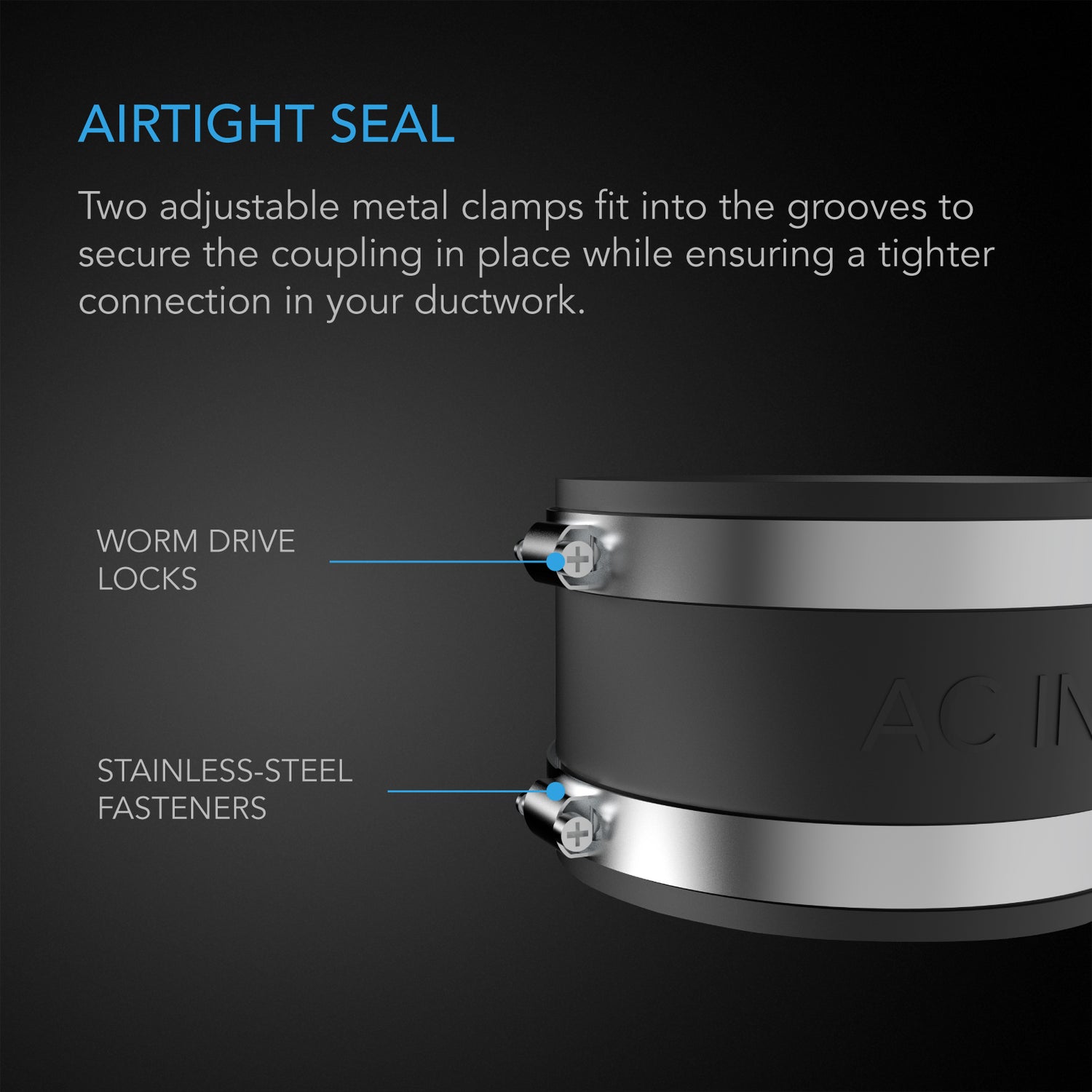

Once the rubber body is positioned over both ports, the two included stainless steel hose clamps are positioned at each end of the coupler and tightened using either a Phillips or flat head driver via the worm drive lock head. The worm drive mechanism converts rotational torque into even radial compression around the full circumference of the clamp band, eliminating the high-pressure point loads that cause rubber to extrude or deform under single-point fastening methods. Stainless steel construction ensures the clamp bands resist corrosion in the high-humidity environments common to sealed cultivation rooms, where condensation on duct surfaces would degrade carbon steel hardware over a single growing cycle. The airtight seal produced by this assembly prevents pressure loss at the junction, maintaining the airflow rate the inline fan was sized to deliver through the full length of the duct run. In practical terms, the AC Infinity Noise Reduction Clamp, Duct Coupler 4" creates a dual-clamped, airtight, vibration-damped junction at any 4 in. (10.2 cm) duct port using NBR Grade 65A rubber and corrosion-resistant stainless steel worm-drive hardware.

System Integration

• Integrates directly with AC Infinity inline duct fans (CLOUDLINE series and compatible models) at 4 in. (10.2 cm) port diameter — no adapter required
• Compatible with AC Infinity carbon filters and any third-party carbon filter with a solid 4 in. duct port, maintaining airtight connection between filtration and exhaust fan
• Functions as a vibration break point in multi-component duct runs, preventing fan motor noise from propagating through rigid aluminum or flexible ducting to adjacent structural surfaces
• Suitable for integration into atmospheric control ecosystems where duct integrity is a prerequisite for accurate VPD management, CO2 retention, and temperature uniformity
• Stainless steel clamp hardware is compatible with high-humidity controlled environments without corrosion-related degradation over extended deployment cycles

Facility Integration Data

The following table provides fleet-scale procurement reference data for operators integrating the AC Infinity Noise Reduction Clamp, Duct Coupler 4" (AC-RCA4) across multi-site or multi-room atmospheric control installations at $13.99 USD per unit MAP pricing.

Operator Field Notes

• Confirm port diameter is 4 in. (10.2 cm) solid-walled before installation — the NBR rubber body will not create a reliable compression seal on flared, flanged, or flexible-walled ports outside this specification
• Position each stainless steel clamp at least 6–10 mm from the end of the rubber coupler body before tightening to ensure the worm drive band engages the full thickness of the rubber over the port, not the unsupported edge
• Tighten both clamps incrementally and alternately rather than fully seating one before the other — this distributes radial compression evenly and prevents the coupler from walking off-center during installation
• In high-humidity environments, inspect clamp band tension at the first scheduled maintenance interval after initial deployment — NBR rubber will seat and compress slightly under sustained clamping load, which may require a minor retorque to maintain airtight seal integrity
• The matte black NBR body is UV-stable for indoor use but should not be exposed to prolonged direct UV or ozone sources at close range, which can accelerate surface oxidation in nitrile rubber compounds over extended deployment periods
• Both Phillips and flat head driver compatibility on the worm drive lock head allows installation in confined duct spaces where only one driver type may have clearance — carry both when working in tight enclosures

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be fulfilled.
• Fulfillment: Orders are processed and shipped from authorized distribution. Estimated lead times are provided at checkout based on destination and carrier availability. Cannafull Spectrum Solutions is not responsible for carrier delays after handoff.
• Returns: Returns are accepted for defective or damaged units in accordance with our Return Policy. Non-defective returns must be initiated within the return window specified at cannafullspec.com/pages/return-policy. Product must be in original, uninstalled condition to qualify.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions directly through cannafullspec.com before initiating a return or chargeback.

What's in the Box

• 1x Noise Reduction Clamp, Duct Coupler — NBR Grade 65A Nitrile Rubber, 4 in. (10.2 cm), Matte Black
• 2x Stainless Steel Hose Clamps with Worm Drive Lock Head (Phillips and Flat Head compatible)

Box contents confirmed against manufacturer product documentation for SKU AC-RCA4. Physical dimensions and unit weight are not specified in available source data. If dimensional or weight data is required for logistics planning, contact AC Infinity or Cannafull Spectrum Solutions prior to purchase. Do not assume additional accessories, installation hardware, or ducting are included unless explicitly listed above.

Regional Compliance & Deployment Notes

• The AC Infinity Noise Reduction Clamp, Duct Coupler 4" (AC-RCA4) is sold and shipped within the contiguous 48 United States only through Cannafull Spectrum Solutions.
• This product is a passive mechanical coupling component. It does not contain electrical, electronic, or pressurized components and is not subject to FCC, UL, or CE electrical certification requirements.
• Operators in licensed cultivation facilities should verify that duct coupling materials and installation methods comply with applicable state-level facility construction and ventilation standards for their license class.
• NBR Grade 65A nitrile rubber is a commercially standard material for HVAC and industrial ducting applications. Operators with facility-specific material compliance requirements should confirm NBR suitability with their compliance officer or facility engineer before deployment.
• No Canadian provincial compliance language, Health Canada certification, or CSA certification applies to this listing. This product is offered exclusively for deployment in licensed U.S. facilities and U.S. HVAC applications.

Compliance determinations are the responsibility of the purchasing operator. Cannafull Spectrum Solutions provides product specifications as documented by the manufacturer and does not provide regulatory or legal compliance advice. Verify all applicable local, state, and federal requirements for your facility and license class before procurement.
