AC Infinity 湿度罩 | 带育苗垫和 LED 生长灯条的发芽套件 | 6x12 细胞托盘

Precision Control in Any Space

Every failed propagation cycle has the same root cause: equipment that operates on its own schedule, in its own temperature band, at its own light intensity — none of it coordinated, none of it accountable. A heat mat that runs hot on one end and cold on the other. A dome that traps humidity without any mechanism to regulate it. Light bars sourced separately, mounted awkwardly, and drawing power from a circuit that was never designed to accommodate them. The result is a propagation environment defined by guesswork — where germination rates vary batch to batch, stem development is uneven, and the operator has no reliable baseline to build from. That variance is not a minor inconvenience; it is a compounding cost that erodes every cycle that follows.

After deploying the AC-HMX7, the propagation station operates as a single coordinated system. The dome maintains a stable humid atmosphere while four adjustable vents give the operator direct, calibrated control over vapor exchange. The heating mat holds a consistent 80–87°F substrate temperature across the entire tray footprint, accelerating germination without thermal hot spots. The LED bars run on a programmed daily schedule — dimmed or intensified as the growth stage demands — and the operator does not touch the setup between cycles. Seedlings emerge uniform, stems develop with structural integrity, and the transition to the next growth stage happens on a predictable timeline.

The mechanism behind that outcome is an integrated hardware architecture purpose-built for the 1020 tray format. Two Samsung LM301H EVO LED bars — 18 diodes per bar, 36 diodes total — deliver a dual-channel spectrum of 3000K and 5000K across the 6x12 cell grid at a combined 28W draw on 100–240V AC, 50/60 Hz. The dome is formed from 3mm PS plastic with a gloss finish that maximizes internal light reflection, and it is geometrically shaped to accept the LED bars without external mounting hardware. The IP-67 far-infrared heating mat operates at 115V, draws 20W, and maintains substrate temperature within the 80–87°F band across a 10 x 20.75 in. contact surface. Atmospheric control is managed through four rotary vents, and the included dimming timer controller provides four output levels with daily-repeat scheduling. In practical terms, the AC-HMX7 delivers coordinated light, heat, and humidity management across a 6x12 propagation footprint at a combined electrical load of 48W.

Where This Belongs (and Doesn't)

Electrical installation must comply with all applicable local codes. This unit operates on standard 115V wall outlet (NEMA 1-15 Type-A) for the heating mat and 100–240V AC for the LED controller. Consult a licensed electrician before integrating into any dedicated propagation room circuit. HVAC load calculations should account for the combined 48W thermal output of this unit when multiple stations are deployed in an enclosed environment.

How It Works

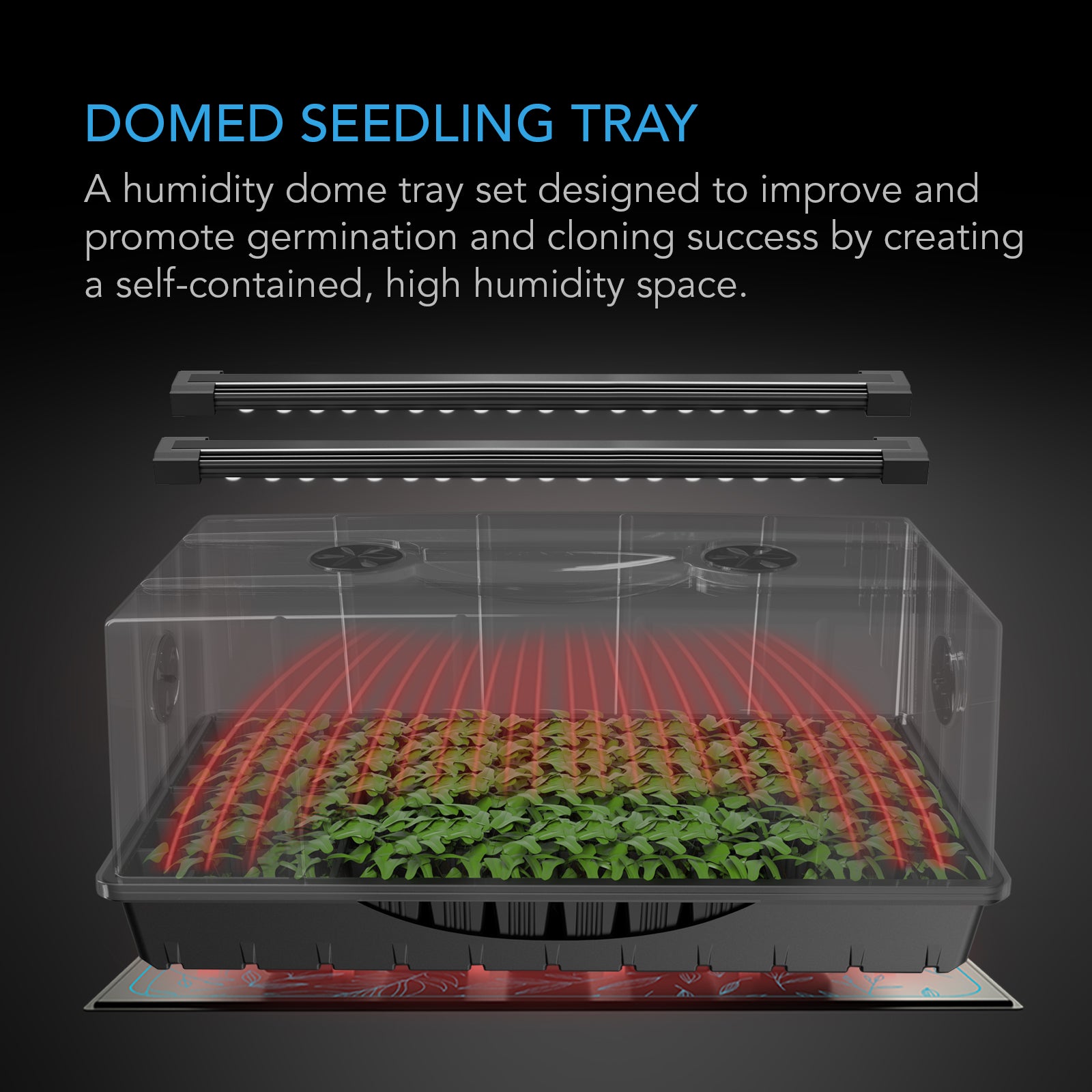

The AC-HMX7 functions as a closed-loop propagation ecosystem in which each subsystem — thermal, photonic, and atmospheric — operates within a defined parameter range and is controllable by the operator without interrupting the growth environment. The dome enclosure is constructed from 3mm PS plastic with a gloss finish, forming a rigid, light-reflective chamber over the 1020 tray footprint. Four rotary vents positioned across the dome surface allow precise vapor exchange management; each vent operates independently through smooth rotational adjustment, giving the operator granular control over internal relative humidity without removing the dome.

The thermal subsystem is the IP-67 far-infrared heating mat, rated for continuous operation at 115V with a maximum power draw of 20W. The mat's multilayer PVC outer construction encases a far-infrared film heating element that distributes warmth evenly across the 10 x 20.75 in. (20.4 x 52.7 cm) contact surface, maintaining substrate temperature within the 80–87°F band. An adjustable dial on the mat provides on/off control without requiring the operator to disturb the tray or dome assembly. The IP-67 waterproof rating ensures the mat remains fully operational in the high-humidity environment beneath the dome.

The photonic subsystem consists of two Samsung LM301H EVO LED bars, each carrying 18 diodes (36 total), operating across a dual-channel spectrum of 3000K and 5000K. Combined wattage is 28W on a 100–240V AC, 50/60 Hz input via US Plug (NEMA 1-15 Type-A). The LED bars are rated IP65 for moisture resistance and are specified for operation between 35–85% RH and 32–140°F ambient temperature, with a rated life expectancy of 50,000 hours. The dome's geometry is engineered to accept these bars directly — no external mounting brackets or secondary hardware required. The included dimming timer controller provides four discrete output levels and daily-repeat timer scheduling, allowing the operator to program a consistent photoperiod and intensity profile that repeats automatically each cycle. In practical terms, the AC-HMX7 delivers integrated thermal, spectral, and atmospheric control across a 6x12 propagation footprint at a combined electrical draw of 48W from a standard wall outlet.

Commercial Assurance

Cannafull Spectrum Solutions sources the AC Infinity AC-HMX7 directly through factory-authorized distribution channels. Every unit sold through this listing is a genuine AC Infinity product carrying the manufacturer's original specifications and any applicable manufacturer support terms.

• Warranty: Warranty terms are not specified in available manufacturer source data for this SKU. Contact Cannafull Spectrum Solutions or AC Infinity directly to confirm current warranty coverage before purchase.
• Authenticity: Factory-authorized dealer. Units are not gray-market, refurbished, or repackaged.
• Support: Pre-sale technical questions and post-sale support available through Cannafull Spectrum Solutions. Contact details in the Shipping & Logistics section.
• Compliance: LED bars rated IP65; heating mat rated IP-67. Electrical specifications comply with standard U.S. 115V/NEMA infrastructure.

Cannafull Spectrum Solutions is a factory-authorized dealer for AC Infinity products. All sales are subject to our published Return Policy at cannafullspec.com/pages/return-policy.

System Integration

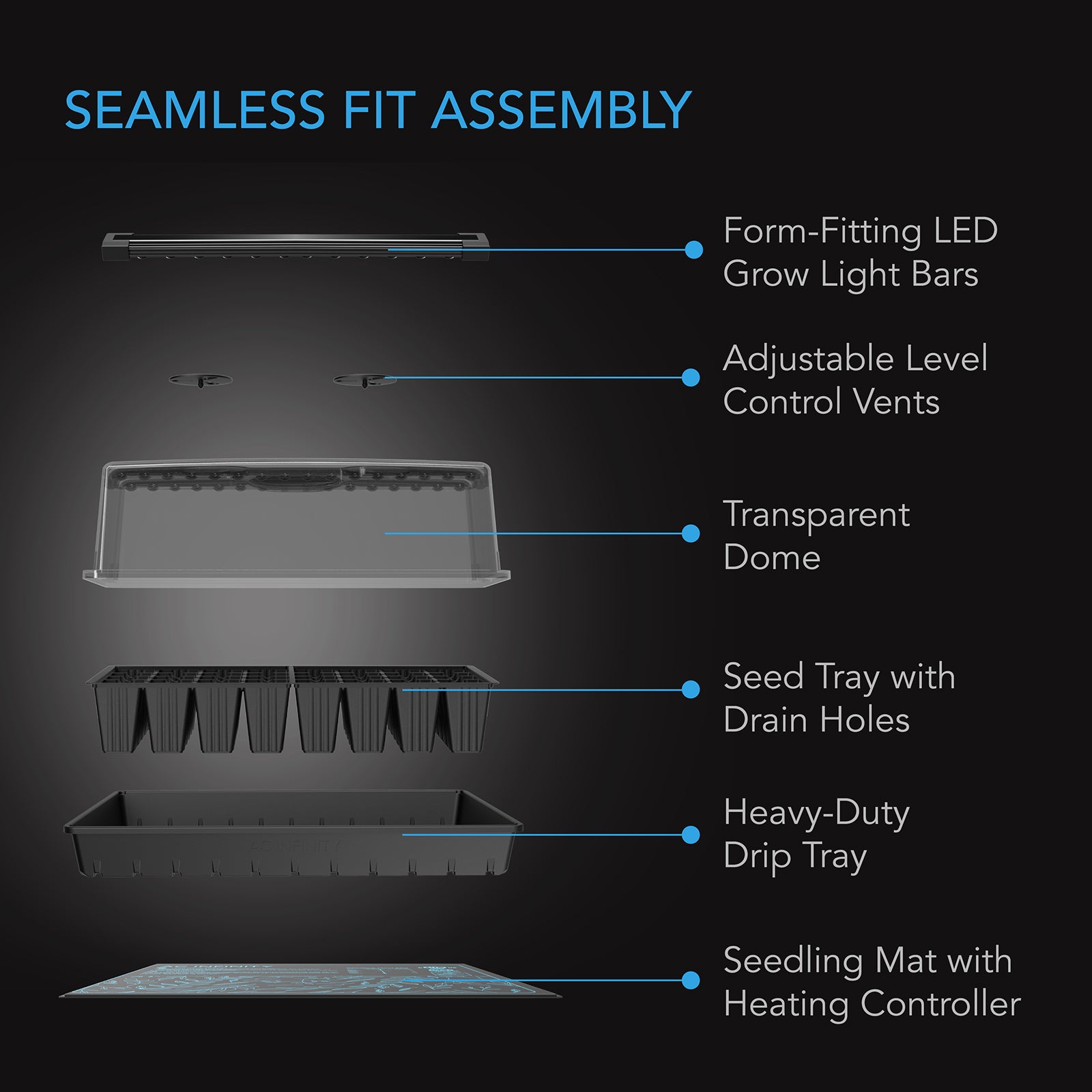

• Tray Compatibility: Designed for the standard 1020 tray format; drip tray and seedling tray fit seamlessly within the dome footprint to support up to 40 seedlings while containing runoff.
• Height Extension: An optional height extender is compatible with this dome, allowing the internal clearance to be increased for cloning projects requiring additional vertical space.
• Supplemental Lighting Deployment: The LED bars are relocatable and can be redeployed as supplemental lighting within a grow tent environment when the propagation cycle is complete, extending the utility of the photonic subsystem beyond the dome.
• Power Infrastructure: The heating mat requires a dedicated 115V wall outlet (NEMA 1-15 Type-A); the LED controller accepts 100–240V AC at 50/60 Hz. Both circuits should be accounted for in facility load planning when deploying multiple units.
• Atmospheric Integration: When deployed inside a grow tent, the dome's four rotary vents interact with the tent's ambient humidity and airflow — operators should calibrate vent position relative to the tent's exhaust and circulation configuration to maintain target internal RH.

Facility Integration Data

The following table models electrical load and seedling throughput for multi-unit deployments of the AC-HMX7 across a propagation room or tiered rack system, based on the unit's 48W combined draw (28W LED + 20W heating mat) and 40-seedling-per-cycle capacity.

Load calculations are based on maximum rated draw for both subsystems operating simultaneously. Actual consumption will vary with dimmer setting and mat dial position. Consult a licensed electrician for circuit planning in multi-unit deployments.

Operator Field Notes

• Vent Calibration: The four rotary vents are the primary tool for managing internal RH. In high-ambient-humidity environments, open vents incrementally rather than fully to avoid rapid vapor loss during early germination stages when consistent moisture is critical.
• Mat Temperature Verification: The far-infrared film distributes heat evenly, but operators running multiple units on a shared surface (e.g., a metal rack shelf) should verify substrate temperature with a calibrated probe during the first cycle — rack material can affect heat transfer at the tray contact point.
• Timer Programming: The four dimming levels allow operators to stage light intensity across the germination-to-seedling transition without reprogramming the controller. Establish a baseline schedule during the first cycle and document it; the daily-repeat function will hold that schedule without manual intervention.
• LED Bar Relocation: When transitioning seedlings out of the dome, the LED bars can be remounted as supplemental lighting within a grow tent. Retain the original mounting orientation data so reinstallation into the dome for the next propagation cycle is immediate.
• Height Extender Planning: If cloning is a regular part of the operation, source the compatible height extender at the time of initial purchase. Retrofitting after the first cycle is straightforward, but having it on hand eliminates a procurement delay between cycles.
• IP Rating Context: The heating mat's IP-67 rating means it is protected against temporary immersion. The LED bars are rated IP65 — protected against water jets but not immersion. Do not submerge the LED bars during cleaning; wipe down with a damp cloth only.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, and all international destinations including Canada are not fulfilled through this listing.
• Carrier & Transit: Standard ground shipping applies unless expedited service is selected at checkout. Delivery timelines vary by destination within the contiguous 48 states. Tracking information is provided upon shipment confirmation.
• Returns: Returns are accepted subject to our published Return Policy. Items must be in original, uninstalled condition with all original packaging and components present. Defective units are handled separately under manufacturer support terms — contact us before initiating a return on any unit exhibiting a functional defect.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Technical and Order Support: Cannafull Spectrum Solutions — cannafullspec.com | Contact available through the store's support portal.

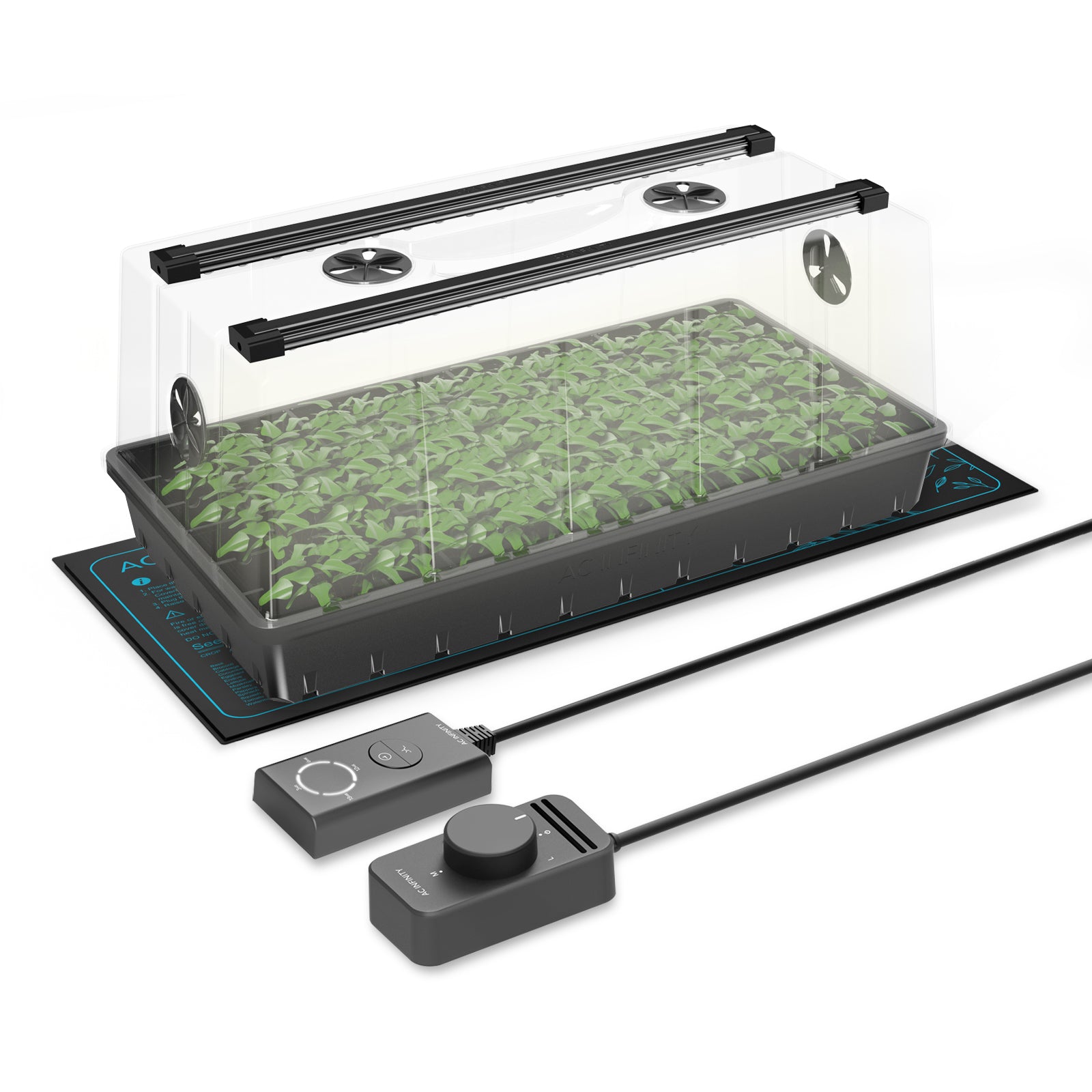

What's in the Box

The following components are confirmed as included with SKU AC-HMX7 based on manufacturer source data:

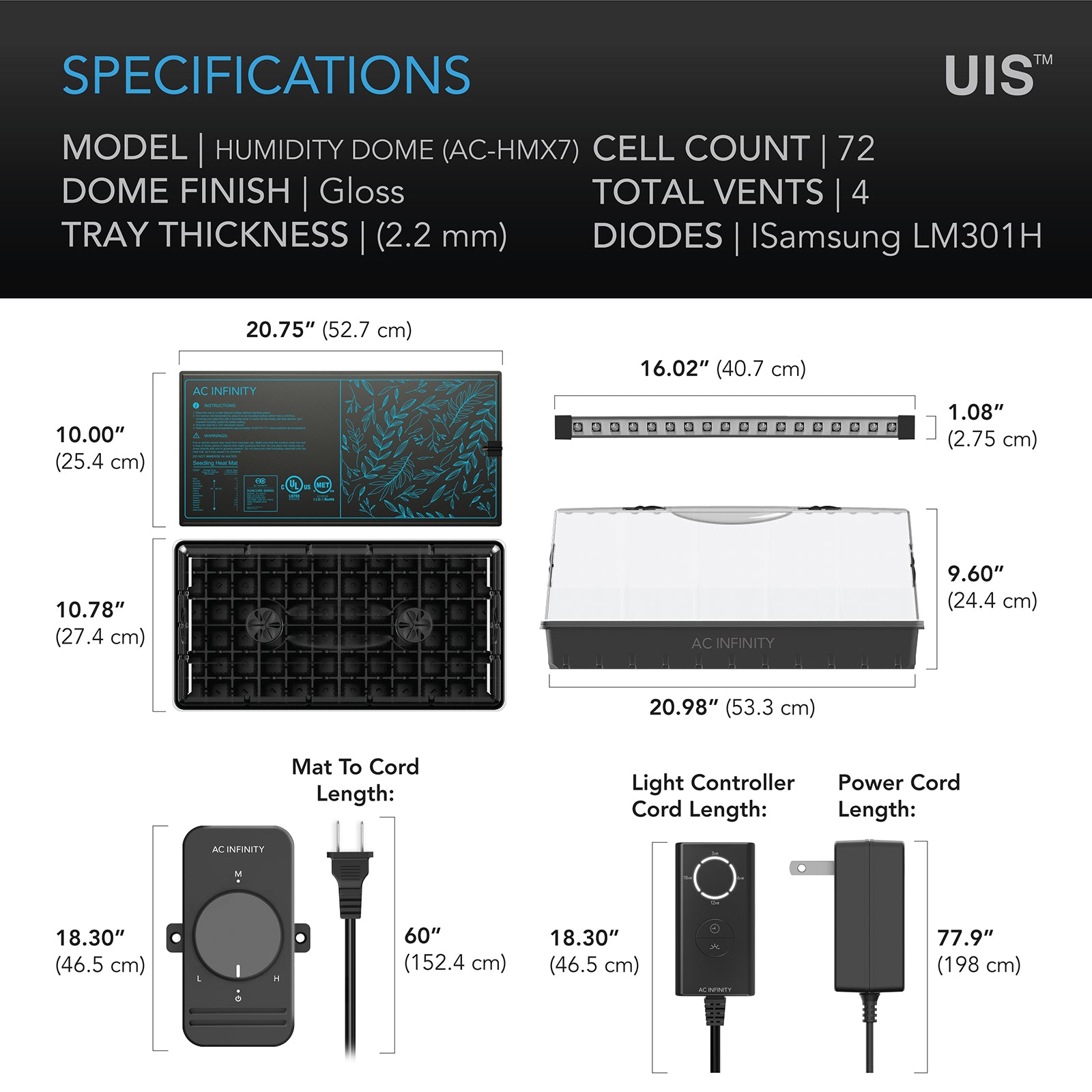

• 1x Heavy-Duty Humidity Dome — 3mm PS plastic, gloss finish, 6x12 cell grid, 4 rotary vents, 20.98 x 10.78 x 9.60 in.
• 2x Samsung LM301H EVO LED Light Bars — 18 diodes per bar, 3000K + 5000K spectrum, 28W combined, IP65, with dimming timer controller

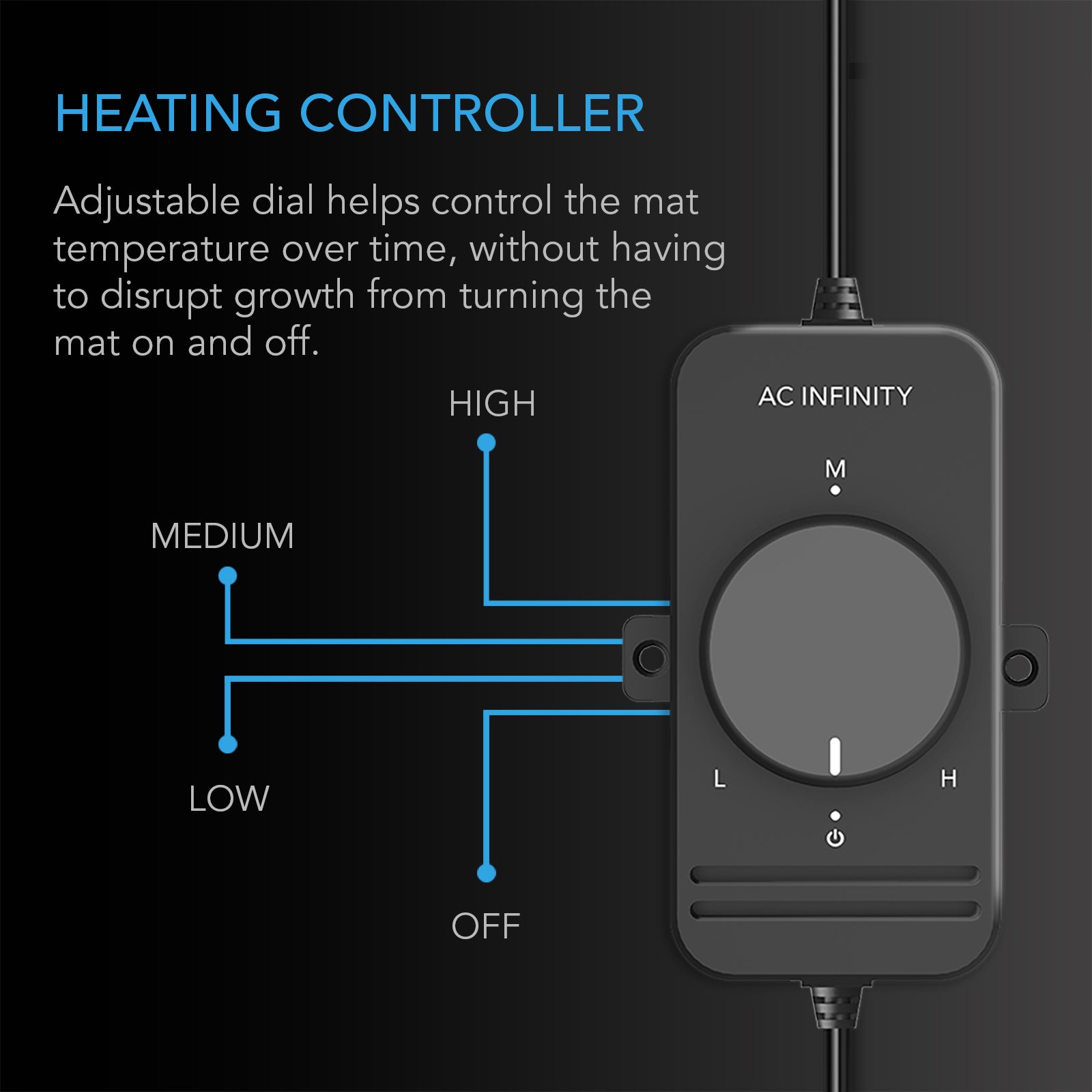

• 1x Far-Infrared Heating Mat — IP-67, 115V, 20W, 80–87°F, 10 x 20.75 in. contact surface, adjustable dial control

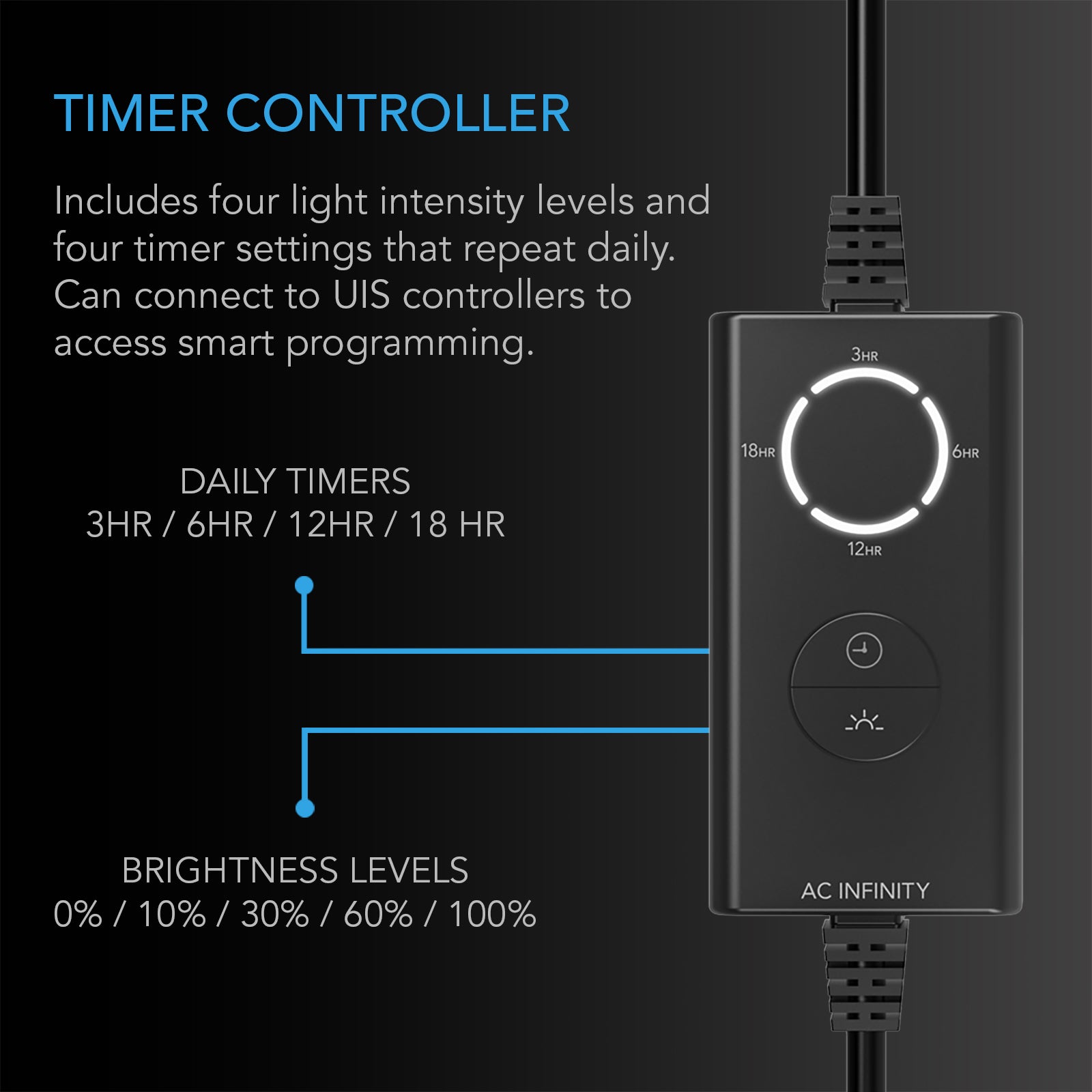

• 1x Dimming Timer Controller — four output levels, daily-repeat timer scheduling
• Drip tray and seedling tray (configured for up to 40 seedlings)

Note: The optional height extender is NOT included. It must be purchased separately. Component list is based on confirmed manufacturer source data for SKU AC-HMX7. If your shipment is missing any listed component, contact Cannafull Spectrum Solutions before opening or installing any part of the kit.

Regional Compliance & Deployment Notes

• Electrical Standard: The heating mat is rated for 115V operation via standard NEMA 1-15 Type-A wall outlet. The LED controller accepts 100–240V AC at 50/60 Hz. Both are compatible with standard U.S. residential and commercial electrical infrastructure within the contiguous 48 states.
• Ingress Protection: Heating mat is rated IP-67 (protected against temporary immersion up to 1 meter for 30 minutes). LED bars are rated IP65 (protected against low-pressure water jets from any direction). Neither rating constitutes approval for permanent wet-location installation under NEC Article 410 or equivalent local codes.
• State-Level Cultivation Compliance: This product is a propagation tool. Its purchase and use are not subject to cannabis-specific licensing requirements in any U.S. jurisdiction. However, the cultivation activities it supports may be subject to state and local licensing, canopy limits, and facility inspection requirements. Operators are responsible for ensuring their propagation operations comply with all applicable state regulations in their jurisdiction.
• No Canadian Distribution: This listing does not ship to Canadian provinces or territories. No CSA certification or Health Canada compliance language applies to this listing.
• FCC / Emissions: Compliance documentation for the LED driver and controller is not specified in available source data. Operators deploying this unit in facilities subject to RF emissions audits should confirm FCC compliance status directly with AC Infinity prior to installation.

All compliance determinations are the responsibility of the purchasing operator. Cannafull Spectrum Solutions provides product specifications as supplied by the manufacturer and does not provide legal, electrical, or regulatory compliance advice. Specifications are subject to change by the manufacturer without notice; confirm current specifications with AC Infinity for critical infrastructure planning.
