AC Infinity 湿度罩 | 带育苗垫和 LED 生长灯条的发芽套件 | 5x8 细胞托盘

Quick Spec: SKU: AC-HMX5  |  LED: 28W, 3000K + 5000K, Samsung LM301H EVO  |  Heating Mat: 20W, IP-67, 80–87°F  |  Capacity: 40 cells (5x8 grid)  |  Dome: 3mm PS Plastic, Gloss  |  Timer: 3HR / 6HR / 12HR / 18HR repeating daily

Precision Control in Any Space

Every failed germination cycle and every inconsistent clone batch traces back to the same root cause: an environment that operates on assumption rather than specification. Ambient temperature swings that no one measured. Humidity that peaked and crashed between checks. Light that ran on a timer someone set weeks ago and never revisited. The cost is not just the lost plant material — it is the compounding labor of re-seeding, re-cloning, and re-scheduling production timelines that were built around output that never arrived. Guesswork and equipment that fights you do not announce themselves as the problem; they disguise themselves as biological variability until the pattern becomes undeniable.

After deployment of the AC-HMX5, the propagation station operates as a closed atmospheric unit. Substrate temperature holds within a defined band. Light intensity and duration execute on a repeating daily schedule without operator intervention. Humidity accumulates and vents according to the position of the dome's adjustable vents — set once per stage, not monitored continuously. The 40-cell tray produces a uniform cohort of seedlings or clones that enter the vegetative environment on schedule, not on hope. The operator's role shifts from environmental firefighting to periodic confirmation.

The mechanism behind that outcome is a three-system integration housed in a single deployable unit. The Duo IONBEAM LED light bars run Samsung LM301H EVO diodes — 12 per bar — across a dual-channel spectrum of 3000K and 5000K, drawing 28W at 100–240V AC, 50/60 Hz, with four discrete dimming levels (10%, 30%, 60%, 100%) and a built-in dimming timer configurable to 3HR, 6HR, 12HR, or 18HR repeating daily cycles. The SUNCORE heating mat uses far-infrared film technology rated IP-67, operating at 115V with a 20W maximum draw, and delivers substrate temperatures across the 80–87°F range via a three-position dial (Low, Medium, High) — without cycling on and off in a way that disrupts root zone stability. The 3mm gloss PS plastic dome, measuring 14.24 in. x 9.09 in. x 6.57 in. (10.70 in. with extender), provides the enclosure with 2 adjustable vents standard and 4 with the optional height extender, which raises the interior clearance to 10.70 in. (27.2 cm) for cloning applications. In practical terms, the AC-HMX5 delivers automated light scheduling, calibrated far-infrared substrate heat, and operator-set humidity venting across a 40-cell propagation footprint at a combined electrical draw of 48W.

Where This Belongs (and Doesn't)

The AC-HMX5 operates at 115V (heating mat) and 100–240V AC (LED bars) via standard wall outlet and US Plug (NEMA 1-15 Type-A) connections. No dedicated circuit, HVAC tie-in, or electrical modification is required. Confirm that the deployment surface is level, stable, and within reach of a standard outlet before positioning the unit.

How It Works

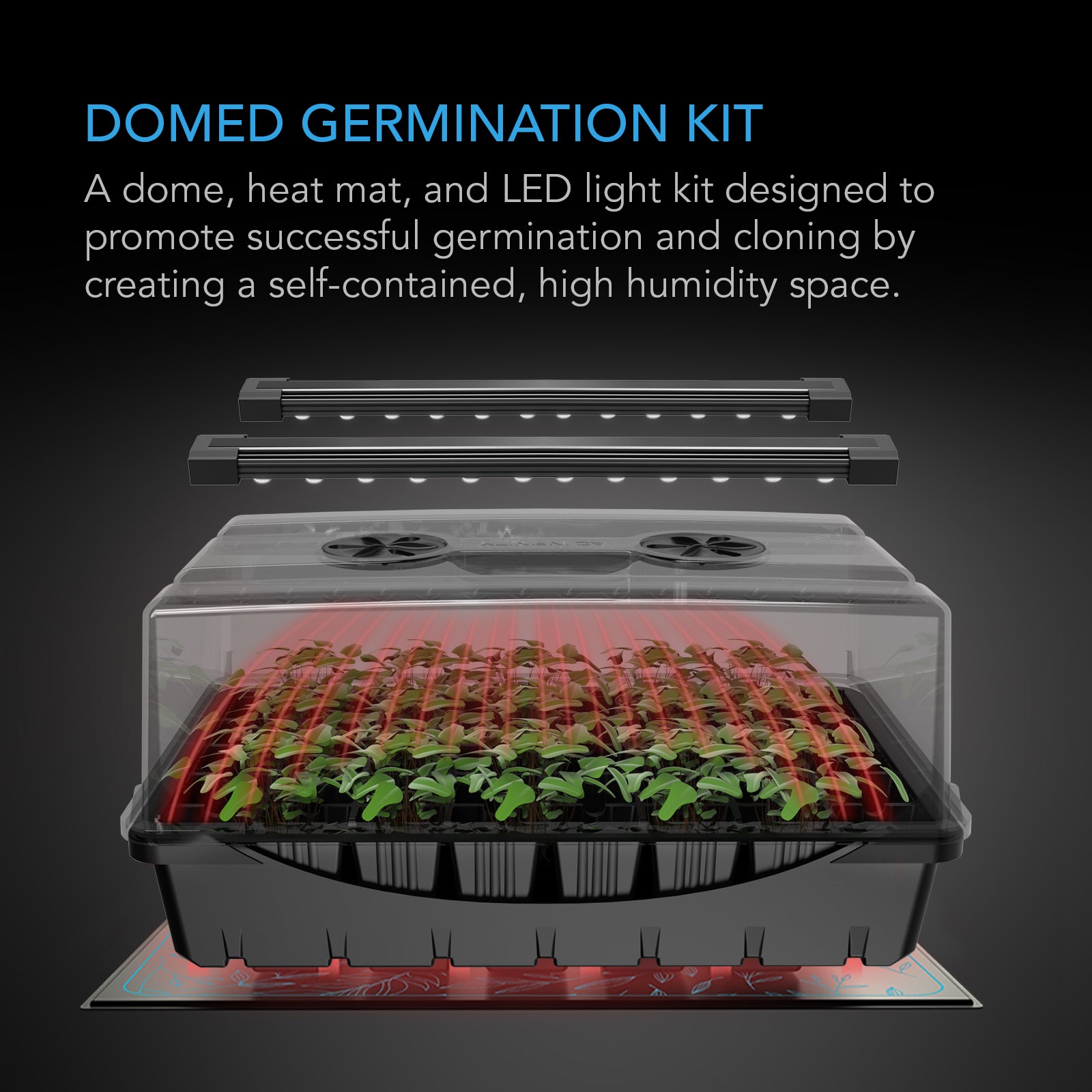

The AC-HMX5 functions as a unified propagation ecosystem in which three independently controlled subsystems — atmospheric enclosure, substrate heating, and spectral lighting — operate within a single deployable footprint. Understanding each subsystem's mechanism clarifies why the system produces consistent output rather than variable results.

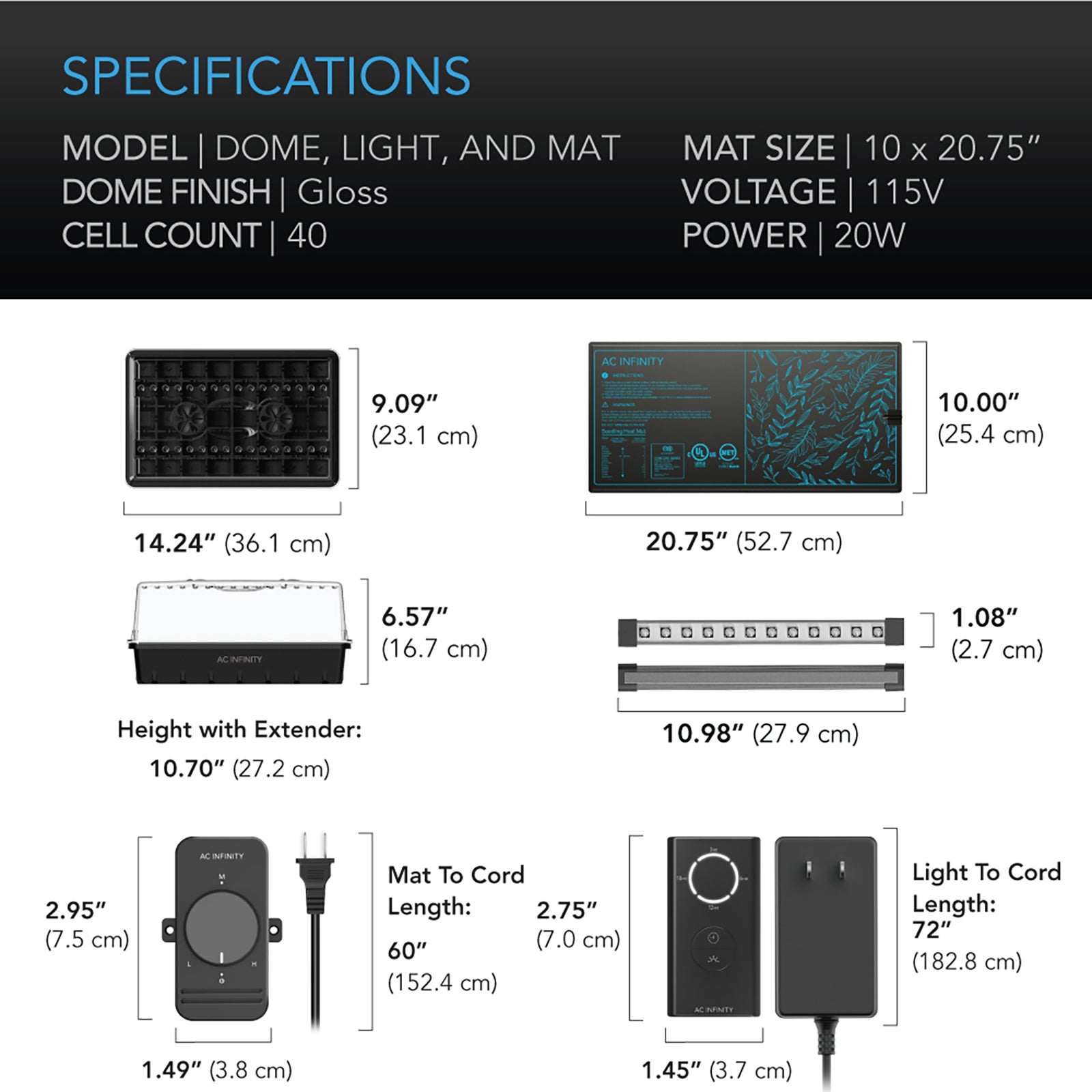

Atmospheric Enclosure — Dome and Vent Architecture: The dome is constructed from 3mm gloss PS plastic, providing structural rigidity and optical clarity for visual monitoring without dome removal. In standard configuration, 2 adjustable vents allow the operator to set a fixed humidity accumulation and release rate appropriate to the germination stage. When the optional height extender is applied, the interior clearance increases from 6.57 in. (23.1 cm) to 10.70 in. (27.2 cm), and vent count expands to 4, providing additional atmospheric control surface for cloning applications where canopy height and transpiration rates differ from seedling germination. The extender is transparent, preserving visual access to the tray without disrupting the enclosure's thermal and humidity retention properties.

Substrate Heating — SUNCORE Far-Infrared Mat: The SUNCORE heating mat uses far-infrared film technology to deliver radiant heat directly to the substrate rather than warming ambient air first. The mat measures 10 x 20.75 in. (20.4 x 52.7 cm), matching the tray footprint precisely. It is constructed from multilayer PVC, operates at 115V from a standard wall outlet, draws a maximum of 20W, and carries an IP-67 waterproof rating — meaning it is rated for full submersion up to 1 meter for 30 minutes, making incidental irrigation contact a non-event operationally. The three-position dial (Low, Medium, High) allows the operator to target the 80–87°F substrate temperature range appropriate to the species and stage without cycling the mat on and off, which would introduce temperature variance at the root zone.

Spectral Lighting — Duo IONBEAM LED Bars: The two IONBEAM LED light bars each carry 12 Samsung LM301H EVO diodes across a dual-channel spectrum of 3000K (warm, red-shifted) and 5000K (neutral, blue-shifted), providing a combined spectral output appropriate for seedling photomorphogenesis and early vegetative development. Total system draw is 28W at 100–240V AC, 50/60 Hz, making the bars compatible with both domestic and international power infrastructure. The integrated dimming timer controller provides four intensity levels — 10%, 30%, 60%, 100% — and four repeating daily timer settings — 3HR, 6HR, 12HR, 18HR — eliminating manual on/off intervention. The bars carry an IP65 rating and are rated for 50,000 hours of operational life. The bars are relocatable and can function as supplemental lighting in grow tent environments when not in use as the primary propagation light source. In practical terms, the AC-HMX5 delivers 28W of Samsung LM301H EVO spectral output across a 40-cell, 5x8 propagation grid with a combined system draw of 48W and zero manual scheduling requirements after initial timer configuration.

System Integration

• Grow Tent Compatibility: The Duo IONBEAM LED bars are relocatable and can be repositioned as supplemental lighting within grow tent environments, extending the utility of the lighting subsystem beyond the propagation cycle.
• Multi-Unit Propagation Arrays: The AC-HMX5's compact footprint (14.24 in. x 9.09 in. base) allows multiple units to be staged in parallel on standard propagation benching, with each unit independently controlled for temperature, humidity, and light schedule.
• Power Infrastructure: The heating mat operates at 115V via standard wall outlet; the LED bars operate at 100–240V AC via US Plug (NEMA 1-15 Type-A). No dedicated circuit or panel modification is required for single or multi-unit deployment.
• Tray and Cell Compatibility: The 5x8 cell grid accommodates up to 40 seedling cells. The seedling mat footprint of 10 x 20.75 in. (20.4 x 52.7 cm) is sized to standard 1020 propagation tray formats.
• Stage Transition: The optional height extender transitions the same dome enclosure from a seedling germination configuration (6.57 in. interior height) to a cloning configuration (10.70 in. interior height) without requiring a separate unit or dome replacement.

Facility Integration Data

The following table provides fleet-scale electrical and operational reference data for operators integrating multiple AC-HMX5 units into a propagation room or staged production workflow. Combined draw figures reflect simultaneous operation of both the heating mat (20W) and LED bars (28W) per unit at full power.

Operator Field Notes

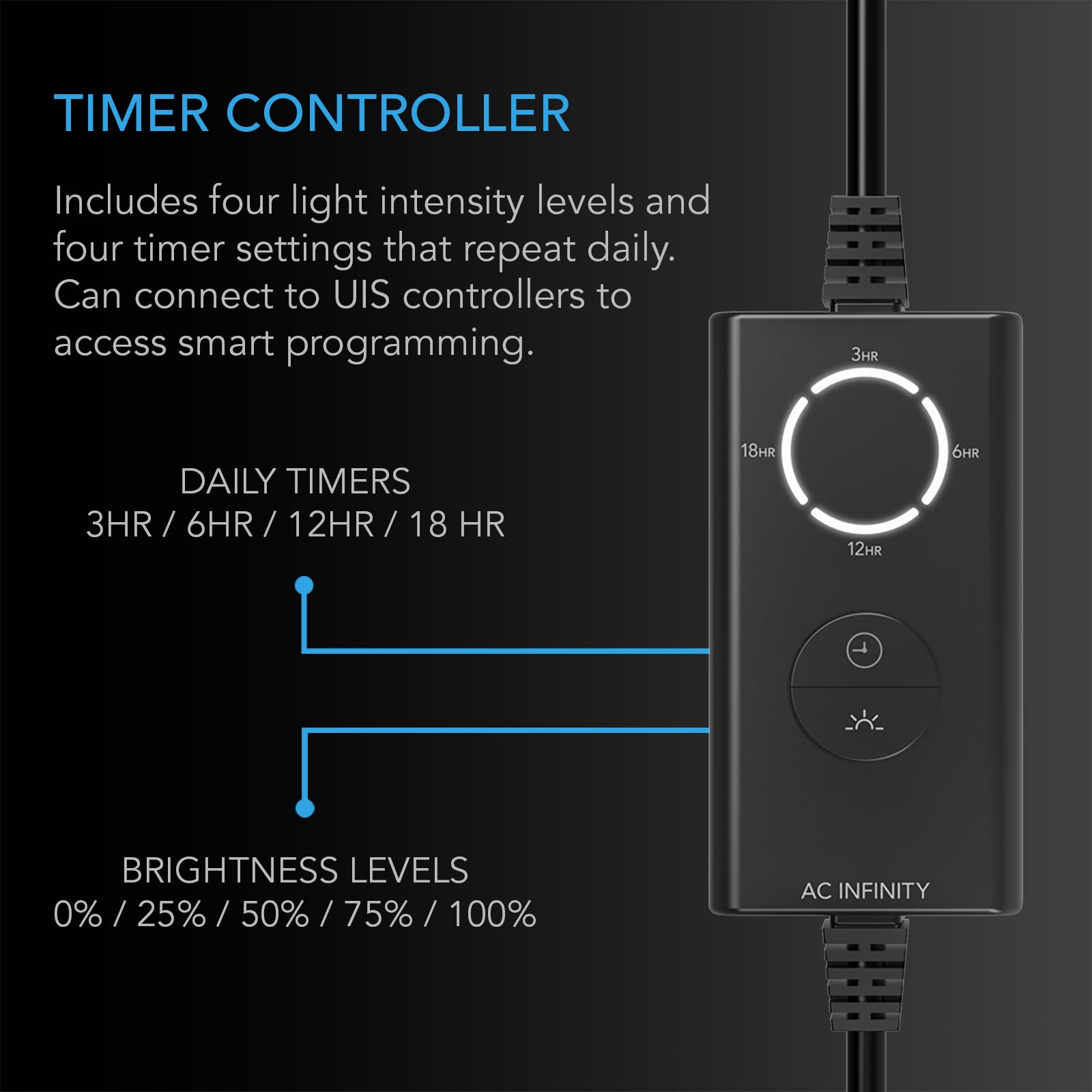

• Timer Configuration: Set the dimming timer before sealing the dome. The four repeating daily timer options (3HR, 6HR, 12HR, 18HR) eliminate the need for external timers or manual switching — configure once per stage, not per cycle.
• Vent Position Protocol: Adjustable vents should be set to a partially open position during early germination to allow CO2 exchange while retaining humidity. Increase vent opening progressively as seedlings develop to harden the microclimate toward ambient conditions before transplant.

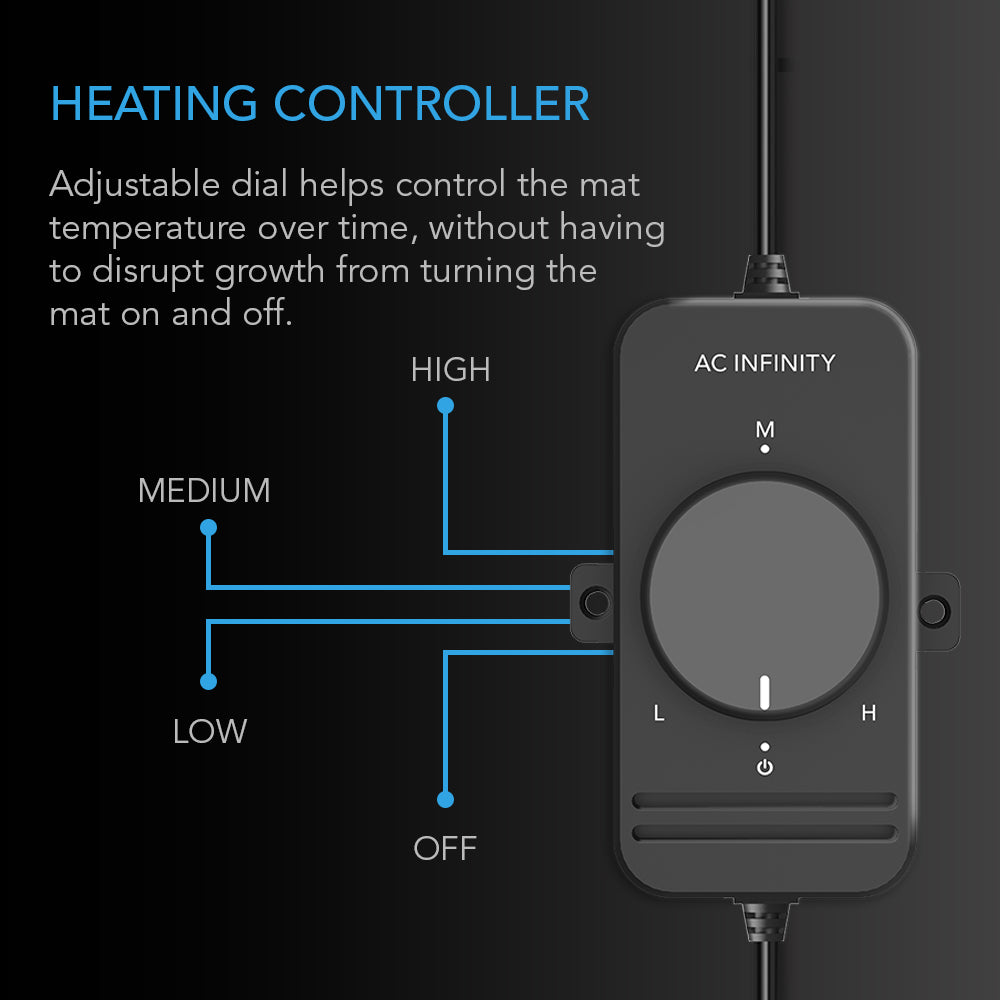

• Heating Mat Dial Calibration: The Low/Medium/High dial does not display a numeric temperature readout. Use a substrate thermometer during initial setup to confirm which dial position achieves the target temperature range (80–87°F) for your specific media and ambient room temperature before sealing the dome.
• Height Extender Deployment: Apply the transparent height extender when transitioning the unit to cloning applications. The extender raises interior clearance from 6.57 in. to 10.70 in. and adds 2 additional vents (total: 4), providing the atmospheric control surface appropriate for clone transpiration rates.
• Drainage Management: The tray includes drainage holes for excess water management. Position the unit on a surface that accommodates drainage runoff, or use a secondary catch tray beneath the seedling mat to prevent water accumulation under the heating mat.
• LED Bar Relocation: The Duo IONBEAM bars are designed to be relocatable. When the propagation cycle is complete, the bars can be repositioned as supplemental lighting within a grow tent environment, extending their operational utility beyond the propagation stage.

Operator FAQ

Shipping and Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, and international destinations are outside our current shipping scope.
• Lead Time: In-stock units typically ship within 1–3 business days. Confirm current availability and estimated delivery windows at cannafullspec.com or by contacting our team directly.
• Returns: Returns are accepted in accordance with our Return Policy. Items must be in original, uninstalled condition with all original packaging and components present. Defective units are handled separately under applicable warranty terms.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For fleet orders, lead time confirmation, or pre-purchase technical questions, contact Cannafull Spectrum Solutions at cannafullspec.com.

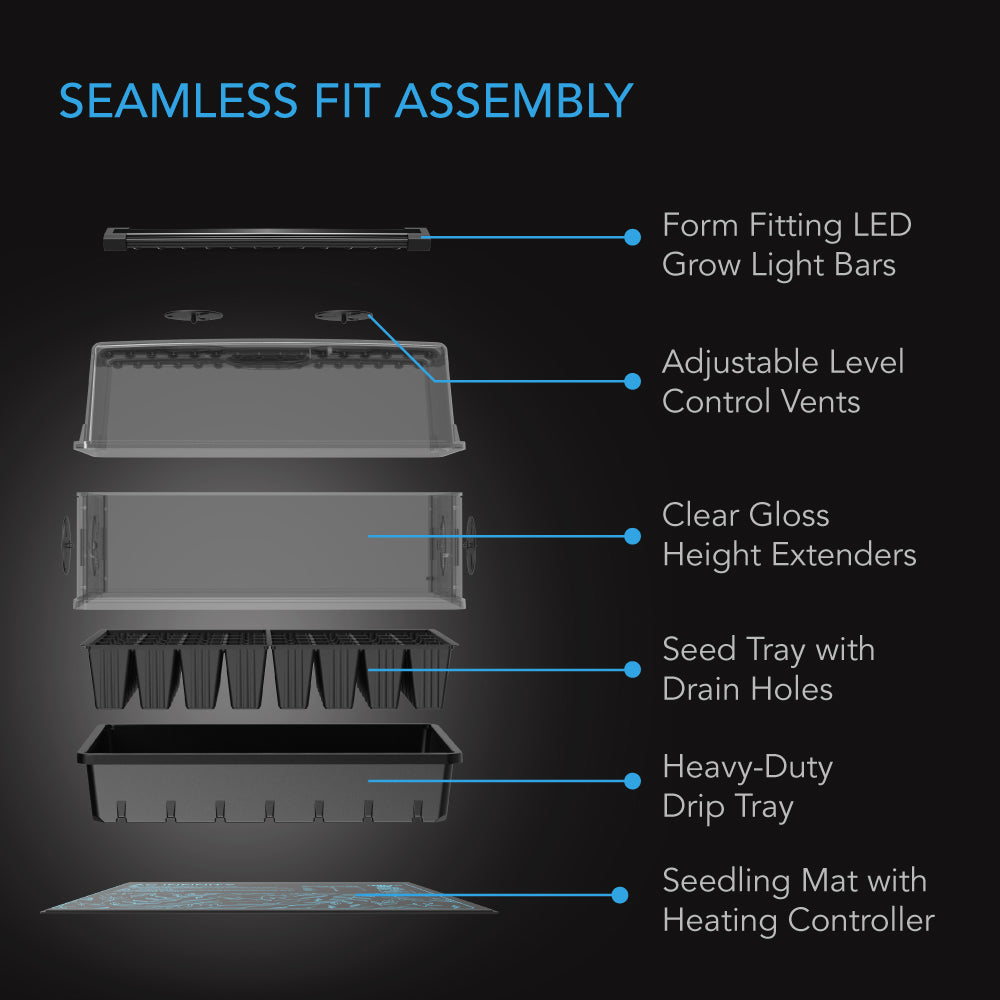

What's in the Box

The following components are confirmed in source documentation for SKU AC-HMX5:

• 1x 3mm gloss PS plastic humidity dome (standard height: 6.57 in. / 23.1 cm)
• 1x Transparent height extender (extends dome to 10.70 in. / 27.2 cm)
• 1x 40-cell seedling tray (5x8 grid, with drainage holes)
• 1x SUNCORE far-infrared heating mat — 10 x 20.75 in. (20.4 x 52.7 cm), IP-67, 20W, 115V
• 2x Duo IONBEAM LED light bars — Samsung LM301H EVO, 12 diodes per bar, 3000K + 5000K, 28W total, IP65
• 1x Dimming timer controller — 4 intensity levels, 4 timer settings, repeating daily
• 1x US Plug (NEMA 1-15 Type-A) power connector for LED bars

Note: Box contents are based on available source documentation. Confirm complete contents against the physical packing list upon receipt. If any component is missing or damaged, contact Cannafull Spectrum Solutions before installation. Warranty terms are not specified in available source data — contact cannafullspec.com for current warranty documentation.

Regional Compliance and Deployment Notes

• Power Compatibility: The SUNCORE heating mat operates at 115V, 60Hz via standard US wall outlet. The Duo IONBEAM LED bars operate at 100–240V AC, 50/60Hz via US Plug (NEMA 1-15 Type-A), confirming compatibility with standard US residential and commercial power infrastructure.
• Waterproof Ratings: The heating mat is rated IP-67; the LED bars are rated IP65. These ratings are manufacturer-assigned and reflect performance under controlled test conditions. Operators should confirm that deployment conditions do not exceed the parameters under which these ratings were assigned.
• Electrical Load Planning: At full simultaneous operation, the AC-HMX5 draws a maximum of 48W (20W mat + 28W LED bars). Multi-unit deployments should be load-planned against available circuit capacity before installation. No dedicated circuit is required for single-unit operation on a standard 15A or 20A circuit.
• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. This product is not currently available for shipment to Alaska, Hawaii, U.S. territories, or international destinations.
• Regulatory Compliance: Operators in licensed cultivation jurisdictions should confirm that propagation equipment specifications align with any facility-level equipment documentation requirements applicable to their state license. Compliance determination is the responsibility of the licensed operator.

Product specifications are sourced from manufacturer documentation and are subject to change without notice. Cannafull Spectrum Solutions makes no representations beyond what is stated in current manufacturer source data. Warranty terms for SKU AC-HMX5 are not specified in available source documentation — contact cannafullspec.com for current warranty terms before purchase. All electrical, compliance, and installation decisions remain the responsibility of the purchasing operator and their qualified personnel.
