Where This Belongs (and Doesn't)

This ducting is a passive airflow component. It does not replace inline fan controllers, carbon filter housings, or motorized dampers. Installations involving electrical penetrations, fire-rated assemblies, or commercial HVAC trunk systems must be reviewed by a licensed mechanical contractor. Verify local building and fire codes before routing through wall cavities or ceiling plenums.

How It Works

The AI-DTA6 is built around a four-layer wall architecture that separates structural, thermal, and mechanical protection functions into discrete material layers rather than relying on a single material to perform all three. This is the engineering distinction between duct that holds its geometry under load and duct that deforms, leaks, and requires replacement.

Layer 1 and 2 — Interior Dual Aluminum Foil: The innermost two layers are heavy-duty dual aluminum foil. Aluminum foil maintains a smooth bore surface that minimizes friction loss across the 300-inch run length, and the dual-layer construction provides fire and flame resistance at the airflow boundary — the layer most directly exposed to heat from exhaust air, lighting fixtures, and equipment cooling loads. This interior assembly resists the thermal cycling that causes single-layer foil to crack and delaminate over time.

Layer 3 and 4 — Exterior Dual PVC Thermoplastic: The outer two layers are dual PVC thermoplastic. PVC absorbs the mechanical abuse that occurs during installation and in-service routing — contact with framing lumber, conduit, equipment enclosures, and concrete surfaces. The dual-layer exterior stops cuts and tears from propagating to the aluminum core and provides the leak-stopping outer membrane that keeps conditioned air inside the duct bore. A single-layer foil exterior has no mechanical buffer between the aluminum and the installation environment; the AI-DTA6's PVC shell eliminates that vulnerability.

Steel-Wire Spiral Reinforcement: A continuous steel-wire spiral runs the full 300-inch (25 ft) length of the duct. The spiral maintains bore geometry at bend radii where unsupported flexible duct collapses and restricts airflow. It also allows the duct to be routed through hard-to-reach spaces — behind equipment, through framing bays, around corners — without requiring rigid support at every contact point. The steel-wire structure is what makes the duct genuinely flexible rather than simply collapsible.

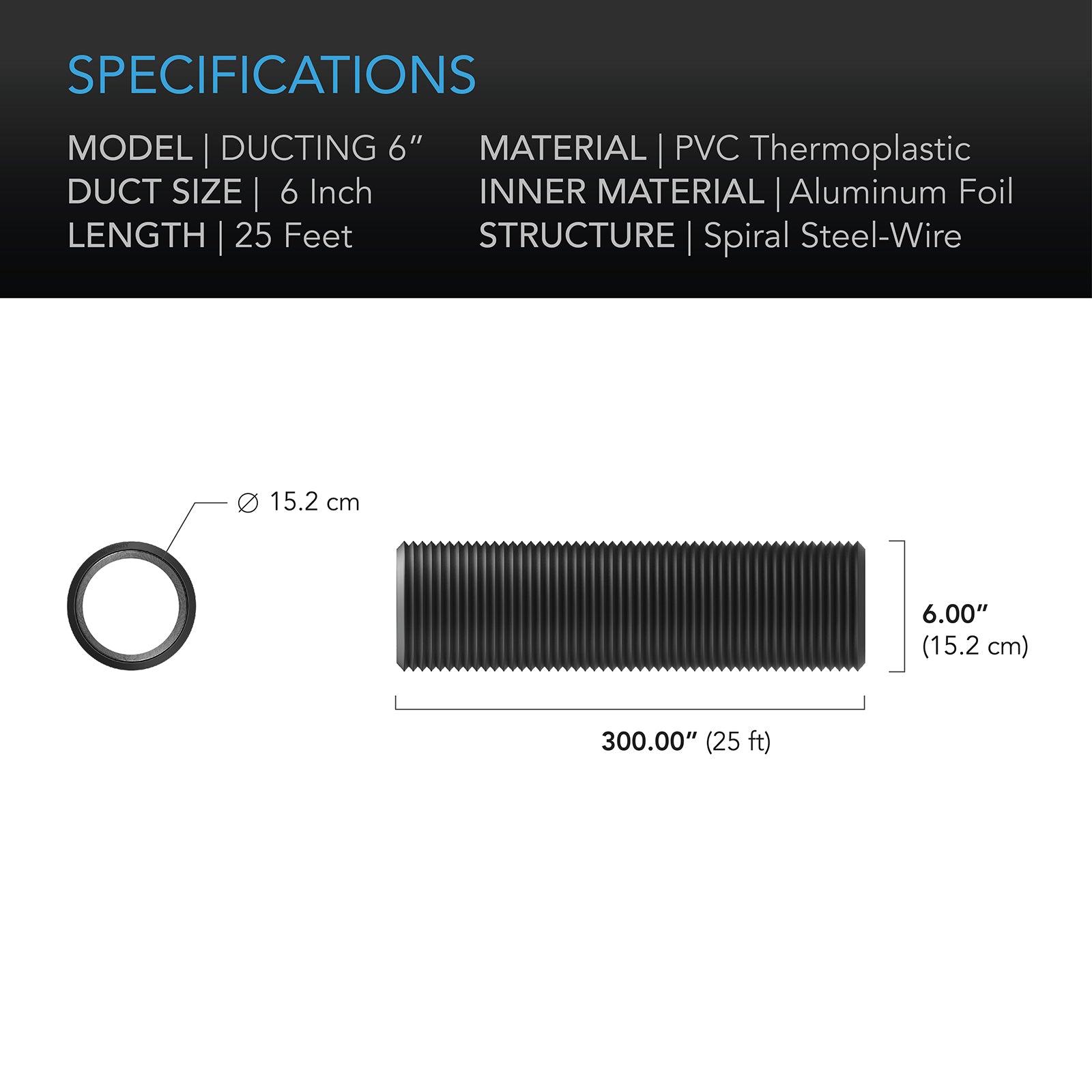

Dimensional and Accessory Specification: The duct diameter is 6 inches (15.2 cm), matching the collar diameter of the most widely deployed inline fans in controlled-environment configurations. Total run length is 300 inches (25 ft). The tube can be shortened to any required run length using standard sheet metal shears or a utility knife, allowing exact-fit installation without excess duct that would otherwise be coiled and left to restrict airflow. Two stainless steel 6-inch duct clamps are included, providing immediate mechanical termination at both the fan collar and the exhaust or intake terminus without requiring a separate hardware order. In practical terms, the AI-DTA6 delivers a 300-inch sealed airflow bore at 6-inch diameter with four-layer wall construction, steel-wire spiral reinforcement, and two included stainless steel clamps ready for same-session installation.

Configuration Decoder — Select the Right Run Length and Diameter

All variants in this product line share the same four-layer aluminum construction and steel-wire spiral reinforcement. Select diameter based on your inline fan collar size and select length based on your measured run distance. Cutting to length is supported on all variants.

Detailed material specifications (outer layer, inner layer, steel-wire spiral) are confirmed for AI-DTA6. All variants carry the four-layer aluminum designation per product line naming. Weight and warranty data are not specified in source data for any variant.

Commercial Assurance

Cannafull Spectrum Solutions sources the AI-DTA6 directly through factory-authorized distribution channels. Every unit shipped carries the manufacturer's original product warranty. Warranty duration is not specified in source data — contact our team or the manufacturer directly for current warranty terms before purchase if warranty coverage is a procurement requirement.

• Authorized Channel: Purchased through factory-authorized distribution. No gray-market or refurbished units.
• Warranty Coverage: Manufacturer warranty applies. Duration not specified in source data — verify current terms at point of purchase.

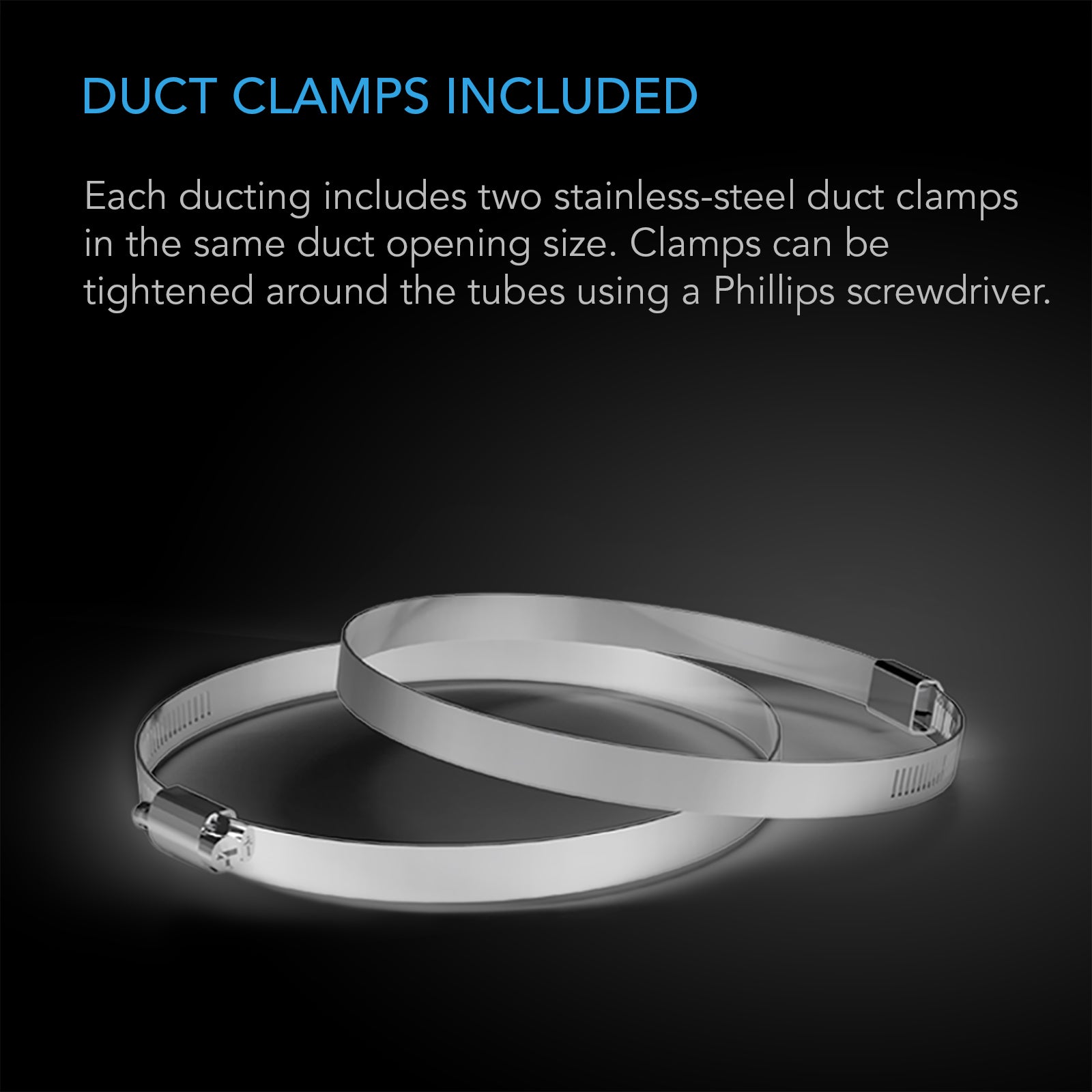

• Included Hardware: Two stainless steel 6-inch duct clamps confirmed included with AI-DTA6. No additional clamp purchase required for a two-end termination.
• UPC Verification: AI-DTA6 UPC: 819137020368. Use for procurement system entry and receiving verification.
• Deployment Footprint: Stocked and shipped to licensed commercial facilities across the contiguous United States.

System Integration

• Inline Fan Compatibility: The 6-inch (15.2 cm) diameter collar matches the standard outlet and inlet diameter of inline duct fans across the most common controlled-environment configurations. Confirm collar diameter on your specific fan model before ordering.
• Carbon Filter Connection: Routes directly between carbon filter flange and inline fan inlet for odor-control exhaust runs. The steel-wire spiral maintains bore geometry at the bend between filter and fan, preventing the flow restriction that occurs when unsupported duct collapses at this junction.
• Atmospheric Control Ecosystem: Functions as the airflow conduit within a broader atmospheric control ecosystem — connecting fan controllers, carbon filters, and exhaust terminations into a sealed, measurable ventilation circuit. Duct integrity is a prerequisite for accurate fan controller setpoint performance.
• Length Management: The 300-inch (25 ft) run can be shortened to exact installation length. Excess duct length left coiled in a run increases static pressure and reduces effective airflow volume — cut to measured run length for optimal system performance.
• Clamp Termination: Two included stainless steel 6-inch duct clamps provide mechanical seal at both termination points. Stainless steel construction resists corrosion in high-humidity controlled environments where standard zinc-plated clamps degrade over time.

Facility Integration Data

For facilities operating multiple ventilation zones, the table below provides procurement reference data for fleet-scale duct replacement or new-build installations using the AI-DTA6 at MAP pricing of $25.99 per unit.

Fleet pricing calculations based on MAP of $25.99 per AI-DTA6 unit. Contact Cannafull Spectrum Solutions for volume procurement inquiries. Clamp count assumes two clamps per unit as included in the box — no additional clamp cost factored.

Operator Field Note

• Cut before you clamp. Measure the actual run distance and cut the duct to length before terminating with the included clamps. A coiled excess section left in the run creates a pressure drop that reduces effective CFM at the exhaust point — this is a common installation error that undermines fan controller accuracy.
• Bend radius matters. The steel-wire spiral maintains bore geometry at moderate bend radii, but sharp 90-degree bends over short distances will still restrict airflow. Route with gradual curves wherever the installation path allows. Each hard bend adds static pressure equivalent to several feet of straight run.
• Clamp torque on aluminum foil. The included stainless steel clamps provide a mechanical seal, but over-tightening will compress and deform the foil layers at the collar. Tighten to snug contact — not maximum torque. The PVC outer layer provides enough body to hold the clamp without deforming the bore.
• High-humidity environments. The stainless steel clamps are specified for corrosion resistance in high-humidity controlled environments. If substituting clamps from other sources, verify stainless steel construction — zinc-plated clamps will corrode and lose clamping force over time in humid grow room conditions.
• Diameter verification before ordering. Confirm the collar diameter on your inline fan and carbon filter before selecting duct diameter. A 6-inch duct on a 4-inch collar requires a reducer fitting not included with this product. Ordering the correct diameter eliminates a return and re-order cycle.
• Fire resistance is a layer property, not a system certification. The internal dual aluminum foil layer is fire and flame resistant. This is a material property of the interior layer. It does not constitute a UL 181 listing or a fire-rated assembly certification. Verify local code requirements for duct installations in fire-rated wall or ceiling assemblies before routing.

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this region cannot be fulfilled.
• Carrier & Transit: Standard ground shipping applies to this product category. Expedited shipping options may be available at checkout. Delivery timelines are carrier-dependent and subject to regional transit conditions.
• Returns: Defective units are eligible for return or replacement under the manufacturer warranty. Contact Cannafull Spectrum Solutions within the applicable return window with order documentation and a description of the defect.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions directly at cannafullspec.com or through the store contact page before placing your order if you have procurement, compliance, or logistics requirements that need confirmation.

What's in the Box

• 1x AC Infinity Flexible Ducting 6", Four-Layer Aluminum — 300 in. (25 ft) length (AI-DTA6)
• 2x Stainless Steel 6" Duct Clamps (included, confirmed per manufacturer source data)

Note: Weight and shipping dimensions are not specified in source data for this product. Installation hardware beyond the two included duct clamps (reducers, couplers, hangers, additional clamps) is not included and must be sourced separately. Contents confirmed against manufacturer source data — do not rely on third-party listings for box contents verification.

Regional Compliance & Deployment Notes

• Jurisdiction Scope: This product is sold and shipped within the contiguous 48 United States only. Cannafull Spectrum Solutions does not ship to Canadian provinces or international destinations.
• Building Code Compliance: Flexible duct installation requirements vary by jurisdiction. Local building codes, mechanical codes (including IMC and local amendments), and fire codes govern acceptable duct materials, run lengths, and routing paths. Verify compliance with your authority having jurisdiction (AHJ) before installation — particularly for dryer exhaust, fire-rated assembly penetrations, and commercial HVAC applications.
• Dryer Exhaust Regulations: Many jurisdictions impose specific restrictions on flexible duct use in dryer exhaust applications, including maximum run length, prohibition of flexible duct in concealed spaces, and material certification requirements. Consult local code and the appliance manufacturer's installation instructions before using flexible duct for dryer exhaust.
• Fire-Rated Assembly Penetrations: Routing flexible duct through fire-rated wall or ceiling assemblies requires compliance with applicable fire codes and may require listed firestop systems at penetration points. The fire and flame resistance of the internal aluminum foil layer is a material property and does not substitute for a listed fire-rated assembly. Consult a licensed mechanical contractor and your AHJ for fire-rated penetration requirements.
• Licensed Facility Deployment: For licensed commercial cultivation facilities, ventilation system modifications may require permit and inspection. Confirm permit requirements with your local building department before modifying existing ventilation infrastructure.
• UL Listing Status: UL 181 listing status for this product is not specified in source data. If your installation or local code requires UL 181 listed flexible air duct, verify listing status with the manufacturer before purchase.
