AC Infinity CONTROLLER 69 PRO+ | 适用于八台设备的独立程序 | 动态 VPD | 温度 | 湿度 | 调度 | 循环 | 水平控制 | 数据应用程序 | 蓝牙 + WiFi

Quick Spec: SKU CTR69Q  |  8 UIS Ports  |  12-Ft Sensor Probe  |  1.4 W / 0.14 A  |  2.4 GHz WiFi + Bluetooth  |  32–140°F Programming Range  |  35–85% RH Operating Humidity

Precision Control in Any Space

Every uncontrolled hour in a cultivation environment is a compounding liability. When temperature swings go undetected, when humidity drifts past the VPD window, when a fan runs on a fixed timer that has no awareness of actual conditions — the environment is running the operation, not the operator. The silent cost is not a single catastrophic failure; it is the slow erosion of consistency: canopy stress that never fully resolves, transpiration rates that drift outside the target band, and equipment cycling on schedules that were set once and never revisited. Manual intervention fills the gap, but manual intervention is not a system — it is a dependency on whoever happens to be present, and it scales to exactly zero.

After deployment, the environment operates on logic rather than luck. The controller reads actual atmospheric conditions in real time and activates connected devices in direct response to what the sensor measures — not what a timer assumes. Temperature holds within programmed thresholds. Humidity tracks against VPD targets. Eight devices execute their individual or synchronized schedules without requiring a technician to be on-site. The AC Infinity app surfaces climate data, trend history, and active automation status remotely, so the operator has full situational awareness from anywhere with a network connection. The facility runs the same way on day one as it does on day ninety.

The mechanism behind that consistency is the Controller 69 Pro+ ecosystem architecture. The unit operates on 9 to 11V with a 10V input sourced directly from the connected device, drawing 1.4 W and 0.14 A — low enough to run continuously without contributing meaningful heat load. The 12-foot (144-inch) sensor probe positions the measurement point precisely at canopy level regardless of controller mounting location, capturing temperature and humidity data where it matters rather than at the wall. Programming spans 32 to 140°F across 32 programmable steps, and the operating humidity envelope covers 35 to 85% RH. The 4.56 x 1.96-inch LCD display presents temperature, humidity, VPD, device levels, trends, countdowns, and time simultaneously, eliminating the need to navigate menus to confirm current conditions. Bluetooth and 2.4 GHz WiFi connectivity link the unit to the AC Infinity app for remote automation management, climate history logging, and schedule adjustment. In practical terms, the Controller 69 Pro+ delivers real-time atmospheric automation across 8 UIS ports from a 5.28 x 3.46 x 1.42-inch control unit drawing 1.4 W with a 12-foot sensor reach.

Where This Belongs (and Doesn't)

The Controller 69 Pro+ manages low-voltage UIS device signaling only. It does not replace dedicated HVAC controllers, high-voltage circuit management systems, or line-voltage switching equipment. Consult a licensed electrician before integrating any climate control system into existing facility electrical infrastructure.

How It Works

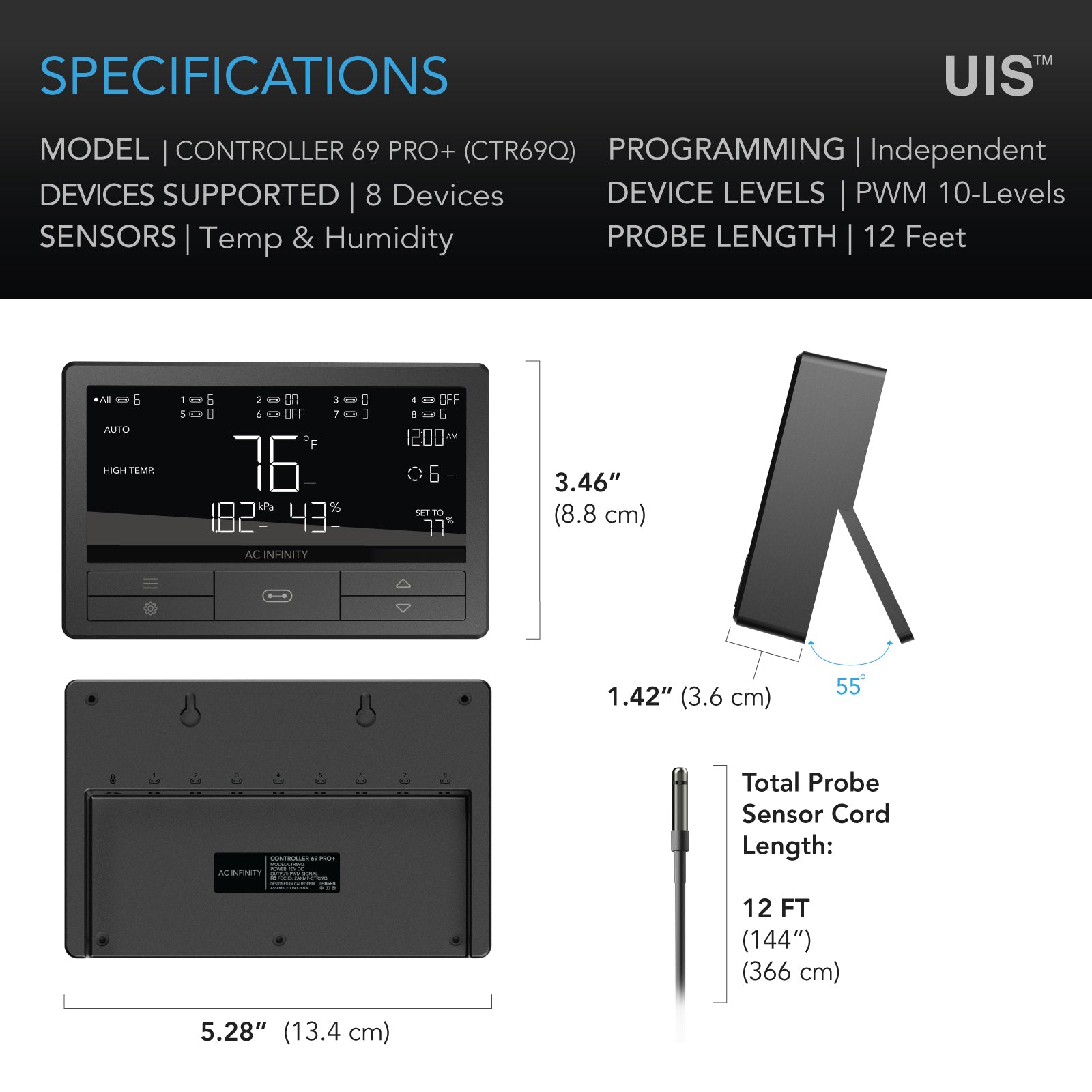

The Controller 69 Pro+ operates as the atmospheric cortex of a UIS-connected device network. Power input is sourced at 10V directly from the connected device, keeping the controller self-powered within the UIS ecosystem without requiring a separate power supply. The unit draws 1.4 W at 0.14 A and operates within a supply voltage range of 9 to 11V, ensuring stable function across the full range of UIS-compatible hardware. The physical footprint is 5.28 x 3.46 x 1.42 inches (13.4 x 8.8 x 3.6 cm), and the rear magnet allows direct mounting to any steel surface — rack panels, equipment frames, or enclosure walls — while the integrated kickstand provides freestanding desktop placement as an alternative.

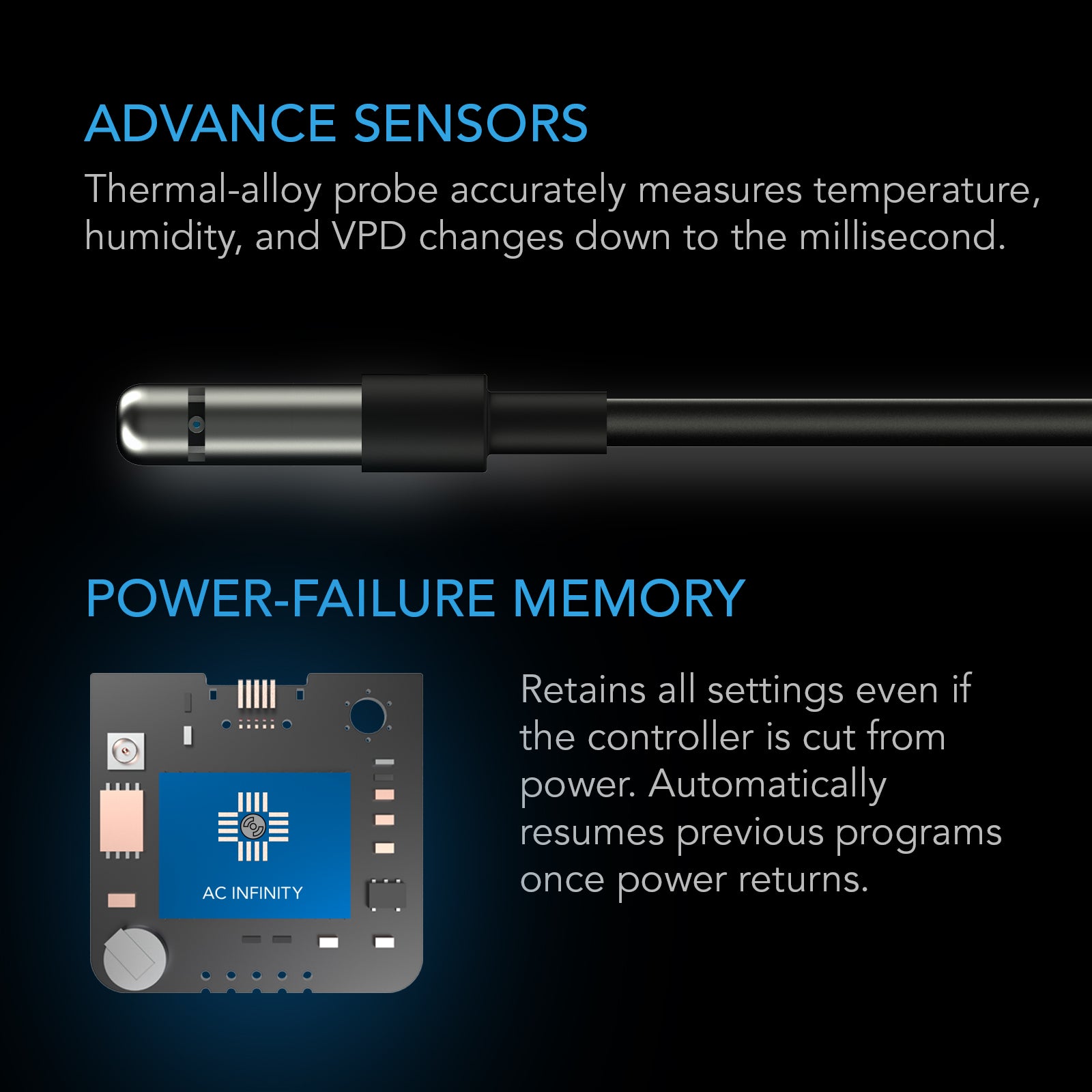

The 144-inch (12-foot) sensor probe is the data collection arm of the system. It extends the measurement point away from the controller body and into the active environment, capturing temperature and humidity at the location that reflects actual canopy-level conditions. The probe feeds live data to the automation engine, which evaluates readings against programmed thresholds and triggers connected devices accordingly. Automation logic can activate devices based on temperature conditions, humidity conditions, VPD targets, countdown timers, or fixed schedules — and each of the 8 UIS ports can be programmed independently or synchronized as a unified group. The programming temperature range spans 32 to 140°F, and the operating humidity envelope covers 35 to 85% RH, accommodating the full spectrum of cultivation phase requirements from propagation through late flower.

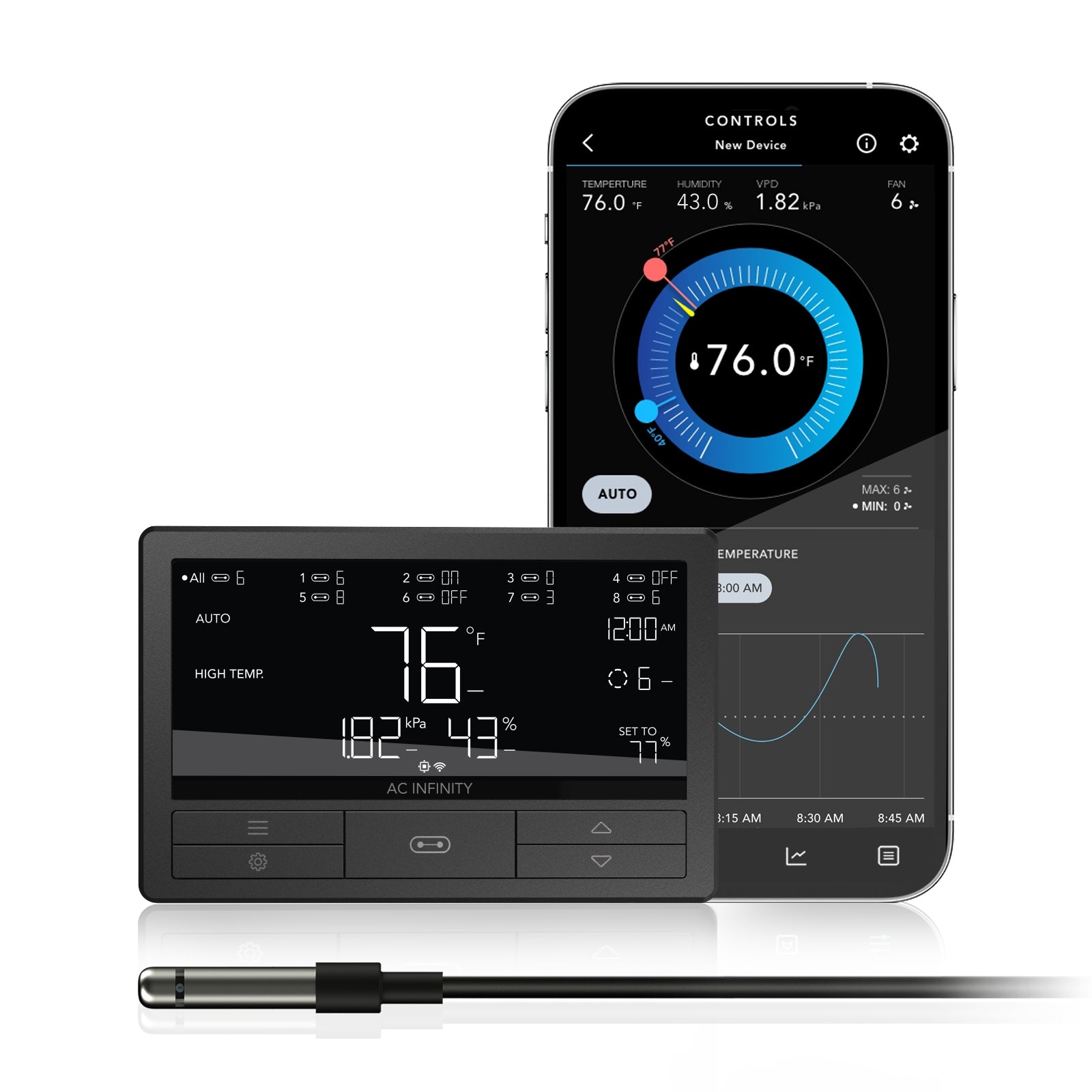

The 4.56 x 1.96-inch (11.6 x 5.4 cm) LCD display presents a simultaneous readout of temperature, humidity, VPD, device output levels, trend indicators, active countdowns, and current time — all without requiring menu navigation. Advanced settings include Fahrenheit/Celsius toggling, clock configuration, sensor calibration offsets, and custom transition programming. Bluetooth and 2.4 GHz WiFi connectivity link the controller to the AC Infinity app, where operators can access live climate data, historical trend logs, active automation status, and remote schedule adjustments from any networked device. In practical terms, the Controller 69 Pro+ delivers condition-responsive automated deployment across 8 UIS ports with a 12-foot sensor reach, operating at 1.4 W from a 5.28 x 3.46 x 1.42-inch unit with full remote visibility via 2.4 GHz WiFi.

System Integration

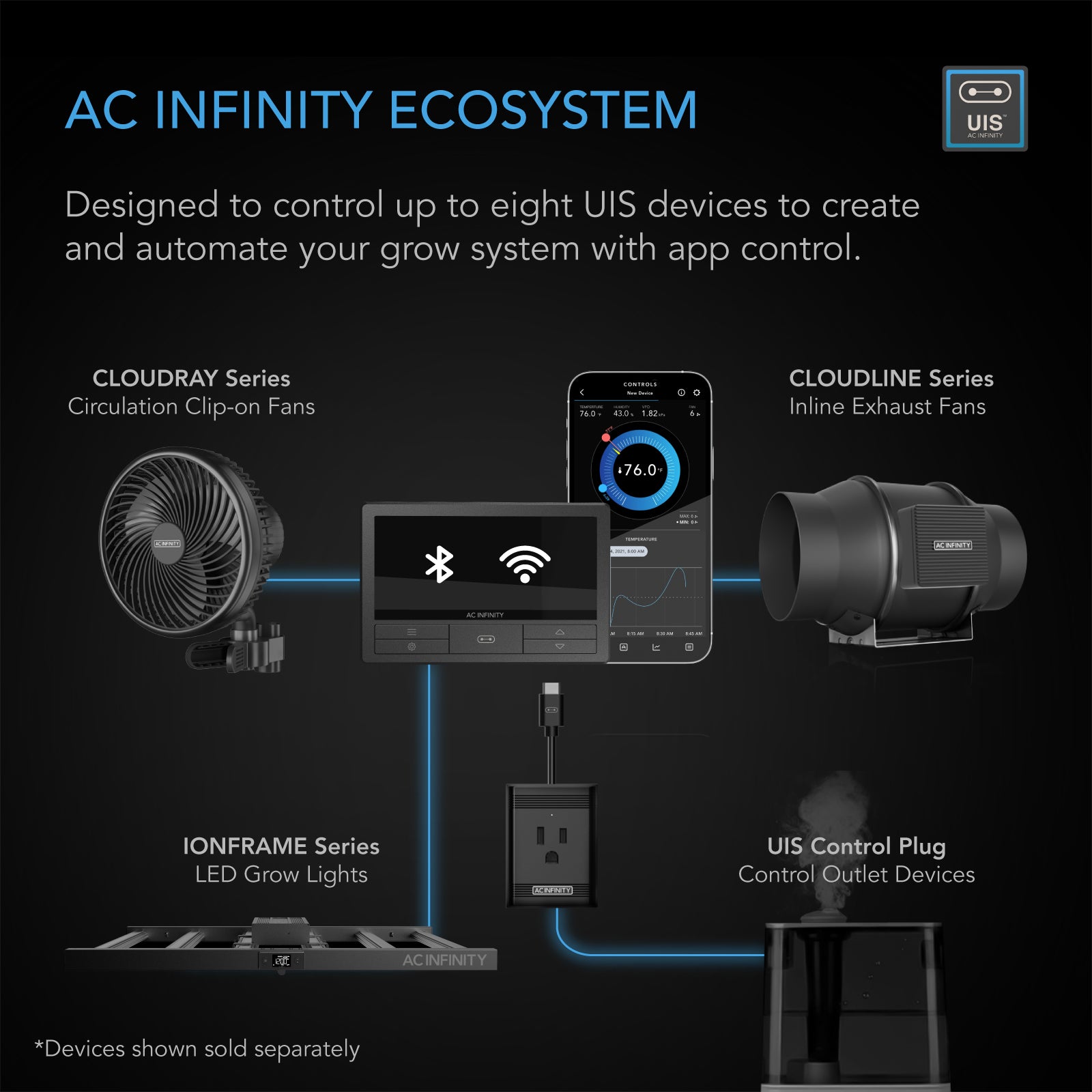

• UIS Ecosystem Compatibility: The Controller 69 Pro+ integrates directly with AC Infinity's Universal Interface System (UIS), enabling plug-and-play connection to compatible inline fans, exhaust fans, humidifiers, and other UIS-port devices without additional adapters.
• Multi-Device Orchestration: Up to 8 UIS ports allow simultaneous or independent programming across connected devices, supporting zone-differentiated atmospheric control within a single installation.

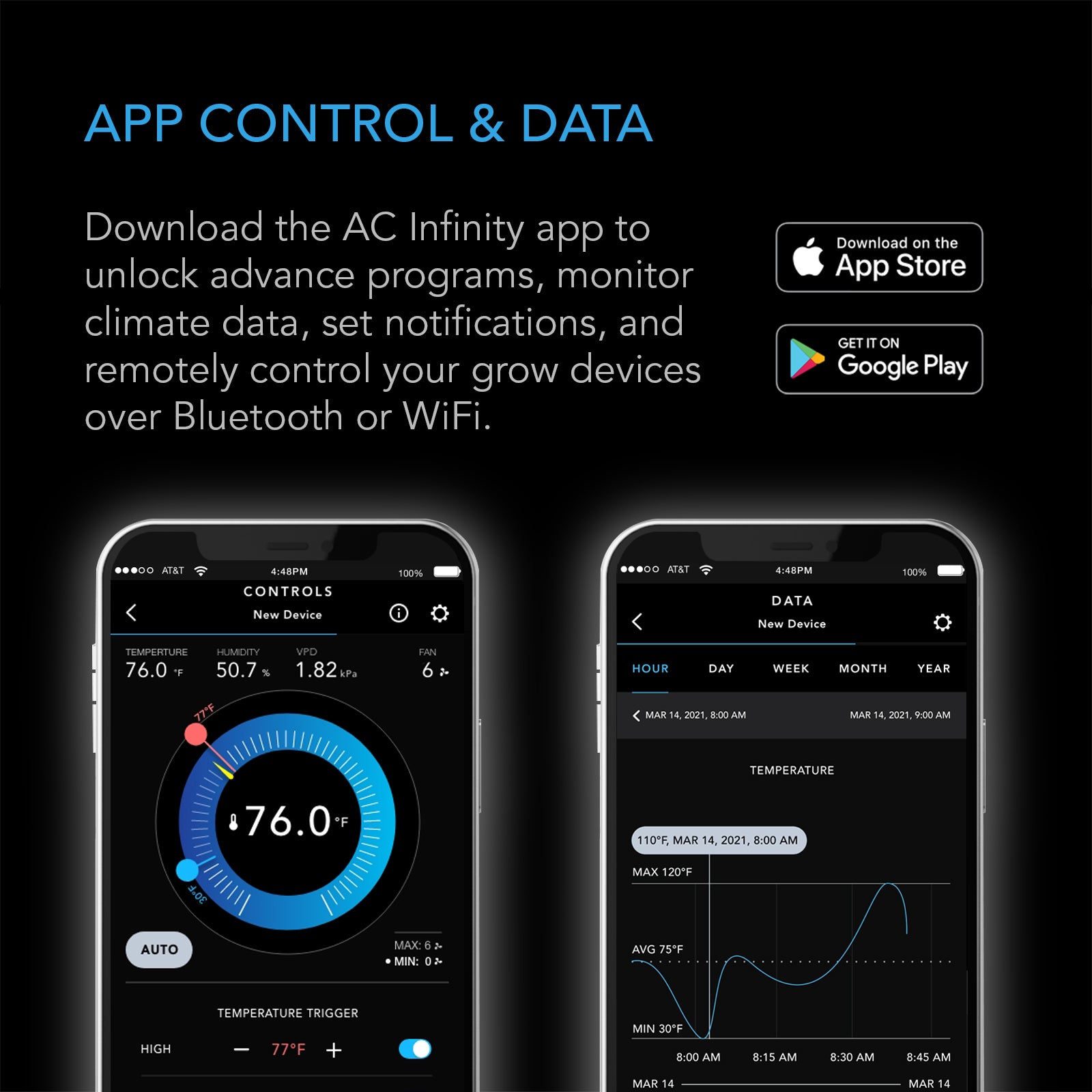

• App-Based Remote Management: 2.4 GHz WiFi and Bluetooth connectivity enable full remote access to automation settings, live climate data, and historical trend logs through the AC Infinity app on iOS and Android.
• Sensor Probe Reach: The 144-inch (12-foot) probe allows the controller to be mounted at a fixed, accessible location while the sensor captures data at the precise environmental zone being managed.
• Self-Powered Architecture: The 10V power input sourced directly from the connected UIS device eliminates the need for a dedicated power supply, reducing installation complexity and cable management overhead.

Facility Integration Data

The table below provides a reference framework for estimating controller deployment across multi-unit installations. Per-unit cost is based on the MAP price of $139.00 for SKU CTR69Q.

Operator Field Notes

• Probe Placement Is the Variable: The 12-foot probe reach is only as accurate as its placement. Position the probe tip at canopy level and away from direct airflow paths, heat sources, or cold spots to ensure the automation logic is responding to representative environmental data.

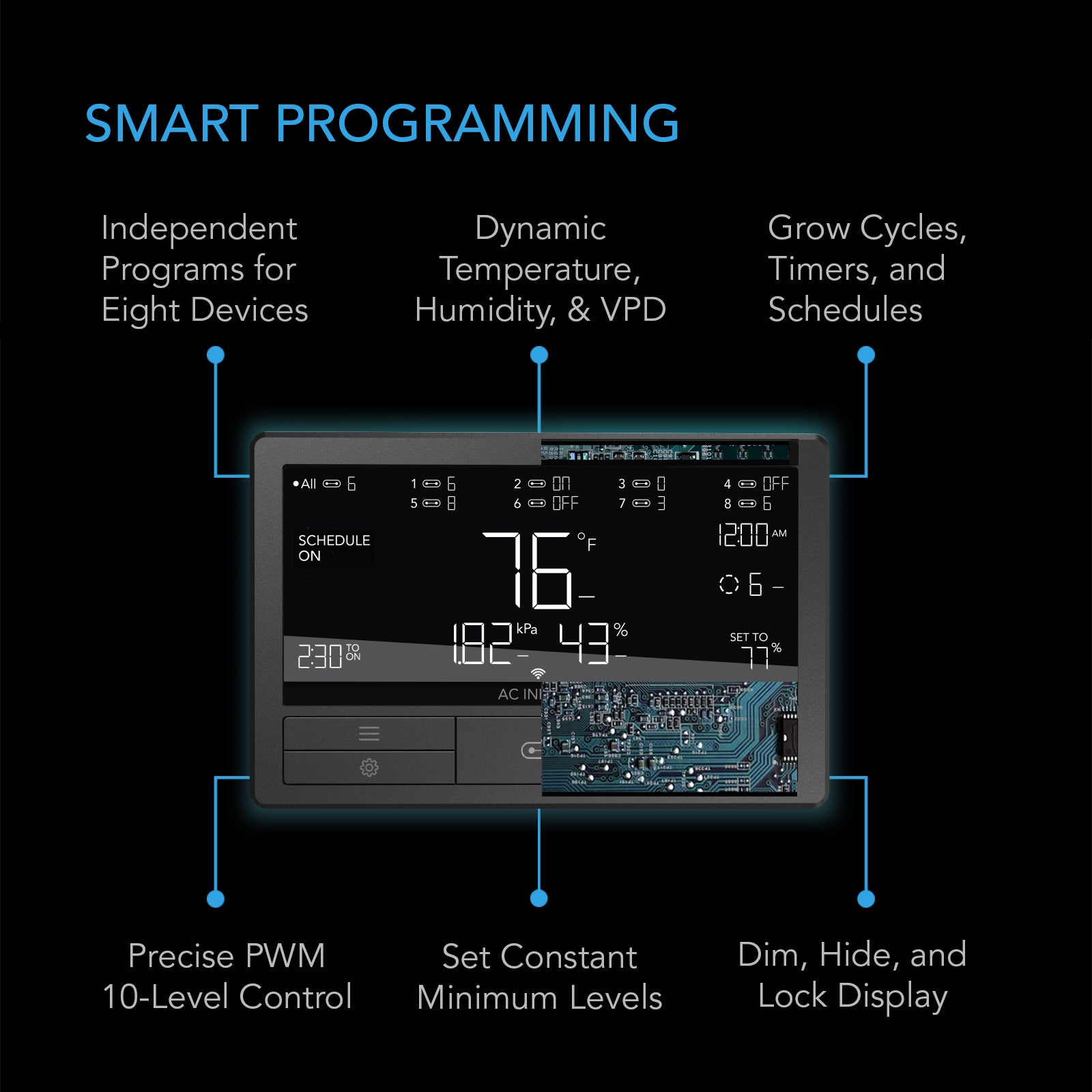

• Independent vs. Synchronized Port Programming: The 8 UIS ports can be programmed as a unified group or individually. In multi-zone installations, independent programming per port allows differentiated atmospheric targets across distinct environmental zones without requiring separate controllers.
• Calibration Offsets Matter: The advanced settings include sensor calibration adjustments. If a reference instrument shows a consistent offset from the controller's readings, apply the calibration correction rather than adjusting automation thresholds — this preserves the integrity of the automation logic.
• App History Logs as Diagnostic Tool: The AC Infinity app retains climate history data accessible remotely. Reviewing trend logs after environmental events — temperature spikes, humidity excursions — provides a timestamped record for root cause analysis without requiring on-site presence at the time of the event.
• Magnetic Mount Stability: The rear magnet is rated for steel surfaces. Verify the mounting surface is ferrous before relying on magnetic attachment in high-vibration environments. The kickstand provides a stable alternative on non-ferrous surfaces.
• Network Requirement for Remote Access: Remote automation management and climate history access require a stable 2.4 GHz WiFi connection. Bluetooth connectivity supports local configuration but does not provide remote access outside Bluetooth range. Confirm network coverage at the installation location before relying on remote monitoring as a primary oversight method.

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, or international destinations cannot be fulfilled at this time.
• Fulfillment: Orders are processed and shipped from Cannafull Spectrum Solutions' fulfillment location. Estimated transit times are provided at checkout based on destination. Cannafull Spectrum Solutions is not responsible for carrier delays after handoff.
• Returns: Returns are accepted for defective units in accordance with AC Infinity's manufacturer warranty terms and Cannafull Spectrum Solutions' return policy. Non-defective returns are subject to review. Contact support before initiating any return.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For order inquiries, shipping questions, or pre-sale technical support, contact Cannafull Spectrum Solutions directly at cannafullspec.com.

What's in the Box

• 1x AC Infinity Controller 69 Pro+ Smart Climate Controller (SKU: CTR69Q)
• Integrated rear magnet (factory-installed on unit)
• Integrated kickstand (factory-installed on unit)
• Temperature and humidity VPD sensor probe with 144-inch (12-foot) cable

Included components listed above reflect confirmed items from available source data. Additional accessories, documentation, or hardware may be included by the manufacturer. Cannafull Spectrum Solutions cannot guarantee completeness of the included components list beyond what is confirmed in manufacturer source data. Contact AC Infinity or Cannafull Spectrum Solutions if you require a complete packing list prior to purchase.

Regional Compliance & Deployment Notes

• Jurisdiction: The Controller 69 Pro+ is sold and shipped by Cannafull Spectrum Solutions within the contiguous 48 United States only. Buyers are responsible for confirming that the use of automated climate control equipment complies with applicable state and local regulations in their jurisdiction.
• Electrical Compliance: The Controller 69 Pro+ operates at low voltage (9–11V, 10V input from device, 1.4 W, 0.14 A) within the UIS ecosystem. Installation should be performed in accordance with applicable local electrical codes. Consult a licensed electrician for any integration involving line-voltage circuits or facility electrical systems.
• Wireless Frequency: The unit connects via 2.4 GHz WiFi. Operators in facilities with RF-sensitive equipment or shielded environments should verify that wireless connectivity is permissible and functional at the installation location before relying on remote monitoring as a primary oversight method.
• Licensed Facility Use: This product is deployed in licensed commercial cultivation facilities across the United States. Buyers operating under state cannabis cultivation licenses are responsible for ensuring that all equipment and automation systems comply with their licensing authority's facility and operational requirements.
• Manufacturer Origin: The Controller 69 Pro+ is designed and engineered by AC Infinity, headquartered in Los Angeles, CA.

Compliance information provided here is for general reference only and does not constitute legal or regulatory advice. Cannafull Spectrum Solutions makes no representations regarding the suitability of this product for any specific licensed use case. Buyers are solely responsible for confirming regulatory compliance in their jurisdiction prior to purchase and deployment.
