AC Infinity CLOUDLINE PRO T8 | 带温度湿度 VPD 控制器的静音直列管道风扇系统 | 8 英寸

Key Specs: 180W | 807 CFM | 39 dBA | 746 Pa Static Pressure | IP44 | 67,000-Hour Bearing Life | 2-Year Warranty

Kill Variance. Print Yield.

Every facility running legacy ventilation infrastructure is paying a variance tax it cannot see on a line item. Fixed-speed motors run at full draw regardless of room demand, generating heat load that compounds against your HVAC system. Passive failure points — non-networked fans, manual damper adjustments, analog speed controllers — create dead zones in your atmospheric control architecture. When temperature drifts two degrees above setpoint at 2 a.m. and no trigger fires, the room absorbs that deviation silently. VPD slips. Transpiration slows. The canopy that looked uniform at lights-on is already stratifying. The cost is not a single event — it is a compounding erosion of output consistency across every run, every room, every cycle.

After deployment of a properly integrated atmospheric control platform, the facility operates differently. Airflow responds to actual room conditions — not a timer, not a manual dial. Temperature and humidity excursions trigger automated fan speed adjustments before the canopy registers the deviation. Historical climate data is logged, exportable, and auditable. Maintenance windows are scheduled, not reactive. The facility director is no longer managing ventilation; the system is managing it, and the director is reviewing data.

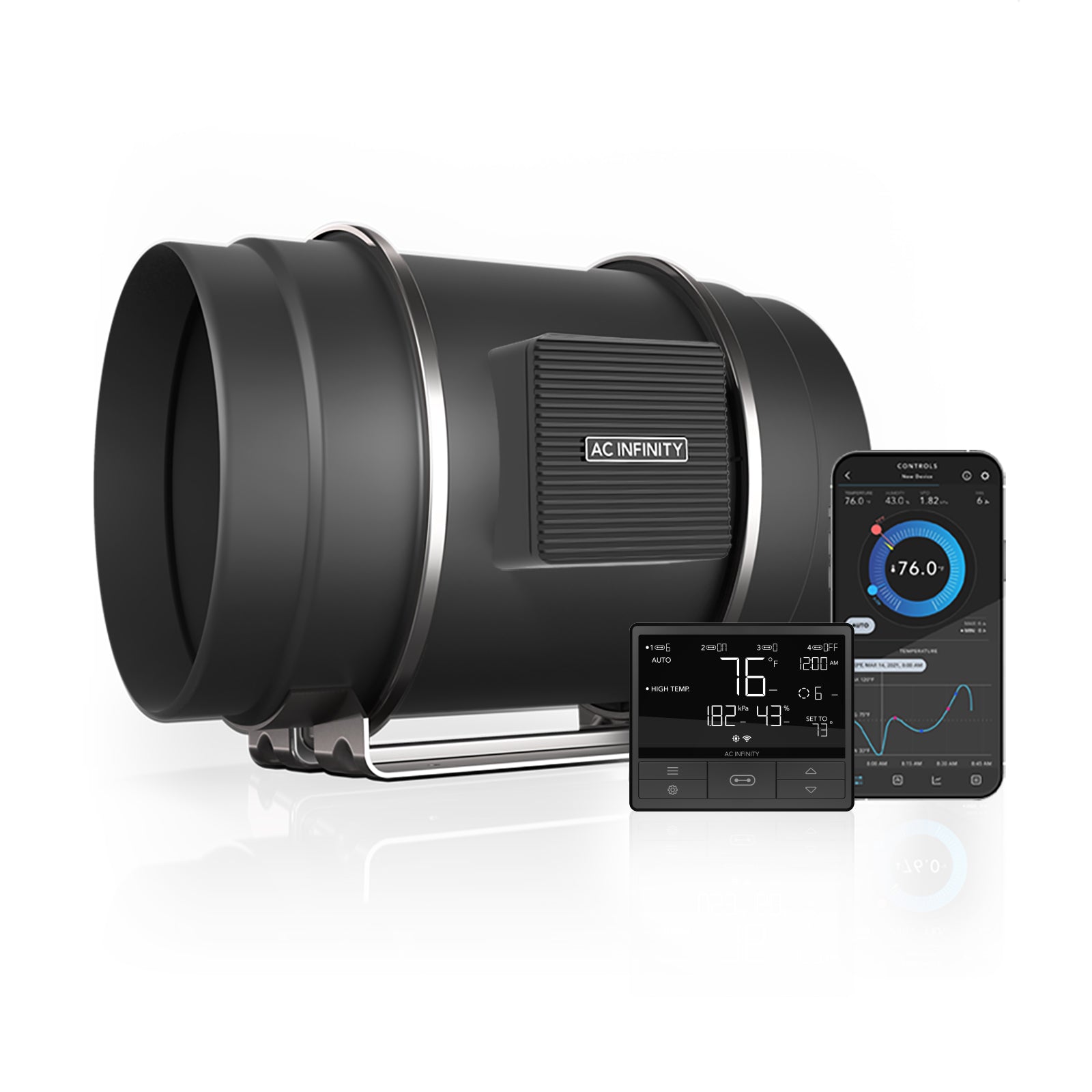

The CLOUDLINE T8 delivers this outcome through a mixed-flow inline design driven by an EC motor with PWM control — the motor type that allows true variable-speed operation across the full 807 CFM range at a maximum draw of 180 watts. Static pressure capacity of 746 Pa means the unit maintains rated airflow through ducted runs with bends, filters, and resistance that would stall a conventional centrifugal fan. Dual ball bearings rated at 67,000 hours eliminate the bearing-failure failure mode that grounds fixed-speed units. The integrated controller connects to the AC Infinity app over WiFi, enabling dynamic triggers on temperature, humidity, and VPD — and connects to up to four UIS devices simultaneously through the Controller 69 PRO, including CLOUDLINE, CLOUDRAY, and IONFRAME series equipment. Noise output is rated at 39 dBA, and the IP44 rating protects the motor assembly against particulate and moisture ingress in sealed cultivation environments. In practical terms, the CLOUDLINE T8 delivers 807 CFM of controlled, trigger-responsive airflow at a maximum of 180 watts, with 746 Pa of static pressure capacity and a 67,000-hour bearing service life.

Where This Belongs (and Doesn't)

Minimum infrastructure requirement: A dedicated circuit capable of supporting 180W continuous draw, 8-inch duct infrastructure, and an HVAC system sized to handle the thermal and humidity loads of the cultivation environment. Controller 69 PRO connectivity requires a WiFi network accessible at the installation point.

Infrastructure Note: The CLOUDLINE T8 fan unit measures 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm) with mounting hole-to-hole spacing of 3.94 x 3.70 in. (10.0 x 9.4 cm) and screw hole diameter of 0.217 in. (0.55 cm). The controller cord to the fan is 120 in. (10 feet); the power cord to the plug is 96 in. (8 feet). Verify duct routing, mounting clearance, and cord reach before installation.

How It Works

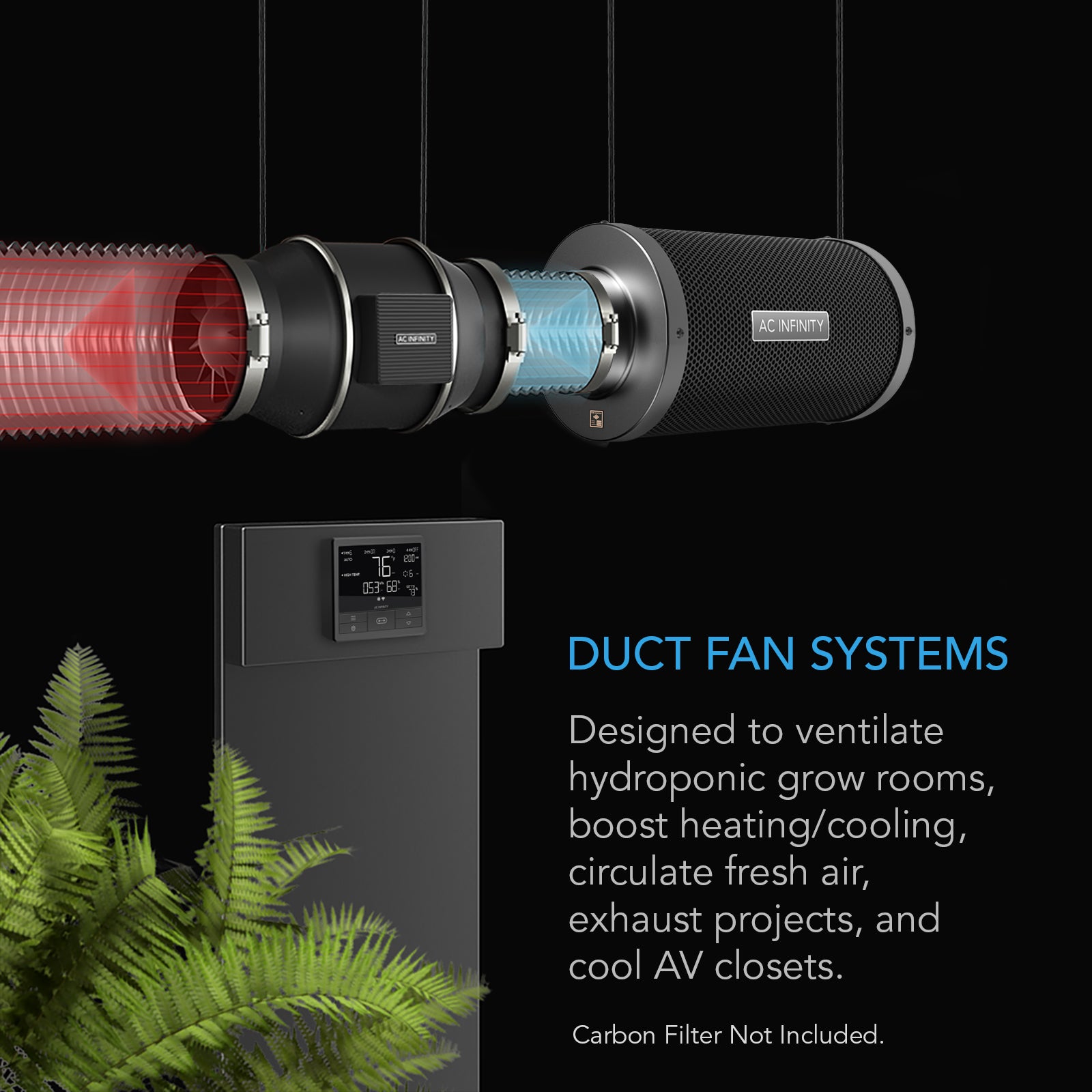

The CLOUDLINE T8 operates on a mixed-flow impeller geometry — a design that combines the high-static-pressure capability of an axial fan with the high-volume throughput of a centrifugal fan. This geometry allows the unit to sustain 807 CFM of airflow against 746 Pa of static pressure, which is the resistance profile typical of ducted runs with carbon filter assemblies, multiple elbows, and damper hardware. A conventional fixed-speed fan loses rated CFM rapidly as static pressure climbs; the mixed-flow design maintains delivery across the resistance curve.

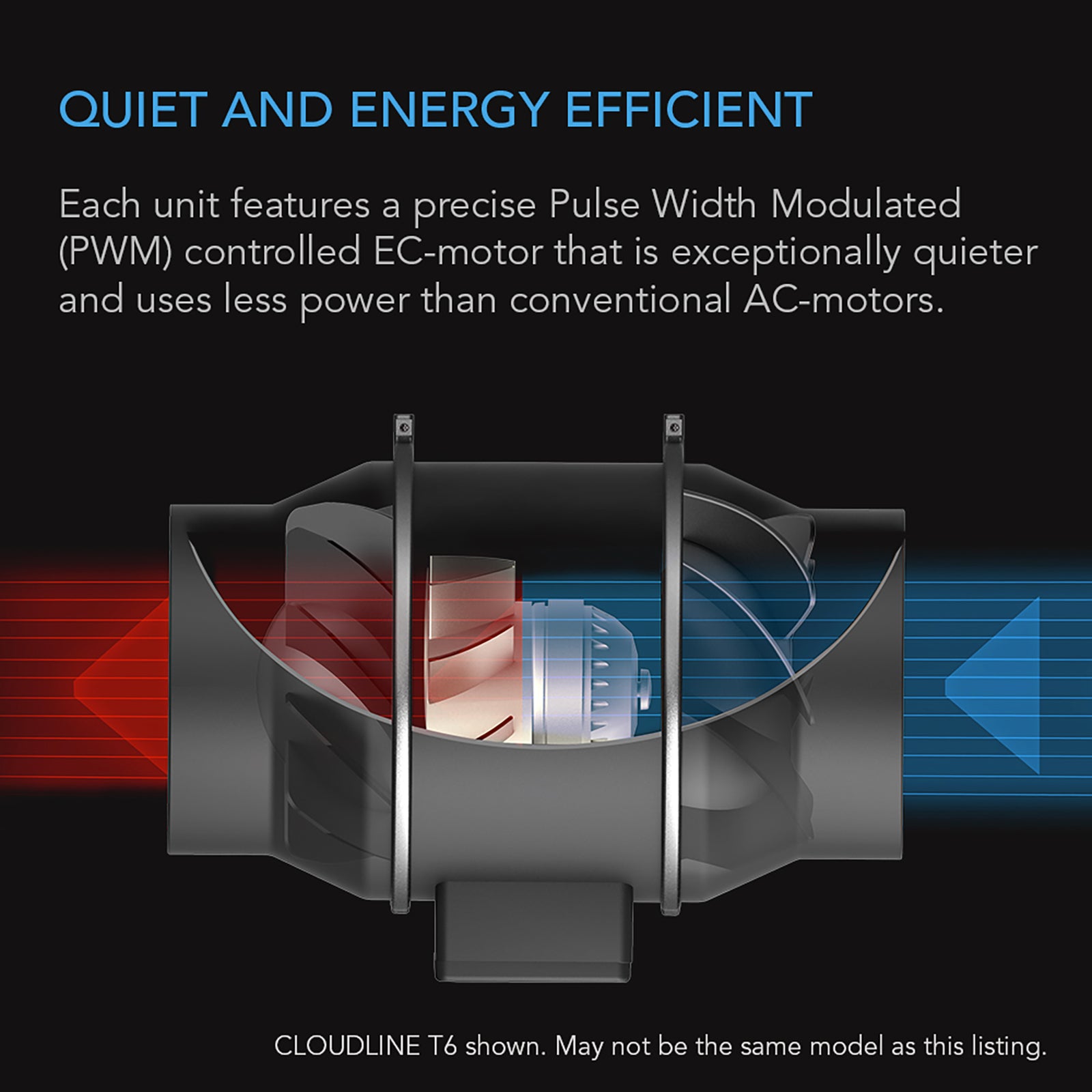

The motor is an EC (electronically commutated) type controlled via PWM (Pulse Width Modulation). EC motors are brushless, meaning there is no commutator contact wear — the motor's speed is modulated electronically across the full operating range without the efficiency losses associated with AC induction motors running through a resistive speed controller. At partial speed, the EC motor draws proportionally less power, reducing heat output and operating cost relative to fixed-speed alternatives. Dual ball bearings — not sleeve bearings — support the impeller shaft, rated at 67,000 hours of continuous operation. Sleeve bearings fail under sustained horizontal mounting loads; dual ball bearings are load-direction agnostic and maintain rated life in any mounting orientation.

The IP44 rating means the motor enclosure is protected against solid objects greater than 1mm and against water splashing from any direction — appropriate for the humidity and particulate environment of a sealed cultivation room. The motor box containing the impeller and blades is designed to detach from the mounted frame without tools, allowing the impeller assembly to be cleaned and inspected on a scheduled maintenance cycle without removing the fan from the duct run. Control is delivered through the included controller, which connects to the AC Infinity app over WiFi. From the app, operators can set dynamic triggers on temperature, humidity, and VPD; access historical climate charts; export CSV data for compliance documentation; and receive push notifications on setpoint excursions. The Controller 69 PRO supports simultaneous connection to up to four UIS devices — CLOUDLINE, CLOUDRAY, and IONFRAME series — and supports third-party adapters for grow lights and outlet devices, enabling coordinated atmospheric response across the full room ecosystem. In practical terms, the CLOUDLINE T8 delivers 807 CFM through an EC motor at 180W maximum draw, sustains that output against 746 Pa of static pressure, and executes automated speed adjustments via WiFi-connected VPD, temperature, and humidity triggers through the UIS platform.

System Integration

To operate this platform at peak efficiency, verify your ecosystem matches these requirements:

• Controller & App: Full smart functionality requires the AC Infinity app (iOS/Android) and a WiFi network accessible at the installation point. The included controller supports Controller 69 PRO connectivity for multi-device UIS integration.

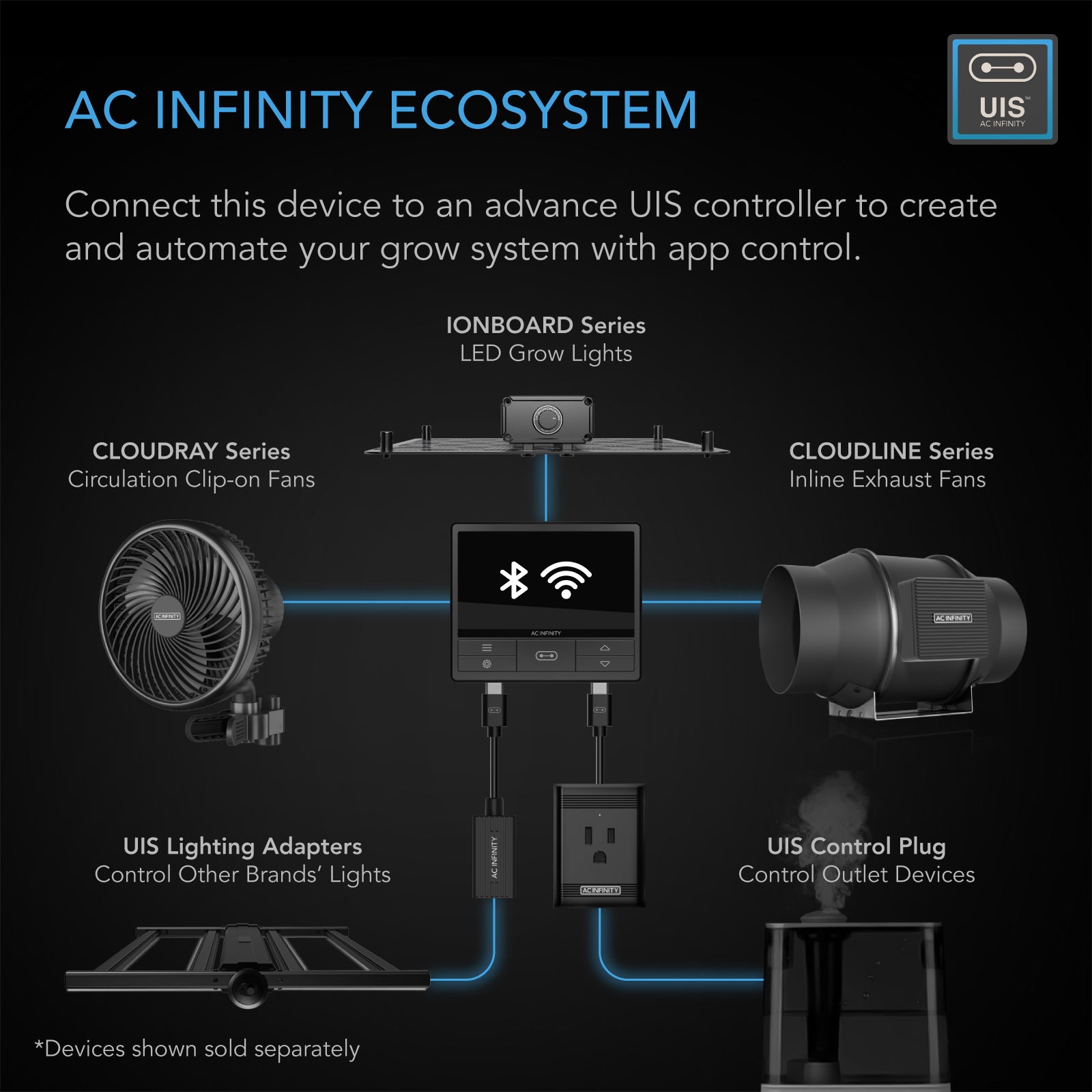

• UIS Device Compatibility: The Controller 69 PRO connects to up to four UIS devices simultaneously — CLOUDLINE, CLOUDRAY, and IONFRAME series. Third-party adapters are supported for grow lights and outlet devices.
• Duct Infrastructure: Requires 8-inch duct connections at both inlet and outlet. Verify duct diameter, run length, and fitting count to confirm the installation falls within the 746 Pa static pressure rating.
• Electrical: Input voltage is 100-240V AC, 50/60 Hz. Maximum power draw is 180W. Verify circuit capacity and cord reach — controller cord is 120 in. (10 ft) to the fan; power cord is 96 in. (8 ft) to the plug.
• HVAC Coordination: The fan's EC motor reduces heat output at partial speed, but full-load operation at 180W contributes to room thermal load. Size HVAC capacity accordingly and account for the fan's airflow contribution to room air exchange rate calculations.

Facility Integration Data

Use the ROI reference below to model fleet-level operational impact across multi-unit deployments. Spec tables are injected downstream by the pipeline.

Operator Field Note

• Physical Dimensions & Mounting: Fan unit is 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm). Mounting hole-to-hole spacing is 3.94 x 3.70 in. (10.0 x 9.4 cm); screw hole diameter is 0.217 in. (0.55 cm). Verify structural support for the fan's weight and duct tension load before mounting.
• Electrical Draw & Circuit Sizing: Maximum power draw is 180W at 100-240V AC, 50/60 Hz. Confirm the circuit serving this unit is rated for continuous operation at the required amperage. Do not share circuits with high-inrush equipment without verifying breaker capacity.
• Cord Reach: Controller cord from fan to controller is 120 in. (10 feet). Power cord from controller to plug is 96 in. (8 feet). Plan installation layout to confirm both cords reach their respective termination points without extension cords.
• IP44 Rating Scope: IP44 protects against particulate ingress and water splash from any direction. It does not protect against direct water jets, sustained moisture immersion, or condensate pooling on the motor housing. Ensure installation geometry does not allow condensate to collect on the unit.
• Maintenance Access: The motor box containing the impeller and blades detaches from the mounted frame for cleaning. Schedule impeller inspections as part of the facility's preventive maintenance calendar — do not wait for airflow degradation to trigger a service event.
• Controller Dimensions: The included controller is 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) with hole-to-hole spacing of 4.71 x 2.64 in. (12.0 x 6.7 cm) and screw hole diameter of 0.119 in. (0.3 cm). Allocate wall or panel space accordingly.

Shipping & Logistics

• Origin: Ships from Cannafull Spectrum Solutions' authorized distribution point within the contiguous 48 United States.
• Processing: Orders are processed within 1-2 business days of receipt. Tracking information is provided upon shipment.
• Damage: Inspect all shipments within 48 hours of delivery. Document any damage with photographs and contact Cannafull Spectrum Solutions at (888) 378-0017 or sales@cannafullspec.com within that window. Claims submitted after 48 hours may not be eligible for carrier resolution.
• Returns: Units in original, uninstalled condition are eligible for return within 30 days of delivery. A Return Authorization (RA) number is required before any return shipment is accepted.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions? (888) 378-0017 or sales@cannafullspec.com

What's in the Box

• AC Infinity CLOUDLINE T8 inline fan unit (8-inch)
• Controller with WiFi connectivity (cord: 120 in. / 10 ft to fan)
• Power cord (96 in. / 8 ft to plug)

Note: Box contents are based on available manufacturer data. Verify complete contents upon receipt. Contact Cannafull Spectrum Solutions at (888) 378-0017 if any components are missing or damaged.

Regional Compliance & Deployment Notes

Commonly deployed in sealed commercial cultivation facilities across the United States. Installation, HVAC sizing, and electrical requirements vary by jurisdiction; always verify with local code.
