AC Infinity CLOUDLINE PRO T12 | 带温度湿度 VPD 控制器的静音直列管道风扇系统 | 12 英寸

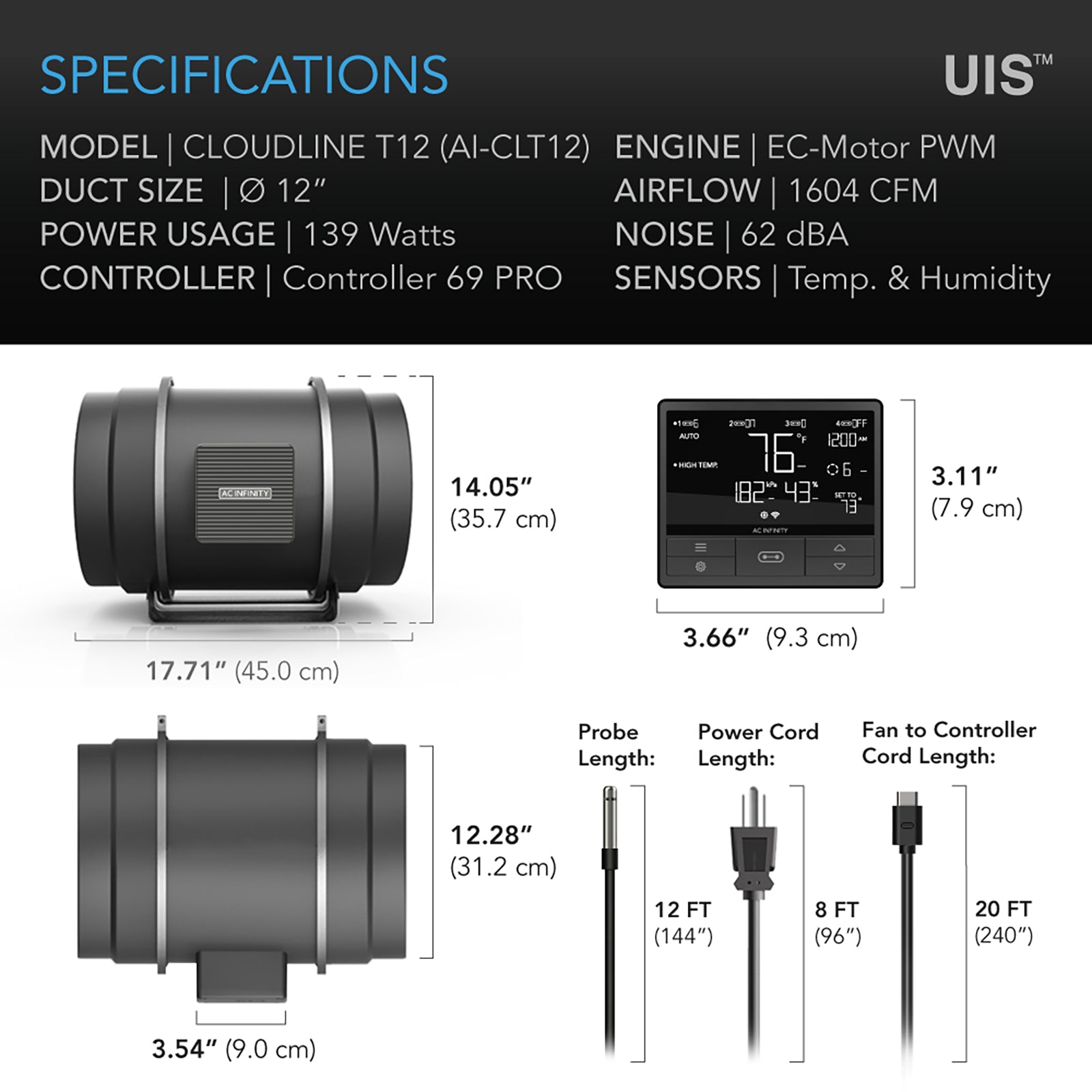

Key Specs: 250W Max / 139W Avg | 818 Pa Static Pressure | 12-Inch Duct | 62 dBA | 2.5A | 67,000-Hour L10 Life | 2-Year Warranty

Kill Variance. Print Yield.

Every sealed cultivation room running on uncontrolled or fixed-speed ventilation is paying a variance tax it cannot see on a line item. Atmospheric pressure swings silently erode VPD targets. Temperature stratification builds across canopy layers while manual dampers sit static. CO2 concentration drifts between set points because airflow cannot respond to real-time room conditions. The facility keeps running — but the output is never what the model projected, and the gap between projected and actual yield is the cost of infrastructure that cannot adapt.

After deploying the CLOUDLINE T12, the room behaves like a controlled system rather than a managed approximation. Airflow responds to programmed schedules and environmental triggers. Atmospheric pressure holds within defined parameters across the full cultivation cycle. The facility director stops reacting to environmental drift and starts operating against a repeatable baseline — one where the inputs are stable enough that yield projections become reliable forecasts rather than optimistic estimates.

The mechanism is a 12-inch inline fan platform drawing a maximum of 250W (139W average) at 2.5A, generating up to 818 Pa of static pressure — sufficient to overcome the resistance of long duct runs, carbon filtration, and multi-zone distribution networks common in large-scale sealed facilities. The integrated controller connects via a 10-foot cable and mounts via a panel with 4.71 x 2.64-inch hole-to-hole spacing, enabling rack or wall integration without field fabrication. Noise output is rated at 62 dBA, and the motor carries an L10 life expectancy of 67,000 hours — meaning the unit is engineered to outlast multiple cultivation cycles before requiring service. The system operates on 100-240V AC at 50/60 Hz, making it compatible with both standard U.S. facility electrical infrastructure and international deployments. In practical terms, the CLOUDLINE T12 delivers up to 818 Pa of static pressure through a 12-inch duct at a maximum draw of 250W (2.5A) with an average operating consumption of 139W.

Where This Belongs (and Doesn't)

This unit requires a dedicated 12-inch duct run and a circuit capable of supporting 2.5A continuous draw. Verify duct diameter, circuit capacity, and HVAC integration points before procurement.

Infrastructure Note: The CLOUDLINE T12 controller mounts to panels with 4.71 x 2.64-inch hole-to-hole spacing and 0.119-inch screw hole diameter. Confirm panel compatibility before installation. The 10-foot controller cable and 8-foot cord to plug must reach their respective termination points without extension.

How It Works

The CLOUDLINE T12 operates as a programmable atmospheric control node within a sealed cultivation environment. The fan motor drives airflow through a 12-inch duct at up to 818 Pa of static pressure — a specification that determines the unit's ability to maintain target airflow rates against the cumulative resistance of duct length, bends, carbon filtration media, and distribution manifolds. Static pressure capacity is the operative variable in large-facility duct design; a fan that cannot overcome system resistance will underperform its rated airflow regardless of motor wattage.

Power draw is managed across a range from average operating consumption of 139W up to a maximum of 250W at 2.5A, with the integrated controller modulating motor speed in response to programmed schedules or environmental triggers. The controller connects to the fan via a 10-foot cable, allowing remote mounting on rack panels or wall surfaces using the 4.71 x 2.64-inch hole-to-hole mounting footprint. Controller dimensions are 5.19 x 2.91 x 1.06 inches, and screw hole diameter is 0.119 inches — all dimensions required for accurate panel cutout fabrication. The unit accepts 100-240V AC input at 50/60 Hz, eliminating voltage compatibility as a procurement variable across U.S. facility electrical configurations.

Motor longevity is rated at an L10 life expectancy of 67,000 hours — the point at which 10% of units in a population are statistically expected to have failed. At continuous operation, this represents approximately 7.6 years of runtime before the L10 threshold, providing a reliable planning horizon for maintenance scheduling and capital replacement cycles. Acoustic output is rated at 62 dBA, a figure that should be evaluated against facility noise floor requirements and worker exposure standards for the specific installation environment. In practical terms, the CLOUDLINE T12 delivers 818 Pa static pressure through a 12-inch duct at 250W maximum draw, with a 67,000-hour L10 motor life and a programmable controller mounted via a 5.19 x 2.91 x 1.06-inch panel-mount housing.

System Integration

To operate this platform at peak efficiency, verify your ecosystem matches these requirements:

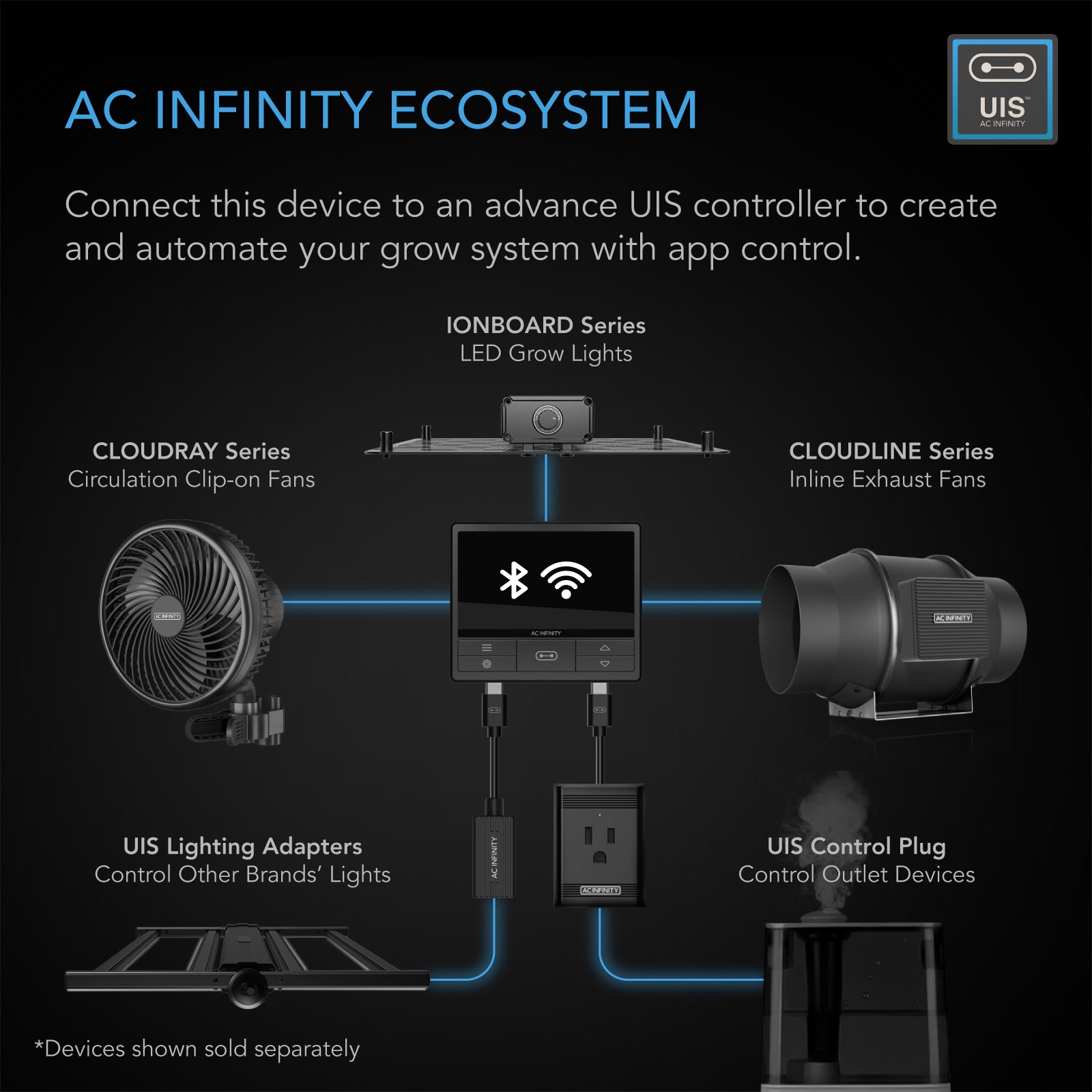

• Controller Ecosystem: The CLOUDLINE T12 ships with an integrated controller. For multi-zone or centralized atmospheric control, verify compatibility with AC Infinity UIS controllers and the Cortex app for automated scheduling and environmental trigger programming.
• Duct Infrastructure: Requires 12-inch duct diameter at both inlet and outlet. Confirm duct sizing, run length, and fitting compatibility before installation. Reducers or transitions will affect static pressure performance.
• Electrical Circuit: Requires a circuit capable of supporting 2.5A continuous draw at 100-240V AC, 50/60 Hz. Dedicate a circuit to this unit; do not share with high-inrush loads.
• HVAC Capacity: At maximum draw, the unit contributes up to 250W of heat load to the mechanical system. Account for this in HVAC sizing calculations for sealed room thermal management.
• Panel Mounting: Controller panel cutout requires 4.71 x 2.64-inch hole-to-hole spacing with 0.119-inch screw holes. Verify panel material and thickness before fabrication.

Facility Integration Data

Use the following ROI reference to model fleet-level operational impact across your deployment scale.

Operator Field Note

• Weight and Structural: Confirm that duct support brackets and hanging hardware are rated for the combined weight of the CLOUDLINE T12 unit and any attached duct sections. Do not suspend the unit from duct alone without independent structural support.
• Electrical Draw: Maximum draw is 250W at 2.5A. Average operating draw is 139W. Size circuit protection and wire gauge to the maximum draw figure, not the average. Do not share the circuit with variable-load equipment.
• Controller Cable Management: The controller connects via a 10-foot cable. Plan cable routing before installation to avoid tension on the connector. The power cord to plug is 8 feet — verify outlet proximity before finalizing unit placement.
• Noise Floor: Rated at 62 dBA at operating speed. In facilities with worker occupancy during fan operation, evaluate against applicable OSHA noise exposure standards for the specific duty cycle and room configuration.
• Environmental Setpoints: The unit operates on 100-240V AC at 50/60 Hz. Verify supply voltage stability at the installation point — voltage fluctuation outside this range will affect motor performance and may void warranty coverage.
• Certification Scope: CE, ETL, RoHS, SAA, IC, and FCC certifications apply to the whole product as shipped. Field modifications, non-OEM duct adapters, or controller bypasses may affect certification validity. Consult your AHJ before any field modification.

Shipping & Logistics

• Origin: Ships from Cannafull Spectrum Solutions' authorized distribution point within the contiguous 48 United States.
• Processing: Orders are processed within 1-2 business days of confirmed payment. Tracking information will be provided upon shipment.
• Damage: Inspect all shipments within 48 hours of delivery. Document any damage with photographs and contact Cannafull Spectrum Solutions immediately at (888) 378-0017 or sales@cannafullspec.com. Claims reported after 48 hours may not be eligible for carrier coverage.
• Returns: Free and easy returns accepted within 30 days of delivery. A Return Authorization (RA) number is required before shipping any unit back. Contact Cannafull Spectrum Solutions to initiate.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions? (888) 378-0017 or sales@cannafullspec.com

What's in the Box

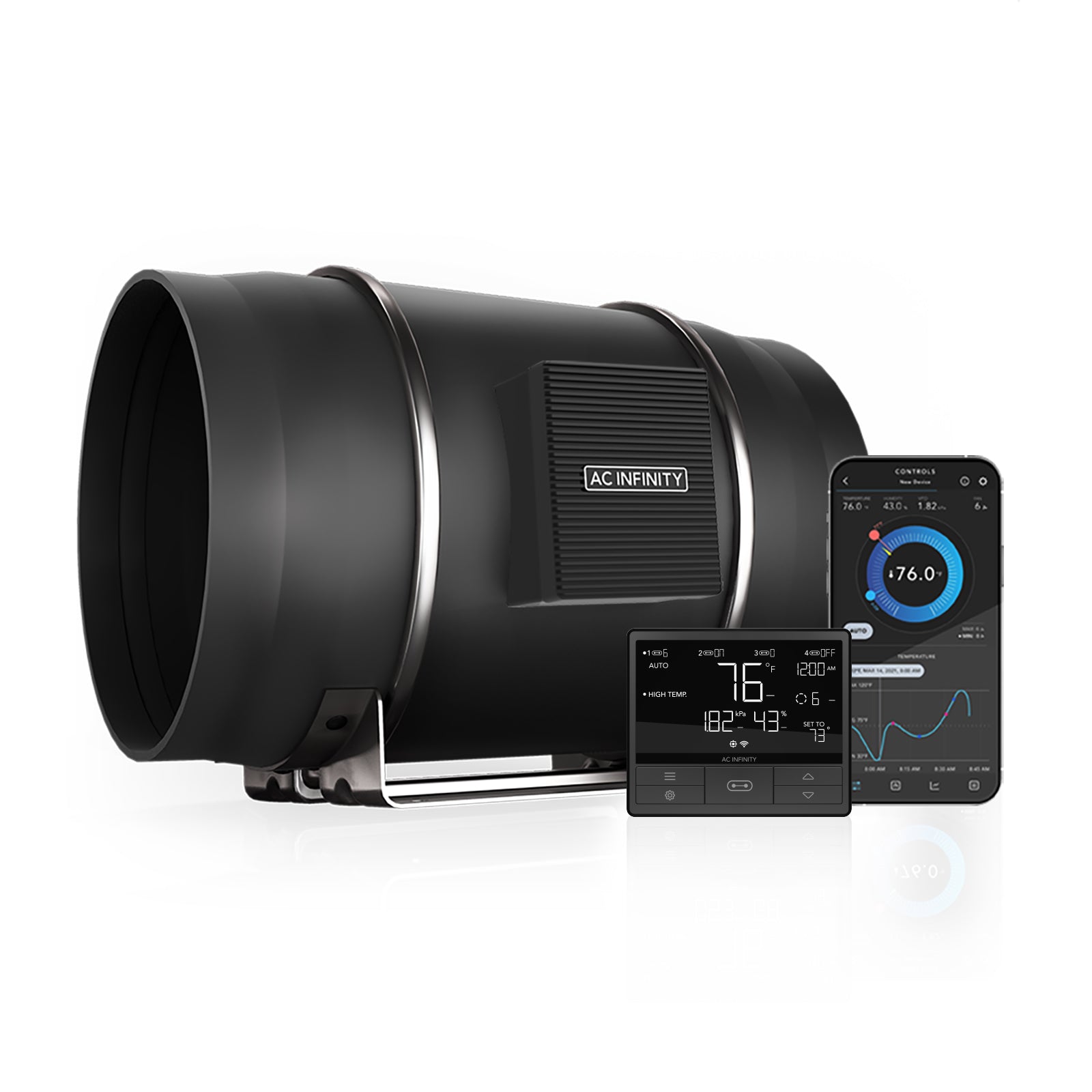

• AC Infinity CLOUDLINE T12 (AI-CLT12) 12-inch inline duct fan unit
• Integrated controller (5.19 x 2.91 x 1.06 inches) with 10-foot cable to fan
• Power cord with 8-foot cord to plug

Note: Box contents are based on available manufacturer data. Verify complete contents upon receipt. Contact Cannafull Spectrum Solutions at (888) 378-0017 if any components are missing or damaged.

Regional Compliance & Deployment Notes

Commonly deployed in sealed commercial cultivation facilities across the United States. Installation, HVAC sizing, and electrical requirements vary by jurisdiction; always verify with local code.
