Bomba de agua sumergible AC Infinity | Altura de elevación de 5 pies | 396 GPH (1500 L/H)

Precision Control in Any Space.

Every recirculating system has a weak link, and in most operational setups, that weak link is the pump. When flow rate is inconsistent, root zones experience dry pockets and nutrient stratification — problems that compound silently across a grow cycle before they surface as measurable yield loss. Pumps that lack verified lift ratings force operators to guess at head pressure, and guesswork at the reservoir level translates directly into uneven delivery at the canopy. Equipment that fights you at the infrastructure layer costs you at harvest, and the damage is rarely traceable back to the source until the pattern repeats across multiple cycles.

After deploying a verified, rated pump into a recirculating ecosystem, the operational picture changes. Nutrient solution reaches every root zone at a predictable rate, delivery timing becomes automatable, and the reservoir behaves as a controlled variable rather than an unknown. Operators stop compensating for flow inconsistency and start managing the system as designed — with confidence that the infrastructure layer is performing to spec every cycle, every run.

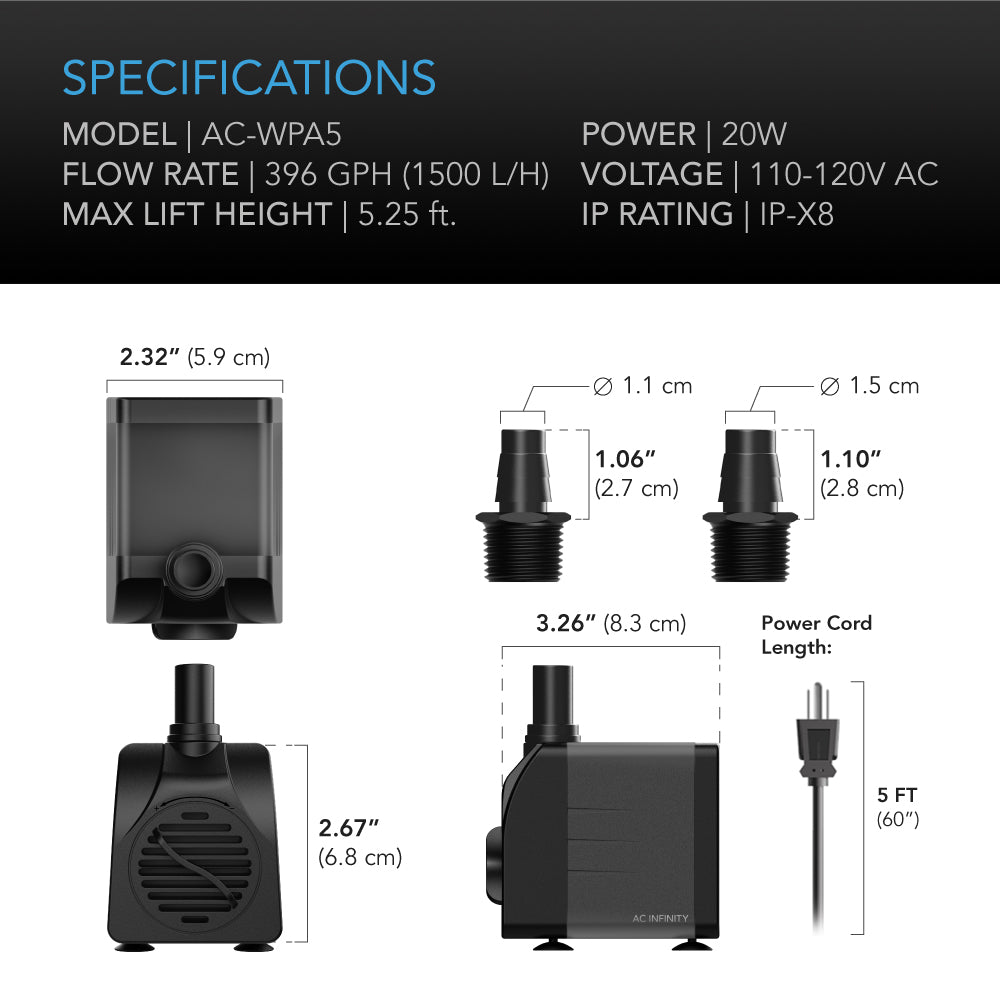

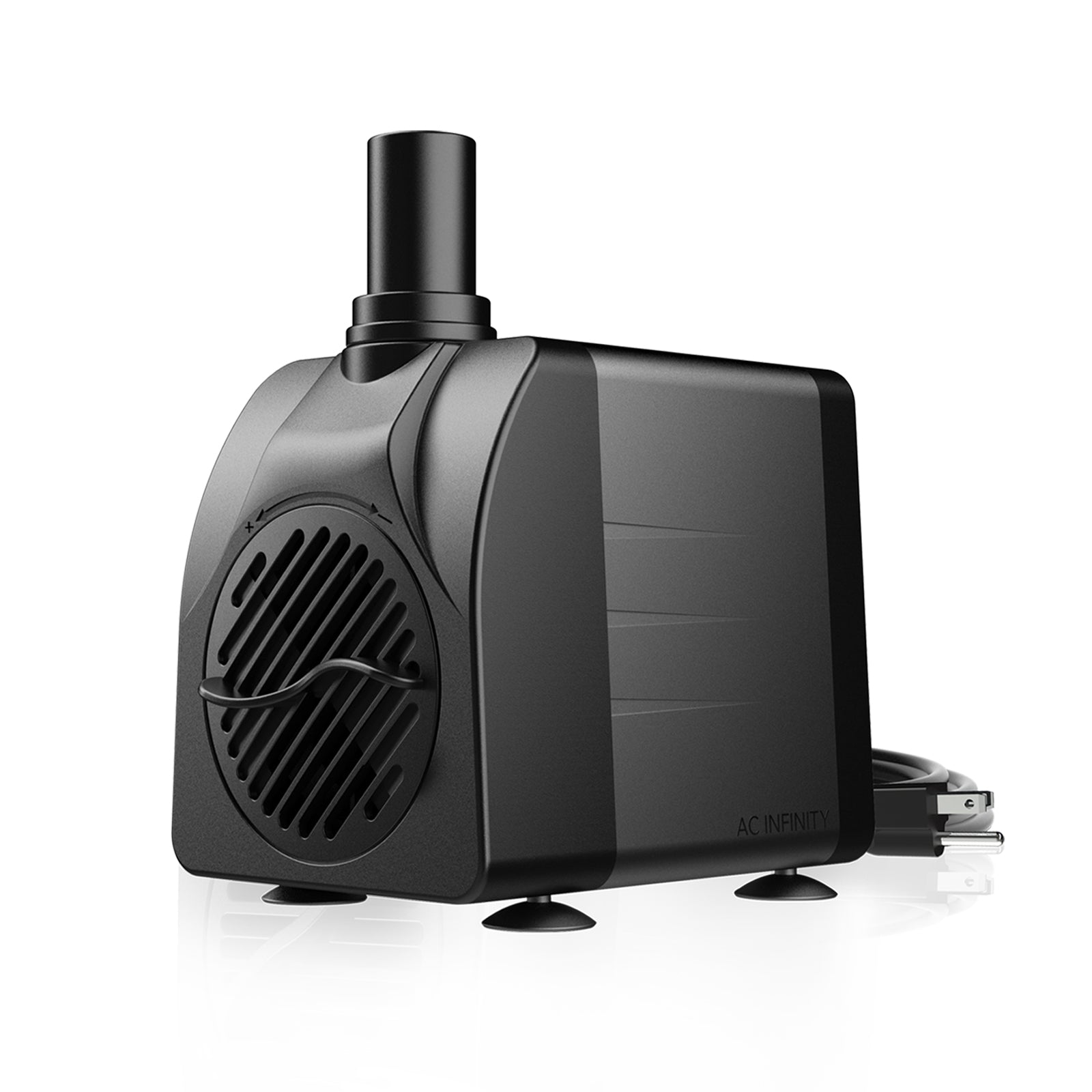

The AC Infinity AC-WPA5 achieves this through a high-performance motor rated at 20W drawing 110–120V AC at 50/60Hz, delivering a verified flow rate of 396 GPH (1500 L/H) with a maximum lift height of 5.25 ft. The IP-X8 waterproof rating confirms full submersibility for continuous reservoir operation, and the compact 2.32 x 2.71 x 3.30 in. footprint allows integration into tight reservoir geometries without displacing solution volume. Two interchangeable nozzles — small and medium — are included with the AC-WPA5, enabling direct connection to a wide range of hydroponic and irrigation system fittings without adapters. In practical terms, the AC-WPA5 delivers 396 GPH at 1500 L/H across a fully submersible deployment envelope at 20W continuous draw with a verified 5.25 ft. lift ceiling.

Where This Belongs (and Doesn't)

The AC-WPA5 is a low-voltage submersible pump rated for continuous wet operation. It is not a pressure pump, sump pump, or inline booster. It does not replace dedicated irrigation controllers or automated dosing systems. All electrical connections must comply with applicable local codes. Consult a licensed electrician for any hardwired installation.

How It Works

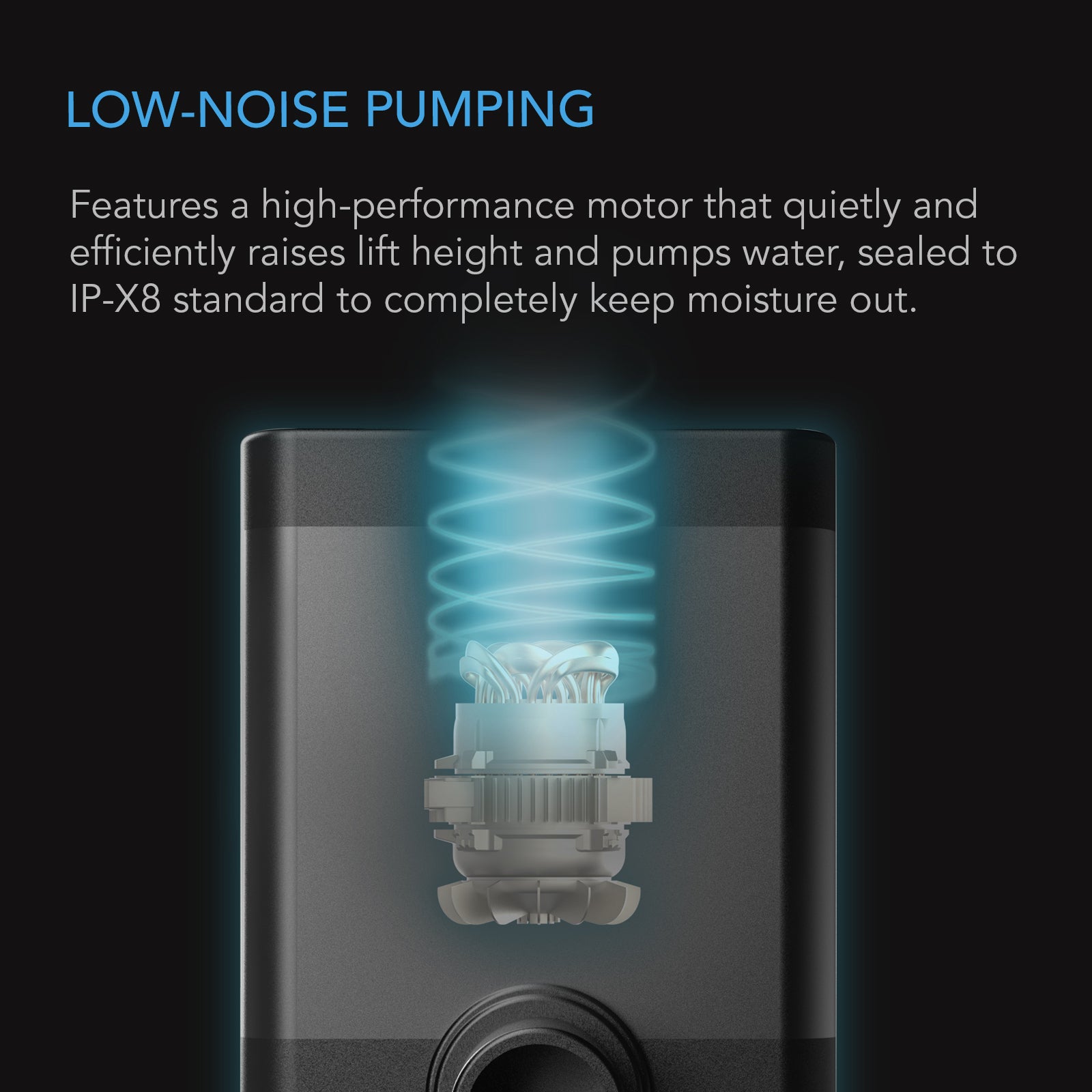

The AC-WPA5 operates on a sealed, oil-free motor architecture rated at 20W continuous draw, accepting 110–120V AC input at both 50Hz and 60Hz — making it compatible with standard U.S. facility electrical infrastructure without frequency conversion. The motor drives impeller-based centrifugal flow, generating a verified output of 396 GPH (1500 L/H) at the pump outlet. Maximum lift height is rated at 5.25 ft. per the primary product page specification, establishing the operational ceiling for vertical delivery runs from reservoir to canopy or distribution manifold.

The IP-X8 waterproof rating certifies the pump for continuous full submersion, which is the correct operating condition for reservoir-based hydroponic systems. This rating is not a splash or drip rating — it confirms the motor housing and electrical components are sealed against sustained water ingress at depth, supporting long-duration submersed operation without motor degradation from moisture intrusion. The pump body measures 2.32 x 2.71 x 3.30 in., a compact form factor that allows placement in small-volume reservoirs, manifold sumps, or integrated system chambers without displacing meaningful solution volume.

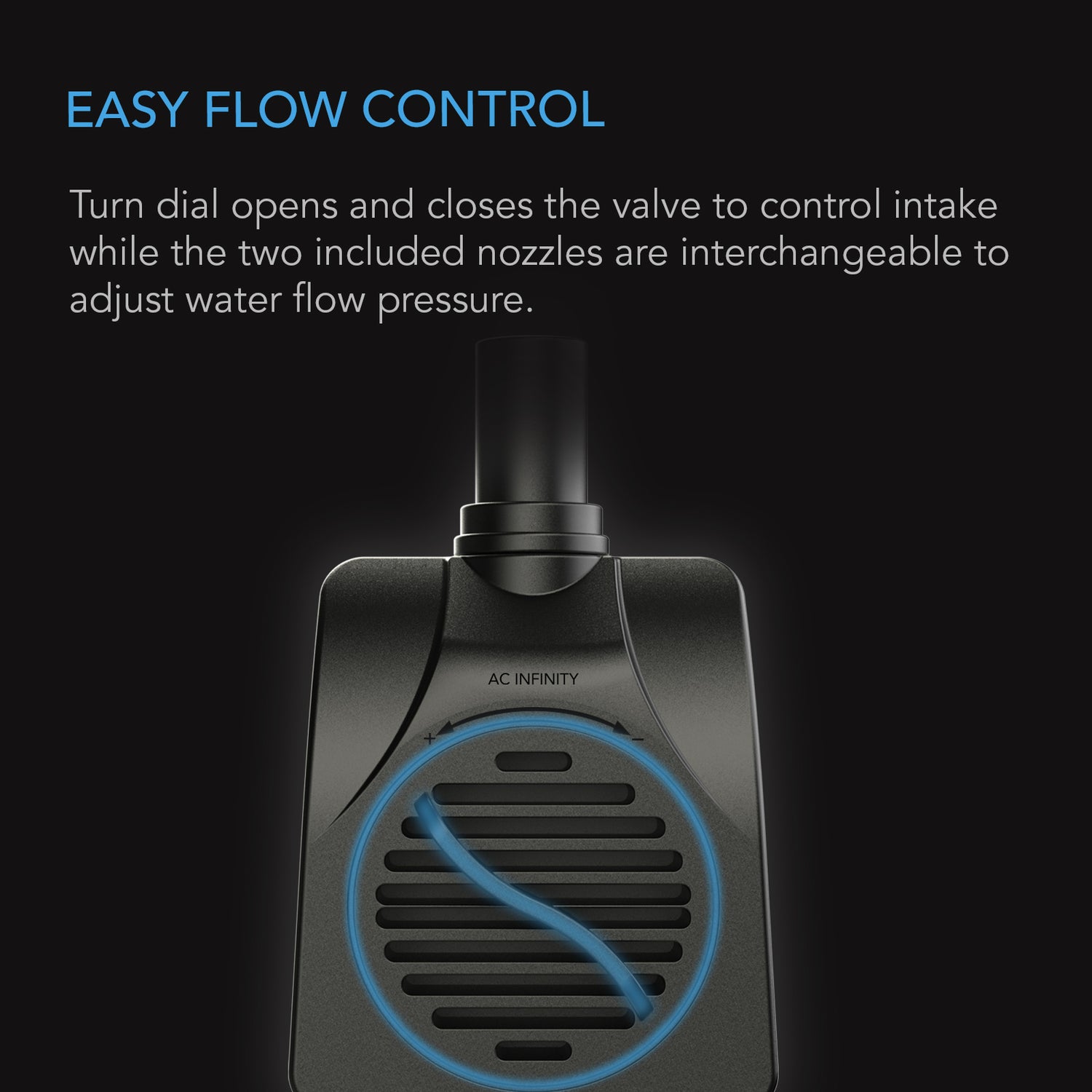

Two interchangeable nozzle fittings are included with the AC-WPA5: a small nozzle (included with all models in the AC Infinity pump line) and a medium nozzle (specific to the AC-WPA5). These nozzles allow direct connection to a broad range of hydroponic tubing, irrigation barbs, and system inlets without requiring third-party adapters, reducing installation friction and maintaining sealed connections at the delivery point. In practical terms, the AC-WPA5 delivers 396 GPH (1500 L/H) through a fully submersible, IP-X8-rated motor at 20W continuous draw, with two included nozzle fittings covering the most common hydroponic and irrigation connection standards.

Commercial Assurance

The AC Infinity AC-WPA5 is sold through Cannafull Spectrum Solutions as a factory-authorized dealer. Every unit is sourced through verified distribution channels and carries the manufacturer's original product warranty. Warranty period for this SKU was not specified in available source documentation — contact Cannafull Spectrum Solutions or AC Infinity directly at the time of purchase to confirm current warranty terms.

• Authorized Channel: Factory-authorized dealer supply chain — no gray market or third-party refurbished units.
• Manufacturer: AC Infinity Inc.
• SKU: AC-WPA5 | UPC: 819137021990 (product page verified)
• Warranty: Manufacturer warranty applies — period not specified in available source data. Confirm current terms with AC Infinity or Cannafull Spectrum Solutions prior to ordering.
• Support: Pre-sale and post-sale technical support available through Cannafull Spectrum Solutions for integration, compatibility, and deployment questions.

System Integration

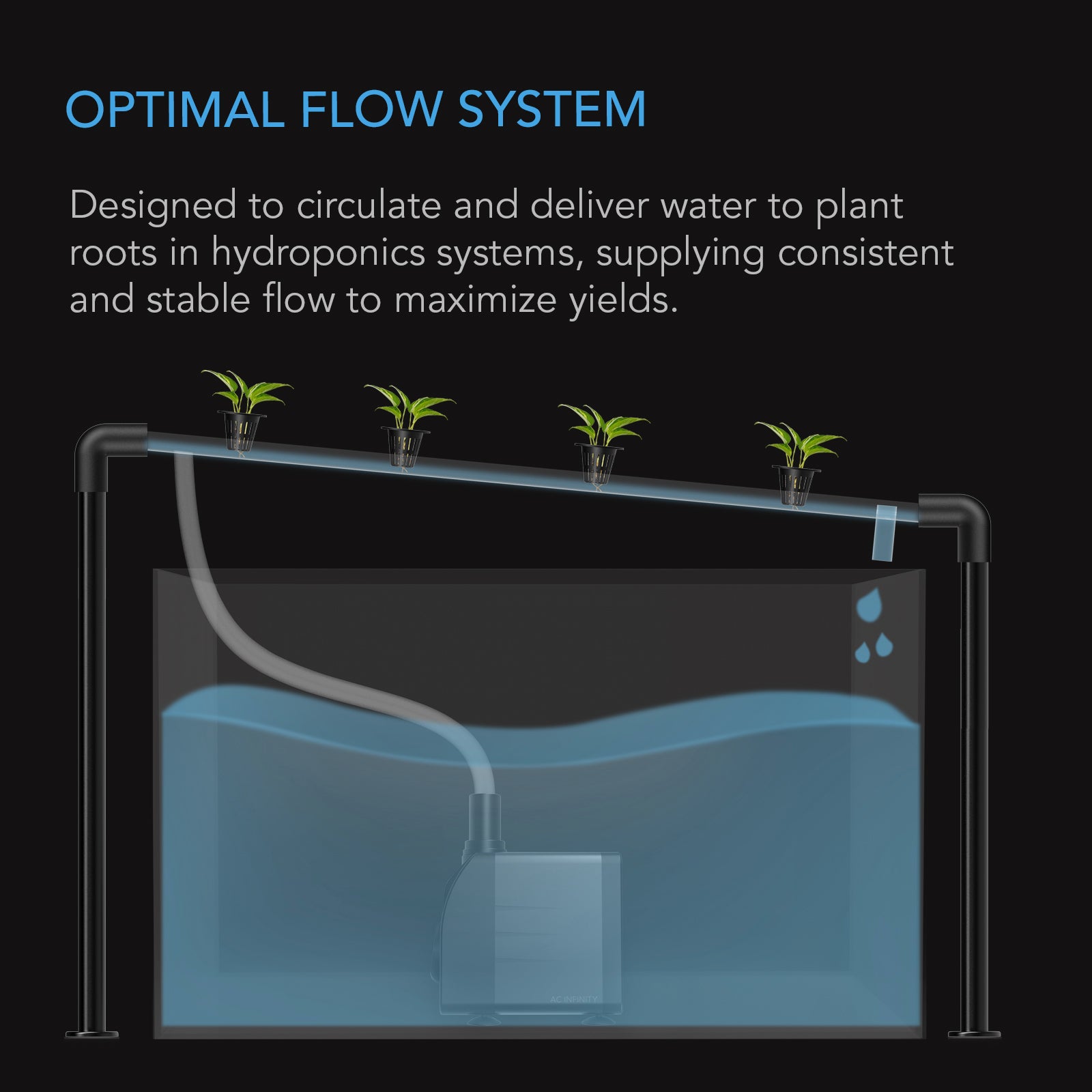

• Hydroponic Ecosystem Compatibility: Designed for direct integration into DWC, RDWC, NFT, ebb-and-flow, and drip irrigation systems via included small and medium nozzle fittings.
• Electrical Infrastructure: 110–120V AC, 50/60Hz — plug-compatible with standard U.S. facility outlets; no step-down transformer or frequency converter required.
• Reservoir Geometry: Compact 2.32 x 2.71 x 3.30 in. body integrates into small-volume reservoirs and inline sumps without significant solution displacement.
• Controller Pairing: Flow output can be managed through compatible timer controllers or automated irrigation scheduling systems to support programmatic delivery cycles within the broader facility UIS (Unified Infrastructure System).
• Multi-Unit Deployment: Consistent 20W draw per unit enables straightforward load calculation for multi-pump reservoir arrays; IP-X8 rating supports continuous submersed operation across extended automated deployment cycles.

Facility Integration Data

The following ROI framework supports procurement planning for multi-unit pump deployments across recirculating hydroponic infrastructure, using verified electrical draw data from Table A.

Operator Field Notes

• Lift Height Conflict — Verify Before Specifying: Source documentation contains a conflict between the product page (5.25 ft. max lift) and the manual PDF (10 ft.). Table A uses the product page value as primary. If your system requires lift height above 5.25 ft., confirm the current specification directly with AC Infinity before committing to a deployment design.
• Nozzle Selection: The AC-WPA5 ships with both a small and medium nozzle. Match nozzle size to your system's inlet fitting before installation to maintain a sealed connection and prevent flow loss at the junction point.
• IP-X8 Means Full Submersion — Not Splash Resistance: The IP-X8 rating is a continuous submersion certification. The pump is designed to operate fully submerged. Do not attempt to run it in a partially submerged or above-surface configuration — this is outside the rated operating condition and will void any applicable warranty.
• Dry-Run Protection: Source data does not specify built-in dry-run protection. Ensure the pump remains fully submerged at all times during operation. Reservoir level monitoring or a float switch is recommended for automated systems where solution volume may drop during delivery cycles.
• UPC Conflict on Record: Two UPC codes exist in source documentation — 819137021990 (product page) and 819137022003 (manual PDF). The product page UPC is used as the primary identifier for this listing. If you are cross-referencing against a distributor catalog, verify against SKU AC-WPA5 rather than UPC alone.
• Weight Not Specified: Manufacturer weight data was not available in source documentation at time of listing. If shipping weight is required for freight planning, contact Cannafull Spectrum Solutions or AC Infinity directly for confirmed unit and carton weight.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, or international addresses cannot be processed through this channel.
• Fulfillment: Orders are processed and fulfilled through standard carrier networks. Tracking information is provided upon shipment confirmation. Delivery timelines vary by destination and carrier availability.
• Returns: Returns are accepted in accordance with the Cannafull Spectrum Solutions Return Policy. Items must be in original, uninstalled condition with all included accessories. Contact support before initiating a return.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions directly through the store contact page or support channel before initiating a return or freight claim.

What's in the Box

• AC Infinity Submersible Water Pump — AC-WPA5 (1 unit)
• Small interchangeable nozzle fitting (1 unit)
• Medium interchangeable nozzle fitting (1 unit)

Confirmed box contents are based on manufacturer-provided accessory data for SKU AC-WPA5. Additional documentation (instruction sheet, warranty card) may be included by the manufacturer and is not listed here as it was not specified in available source data. If your shipment is missing any confirmed item listed above, contact Cannafull Spectrum Solutions immediately upon receipt.

Regional Compliance & Deployment Notes

• Electrical Compliance: The AC-WPA5 operates at 110–120V AC, 50/60Hz. All electrical installations must comply with applicable local, state, and national electrical codes. Consult a licensed electrician for any hardwired or multi-circuit deployment.
• Waterproof Rating: IP-X8 certification applies to the pump unit as shipped. Any field modifications, non-standard fittings, or improper installation may compromise the waterproof rating and void applicable protections.
• Fluid Compatibility: The AC-WPA5 is designed for use with water and standard hydroponic nutrient solutions. Use in chemically aggressive, corrosive, or high-temperature fluids outside the manufacturer's rated parameters is not supported and may damage the unit.
• Shipping Jurisdiction: This product is available for sale and shipment within the contiguous 48 United States only through Cannafull Spectrum Solutions. Compliance with state-level agricultural, water use, or facility licensing requirements is the responsibility of the purchasing operator.
• Lift Height Specification Conflict: A discrepancy exists between product page (5.25 ft.) and manual PDF (10 ft.) lift height values. Operators designing systems with vertical delivery runs near or above 5.25 ft. should verify the current specification with AC Infinity before finalizing system design. Cannafull Spectrum Solutions uses the product page value as the primary listed specification.

Cannafull Spectrum Solutions provides product compliance data as a reference resource only. Regulatory requirements for hydroponic facility operation, water use, and electrical installation vary by jurisdiction. It is the operator's responsibility to verify that all equipment deployments meet applicable local, state, and federal requirements. This listing does not constitute legal, engineering, or compliance advice.
