Bomba de agua sumergible AC Infinity | Altura de elevación de 10 pies | 792 GPH (3000 L/H)

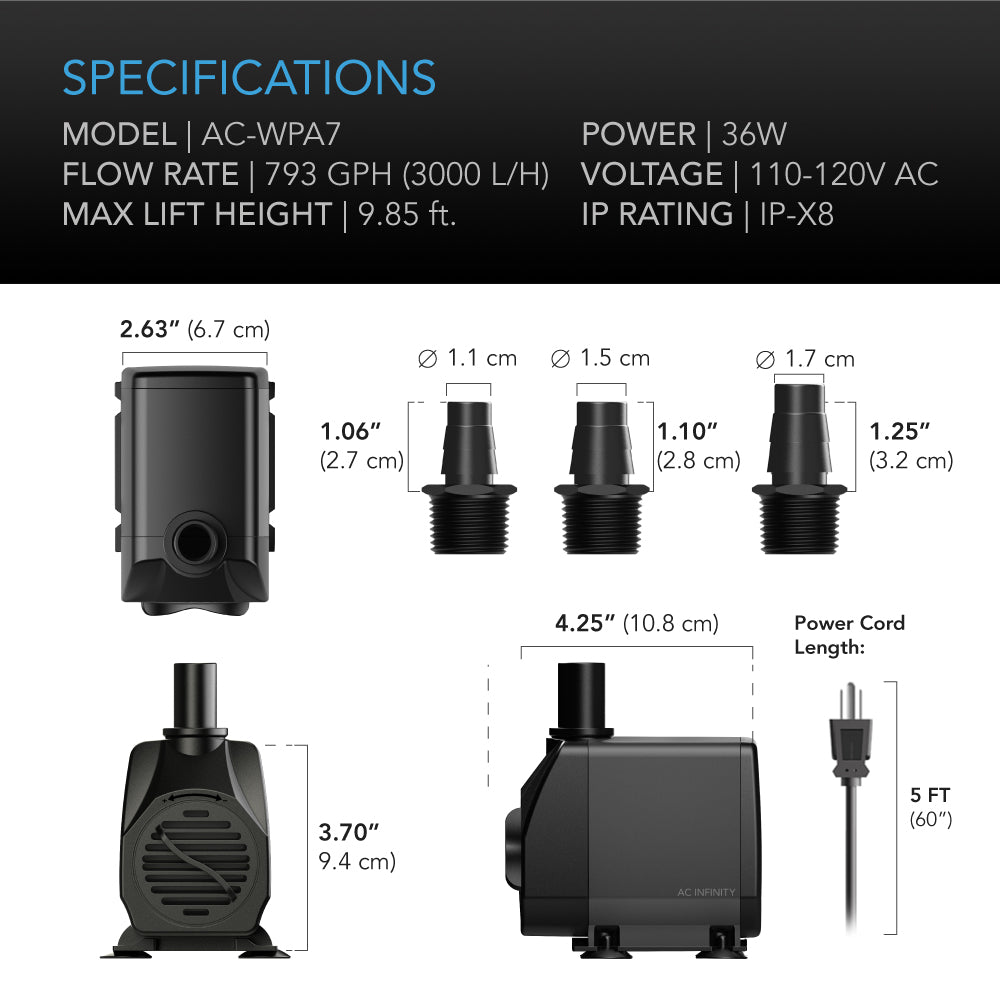

Quick Spec: AC-WPA7 | 36W | 110-120V AC | 50/60Hz | 792 GPH / 3000 L/H | 9.85 ft. Lift | IP-X8 | 2.87 x 3.70 x 4.29 in. | SKU: AC-WPA7

Precision Control in Any Space

Every recirculating system has a failure point that operators learn to tolerate rather than solve. Flow drops off as lift demand increases. Pumps rattle against reservoir walls, introducing vibration that disrupts root-zone stability. Intake valves offer no real adjustment — you get full flow or you get nothing — and when the motor housing is not properly sealed, moisture infiltration accelerates wear until the unit fails mid-cycle. The cost is not just the hardware replacement. It is the crop interval lost, the reservoir chemistry disrupted, and the manual intervention required at the worst possible moment. Guesswork and equipment that fights you are not inconveniences; they are compounding operational liabilities that erode output consistency across every run.

After deployment, the reservoir runs on a defined delivery schedule with no operator babysitting. Flow rate is dialed to the exact pressure the system demands — not approximated, not toggled between two extremes. The pump sits anchored to the reservoir floor or wall, silent under load, moving water at the rate the root zone requires without drift or interruption. Nozzle configuration matches the downstream irrigation architecture already in place, eliminating adapter workarounds. The system circulates. The operator manages the crop, not the equipment.

The mechanism behind that outcome is a high-performance sealed motor drawing 36 watts at 110-120V AC (50/60Hz), capable of moving 792 GPH (3000 L/H) against a maximum lift height of 9.85 feet. The motor housing carries an IP-X8 waterproof rating — the highest submersible classification — meaning it is engineered for continuous full-immersion operation, not splash resistance. A turn-dial flow control valve provides stepless intake adjustment, and three interchangeable nozzles allow the outlet configuration to match the pressure and connection geometry of the downstream system. Suction cup feet lock the unit to any surface in any orientation, eliminating positional drift inside the reservoir. The physical footprint is 2.87 x 3.70 x 4.29 inches (7.3 x 9.4 x 10.9 cm), making it deployable in reservoirs where larger pump bodies cannot be positioned without compromising usable volume. In practical terms, the AC-WPA7 delivers 792 GPH at up to 9.85 feet of lift on 36 watts of draw, fully submerged and continuously sealed to IP-X8 standards.

Where This Belongs (and Doesn't)

The AC-WPA7 is a low-voltage submersible pump operating at 110-120V AC. All electrical connections, outlet circuits, and line-voltage infrastructure must be installed and verified by a licensed electrician in accordance with local codes. This product does not replace or integrate with HVAC, environmental control, or high-voltage facility systems.

How It Works

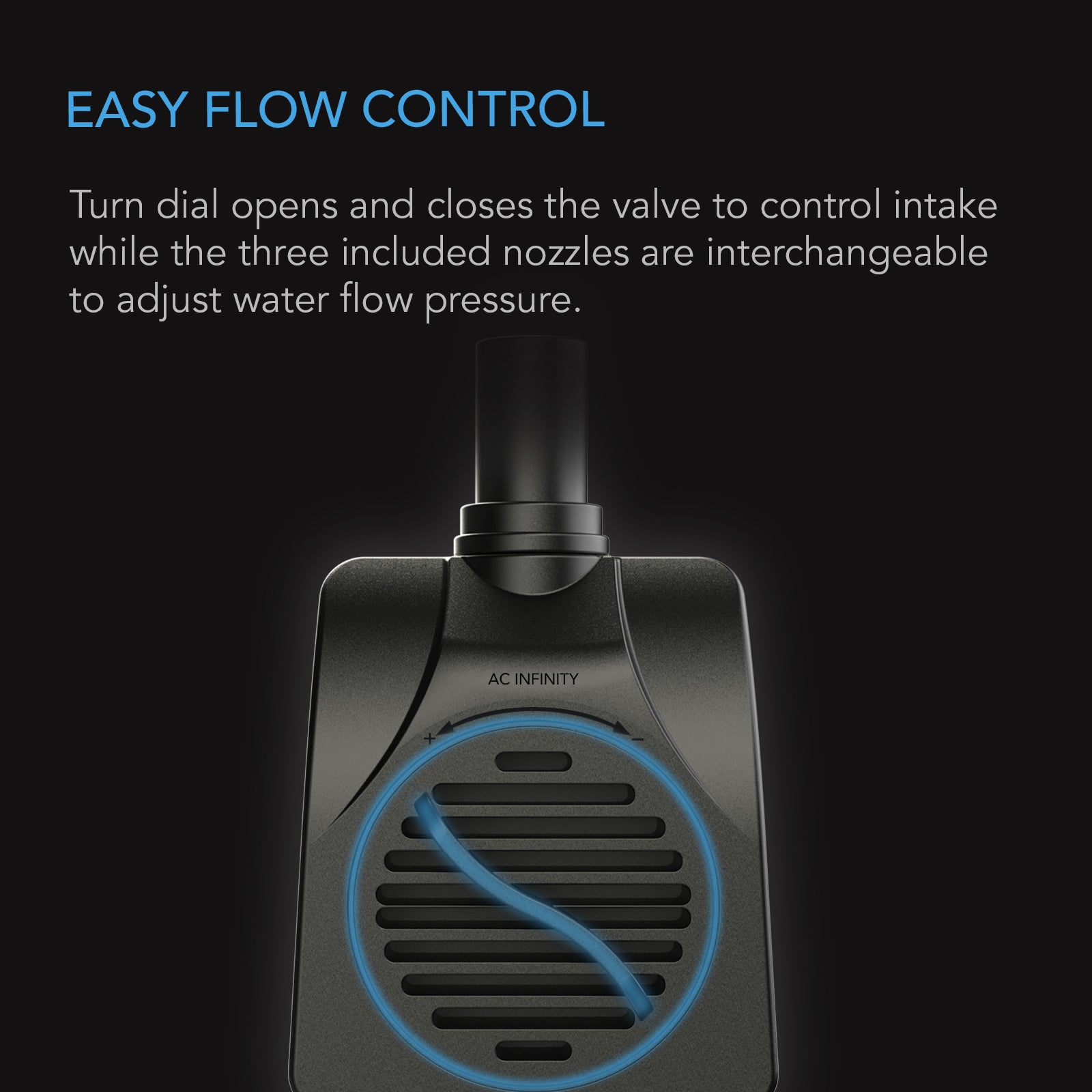

The AC-WPA7 operates on a sealed motor architecture drawing 36 watts at 110-120V AC across 50/60Hz input frequency. Water enters through the intake valve, which is governed by a turn-dial control that opens or closes the valve to modulate flow volume — providing the operator with stepless adjustment between minimum circulation and maximum rated output of 792 GPH (3000 L/H). The motor is rated to push water against a vertical lift of 9.85 feet, making it functional in tall reservoir configurations and multi-tier delivery setups where head pressure would stall lower-rated units.

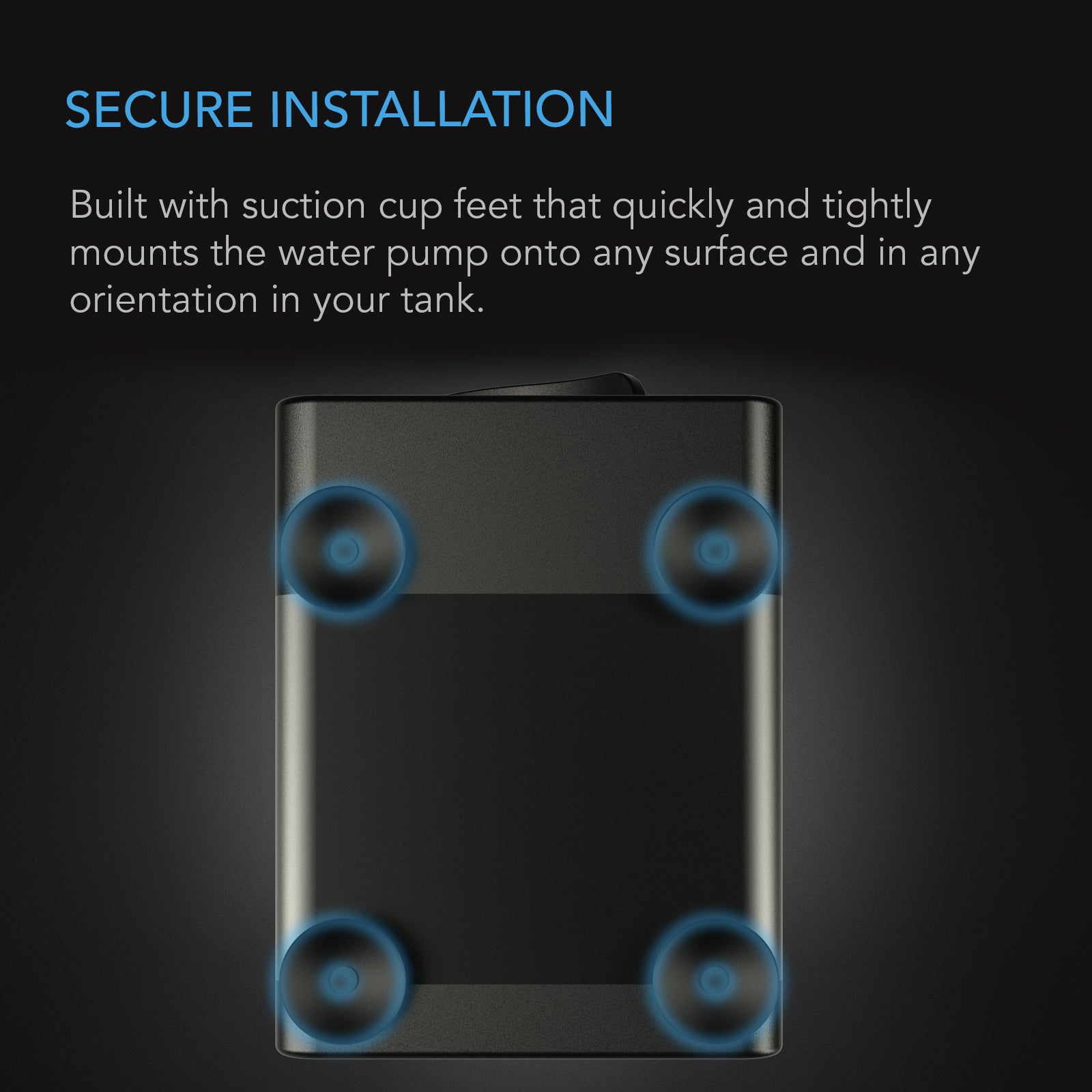

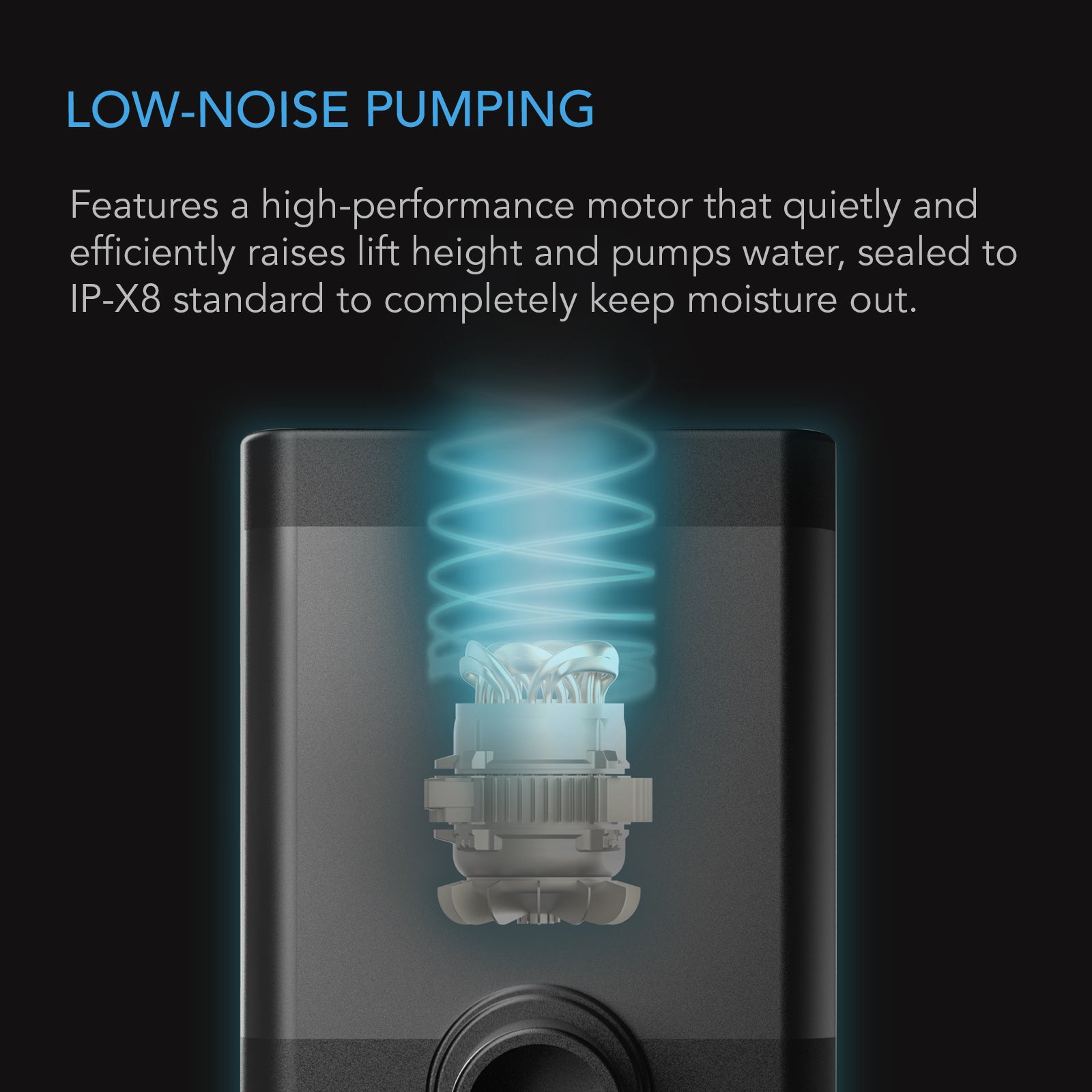

The IP-X8 waterproof rating is not a splash guard designation — it is a full continuous-submersion certification, meaning the motor housing is sealed against moisture infiltration at depth for extended operational periods. This eliminates the primary failure mode of non-rated submersible pumps: moisture ingress into the motor cavity. The suction cup mounting feet allow the unit to be secured to the reservoir floor, sidewall, or any smooth surface in any orientation, preventing positional drift that would otherwise interrupt intake geometry and reduce effective flow. Three interchangeable nozzle fittings are included, allowing the outlet to be matched to the tubing diameter and connection type of the downstream irrigation or circulation system without requiring additional adapters. The physical envelope of 2.87 x 3.70 x 4.29 inches (7.3 x 9.4 x 10.9 cm) allows deployment in compact reservoirs where larger pump bodies would displace usable water volume or obstruct root mass. In practical terms, the AC-WPA7 delivers 792 GPH (3000 L/H) at up to 9.85 feet of lift on 36 watts, fully submerged in a 2.87 x 3.70 x 4.29-inch sealed housing rated IP-X8 for continuous immersion.

System Integration

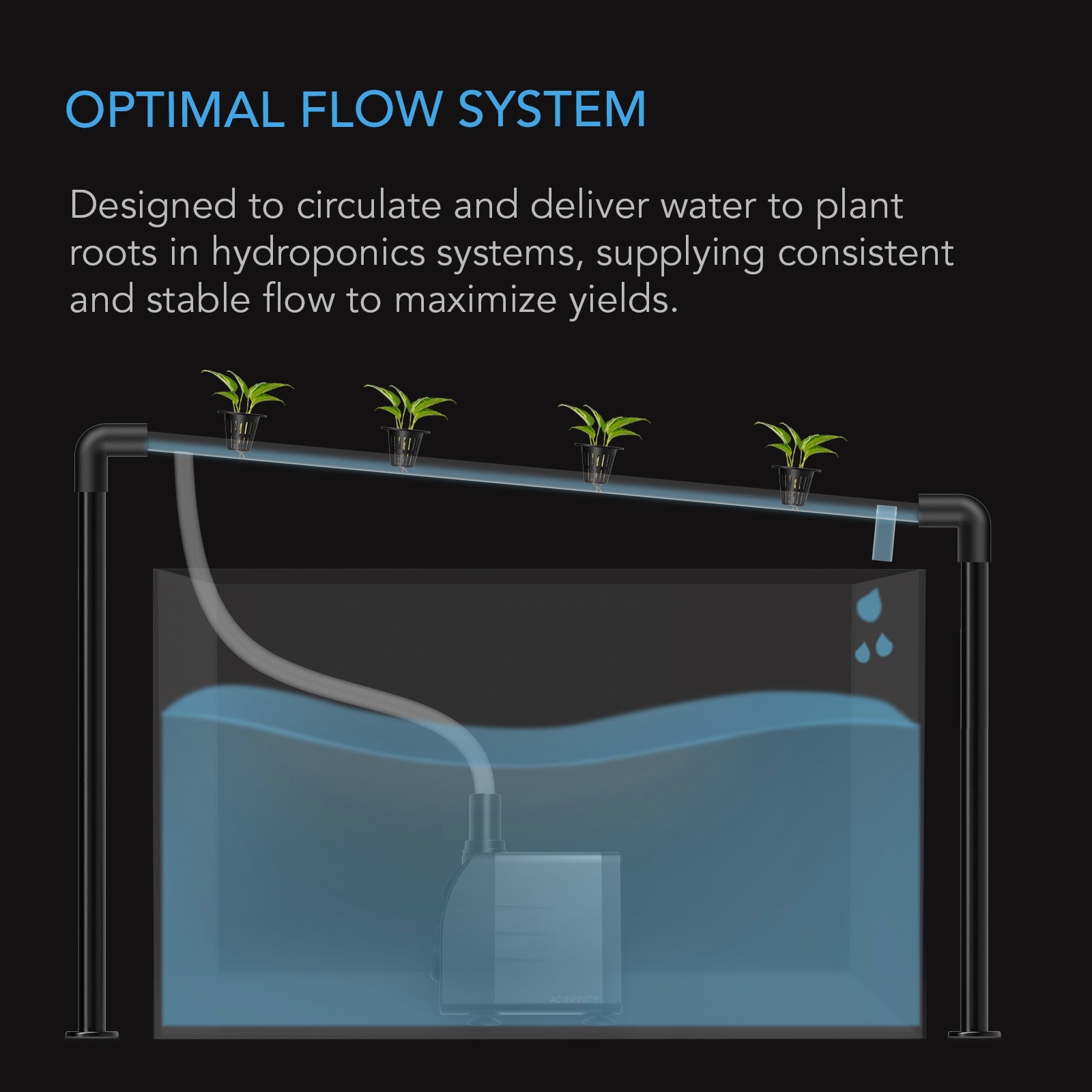

• Hydroponic Reservoir Circuits: Integrates directly into DWC, RDWC, NFT, and ebb-and-flow systems via the three included interchangeable nozzle fittings, eliminating the need for third-party adapters in standard tubing configurations.
• Irrigation and Fertigation Lines: Rated flow of 792 GPH (3000 L/H) supports multi-site drip manifolds and recirculating fertigation delivery at pressures achievable within the 9.85-foot lift envelope.
• AC Infinity Ecosystem Compatibility: Designed within the AC Infinity product architecture, making it a natural pairing with AC Infinity environmental controllers, timers, and automated deployment infrastructure where scheduled pump cycling is required.
• Compact Reservoir Footprint: At 2.87 x 3.70 x 4.29 inches, the unit occupies minimal reservoir volume, preserving usable water capacity in space-constrained configurations.
• Electrical Requirements: Requires a standard 110-120V AC outlet at 50/60Hz. No dedicated circuit or special wiring is required beyond a properly rated outlet confirmed by a licensed electrician.

Operator Field Notes

• Prime Before First Run: Submerge the unit completely before powering on. Running the motor dry — even briefly — can damage the impeller and voids the operational integrity of the sealed housing.
• Dial Calibration: The turn-dial flow control is stepless. Set it at mid-range on initial deployment and adjust incrementally to match the downstream system's pressure tolerance before locking in a final position.
• Nozzle Selection: Match the included nozzle to the inner diameter of your delivery tubing. A mismatched nozzle creates turbulence at the outlet junction that reduces effective flow rate below the rated 792 GPH.
• Suction Cup Adhesion: Clean the mounting surface with isopropyl alcohol before pressing the suction cups into position. Biofilm or mineral scale on reservoir walls will prevent full adhesion and allow positional drift under flow load.
• Periodic Inspection: Inspect the intake screen and impeller cavity at each reservoir drain cycle. Particulate accumulation in the intake reduces flow rate and increases motor load over time.
• Lift Height Margin: The 9.85-foot lift rating is a maximum under ideal conditions. In systems with significant horizontal run or multiple elbows in the delivery line, calculate effective head pressure and confirm it falls within the rated lift envelope before finalizing plumbing layout.

Operator FAQ

Shipping & Logistics

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this jurisdiction cannot be fulfilled.
• Freight Class: The AC-WPA7 ships as a standard parcel. No freight or LTL classification applies at single-unit quantities. Multi-unit orders should contact Cannafull Spectrum Solutions for consolidated shipping options.
• Returns: Defective units are subject to manufacturer warranty procedures. Non-defective returns must be initiated within the return window specified in the Cannafull Spectrum Solutions Return Policy. Units must be returned in original, uninstalled condition with all included accessories.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions before ordering? Contact Cannafull Spectrum Solutions directly through the store contact page for pre-purchase technical support and multi-unit procurement inquiries.

What's in the Box

• AC Infinity Submersible Water Pump — AC-WPA7 (1 unit)
• Three (3) interchangeable nozzle fittings

Box contents confirmed from manufacturer source data. Weight is not specified in source data for this SKU. Accessories beyond those listed above are not confirmed and should not be assumed. Contact Cannafull Spectrum Solutions to verify current box contents prior to procurement if accessory completeness is a requirement for your deployment.

Regional Compliance & Deployment Notes

• Input Voltage Compliance: The AC-WPA7 operates at 110-120V AC, 50/60Hz — compatible with standard U.S. residential and commercial outlet infrastructure. Verify outlet rating and circuit capacity before deployment in multi-unit configurations.
• Electrical Code: All electrical connections, outlet circuits, and wiring associated with pump deployment must be installed and inspected by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local jurisdiction requirements.
• Waterproof Rating Standard: IP-X8 certification is issued under IEC 60529. Operators in regulated facility environments should confirm that the IP-X8 rating satisfies any applicable equipment standards required by their state or local licensing authority.
• Shipping Jurisdiction: Available for sale and shipment within the contiguous 48 United States only through Cannafull Spectrum Solutions. No international or Canadian fulfillment is available through this channel.
• Licensing Applicability: This product is a water circulation device and does not itself carry cultivation, processing, or dispensary licensing requirements. Operators are responsible for ensuring that the systems into which this pump is integrated comply with all applicable state and local regulatory requirements for their licensed facility type.

Compliance information is provided for general reference only and does not constitute legal or regulatory advice. Cannafull Spectrum Solutions makes no representation regarding the suitability of this product for any specific licensed facility's regulatory requirements. Operators should consult their compliance officer or legal counsel for jurisdiction-specific guidance.
