Ventilador de pared para piso AC Infinity CLOUDLIFT S14 con controlador inalámbrico de 14 pulgadas

Precision Control in Any Space

The enemy is not poor airflow — it is unpredictable airflow. When a fan operates at a single fixed speed with no feedback loop and no remote adjustment capability, every change in canopy density, humidity load, or room configuration demands a manual intervention that may or may not happen on schedule. That lag is where variance lives. Stagnant microclimates form at the canopy boundary layer, transpiration rates diverge across the footprint, and the operator is left chasing symptoms rather than controlling conditions. Equipment that cannot be tuned without physical access is not a tool — it is a liability that compounds with every additional square foot under management.

After deployment, the facility operates differently. Air movement across the canopy is dialed to the exact velocity the crop requires at each stage — low and diffuse during early vegetative development, elevated and directional during peak transpiration demand. The operator adjusts from anywhere in the room without touching the unit. Vibration is absent. Noise is managed. The fan runs where it needs to run — floor-mounted for low-canopy coverage or wall-mounted for overhead distribution — and it holds that position without drift or mechanical fatigue. The environment becomes a managed variable rather than an ambient condition.

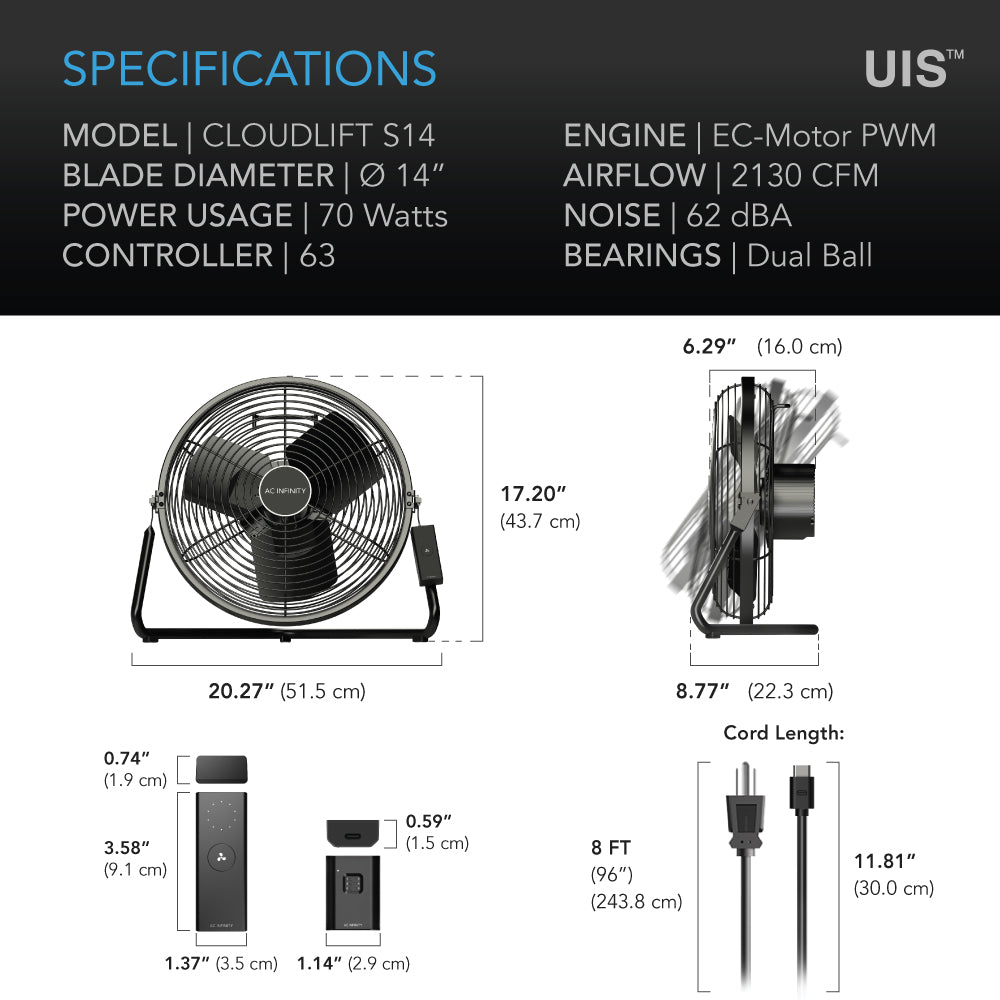

The mechanism behind that outcome is an Electronically Commutated (EC) motor with dual-ball bearings and PWM speed control across 10 discrete speed settings, delivering 2130 CFM of airflow at 70W draw and 0.95A current on a universal 100–240V input. Weight-balanced aluminum blades and impellers eliminate vibration-induced noise and mechanical wear. The steel enclosure and IP-44-rated component sealing maintain operational integrity across 35–85% RH — the full humidity range of an active cultivation environment. The included wireless remote operates the full 10-speed range without a wired connection, and the unit ships with a 96-inch (243.8 cm) power cord for flexible positioning. In practical terms, the CLOUDLIFT S14 delivers 2130 CFM of PWM-controlled airflow at 70W across floor or wall-mounted positions in environments operating up to 85% RH.

Where This Belongs (and Doesn't)

The CLOUDLIFT S14 is a circulation fan. It is not a replacement for dedicated HVAC equipment, inline exhaust systems, or dehumidification infrastructure. Electrical installation must comply with applicable local codes. Do not operate in environments exceeding the rated humidity or voltage range without verifying compatibility with your facility's electrical system.

How It Works

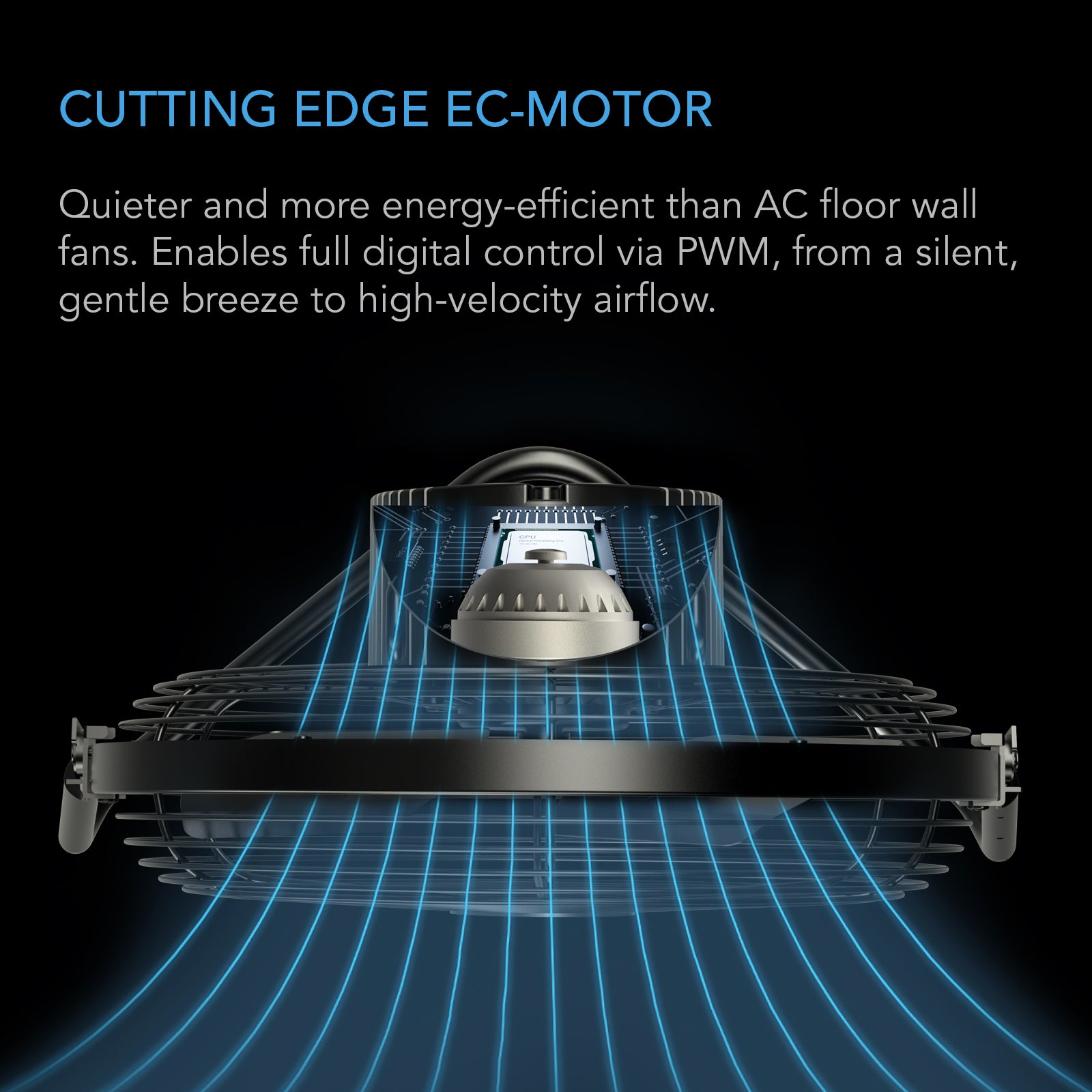

The CLOUDLIFT S14 is built around an Electronically Commutated (EC) motor — a brushless DC motor driven by an internal inverter that converts AC supply current into precisely regulated DC output. Unlike conventional AC induction motors that operate at a fixed magnetic pole frequency, the EC motor modulates rotational speed through Pulse Width Modulation (PWM), allowing the controller to set exact RPM targets across 10 discrete speed steps without the energy waste of resistive speed reduction. Dual-ball bearings replace the sleeve bearings found in standard AC fans, eliminating the primary wear mechanism responsible for motor failure in high-humidity environments and extending operational lifespan to twice that of conventional AC floor/wall fans.

The fan assembly uses weight-balanced aluminum blades and impellers machined to minimize rotational imbalance. Imbalance is the root cause of vibration-induced noise and bearing fatigue — by eliminating it at the blade level, the CLOUDLIFT S14 operates at 70 dBA at maximum output while maintaining structural integrity across extended duty cycles. The steel enclosure provides rigid support for the blade assembly and protects internal components from physical impact. All components are sealed to IP-44 specification, meaning the unit is protected against solid particle ingress greater than 1mm and water splash from any direction — a critical requirement in environments where irrigation, condensation, and humidity management generate ambient moisture.

Airflow output is rated at 2130 CFM with a static pressure capacity of 7.182 mm-H2O, providing sufficient force to penetrate canopy resistance and deliver air movement to the lower boundary layer rather than deflecting off the upper canopy surface. The unit draws 70W at 0.95A on a 100–240V universal input, making it compatible with both domestic and international facility electrical standards without a step-down transformer. The 96-inch (243.8 cm) power cord provides positioning flexibility for both floor-standing and wall-mounted configurations, with 360-degree adjustable tilt allowing precise directional targeting of airflow. The wireless receiver (1.14 x 1.57 x 0.59 inches / 2.9 x 4.0 x 1.5 cm) pairs with the included remote controller (3.59 x 1.37 x 0.75 inches / 9.1 x 3.5 x 1.9 cm) for full 10-speed adjustment without physical access to the unit. In practical terms, the CLOUDLIFT S14 delivers 2130 CFM at 7.182 mm-H2O static pressure, 70W, and 0.95A across floor or wall-mounted positions with IP-44 environmental sealing rated for 35–85% RH operation.

Commercial Assurance

The CLOUDLIFT S14 is manufactured by AC Infinity Inc. and sold through Cannafull Spectrum Solutions as a factory-authorized dealer. All units are sourced through authorized distribution channels and carry manufacturer support.

• Manufacturer: AC Infinity Inc.
• SKU: AC-WFS14
• UPC: 819137022430

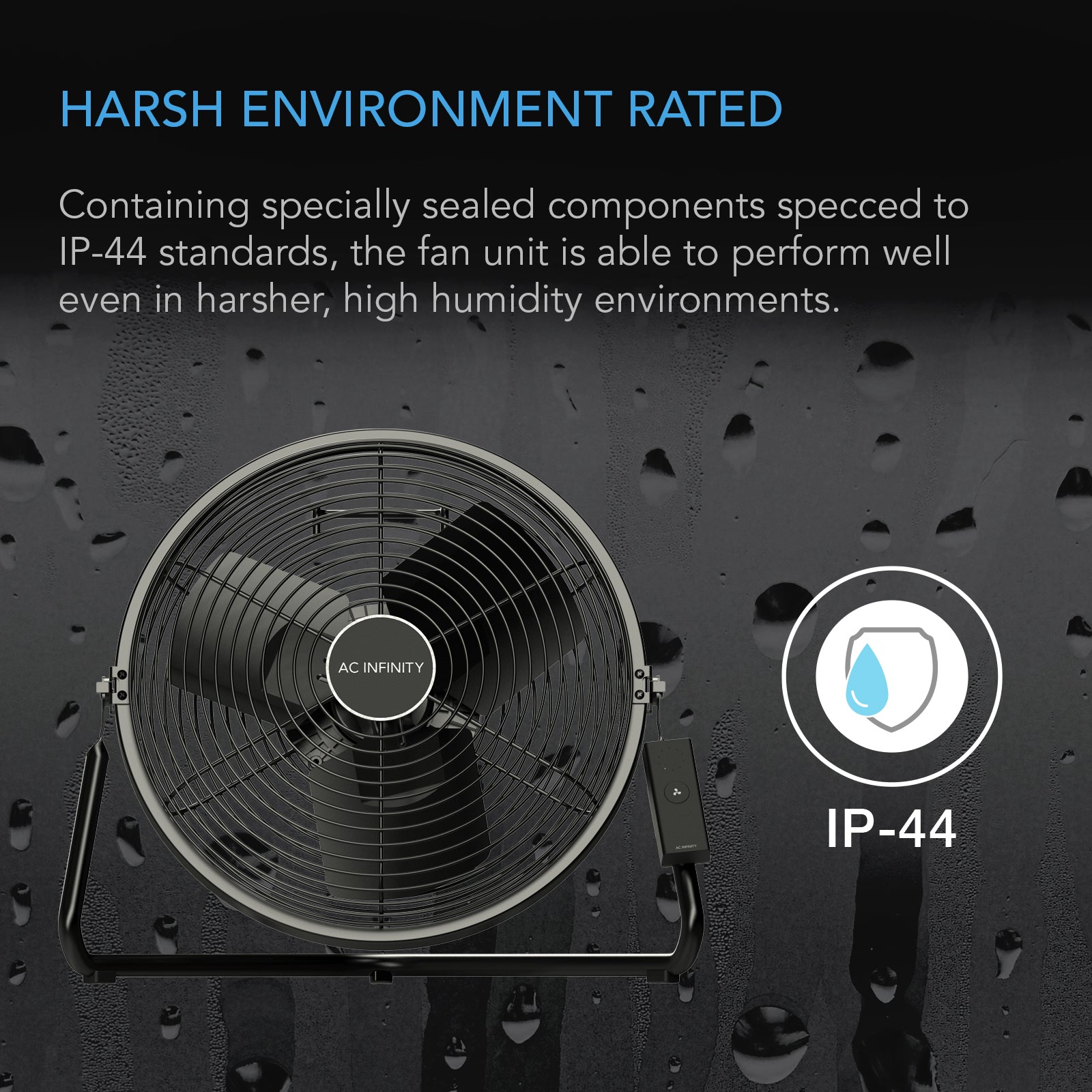

• IP Rating: IP-44 (splash-resistant, sealed components)
• Voltage Compatibility: 100–240V universal input — no step-down transformer required
• Warranty: Warranty terms are not specified in available manufacturer source data. Contact Cannafull Spectrum Solutions or AC Infinity directly for current warranty coverage details prior to purchase.
• Platform: Compatible with the UIS™ ecosystem of grow devices and smart controllers

System Integration

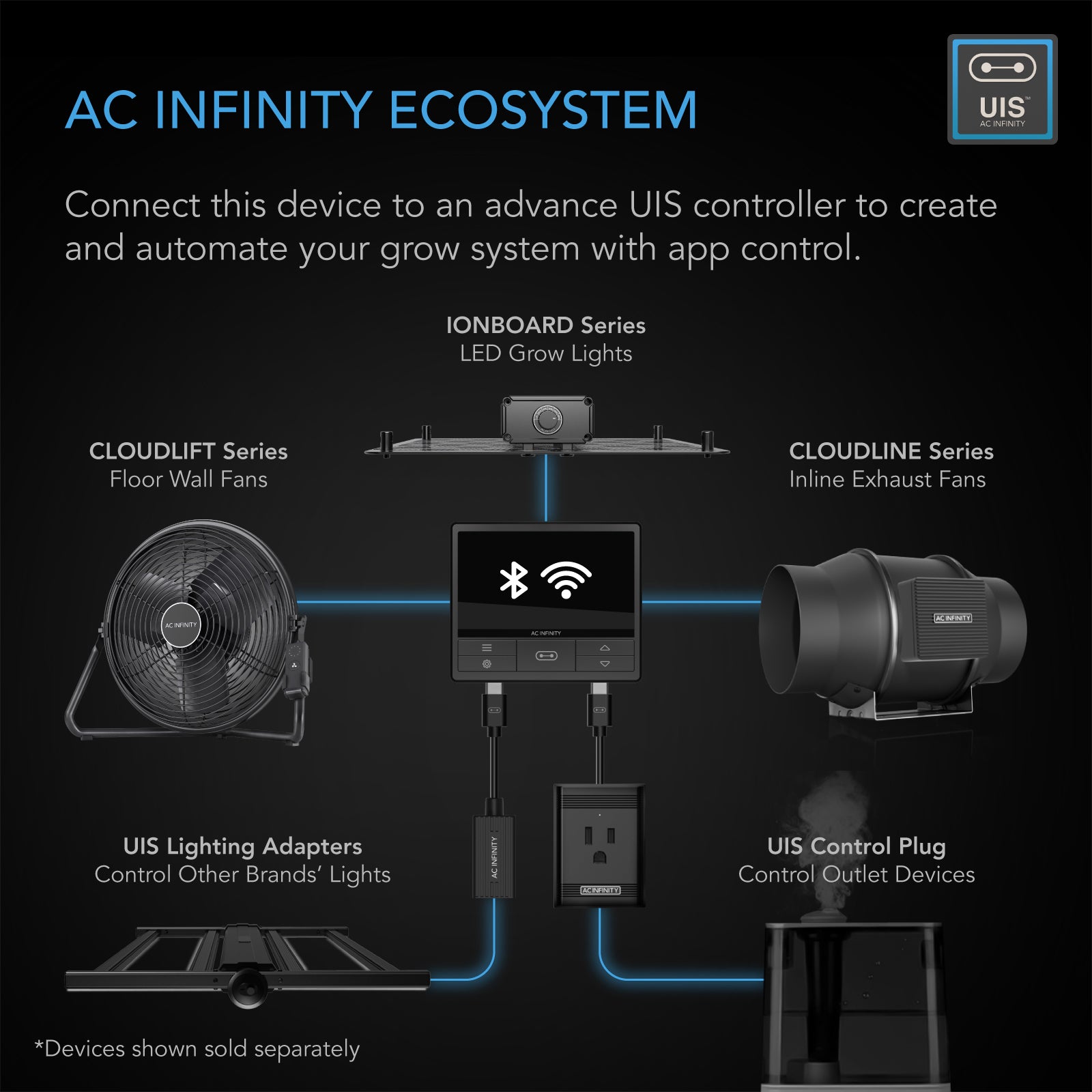

• UIS™ Platform Compatibility: The CLOUDLIFT S14 is a native component of the AC Infinity UIS™ ecosystem, enabling coordinated atmospheric control alongside inline fans, controllers, and environmental sensors within a unified control architecture.
• Optional Controller Upgrade: The base unit ships with a 10-speed wireless remote. Operators requiring programmable scheduling, data logging, or multi-device coordination can add the CONTROLLER 69 PRO, CONTROLLER 69 PRO+, or CONTROLLER AI+ as separate accessories — each providing progressively advanced automation and intelligence layers.
• Dual Mounting Architecture: Floor-standing and wall-mounted configurations are supported with included hardware, allowing the unit to be repositioned as facility layout evolves without additional procurement.
• Electrical Integration: Universal 100–240V input with a standard outlet connection and 96-inch cord eliminates the need for dedicated circuits or voltage conversion in mixed-standard facilities.
• Environmental Boundary: IP-44 sealing and 35–85% RH operating range align with the humidity profiles of active cultivation environments, ensuring the fan operates as a stable node within the broader atmospheric control system rather than a failure point.

Facility Integration Data

The following table models electrical load and energy cost impact for multi-unit deployments of the CLOUDLIFT S14 at continuous operation. Use these figures for circuit planning, energy budgeting, and procurement justification. Figures assume continuous operation at rated wattage; actual consumption will vary with speed setting.

Energy cost estimates are illustrative. Actual costs depend on local utility rates, operational duty cycle, and speed setting. Current figures calculated at 120V; facilities operating at 240V will draw approximately half the listed amperage per unit.

Operator Field Notes

• Speed Calibration by Stage: The 10-speed PWM range allows operators to set lower airflow velocities during early vegetative stages — reducing mechanical stress on young tissue — and step up to high-velocity output during peak transpiration demand without touching the unit.

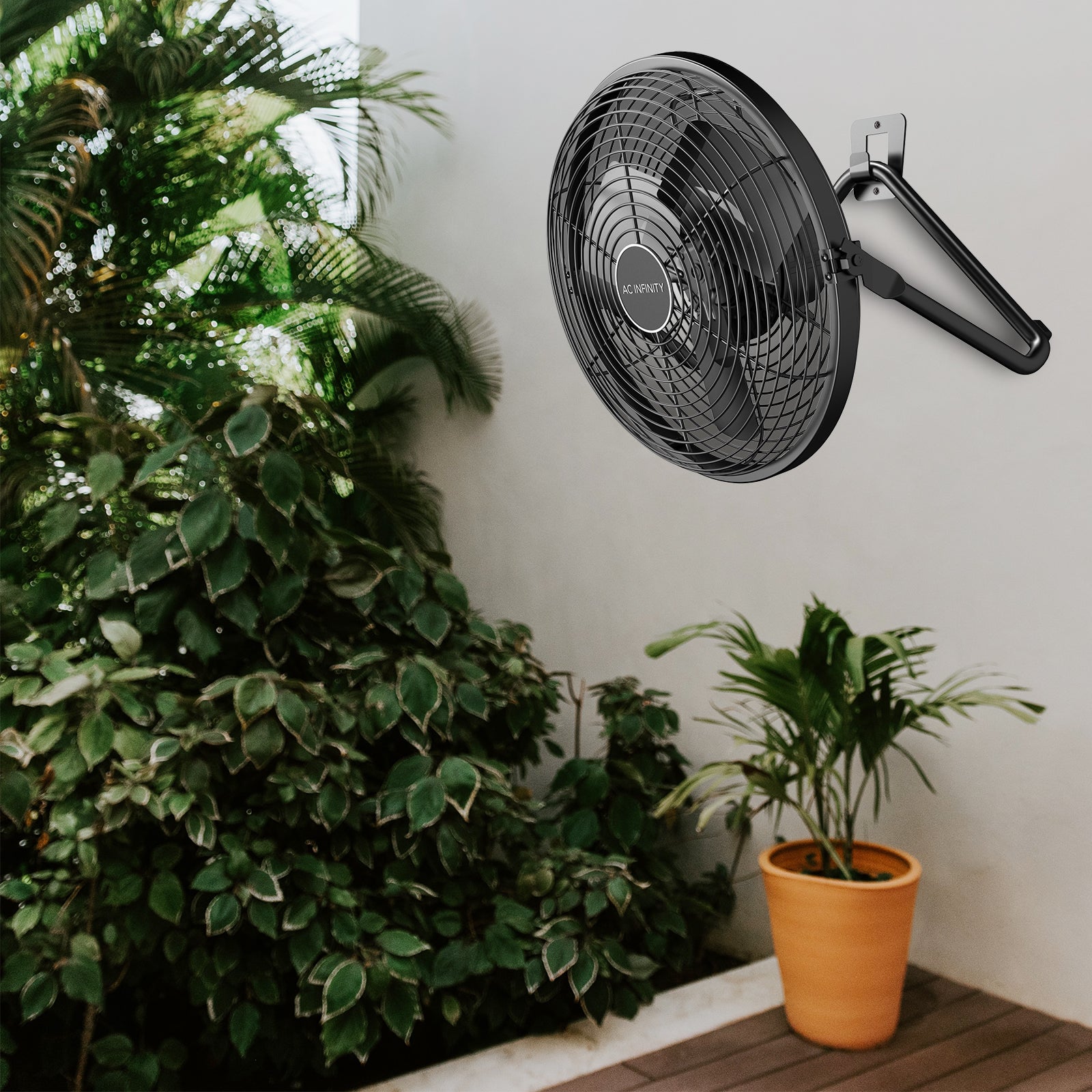

• Mounting Decision: Wall mounting positions the airflow source above the canopy for top-down distribution; floor mounting delivers lateral airflow at canopy height. Both configurations use the included hardware and support 360-degree tilt adjustment — evaluate your canopy geometry before installation to avoid repositioning after wiring.
• Cord Routing: The 96-inch (243.8 cm) power cord provides substantial positioning range, but plan cord routing before mounting to avoid tension on the connection point, particularly in wall-mount configurations where the cord must travel vertically.
• Controller Upgrade Path: The included wireless remote covers basic speed adjustment. If your operation requires scheduled programming, multi-device coordination, or data logging, evaluate the CONTROLLER 69 PRO, PRO+, or AI+ accessories before initial installation — retrofitting controller wiring after mounting is more labor-intensive than integrating it at setup.
• Humidity Environment: IP-44 sealing handles splash and condensation exposure within the 35–85% RH operating range. Do not submerge or expose to direct water streams. Inspect seals periodically in environments that operate at the upper humidity boundary for extended periods.
• Vibration Baseline: The weight-balanced aluminum blade assembly should produce no perceptible vibration at any speed setting. Vibration onset after extended operation is an indicator of bearing wear or blade damage — address it before it propagates to the mounting surface or adjacent equipment.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, and international destinations cannot be fulfilled through this listing.
• Freight Method: The CLOUDLIFT S14 ships via standard ground carrier. Expedited shipping options may be available at checkout. Delivery timelines are carrier-dependent and not guaranteed by Cannafull Spectrum Solutions.
• Returns: Returns are accepted subject to the Cannafull Spectrum Solutions Return Policy. Units must be in original, uninstalled condition with all included components. Defective units are handled separately under manufacturer support channels.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For order support, freight inquiries, or bulk procurement: contact Cannafull Spectrum Solutions directly through cannafullspec.com.

What's in the Box

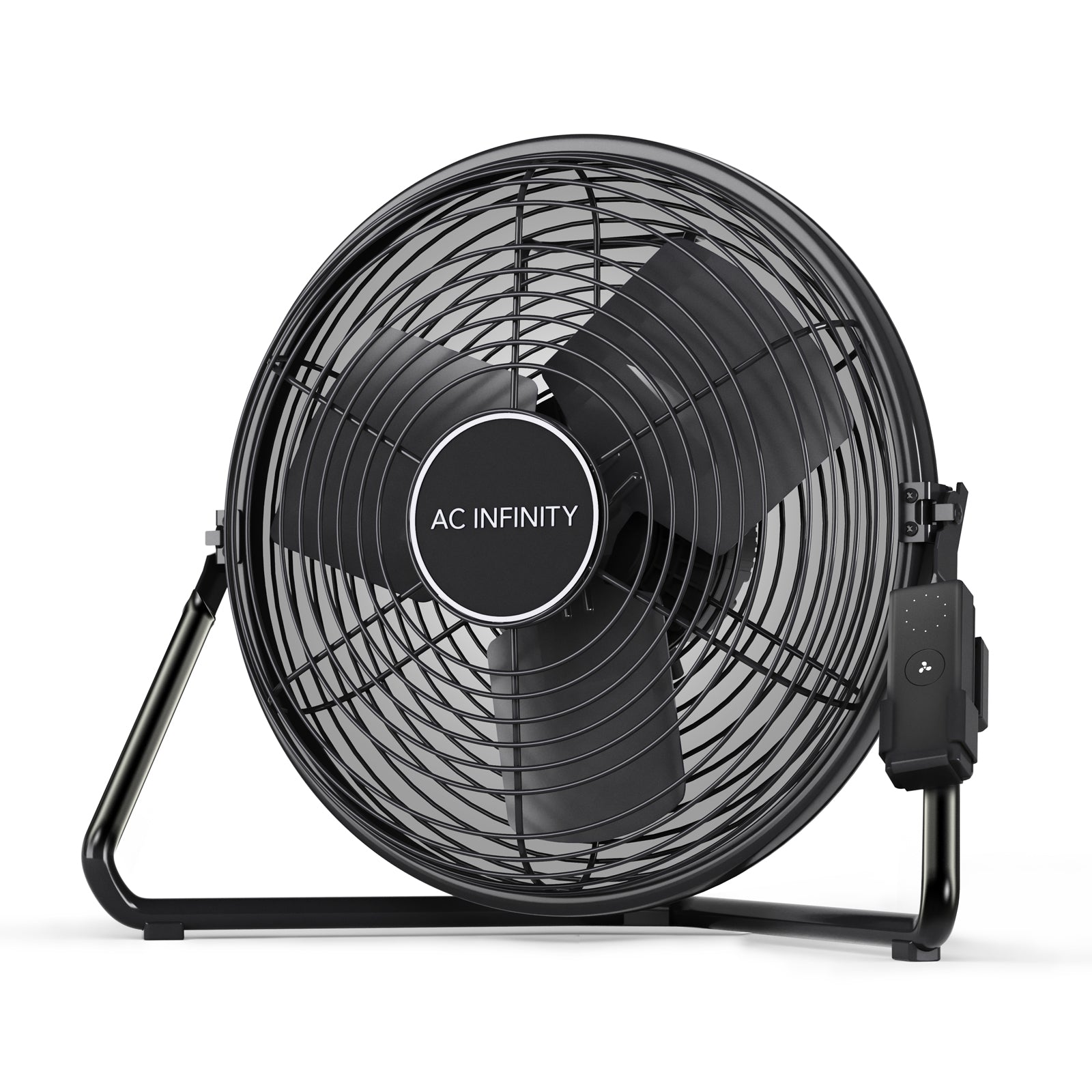

• CLOUDLIFT S14 14-inch floor/wall fan unit (AC-WFS14)
• Rigid floor stand with mounting hardware
• Wall-mounting hardware
• 10-speed wireless remote controller (batteries included)
• Wireless receiver unit (1.14 x 1.57 x 0.59 in / 2.9 x 4.0 x 1.5 cm)
• 96-inch (243.8 cm) power cord (standard outlet connection)
• Cord to controller connection cable (11.81 inches / 30.0 cm)

Box contents confirmed from manufacturer source data. Optional UIS™ controllers (CONTROLLER 69 PRO, CONTROLLER 69 PRO+, CONTROLLER AI+) are not included and are available as separate accessories. If any component is missing or damaged upon receipt, contact Cannafull Spectrum Solutions before installation.

Regional Compliance & Deployment Notes

• Electrical Compliance: The CLOUDLIFT S14 operates on 100–240V AC input. Verify that your facility's electrical supply, outlet configuration, and circuit capacity are compatible with the unit's 70W / 0.95A rated draw before installation. All electrical work must comply with applicable local, state, and national electrical codes.
• IP-44 Environmental Rating: The IP-44 rating applies to the fan unit and its sealed components under normal operational conditions within the 35–85% RH operating range. This rating does not authorize use in outdoor, submerged, or direct water-stream environments.
• Mounting Structural Requirements: Wall-mounted installations must be secured to structural members capable of supporting the fan unit's weight and operational vibration load. Cannafull Spectrum Solutions does not provide installation services. Consult a qualified contractor for permanent wall-mount installations in commercial facilities.
• Licensing Jurisdiction: This product is sold for use in licensed commercial facilities across the United States. Buyers are solely responsible for ensuring that their use of this equipment complies with all applicable state, county, and municipal regulations governing their facility's operations.
• UIS™ Platform Regulatory Note: The UIS™ ecosystem designation is a manufacturer platform classification by AC Infinity Inc. It does not constitute a regulatory certification. Verify that all controller accessories meet applicable electrical safety standards for your jurisdiction before installation.

Product specifications, certifications, and compliance data are sourced from AC Infinity Inc. manufacturer documentation. Cannafull Spectrum Solutions makes no independent representations regarding regulatory compliance beyond what is stated in manufacturer source data. Specifications are subject to change by the manufacturer without notice. Verify current specifications with AC Infinity Inc. prior to procurement for compliance-sensitive applications. This product listing is intended for operators in the contiguous United States only.
