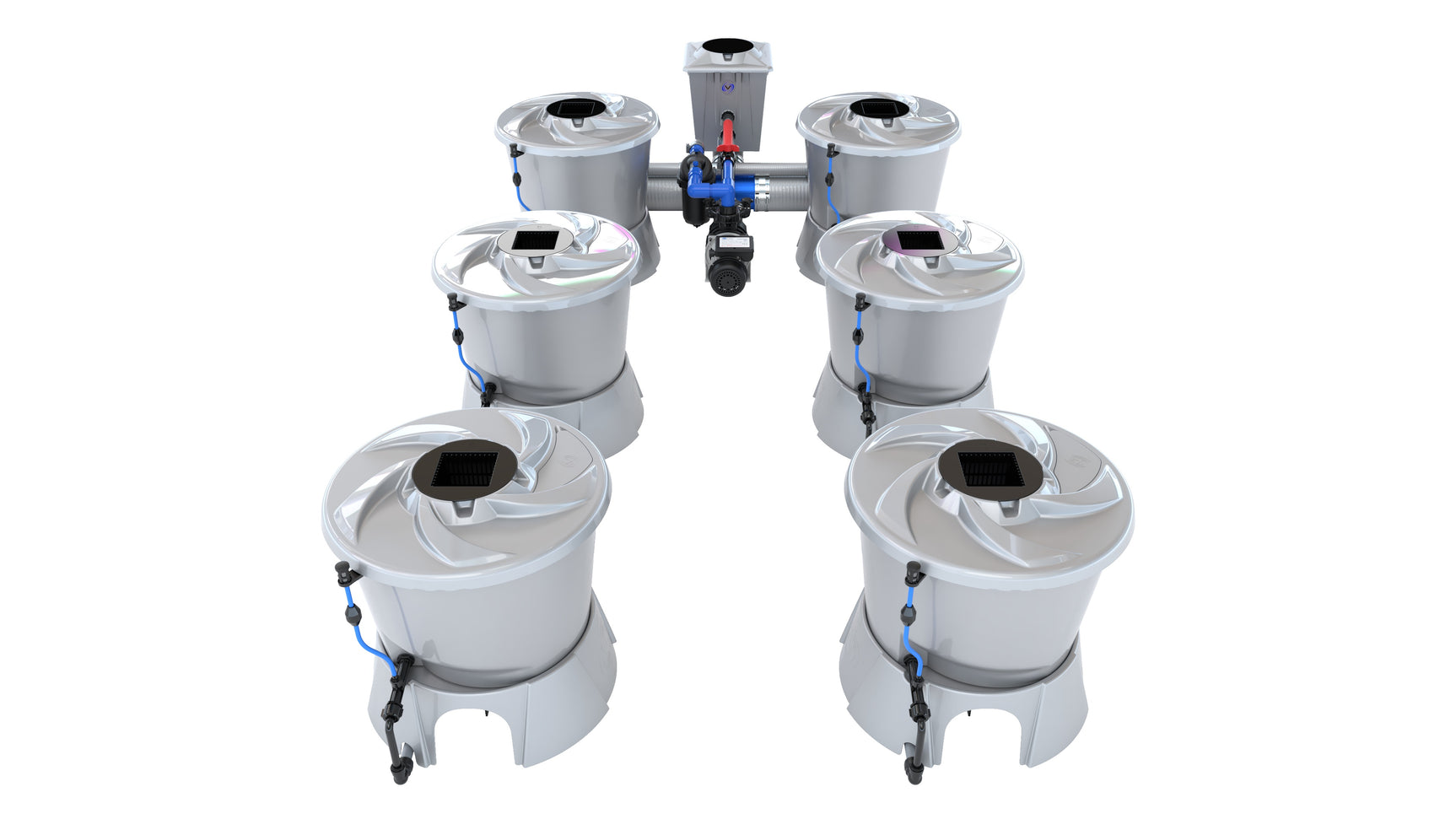

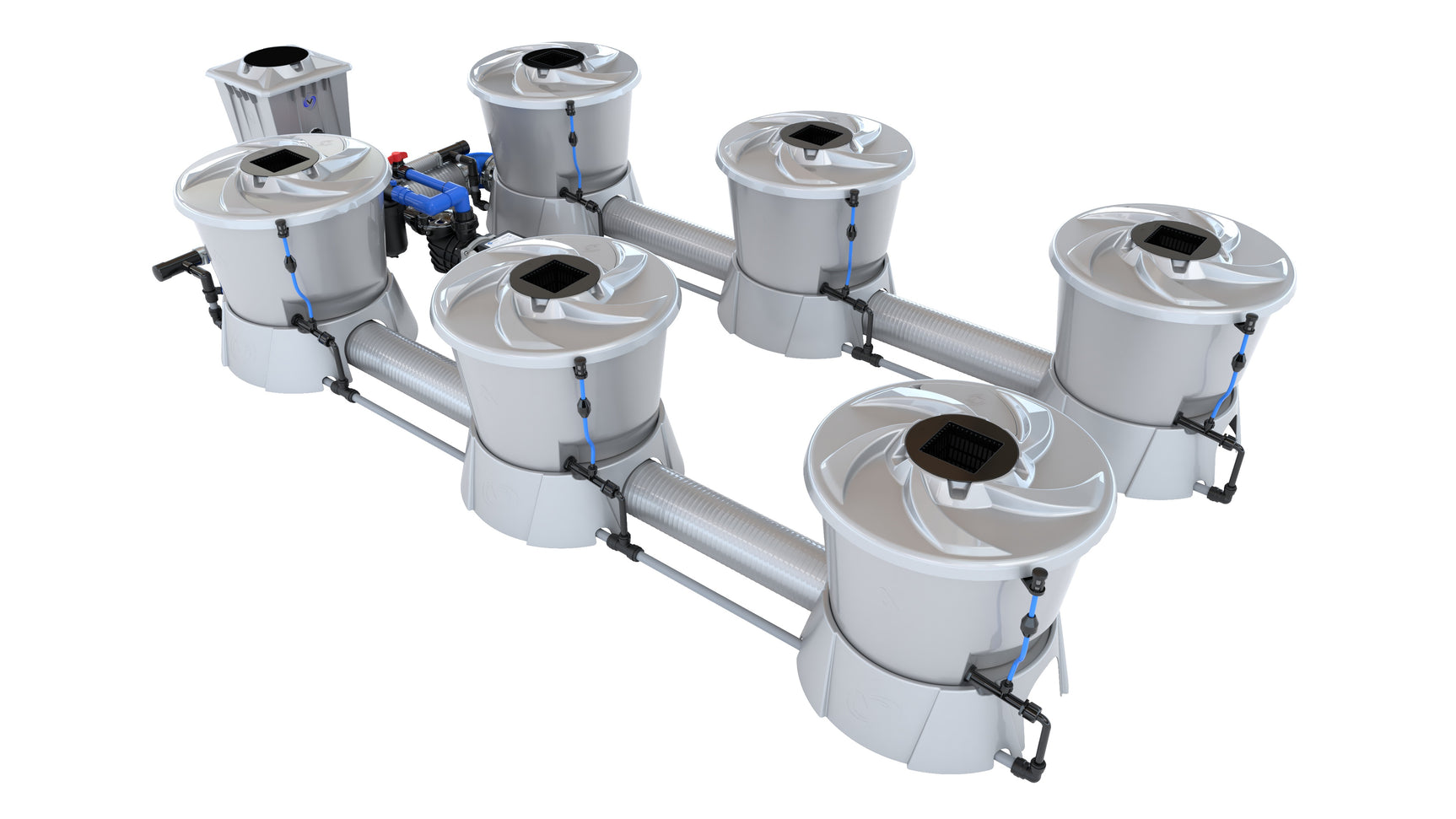

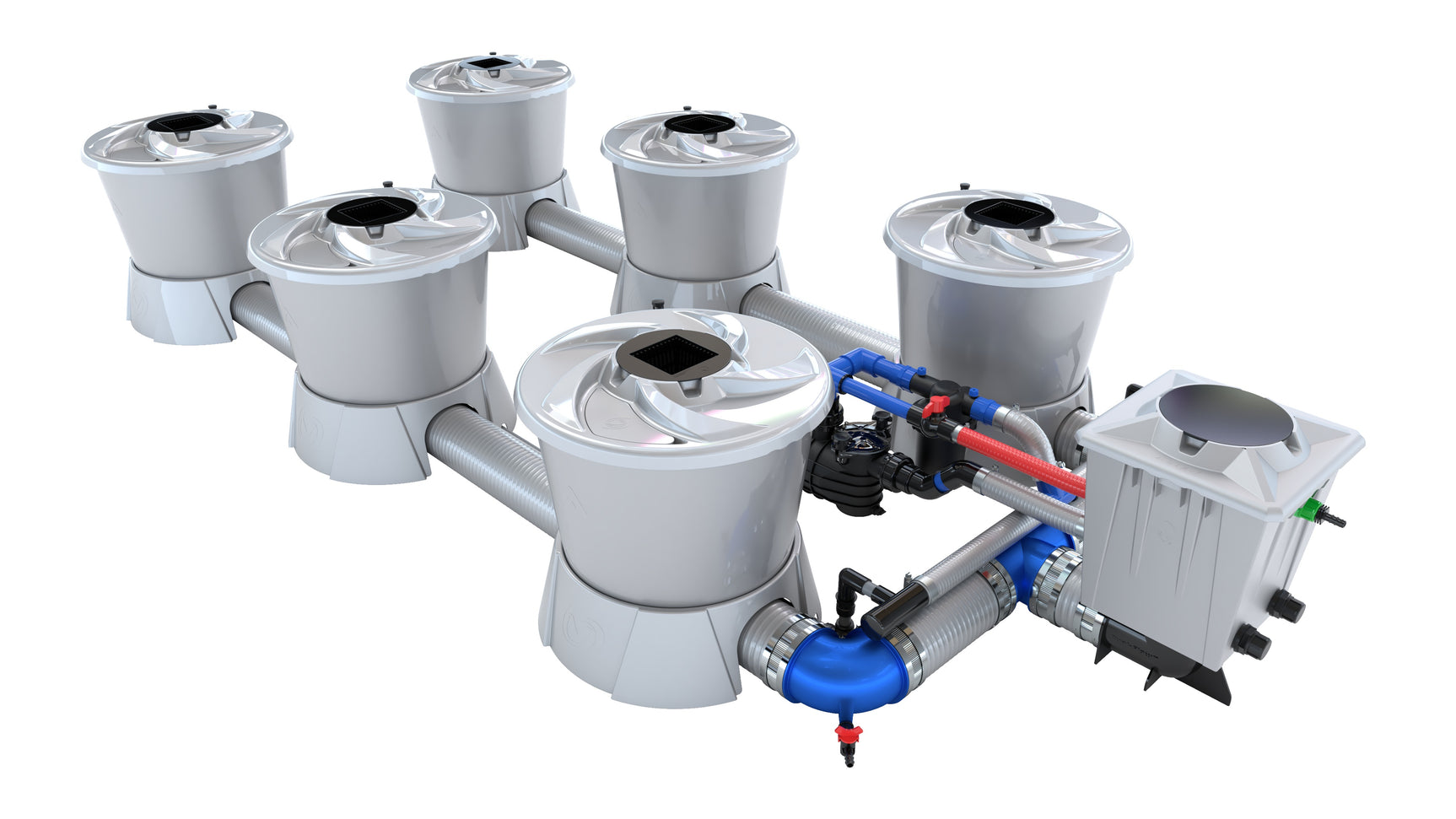

Alien Hydroponics V-SYSTEM 6 盆套装

SKU: BD100-0206  |  Configuration: 2 Rows / 6 V-POTs  |  Total Fluid Volume: 374.5 L (98.9 gal)  |  Pump: 250W / 11,700 L/h  |  Price: $2,808.38

Precision Control in Any Space

When irrigation infrastructure is unreliable, every cycle becomes a liability. Operators running disconnected or passive systems absorb the cost silently — in uneven canopy development, inconsistent root-zone oxygen levels, and manual intervention that compounds labor overhead with each feed event. Equipment that requires constant adjustment, lacks integrated filtration, or forces a fixed room layout doesn't fail dramatically; it erodes output gradually, cycle after cycle, until variance becomes the baseline expectation rather than the exception. That is the real cost of guesswork built into the infrastructure itself.

After deploying the V-SYSTEM, the operational picture changes at the infrastructure level. Nutrient solution moves through a closed recirculating loop with consistent pressure and flow, reaching each V-POT without manual intervention between feed cycles. Oxygen saturation is maintained through Venturi injector action — no secondary air pump required, no additional electrical draw, no additional failure point. The reservoir auto-tops via float valve, eliminating the manual monitoring that consumes technician time. The layout adapts to the room rather than forcing the room to adapt to it, with four distinct configuration options that allow the header and pump to be positioned inside or outside the cultivation space.

The mechanism behind that operational stability is a 250W V-SYSTEM Vortex Water Pump running at 120V with a flow rate of 11,700 L/h, circulating nutrient solution through a 374.5-liter (98.9-gallon) total fluid volume across six 58-liter (15-gallon) V-POTs arranged in two rows. Dual-Flow™ 5" fittings and 5" spiral tubing maintain hydraulic balance across the distribution network, while T304 stainless clamps and integrated filtration protect system integrity at every connection point. Push-fit feed connections reduce assembly time and eliminate leak points associated with threaded fittings under recirculating pressure. In practical terms, the Alien V-SYSTEM 6 Pot Kit delivers 11,700 L/h of recirculating flow across a 6-plant, 2-row layout at 250W / 120V with zero air pump dependency.

Where This Belongs (and Doesn't)

Electrical and plumbing infrastructure must be verified by a qualified technician prior to installation. The V-SYSTEM Vortex Water Pump operates at 120V / 250W and requires a dedicated, properly grounded circuit. Confirm floor drainage capacity and reservoir placement clearances before finalizing layout selection.

How It Works

The V-SYSTEM operates as a recirculating deep water culture (RDWC) platform. Nutrient solution is held in a central reservoir and driven by the V-SYSTEM Vortex Water Pump — rated at 250W, 120V, and 11,700 L/h — through a closed-loop distribution network to each of the six V-POTs. Each V-POT holds 58 liters (15 gallons), and the total system fluid volume is 374.5 liters (98.9 gallons) across the 2-row configuration. This volume-to-plant ratio supports stable nutrient concentration and temperature buffering across the full irrigation cycle.

Oxygen delivery is handled by Venturi injectors integrated into the flow path. As nutrient solution passes through the Venturi geometry, atmospheric oxygen is drawn directly into the fluid stream — eliminating the need for a separate air pump and the associated tubing, airstones, and electrical load. This is a passive oxygenation mechanism driven entirely by pump pressure, which means oxygen saturation scales with flow rate rather than requiring independent calibration. Integrated filtration protects the Venturi injectors and pump inlet from particulate contamination, extending service intervals and protecting hydraulic performance.

Distribution hardware includes 5" Dual-Flow™ fittings and 5" spiral tubing, which maintain consistent hydraulic resistance across all six feed lines. T304 stainless clamps secure all connections under recirculating pressure, and push-fit feed connections allow rapid assembly and disassembly without tools. Inspection covers on each V-POT provide access to root zones and connection points without disrupting the active irrigation cycle. A water fill line on the reservoir and a float valve for automatic top-off maintain fluid volume between manual reservoir service intervals, reducing the frequency of hands-on intervention required during active production cycles. In practical terms, the Alien V-SYSTEM 6 Pot Kit circulates 374.5 liters of nutrient solution at 11,700 L/h through six 58-liter V-POTs across a 2-row layout, with passive Venturi oxygenation and automatic reservoir top-off operating continuously at 250W / 120V.

System Integration

• Electrical: The V-SYSTEM Vortex Water Pump requires a dedicated 120V grounded circuit rated for continuous 250W draw. Do not share the circuit with high-inrush lighting or HVAC equipment without load calculation review by a licensed electrician.
• Water Supply: The system requires access to a potable or RO water source for initial fill and reservoir top-off. The float valve automates top-off between manual service intervals; confirm supply line pressure is compatible with the float valve inlet specification.
• Drainage: Total-drainage bases on each V-POT require floor-level drain access or a collection vessel for full system flush and reservoir change operations. Plan drainage routing before finalizing layout variant selection.
• Nutrient Dosing: The 374.5-liter total fluid volume requires nutrient solution preparation at scale. Operators should confirm mixing vessel capacity and EC/pH monitoring equipment are in place before first fill.
• Environmental Controls: Reservoir temperature directly affects dissolved oxygen levels in RDWC systems. Facilities without active reservoir chilling should monitor solution temperature and account for ambient heat load from the pump (250W continuous) when sizing environmental controls.

Facility Integration Data

The following ROI reference table is provided to assist procurement and operations teams in evaluating multi-unit deployment economics for the Alien V-SYSTEM 6 Pot Kit at $2,808.38 per unit.

Operator Field Notes

• Layout selection is a pre-order decision: All four variants (MIH, MOL, MOR, MSP) share identical system specifications. The only variable is assembled footprint. Measure your space against the published dimensions before selecting a variant — returns of non-defective items are subject to restocking fees.
• Venturi oxygenation is flow-dependent: Oxygen saturation through the Venturi injectors is driven by pump pressure and flow rate. Any restriction in the distribution lines — kinked tubing, partially closed fittings, or particulate buildup at the filter — will reduce oxygenation performance. Inspect the integrated filtration at each reservoir service interval.
• Float valve top-off is not a substitute for reservoir management: The float valve maintains fluid level between service intervals, but does not correct nutrient concentration drift. EC and pH must be monitored and adjusted manually on a scheduled basis regardless of auto top-off operation.
• T304 stainless clamps require torque verification after first fill: Thermal expansion during initial operation can relax clamp tension. Inspect and re-torque all T304 stainless clamps after the first 24–48 hours of recirculating operation.
• Pump heat load is real: The 250W pump operates continuously and contributes to ambient and reservoir temperature. In warm environments, monitor reservoir temperature closely and consider a reservoir chiller if solution temperature consistently exceeds 68°F (20°C).
• Push-fit connections are tool-free but not force-free: Push-fit feed connections require firm, full-depth insertion to seat the internal O-ring correctly. A partial-depth connection will weep under recirculating pressure. Verify each connection is fully seated before initiating pump operation.

Operator FAQ

Shipping & Logistics

• Free Shipping: Free shipping is available to the contiguous 48 United States. Shipments are not available to Alaska, Hawaii, or U.S. territories through this listing.
• Freight & Handling: The V-SYSTEM 6 Pot Kit ships as a multi-component system. Confirm a receiving dock or ground-level delivery access is available at the destination facility. Weight data is not specified in source; contact Cannafull Spectrum Solutions for freight class and pallet configuration details prior to scheduling delivery.
• Returns: Returns of defective units are handled per manufacturer warranty procedures. Non-defective returns must be initiated within the return window specified in the Cannafull Spectrum Solutions Return Policy. Units must be unassembled and in original packaging to qualify for return consideration.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about shipping, freight routing, or multi-unit delivery coordination? Contact Cannafull Spectrum Solutions directly before placing your order.

What's in the Box

The Alien V-SYSTEM 6 Pot 2 Row Kit includes 24 component items per manufacturer specification. Confirmed system-level components include:

• 6x V-POT vessels (58 L / 15 gal each)
• V-SYSTEM Vortex Water Pump (JET-STREAM® Vortex™, 250W / 120V / 11,700 L/h)
• Central reservoir (included in 374.5 L total fluid volume)
• 5" spiral tubing (distribution network)
• 5" Dual-Flow™ fittings
• Venturi injectors (integrated oxygenation)
• Integrated filtration assembly
• T304 stainless clamps
• Push-fit feed connections
• Float valve for automatic reservoir top-off
• Water fill line
• Total-drainage bases
• Inspection covers

The complete 24-item component manifest is available from Cannafull Spectrum Solutions upon request. Component list is subject to change by the manufacturer without notice. Verify included items against the packing list upon receipt before discarding packaging. Cannafull Spectrum Solutions is not responsible for missing components not reported within the manufacturer's specified claim window.

Regional Compliance & Deployment Notes

• Shipping Jurisdiction: Cannafull Spectrum Solutions ships the Alien V-SYSTEM 6 Pot Kit within the contiguous 48 United States only. Orders cannot be fulfilled to addresses outside this jurisdiction through this listing.
• Electrical Compliance: The V-SYSTEM Vortex Water Pump operates at 120V / 250W. All electrical installations must comply with the National Electrical Code (NEC) and applicable state and local electrical codes. A licensed electrician must verify circuit capacity and grounding before pump installation.
• Plumbing & Drainage: Recirculating irrigation systems may be subject to local plumbing code requirements depending on facility classification and jurisdiction. Operators in licensed cultivation facilities should confirm compliance with their facility engineer or local authority having jurisdiction (AHJ) before installation.
• Water Use Regulations: Facilities operating in water-restricted jurisdictions should confirm that recirculating RDWC systems comply with applicable water use and discharge regulations. Total-drainage operations during reservoir changes may require compliant disposal or recapture procedures.
• Licensed Facility Compliance: This system is deployed in licensed cultivation facilities across the United States. Operators are solely responsible for ensuring that their cultivation infrastructure complies with all applicable state and local licensing, zoning, and operational regulations. Cannafull Spectrum Solutions makes no representations regarding regulatory compliance for any specific jurisdiction.

Compliance requirements vary by state, county, and facility classification. The information provided here is for general reference only and does not constitute legal, engineering, or regulatory advice. Consult a licensed engineer and your state regulatory authority before finalizing installation plans. Cannafull Spectrum Solutions assumes no liability for installations that do not comply with applicable local, state, or federal regulations.
