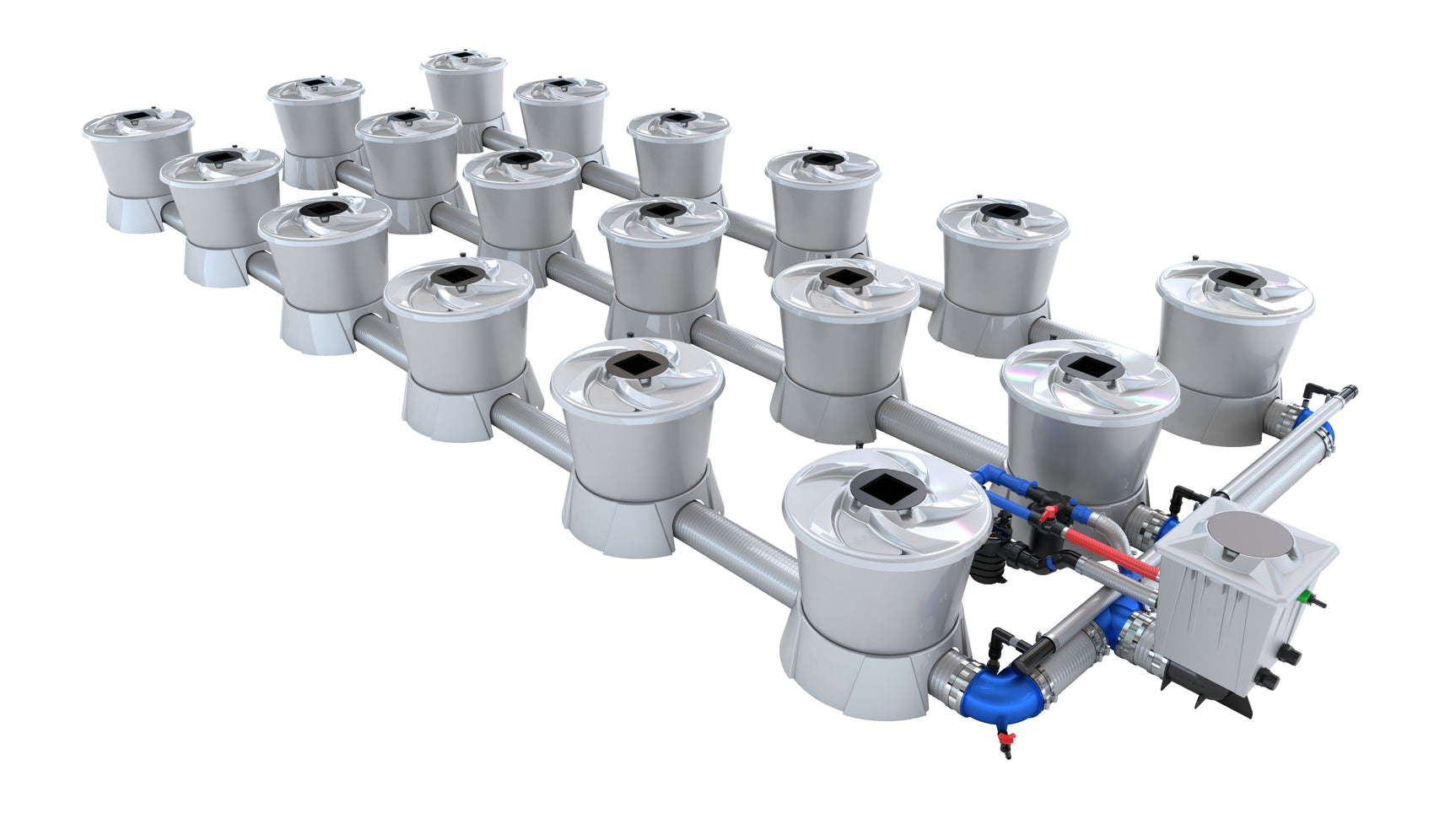

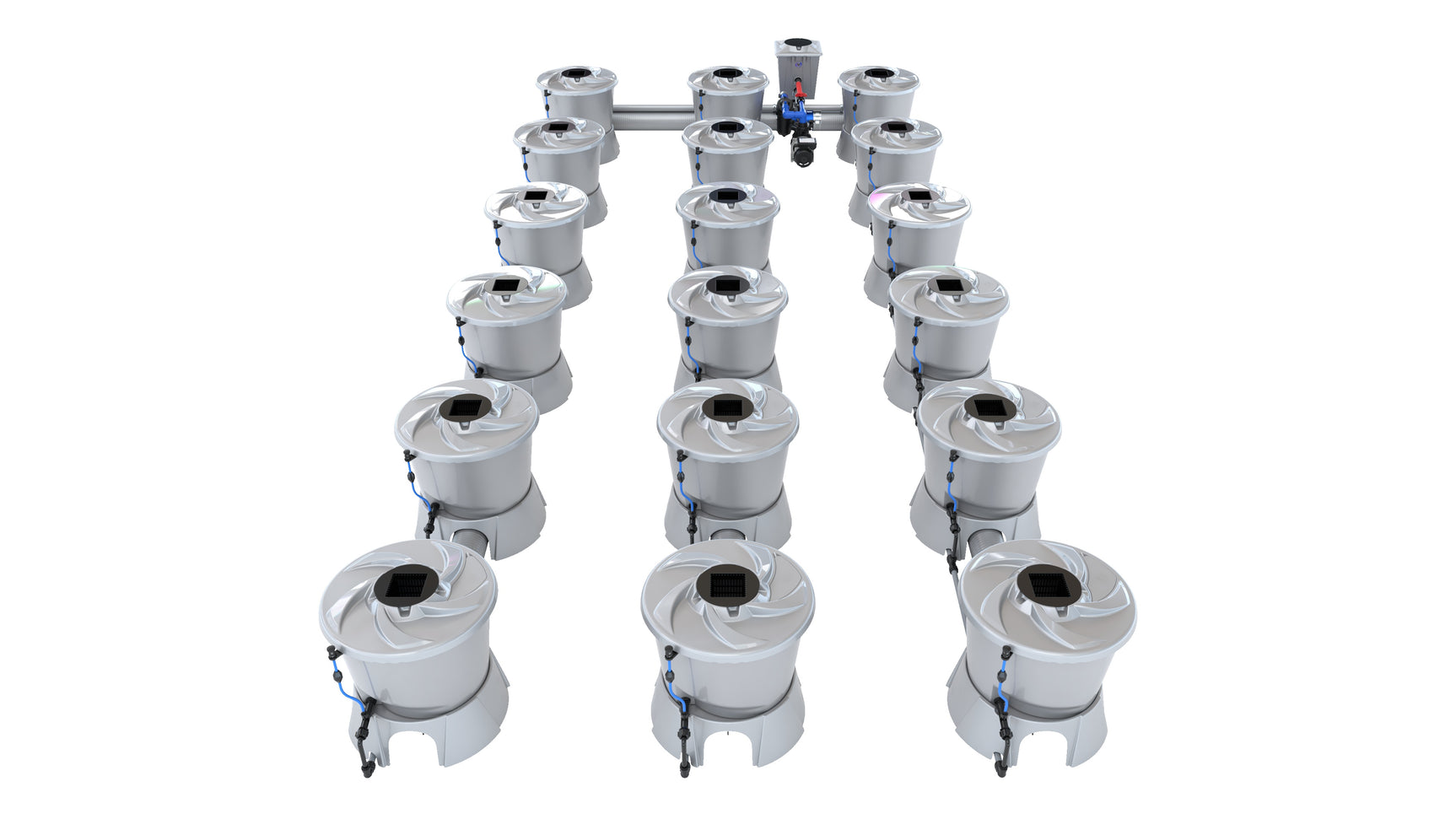

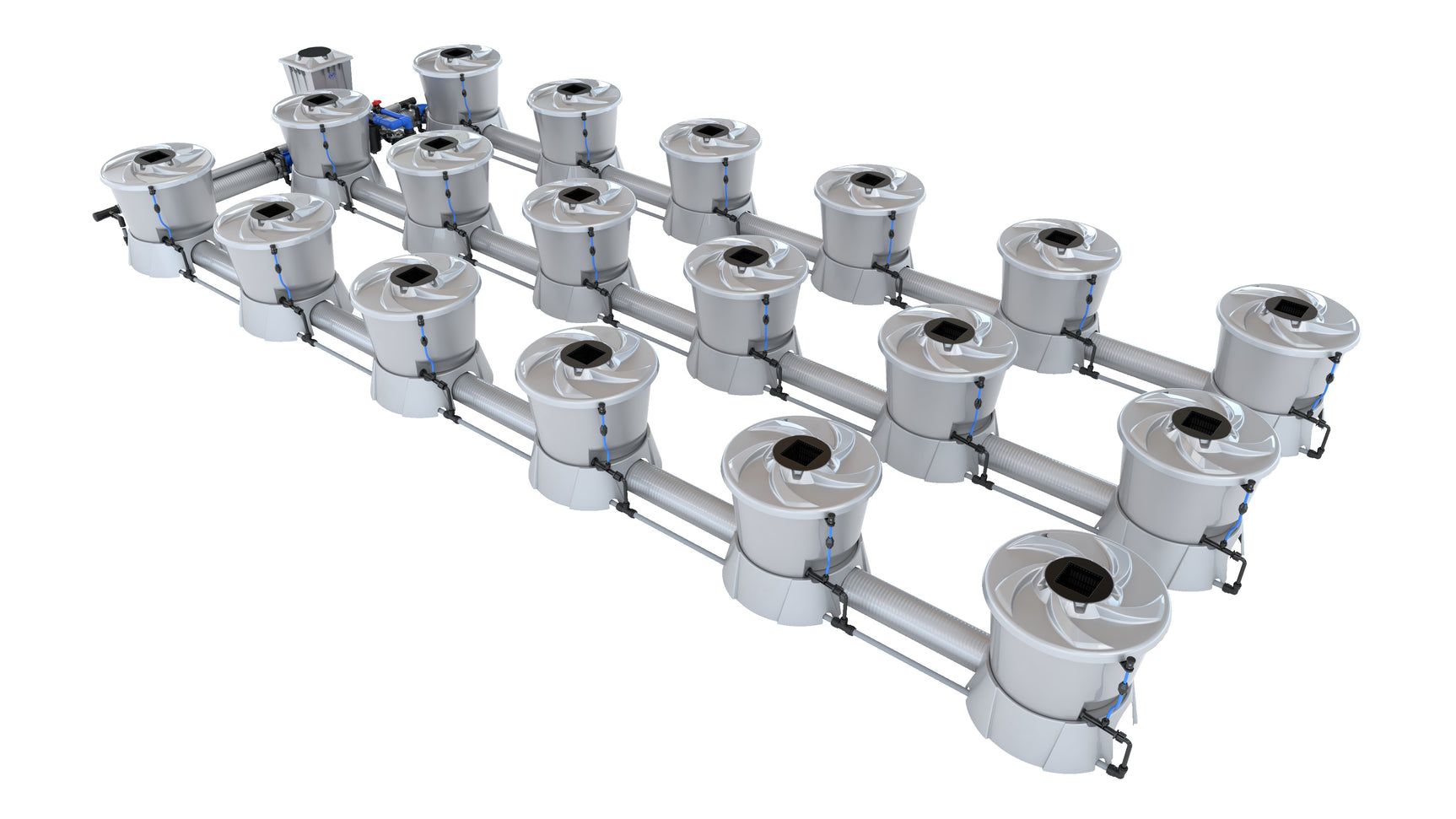

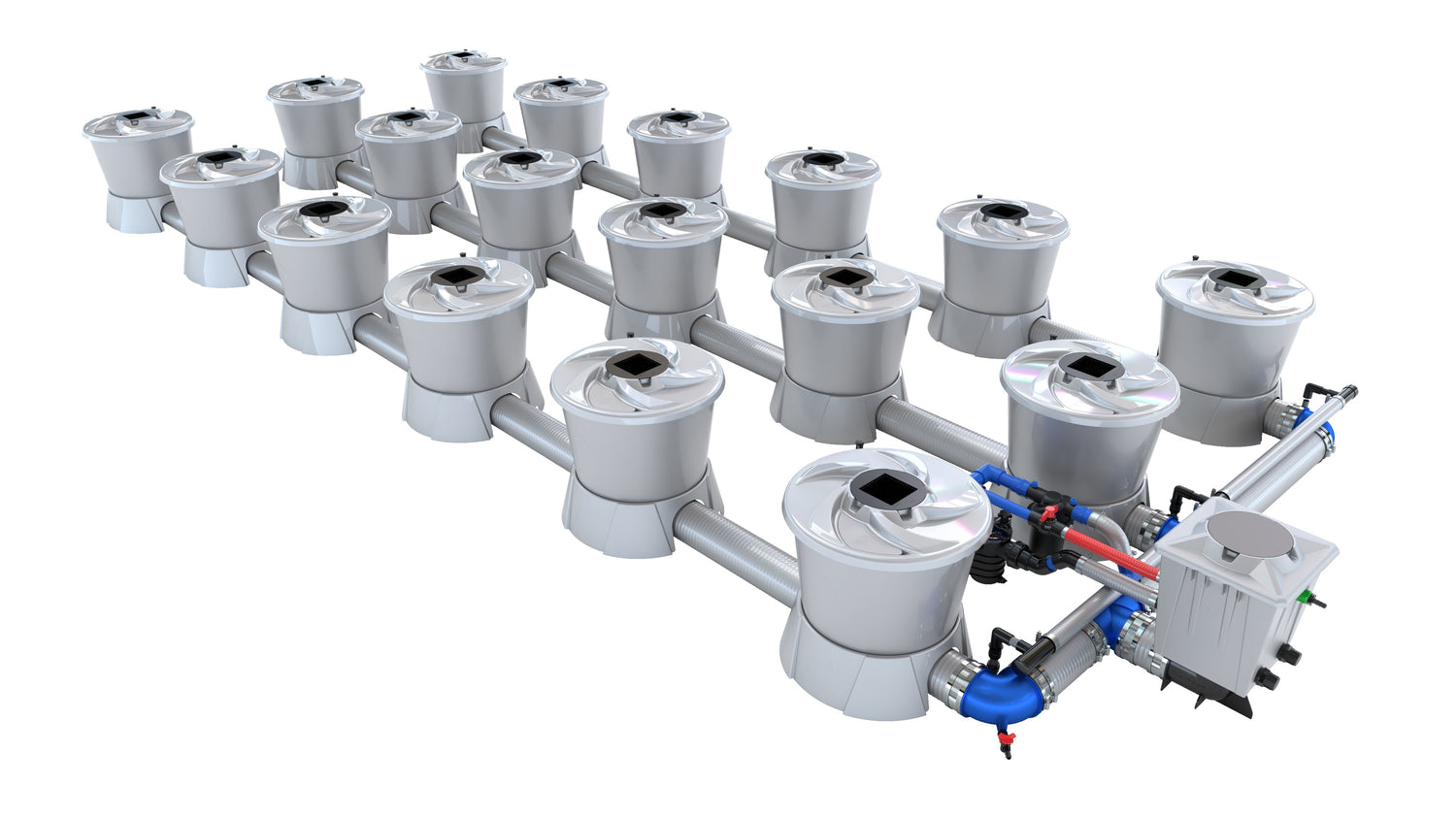

Alien Hydroponics V-SYSTEM 18 盆套装

System Type: Recirculating Deep Water Culture (RDWC)  |  Plant Capacity: 18 plants  |  Reservoir (V-POT): 15 gallon (58L) per pot  |  Pump: JET-STREAM Vortex  |  Origin: Made in Britain

Precision Control in Any Space

Every cycle that runs through an inconsistent system is a cycle that compounds the problem. When reservoir management is manual, when feed lines deliver uneven volumes, when oxygen saturation at the root zone depends on equipment that was never designed to work together — the result is not just variance in one run. It is variance that becomes the baseline. Operators absorb the cost in uneven canopy development, extended veg cycles, and the invisible drag of troubleshooting that never fully resolves. The enemy is not a single failure point. It is a system architecture that was never engineered to eliminate guesswork in the first place.

After deployment, the operational picture changes at the infrastructure level. All 18 root zones receive nutrient solution through the same direct-feed architecture, driven by the same pump, governed by the same flow dynamics — so canopy uniformity is a function of system design rather than operator vigilance. Drain cycles complete fully, with no standing solution left in pots or lines to degrade between feeds. The float valve manages automatic top-off, removing the manual reservoir check from the daily task list. What remains is a repeatable, auditable irrigation cycle that produces the same conditions in run one and run fifty.

The mechanism behind that consistency is the JET-STREAM Vortex pump, which drives naturally aspirated vortex fluid motion through 5-inch spiral tubing and 5-inch Dual-Flow fittings — delivering maximum oxygen saturation to the root zone without a secondary air pump and without transferring heat into the solution. T304 stainless steel clamps secure every connection point. Venturi injectors augment dissolved oxygen inline. Integrated filtration and push-fit feed connections reduce assembly complexity and eliminate the leak points common in multi-component drip assemblies. The 15-gallon (58L) V-POT capacity per plant supports large root mass development without restriction, and the total-drainage base design ensures pots and system lines clear completely between cycles. In practical terms, the V-SYSTEM 18 Pot Kit delivers direct nutrient distribution and maximum oxygen saturation across an 18-plant recirculating deep water culture array, driven by a single JET-STREAM Vortex pump with no air pump required and no heat transfer into solution.

Where This Belongs (and Doesn't)

The V-SYSTEM 18 Pot Kit is a complete irrigation and reservoir system. Electrical supply, environmental controls, lighting infrastructure, and facility plumbing connections are operator-supplied and must comply with all applicable local codes. Consult a licensed contractor for facility integration work.

How It Works

The V-SYSTEM 18 Pot Kit is built around a recirculating deep water culture architecture in which nutrient solution is continuously circulated through all 18 V-POTs via the JET-STREAM Vortex pump. The pump operates on a naturally aspirated principle — drawing air into the fluid stream through Venturi injectors to achieve maximum dissolved oxygen saturation at the root zone without requiring a separate air pump. This eliminates a common failure point in multi-component systems and removes the heat transfer risk associated with conventional submersible air-driven setups.

Solution moves through 5-inch spiral tubing connected at every pot via 5-inch Dual-Flow fittings, which maintain consistent flow volume across all 18 sites regardless of position in the circuit. T304 stainless steel clamps secure each fitting connection, providing corrosion resistance appropriate for continuous nutrient solution exposure. Push-fit feed connections allow rapid assembly and disassembly without tools, reducing changeover time between cycles. Integrated filtration sits inline within the circuit, capturing particulate before it reaches the root zone or pump intake.

Each V-POT holds 15 gallons (58L) of solution, providing sufficient volume to support large root mass development through the full flowering cycle. The total-drainage base design allows both the pots and the system lines to drain completely — a critical requirement for operators running drain-to-waste protocols or performing between-cycle sanitation. A float valve manages automatic top-off to the reservoir, maintaining solution level without manual intervention. The water fill line and inspection covers allow operators to monitor system status without disrupting the active irrigation circuit. Four layout options for header and pump placement give operators the ability to configure the system to match room geometry rather than building the room around the equipment. In practical terms, the V-SYSTEM 18 Pot Kit delivers recirculating deep water culture irrigation across 18 plants at 15 gallons (58L) per V-POT, driven by a single JET-STREAM Vortex pump with integrated Venturi oxygenation, complete drainage capability, and four configurable layout options.

System Integration

• Water Supply: The system requires a clean water source with adequate pressure and volume to support the JET-STREAM Vortex pump and float valve top-off function. Operator-supplied plumbing connection to facility water supply is required.
• Drainage: Total-drainage base design requires a floor drain or collection system capable of handling full system volume during drain cycles. Facility drainage infrastructure must be sized accordingly.
• Electrical: The JET-STREAM Vortex pump requires an operator-supplied electrical connection. Confirm pump voltage and amperage requirements with Cannafull Spectrum Solutions before installation. All electrical work must comply with local codes.
• Nutrient Dosing: The system is compatible with standard liquid nutrient programs delivered via the integrated reservoir. Operators using automated dosing equipment should confirm compatibility with the push-fit feed connection architecture.
• Environmental Controls: Recirculating deep water culture systems are sensitive to solution temperature. Facility HVAC and chiller infrastructure should be sized to maintain solution temperature within the agronomic target range for the cultivar being run.

Facility Integration Data

The table below provides a reference framework for operators evaluating multi-unit deployment across licensed cultivation facilities. Use these figures as a planning baseline — confirm exact unit pricing, financing terms, and lead times with Cannafull Spectrum Solutions before committing to a fleet order.

Operator Field Notes

• Drainage verification before each cycle: Confirm total-drainage bases are fully clear before introducing fresh nutrient solution. Residual solution from a previous cycle can skew EC and pH targets at the start of the next run.
• Float valve calibration: Set the float valve top-off level during initial commissioning and recheck after the first full drain cycle. Solution volume shifts as root mass develops and displaces reservoir capacity in the V-POT.
• Venturi injector inspection: Inspect Venturi injectors at each cycle changeover for particulate buildup. The integrated filtration system reduces accumulation, but inline inspection remains the fastest way to catch flow restriction before it affects dissolved oxygen levels.
• Layout selection before installation: Commit to one of the four header and pump placement configurations before running any tubing. Reconfiguring after the circuit is pressurized requires a full system drain and adds unnecessary handling time.
• Stainless clamp torque: T304 stainless clamps should be snugged to fitting contact — not overtightened. Over-torquing on the 5-inch Dual-Flow fittings can distort the sealing surface and introduce micro-leaks that are difficult to locate under operating pressure.
• Sanitation protocol: The complete drain capability of the V-SYSTEM architecture supports between-cycle sanitation. Use the total-drainage function to fully evacuate the circuit before introducing any cleaning or sterilization solution, and flush thoroughly before reintroducing nutrient solution.

Shipping & Logistics

• Shipping Coverage: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Free shipping applies to most qualifying U.S. destinations — contact us to confirm eligibility for your delivery address before ordering.
• Lead Time: Kits ship within 14 days of order confirmation. Allow additional transit time based on destination. Contact us for current carrier estimates to your facility location.
• Local Pickup: Pickup is available at the Longmont, Colorado location. Orders are typically ready in 5 or more days. Confirm availability before scheduling your pickup window.
• Returns: Contact Cannafull Spectrum Solutions at support@cannafullspec.com before initiating any return. Defective units are handled under manufacturer warranty procedures. Non-defective returns are subject to review and must be in original, uninstalled condition.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions at support@cannafullspec.com or visit cannafullspec.com/pages/contact.

What's in the Box

The following components are confirmed included with the V-SYSTEM 18 Pot Kit based on manufacturer source documentation:

• 18 x V-POT (15 gallon / 58L each)
• JET-STREAM Vortex pump
• 5-inch spiral tubing (system circuit)
• 5-inch Dual-Flow fittings
• T304 stainless steel clamps
• Venturi injectors
• Total-drainage bases
• Water fill line
• Inspection covers
• Integrated filtration assembly
• Push-fit feed connections
• Float valve for automatic top-off

Component list is based on manufacturer documentation available at time of publication. Cannafull Spectrum Solutions makes no representations regarding components not listed above. Nutrient solutions, growing media, environmental controls, electrical supply, and facility plumbing are operator-supplied and not included. Contact us to confirm current kit contents before purchase if specific components are critical to your installation plan.

Regional Compliance & Deployment Notes

• Jurisdiction: The V-SYSTEM 18 Pot Kit is sold and shipped by Cannafull Spectrum Solutions within the contiguous 48 United States only. Operators are responsible for confirming that the purchase, possession, and use of this equipment complies with all applicable state, county, and municipal regulations in their jurisdiction.
• Licensed Facility Use: This system is deployed in licensed commercial cultivation facilities across the United States. Operators must ensure their facility holds all required cultivation licenses and permits prior to system installation and operation.
• Electrical Compliance: Pump and system electrical connections must be installed in compliance with the National Electrical Code (NEC) and any applicable state or local amendments. All electrical work must be performed by or under the supervision of a licensed electrician.
• Water and Drainage: Facility water supply and drainage infrastructure must comply with local plumbing codes. Operators in jurisdictions with nutrient runoff or wastewater discharge regulations must confirm that drain-to-waste operations are conducted in compliance with applicable environmental rules.
• No Canadian Distribution: Cannafull Spectrum Solutions does not ship to Canadian provinces or territories. This product listing does not constitute an offer for sale outside the contiguous United States.

Compliance requirements vary by state and municipality. The information provided here is a general reference only and does not constitute legal or regulatory advice. Operators are solely responsible for confirming compliance with all applicable laws and regulations governing cultivation equipment, water use, and facility operations in their jurisdiction. Cannafull Spectrum Solutions assumes no liability for regulatory non-compliance arising from the installation or operation of this system.
