AC Infinity UIS Lighting Adapter Type-A | for RJ11/12 Connector Lights with PWM or 0-10V Dimmers

SKU: AC-ADL7  |  UPC: 819137023673  |  Total Length: 10.0 in. (25.4 cm)  |  Includes: 10-foot RJ11/12 extension cord

Precision Control in Any Space.

Every disconnected light is a control gap — and control gaps compound. When your grow lights operate outside your automation architecture, you are manually managing what should be executing on schedule. Analog dimmer knobs drift. Cycle timing relies on human memory. Temperature spikes at lights-on go unaddressed because the light has no pathway to receive a corrective signal. The equipment is running, but it is not working with you. That silent friction — the missed adjustment, the inconsistent photoperiod, the dimmer left at 80% through a heat event — is where yield variance is born and where labor hours disappear.

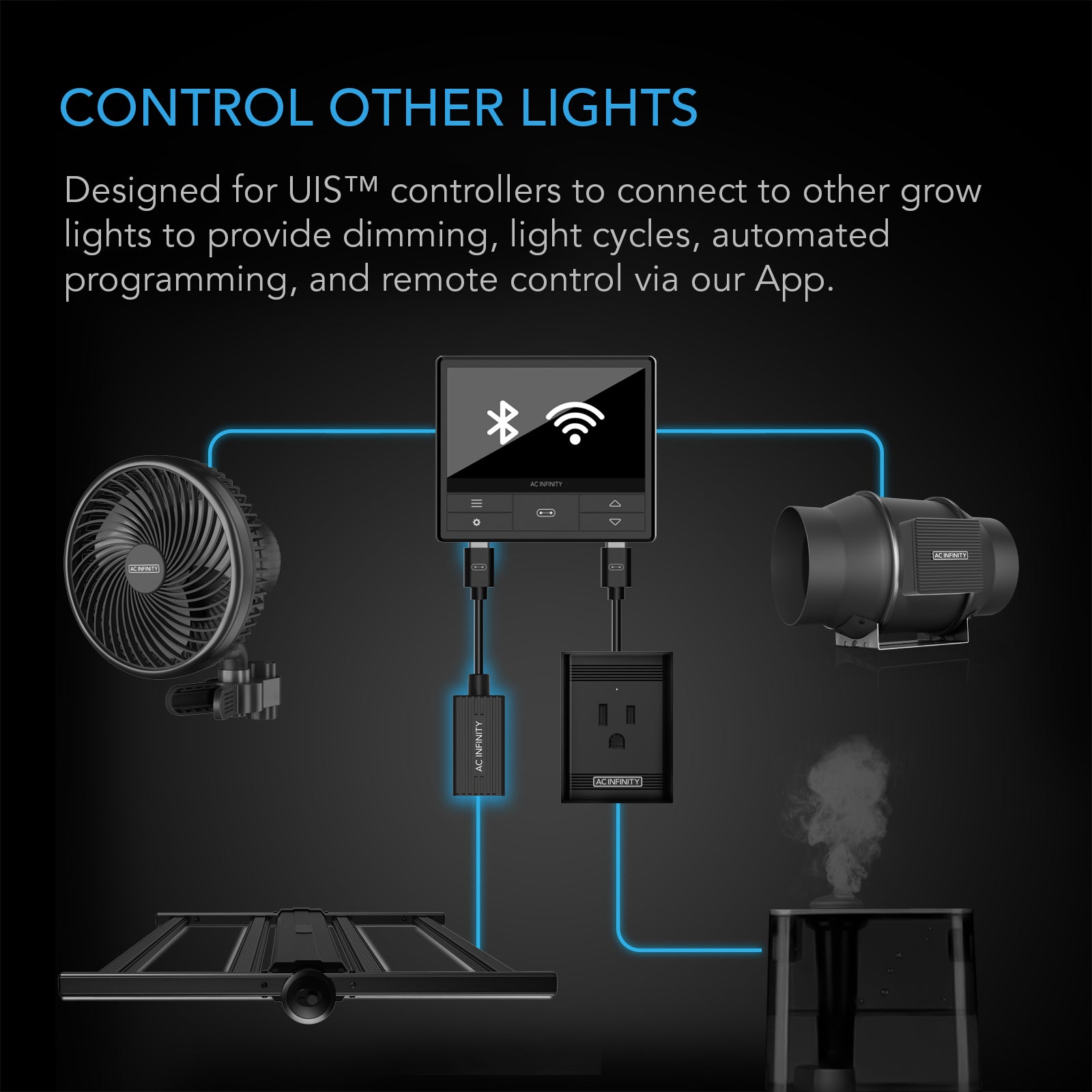

After the AC-ADL7 is deployed, your RJ11/12 fixtures stop being isolated endpoints and become responsive nodes inside a unified control architecture. Light cycles execute on programmed schedules without manual intervention. Intensity responds dynamically to temperature and humidity readings from connected sensors. You monitor output, receive alert notifications, and make adjustments from anywhere via the AC Infinity app — without entering the room. The facility operates with the consistency that manual control structurally cannot deliver.

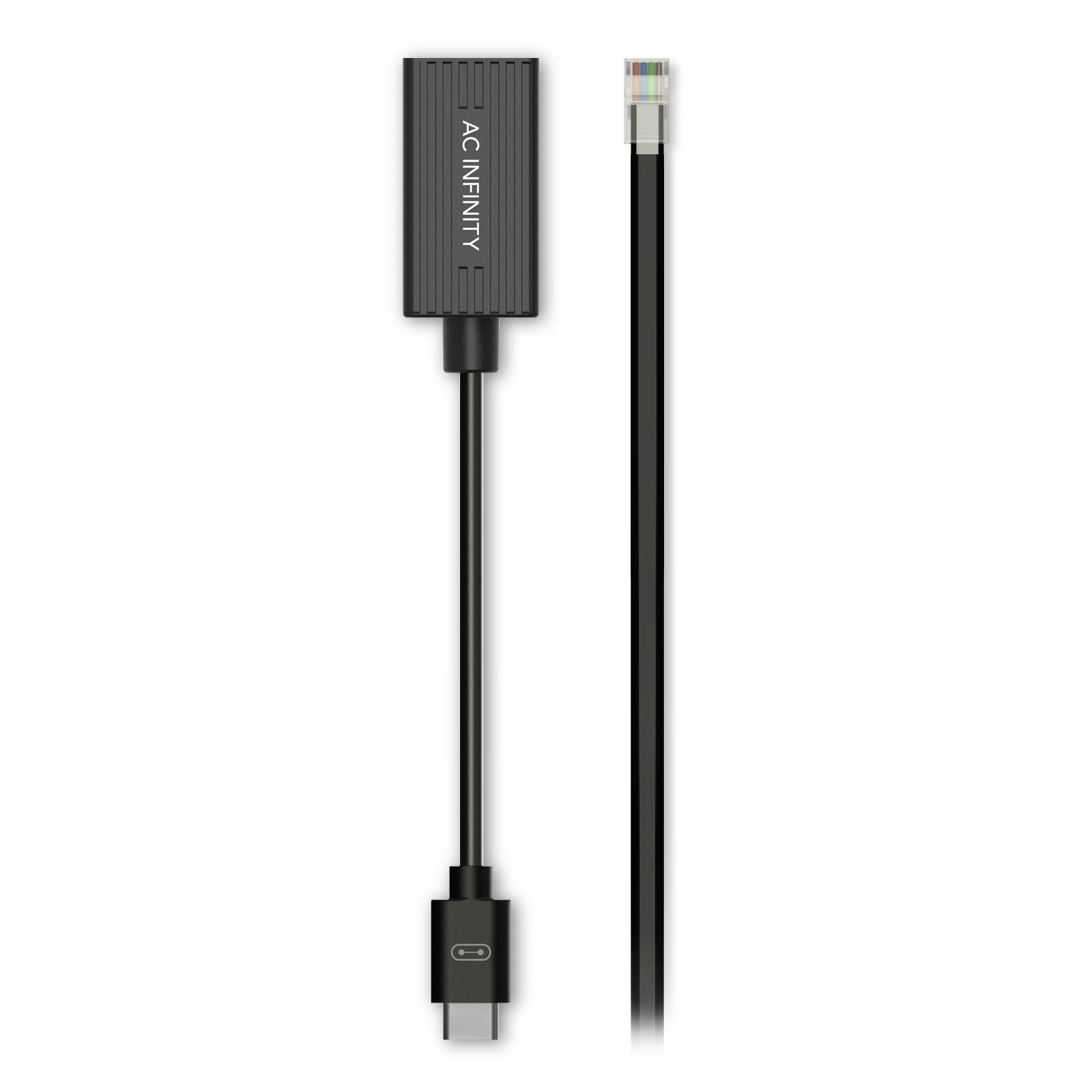

The mechanism is a precision-wired adapter dongle: a UIS male connector on one end interfaces directly with AC Infinity UIS controllers — CONTROLLER 69, CONTROLLER 69 WiFi, CONTROLLER 69 PRO, and Controller AI+ — while the RJ11/12 female end accepts the dimmer port of compatible fixtures running PWM or 0-10V dimming protocols. The adapter measures 10.0 in. (25.4 cm) in total length, with a Molex depth of 0.30 in. (0.8 cm) and a UIS depth of 0.26 in. (0.7 cm), and ships with a 10-foot RJ11/12 extension cord to accommodate real-world mounting geometry. Once the first fixture is connected, additional RJ11 or RJ22 connector lights can be added using that manufacturer's native daisy chain method. In practical terms, the AC-ADL7 converts any supported RJ11/12 grow light into a fully addressable UIS ecosystem node, controllable via automated scheduling and environmental triggers through a single app interface.

Where This Belongs (and Doesn't)

The AC-ADL7 is a signal-routing adapter. It does not modify electrical wiring, alter fixture voltage, or function as a power supply. It requires an additional UIS device to power the controller. Consult your facility's electrical documentation before integrating any new control hardware into an existing circuit.

How It Works

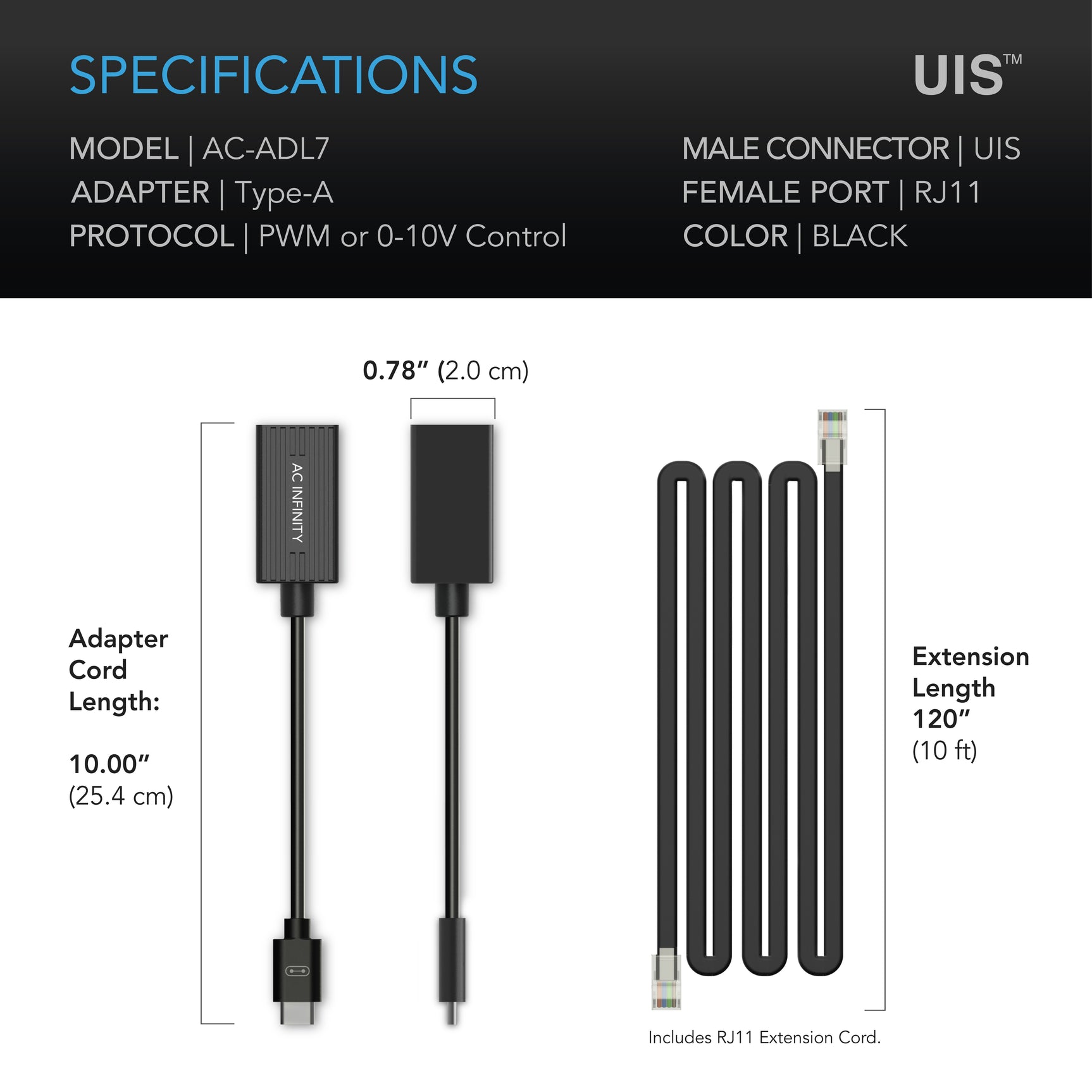

The AC-ADL7 operates as a passive signal bridge between two connector standards. The male UIS end — measuring 0.26 in. (0.7 cm) in depth — seats directly into any compatible UIS controller port. The female RJ11/12 end — with a Molex depth of 0.30 in. (0.8 cm) — accepts the dimmer control port of the target fixture. The adapter's total routed length is 10.0 in. (25.4 cm), and the included 10-foot RJ11/12 extension cord extends reach to accommodate fixtures mounted at distance from the controller. No tools, no wiring modification, no configuration beyond a potential firmware update via the AC Infinity app.

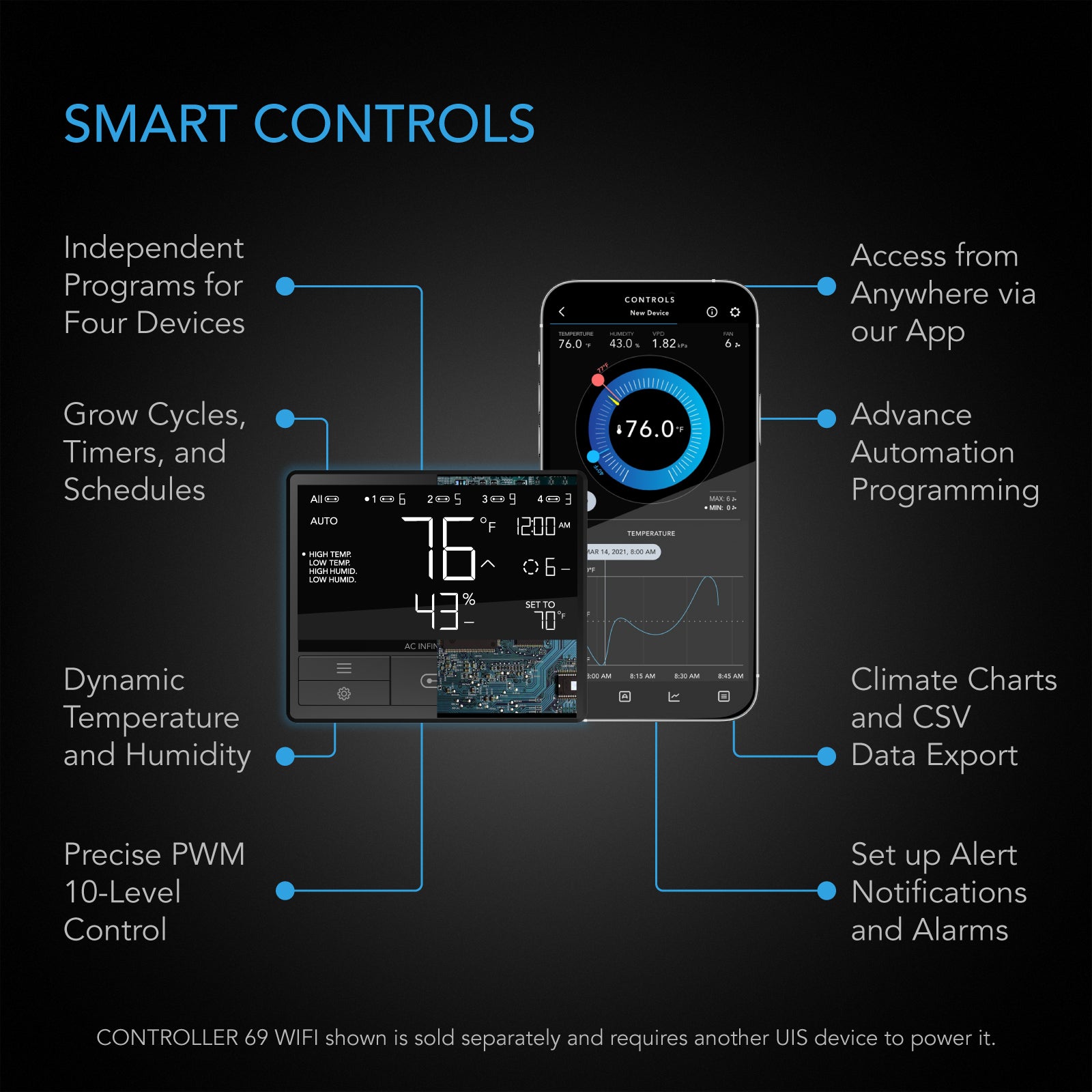

Once seated, the UIS controller assumes command of the fixture's dimming channel. The controller can then execute programmed light cycles, apply scheduled intensity ramps, and respond dynamically to environmental sensor data — reducing intensity during temperature excursions or adjusting photoperiod timing without operator intervention. The AC Infinity app provides remote visibility into scheduling status, data charting, and alert notifications. Compatible controllers include the CONTROLLER 69, CONTROLLER 69 WiFi, CONTROLLER 69 PRO, and Controller AI+. Note that a firmware update via the AC Infinity app may be required before the UIS controller recognizes the adapter. In practical terms, the AC-ADL7 delivers full UIS automation capability — scheduling, environmental response, and remote monitoring — to any supported RJ11/12 fixture through a single 10.0 in. passive adapter and a 10-foot extension cord.

System Integration

• UIS Controller Compatibility: Designed for CONTROLLER 69, CONTROLLER 69 WiFi, CONTROLLER 69 PRO, and Controller AI+ — no other controllers are supported.
• Fixture Protocol Requirement: Target fixture must use PWM or 0-10V dimming via an RJ11 or RJ12 connector port; resistor-protocol and spectrum-control fixtures are excluded.
• Daisy Chain Expansion: After the primary fixture is connected, additional RJ11 or RJ22 connector lights can be added using the fixture manufacturer's native daisy chain method — no additional adapters required per chain.
• Power Requirement: An additional UIS device is required to supply power to the controller; the AC-ADL7 itself is a passive adapter and does not supply power.
• App Integration: Full scheduling, environmental automation, data charting, and alert notifications are managed through the AC Infinity app on iOS or Android.

Facility Integration Data

The AC-ADL7 is a low-cost integration component; the operational value scales with the number of fixtures brought under UIS control and the labor hours recovered from manual dimming and cycle management.

Operator Field Notes

• Firmware first: Before assuming a connection failure, run the firmware update via the AC Infinity app. The adapter will not be recognized by the UIS controller on older firmware versions.
• Verify dimming protocol before ordering: Fixtures using spectrum control or resistor-based dimming are not compatible. Confirm your fixture uses PWM or 0-10V dimming via its RJ11/12 port before purchasing.
• Limited dimming range is a fixture-side constraint: Several compatible brands — including GROWER'S CHOICE ROI, LUMATEK ZEUS/ATS, MEDIC GROW MINI SUN, PHLIZON FD/PL/PRO, PHOTONTEK X/XT/SQ, and VIVOSUN VS Series — operate with a limited dimming range through this adapter. This is a fixture driver limitation, not an adapter defect.
• Power the controller independently: The AC-ADL7 does not supply power to the UIS controller. A separate UIS device must be connected to power the controller before the adapter will function.
• Daisy chain uses the fixture manufacturer's method: After the primary fixture is connected, expand using that manufacturer's RJ11 or RJ22 daisy chain — not AC Infinity's chain architecture.
• Extension cord geometry: The included 10-foot RJ11/12 extension cord is sufficient for most rack and overhead mounting configurations. Plan controller placement relative to the fixture's dimmer port before installation.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be fulfilled.
• Fulfillment: Orders are processed and shipped from authorized U.S. distribution. Tracking information is provided at time of shipment.
• Returns: Returns are accepted in accordance with Cannafull Spectrum Solutions' return policy. Items must be in original, uninstalled condition with all included accessories. Contact support before initiating a return.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

For pre-sale technical questions or order support, contact Cannafull Spectrum Solutions at cannafullspec.com.

What's in the Box

• 1x AC Infinity UIS Lighting Adapter Type-A (AC-ADL7) — RJ11/12 female to UIS male, 10.0 in. (25.4 cm) total length
• 1x 10-foot RJ11/12 extension cord

Box contents confirmed from manufacturer source data. No additional accessories, mounting hardware, or power supplies are included. An additional UIS device is required to power the controller and is sold separately.

Regional Compliance & Deployment Notes

• Shipping Jurisdiction: Available for sale and shipment within the contiguous 48 United States only.
• Electrical Classification: The AC-ADL7 is a passive signal adapter. It does not carry mains voltage and does not require electrical licensing for installation. However, integration into a facility's control architecture should be reviewed against applicable local electrical codes.
• Facility Compliance: Operators in licensed cultivation facilities should verify that automation hardware integrations comply with applicable state-level operational regulations before deployment.
• App Platform: The AC Infinity app is required for firmware updates and full automation functionality. App availability and feature sets are subject to AC Infinity's software update schedule.
• No Canadian Distribution: Cannafull Spectrum Solutions does not ship to Canadian provinces or territories. This product listing does not reference CSA certification or Health Canada compliance.

Product specifications, compatibility lists, and firmware requirements are subject to change by the manufacturer without notice. Cannafull Spectrum Solutions reproduces manufacturer data in good faith. Verify current compatibility and firmware requirements at AC Infinity's official support resources before purchase. All claims on this page are sourced from AC Infinity manufacturer documentation current at time of listing.
