AC Infinity CLOUDRAY S9 2-Pack 9" Clip Fan | 405 CFM, 67K-Hr Life

Where This Belongs (and Doesn't)

Airflow equipment does not substitute for dedicated HVAC, dehumidification, or exhaust infrastructure. The CLOUDRAY S9 2-Pack is a circulation device. Consult a licensed mechanical contractor for facility-level climate system design. Electrical installation must comply with applicable local codes.

How It Works

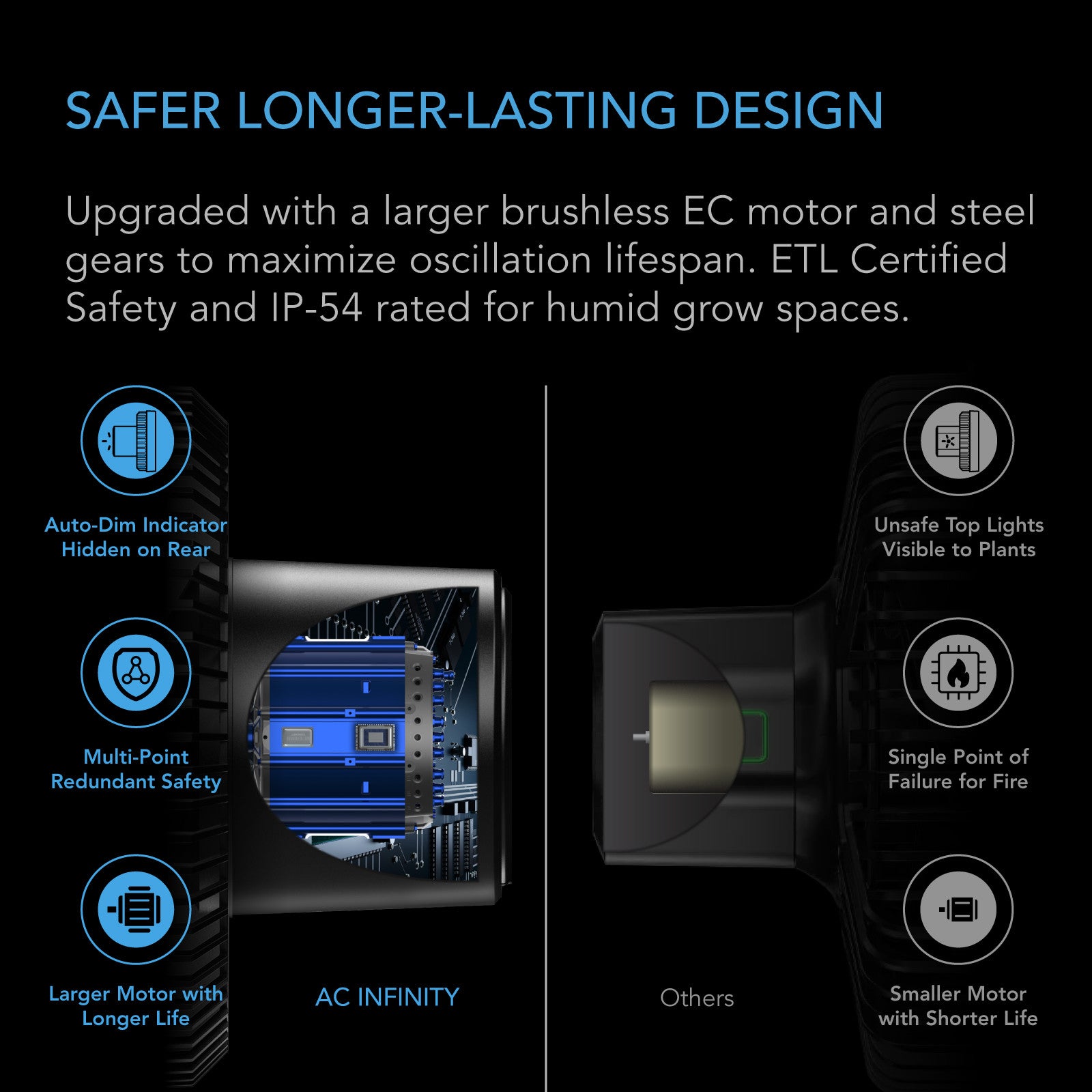

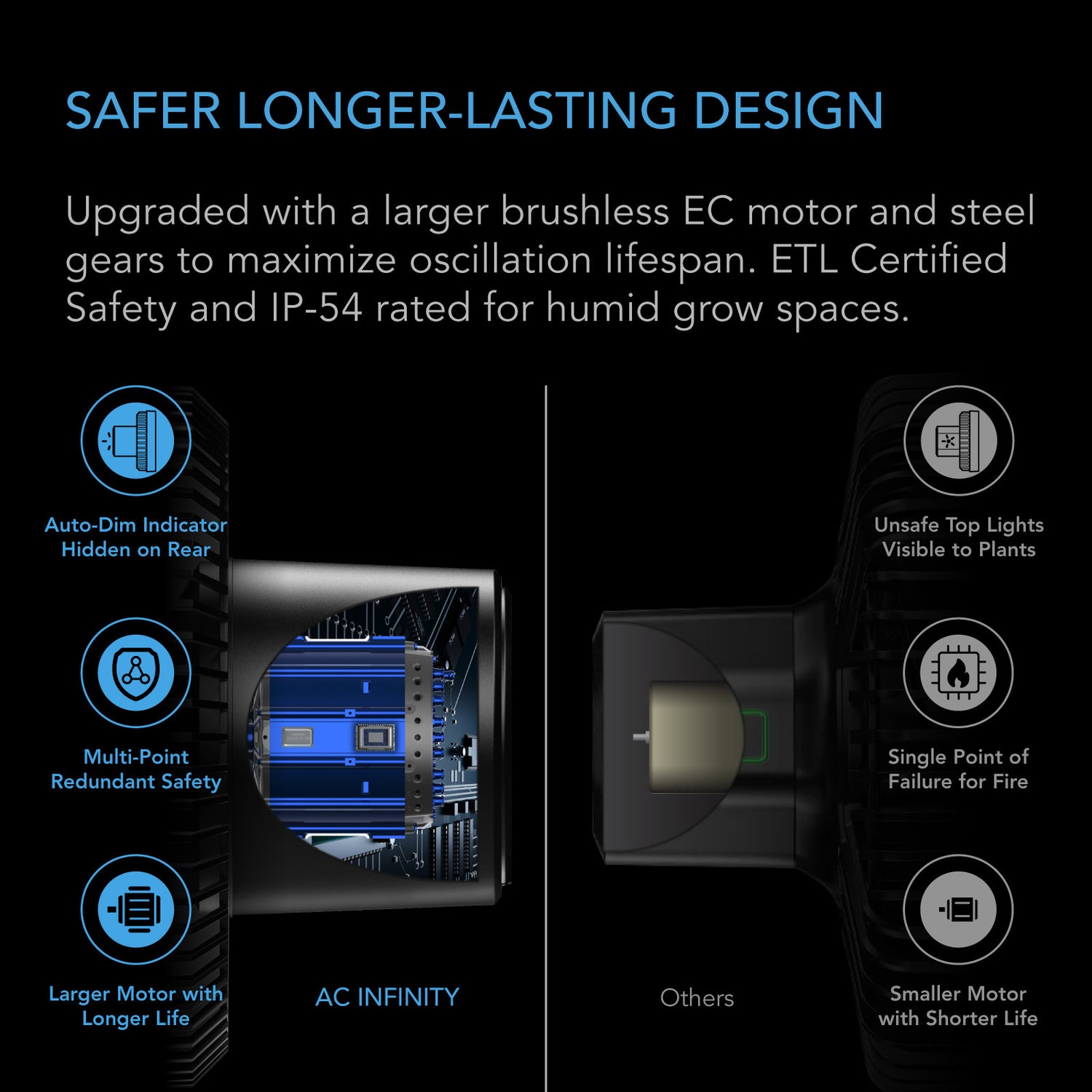

The CLOUDRAY S9 2-Pack is built around a brushless EC motor — not a conventional AC induction motor — which means speed control is achieved through electronic commutation rather than voltage reduction. That distinction matters operationally: EC motors maintain torque efficiency across all 10 speed levels, so the fan at speed 3 is not simply a throttled version of speed 10 with proportional efficiency loss. The motor is sized and constructed specifically to sustain oscillation load over the rated 67,000-hour service life, a design constraint that drove the selection of dual-ball bearings over sleeve bearings. Dual-ball bearings support radial and axial load in any mounting orientation — horizontal or vertical — without the asymmetric wear that degrades sleeve-bearing fans when mounted off-axis.

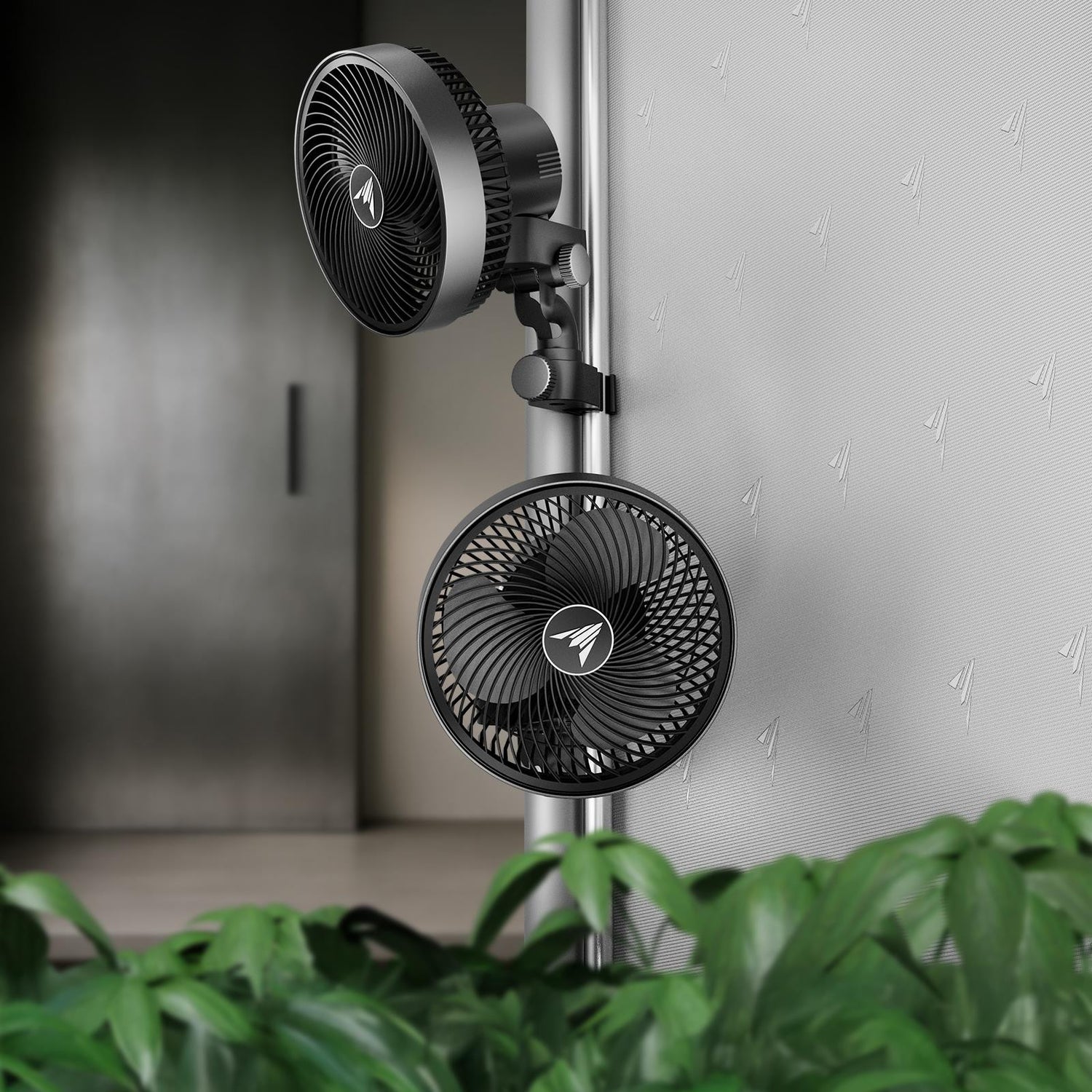

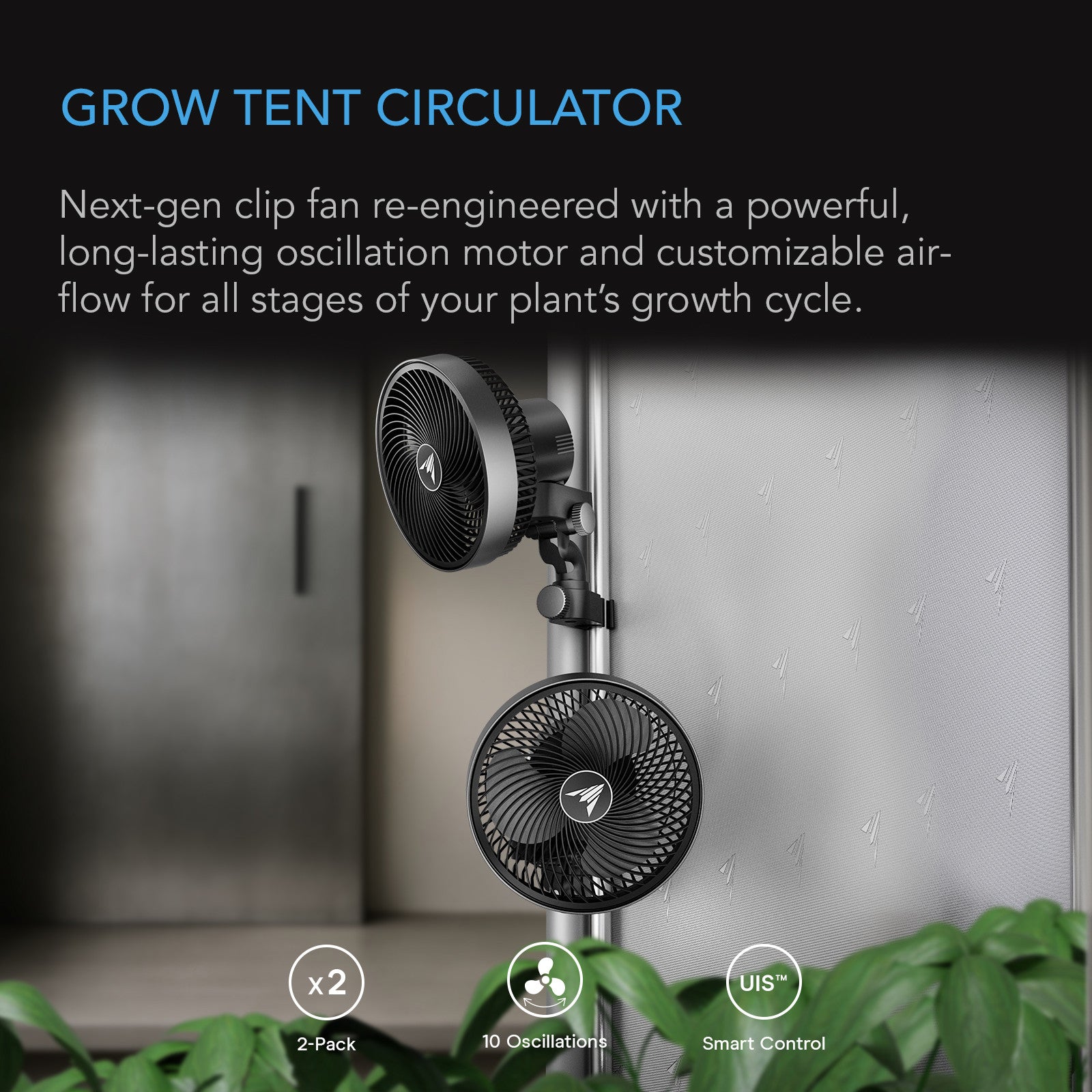

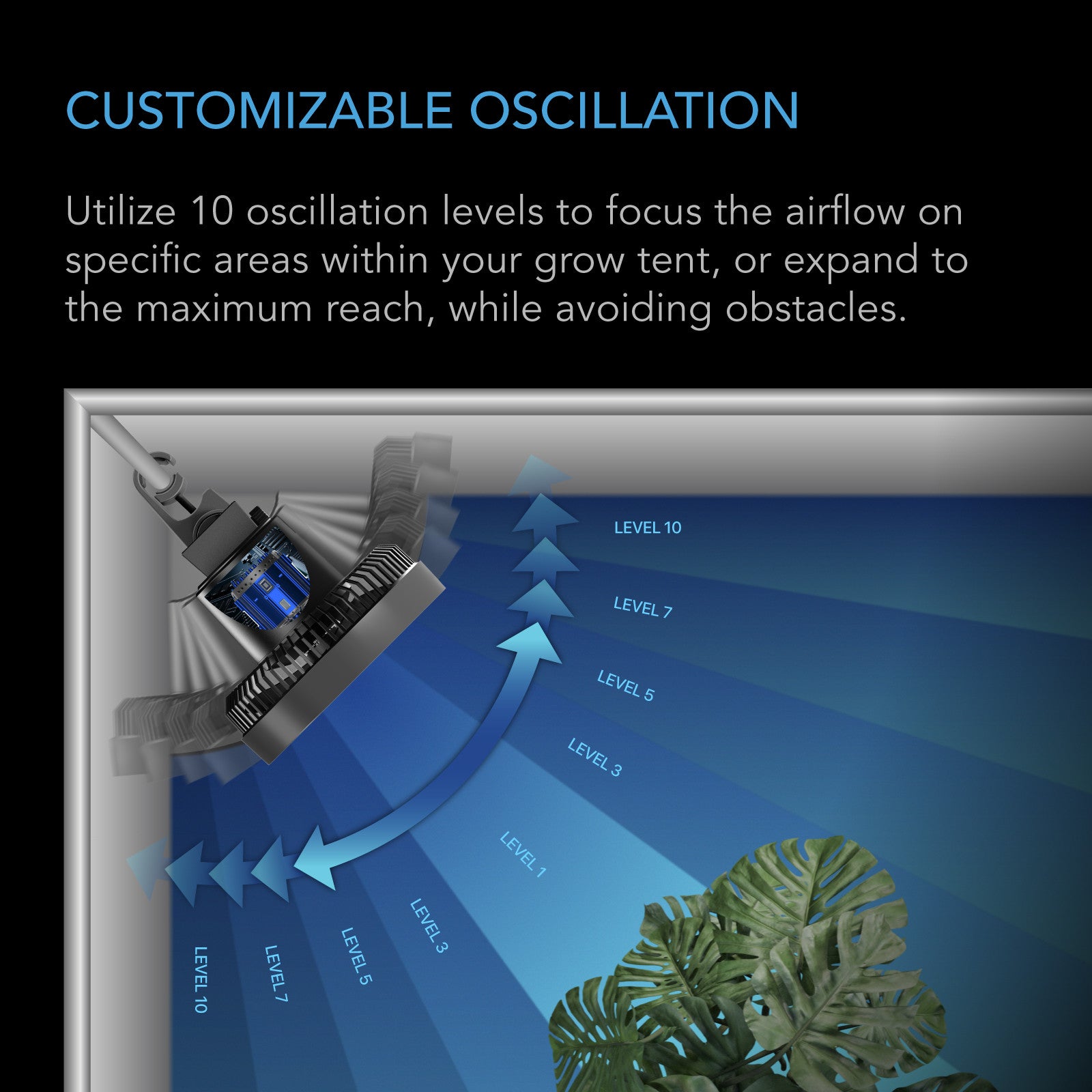

The oscillation system uses carbon steel gears in the drive train, rated to resist fatigue across the full oscillation range: 10 selectable levels from a minimum arc of 10 degrees to a maximum of 90 degrees. Head tilt geometry allows 30 degrees upward and 40 degrees downward from center, enabling precise targeting of canopy zones at varying heights without repositioning the clamp. The clamp itself is a re-engineered compact metal assembly using a vise-grip clamping geometry — it applies compressive force across the full contact surface of the tent pole rather than relying on a single-point friction lock, which is the failure mode of plastic-body clip fans under sustained oscillation vibration.

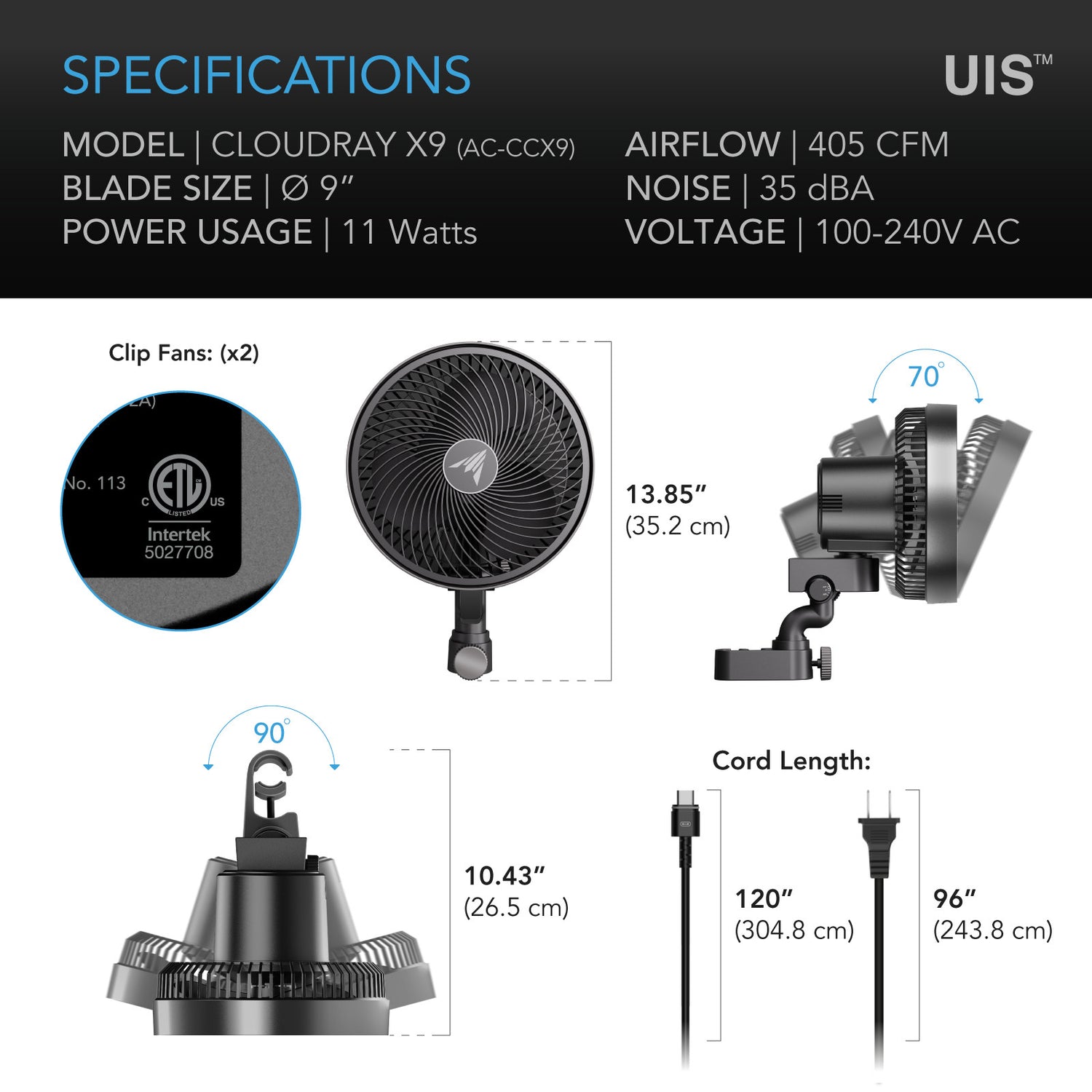

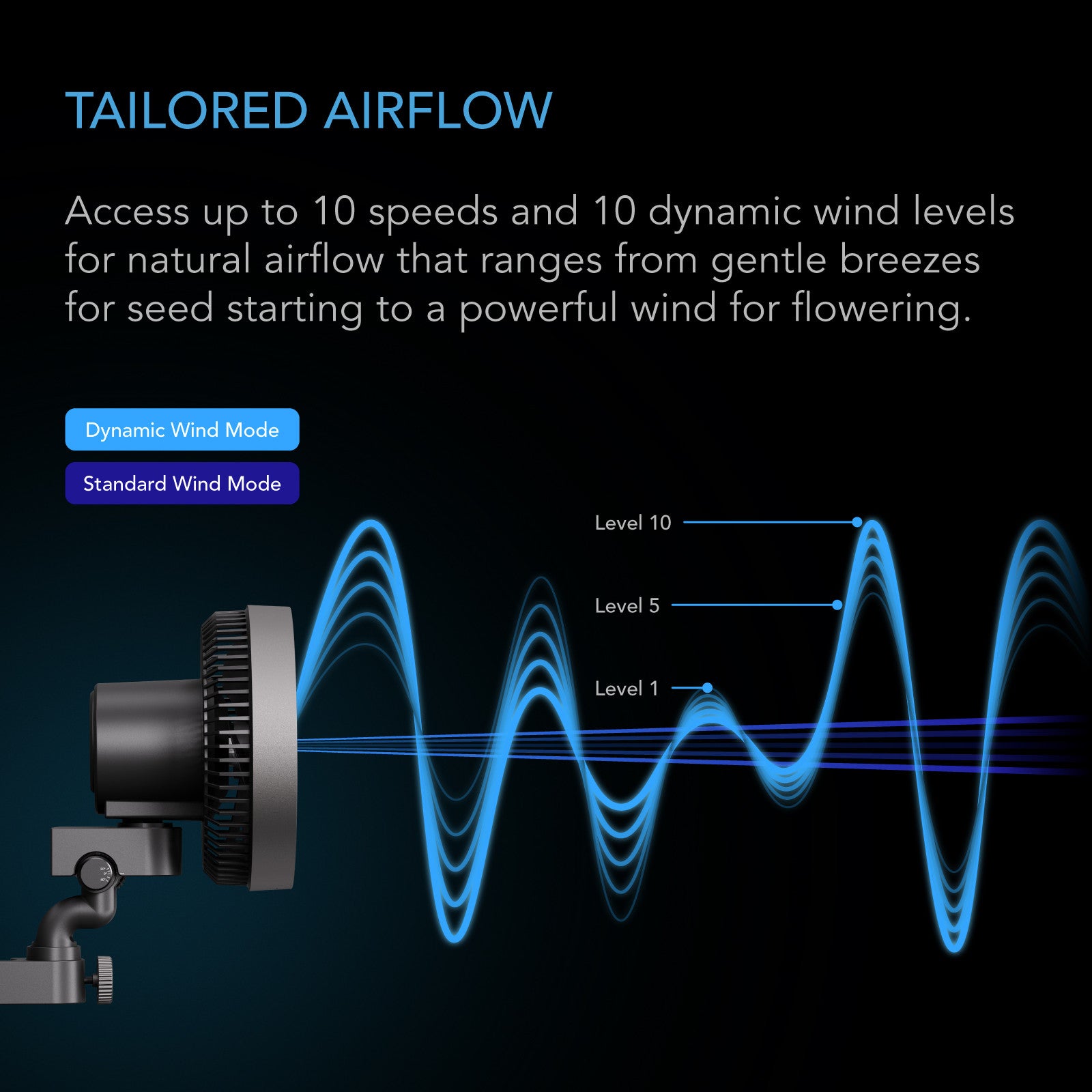

The 10 dynamic wind modes introduce programmatic airflow variability — the fan cycles between speed levels on a defined pattern to replicate the non-uniform airflow profile of natural outdoor environments. This is distinct from simple speed adjustment: dynamic wind mode changes the temporal pattern of airflow delivery, not just its magnitude. At the control layer, the unit links with UIS controllers via the UIS ecosystem, enabling WiFi app control, climate trigger integration, and timer-based scheduling. The 120-inch (10-foot) cord provides positioning flexibility within the enclosure without requiring extension hardware. IP-54 ingress protection covers the motor and electronics against particulate and moisture exposure consistent with high-humidity cultivation environments operating up to 85% RH. In practical terms, the CLOUDRAY S9 2-Pack delivers two independently operable 9-inch fans rated at 405 CFM maximum, 35 dBA, 11W, and 0.15A each, with 67,000-hour brushless EC motor life and full UIS ecosystem compatibility.

Commercial Assurance

• Authorized Dealer: Cannafull Spectrum Solutions is a factory-authorized dealer for AC Infinity. All units are sourced through authorized distribution channels with full manufacturer warranty coverage intact.
• Warranty: Warranty period and terms are determined by AC Infinity's current published warranty policy. Review warranty documentation included with your unit or contact AC Infinity directly for current warranty terms applicable to SKU AC-CCX9.
• IP-54 Rating: Ingress protection verified at IP-54 — dust-partial protection and splash resistance — suitable for high-humidity cultivation environments within the rated operating parameters.
• Continuous-Duty Rated: Confirmed for 24/7 continuous operation per manufacturer specification. The 67,000-hour life expectancy is based on continuous-duty use with the brushless EC motor and dual-ball bearing assembly.
• UIS Ecosystem Compatibility: Confirmed compatible with AC Infinity UIS controllers for WiFi app control, climate trigger automation, and timer scheduling. UIS controller sold separately.

System Integration

• UIS Ecosystem: Both units in the 2-pack pair with AC Infinity UIS smart controllers, enabling WiFi app control, climate-triggered speed adjustments, and programmable timer scheduling — converting manual fan management into an automated atmospheric control loop.
• Multi-Fan Deployment: The 2-pack format allows simultaneous coverage from opposing or complementary angles within a single enclosure, eliminating the coverage gaps that single-fan configurations leave at canopy edges and lower node zones.
• Universal Voltage: 100–240V AC operating voltage supports deployment across all standard U.S. electrical infrastructure without step-down transformers or voltage conversion hardware.
• Mounting Flexibility: Horizontal or vertical mounting positions, combined with 30° upward and 40° downward head tilt and 90° oscillation range, allow precise airflow geometry targeting without structural modification to the enclosure.
• Cord Management: The 120-inch (10-foot) cord per unit provides routing flexibility within standard cultivation enclosures, reducing the need for extension hardware that introduces additional connection points and potential failure nodes.

Facility Integration Data

The following table models electrical load and unit economics for multi-enclosure deployments of the CLOUDRAY S9 2-Pack (AC-CCX9) at $119.00 per 2-pack, based on 11W per fan at continuous 24/7 operation.

Power draw calculated at rated 11W per fan at maximum speed. Actual consumption varies by speed level. kWh figures are estimates for planning purposes only. Consult a licensed electrician for circuit load verification prior to deployment.

Operator Field Notes

• Clamp Security Under Oscillation: The vise-grip metal clamp design distributes clamping force across the full pole contact surface. Verify clamp torque after initial installation and after the first 24 hours of oscillation operation — thermal cycling and vibration can settle the clamp geometry on first use.
• Dynamic Wind Mode Selection: Dynamic wind modes vary airflow between speed levels on a programmatic cycle. For vegetative-stage stem strengthening, select a dynamic mode that cycles through mid-range speeds rather than running at a fixed high speed — sustained high-velocity airflow at close range can cause wind stress that slows internode development.
• Mounting Orientation: Dual-ball bearings support both horizontal and vertical mounting without bearing wear penalty. Vertical mounting (fan axis pointing up or down) is viable for targeting lower canopy zones or directing airflow along vertical trellis structures.
• UIS Controller Pairing: UIS controller is sold separately. Climate trigger automation — speed response to temperature or humidity thresholds — requires a compatible UIS controller. Standalone operation at any of the 10 manual speed levels does not require a controller.
• Cord Routing: The 120-inch cord provides significant routing flexibility. Route cord along tent frame poles using hook-and-loop ties to prevent cord movement from creating mechanical stress on the clamp mount during oscillation cycles.
• Operating Environment Limits: IP-54 rating covers splash and particulate ingress. Do not submerge or direct pressurized water spray at the unit. Confirm ambient temperature remains within 32–140°F and relative humidity within 35–85% RH for rated service life.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, or international addresses cannot be fulfilled through this listing.
• Carrier & Transit: Standard ground shipping via major carrier. Expedited options may be available at checkout. Shipping timelines are estimates and subject to carrier conditions.
• Returns: Returns are accepted subject to Cannafull Spectrum Solutions return policy terms. Items must be in original, uninstalled condition with original packaging. Defective units are handled under manufacturer warranty procedures.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions before ordering? Contact Cannafull Spectrum Solutions directly through the store contact page for pre-purchase technical and logistics inquiries.

What's in the Box

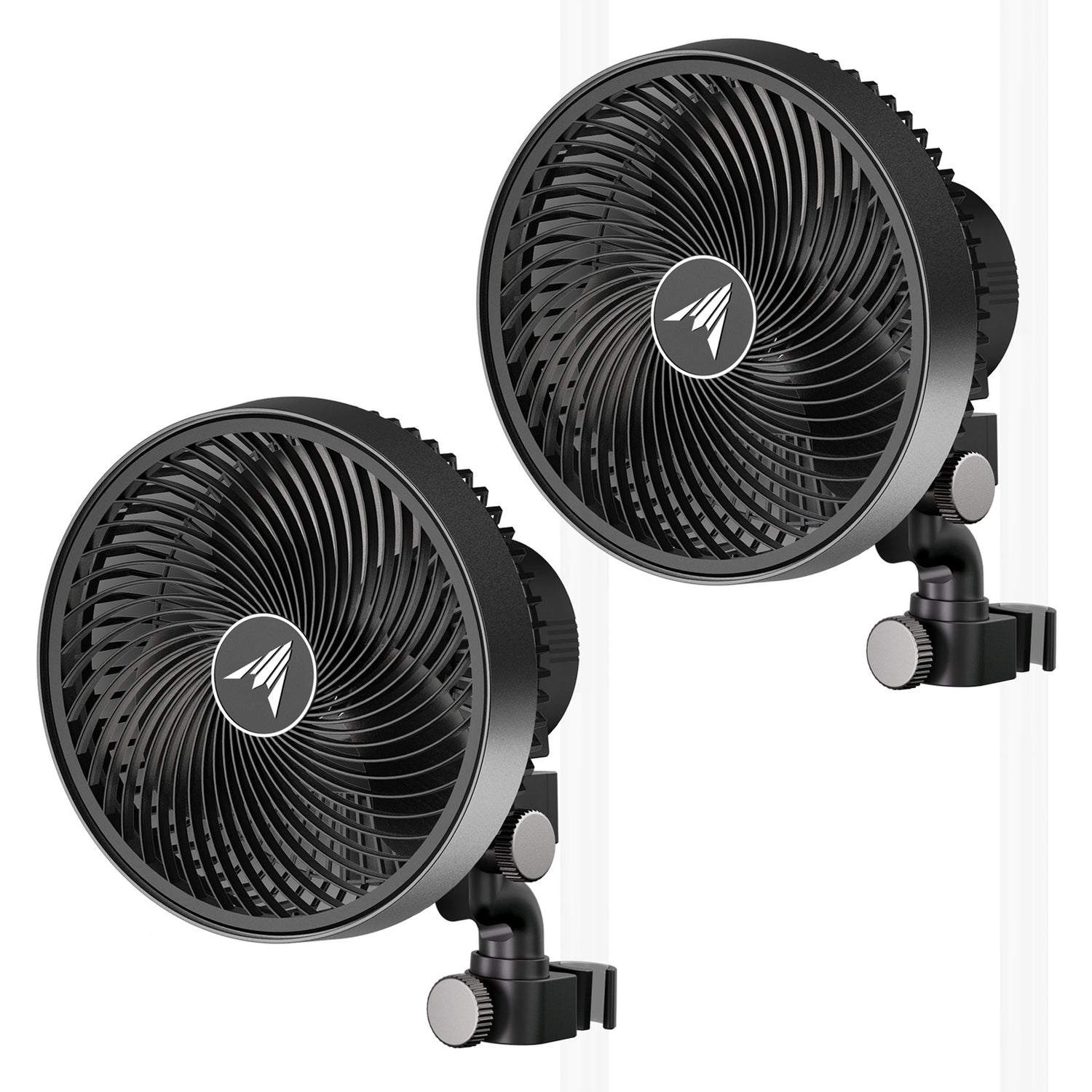

• 2x CLOUDRAY S9 9-inch clip-on fans (AC-CCX9)
• 2x Compact metal vise-grip clamp assemblies (integrated per unit)
• 2x 120-inch (10-foot) power cords (one per unit)
• Manufacturer documentation and quick-start guide

Package contents confirmed from manufacturer source data for SKU AC-CCX9. UIS controller, mounting accessories, and extension hardware are not included and are sold separately. Verify complete package contents against the packing list included in the shipment upon receipt.

Regional Compliance & Deployment Notes

• Electrical Code Compliance: Installation and operation must comply with the National Electrical Code (NEC) and all applicable state and local electrical codes. Circuit load calculations must be performed by a licensed electrician prior to multi-unit deployment.
• Cultivation Facility Licensing: Operator is solely responsible for ensuring that equipment deployment complies with all applicable state and local cannabis cultivation licensing requirements, facility inspection standards, and operational regulations in their jurisdiction.
• Voltage Compatibility: The 100–240V AC operating range is compatible with standard U.S. electrical infrastructure. Confirm outlet type and circuit configuration before installation.
• IP Rating Scope: IP-54 ingress protection is rated for the operating conditions specified in this listing (32–140°F, 35–85% RH). Deployment outside these parameters is not covered by the manufacturer's rated service life or warranty.
• UIS Controller Regulations: WiFi-enabled UIS controller integration is subject to applicable FCC regulations for wireless devices. The UIS controller is a separate product; consult its documentation for applicable compliance certifications.

Cannafull Spectrum Solutions ships and supports deployments within the contiguous 48 United States only. Compliance information provided here is for general reference. It does not constitute legal or regulatory advice. Operators are responsible for independent verification of all applicable requirements in their jurisdiction prior to equipment deployment.
