Enchufe de control UIS de AC Infinity | para equipos alimentados por toma de corriente

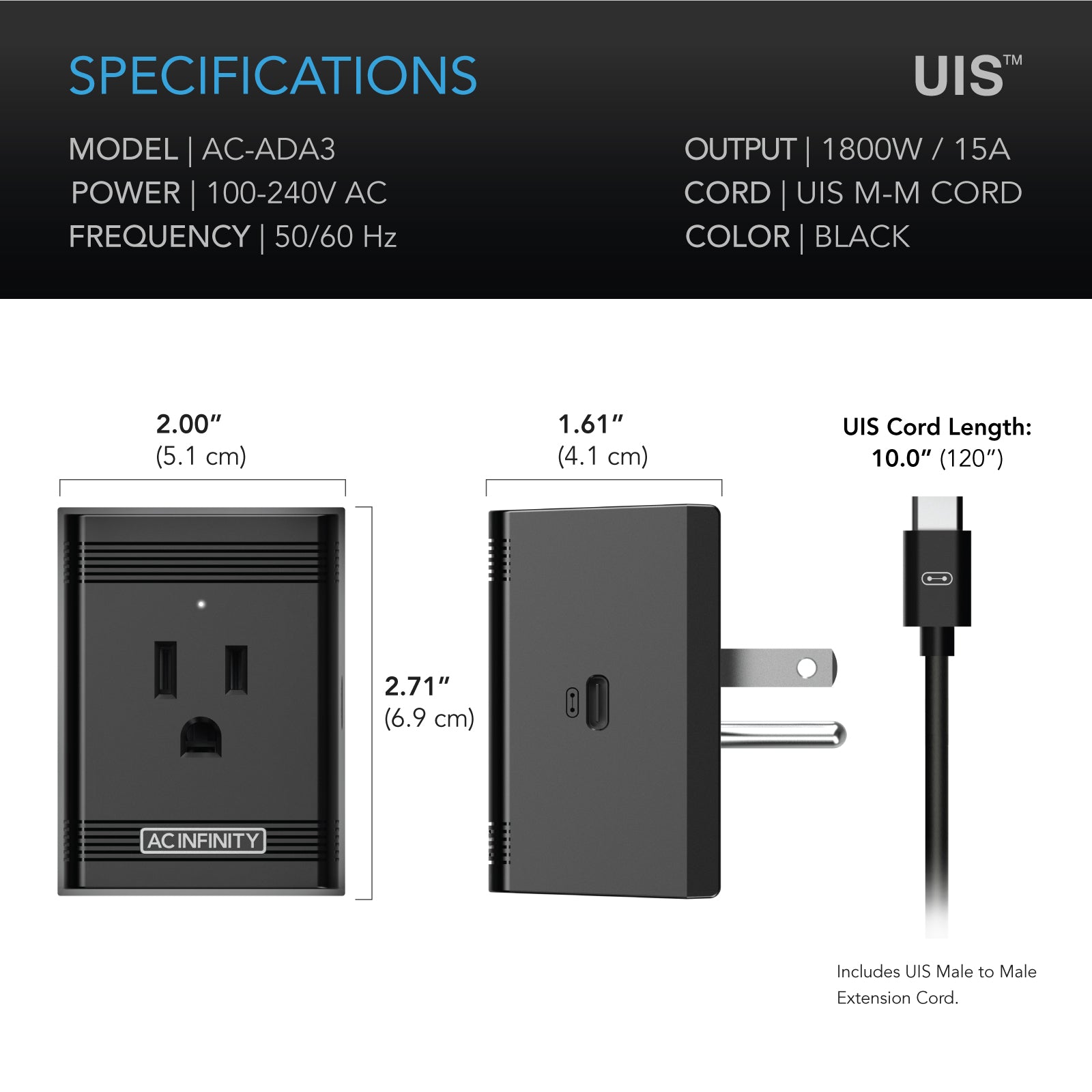

Quick Spec: Rated Voltage: 125V AC | Input: 100–240V AC | Max Output: 1800W | Max Current: 15A | Dimensions: 2.00 in. L × 1.61 in. D × 2.71 in. H | Includes: 10-ft L-shaped UIS Extension Cord (Male-to-Male)

Precision Control in Any Space

Every outlet device running on a manual schedule — or worse, no schedule at all — is a liability. When a dehumidifier runs past its target setpoint because no one was there to cut power, or an A/C unit cycles on a fixed timer that ignores actual room temperature, the environment drifts. That drift is silent and cumulative: vapor pressure climbs, temperature bands widen, and the atmospheric precision you built the rest of your system to achieve gets eroded by the one device that was never integrated. Manual intervention is not a control strategy — it is a gap in your control architecture, and every hour that gap is open, it costs you consistency.

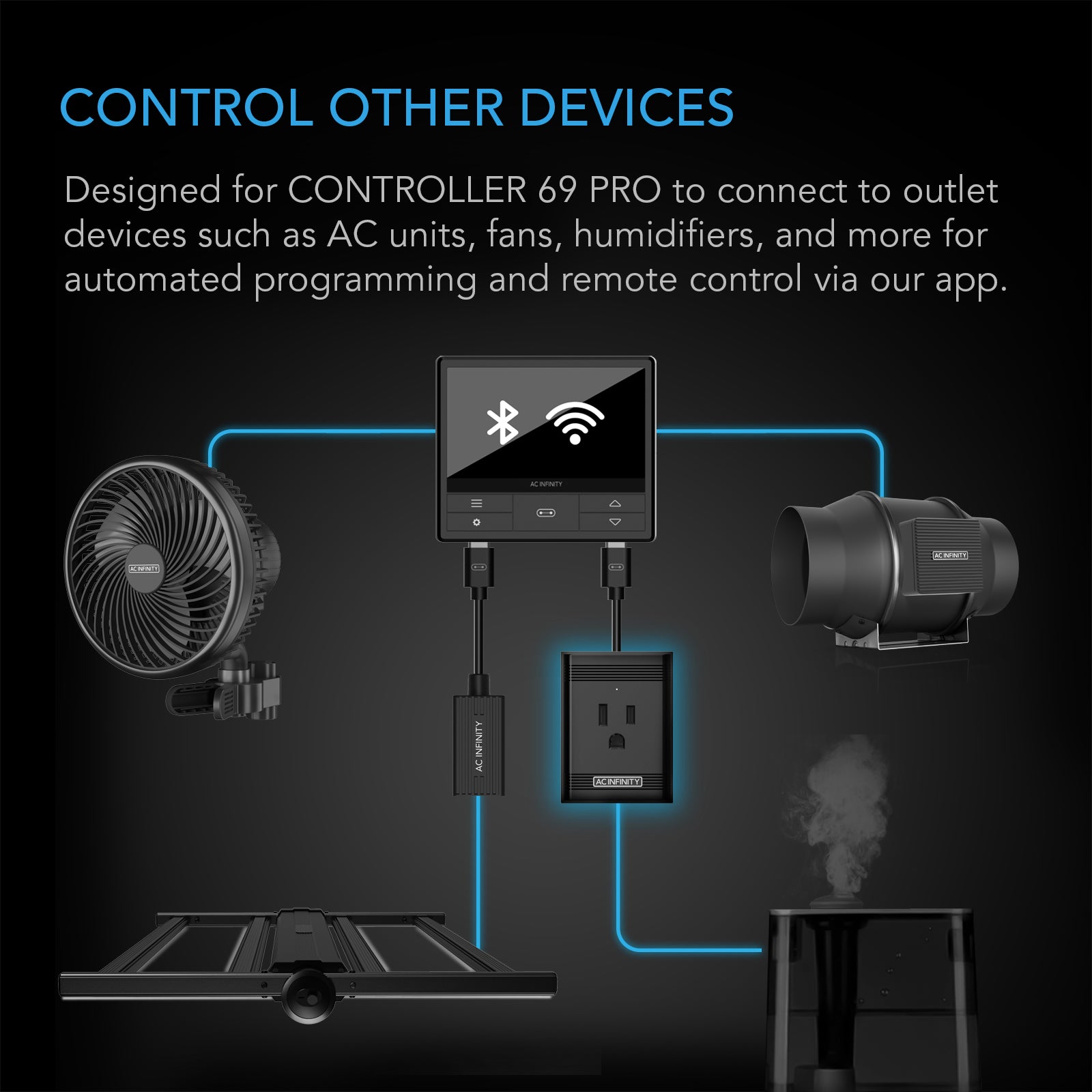

After deployment, the picture changes entirely. Every outlet-powered device in the space responds to the same logic engine governing the rest of your UIS Ecosystem — temperature thresholds, humidity setpoints, VPD targets, scheduled cycles, and timed overrides all execute automatically, without physical presence. The CONTROLLER 69 PRO becomes the single point of command for the entire atmospheric environment, and the UIS Control Plug is the bridge that closes the last gap between smart infrastructure and legacy outlet equipment. Remote monitoring via the app means the environment is observable and adjustable from anywhere, with alert notifications surfacing anomalies before they become losses.

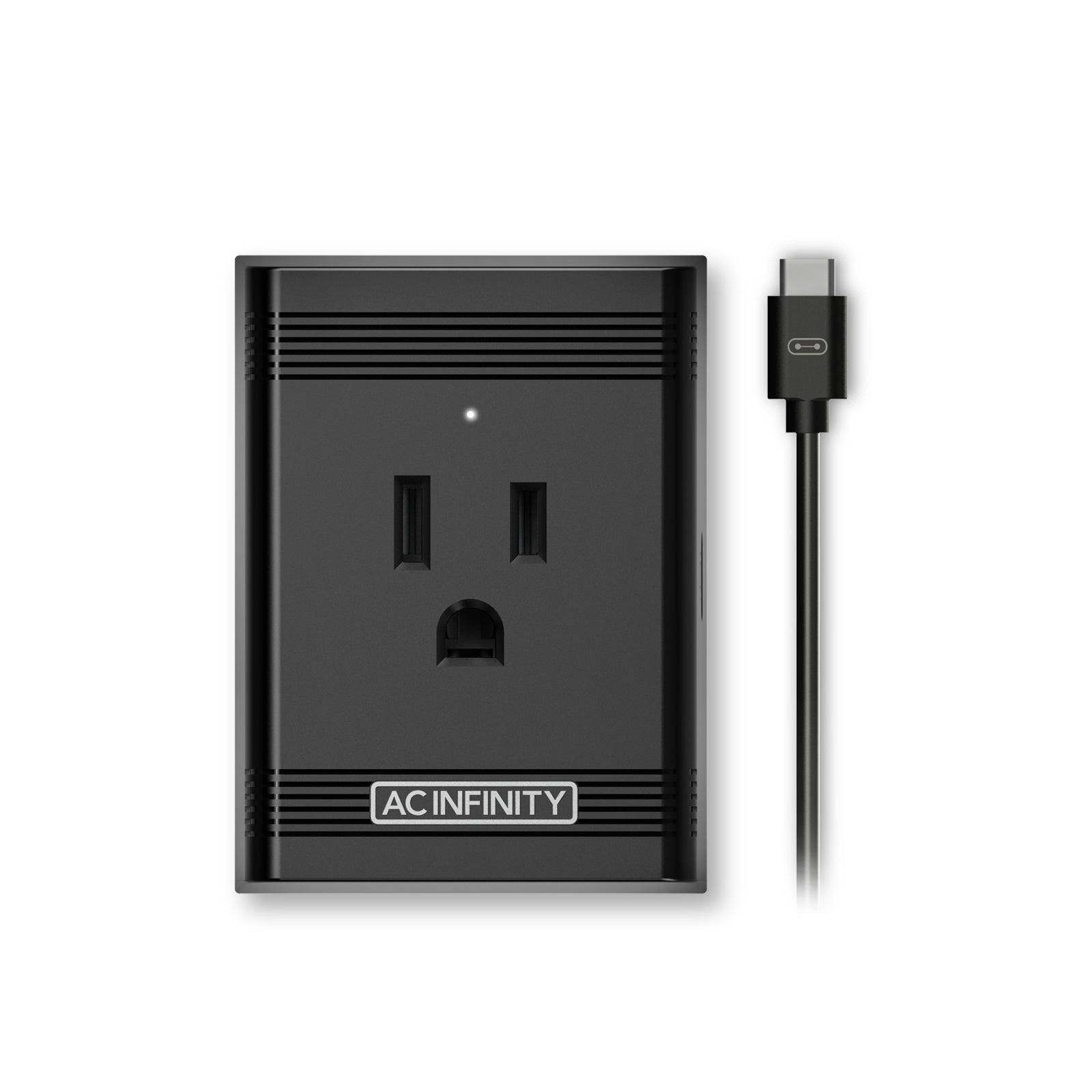

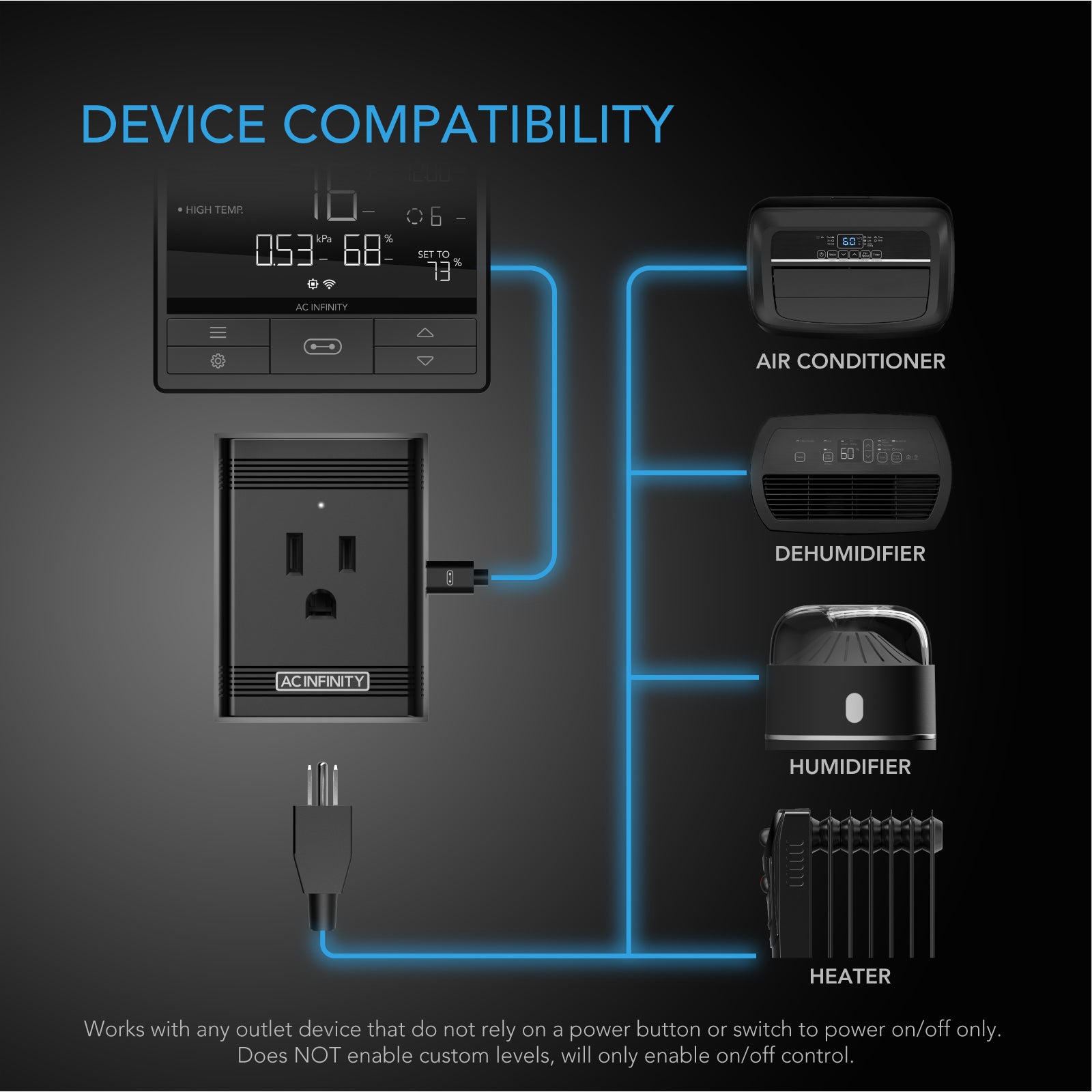

The mechanism is direct: the UIS Control Plug (SKU: AC-ADA3) inserts between any compatible AC-powered outlet device and the wall, rated for 125V AC input (100–240V AC operating range), a maximum output of 1800W, and a 15A maximum current draw — sufficient for humidifiers, dehumidifiers, A/C units, ventilation fans, grow lights, and seedling heat mats. The plug communicates with the CONTROLLER 69 PRO through the UIS platform, enabling temperature monitoring, humidity monitoring, cycle control, and full scheduling capabilities. A brightly illuminated LED indicator confirms active power delivery at a glance, and the included 10-foot L-shaped UIS Extension Cord (Male-to-Male) provides positioning flexibility without requiring the controller and outlet device to share the same wall location. In practical terms, the UIS Control Plug delivers automated outlet control at up to 1800W and 15A across any compatible AC-powered device operating on the UIS platform, housed in a compact 2.00 in. L × 1.61 in. D × 2.71 in. H form factor.

Where This Belongs (and Doesn't)

The UIS Control Plug is designed for use exclusively with UIS controllers and is not intended for use as a standard outlet. It is not rated for devices with continuous high-wattage resistive loads (such as space heaters) or any device not engineered for automatic, rapid on/off cycling. Consult a licensed electrician before integrating into any circuit where load management or panel capacity is a concern. Maximum rated load: 1800W / 15A.

How It Works

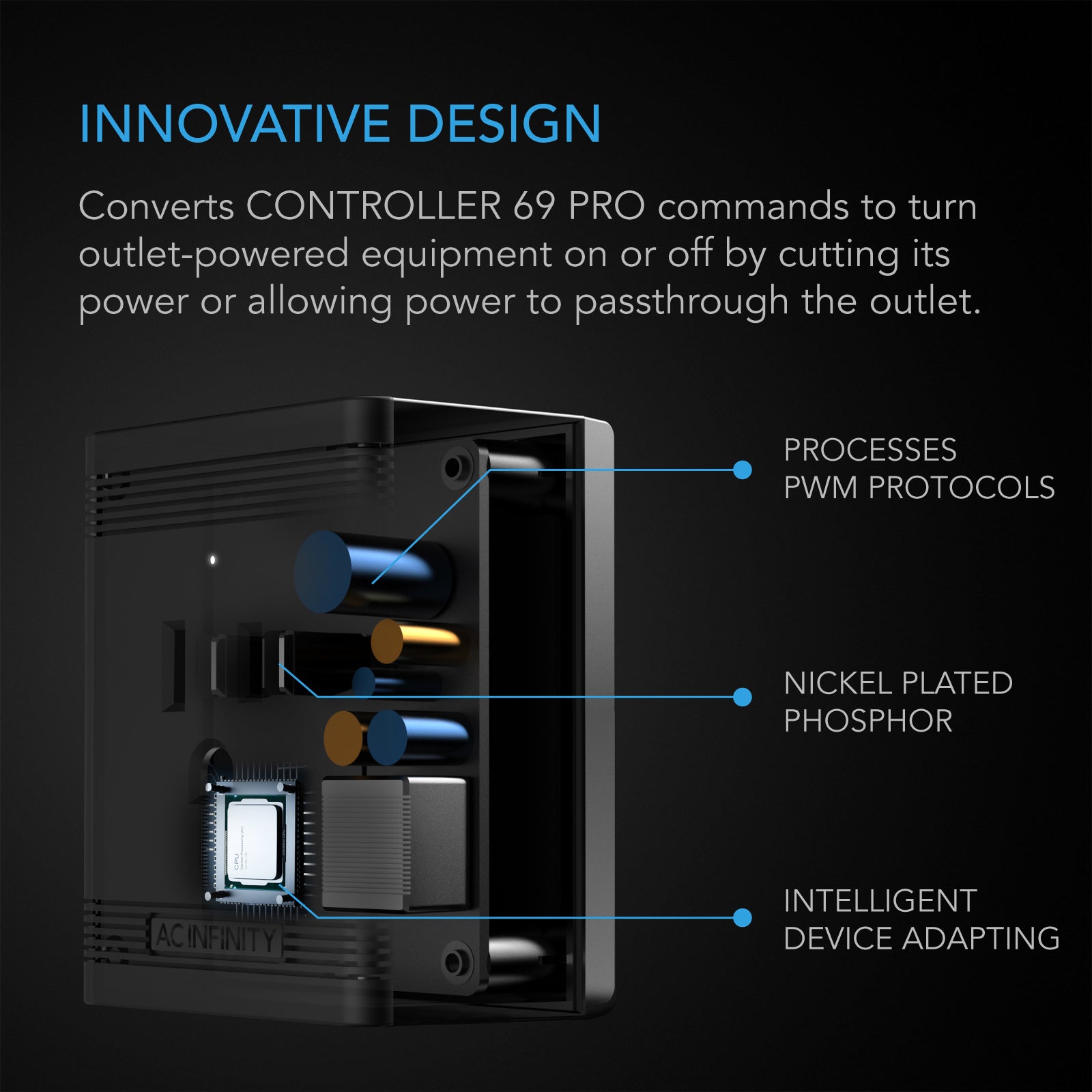

The UIS Control Plug operates as a hardware bridge within the UIS Ecosystem, translating controller logic into physical power delivery. When the CONTROLLER 69 PRO registers a trigger condition — a temperature reading above setpoint, a humidity value outside the target band, a scheduled cycle window opening — it sends a command through the UIS platform to the Control Plug, which either delivers or cuts power to the connected outlet device. Because the plug operates on the same UIS communication architecture as native UIS devices, it participates fully in the Cortex's data environment: sensor readings, event logs, and alert thresholds apply to the connected device just as they would to any integrated UIS component.

Electrically, the plug is rated for 125V AC (with an operating input range of 100–240V AC, 50/60 Hz), a maximum output wattage of 1800W, and a maximum current of 15A — parameters that accommodate the majority of climate management equipment used in controlled environment applications. The durable plastic housing is engineered for a secure, stable connection at the wall outlet, and the LED power indicator mounted directly above the plug provides immediate visual confirmation that the connected device is receiving power. The included 10-foot L-shaped UIS Extension Cord (Male-to-Male) allows the plug to be positioned away from the wall outlet, accommodating equipment placement constraints without requiring the controller and device to share a single outlet location. In practical terms, the UIS Control Plug delivers trigger-based, schedule-driven outlet control at up to 1800W and 15A, operating across 100–240V AC input with a compact 2.00 in. L × 1.61 in. D × 2.71 in. H housing and a 10-foot positioning cord included in the box.

Commercial Assurance

System Integration

• UIS Ecosystem Compatibility: Pairs with CONTROLLER 69 PRO and is designed for compatibility with future-generation UIS smart controllers, ensuring the plug remains functional as the platform evolves.
• Trigger-Based Automated Deployment: Executes power delivery and cutoff based on temperature, humidity, and VPD triggers configured in the CONTROLLER 69 PRO — no manual switching required.
• Scheduling and Cycle Control: Supports timed schedules, cycle intervals, and calendar-based automation through the UIS app, with data graphs and alert notifications accessible remotely.
• Multi-Device Cortex Architecture: Functions alongside existing UIS devices within a unified Atmospheric Control environment, allowing outlet-powered equipment to operate on the same logic layer as native UIS hardware.
• Remote Monitoring: Full device status and environmental data accessible via the AC Infinity app from any location, with push alerts for out-of-range conditions.

Facility Integration Data

The UIS Control Plug is a low-cost integration point that extends automated control to outlet-powered equipment already present in the facility — the table below illustrates the fleet-level cost of closing manual control gaps across multiple spaces or rooms.

Operator Field Notes

• Auto-Start Requirement is Non-Negotiable: Only devices that begin operating immediately upon receiving outlet power are compatible. If the connected device requires a button press after being plugged in, it will not respond to the plug's power delivery commands — verify device behavior before deployment.
• Heaters and Resistive Loads Are Excluded: Do not use with space heaters or any device with a continuous high-wattage resistive load. Rapid on/off cycling of such devices creates overheating, melting, and fire risk. The 1800W / 15A rating is a maximum, not a continuous-duty specification for resistive loads.
• LED Indicator Is a Functional Diagnostic: The illuminated power indicator mounted above the plug confirms active power delivery to the connected device — use it as a first-check diagnostic when troubleshooting whether a trigger or schedule executed correctly.
• 10-Foot Cord Enables Flexible Positioning: The included 10-foot L-shaped UIS Extension Cord (Male-to-Male) allows the control plug and the connected device to be positioned independently of the wall outlet location — critical in rooms where outlet placement does not align with equipment placement.
• Platform Longevity: The plug is designed for compatibility with future-generation UIS smart controllers, meaning it will remain a functional integration point as the UIS Ecosystem expands — no planned obsolescence within the current platform architecture.
• Single-Plug Architecture: This is a single-outlet control plug. Each outlet device requiring automated control requires its own UIS Control Plug. Plan fleet quantities accordingly when mapping multi-device rooms.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders outside this territory cannot be fulfilled.
• Fulfillment: Orders are processed and shipped from authorized distribution. Tracking information is provided upon shipment confirmation. Contact support for estimated lead times on volume orders.
• Returns: Returns are accepted for defective units in accordance with manufacturer warranty terms. Non-defective returns are subject to review. Contact Cannafull Spectrum Solutions before initiating any return.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions? Contact Cannafull Spectrum Solutions directly before placing your order — we are here to confirm compatibility, verify fleet quantities, and support your deployment.

What's in the Box

• 1x UIS Control Plug (SKU: AC-ADA3)
• 1x 10-Foot L-Shaped UIS Extension Cord (Male-to-Male)
• 1x Wire Tie

Contents confirmed from manufacturer source data (Manual Reference: ADA2207X1). CONTROLLER 69 PRO and all other UIS controllers are sold separately and are not included. Verify compatibility with your existing UIS platform configuration before ordering.

Regional Compliance & Deployment Notes

• Electrical Standard: The UIS Control Plug is rated for 125V AC (rated voltage) with an operating input range of 100–240V AC at 50/60 Hz, using a Type B plug for standard U.S. wall outlets (120–240V AC). Verify outlet type and circuit capacity before installation.
• Load Management: Maximum rated output is 1800W at 15A. Do not connect loads that exceed these ratings. Consult a licensed electrician when integrating into circuits where aggregate load management or panel capacity is a concern.
• Platform Jurisdiction: The UIS platform and CONTROLLER 69 PRO are required for operation. Cannafull Spectrum Solutions supports deployment across licensed facilities within the contiguous 48 United States only.
• Safety Compliance: Use only with equipment that automatically starts when plugged in and automatically stops when power is cut. Do not use with devices carrying continuous high-wattage resistive loads or devices not designed for rapid on/off cycling. Misuse may result in overheating, melting, or fire risk.
• Intended Use Restriction: This plug is designed to work exclusively with UIS controllers and is not intended for use as a standard outlet. Any use outside of UIS controller integration is outside the scope of the manufacturer's intended application.

Compliance data reflects manufacturer specifications as published. Cannafull Spectrum Solutions makes no independent certification claims beyond those established by AC Infinity Inc. Operators are responsible for verifying that installation and use comply with all applicable local, state, and federal electrical codes and regulations governing their licensed facility. Manufacturer location: AC Infinity Inc., Los Angeles, CA.
