Lámpara LED de cultivo comercial IONFRAME EVO10 de AC Infinity, 1000 W

Key Specs: 1000W | Samsung LM301H EVO Diodes | 6 x 6 ft. Flower Coverage | 50,000 Hr Lifespan | 38.0 lb. | 2-Year Warranty

Kill Variance. Print Yield.

Every facility running legacy HPS infrastructure is paying a variance tax it cannot see on a single invoice — but it shows up in every harvest. Lamp lumen depreciation begins the moment a bulb fires for the first time, and by the time a 1000W DE HPS fixture has logged 10,000 hours, it is delivering a fraction of its rated output while drawing the same electrical load. Passive failure points compound the problem: ballasts that drift, manual timers that slip, and single-point fixtures that create hot spots and shadow zones across the canopy. The result is not one bad run — it is a systematic, invisible erosion of yield consistency that compounds across every cycle, every room, and every year of operation.

After deployment of the IONFRAME EVO10, the facility operates differently. Canopy density becomes uniform because photon delivery is uniform — algorithmically spaced diode arrays replace the single-point intensity gradient of a bulb. Photoperiod scheduling runs without operator intervention: sunrise and sunset ramp durations are programmed once and executed with precision across every fixture in the network. There are no lamp replacement cycles to schedule, no ballast drift to compensate for, and no manual dimming adjustments between growth stages. The room produces to its designed capacity because the light infrastructure is no longer the variable.

The mechanism behind that outcome is a 1000W bar-style platform built on Samsung LM301H EVO diodes — the current-generation high-efficacy emitter — combined with OSRAM 660nm deep red and OSRAM 730nm far-red channels, Seoul 395nm UV, and a dual white channel array of EVO 3000K warm white and EVO 5000K cool white, delivering a five-channel spectral architecture tuned for full-cycle production. The fixture operates across 100–277 V AC at 5.0A per connection (dual connection), covers a 7 x 7 ft. vegetative footprint and a 6 x 6 ft. flower footprint, carries an IP-65 waterproof rating, and supports daisy-chaining of up to 80 units through the AC Infinity controller ecosystem with 10 brightness levels and five operating modes: OFF, ON, SCHEDULE, SUNSET/RISE, and CLOCK. In practical terms, the IONFRAME EVO10 delivers full-spectrum five-channel photon output across a 6 x 6 ft. flower footprint at 1000W draw with dual 5.0A connections on a 100–277 V AC supply.

Where This Belongs (and Doesn't)

Not recommended for circuits under ~8.33A @120V or ~4.17A @240V per fixture, or unsealed rooms lacking HVAC capacity for expected thermal load.

Minimum infrastructure requirement: Dedicated 20A circuit per two fixtures (dual 5.0A connections per unit). HVAC load planning must account for thermal output of a 1000W draw fixture. Verify ceiling clearance and structural load capacity (38.0 lb. per fixture) before deployment.

Infrastructure Note: The IONFRAME EVO10 driver is removable for remote mounting, which supports installation in rooms where heat management at the canopy level is a priority. Magnetic mounting is supported. Plan structural attachment points accordingly for a 38.0 lb. fixture across a 44.09 x 44.48 in. frame.

How It Works

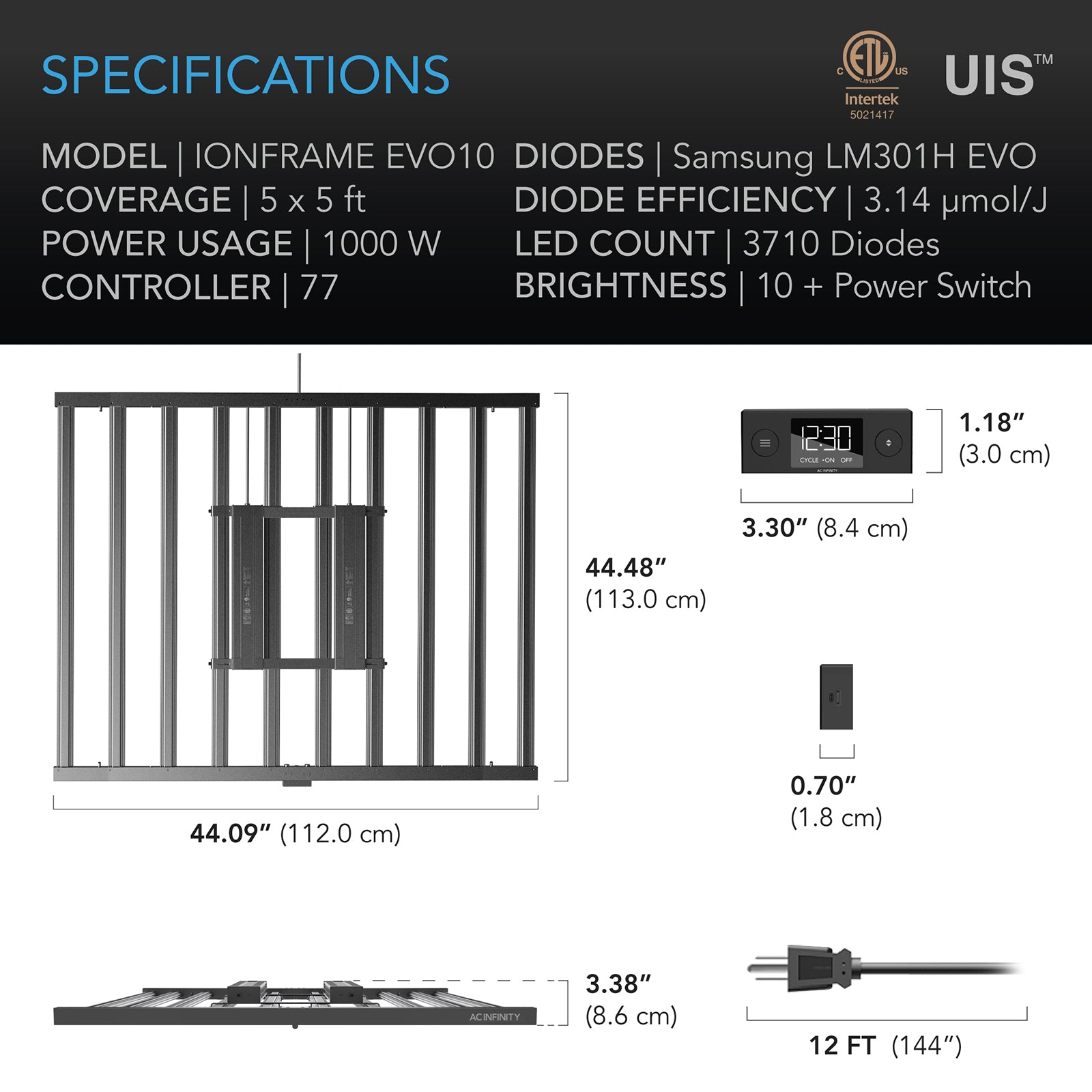

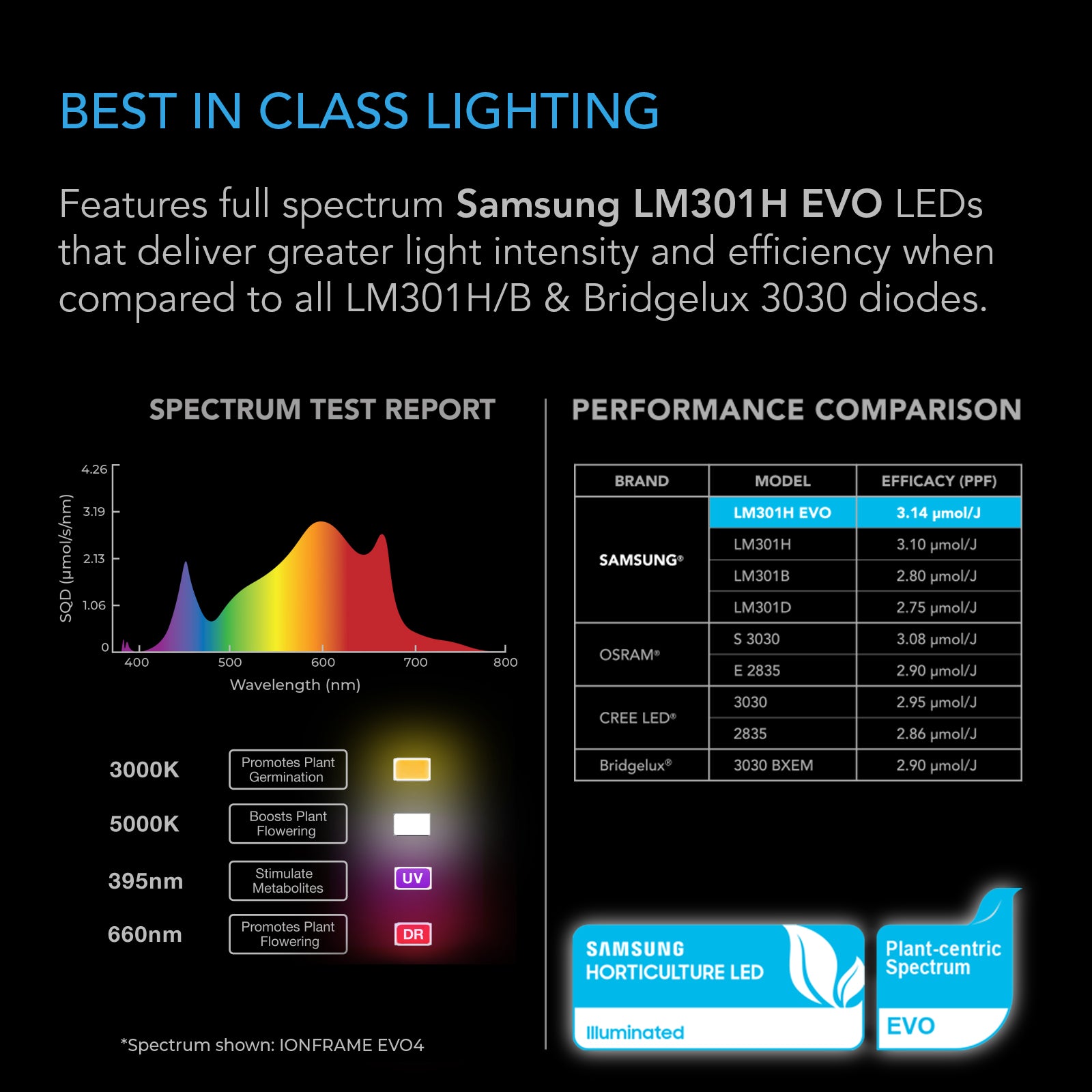

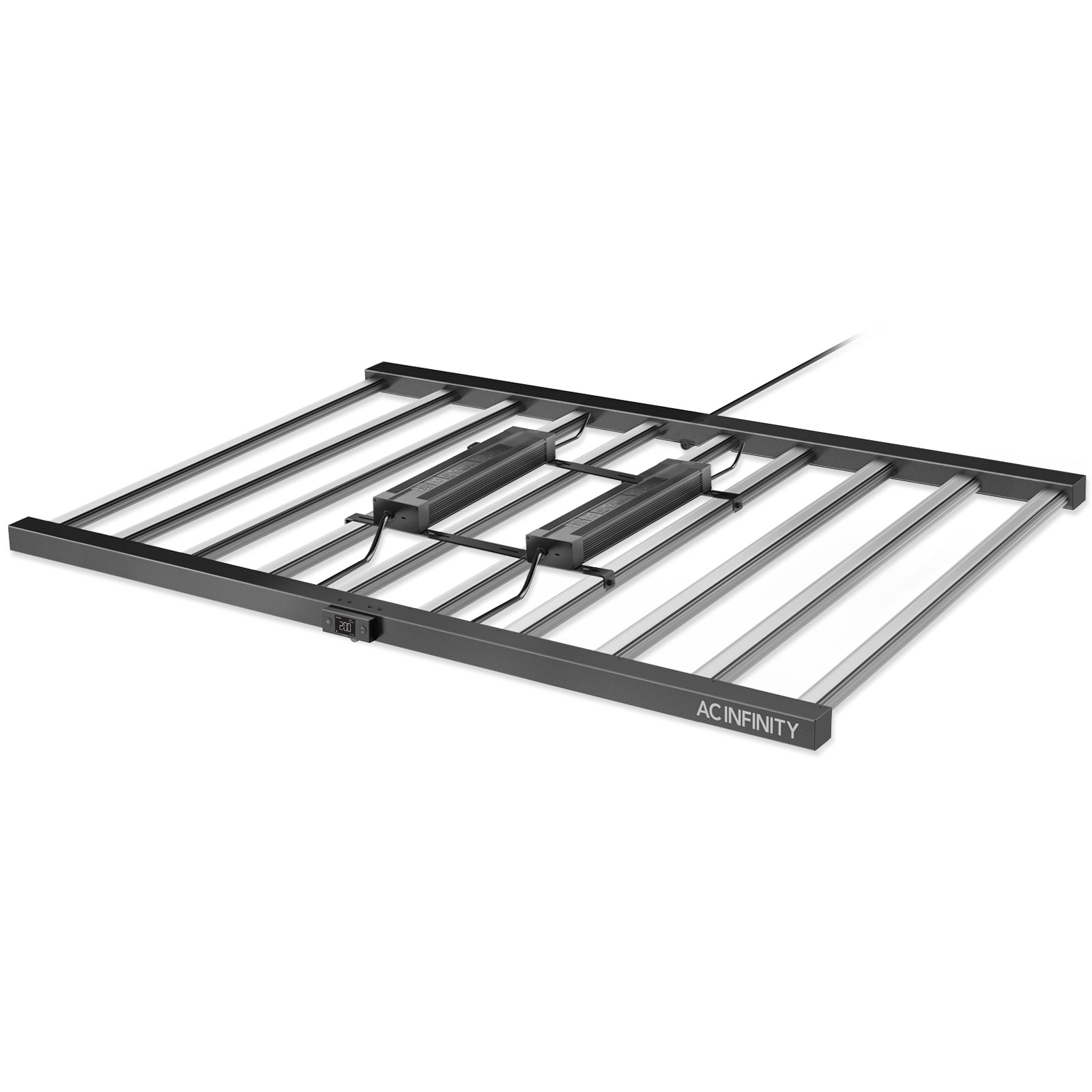

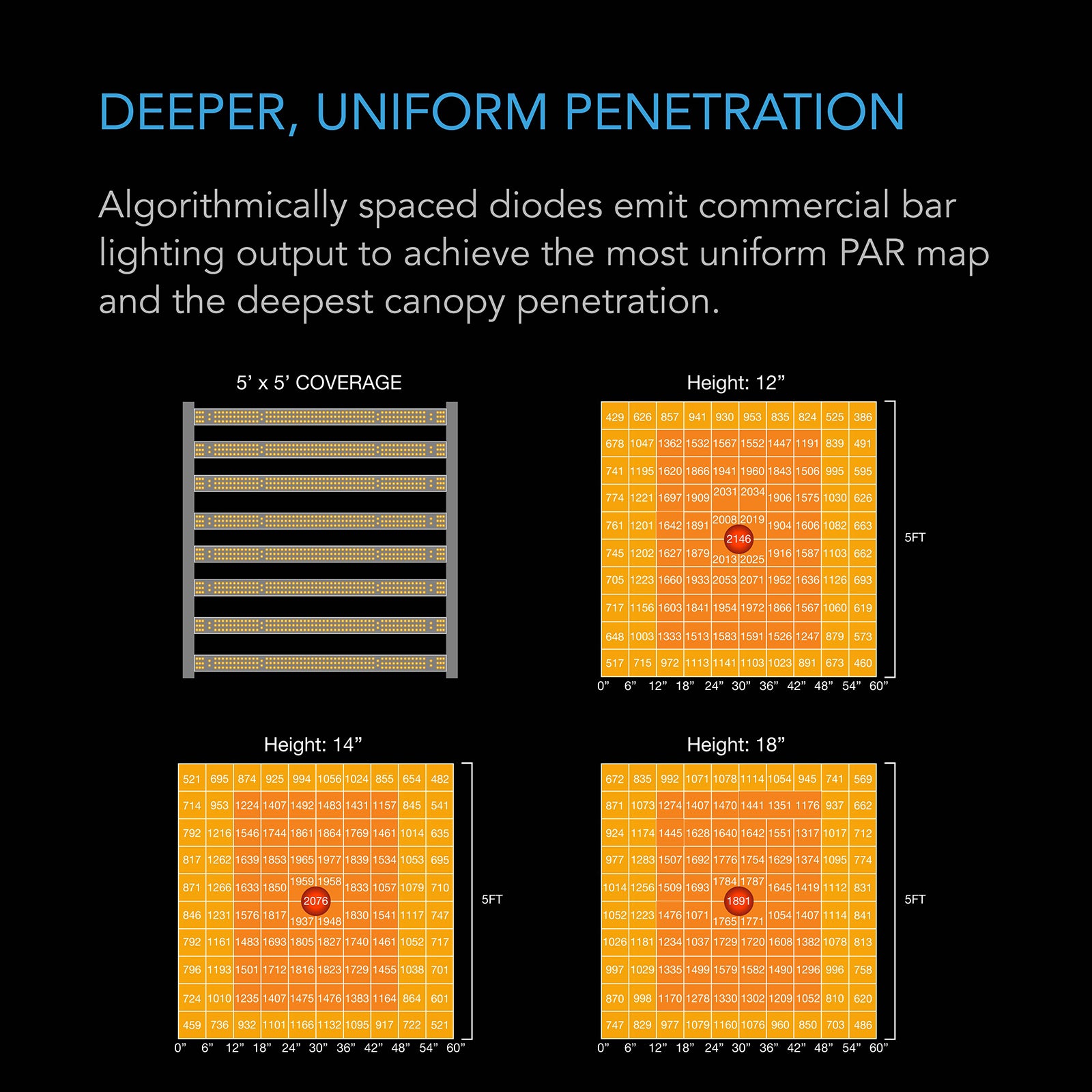

The IONFRAME EVO10 operates as a bar-style distributed emitter array rather than a single-point source. The fixture frame — 44.09 x 44.48 x 3.38 in., constructed from steel and aluminum — houses diode bars with algorithmically spaced placement, a design decision that distributes photon output across the target footprint rather than concentrating intensity at a center point. The diode platform is Samsung LM301H EVO, the current-generation high-efficacy white emitter, deployed in two color temperatures: EVO 3000K warm white and EVO 5000K cool white. Supplemental channels include Seoul 395nm UV for secondary metabolite expression, OSRAM 660nm deep red for targeted photosynthetic response at the P680/P700 absorption peaks, and OSRAM 730nm far-red for Emerson enhancement and photoperiod signaling. This five-channel spectral architecture — 395nm UV, 660nm deep red, 730nm far-red, 3000K warm white, and 5000K cool white — operates as a unified output rather than a switchable channel system.

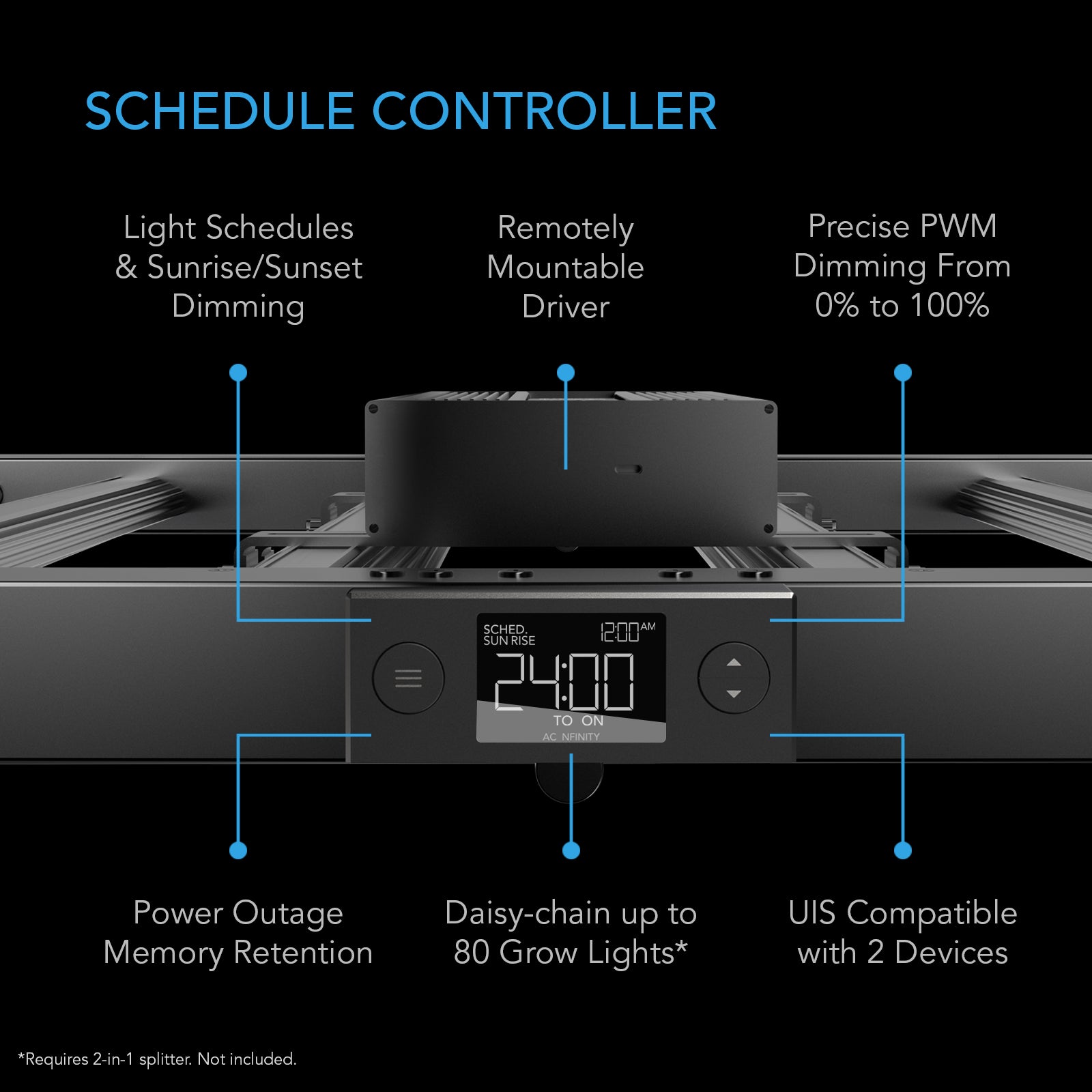

Control is delivered through the AC Infinity Cortex ecosystem. The removable driver interfaces with the controller network, enabling 10 discrete brightness levels and five operating modes: OFF, ON, SCHEDULE, SUNSET/RISE, and CLOCK. Sunrise and sunset ramp durations are programmable from 0:00 to 6:00 hours, allowing facilities to eliminate abrupt photoperiod transitions that create plant stress responses. Up to 80 fixtures can be daisy-chained within a single controller network, enabling room-level or zone-level scheduling from a single control point without per-fixture manual adjustment. The fixture carries an IP-65 waterproof rating, making it compatible with high-humidity sealed cultivation environments. Input voltage range is 100–277 V AC, supporting deployment across standard North American single-phase and international three-phase infrastructure without transformer modification. Rated lifespan is 50,000 hours. In practical terms, the IONFRAME EVO10 delivers a five-channel spectral output — 395nm UV, 660nm deep red, 730nm far-red, 3000K warm white, and 5000K cool white — across a 6 x 6 ft. flower footprint at 1000W draw, with automated scheduling control across networks of up to 80 units at 38.0 lb. per fixture.

System Integration

To operate this platform at peak efficiency, verify your ecosystem matches these requirements:

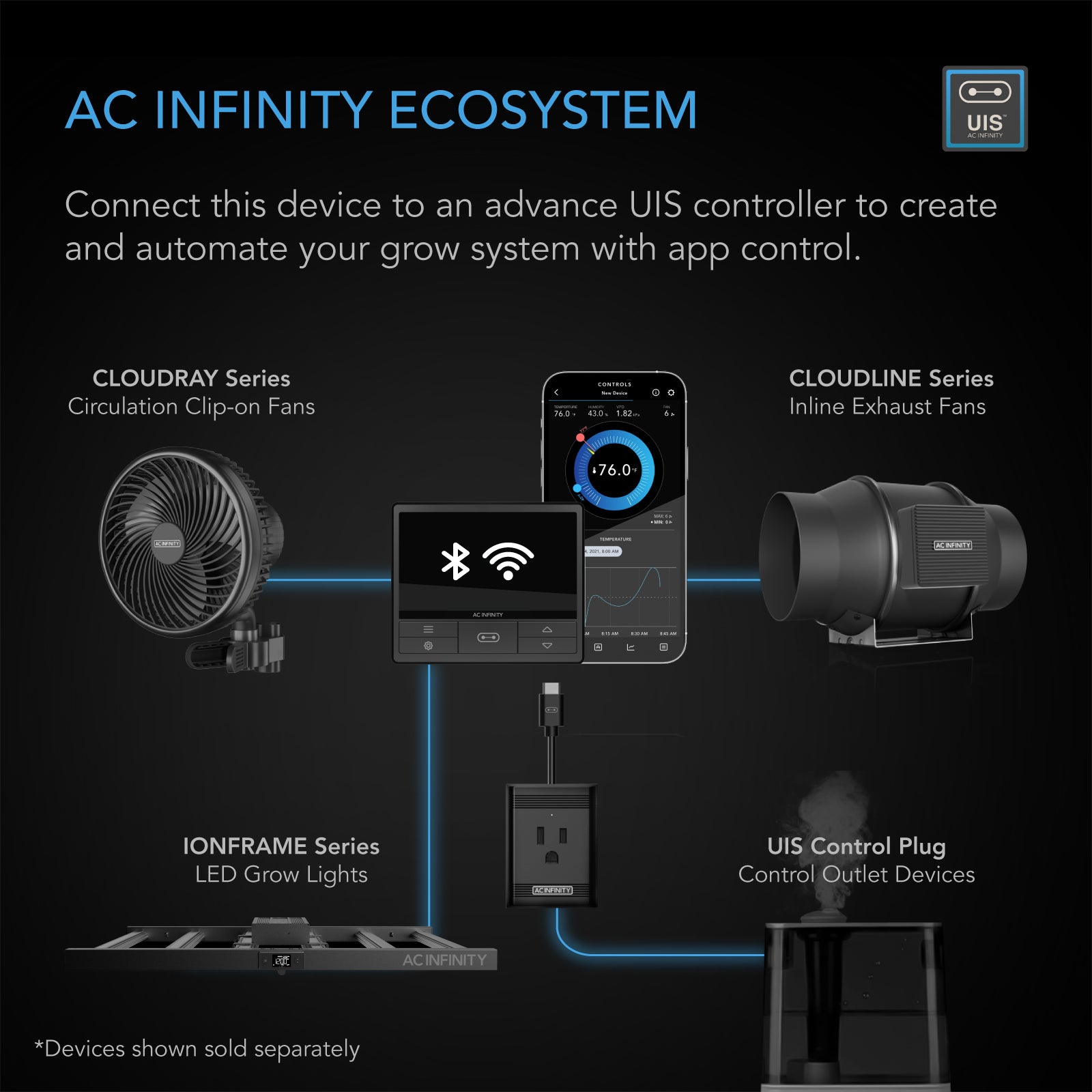

• Controller Compatibility: The IONFRAME EVO10 is designed for integration with the AC Infinity Cortex controller ecosystem. Confirm controller model supports 10-level dimming, SCHEDULE, and SUNSET/RISE modes before deployment. Up to 80 units can be daisy-chained per controller network.
• Electrical Infrastructure: Each fixture draws 1000W at dual 5.0A connections (100–277 V AC). Size circuits accordingly — do not share circuits with other high-draw equipment without load calculation review.
• Mounting and Structural: Each fixture weighs 38.0 lb. and measures 44.09 x 44.48 x 3.38 in. Verify overhead mounting points are rated for this load. Magnetic mounting is supported; confirm surface compatibility. Remote driver mounting is available — plan cable routing for the driver (7.16 x 1.57 in.) if remote-mounting.
• HVAC Capacity: A 1000W fixture operating at full draw generates thermal load that must be accounted for in room HVAC sizing. Calculate total fleet wattage and verify your atmospheric control system can maintain target VPD and temperature setpoints under full operational load.
• Environmental Rating: The IP-65 rating supports high-humidity sealed cultivation environments. Verify that all electrical connections and controller interfaces maintain appropriate ingress protection ratings for your room conditions.

Facility Integration Data

Use the data below to model fleet-level electrical cost, heat load, and ROI against legacy 1000W DE HPS infrastructure before committing to a deployment configuration.

Operator Field Note

• Structural Load: Each IONFRAME EVO10 fixture weighs 38.0 lb. and spans 44.09 x 44.48 in. Verify overhead mounting hardware, ratchet hangers, and ceiling attachment points are rated for this load before installation. Do not use mounting hardware rated below 50 lb. per point.
• Electrical — Dual Connection: This fixture uses dual 5.0A connections. Each connection must be on a properly sized circuit. Do not combine both connections on a single 10A circuit without confirming your panel and breaker configuration supports this topology. Total fixture draw is 1000W at rated voltage.
• UV Exposure Warning: The Seoul 395nm UV channel is active during normal operation. Avoid direct eye exposure to the fixture during operation. Use appropriate eye protection when working in the room with fixtures at full output.
• Driver Remote Mounting: The driver is removable for remote mounting. If remote-mounting, plan cable routing and ensure the driver location maintains adequate ventilation. Driver dimensions: 7.16 x 1.57 in.
• Environmental Setpoints: The IP-65 rating supports high-humidity environments, but electrical connections at the driver and daisy-chain ports must be properly seated and protected. Verify all connections are secure before introducing high-humidity conditions to the room.
• Daisy-Chain Network Limit: Maximum 80 fixtures per controller network. Exceeding this limit may result in communication errors or loss of scheduling function across the network. Plan zone segmentation for facilities exceeding 80-fixture rooms.

Shipping & Logistics

• Origin: Ships from Cannafull Spectrum Solutions authorized distribution. The IONFRAME EVO10 is fulfilled as a factory-authorized unit through our dealer network.
• Processing: Orders are processed within 1–2 business days of payment confirmation. Large fleet orders (10+ units) may require additional lead time — contact us before ordering to confirm availability and staging timelines.
• Damage Reporting: Inspect all units within 48 hours of delivery. Document any freight damage with photographs before moving the fixture from its packaging. Report damage to Cannafull Spectrum Solutions within 48 hours at (888) 378-0017 or sales@cannafullspec.com. Claims submitted after 48 hours may not be eligible for freight damage resolution.
• Returns: Units in original, uninstalled condition may be returned within 30 days of delivery. A Return Authorization (RA) number is required before any return shipment. Contact Cannafull Spectrum Solutions to initiate the RA process.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions? (888) 378-0017 or sales@cannafullspec.com

What's in the Box

• AC Infinity IONFRAME EVO10 bar-style LED grow light fixture (44.09 x 44.48 x 3.38 in., 38.0 lb.)
• Removable driver unit (7.16 x 1.57 in.) — pre-attached, removable for remote mounting
• Mounting hardware (verify contents upon receipt for magnetic mounting components)
• Power cable(s) for dual-connection input
• Daisy-chain cable(s) for controller network integration

Note: Box contents are based on available manufacturer data. Verify complete contents upon receipt. Contact Cannafull Spectrum Solutions at (888) 378-0017 if any components are missing or damaged.
