Bomba de aire hidropónica AC Infinity | Kit de bombeo de una salida | 24 GPH (1,5 L/M)

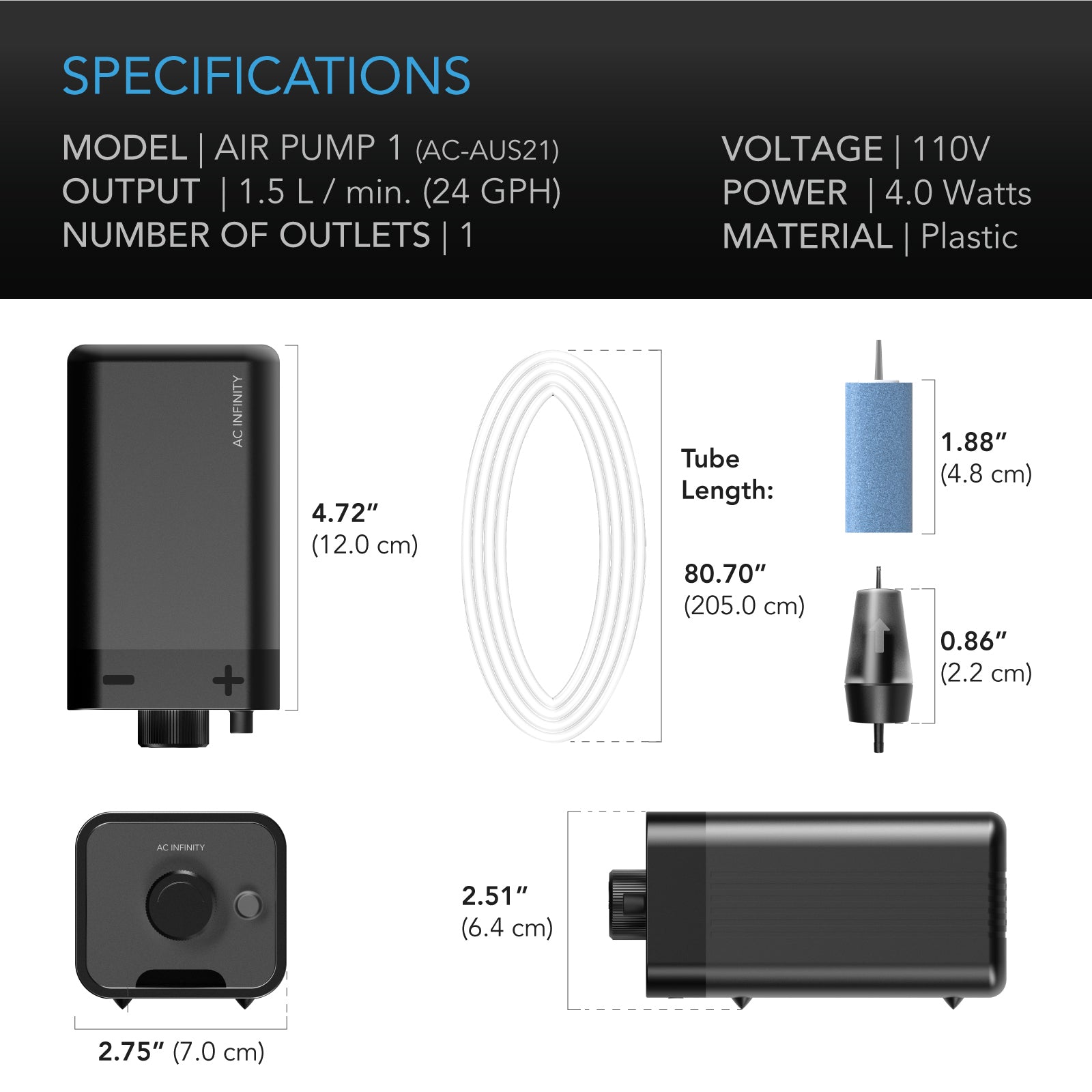

Quick Spec: SKU AC-AUS21  |  4W / 110V AC  |  24 GPH (1.5 L/M)  |  1 Outlet  |  2.75 x 2.51 x 4.72 in.  |  UPC 819137023697  |  $16.99 USD

Precision Control in Any Space

The enemy is not a single point of failure — it is the accumulated drag of equipment that cannot be dialed in. Fixed-output air pumps push whatever volume they were built to push, regardless of what the system actually needs at that moment. The result is chronic over-aeration in smaller reservoirs, under-aeration as system load shifts, and backflow events that contaminate nutrient solution when the pump cycles off. None of these failures announce themselves loudly. They surface as inconsistent root zone health, suppressed uptake rates, and yield variance that operators spend weeks attributing to the wrong variable. The silent cost is not the pump — it is every decision made downstream of bad dissolved oxygen data.

After deployment, the picture changes. The reservoir maintains a stable, operator-defined dissolved oxygen target because airflow is no longer a fixed constant — it is a controlled variable. The check valve eliminates backflow as a failure mode entirely, protecting nutrient solution integrity across power cycles. The electromagnetic motor runs continuously without generating the acoustic signature that disrupts sensitive grow environments. Installation is not a project; it is a placement. The compact footprint fits where oversized assemblies cannot, and the flexible tubing routes to the exact delivery point the system requires without adapters or workarounds.

The mechanism behind that outcome is an electromagnetic motor architecture that maximizes air pressure and volume output relative to its 4W draw at 110V AC, delivering 24 GPH (1.5 L/M) through a single outlet. A calibrated turn dial provides manual output adjustment across the full LOW-to-HIGH range, giving operators direct control over aeration intensity without secondary controllers or inline valves. The included air tubing terminates in an airstone that diffuses output into fine-bubble columns for maximum surface-area contact with nutrient solution, and the integrated check valve enforces one-directional flow — arrow oriented away from the pump — to prevent siphon backflow during off-cycles. A heavy-duty outer shell combined with an internal muffler assembly dampens motor vibration and airflow noise to support continuous operation in acoustically managed environments. In practical terms, the AC-AUS21 delivers 24 GPH of adjustable, one-directional aeration through a 4W electromagnetic motor in a 2.75 x 2.51 x 4.72 in. form factor.

Where This Belongs (and Doesn't)

The AC-AUS21 is a low-voltage aeration device operating at 110V AC / 4W. It does not require dedicated circuit installation. All electrical connections should comply with applicable local codes. This unit is not rated for high-pressure or large-volume commercial reservoir systems requiring multi-outlet pump arrays.

How It Works

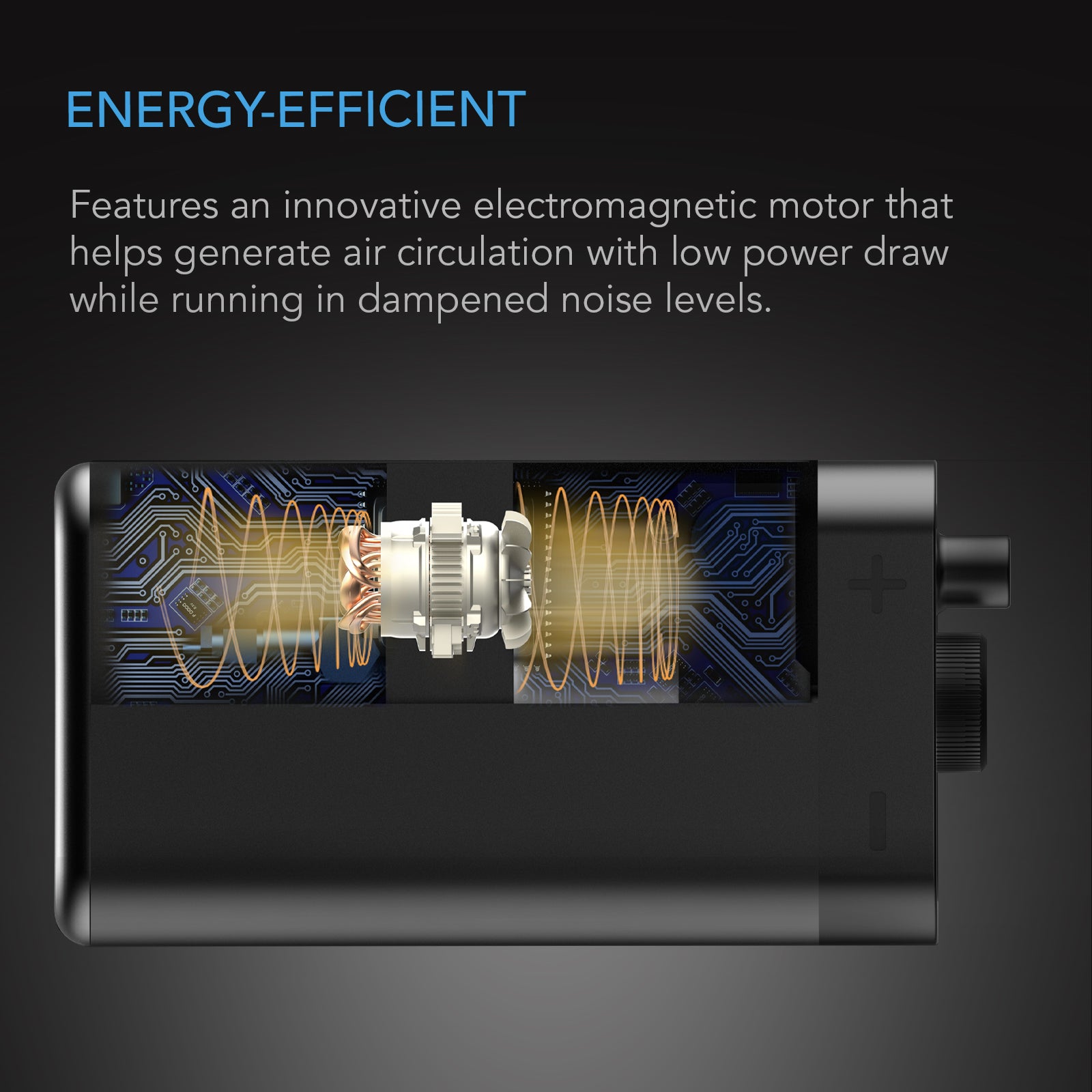

The AC-AUS21 is built around an electromagnetic motor that converts 4W of 110V AC input into sustained air pressure and volume output at 24 GPH (1.5 L/M). Unlike piston-driven or diaphragm pumps that generate mechanical noise through reciprocating contact, the electromagnetic design minimizes moving-part friction, which is the primary source of both acoustic output and long-term wear in continuous-run aeration equipment. The motor's efficiency architecture is what allows it to sustain rated output at 4W — a draw low enough to operate continuously without meaningful contribution to facility electrical load.

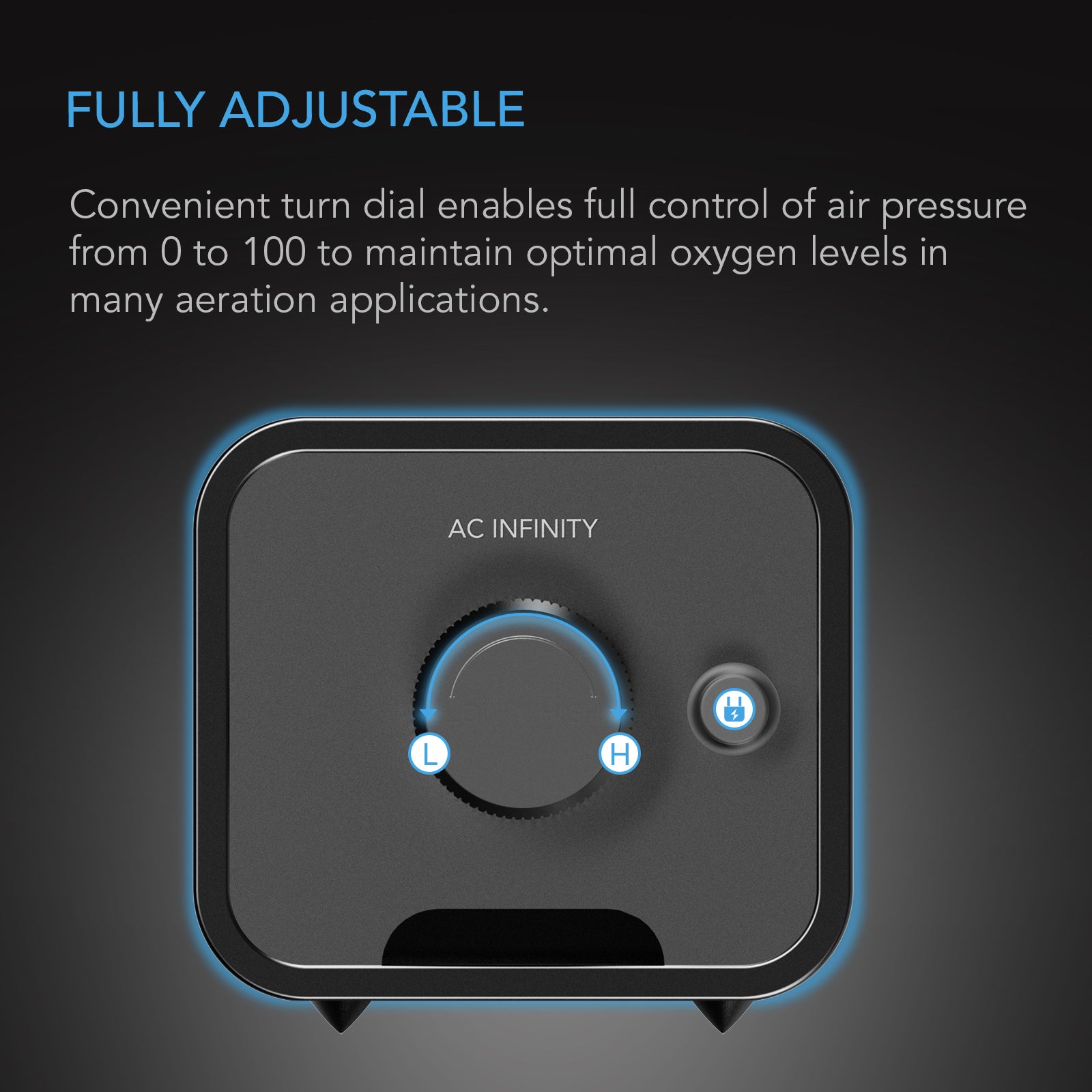

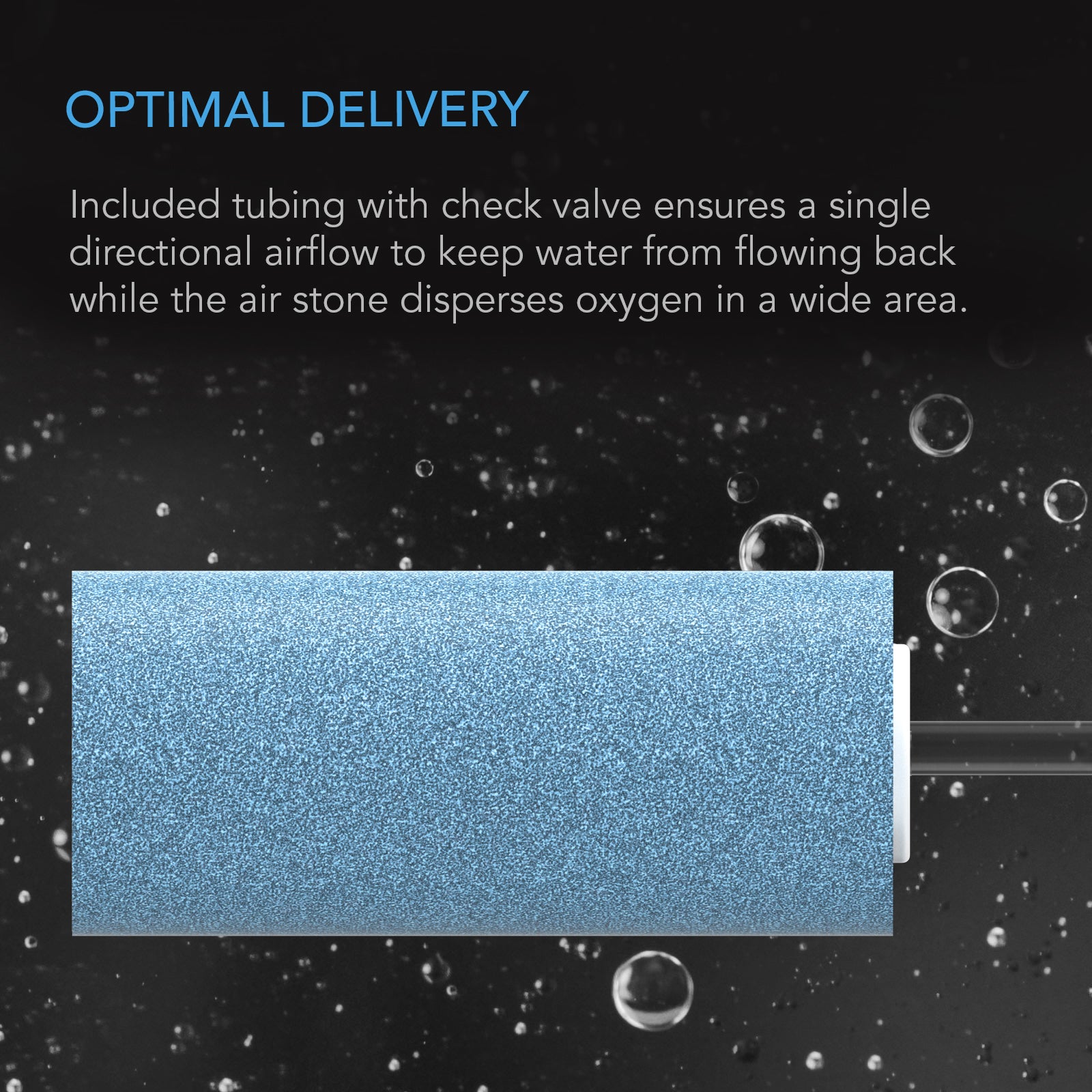

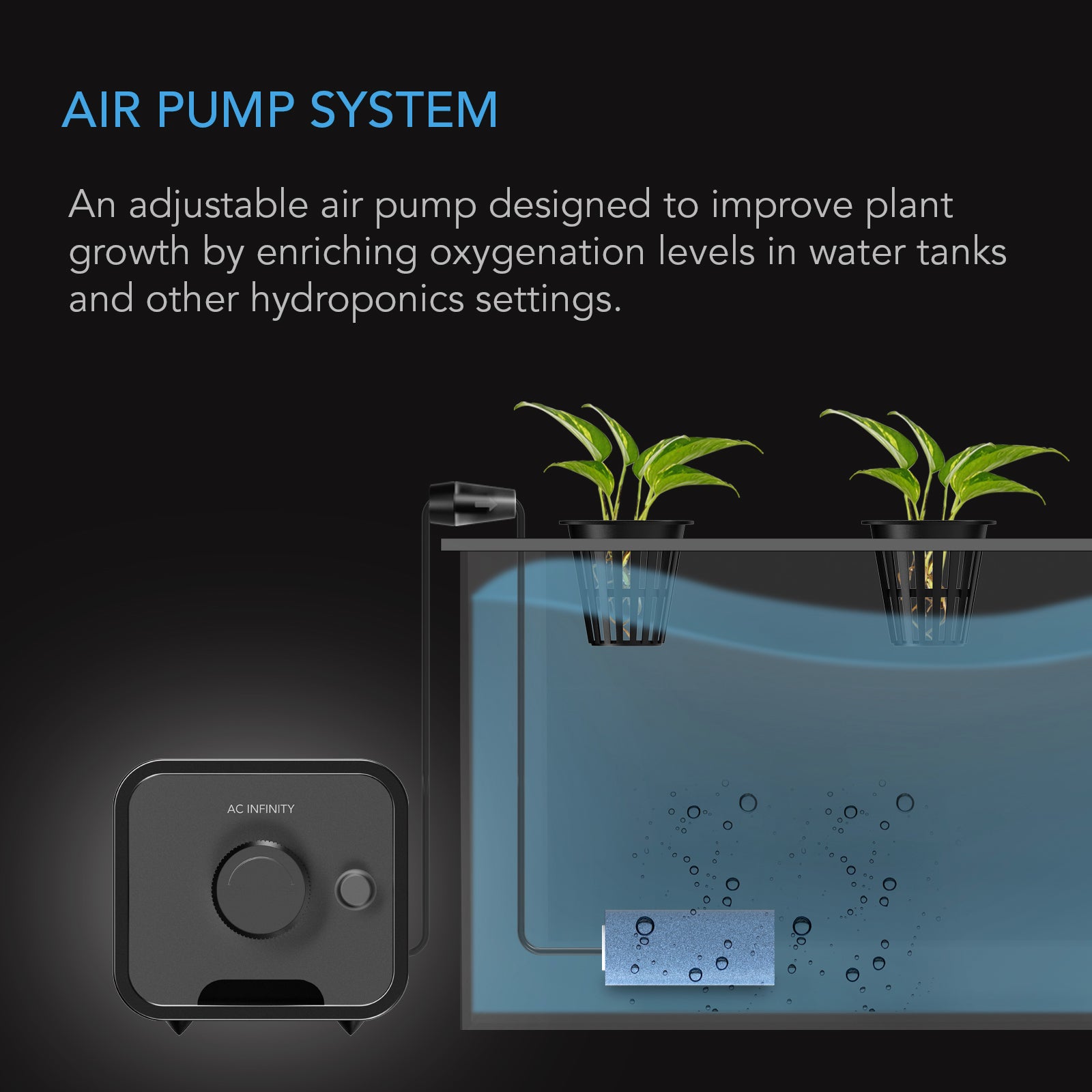

Airflow exits the pump through a single outlet and travels through the included flexible air tubing to the airstone delivery point. The airstone breaks the airflow column into fine-bubble dispersion, increasing the contact surface area between oxygen and nutrient solution — the mechanism through which dissolved oxygen levels are elevated. Operators control delivery intensity via the turn dial, which adjusts output across the full LOW-to-HIGH range without requiring inline valves or secondary hardware. The check valve integrated into the tubing assembly enforces one-directional flow: the valve arrow must be oriented away from the pump during installation to ensure that nutrient solution cannot siphon back into the pump body during off-cycles or pressure equalization events.

The outer shell is constructed from heavy-duty material selected for its vibration-damping properties, and an internal muffler assembly further attenuates the acoustic signature of the motor and airflow. The combined result is a unit rated for continuous operation in environments where noise management is an operational requirement. The compact body — 2.75 x 2.51 x 4.72 in. (7.0 x 6.4 x 12 cm) — allows placement in constrained equipment spaces without requiring dedicated mounting infrastructure. In practical terms, the AC-AUS21 delivers adjustable 24 GPH aeration through a check-valve-protected single outlet at 4W continuous draw, in a form factor measuring 2.75 x 2.51 x 4.72 in.

System Integration

• Reservoir Compatibility: Sized for single-reservoir hydroponic systems, DWC buckets, and compact aquaponic circuits where one outlet covers the full aeration zone.

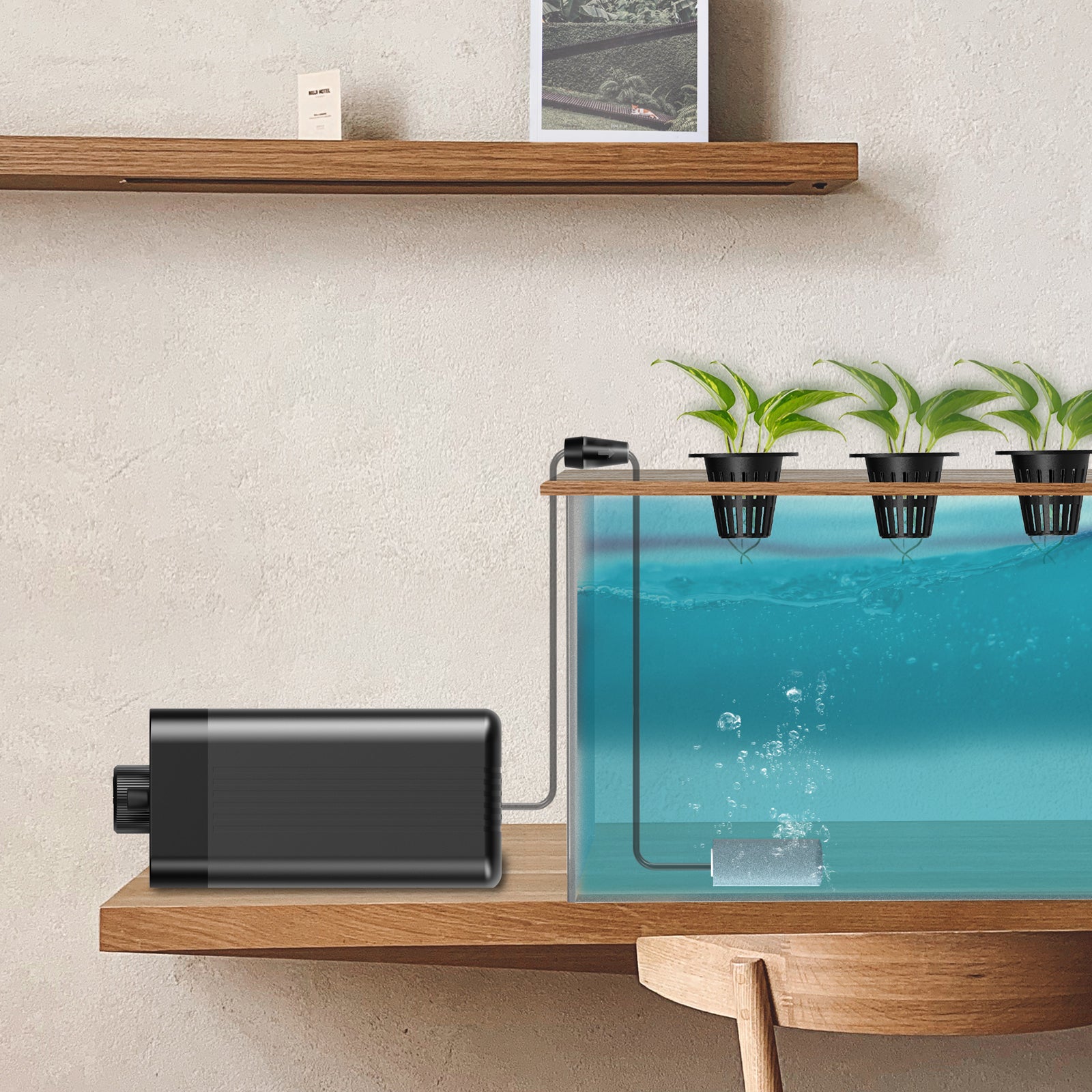

• Tubing Routing: Flexible air tubing accommodates non-linear installation paths, allowing the pump to be positioned outside the reservoir while the airstone is placed at the optimal depth within the nutrient solution.
• Check Valve Protocol: Install with the check valve arrow pointing away from the pump body. This orientation is required for one-directional flow integrity and backflow prevention during power-off events.
• Airstone Sizing: The AC-AUS21 delivers 1.5 L/M. Larger airstone formats that require higher L/M output for optimal diffusion performance are outside the rated delivery capacity of this unit.
• Power Draw: At 4W / 110V AC, the unit integrates into standard outlet infrastructure without dedicated circuit requirements, supporting multi-unit deployment on shared circuits within load limits.

Facility Integration Data

The following ROI reference data is provided to assist procurement and operations teams in evaluating fleet-scale deployment of the AC-AUS21 across multi-reservoir or multi-site configurations.

Operator Field Notes

• Check Valve Orientation is Non-Negotiable: The check valve arrow must point away from the pump. Reversed installation allows nutrient solution to siphon back into the pump body during off-cycles, causing motor contamination and premature failure.
• Dial Calibration at Startup: Begin with the turn dial at the LOW setting and increase incrementally while monitoring reservoir surface agitation. Overpowering a small reservoir creates turbulence that disrupts root zone stability — match output to actual system volume.
• Airstone Sizing Constraint: This unit delivers 1.5 L/M. Larger-format airstones rated for higher L/M input will underperform at this output level. Use airstone formats matched to the AC-AUS21's rated delivery capacity.
• Placement Above Reservoir Waterline: Position the pump body above the waterline of the reservoir at all times. If the pump must be placed below waterline, the check valve becomes the sole backflow barrier — verify valve integrity before each operational cycle.
• Continuous-Run Thermal Behavior: The electromagnetic motor is rated for continuous operation. No duty-cycle interruption is required under normal operating conditions. Monitor ambient temperature in enclosed equipment spaces to ensure adequate passive cooling around the unit.
• Warranty Verification: Warranty terms are not specified in available source data. Contact AC Infinity Inc. directly to confirm current warranty coverage before deploying in production environments.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, and international destinations are not fulfilled through this channel.
• Processing & Transit: Orders are processed and dispatched according to current fulfillment timelines displayed at checkout. Delivery estimates are carrier-dependent and subject to regional logistics conditions.
• Returns: Returns are accepted in accordance with the Cannafull Spectrum Solutions Return Policy. Items must be in original, uninstalled condition with all included components to qualify for return consideration. Review full terms at cannafullspec.com/pages/return-policy before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions operator support before and after purchase for assistance with procurement, shipping status, and warranty routing.

What's in the Box

• AC Infinity Hydroponics Air Pump, One-Outlet (AC-AUS21)
• Air tubing with integrated check valve
• Airstone

Kit contents confirmed from manufacturer product documentation. Cannafull Spectrum Solutions ships factory-sealed units. If any component is missing or damaged upon receipt, contact our support team immediately and retain all original packaging for carrier claim or manufacturer warranty processing. Do not install a unit with missing components prior to contacting support.

Regional Compliance & Deployment Notes

• Electrical Standard: The AC-AUS21 operates at 110V AC and is configured for standard U.S. outlet infrastructure. Verify local voltage and outlet compatibility before installation.
• NEC Compliance: All electrical installations, including multi-unit circuit configurations, must comply with the National Electrical Code (NEC) and applicable state and local electrical codes. Cannafull Spectrum Solutions does not provide electrical installation services.
• Licensed Facility Use: Operators deploying the AC-AUS21 in licensed cultivation or production facilities are responsible for ensuring that all equipment installations comply with applicable state licensing conditions, facility SOPs, and inspection requirements.
• Water Proximity: This unit is an air pump, not a submersible device. Do not submerge the pump body. Installations near water sources must maintain the pump body above the waterline and protect the unit from direct water contact in compliance with applicable safety standards.
• Shipping Jurisdiction: Available for purchase and shipment within the contiguous 48 United States only through Cannafull Spectrum Solutions. No cross-border fulfillment is available through this channel.

Compliance requirements vary by state, county, and facility license type. The information provided in this section is for general reference only and does not constitute legal, electrical, or regulatory advice. Operators are solely responsible for verifying that equipment deployment meets all applicable local, state, and federal requirements. Cannafull Spectrum Solutions makes no representations regarding the suitability of this product for any specific licensed use case beyond the manufacturer's stated application parameters.
