Cúpula de humedad AC Infinity | Kit de germinación con barras de luz LED para cultivo | Bandeja de celdas de 6 x 12

Quick Spec: SKU: AC-HDL7  |  36W  |  Samsung LM301H EVO  |  72-Cell 6x12 Tray  |  IP65  |  100–240V AC  |  Dimming Timer Controller  |  $129.00 USD

Precision Control in Any Space

Every propagation cycle that runs without environmental control is a cycle running on luck. Unregulated humidity collapses germination rates without warning. Passive domes trap moisture unevenly, creating wet pockets and dry zones across the same tray. Lighting cobbled together from separate fixtures introduces inconsistent intensity, forcing manual adjustments that compound error across every batch. The real cost is not the failed seedling — it is the compounding variance that makes each cycle unpredictable, each output unreliable, and each labor hour spent compensating for equipment that was never designed to work together.

After deployment, the propagation station operates as a closed, self-regulating ecosystem. Humidity is dialed and held through four independently adjustable vent positions. Light intensity is set once and repeated on a daily automated schedule without operator intervention. Every one of the 72 cells in the grid receives the same atmospheric conditions — the same vapor pressure, the same photon delivery, the same thermal envelope — so that what comes out of the dome on day fourteen reflects what was programmed on day one, not what the environment happened to do overnight.

The mechanism behind that consistency is an integrated system built around Samsung LM301H EVO diodes — 18 per bar across two full-spectrum LED light bars — delivering a dual-channel 3000K and 5000K spectrum at 36W total draw over a 100–240V AC, 50/60 Hz input. The IP65-rated controller provides four dimming levels and daily-repeat timer scheduling, eliminating manual intervention from the light cycle entirely. The gloss-finish PS plastic dome maintains optical clarity for canopy observation while the four rotary vent disks provide the only humidity adjustment point the operator needs to touch. In practical terms, the AC-HDL7 delivers automated full-spectrum propagation lighting and closed-environment humidity control across a 72-cell 6x12 footprint at 36W continuous draw.

Where This Belongs (and Doesn't)

The AC-HDL7 operates on a standard NEMA 1-15 Type-A connection at 100–240V AC. No dedicated circuit, HVAC modification, or electrical upgrade is required for standard deployment. Consult a licensed electrician before integrating into multi-unit rack configurations drawing from a shared circuit.

How It Works

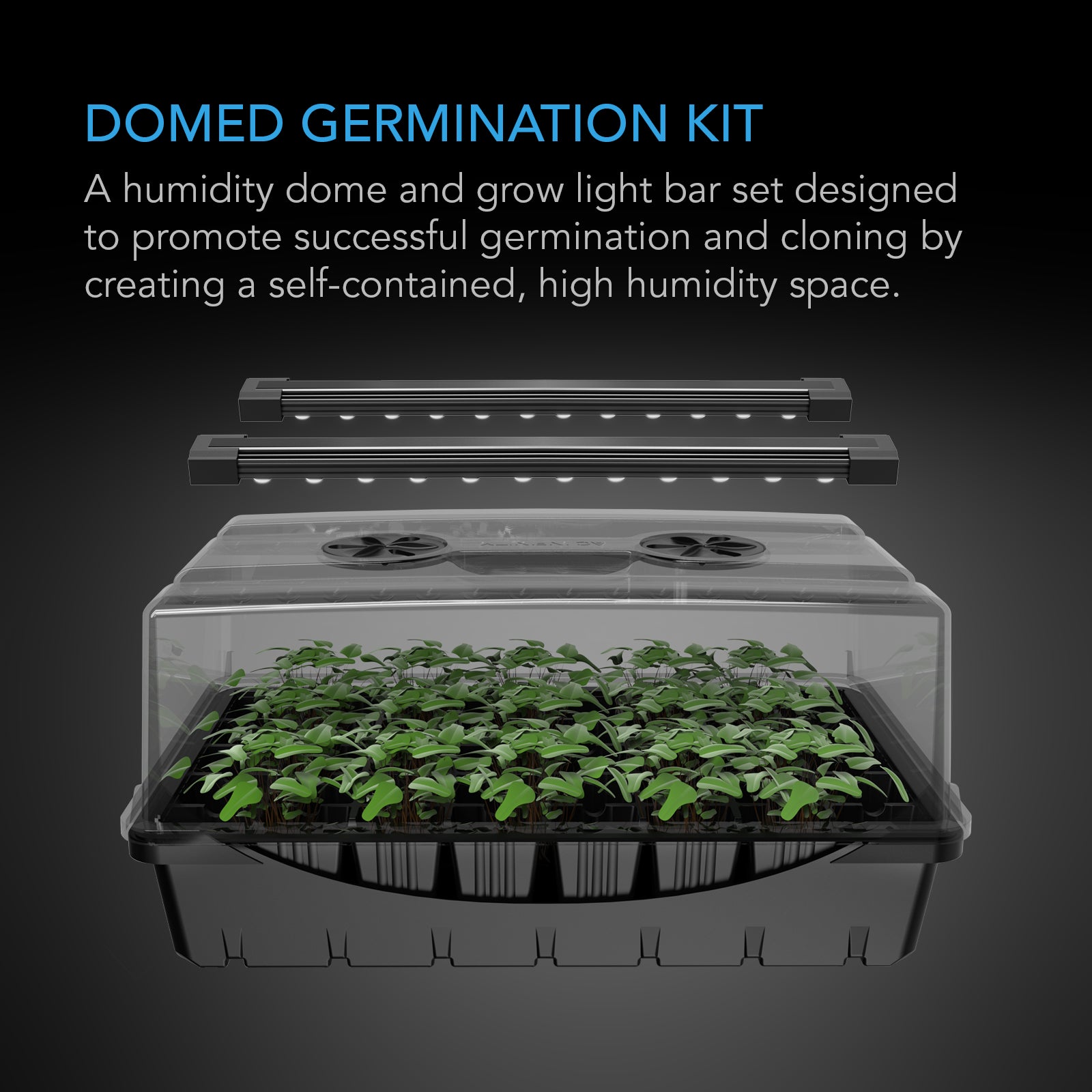

The AC-HDL7 functions as an integrated propagation ecosystem built around three coordinated subsystems: atmospheric containment, photon delivery, and automated scheduling. The gloss-finish PS plastic dome — measuring 20.98 in. (53.3 cm) L x 10.78 in. (27.4 cm) W x 9.60 in. (24.4 cm) H — creates the primary containment envelope. Four rotary vent disks positioned across the dome surface provide the operator's only active humidity adjustment interface, enabling smooth, stepless control across the 35–85% RH operating range without breaking the sealed environment. The drip tray assembly with optional height extension panels contains runoff and supports heavier substrate loads without compromising the base seal.

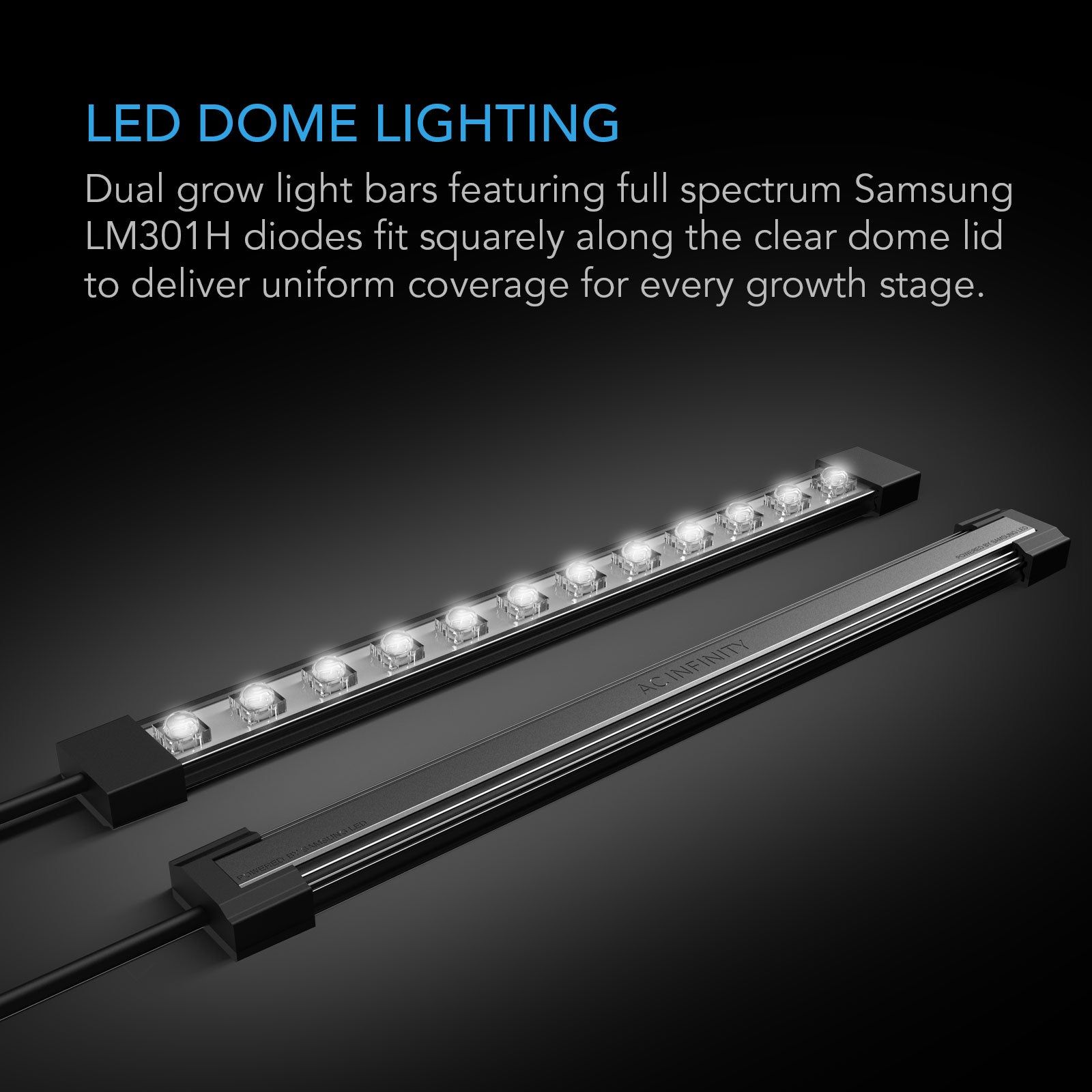

Photon delivery is handled by two full-spectrum LED light bars, each measuring 16.02 x 1.08 in. (40.7 x 2.75 cm), mounted above the 72-cell 6x12 seedling tray. Each bar carries 18 Samsung LM301H EVO diodes — a dual-channel 3000K and 5000K spectrum configuration — for a combined 36 chips delivering 36W total at 100–240V AC, 50/60 Hz. The LM301H EVO generation produces greater light output per diode and a higher blue-channel contribution relative to the LM301H and LM301B predecessors, as well as Bridgelux 3030 and other prior-generation diodes. The bars are relocatable, allowing them to be repositioned as supplemental lighting within a grow tent environment when the dome is not in active propagation use. LED rated service life is 50,000 hours.

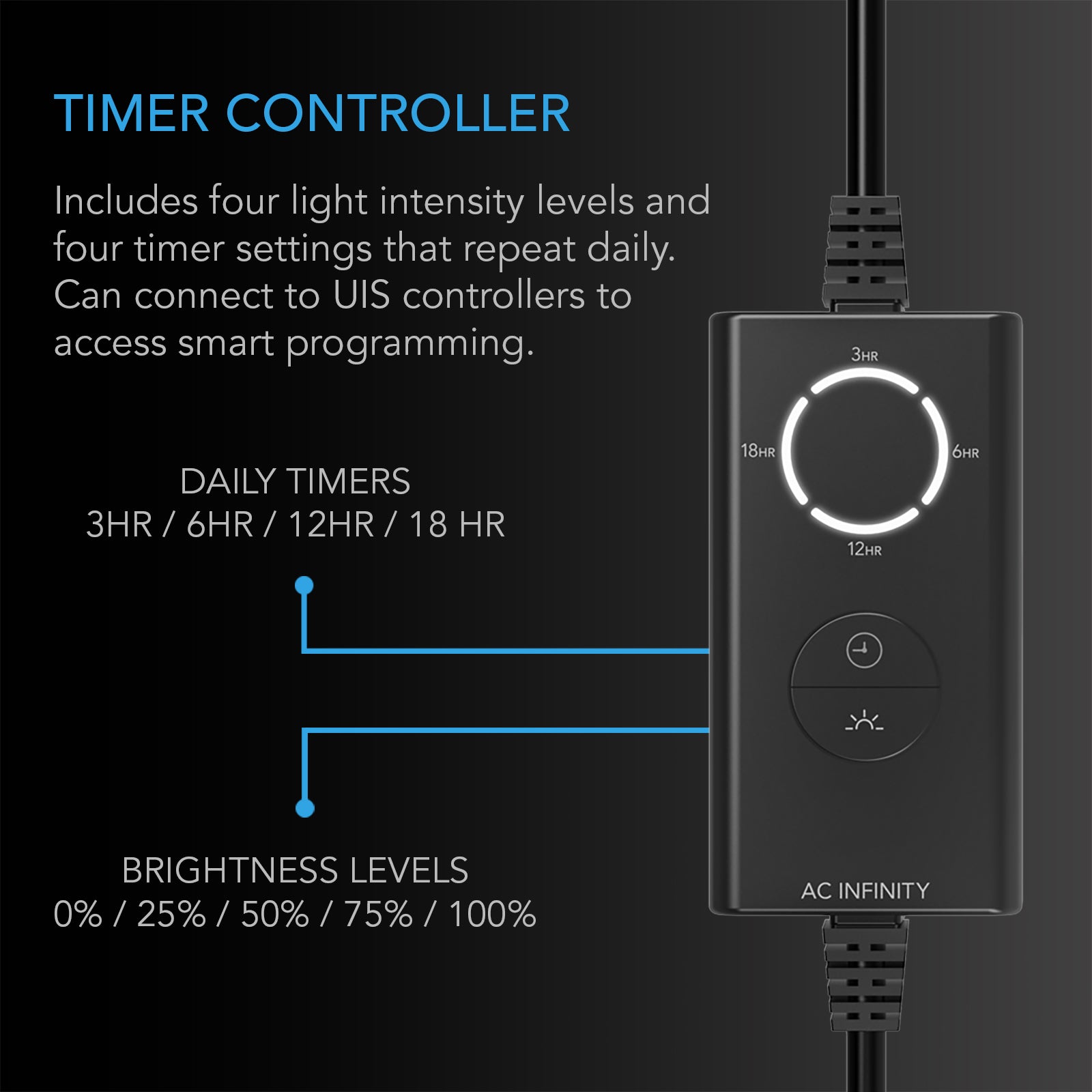

Scheduling and intensity are managed by the integrated dimming timer controller, which provides four discrete dimming levels and daily-repeat timer programming — eliminating manual light-cycle management from the operator's workflow entirely. The controller connects via a US Plug NEMA 1-15 Type-A power connector and carries an IP65 ingress protection rating, qualifying it for the high-humidity interior environment of an active propagation dome. The optional height extender elevates the dome ceiling for cloning applications requiring additional vertical clearance. In practical terms, the AC-HDL7 delivers dual-channel full-spectrum LED propagation lighting with automated daily scheduling and four-level dimming across a 72-cell 6x12 footprint at 36W, operating across 100–240V AC with an IP65-rated control interface.

System Integration

• Heat Mat Pairing: Pair the AC-HDL7 with the SUNCORE Series seedling heat mats to add substrate-level thermal control to the propagation ecosystem, directly supporting germination rate consistency.
• Vertical Rack Integration: The 20.98 x 10.78 in. footprint is compatible with standard multi-tier propagation rack configurations, allowing multiple units to operate in stacked deployment without light interference between tiers.
• Grow Tent Supplemental Use: The relocatable LED bars can be detached and repositioned within a grow tent as supplemental lighting during vegetative staging, extending the utility of the light asset beyond the propagation cycle.
• Clone Room Deployment: The optional height extender elevates the dome ceiling for taller clone stock, allowing the same unit to serve both seedling germination and cutting-establishment workflows without a separate enclosure.
• Controller Scheduling: The daily-repeat timer integrates with facility light schedules, allowing the propagation station to run autonomously within a broader automated deployment framework without requiring a separate environmental controller.

Operator Field Notes

• Vent Calibration: The four rotary vent disks are the primary humidity management interface. Operators running high-transpiration cultivars should establish a baseline vent position during the first 48 hours of each batch and log it for cycle-to-cycle repeatability.
• Timer Programming: The daily-repeat timer eliminates the need for manual light-cycle intervention, but initial programming should be verified against facility master schedules to prevent photoperiod conflicts in shared spaces.
• Dimming Protocol: The four dimming levels allow intensity to be stepped up progressively as seedlings develop — starting at lower output during germination and advancing toward full power as stems establish. This reduces etiolation risk in early-stage propagation.
• Height Extender Use: When running cutting stock that exceeds the standard dome clearance, install the optional height extender before sealing the dome. Attempting to retrofit the extender after rooting has begun risks disturbing the root zone.
• Drainage Management: The drip tray is designed to contain runoff, but operators irrigating at high frequency should inspect tray capacity at each watering interval to prevent overflow in multi-unit rack configurations where drainage access is limited.
• Bar Relocation: When repositioning the LED bars for supplemental use in a grow tent, confirm mounting height relative to canopy to avoid intensity drop-off. The bars are rated to 50,000 hours — track cumulative runtime if bars are shared between propagation and vegetative staging applications.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, or international destinations cannot be fulfilled through this listing.
• Carrier & Transit: Orders are processed and shipped via standard ground carrier. Transit times vary by destination within the contiguous U.S. Tracking information is provided upon shipment confirmation.
• Returns: Returns are accepted in accordance with the Cannafull Spectrum Solutions Return Policy. Items must be in original, uninstalled condition with all manufacturer packaging intact. Defective units are handled separately under manufacturer warranty procedures — contact us before initiating a return on a unit that exhibits a functional defect.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions about your order? Contact Cannafull Spectrum Solutions directly before purchase for lead times, fleet pricing, and multi-unit deployment support.

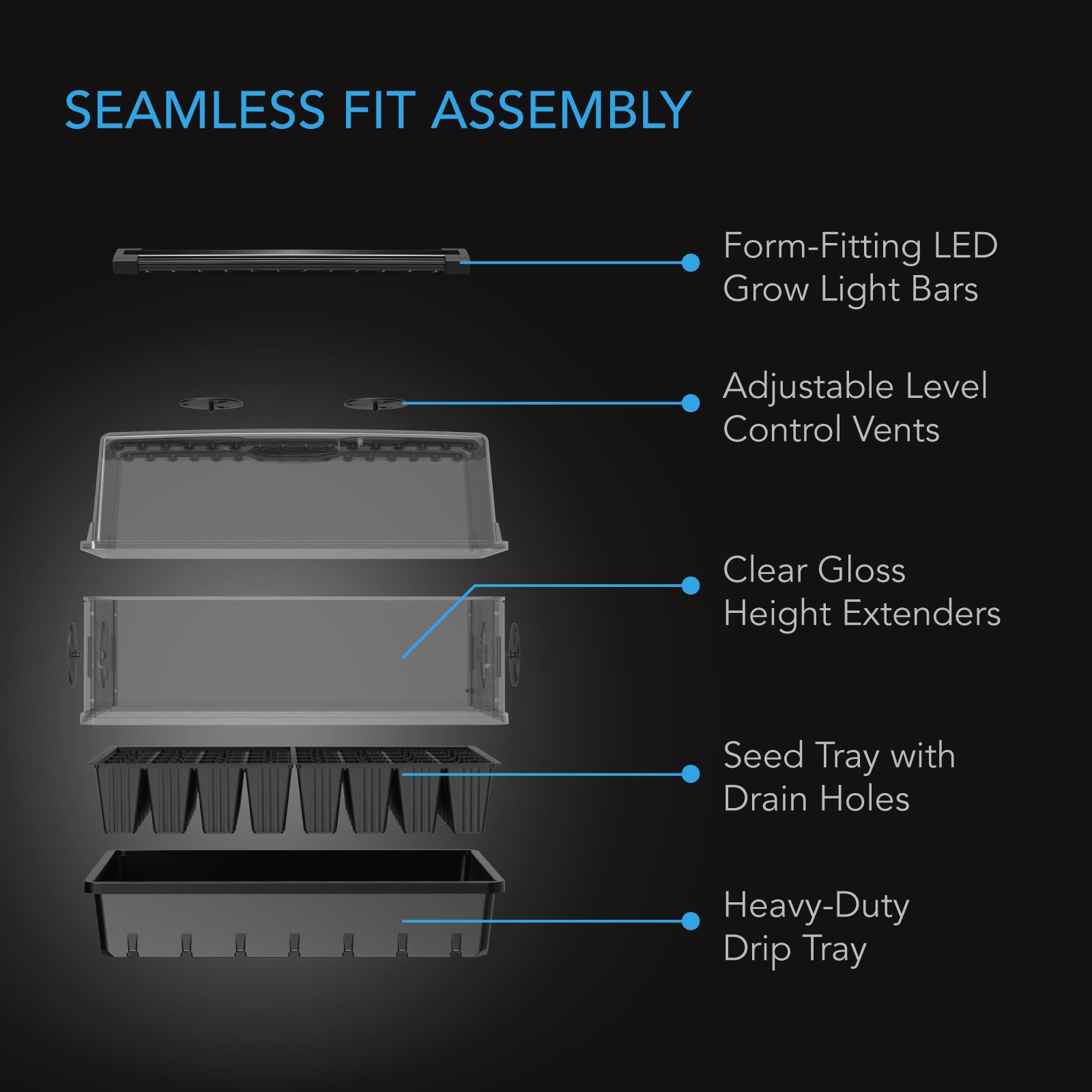

What's in the Box

The following components are documented in manufacturer source materials for SKU AC-HDL7 (UPC 819137023871):

• Humidity dome (PS plastic, gloss finish)
• Base tray / drip tray assembly
• 72-cell 6x12 seedling tray
• Vent disks (4 total)
• Two full-spectrum LED light bars (Samsung LM301H EVO, 18 diodes per bar)
• Power adapter
• Dimming timer controller
• Mounting hardware

Component inventory is based on manufacturer documentation available at time of listing. Cannafull Spectrum Solutions cannot guarantee inclusion of accessory items (such as the optional height extender) unless explicitly confirmed at time of order. Verify box contents against the manufacturer packing list upon receipt. Discrepancies should be reported within 48 hours of delivery.

Regional Compliance & Deployment Notes

• Input Voltage Compliance: The AC-HDL7 operates on 100–240V AC, 50/60 Hz — compatible with standard U.S. facility power. No voltage conversion is required for deployment within the contiguous United States.
• Power Connector: The unit ships with a US Plug NEMA 1-15 Type-A connector. This is a two-prong ungrounded plug. Verify outlet compatibility before deployment in facilities that have been upgraded to GFCI or grounded circuits exclusively.
• IP65 Rating: The IP65 ingress protection rating confirms the controller assembly is dust-tight and resistant to water jets. This rating applies to the controller and electrical assembly as specified — it does not constitute a submersion or outdoor weatherproofing certification for the full kit.
• Multi-Unit Circuit Load: At 36W per unit, a standard 15A/120V circuit (rated to 1,800W continuous at 80% NEC loading = 1,440W) supports up to 40 units before circuit capacity is reached. Consult a licensed electrician for multi-unit rack deployments to confirm circuit allocation and breaker sizing.
• Licensed Facility Use: Operators deploying the AC-HDL7 within licensed cultivation facilities should confirm that propagation equipment meets any applicable state-level facility equipment standards. Cannafull Spectrum Solutions does not provide compliance certification services — consult your state licensing authority or facility compliance officer for jurisdiction-specific requirements.
• Shipping Jurisdiction: This product is available for shipment within the contiguous 48 United States only through Cannafull Spectrum Solutions.

Compliance information is provided for general reference based on published product specifications. Cannafull Spectrum Solutions does not warrant that this product meets the requirements of any specific state, local, or facility-level regulatory framework. Operators are responsible for confirming compliance with applicable regulations in their jurisdiction prior to deployment. Specifications subject to change by manufacturer without notice — confirm current specifications with Cannafull Spectrum Solutions before placing large-volume orders.
