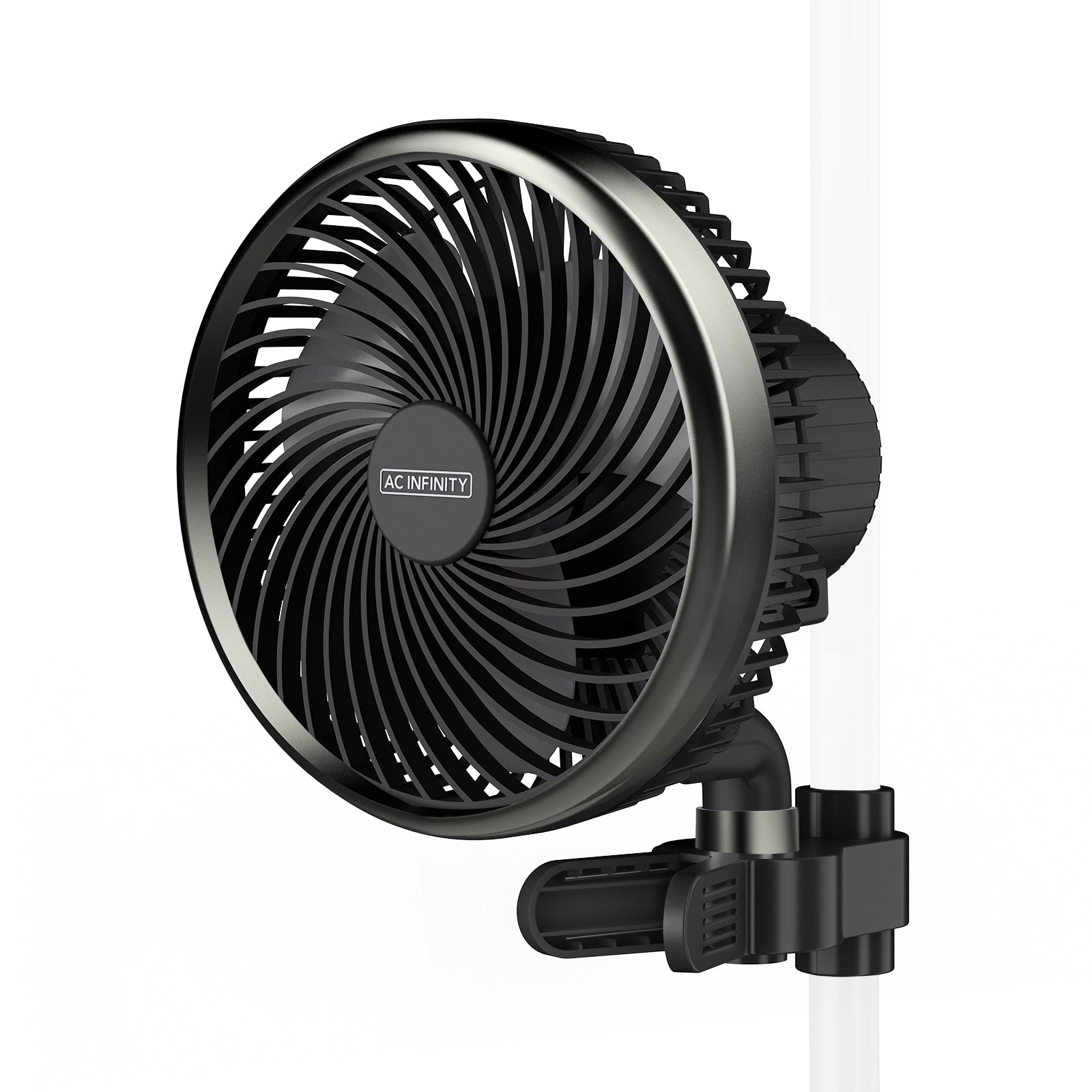

Ventilador con clip para carpa de cultivo AC Infinity CLOUDRAY A6 de 6" con 10 velocidades | Motor EC | Giro manual

Quick Spec: 6" Impeller | 325 CFM | 31 dBA | 7.5W | 0.14A | 10 Speed Levels | 10 Dynamic Wind Modes | IP-54 | EC Motor | PWM Control | 67,000-Hour Rated | 100–240V AC | ETL Listed (Certificate #5027708)

Precision Control in Any Space.

The real cost of inadequate circulation is not a single failed run — it is the accumulated variance that compounds across every cycle. When airflow is fixed at a single speed, the environment inside an enclosed cultivation space becomes ungovernable: stagnant boundary layers form at the canopy, transpiration rates diverge between upper and lower tiers, and temperature differentials widen without any mechanism to correct them. The operator is left managing symptoms — adjusting humidity manually, repositioning equipment mid-cycle, absorbing the yield inconsistency that results — while the root cause, a fan that cannot adapt to what the crop actually needs at each growth stage, continues to operate unchallenged. Equipment that cannot be dialed in does not hold a neutral position; it actively introduces variance into every environmental parameter it touches.

After deployment, the atmospheric profile of the space changes in a measurable way. Circulation becomes a managed variable rather than a fixed background condition. Ultra-gentle airflow during germination and early propagation keeps boundary layers moving without imposing mechanical stress on developing tissue. As the crop transitions into vegetative and flowering phases, output scales upward through ten discrete speed positions, maintaining the vapor pressure deficit and CO2 exchange rates that drive canopy development. The operator stops reacting to environmental drift and starts executing a repeatable atmospheric protocol — the same one, cycle after cycle, without manual recalibration.

The mechanism behind this consistency is an EC brushless motor governed by PWM control architecture, which allows the CLOUDRAY A6 to resolve airflow into ten discrete speed levels and ten dynamic wind modes — simulating natural, variable-velocity air movement rather than a constant mechanical blast. The 6-inch impeller generates up to 325 CFM of maximum airflow against 25 Pa of static pressure, operating at a measured acoustic output of 31 dBA at full speed. Dual ball bearings support omnidirectional mounting in horizontal or vertical orientation, and the IP-54 enclosure rating provides verified resistance to moisture ingress and particulate contamination in high-humidity cultivation environments. The compact metal build measures 9.73 x 11.82 inches (24.7 x 30.0 cm) with a 96-inch (8-foot) power cord, draws 7.5W at 0.14A on 100–240V AC, and carries a rated motor lifespan of 67,000 hours. In practical terms, the CLOUDRAY A6 delivers 325 CFM at 31 dBA across a compact enclosed cultivation footprint at 7.5W draw, with ten-position PWM speed control and IP-54 environmental protection.

Where This Belongs (and Doesn't)

The CLOUDRAY A6 is a low-voltage circulation device rated for 100–240V AC at 7.5W. It is not a primary ventilation or exhaust unit and does not replace inline fans, carbon filtration systems, or HVAC equipment. Electrical installation must comply with applicable local codes. Consult a licensed electrician for circuit load calculations in multi-unit deployments.

How It Works

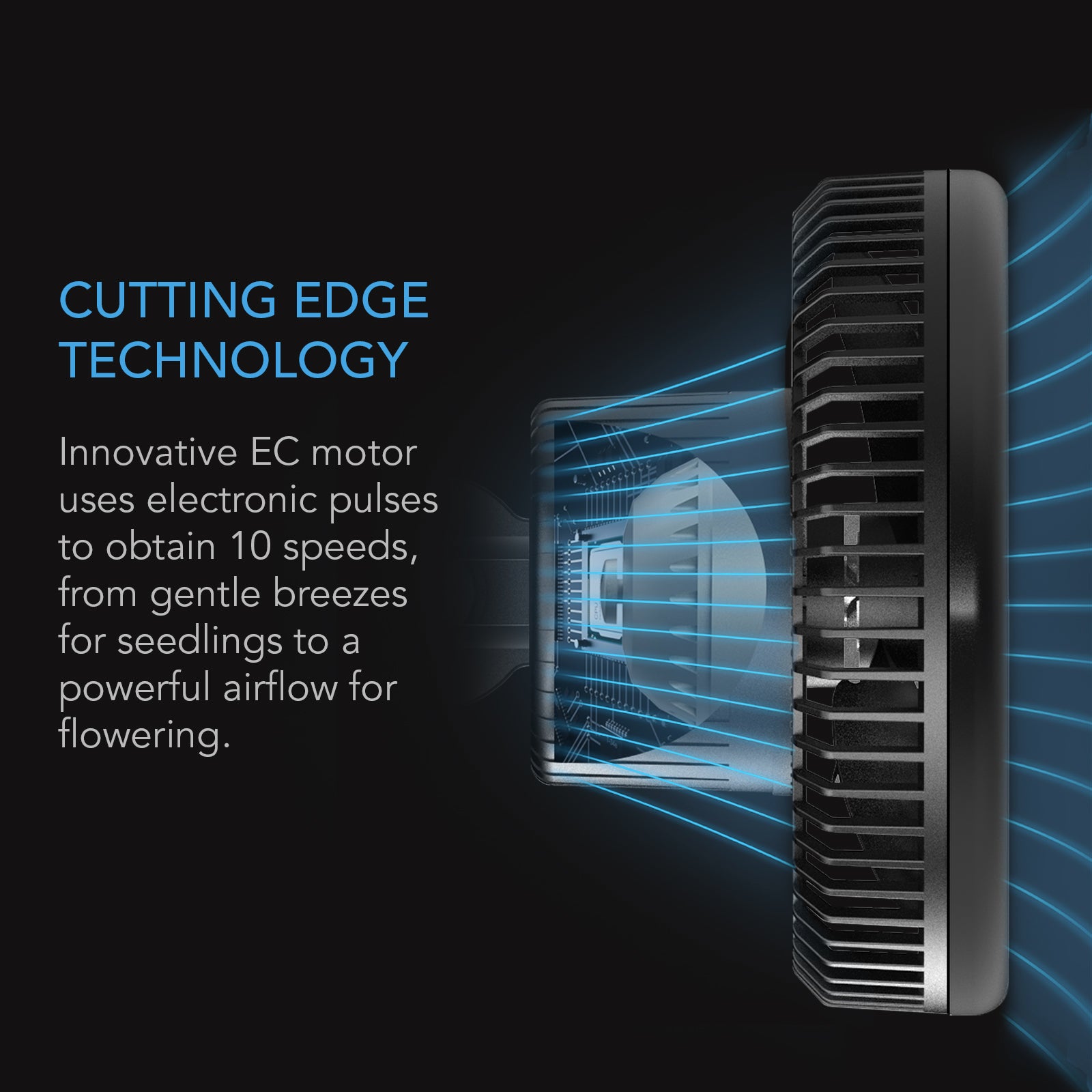

The CLOUDRAY A6 is built around an EC (electronically commutated) brushless motor controlled via PWM (pulse-width modulation) signal architecture. Unlike brush-type motors that operate at fixed resistance-stepped speeds, the EC motor responds to PWM commands with continuous, fine-resolution speed adjustment — which is what makes ten discrete speed levels and ten dynamic wind modes mechanically achievable rather than a marketing abstraction. The brushless design eliminates the friction and heat accumulation associated with brush contact, contributing directly to the 67,000-hour rated motor lifespan. Resilient carbon steel gears support the oscillation and positioning mechanism, extending the mechanical service life of the mounting assembly under continuous operation.

The 6-inch impeller moves up to 325 CFM against 25 Pa of static pressure — sufficient to penetrate canopy density and drive air exchange through the lower tier of a multi-level configuration. At full output, acoustic emission measures 31 dBA, which is below the threshold that interferes with environmental sensor accuracy in precision-controlled spaces. The IP-54 rating means the enclosure has been tested to resist dust ingress and water splash from any direction, making it appropriate for environments where irrigation, foliar application, or high-humidity conditions are routine. The dual ball bearing assembly supports mounting in horizontal or vertical orientation, and the vise grip-style metal clamp provides secure attachment to tent poles and frame members without requiring tools. The 96-inch (8-foot) power cord provides positioning flexibility within the enclosure without requiring an extension. In practical terms, the CLOUDRAY A6 delivers 325 CFM at 31 dBA with a 67,000-hour EC motor lifespan, IP-54 environmental protection, and ten-position PWM speed control at 7.5W on 100–240V AC.

Commercial Assurance

System Integration

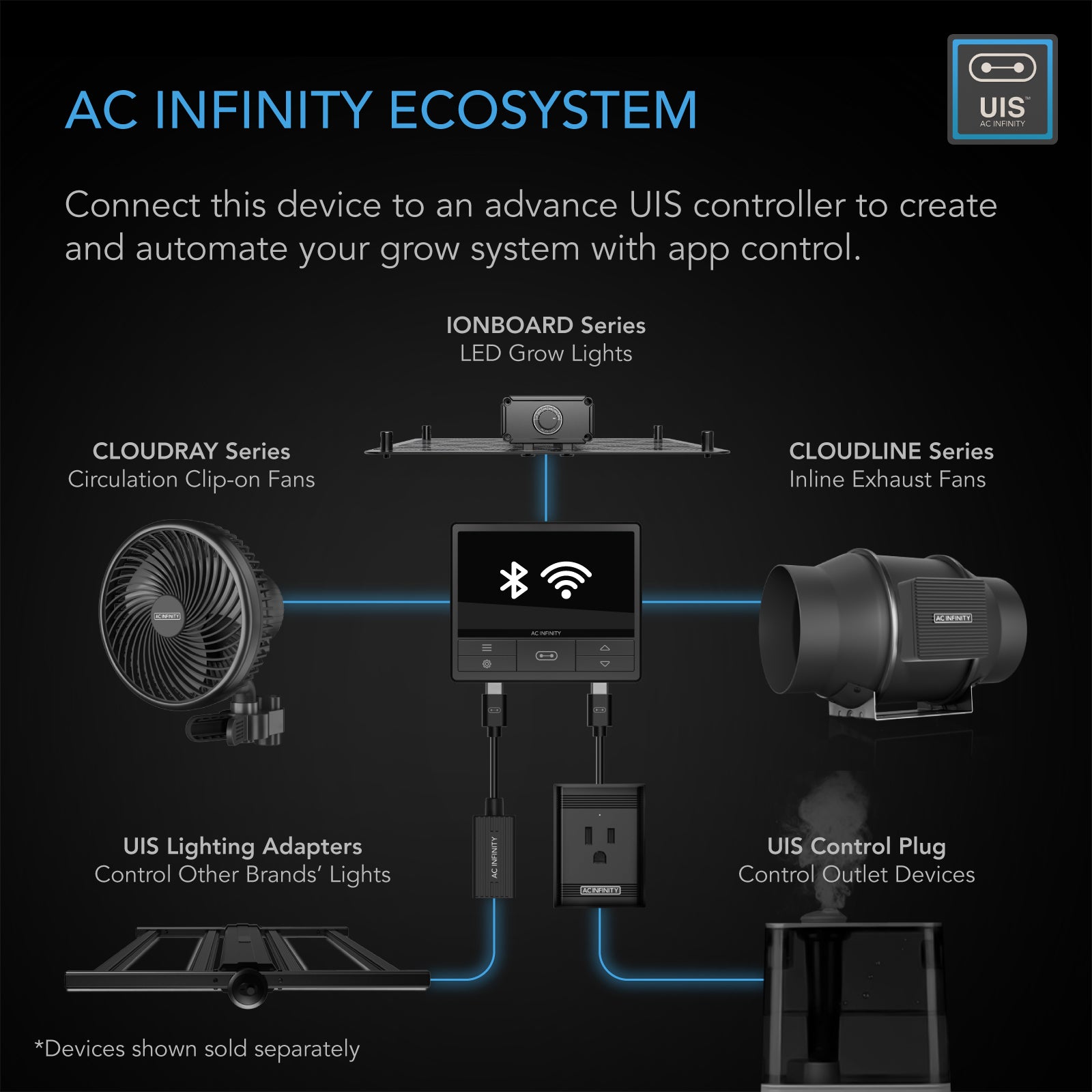

• UIS Platform Compatibility: The CLOUDRAY A6 is part of the UIS (Universal Intelligence System) platform of grow devices and smart controllers, enabling coordinated atmospheric management across multiple devices within a single ecosystem.
• AC Infinity App: Designed to connect with the AC Infinity app over WiFi, enabling remote speed scheduling, dynamic wind mode programming, and growth-stage-specific airflow profiles from a mobile interface.
• PWM Control Architecture: PWM signal compatibility allows the A6 to receive speed commands from UIS controllers, enabling automated deployment sequences tied to environmental triggers such as temperature, humidity, or time-based schedules.
• Multi-Unit Scalability: The compact metal build (9.73 x 11.82 in.) and dual-orientation mounting allow multiple A6 units to be deployed within a single enclosure without structural interference, supporting layered circulation strategies across canopy tiers.
• Cross-Voltage Compatibility: Universal 100–240V AC input ensures consistent performance across all standard U.S. facility electrical configurations without hardware modification.

Facility Integration Data

Operator Field Notes

• Speed Resolution Matters at Low End: The ten-position PWM speed scale provides meaningful resolution in the 1–3 range for early propagation stages where even modest mechanical airflow can cause stress on developing tissue. Do not default to mid-range settings during germination cycles.
• Dynamic Wind Modes Are Not Oscillation: The A6's ten dynamic wind modes vary airflow velocity in programmed patterns — they do not physically rotate the fan head. If spatial sweep coverage is required, evaluate the S-Series (CLOUDRAY S6) which includes 90° motorized oscillation across ten adjustable levels.
• IP-54 Does Not Mean Submersion-Rated: IP-54 certifies resistance to dust and directional water splash. The unit should not be positioned where it will receive direct irrigation stream contact or be submerged. Maintain clearance from direct water sources.

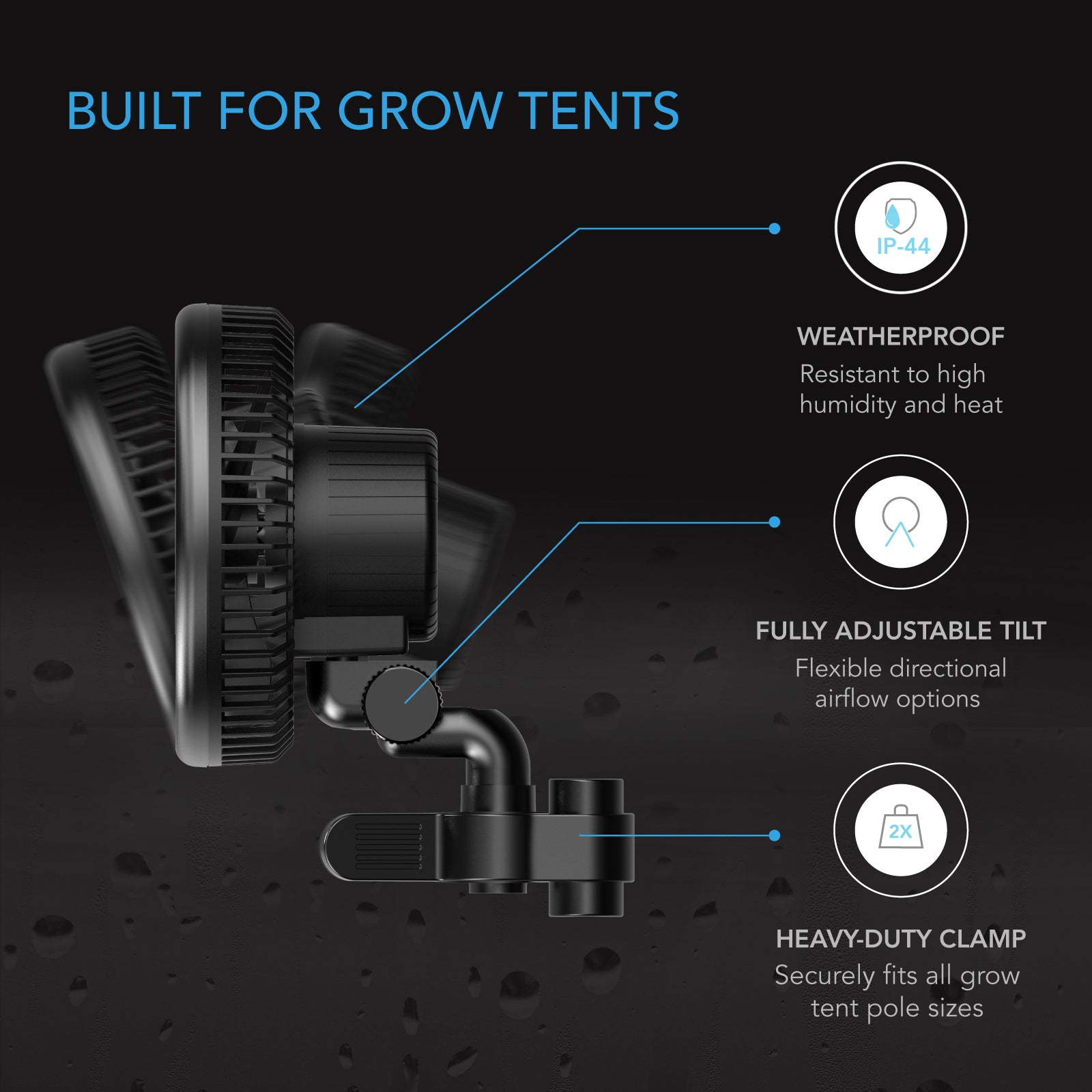

• Clamp Load Capacity: The vise grip-style metal clamp is designed for standard tent pole diameters. Verify pole diameter compatibility before deployment in non-standard frame configurations. The compact metal build provides structural rigidity, but clamp torque should be set to secure without deforming the pole.
• Cord Management: The 96-inch (8-foot) cord provides substantial positioning range. Use the included cable ties and cable mount to route the cord along the frame structure and prevent it from contacting the canopy or obstructing airflow paths.
• UIS Integration Sequence: For app-controlled deployments, pair the A6 with a compatible UIS controller before configuring speed schedules. Standalone operation at a fixed speed is available without a controller, but dynamic wind mode programming and automated scheduling require UIS controller pairing.

Operator FAQ

Shipping & Logistics

• Shipping Territory: Cannafull Spectrum Solutions ships within the contiguous 48 United States only. Orders to Alaska, Hawaii, U.S. territories, and international destinations cannot be fulfilled through this listing.
• Carrier & Transit: Standard ground shipping applies to the CLOUDRAY A6. Expedited options may be available at checkout. Transit times vary by destination within the contiguous 48 states.
• Returns: Returns are accepted for defective units per our Return Policy. Non-defective returns are subject to review. Review full terms at cannafullspec.com/pages/return-policy before ordering.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions before ordering? Contact Cannafull Spectrum Solutions at cannafullspec.com or reach our support team directly through the contact page.

What's in the Box

Confirmed included components for the CLOUDRAY A6 (SKU: AC-CCA6) are based on available manufacturer source data. The A-Series box contents are not explicitly itemized in source documentation for the A6 specifically; the following components are confirmed for the T-Series and A9 variants and are consistent with the A-Series platform architecture:

• Circulation Fan (x1) — CLOUDRAY A6, 6-inch EC motor clip fan
• Grip Clip with clamp mechanism (x1) — vise grip-style metal clamp for tent pole mounting
• Cable Mount (x1)
• Adapter Dongle (x1)
• Extension Cord (x1)
• Cable Ties (x4)

Note: Box contents listed above are derived from confirmed T-Series and A9 source data and are consistent with the CLOUDRAY platform. AC-CCA6-specific box contents are not independently itemized in manufacturer source documentation. Verify final box contents with AC Infinity or Cannafull Spectrum Solutions support if exact component confirmation is required before purchase.

Regional Compliance & Deployment Notes

• ETL Listing: The CLOUDRAY A6 meets ETL standards under certificate #5027708. ETL is a nationally recognized testing laboratory (NRTL) certification accepted by U.S. authorities having jurisdiction (AHJ) for electrical equipment approval in licensed facility inspections.
• Operating Voltage: 100–240V AC universal input is compatible with standard U.S. 120V electrical infrastructure. No step-down transformer or voltage conversion is required for deployment in U.S. facilities.
• IP Rating Compliance: IP-54 ingress protection is verified per IEC 60529 testing standards. Operators in jurisdictions with specific equipment ingress protection requirements for licensed cultivation facilities should confirm that IP-54 meets applicable local standards before deployment.
• Electrical Load: At 7.5W and 0.14A per unit, the CLOUDRAY A6 imposes minimal individual circuit load. Multi-unit deployments should be evaluated for aggregate circuit load by a licensed electrician to ensure compliance with NEC branch circuit capacity requirements.
• Shipping Jurisdiction: Available for deployment in licensed U.S. facilities within the contiguous 48 states only through Cannafull Spectrum Solutions.

Compliance requirements for licensed cultivation facilities vary by state and local jurisdiction. The information above reflects product certifications and electrical specifications as documented by the manufacturer. Cannafull Spectrum Solutions does not provide regulatory compliance advice. Operators are responsible for confirming that equipment selections meet all applicable state, county, and municipal requirements for their licensed facility classification. ETL listing and IP ratings are manufacturer-documented; independent verification is the responsibility of the purchasing operator.
