AC Infinity CLOUDLINE PRO T6 | Sistema de ventilador de conducto en línea silencioso con controlador de temperatura y humedad VPD | 6 pulgadas

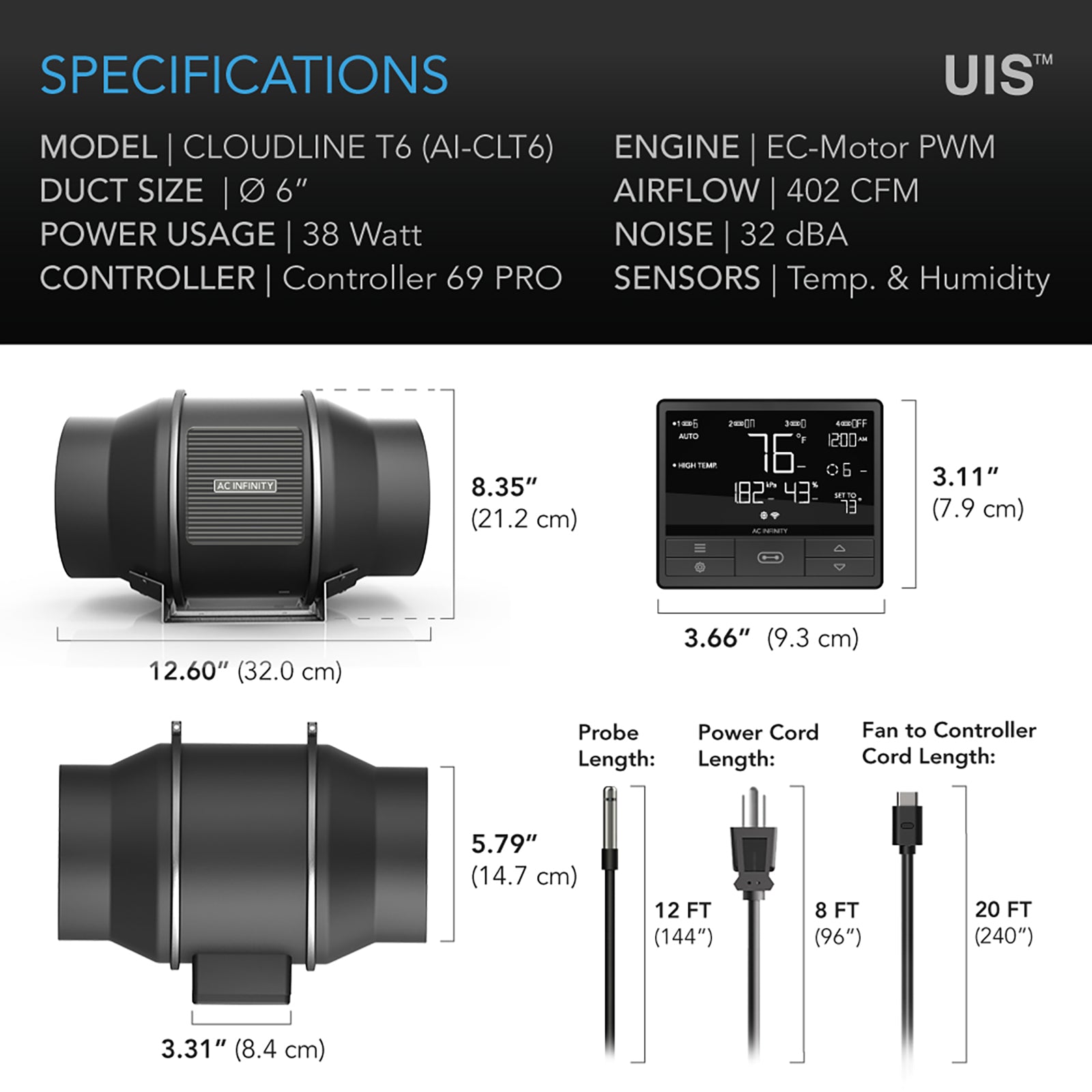

Key Specs: 70W Max | 32 dBA | 503 Pa Static Pressure | 67,000-Hour L10 Life | 6-Inch Duct | ETL & CE Certified | 2-Year Warranty

Kill Variance. Print Yield.

Every sealed cultivation room running on fixed-speed ventilation is bleeding yield through a failure mode that never shows up on a single harvest report — it accumulates silently across every cycle. When airflow cannot respond to thermal load, CO2 stratification, or humidity spikes in real time, the environment drifts. That drift is not a single catastrophic event; it is a slow, compounding tax on canopy uniformity, transpiration efficiency, and pathogen suppression. Legacy inline fans with no dynamic control architecture have no mechanism to correct course. They run at one speed, regardless of what the room demands, and the operator absorbs the cost in reduced consistency, elevated disease pressure, and the labor overhead of manual adjustment cycles that should not exist in a production facility.

After deploying a programmable, dynamically controlled ventilation platform, the facility operates on a different logic entirely. Temperature and humidity setpoints are maintained automatically across the full photoperiod. Odor exhaust runs hold consistent negative pressure without operator intervention. Duct runs under high static load — long runs, multiple bends, carbon filter resistance — maintain target airflow because the motor has the headroom and the intelligence to compensate. The facility director's attention shifts from reactive environmental firefighting to proactive production planning. That is the operational state this equipment is designed to create.

The mechanism behind that outcome is a PWM-controlled EC motor operating inside a mixed-flow impeller design — a configuration that combines the high static pressure capability of an axial fan with the efficiency profile of a centrifugal unit. The integrated smart controller supports dynamic climate-based programming and time-based scheduling, allowing the fan to respond to sensor inputs or operate on a defined duty cycle without manual override. Maximum power draw is 70W at full speed, noise output is rated at 32 dBA, and the unit sustains up to 503 Pa of static pressure — sufficient for carbon filter and extended duct configurations common in sealed commercial rooms. The motor carries an L10 life expectancy of 67,000 hours, and the unit is ETL, CE, RoHS, SAA, and IC certified for commercial installation. In practical terms, the AI-CLT6 delivers automated, sensor-responsive airflow through a 6-inch duct at a maximum draw of 70W, sustaining 503 Pa of static pressure at 32 dBA across the operational life of the motor.

Where This Belongs (and Doesn't)

This unit requires a 6-inch duct configuration and a compatible electrical circuit rated for the installation. Verify duct diameter, static pressure load, and circuit capacity before deployment. HVAC sizing for sealed rooms must account for total heat load independent of this unit's power draw.

Infrastructure Note: The AI-CLT6 operates on 100–240V AC at 50/60Hz, making it compatible with both standard U.S. facility circuits and international voltage configurations. Confirm duct collar compatibility and controller wiring clearances before installation in existing duct runs.

How It Works

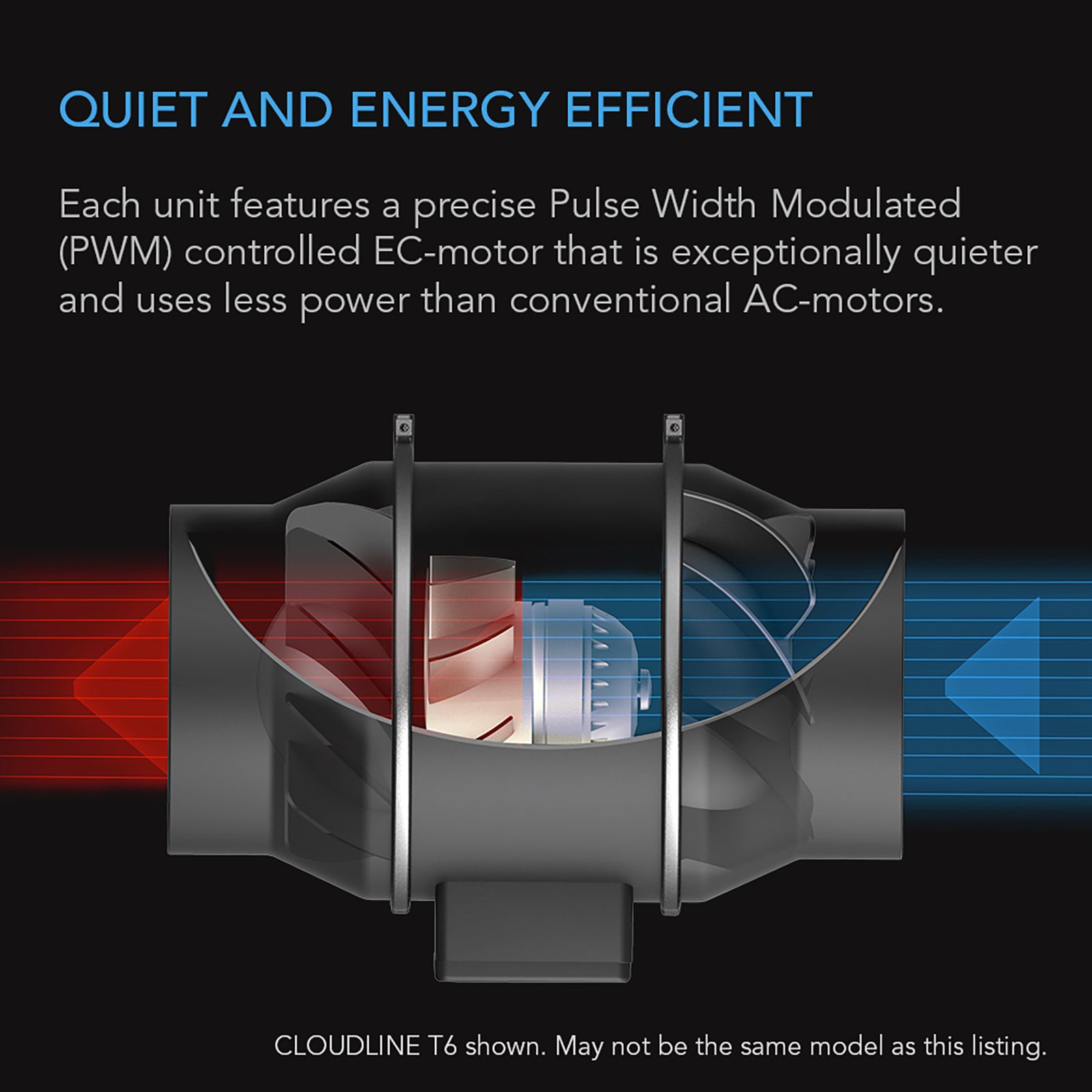

The AI-CLT6 is built around a mixed-flow impeller design — a geometry that draws air axially and discharges it with a radial component, producing the static pressure performance of a centrifugal fan without the bulk or noise penalty typically associated with that form factor. This design is what allows the unit to sustain 503 Pa of static pressure through loaded duct runs while maintaining a 32 dBA acoustic profile at the rated operating point. The impeller is driven by a PWM-controlled EC (electronically commutated) motor, which replaces the fixed-speed AC induction motor found in standard inline fans. EC motor architecture allows the controller to modulate fan speed in precise increments rather than switching between fixed speed taps, which is the foundational requirement for dynamic climate response.

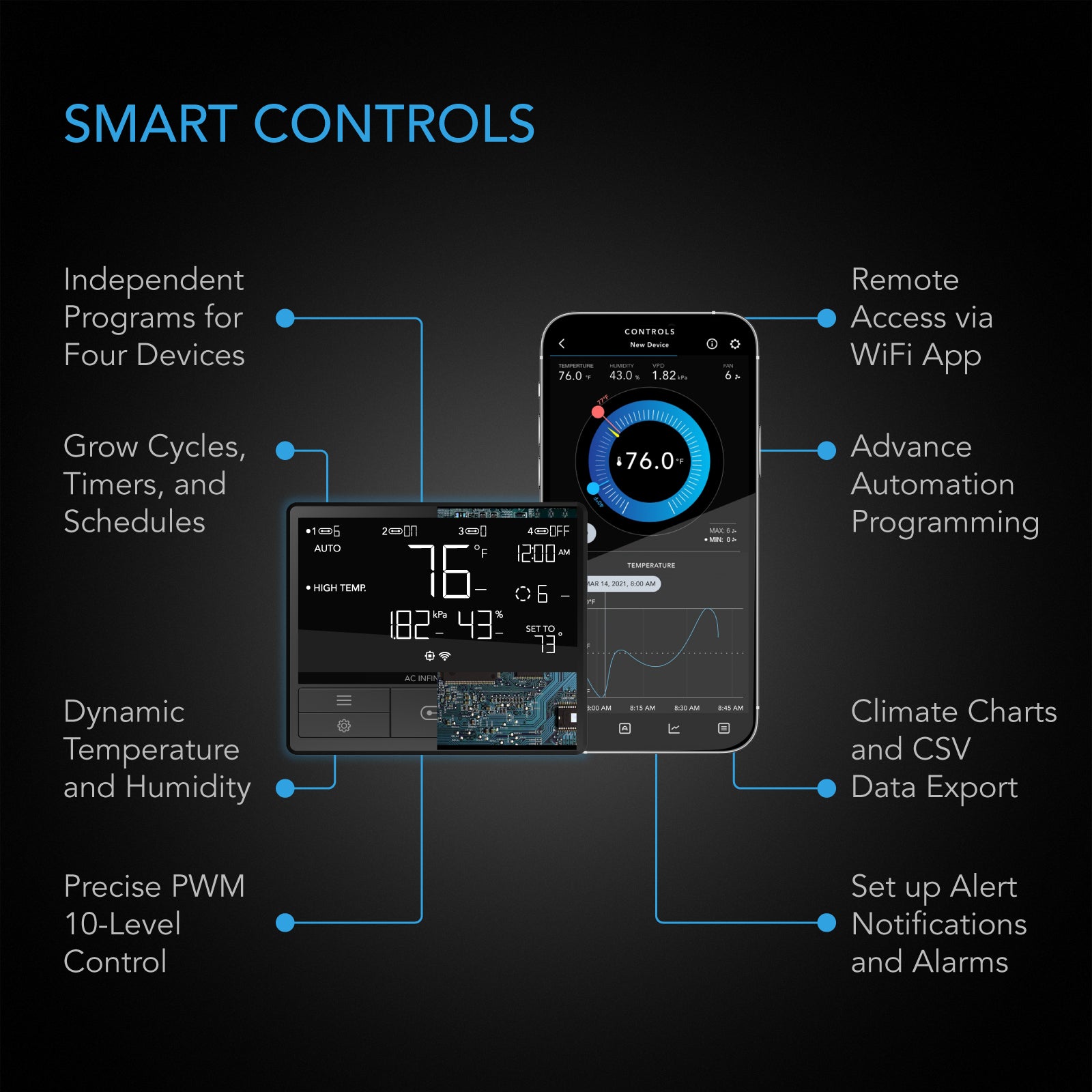

The integrated smart controller is the operational interface between the motor and the facility environment. It supports two primary programming modes: dynamic climate-based programming, which adjusts fan speed in response to temperature and humidity sensor inputs, and time-based programming, which runs the fan on a defined duty cycle independent of sensor feedback. Both modes can be configured without external controllers, though the unit is designed for integration into the AC Infinity UIS (Universal Intelligence System) ecosystem, enabling centralized management across multiple units from a single Cortex controller interface. Maximum power draw at full speed is 70W on a 100–240V AC, 50/60Hz supply. The L10 life expectancy of the EC motor is rated at 67,000 hours — a figure that reflects the point at which 10% of units in a population are expected to have failed, making it a conservative engineering benchmark rather than a marketing average. In practical terms, the AI-CLT6 delivers PWM-modulated, sensor-responsive airflow through a 6-inch duct at 70W maximum draw, sustaining 503 Pa static pressure at 32 dBA with a 67,000-hour motor life rating.

System Integration

To operate this platform at peak efficiency, verify your ecosystem matches these requirements:

• Controller Compatibility: The AI-CLT6 integrates natively with the AC Infinity UIS ecosystem. For centralized multi-unit management, pair with a compatible AC Infinity Cortex controller. Standalone operation using the onboard smart controller requires no additional hardware.
• Duct Configuration: Confirm 6-inch duct collar diameter at both inlet and outlet connection points. Use appropriate reducers or transitions if integrating into existing duct runs of differing diameter.
• Electrical Supply: Unit accepts 100–240V AC at 50/60Hz. Confirm circuit capacity for 70W maximum draw. For multi-unit installations, calculate aggregate draw and size circuits accordingly — do not share circuits with high-inrush equipment without verified breaker capacity.
• HVAC Capacity: The AI-CLT6 manages airflow but does not replace room-level HVAC sizing. Total sensible and latent heat load for the cultivation space must be calculated independently. Ventilation airflow rates should be coordinated with your HVAC engineer to ensure negative pressure targets do not conflict with makeup air supply.
• Sensor Integration: For dynamic climate-based programming, compatible temperature and humidity sensors must be positioned to provide accurate room-representative readings. Sensor placement at canopy level is recommended for cultivation environment applications.

Facility Integration Data

Use the figures below to model ventilation infrastructure costs and replacement cycles across fleet deployments of the AI-CLT6 in licensed commercial facilities.

Operator Field Note

• Electrical Draw: Maximum power draw is 70W at full speed on a 100–240V AC, 50/60Hz supply. At 120V, this represents approximately 0.58A at full load. At 240V, approximately 0.29A. Confirm circuit capacity before installation, particularly in multi-unit configurations sharing a single branch circuit.

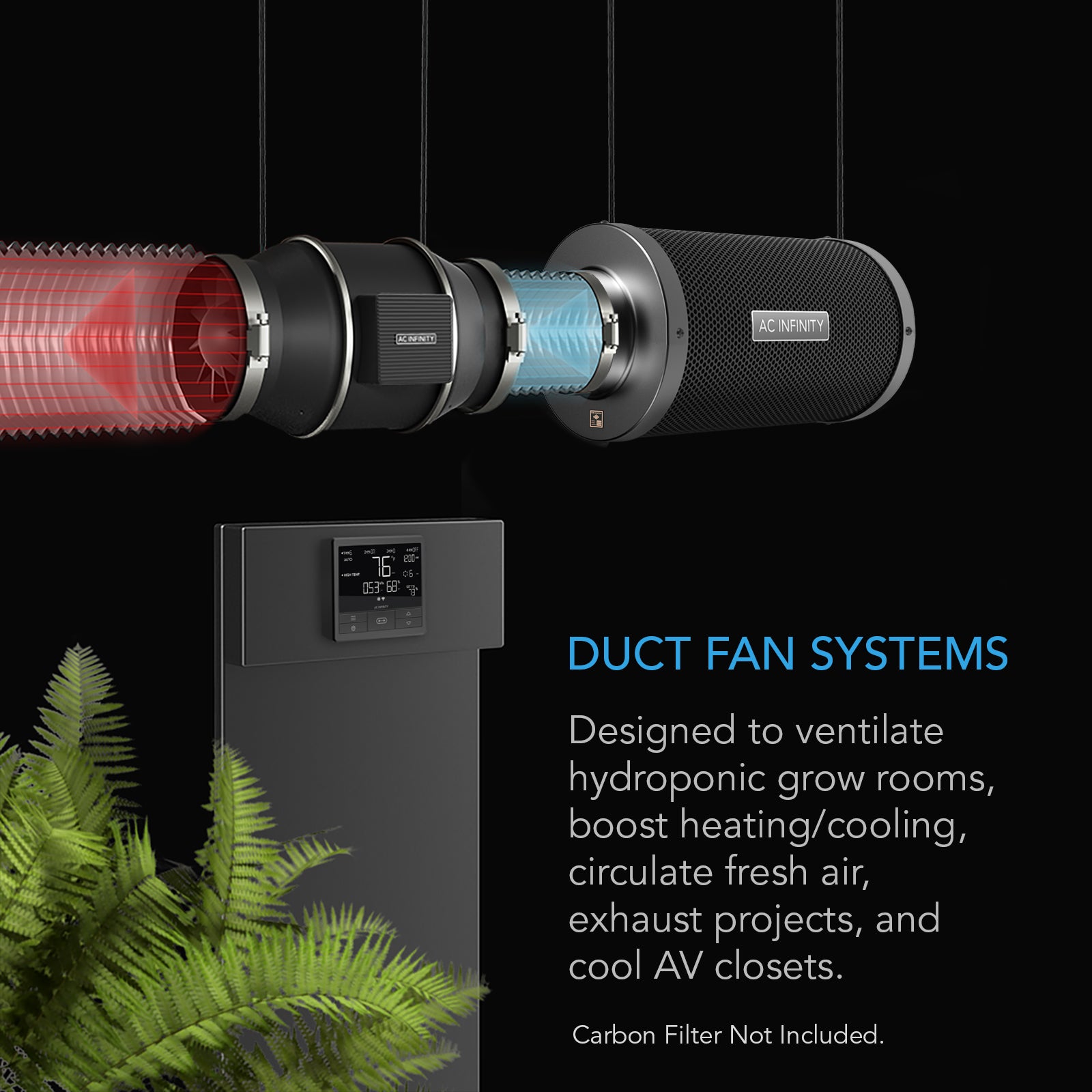

• Static Pressure Ceiling: The unit is rated to 503 Pa maximum static pressure. For duct runs with carbon filter resistance, calculate total system static pressure including filter drop, duct friction, and fitting losses before selecting this unit. Exceeding the static pressure rating will result in reduced airflow, not fan failure, but will degrade environmental control performance.
• Acoustic Profile: The 32 dBA noise rating applies at the rated operating point. Actual noise output will vary with speed setting and duct configuration. Turbulence at duct transitions and filter faces can add acoustic energy independent of the fan's rated output.
• Motor Life Benchmark: The 67,000-hour L10 life figure is a population-level engineering benchmark — it represents the point at which 10% of motors in a tested population are expected to have reached end of life. It is not a guaranteed individual unit lifespan. Plan preventive replacement schedules accordingly for critical airflow paths.
• Certification Scope: ETL, CE, RoHS, SAA, and IC certifications apply to the whole product as shipped. Modifications to the unit, duct connections, or controller wiring outside manufacturer specifications may void certification status and warranty coverage.

Shipping & Logistics

• Origin: Ships from Cannafull Spectrum Solutions' authorized distribution point within the contiguous 48 United States. This product is not available for shipment outside the contiguous U.S.
• Processing: Orders are processed within 1–2 business days of confirmed payment. Expedited processing is not guaranteed — contact (888) 378-0017 for time-sensitive deployment inquiries.
• Damage: Inspect all shipments within 48 hours of delivery. Document any visible damage with photographs before opening packaging. Report damage to Cannafull Spectrum Solutions within 48 hours of receipt at (888) 378-0017 or sales@cannafullspec.com. Claims submitted after 48 hours may not be eligible for carrier resolution.
• Returns: Units in original, uninstalled condition are eligible for return within 30 days of delivery. A Return Authorization (RA) number issued by Cannafull Spectrum Solutions is required before return shipment. Contact (888) 378-0017 or sales@cannafullspec.com to initiate.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions? (888) 378-0017 or sales@cannafullspec.com

What's in the Box

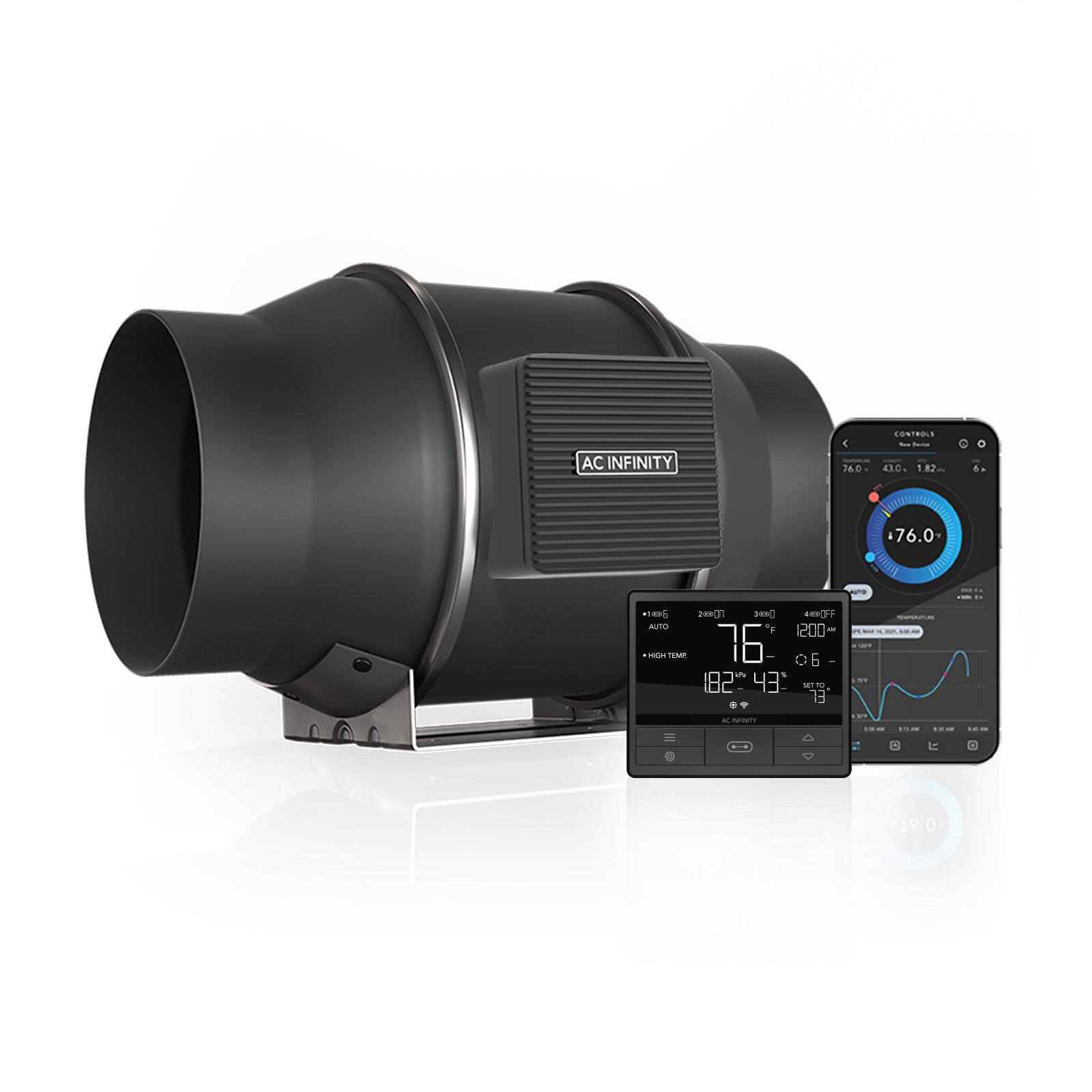

• AC Infinity CLOUDLINE T Series AI-CLT6 6-inch mixed-flow inline fan with integrated smart controller
• Controller unit (integrated — no separate controller component required for standalone operation)
• Documentation package (user manual and certification documentation)

Note: Box contents are based on available manufacturer data. Verify complete contents upon receipt. Contact Cannafull Spectrum Solutions at (888) 378-0017 if any components are missing or damaged.

Regional Compliance & Deployment Notes

Commonly deployed in sealed commercial cultivation facilities across the United States. Installation, HVAC sizing, and electrical requirements vary by jurisdiction; always verify with local code.
