AC Infinity CLOUDLINE PRO T10 | Sistema de ventilador de conducto en línea silencioso con controlador de temperatura y humedad VPD | 10 pulgadas

Key Specs: 255W Max Draw | 1059 Pa Static Pressure | 48 dBA | 10" Duct | 100-240V AC / 50-60Hz | 67,000-Hr L10 Life | 2-Year Warranty

Kill Variance. Print Yield.

Every sealed cultivation room running on uncontrolled or fixed-speed ventilation is paying a variance tax it cannot see on a spreadsheet. Legacy passive failure points — fixed dampers, single-speed motors, manual override schedules — do not degrade dramatically. They degrade silently. Temperature stratification builds by fractions of a degree. CO2 distribution becomes uneven across canopy zones. Humidity gradients widen between the inlet and the far wall. None of these failures trigger an alarm. They simply compress your yield, batch after batch, while the root cause stays invisible to operators managing by observation rather than data.

After deployment of a properly integrated atmospheric control platform, the facility operates differently at a structural level. Airflow responds to actual room conditions rather than a fixed timer. Pressure differentials between zones hold within spec without manual adjustment. Operators stop reacting to environmental drift and start managing by exception. Scheduling runs autonomously across day and night cycles. The cultivation environment becomes a controlled variable rather than a source of uncontrolled risk — and yield consistency follows as a direct consequence of environmental consistency.

The CLOUDLINE T10 delivers that control architecture through a mixed-flow motor platform rated to 1059 Pa of static pressure, operating at a maximum draw of 255W across a universal voltage input of 100-240V AC at 50/60Hz — making it compatible with both domestic and international facility electrical infrastructure without transformer intervention. The integrated controller connects via a 120-inch (10-foot) cord to the fan unit and an 96-inch (8-foot) cord to the power supply, enabling flexible rack or wall mounting with controller dimensions of 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm). At 48 dBA under load, acoustic output remains within acceptable thresholds for occupied facility environments. The L10 rated bearing life of 67,000 hours establishes a maintenance interval that aligns with multi-year facility depreciation schedules rather than seasonal replacement cycles. In practical terms, the CLOUDLINE T10 delivers 1059 Pa static pressure through a 10-inch duct at a maximum draw of 255W with 48 dBA acoustic output and a 67,000-hour rated service life.

Where This Belongs (and Doesn't)

The CLOUDLINE T10 requires a 10-inch duct infrastructure and a dedicated circuit capable of sustaining 255W continuous draw. Facility electrical and HVAC integration should be verified by a licensed contractor prior to installation.

Infrastructure Note: The CLOUDLINE T10 fan unit mounts via a 5.90 x 5.90 in. (15.0 x 15.0 cm) hole pattern with 0.472 in. (1.2 cm) screw holes. The controller mounts via a 4.71 x 2.64 in. (12.0 x 6.7 cm) hole pattern with 0.119 in. (0.3 cm) screw holes. Confirm structural mounting surface load capacity and duct alignment before installation.

How It Works

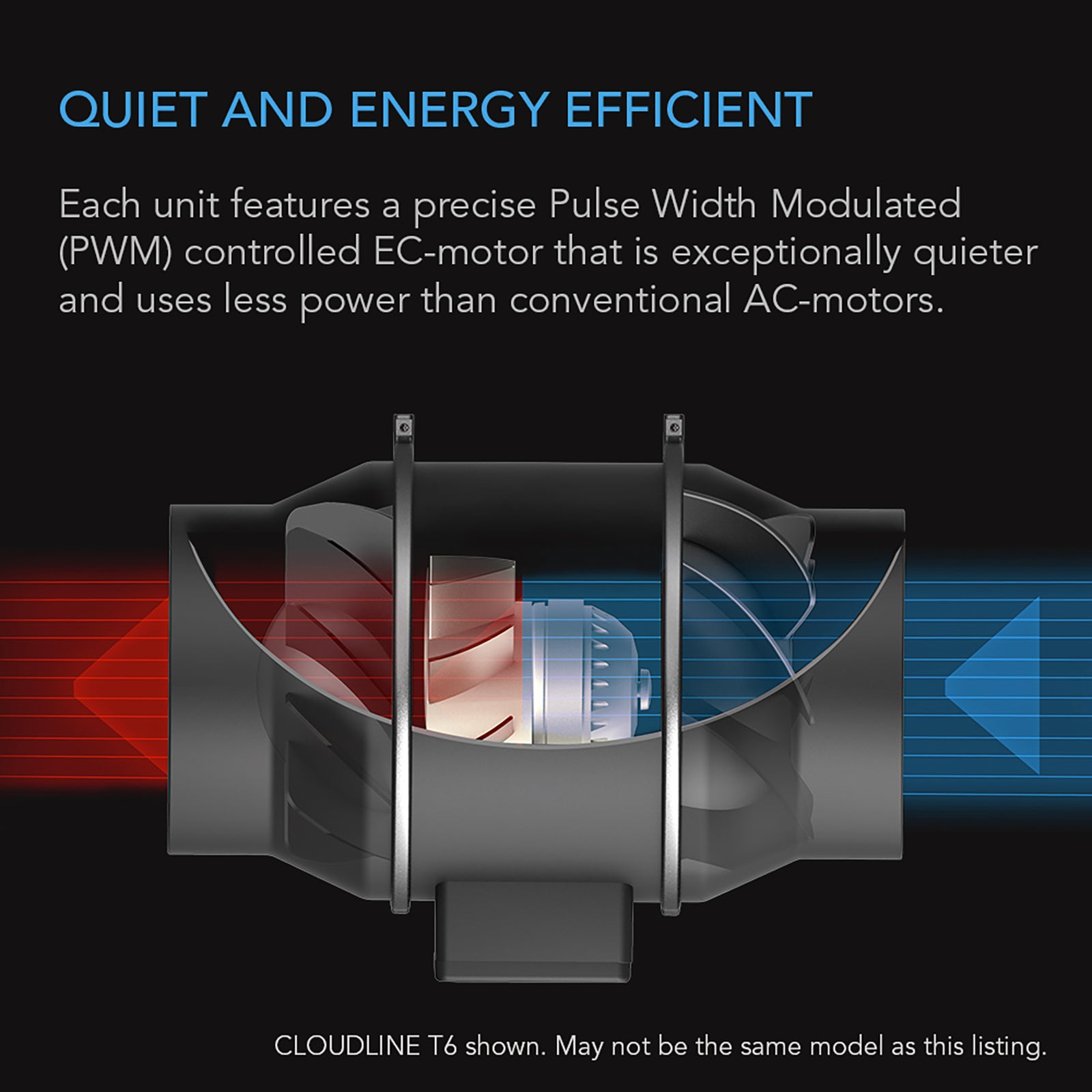

The CLOUDLINE T10 operates on a mixed-flow motor architecture that combines the high static pressure characteristics of a centrifugal fan with the airflow volume profile of an axial design — producing 1059 Pa of static pressure capacity within a 10-inch duct form factor. This static pressure rating is the operational core of the unit: it determines how much duct resistance the fan can overcome without velocity loss, which directly governs whether airflow targets are met at the terminal point of the duct run rather than only at the fan outlet.

Speed control is managed through the integrated Cortex controller, which connects to the fan unit via a 120-inch (10-foot) cord — providing installation flexibility across standard rack and ceiling-mount configurations. The controller itself measures 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) and mounts via a 4.71 x 2.64 in. (12.0 x 6.7 cm) hole pattern, sized for surface or DIN-adjacent mounting in equipment enclosures. The 96-inch (8-foot) power cord to the plug provides adequate reach for most panel-adjacent installations without extension hardware. Variable speed operation allows the facility to dial airflow output to actual room demand rather than running at fixed maximum draw — reducing electrical consumption during low-demand periods and extending motor bearing life beyond the rated 67,000-hour L10 threshold under partial-load conditions.

Acoustic performance is rated at 48 dBA under operating conditions — a figure that reflects the mixed-flow motor's efficiency advantage over standard squirrel-cage blower designs, which typically operate at higher noise floors for equivalent static pressure output. Universal voltage input (100-240V AC, 50/60Hz) eliminates the need for step-down transformers in facilities operating on non-standard supply voltages, and the 255W maximum draw establishes a clear circuit sizing baseline for electrical planning. Certifications include CE, ETL, RoHS, SAA, FCC, and IC — covering the primary compliance frameworks required for commercial installation across licensed U.S. cultivation facilities. In practical terms, the CLOUDLINE T10 delivers 1059 Pa static pressure through a 10-inch duct at 255W maximum draw, 48 dBA, on 100-240V AC input with a 67,000-hour L10 rated bearing life.

System Integration

To operate this platform at peak efficiency, verify your ecosystem matches these requirements:

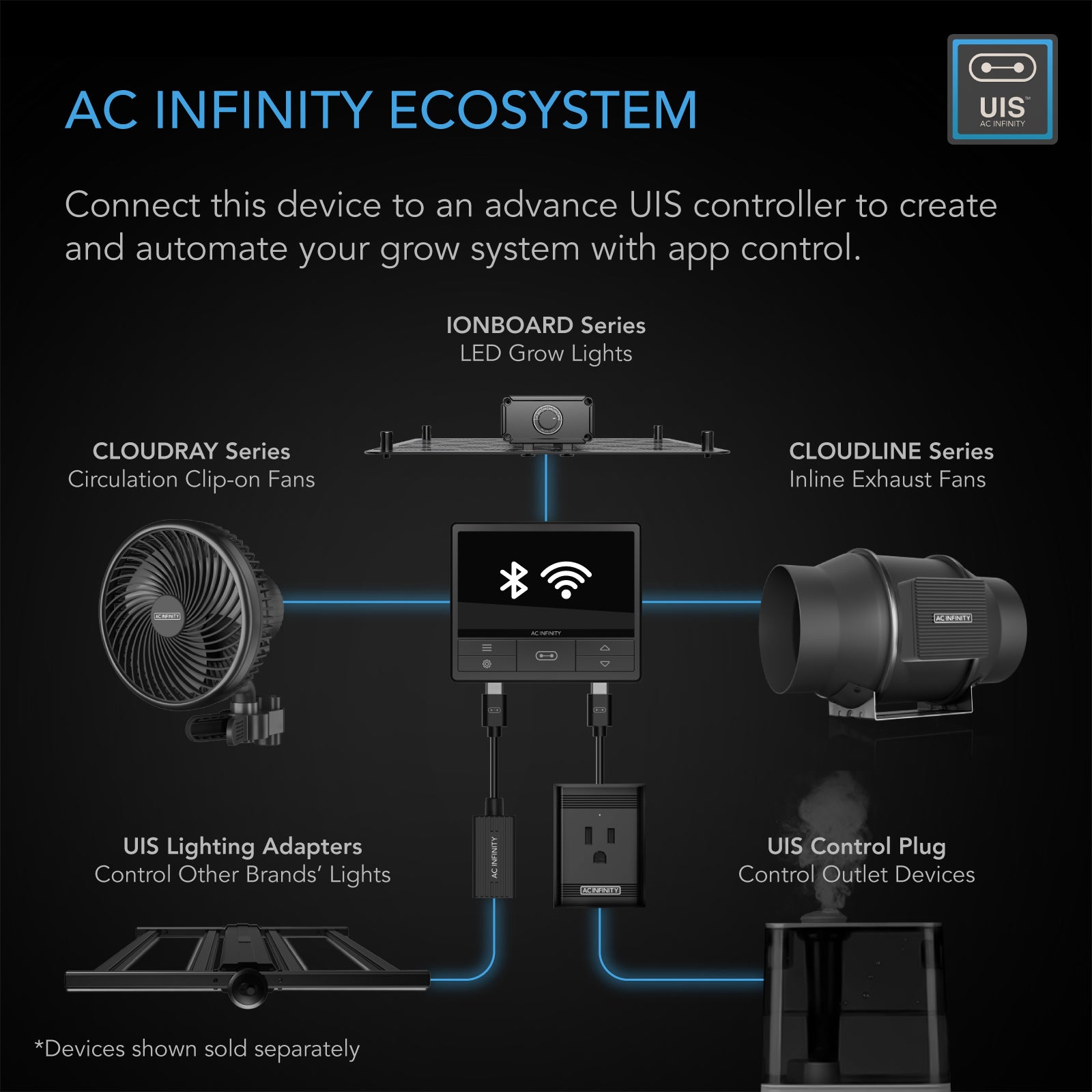

• Controller Compatibility: The CLOUDLINE T10 integrates with AC Infinity UIS ecosystem controllers for multi-zone scheduling, trigger-based automation, and data logging. Confirm controller firmware version supports 10-inch fan unit pairing before deployment.
• Duct Infrastructure: Requires 10-inch duct connections at inlet and outlet. Use rigid metal duct where possible to preserve static pressure performance; flexible duct runs should be minimized and kept taut to reduce resistance losses.
• Electrical Circuit: Dedicate a circuit capable of sustaining 255W continuous draw. Universal input (100-240V AC, 50/60Hz) eliminates transformer requirements across standard U.S. commercial supply voltages.
• HVAC Capacity: Coordinate fan airflow output with room HVAC sizing. The 1059 Pa static pressure rating must be matched against actual duct system resistance curves — consult your mechanical engineer for duct loss calculations on runs exceeding 25 linear feet.
• Mounting Structure: Fan unit mounts via 5.90 x 5.90 in. (15.0 x 15.0 cm) hole pattern; verify that the mounting surface or duct hanger system is rated for the fan unit's operational load including vibration transfer.

Facility Integration Data

Use the figures below to model fleet-level electrical and operational cost impact across your facility's ventilation infrastructure before committing to a deployment scale.

Operator Field Note

• Fan Unit Dimensions: 9.81 x 15.20 x 11.30 in. (24.9 x 38.6 x 28.6 cm). Verify clearance in duct chase or ceiling plenum before installation. Fan unit mounting hole pattern is 5.90 x 5.90 in. (15.0 x 15.0 cm) with 0.472 in. (1.2 cm) screw holes.
• Electrical Draw: Maximum 255W at 100-240V AC, 50/60Hz. At 120V, maximum current draw is approximately 2.1A; at 240V, approximately 1.1A. Confirm branch circuit ampacity with your licensed electrician before energizing.
• Static Pressure Ceiling: 1059 Pa is the maximum rated static pressure. Actual delivered airflow will decrease as duct system resistance increases. Long duct runs, multiple elbows, and undersized fittings all reduce effective airflow at the terminal point — model your duct system resistance before specifying fan quantity.
• Acoustic Output: 48 dBA at operating conditions. In occupied or noise-sensitive facility zones, evaluate mounting isolation hardware to reduce vibration transmission to duct and structural surfaces.
• Controller Cord Management: The 120-inch (10-foot) cord between fan and controller and the 96-inch (8-foot) power cord are fixed lengths. Plan mounting positions accordingly — do not extend cords with non-rated splicing hardware.
• L10 Life Reference: The 67,000-hour L10 rating means that under rated operating conditions, 90% of units in a population are statistically expected to remain operational at that hour threshold. Actual service life in variable-speed, partial-load operation may exceed this figure.

Shipping & Logistics

• Origin: Ships from Cannafull Spectrum Solutions' authorized distribution point within the contiguous 48 United States.
• Processing: Orders are processed within 1-2 business days of payment confirmation. Tracking information is provided upon shipment.
• Damage: Inspect all shipments within 48 hours of delivery. Document any freight damage with photographs and contact Cannafull Spectrum Solutions within 48 hours at (888) 378-0017 or sales@cannafullspec.com. Claims submitted after 48 hours may not be eligible for freight damage resolution.
• Returns: Units may be returned within 30 days of delivery in original, uninstalled condition with a valid Return Authorization (RA) number issued by Cannafull Spectrum Solutions. Contact (888) 378-0017 or sales@cannafullspec.com to request an RA before shipping any return.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions? (888) 378-0017 or sales@cannafullspec.com

What's in the Box

• AC Infinity CLOUDLINE T10 (AI-CLT10) 10-inch inline duct fan unit
• Integrated Cortex controller with 120-inch (10-foot) connecting cord to fan unit
• Power cord — 96-inch (8-foot) cord to plug
• Mounting hardware for fan unit (5.90 x 5.90 in. hole pattern, 0.472 in. screw holes)
• Mounting hardware for controller (4.71 x 2.64 in. hole pattern, 0.119 in. screw holes)

Note: Box contents are based on available manufacturer data. Verify complete contents upon receipt. Contact Cannafull Spectrum Solutions at (888) 378-0017 if any components are missing or damaged.

Regional Compliance & Deployment Notes

Commonly deployed in sealed commercial cultivation facilities across the United States. Installation, HVAC sizing, and electrical requirements vary by jurisdiction; always verify with local code.
