AC Infinity CLOUDLINE PRO S8 | Sistema de ventilador de conducto en línea silencioso con controlador de velocidad | 8 pulgadas

Key Specs: 180W | 807 CFM | 39 dBA | 746 Pa Static Pressure | 10-Speed PWM EC Motor | 67,000-Hour L10 Life | 2-Year Warranty

Kill Variance. Print Yield.

Every sealed room running on legacy infrastructure is bleeding yield through the same invisible drain: uncontrolled airflow. Fixed-speed fans run at full draw regardless of room demand, generating excess heat, acoustic interference, and static pressure mismatches that force operators into manual intervention cycles. When the fan can't respond to the room, the room responds to the fan — and the result is temperature stratification, humidity spikes, and canopy-level VPD drift that no lighting upgrade can compensate for. The variance isn't dramatic. It's chronic. And chronic variance is the most expensive line item on a facility's P&L that never appears on a report.

After deployment, the facility operates differently. The CLOUDLINE S8 reads room conditions through UIS-connected controllers and modulates airflow in real time — no manual dial adjustments, no fixed-speed thermal buildup, no dead zones between speed settings. Climate and time-based programming runs autonomously across the cultivation cycle, maintaining the atmospheric setpoints that canopy density and secondary metabolite expression depend on. Operators stop reacting to environmental drift and start managing by exception. The room holds its parameters. The canopy holds its uniformity. The harvest holds its weight.

The mechanism behind that stability is a PWM-controlled EC motor paired with a mixed-flow impeller design incorporating stator blades and hydrodynamic wind circles — an architecture that sustains 807 CFM of airflow at up to 746 Pa of static pressure, even in high-resistance ducted configurations where conventional AC motors stall or surge. At 39 dBA and 180W maximum draw, the unit operates below the acoustic and thermal thresholds that compromise sealed room environments. Ten discrete speed levels are accessible via the included wired controller or any UIS-compatible smart controller with dynamic climate and time-based programming, enabling multi-device integration across the full AC Infinity ecosystem. Dual ball bearings support an L10 life expectancy of 67,000 hours, eliminating the bearing-failure replacement cycles that interrupt production schedules. In practical terms, the CLOUDLINE S8 delivers 807 CFM at 746 Pa static pressure through an 8-inch duct at 180W maximum draw with a 39 dBA noise floor.

Where This Belongs (and Doesn't)

The CLOUDLINE S8 requires an 8-inch duct connection and a dedicated 100–240V AC circuit capable of supporting 180W continuous draw. UIS smart controller integration requires compatible AC Infinity UIS controller hardware sold separately. Verify duct sizing, static pressure budget, and circuit capacity before installation.

Infrastructure Note: The CLOUDLINE S8 fan unit measures 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm) with mounting hole-to-hole spacing of 3.94 x 3.70 in. (10.0 x 9.4 cm) and a screw hole diameter of 0.217 in. (0.55 cm). The controller cord extends 120 in. (10 feet) from the fan unit; the power cord extends 96 in. (8 feet) to the plug. Confirm mounting clearance and cord routing before finalizing installation layout.

How It Works

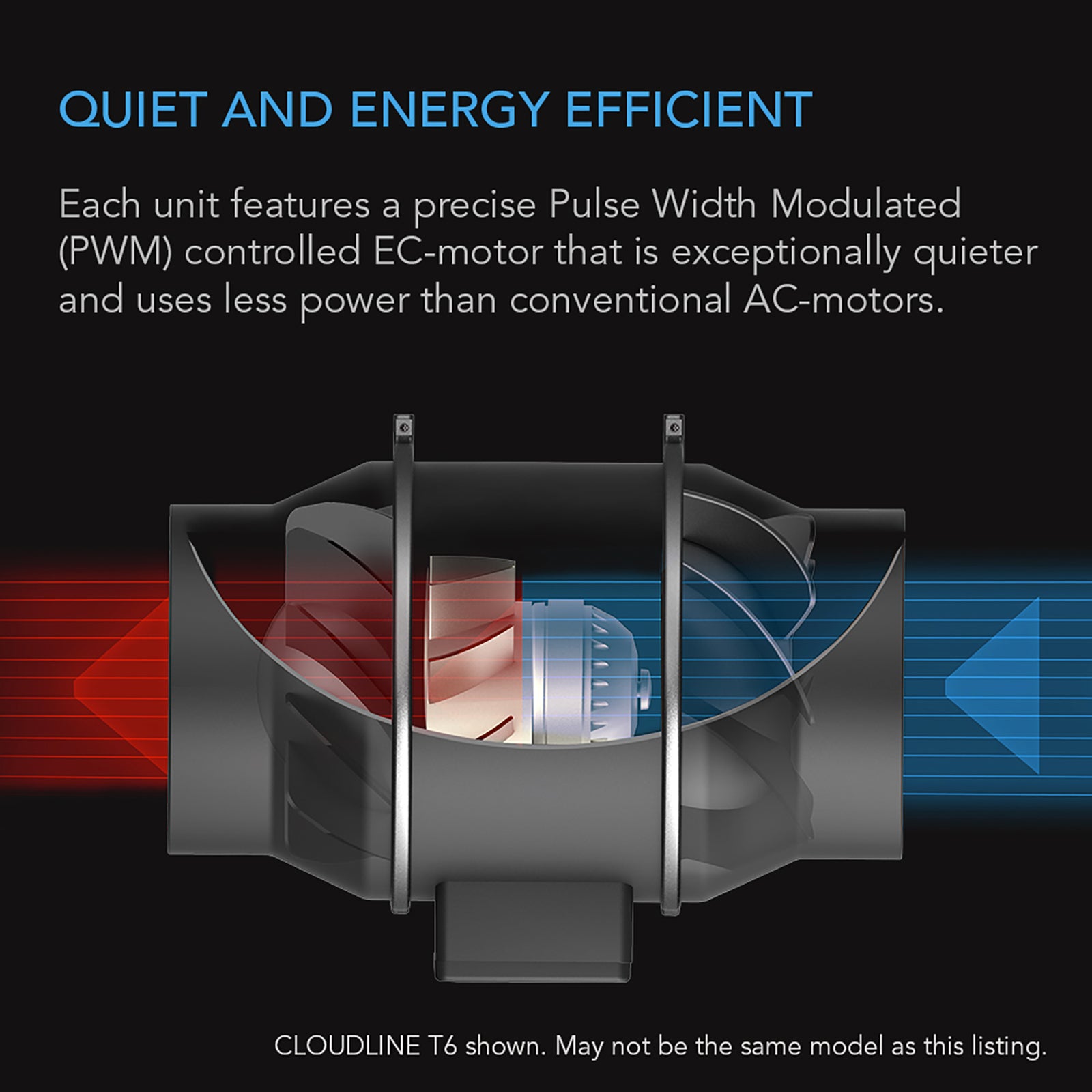

The CLOUDLINE S8 is built around a PWM-controlled EC (electronically commutated) motor — a motor architecture that accepts direct pulse-width modulation signals from the included controller or any UIS-compatible smart controller, translating digital speed commands into precise impeller RPM without the voltage-stepping inefficiencies of conventional AC motor speed control. EC motors draw only the wattage required to maintain the commanded speed, which is why the S8 operates at a maximum of 180W while delivering 807 CFM — a power-to-airflow ratio that fixed-speed AC motors cannot match at equivalent duct sizes.

The impeller itself uses a mixed-flow design incorporating stator blades and hydrodynamic wind circles. Mixed-flow geometry combines the axial thrust of a propeller-style fan with the centrifugal pressure generation of a blower wheel, producing an airflow profile that maintains delivery volume even as downstream static pressure increases. At 746 Pa of rated static pressure, the S8 continues moving air through long duct runs, carbon filter assemblies, and multi-elbow configurations that would cause conventional inline fans to stall or surge. The stator blades straighten the airflow exiting the impeller, reducing turbulence-induced noise and improving pressure recovery — which is the primary reason the unit achieves 39 dBA at full operational output.

Speed management operates across 10 discrete levels via the included wired controller (dimensions: 3.34 x 2.95 x 0.51 in. / 8.5 x 3.6 x 1.3 cm). When connected to a UIS smart controller, the S8 gains access to dynamic climate-based programming — automatically modulating speed in response to temperature and humidity sensor data — and time-based scheduling for lights-on/lights-off airflow transitions. The UIS platform allows the S8 to operate as a coordinated node within a multi-device ecosystem, sharing data and control logic with other connected UIS devices across the facility. The motor box containing the impeller and blades detaches from the mounted frame for in-place cleaning and maintenance without requiring duct disconnection. Dual ball bearings support an L10 life expectancy of 67,000 hours, establishing a predictable service interval that facility maintenance schedules can be built around. In practical terms, the CLOUDLINE S8 delivers 807 CFM at 746 Pa through an 8-inch duct at 180W maximum draw, operating at 39 dBA with 10-speed PWM control and full UIS ecosystem integration.

System Integration

To operate this platform at peak efficiency, verify your ecosystem matches these requirements:

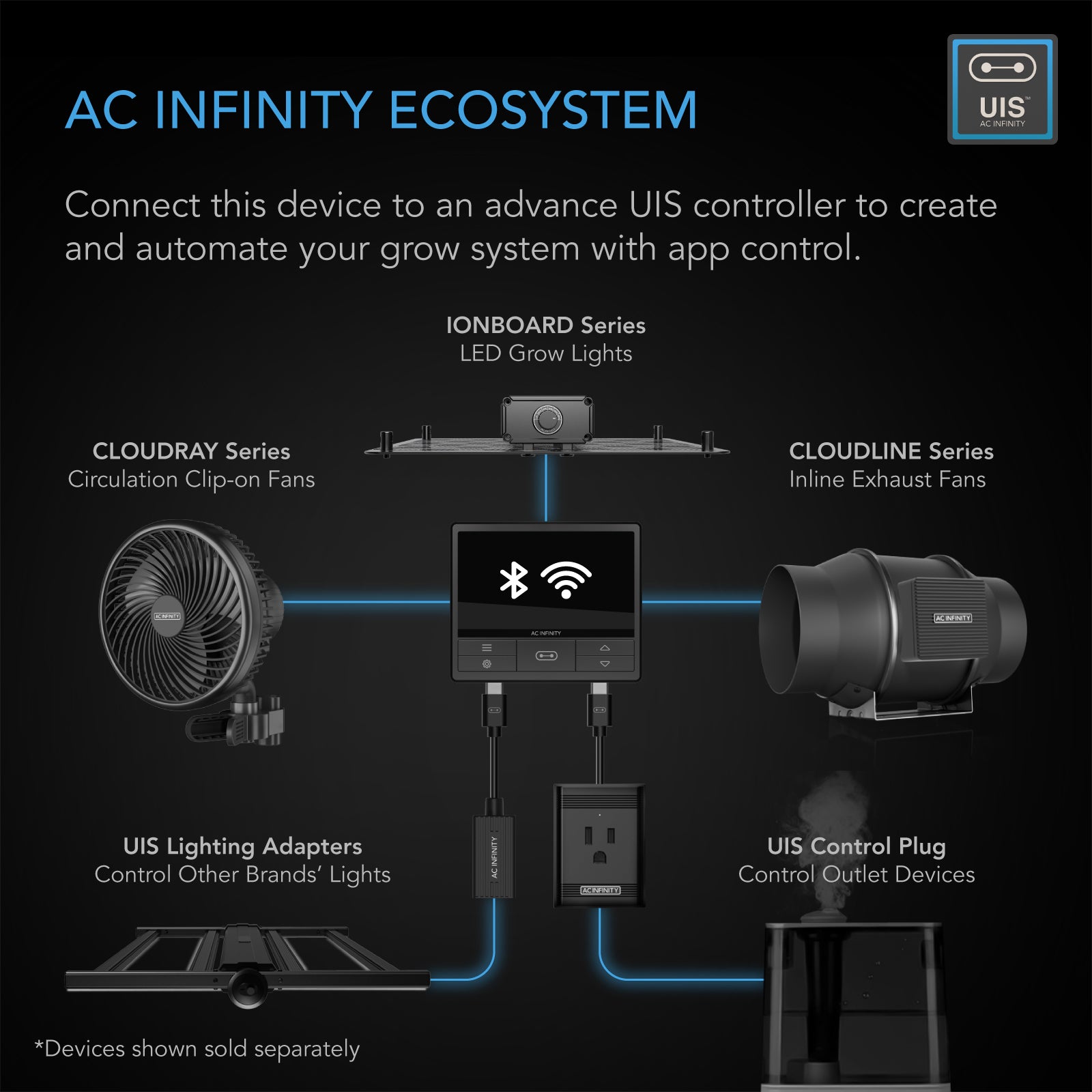

• Controller Compatibility: The included wired 10-speed controller provides standalone operation. For dynamic climate and time-based programming, a UIS-compatible smart controller (sold separately) is required. The S8 integrates with all UIS controllers and can operate as part of a multi-device UIS network.
• Duct Infrastructure: Requires 8-inch duct connections at inlet and outlet. Verify duct diameter, run length, and number of elbows to confirm the 746 Pa static pressure rating is sufficient for your specific configuration.
• Electrical Circuit: Requires a 100–240V AC, 50/60Hz circuit rated for 180W continuous draw. Verify circuit capacity and breaker sizing before installation. The power cord extends 96 in. (8 feet) to the plug.
• Mounting Structure: Mounting hole-to-hole spacing is 3.94 x 3.70 in. (10.0 x 9.4 cm) with 0.217 in. (0.55 cm) screw holes. Confirm structural support is adequate for the fan unit dimensions of 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm).
• HVAC Coordination: In sealed room deployments, integrate airflow calculations from the S8 into the facility's overall HVAC load and fresh air exchange budget. The 807 CFM output must be balanced against supply air volume to maintain neutral or negative room pressure as required by facility design.

Facility Integration Data

Use the figures below to model fleet-level operating cost and procurement planning across multi-unit deployments of the CLOUDLINE S8.

Operator Field Note

• Mounting Dimensions: Fan unit measures 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm). Mounting hole-to-hole spacing is 3.94 x 3.70 in. (10.0 x 9.4 cm) with 0.217 in. (0.55 cm) screw hole diameter. Confirm structural support and clearance before installation — weight is not specified in manufacturer source data; verify with AC Infinity before overhead mounting in high-traffic zones.
• Electrical Draw: Maximum power draw is 180W at 100–240V AC, 50/60Hz. Size the branch circuit and breaker accordingly. The power cord is 96 in. (8 feet) — plan outlet placement to avoid extension cord use on a 180W continuous load.
• Controller Cord Routing: The controller cord extends 120 in. (10 feet) from the fan unit. In ceiling or high-mount installations, plan cord routing to keep the controller accessible at operator level without creating a trip or snag hazard.
• Static Pressure Budget: Rated at 746 Pa. Before finalizing duct layout, calculate total system static pressure including filter resistance, duct length, and elbow count. Exceeding the rated static pressure will reduce airflow delivery below the 807 CFM specification.
• Maintenance Access: The motor box containing the impeller and blades detaches from the mounted frame without requiring duct disconnection. Schedule periodic impeller cleaning as part of the facility's preventive maintenance program — debris accumulation on the impeller reduces airflow and increases motor load.
• Acoustic Setpoint: Rated at 39 dBA at full speed. In facilities with adjacent occupied spaces or noise-sensitive monitoring equipment, operate at reduced speed levels via the 10-speed controller to maintain acoustic compliance.

Shipping & Logistics

• Origin: Ships from Cannafull Spectrum Solutions' authorized distribution point within the contiguous 48 United States. This product is not available for shipment outside the contiguous 48 states.
• Processing: Orders are processed within 1–2 business days of payment confirmation. Tracking information is provided upon shipment.
• Damage: Inspect all shipments within 48 hours of delivery. Document any damage with photographs and contact Cannafull Spectrum Solutions at (888) 378-0017 or sales@cannafullspec.com within 48 hours of receipt. Claims submitted after this window may not be eligible for carrier damage coverage.
• Returns: Returns accepted within 30 days of delivery for units in original, uninstalled condition. A Return Authorization (RA) number is required before returning any unit. Contact Cannafull Spectrum Solutions to initiate the RA process before shipping.
• Restocking Fee: Returns of non-defective items are subject to a restocking fee of up to 25% per our Return Policy. Review full terms at cannafullspec.com/pages/return-policy before ordering.

Questions? (888) 378-0017 or sales@cannafullspec.com

What's in the Box

• AC Infinity CLOUDLINE S8 (AI-CLS8) inline duct fan unit
• Wired 10-speed fan controller (3.34 x 2.95 x 0.51 in. / 8.5 x 3.6 x 1.3 cm)
• Controller cord — 120 in. (10 feet)
• Power cord — 96 in. (8 feet) to plug
• Mounting hardware (screw hole diameter: 0.217 in. / 0.55 cm)

Note: Box contents are based on available manufacturer data. Verify complete contents upon receipt. Contact Cannafull Spectrum Solutions at (888) 378-0017 if any components are missing or damaged.

Regional Compliance & Deployment Notes

Commonly deployed in sealed commercial cultivation facilities across the United States. Installation, HVAC sizing, and electrical requirements vary by jurisdiction; always verify with local code.
